MODEL FO-2950M FACSIMILE OPERATION MANUAL 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 1. Installation 2. Sending Documents 3. Receiving Documents 4. Making Copies 5. Making Telephone Calls 6. Answering Machine Hookup 7. Special Functions 8. Printing Lists 9. Maintenance 10. Troubleshooting FO-2950M FACSIMILE

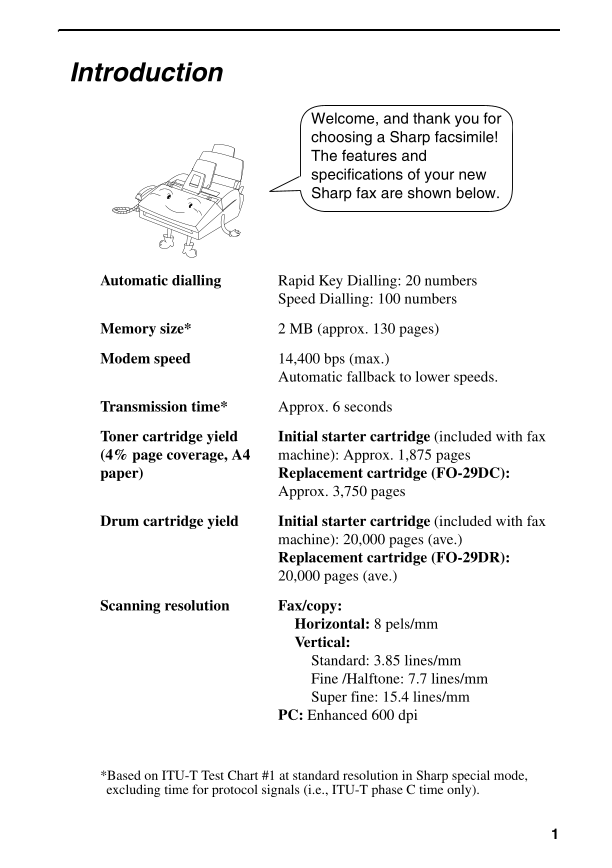

all-fo2950hk.book Page 1 Wednesday, August 9, 2000 11:13 AM Introduction Welcome, and thank you for choosing a Sharp facsimile! The features and specifications of your new Sharp fax are shown below. Automatic dialling Rapid Key Dialling: 20 numbers Speed Dialling: 100 numbers Memory size* 2 MB (approx. 130 pages) Modem speed 14,400 bps (max.) Automatic fallback to lower speeds. Transmission time* Approx. 6 seconds Toner cartridge yield Initial starter cartridge (included with fax (4% page coverage, A4 machine): Approx. 1,875 pages paper) Replacement cartridge (FO-29DC): Approx. 3,750 pages Drum cartridge yield Initial starter cartridge (included with fax machine): 20,000 pages (ave.) Replacement cartridge (FO-29DR): 20,000 pages (ave.) Scanning resolution Fax/copy: Horizontal: 8 pels/mm Vertical: Standard: 3.85 lines/mm Fine /Halftone: 7.7 lines/mm Super fine: 15.4 lines/mm PC: Enhanced 600 dpi *Based on ITU-T Test Chart #1 at standard resolution in Sharp special mode, excluding time for protocol signals (i.e., ITU-T phase C time only). 1

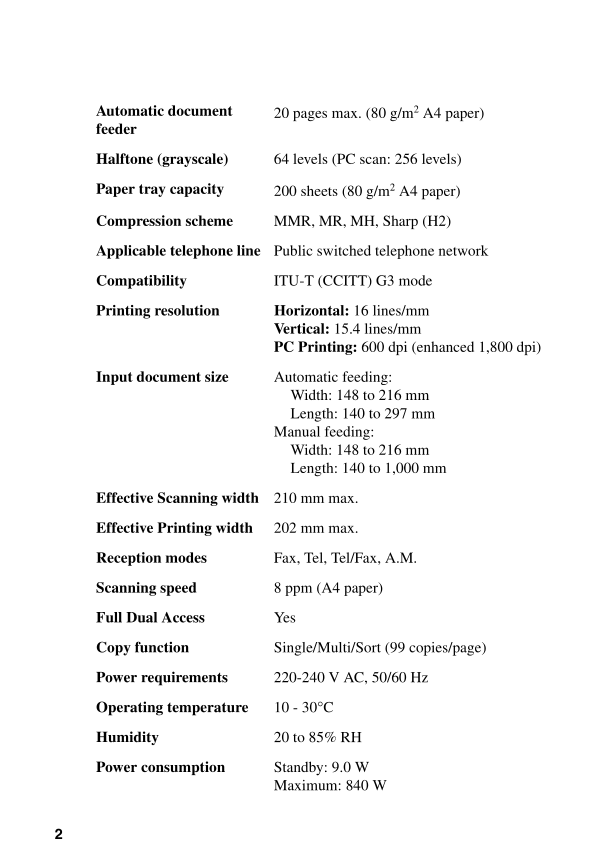

all-fo2950hk.book Page 2 Wednesday, August 9, 2000 11:13 AM Automatic document 20 pages max. (80 g/m2 A4 paper) feeder Halftone (grayscale) 64 levels (PC scan: 256 levels) Paper tray capacity 200 sheets (80 g/m2 A4 paper) Compression scheme MMR, MR, MH, Sharp (H2) Applicable telephone line Public switched telephone network Compatibility ITU-T (CCITT) G3 mode Printing resolution Horizontal: 16 lines/mm Vertical: 15.4 lines/mm PC Printing: 600 dpi (enhanced 1,800 dpi) Input document size Automatic feeding: Width: 148 to 216 mm Length: 140 to 297 mm Manual feeding: Width: 148 to 216 mm Length: 140 to 1,000 mm Effective Scanning width 210 mm max. Effective Printing width 202 mm max. Reception modes Fax, Tel, Tel/Fax, A.M. Scanning speed 8 ppm (A4 paper) Full Dual Access Yes Copy function Single/Multi/Sort (99 copies/page) Power requirements 220-240 V AC, 50/60 Hz Operating temperature 10 - 30°C Humidity 20 to 85% RH Power consumption Standby: 9.0 W Maximum: 840 W 2

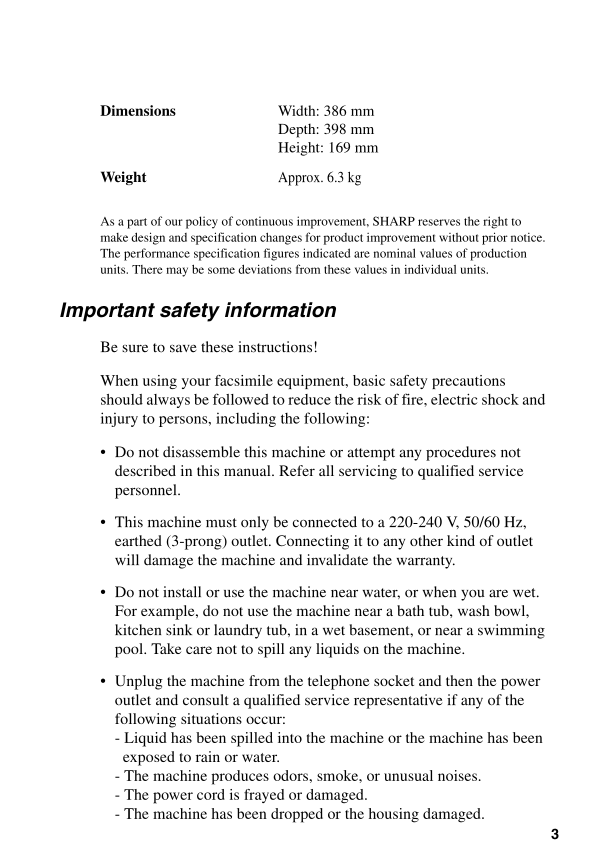

all-fo2950hk.book Page 3 Wednesday, August 9, 2000 11:13 AM Dimensions Width: 386 mm Depth: 398 mm Height: 169 mm Weight Approx. 6.3 kg As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units. Important safety information Be sure to save these instructions! When using your facsimile equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: • Do not disassemble this machine or attempt any procedures not described in this manual. Refer all servicing to qualified service personnel. • This machine must only be connected to a 220-240 V, 50/60 Hz, earthed (3-prong) outlet. Connecting it to any other kind of outlet will damage the machine and invalidate the warranty. • Do not install or use the machine near water, or when you are wet. For example, do not use the machine near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool. Take care not to spill any liquids on the machine. • Unplug the machine from the telephone socket and then the power outlet and consult a qualified service representative if any of the following situations occur: - Liquid has been spilled into the machine or the machine has been exposed to rain or water. - The machine produces odors, smoke, or unusual noises. - The power cord is frayed or damaged. - The machine has been dropped or the housing damaged. 3

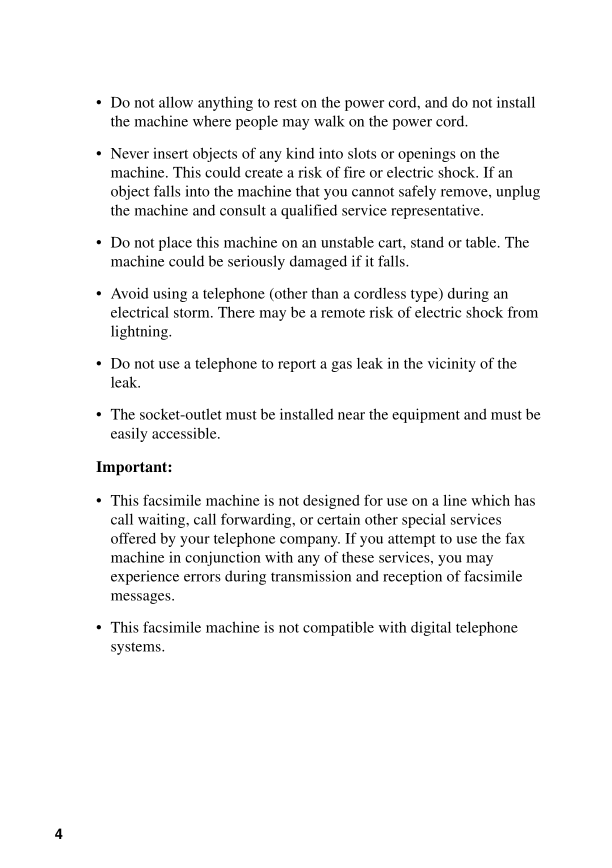

all-fo2950hk.book Page 4 Wednesday, August 9, 2000 11:13 AM • Do not allow anything to rest on the power cord, and do not install the machine where people may walk on the power cord. • Never insert objects of any kind into slots or openings on the machine. This could create a risk of fire or electric shock. If an object falls into the machine that you cannot safely remove, unplug the machine and consult a qualified service representative. • Do not place this machine on an unstable cart, stand or table. The machine could be seriously damaged if it falls. • Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. • Do not use a telephone to report a gas leak in the vicinity of the leak. • The socket-outlet must be installed near the equipment and must be easily accessible. Important: • This facsimile machine is not designed for use on a line which has call waiting, call forwarding, or certain other special services offered by your telephone company. If you attempt to use the fax machine in conjunction with any of these services, you may experience errors during transmission and reception of facsimile messages. • This facsimile machine is not compatible with digital telephone systems. 4

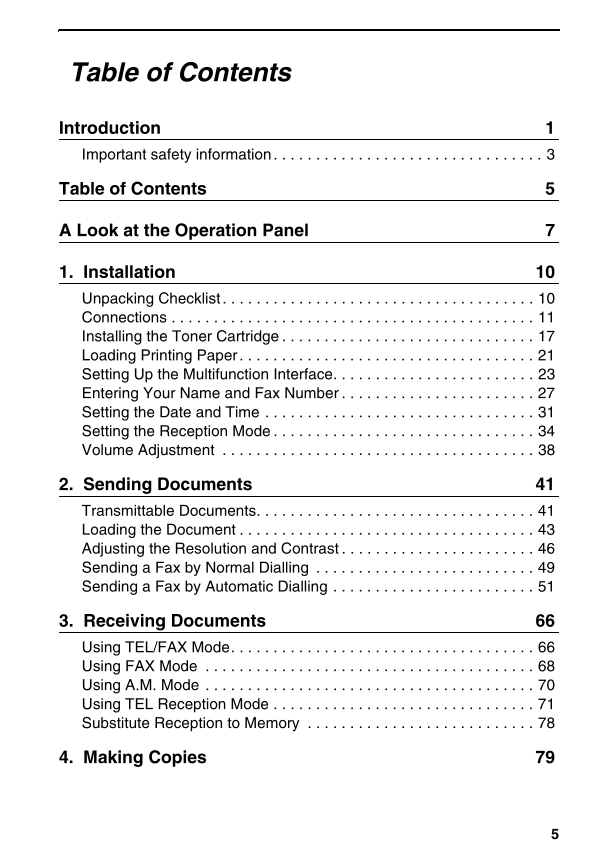

all-fo2950hk.book Page 5 Wednesday, August 9, 2000 11:13 AM Table of Contents Introduction 1 Important safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Table of Contents 5 A Look at the Operation Panel 7 1. Installation 10 Unpacking Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Installing the Toner Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Loading Printing Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Setting Up the Multifunction Interface. . . . . . . . . . . . . . . . . . . . . . . . 23 Entering Your Name and Fax Number . . . . . . . . . . . . . . . . . . . . . . . 27 Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Setting the Reception Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 2. Sending Documents 41 Transmittable Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Loading the Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Adjusting the Resolution and Contrast . . . . . . . . . . . . . . . . . . . . . . . 46 Sending a Fax by Normal Dialling . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Sending a Fax by Automatic Dialling . . . . . . . . . . . . . . . . . . . . . . . . 51 3. Receiving Documents 66 Using TEL/FAX Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Using FAX Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Using A.M. Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Using TEL Reception Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Substitute Reception to Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 4. Making Copies 79 5

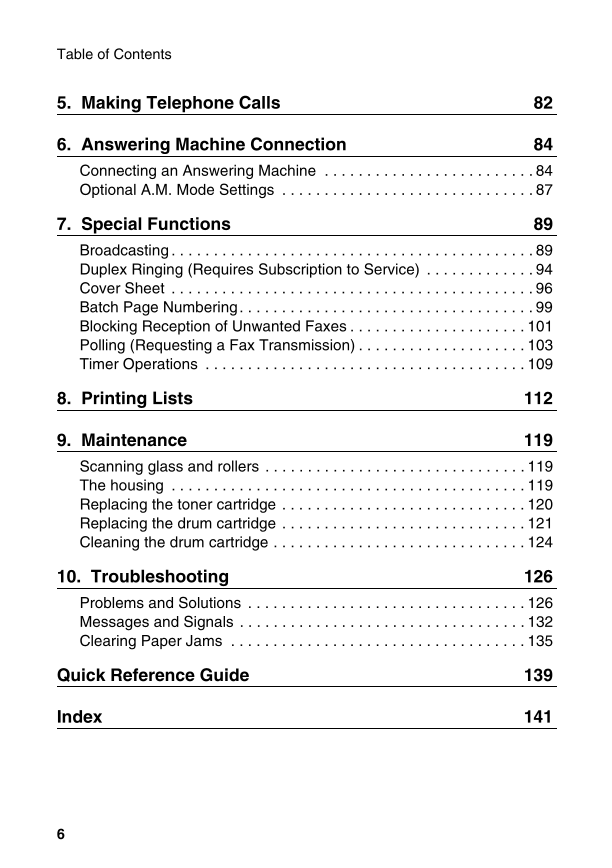

all-fo2950hk.book Page 6 Wednesday, August 9, 2000 11:13 AM Table of Contents 5. Making Telephone Calls 82 6. Answering Machine Connection 84 Connecting an Answering Machine . . . . . . . . . . . . . . . . . . . . . . . . . 84 Optional A.M. Mode Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 7. Special Functions 89 Broadcasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 Duplex Ringing (Requires Subscription to Service) . . . . . . . . . . . . . 94 Cover Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 Batch Page Numbering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99 Blocking Reception of Unwanted Faxes . . . . . . . . . . . . . . . . . . . . . 101 Polling (Requesting a Fax Transmission) . . . . . . . . . . . . . . . . . . . . 103 Timer Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 8. Printing Lists 112 9. Maintenance 119 Scanning glass and rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119 The housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119 Replacing the toner cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Replacing the drum cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 Cleaning the drum cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124 10. Troubleshooting 126 Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126 Messages and Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135 Quick Reference Guide 139 Index 141 6

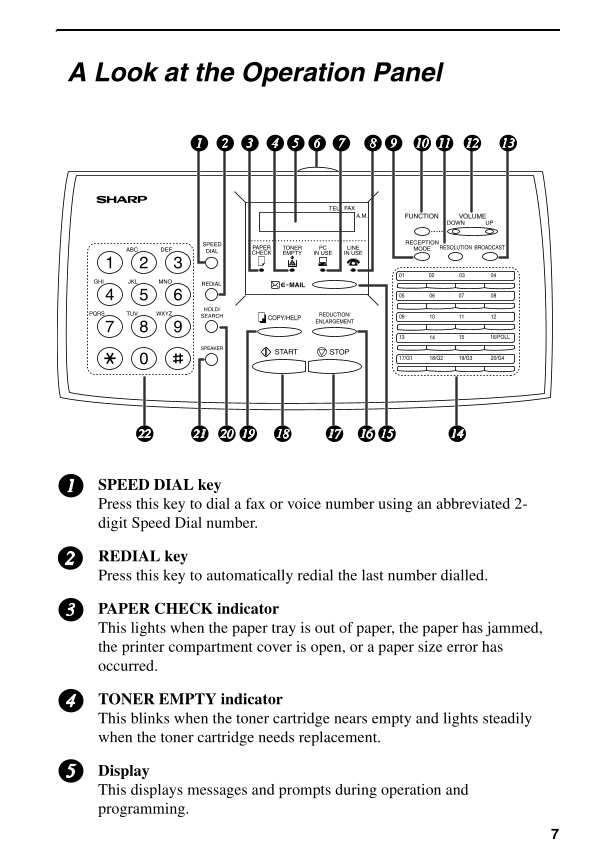

all-fo2950hk.book Page 7 Wednesday, August 9, 2000 11:13 AM A Look at the Operation Panel 1 2 3 4 5 6 7 8 9 10 11 12 13 TEL FAX A.M. FUNCTION VOLUME DOWN UP SPEED RECEPTION ABC DEF PAPER TONER PC LINE MODE RESOLUTION BROADCAST DIAL CHECK EMPTY IN USE IN USE 1 2 3 01 02 03 04 GHI JKL MNO REDIAL 4 5 6 05 06 07 08 HOLD/ PQRS TUV WXYZ SEARCH COPY/HELP REDUCTION/ 09 10 11 12 7 8 9 ENLARGEMENT 13 14 15 16/POLL SPEAKER START STOP 0 17/G1 18/G2 19/G3 20/G4 22 21 20 19 18 17 16 15 14 1 SPEED DIAL key Press this key to dial a fax or voice number using an abbreviated 2- digit Speed Dial number. 2 REDIAL key Press this key to automatically redial the last number dialled. 3 PAPER CHECK indicator This lights when the paper tray is out of paper, the paper has jammed, the printer compartment cover is open, or a paper size error has occurred. 4 TONER EMPTY indicator This blinks when the toner cartridge nears empty and lights steadily when the toner cartridge needs replacement. 5 Display This displays messages and prompts during operation and programming. 7
