USER’S GUIDE

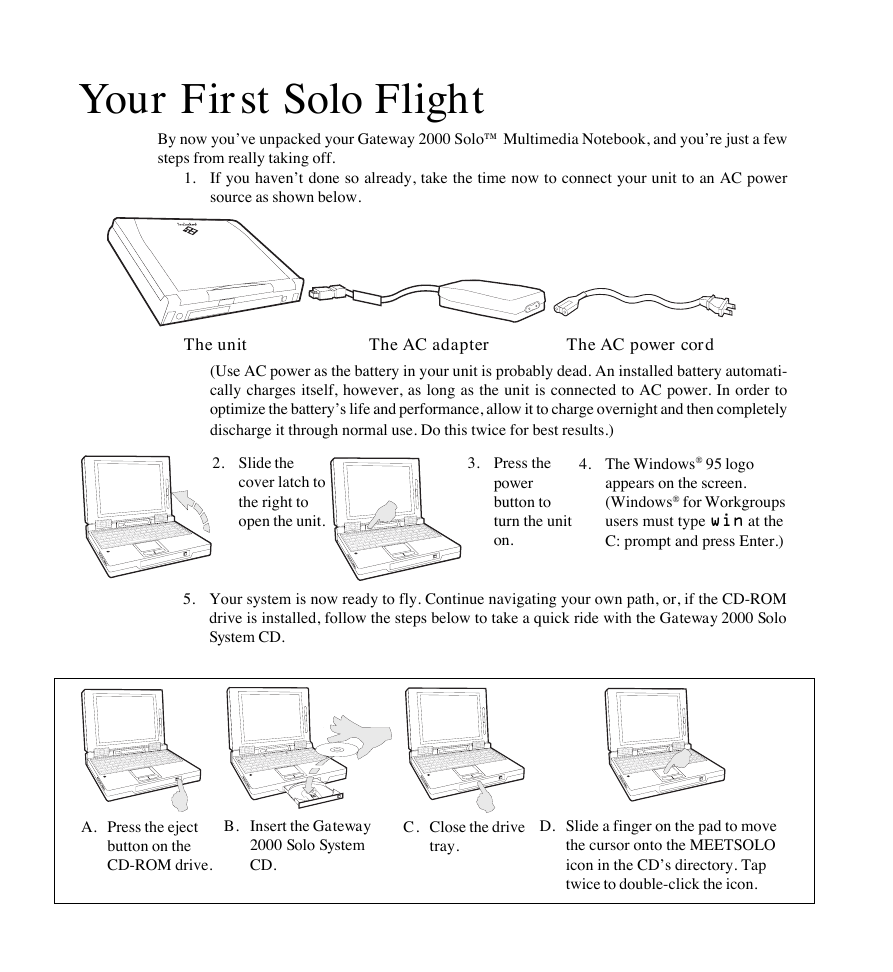

Your First Solo Flight By now you’ve unpacked your Gateway 2000 Solo™ Multimedia Notebook, and you’re just a few steps from really taking off. 1. If you haven’t done so already, take the time now to connect your unit to an AC power source as shown below. The unit The AC adapter The AC power cord (Use AC power as the battery in your unit is probably dead. An installed battery automati- cally charges itself, however, as long as the unit is connected to AC power. In order to optimize the battery’s life and performance, allow it to charge overnight and then completely discharge it through normal use. Do this twice for best results.) 2. Slide the cover latch to the right to open the unit. 3. Press the power button to turn the unit on. 4. The Windows® 95 logo appears on the screen. (Windows® for Workgroups users must type win at the C: prompt and press Enter.) 5. Your system is now ready to fly. Continue navigating your own path, or, if the CD-ROM drive is installed, follow the steps below to take a quick ride with the Gateway 2000 Solo System CD. A. Press the eject button on the CD-ROM drive. B. Insert the Gateway 2000 Solo System CD. C. Close the drive tray. D. Slide a finger on the pad to move the cursor onto the MEETSOLO icon in the CD’s directory. Tap twice to double-click the icon.

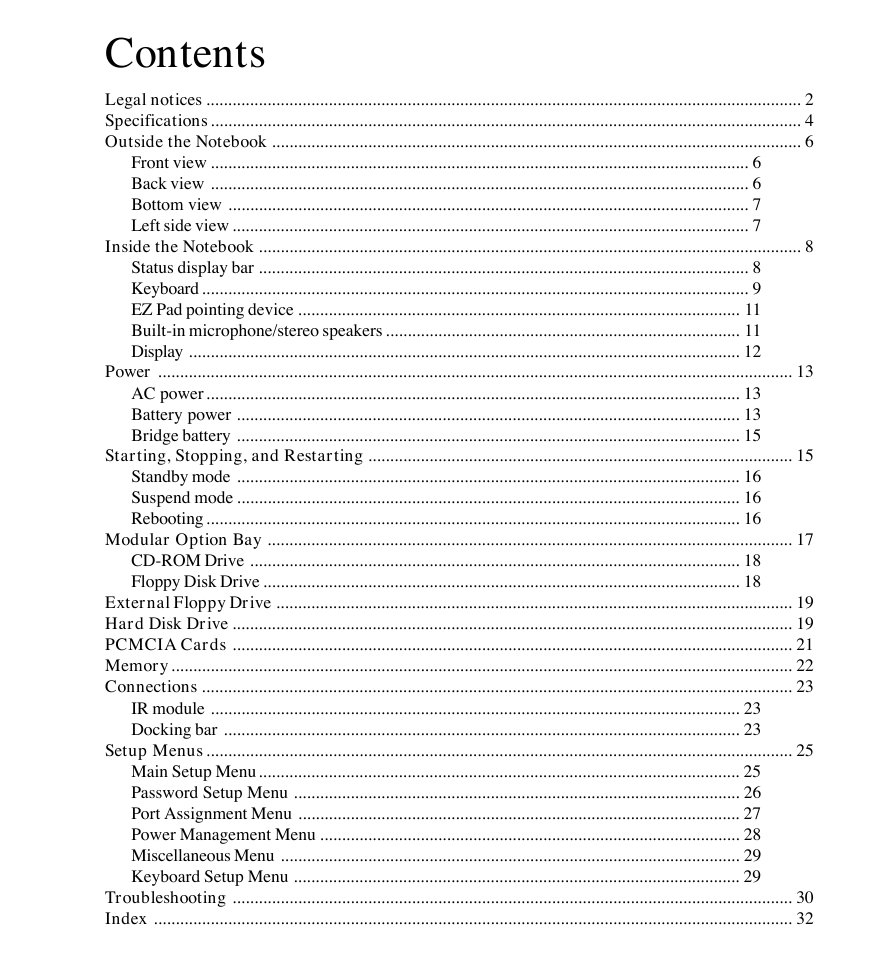

Contents Legal notices ........................................................................................................................................ 2 Specifications ....................................................................................................................................... 4 Outside the Notebook ......................................................................................................................... 6 Front view ........................................................................................................................... 6 Back view ........................................................................................................................... 6 Bottom view ....................................................................................................................... 7 Left side view ...................................................................................................................... 7 Inside the Notebook ............................................................................................................................ 8 Status display bar ................................................................................................................ 8 Keyboard ............................................................................................................................. 9 EZ Pad pointing device ..................................................................................................... 11 Built-in microphone/stereo speakers ................................................................................. 11 Display .............................................................................................................................. 12 Power ................................................................................................................................................. 13 AC power.......................................................................................................................... 13 Battery power ................................................................................................................... 13 Bridge battery ................................................................................................................... 15 Starting, Stopping, and Restarting ................................................................................................. 15 Standby mode ................................................................................................................... 16 Suspend mode ................................................................................................................... 16 Rebooting.......................................................................................................................... 16 Modular Option Bay ........................................................................................................................ 17 CD-ROM Drive ................................................................................................................ 18 Floppy Disk Drive ............................................................................................................. 18 External Floppy Drive ...................................................................................................................... 19 Hard Disk Drive ................................................................................................................................ 19 PCMCIA Cards ................................................................................................................................ 21 Memory.............................................................................................................................................. 22 Connections ....................................................................................................................................... 23 IR module ......................................................................................................................... 23 Docking bar ...................................................................................................................... 23 Setup Menus ...................................................................................................................................... 25 Main Setup Menu.............................................................................................................. 25 Password Setup Menu ...................................................................................................... 26 Port Assignment Menu ..................................................................................................... 27 Power Management Menu ................................................................................................ 28 Miscellaneous Menu ......................................................................................................... 29 Keyboard Setup Menu ...................................................................................................... 29 Troubleshooting ................................................................................................................................ 30 Index .................................................................................................................................................. 32

The Gateway 2000 SOLO™ Multimedia Notebook User’s Guide

Legal notices Gateway 2000 Solo™ Multimedia Notebook User's Guide Copyright © 1995 All rights reserved This book is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any means or in any form without prior written consent from Gateway 2000. The information in this manual has been carefully checked and is believed to be accurate. However, Gateway 2000 assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Gateway 2000 be liable for direct, indirect, special, incidental, or conse- quential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. In the interest of continued product development, Gate- way 2000 reserves the right to make improvements in this manual and the products it describes at any time, without notice or obligation. Trademark acknowledgments Gateway 2000, The Gateway 2000 Solo logo, cow spot motif, and motto “You’ve got a friend in the business” are registered trademarks of Gateway 2000. EZ Pad is a trade- mark of Gateway 2000. IBM, PC/AT, and PS/2 are regis- tered trademarks of International Business Machines Cor- poration. Intel is a registered trademark of Intel Corpora- tion. Microsoft, MS, MS-DOS, Windows, and Windows 95 are registered trademarks of Microsoft Corporation. XJACK is a trademark of the Megahertz Corp. Novell and NetWare are trademark of Novell, Inc. PostScript is a trademark of Adobe Systems Inc. All other product names mentioned herein are used for identification purposes only, and may be the trademarks or registered trademarks of their respec- tive companies. FCC statement NOTE: This is a Class B Digital Device. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Gateway 2000® 610 Gateway Drive North Sioux City, SD 57049 USA This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accor- dance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guar- antee that interference will not occur in a particular instal- lation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: ❑ Reorient or relocate the receiving antenna ❑ Increase the separation between the equipment and receiver ❑ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected ❑ Consult an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. To meet FCC requirements, shielded cables and power cords are required to connect this device to a personal computer or other Class B certified device. Cautions and warnings CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries promptly and accord- ing to the manufacturer’s instructions. ATTENTION: Il y a danger d’explosion s’il y a replacement incor- rect de la batterie. Remplacer uniquenment avec une batteries du meme type ou d’un type recommande par le constructeur. Mettre rebut les batteries usagees conformement aux instructions du fabricant. VORSICHT: Explosionsgefahr bei unsachgemäßem Batteriewechsel. Originalbatterien nur durch gleiche oder vom Hersteller empfohlene Batterien ersetzen. Gebrauchte Batterien an Gateway 2000 zurücksenden. ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner.

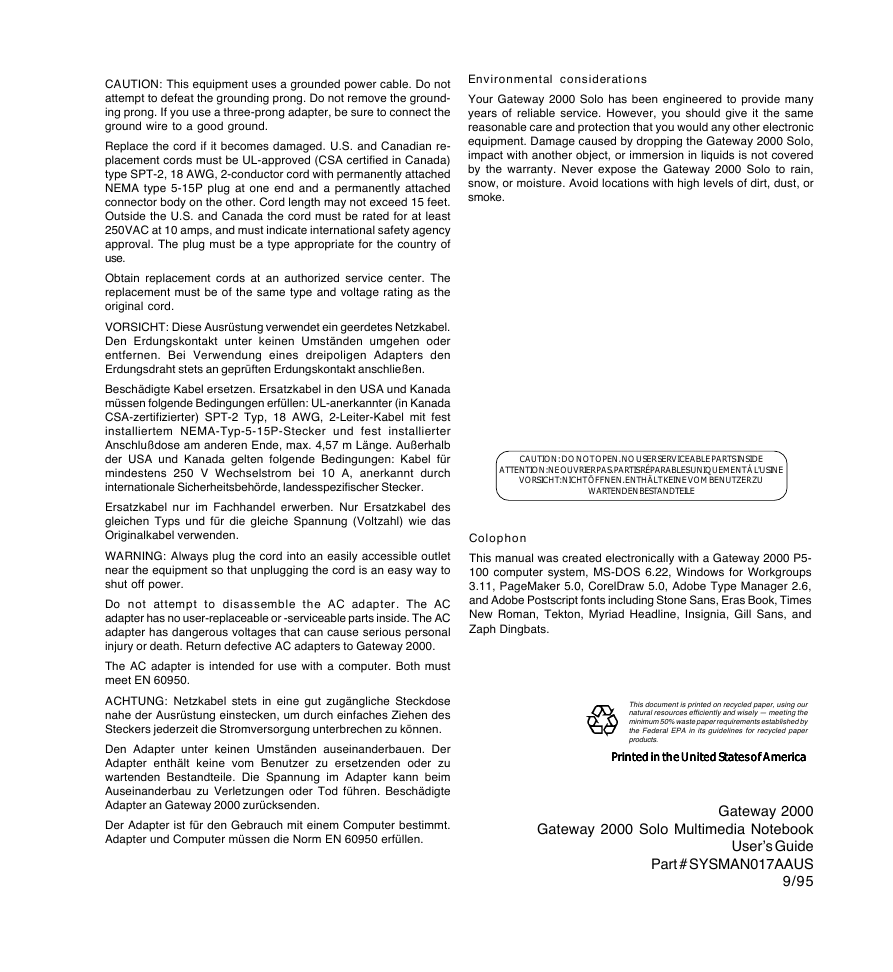

CAUTION: This equipment uses a grounded power cable. Do not attempt to defeat the grounding prong. Do not remove the ground- ing prong. If you use a three-prong adapter, be sure to connect the ground wire to a good ground. Replace the cord if it becomes damaged. U.S. and Canadian re- placement cords must be UL-approved (CSA certified in Canada) type SPT-2, 18 AWG, 2-conductor cord with permanently attached NEMA type 5-15P plug at one end and a permanently attached connector body on the other. Cord length may not exceed 15 feet. Outside the U.S. and Canada the cord must be rated for at least 250VAC at 10 amps, and must indicate international safety agency approval. The plug must be a type appropriate for the country of use. Obtain replacement cords at an authorized service center. The replacement must be of the same type and voltage rating as the original cord. VORSICHT: Diese Ausrüstung verwendet ein geerdetes Netzkabel. Den Erdungskontakt unter keinen Umständen umgehen oder entfernen. Bei Verwendung eines dreipoligen Adapters den Erdungsdraht stets an geprüften Erdungskontakt anschließen. Beschädigte Kabel ersetzen. Ersatzkabel in den USA und Kanada müssen folgende Bedingungen erfüllen: UL-anerkannter (in Kanada CSA-zertifizierter) SPT-2 Typ, 18 AWG, 2-Leiter-Kabel mit fest installiertem NEMA-Typ-5-15P-Stecker und fest installierter Anschlußdose am anderen Ende, max. 4,57 m Länge. Außerhalb der USA und Kanada gelten folgende Bedingungen: Kabel für mindestens 250 V Wechselstrom bei 10 A, anerkannt durch internationale Sicherheitsbehörde, landesspezifischer Stecker. Ersatzkabel nur im Fachhandel erwerben. Nur Ersatzkabel des gleichen Typs und für die gleiche Spannung (Voltzahl) wie das Originalkabel verwenden. WARNING: Always plug the cord into an easily accessible outlet near the equipment so that unplugging the cord is an easy way to shut off power. Do not attempt to disassemble the AC adapter. The AC adapter has no user-replaceable or -serviceable parts inside. The AC adapter has dangerous voltages that can cause serious personal injury or death. Return defective AC adapters to Gateway 2000. The AC adapter is intended for use with a computer. Both must meet EN 60950. ACHTUNG: Netzkabel stets in eine gut zugängliche Steckdose nahe der Ausrüstung einstecken, um durch einfaches Ziehen des Steckers jederzeit die Stromversorgung unterbrechen zu können. Den Adapter unter keinen Umständen auseinanderbauen. Der Adapter enthält keine vom Benutzer zu ersetzenden oder zu wartenden Bestandteile. Die Spannung im Adapter kann beim Auseinanderbau zu Verletzungen oder Tod führen. Beschädigte Adapter an Gateway 2000 zurücksenden. Der Adapter ist für den Gebrauch mit einem Computer bestimmt. Adapter und Computer müssen die Norm EN 60950 erfüllen. Environmental considerations Your Gateway 2000 Solo has been engineered to provide many years of reliable service. However, you should give it the same reasonable care and protection that you would any other electronic equipment. Damage caused by dropping the Gateway 2000 Solo, impact with another object, or immersion in liquids is not covered by the warranty. Never expose the Gateway 2000 Solo to rain, snow, or moisture. Avoid locations with high levels of dirt, dust, or smoke. CAUTION: DO NOT OPEN. NO USER SERVICEABLE PARTS INSIDE ATTENTION: NE OUVRIER PAS. PARTIS RÉPARABLES UNIQUEMENT Á L'USINE VORSICHT: NICHT ÖFFNEN. ENTHÄLT KEINE VOM BENUTZER ZU WARTENDEN BESTANDTEILE Colophon This manual was created electronically with a Gateway 2000 P5- 100 computer system, MS-DOS 6.22, Windows for Workgroups 3.11, PageMaker 5.0, CorelDraw 5.0, Adobe Type Manager 2.6, and Adobe Postscript fonts including Stone Sans, Eras Book, Times New Roman, Tekton, Myriad Headline, Insignia, Gill Sans, and Zaph Dingbats. This document is printed on recycled paper, using our natural resources efficiently and wisely — meeting the minimum 50% waste paper requirements established by the Federal EPA in its guidelines for recycled paper products. Printed in the United States of America Printed in the United States of America Printed in the United States of America Printed in the United States of America Printed in the United States of America Gateway 2000 Gateway 2000 Solo Multimedia Notebook User’s Guide Part # SYSMAN017AAUS 9/95

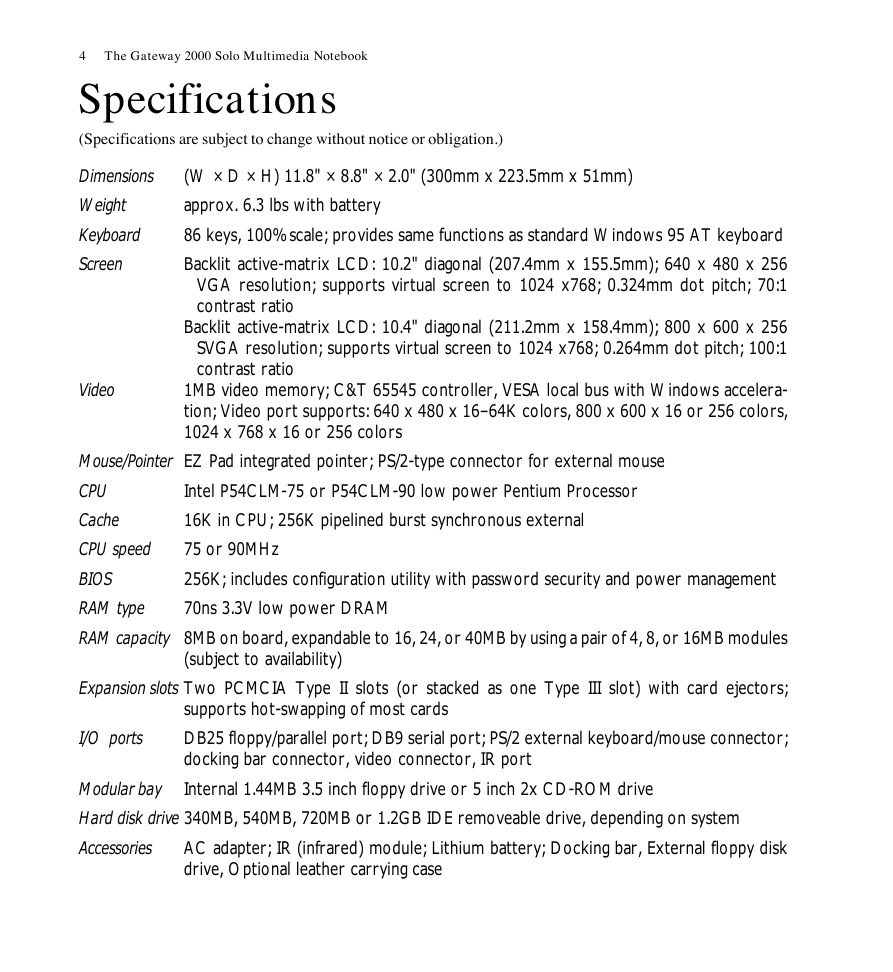

4 The Gateway 2000 Solo Multimedia Notebook Specifications (Specifications are subject to change without notice or obligation.) Dimensions Weight Keyboard Screen Video (W × D × H) 11.8" × 8.8" × 2.0" (300mm x 223.5mm x 51mm) approx. 6.3 lbs with battery 86 keys, 100% scale; provides same functions as standard Windows 95 AT keyboard Backlit active-matrix LCD: 10.2" diagonal (207.4mm x 155.5mm); 640 x 480 x 256 VGA resolution; supports virtual screen to 1024 x768; 0.324mm dot pitch; 70:1 contrast ratio Backlit active-matrix LCD: 10.4" diagonal (211.2mm x 158.4mm); 800 x 600 x 256 SVGA resolution; supports virtual screen to 1024 x768; 0.264mm dot pitch; 100:1 contrast ratio 1MB video memory; C&T 65545 controller, VESA local bus with Windows accelera- tion; Video port supports: 640 x 480 x 16–64K colors, 800 x 600 x 16 or 256 colors, 1024 x 768 x 16 or 256 colors Mouse/Pointer EZ Pad integrated pointer; PS/2-type connector for external mouse CPU Cache CPU speed BIOS RAM type RAM capacity 8MB on board, expandable to 16, 24, or 40MB by using a pair of 4, 8, or 16MB modules Intel P54CLM-75 or P54CLM-90 low power Pentium Processor 16K in CPU; 256K pipelined burst synchronous external 75 or 90MHz 256K; includes configuration utility with password security and power management 70ns 3.3V low power DRAM (subject to availability) Expansion slots Two PCMCIA Type II slots (or stacked as one Type III slot) with card ejectors; I/O ports supports hot-swapping of most cards DB25 floppy/parallel port; DB9 serial port; PS/2 external keyboard/mouse connector; docking bar connector, video connector, IR port Internal 1.44MB 3.5 inch floppy drive or 5 inch 2x CD-ROM drive Modular bay Hard disk drive 340MB, 540MB, 720MB or 1.2GB IDE removeable drive, depending on system Accessories AC adapter; IR (infrared) module; Lithium battery; Docking bar, External floppy disk drive, Optional leather carrying case

User’s Guide 5 PCMCIA option 2400/9600 data/fax modem; 14,400 data/fax modem; twisted pair or thinnet (BNC) Environment AC adapter Battery pack Battery life Ethernet network; token ring network; other cards available from other sources 10-35° C; 10-95% noncondensing relative humidity Requires 100-240 VAC, 0.88-0.46A nominal: adapter powers system and charges battery simultaneously 14.4DC, 2700mAh lithium battery: batteries can be “hot-swapped” without rebooting. Recharges in or out of system. Conforms to APM 1.1 Permanent internal NiMH battery maintains system memory for about one-half day with battery pack removed 38.88 watt-hours; 2.5 to over 4 hours in typical usage under Windows®; fully charged battery lasts about three weeks in Suspend mode Charging cycle Varies depending on battery condition; full charge usually takes about two and one-half Certification hours FCC Class B, UL, CSA, TUV (approved to IEC950/EN60950),
