    GPS Cycle Computer Device GB-580 User Manual Version 2.0

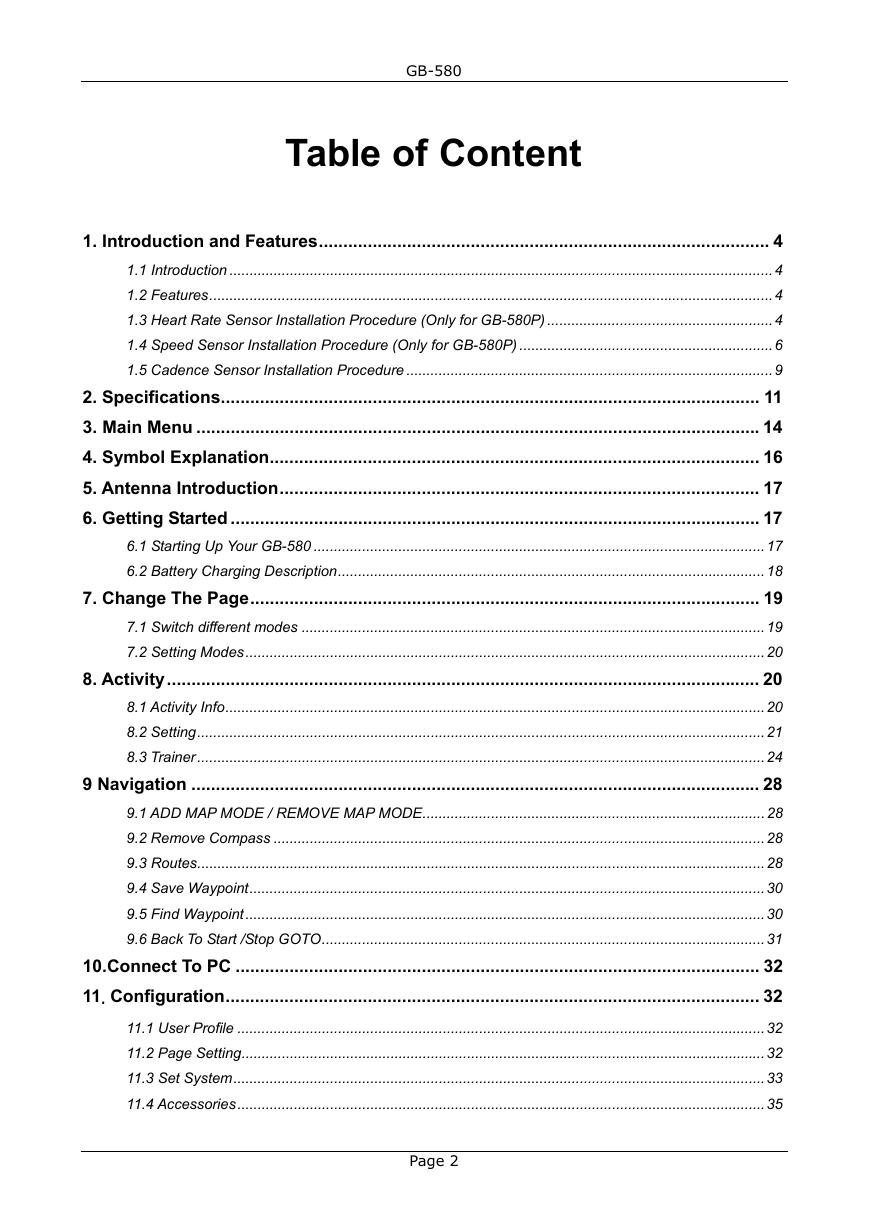

    GB-580 Table of Content 1. Introduction and Features ............................................................................................ 4 1.1 Introduction ....................................................................................................................................... 4 1.2 Features ............................................................................................................................................ 4 1.3 Heart Rate Sensor Installation Procedure (Only for GB-580P) ........................................................ 4 1.4 Speed Sensor Installation Procedure (Only for GB-580P) ............................................................... 6 1.5 Cadence Sensor Installation Procedure ........................................................................................... 9 2. Specifications.............................................................................................................. 11 3. Main Menu ................................................................................................................... 14 4. Symbol Explanation .................................................................................................... 16 5. Antenna Introduction .................................................................................................. 17 6. Getting Started ............................................................................................................ 17 6.1 Starting Up Your GB-580 ................................................................................................................ 17 6.2 Battery Charging Description .......................................................................................................... 18 7. Change The Page ........................................................................................................ 19 7.1 Switch different modes ................................................................................................................... 19 7.2 Setting Modes ................................................................................................................................. 20 8. Activity ......................................................................................................................... 20 8.1 Activity Info ...................................................................................................................................... 20 8.2 Setting ............................................................................................................................................. 21 8.3 Trainer ............................................................................................................................................. 24 9 Navigation .................................................................................................................... 28 9.1 ADD MAP MODE / REMOVE MAP MODE ..................................................................................... 28 9.2 Remove Compass .......................................................................................................................... 28 9.3 Routes ............................................................................................................................................. 28 9.4 Save Waypoint ................................................................................................................................ 30 9.5 Find Waypoint ................................................................................................................................. 30 9.6 Back To Start /Stop GOTO .............................................................................................................. 31 10.Connect To PC ........................................................................................................... 32 11. Configuration ............................................................................................................. 32 11.1 User Profile ................................................................................................................................... 32 11.2 Page Setting .................................................................................................................................. 32 11.3 Set System .................................................................................................................................... 33 11.4 Accessories ................................................................................................................................... 35 Page 2
    GB-580 11.5 GPS Settings ................................................................................................................................. 38 11.6 Factory Reset ................................................................................................................................ 39 11.7 System Upgrade ........................................................................................................................... 39 11.8 About Product ............................................................................................................................... 39 12. Troubleshooting ........................................................................................................ 39 Page 3

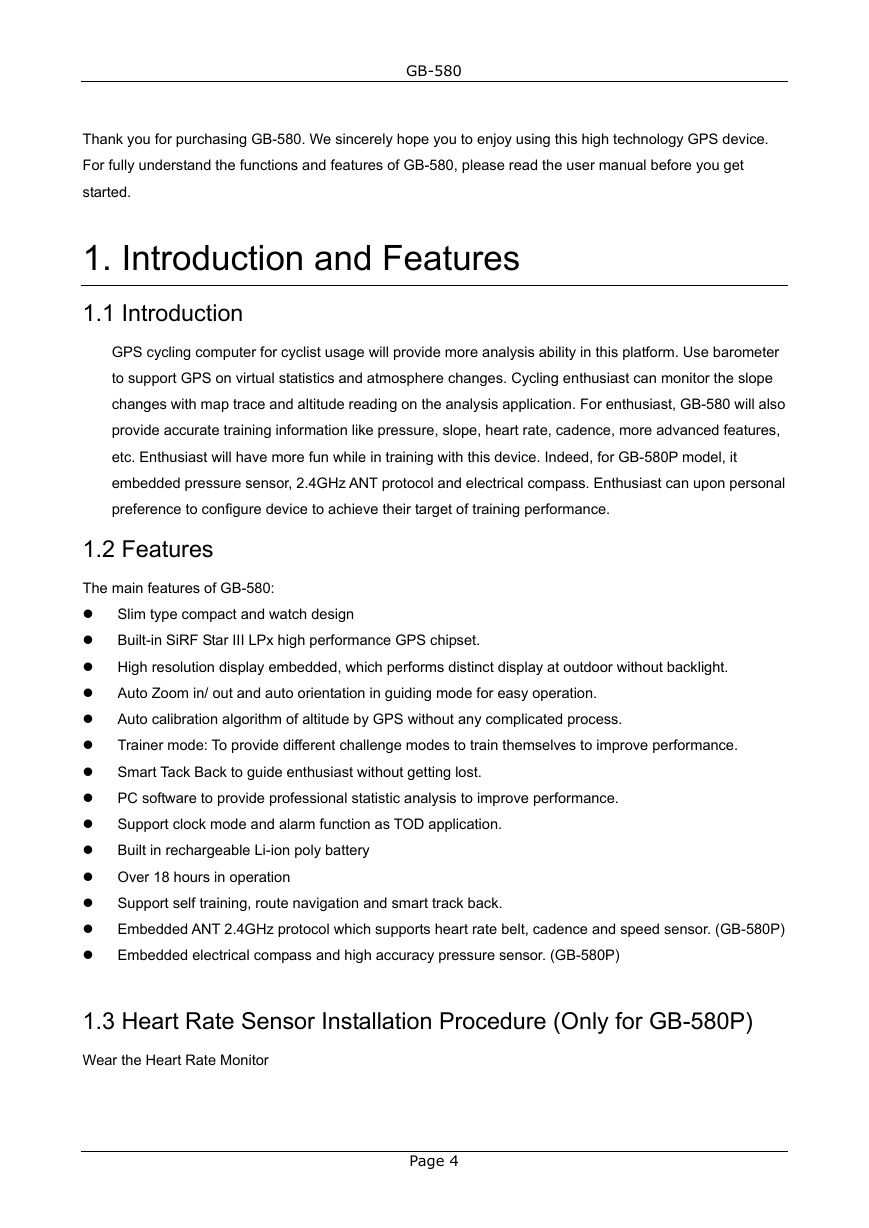

    GB-580 Thank you for purchasing GB-580. We sincerely hope you to enjoy using this high technology GPS device. For fully understand the functions and features of GB-580, please read the user manual before you get started. 1. Introduction and Features 1.1 Introduction GPS cycling computer for cyclist usage will provide more analysis ability in this platform. Use barometer to support GPS on virtual statistics and atmosphere changes. Cycling enthusiast can monitor the slope changes with map trace and altitude reading on the analysis application. For enthusiast, GB-580 will also provide accurate training information like pressure, slope, heart rate, cadence, more advanced features, etc. Enthusiast will have more fun while in training with this device. Indeed, for GB-580P model, it embedded pressure sensor, 2.4GHz ANT protocol and electrical compass. Enthusiast can upon personal preference to configure device to achieve their target of training performance. Slim type compact and watch design Built-in SiRF Star III LPx high performance GPS chipset. Auto Zoom in/ out and auto orientation in guiding mode for easy operation. Auto calibration algorithm of altitude by GPS without any complicated process. Trainer mode: To provide different challenge modes to train themselves to improve performance. Smart Tack Back to guide enthusiast without getting lost. PC software to provide professional statistic analysis to improve performance. Support clock mode and alarm function as TOD application. Built in rechargeable Li-ion poly battery 1.2 Features The main features of GB-580: High resolution display embedded, which performs distinct display at outdoor without backlight. Over 18 hours in operation 1.3 Heart Rate Sensor Installation Procedure (Only for GB-580P) Wear the Heart Rate Monitor Support self training, route navigation and smart track back. Embedded ANT 2.4GHz protocol which supports heart rate belt, cadence and speed sensor. (GB-580P) Embedded electrical compass and high accuracy pressure sensor. (GB-580P) Page 4
    GB-580 Outer side Heart rate sensor Transmitter Heart rate sensor Inner side Moisten this side to your skin. You can wet the sensor to obtain a better reception of your pulse. 1. Put one end of the strap through the slot of the heart rate monitor first. 2. Wrap the heart rate monitor and strap around your chest. Adjust the heart rate monitor to be at the center of your chest. 3. Adjust the strap to fit your chest and make it tight enough to prevent dropping while you are jogging. 4. Put another end of the strap through the slot of the heart rate monitor to finish the wearing. 5. Remember to select “scan” to paring heart rate monitor with your GB-580. [MAIN MENU] > [CONFIGURATION] > [ACCESSORIES] > [SENSORS] > [HEART RATE ] > SCAN. It will show HR instead of SCAN once paring was finished. Page 5

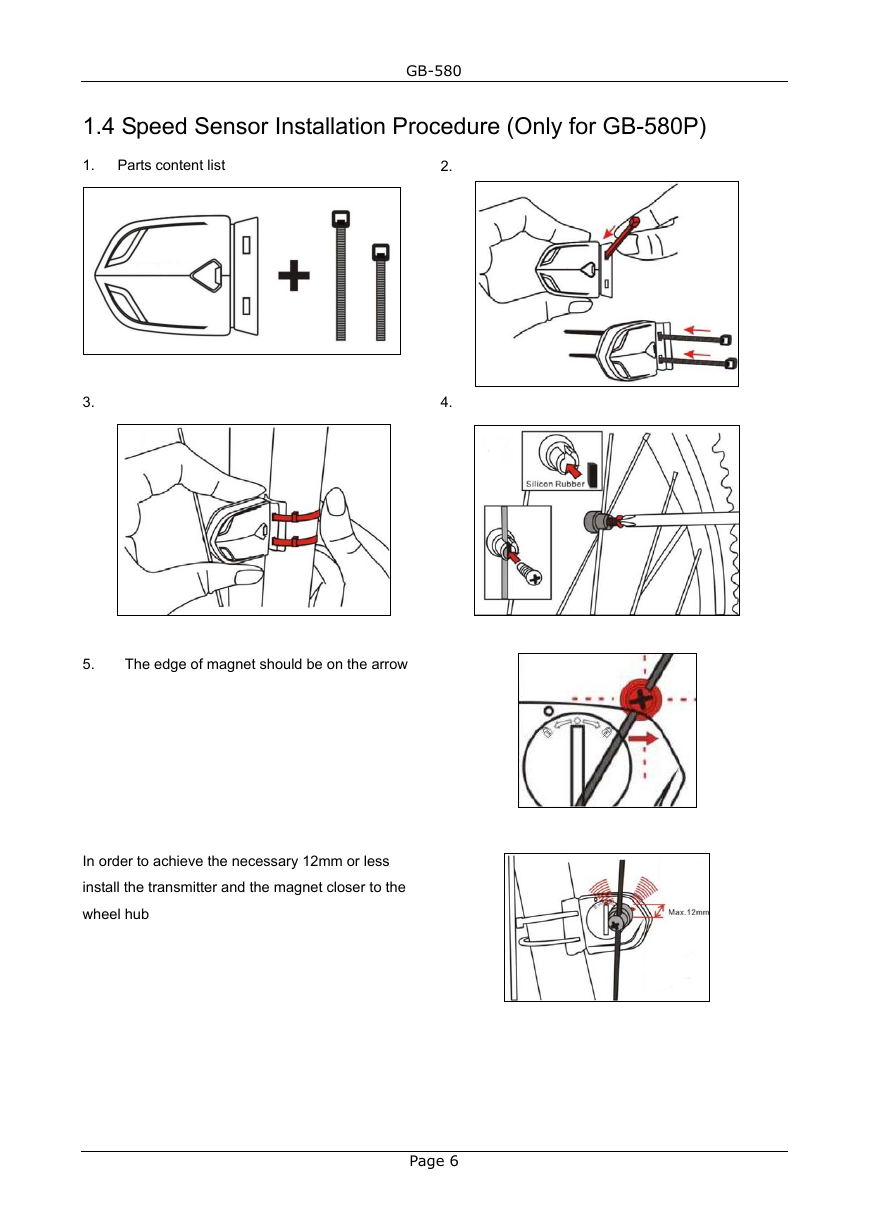

    GB-580 1.4 Speed Sensor Installation Procedure (Only for GB-580P) 1. Parts content list 2. 3. The edge of magnet should be on the arrow 5. In order to achieve the necessary 12mm or less install the transmitter and the magnet closer to the wheel hub 4. Page 6

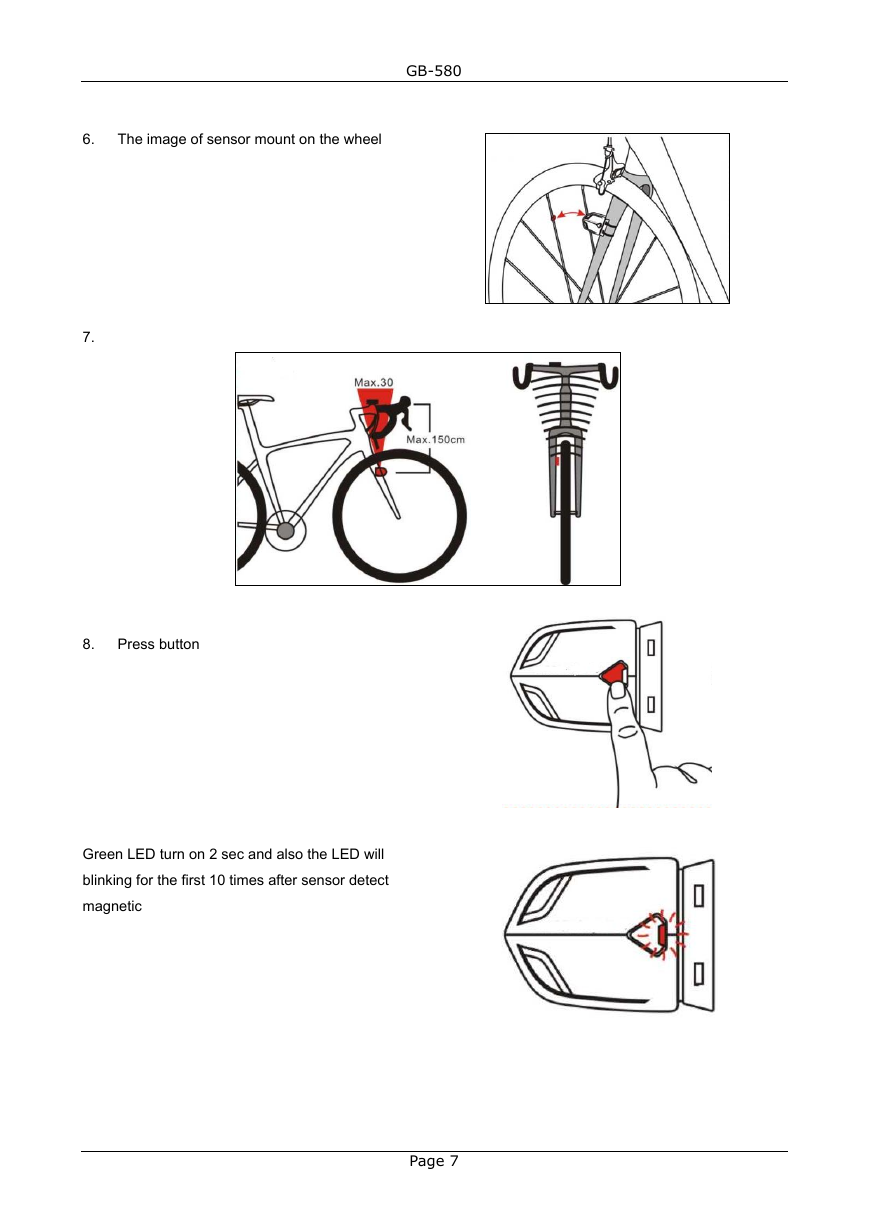

    6. The image of sensor mount on the wheel GB-580 7. 8. Press button Green LED turn on 2 sec and also the LED will blinking for the first 10 times after sensor detect magnetic Page 7

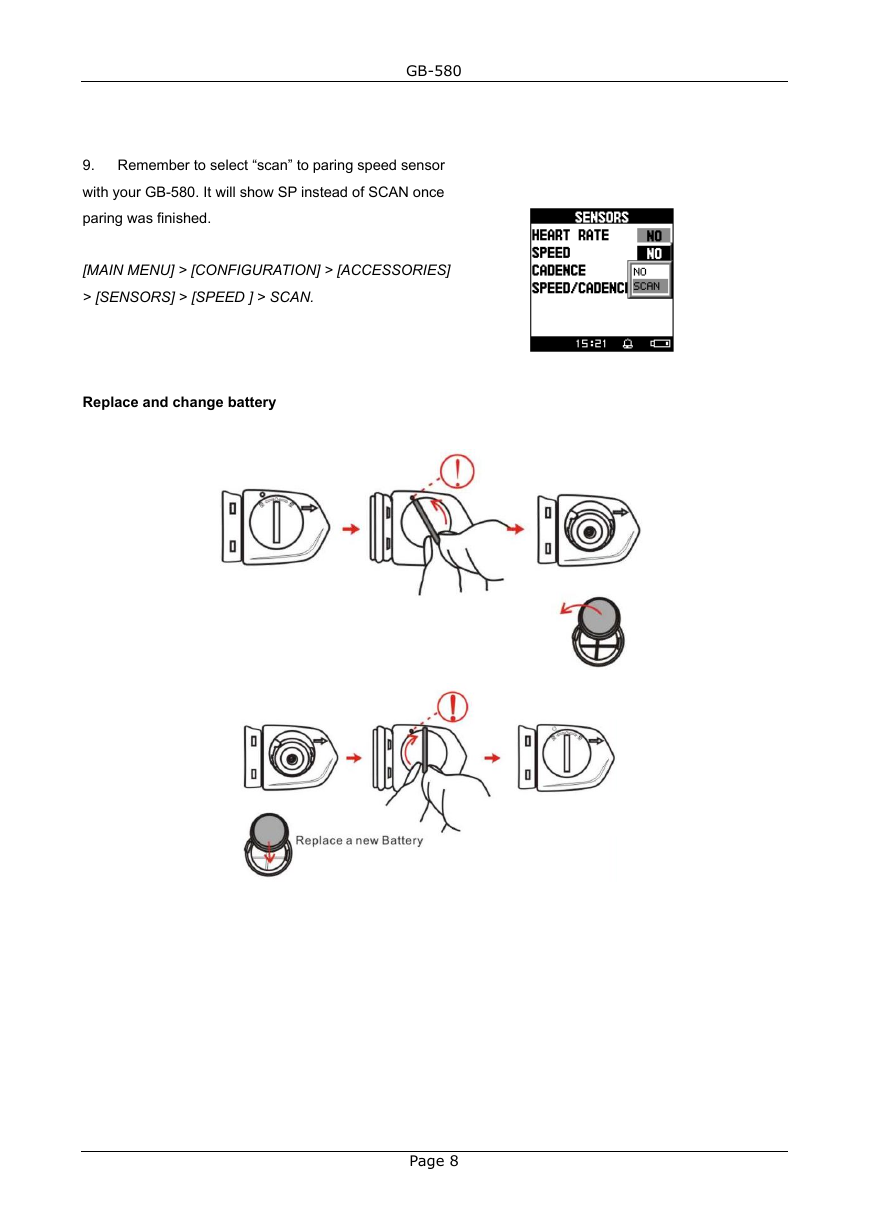

    GB-580 9. Remember to select “scan” to paring speed sensor with your GB-580. It will show SP instead of SCAN once paring was finished. [MAIN MENU] > [CONFIGURATION] > [ACCESSORIES] > [SENSORS] > [SPEED ] > SCAN. Replace and change battery Page 8
