Concord Eye Q 4060AF User's Guide

LANGUAGES

ENGLISH

FRANCAIS

DEUTSCH

ESPANOL

ITALIANO

DUTCH

Technical Suppor t Hot Line

4060 U Guide-E/F/G 7/10/03 9:05 PM Page 2 LANGUAGES ENGLISH................................................................................................................1 FRANÇAIS ..........................................................................................................58 DEUTSCH ..........................................................................................................115 ESPAÑOL ..........................................................................................................172 ITALIANO ..........................................................................................................229 DUTCH ..............................................................................................................286

4060 U Guide-E/F/G 7/8/03 12:51 PM Page 1 ENGLISH CONGRATULATIONS Congratulations on the purchase of your new camera. Your camera has been carefully engineered and manufactured to give you dependable operation. Read this manual before operating the camera to become more familiar with it. This manual has been written and formatted with depth and detail so that you can easily follow the instructions to maximize the features of your camera. 1

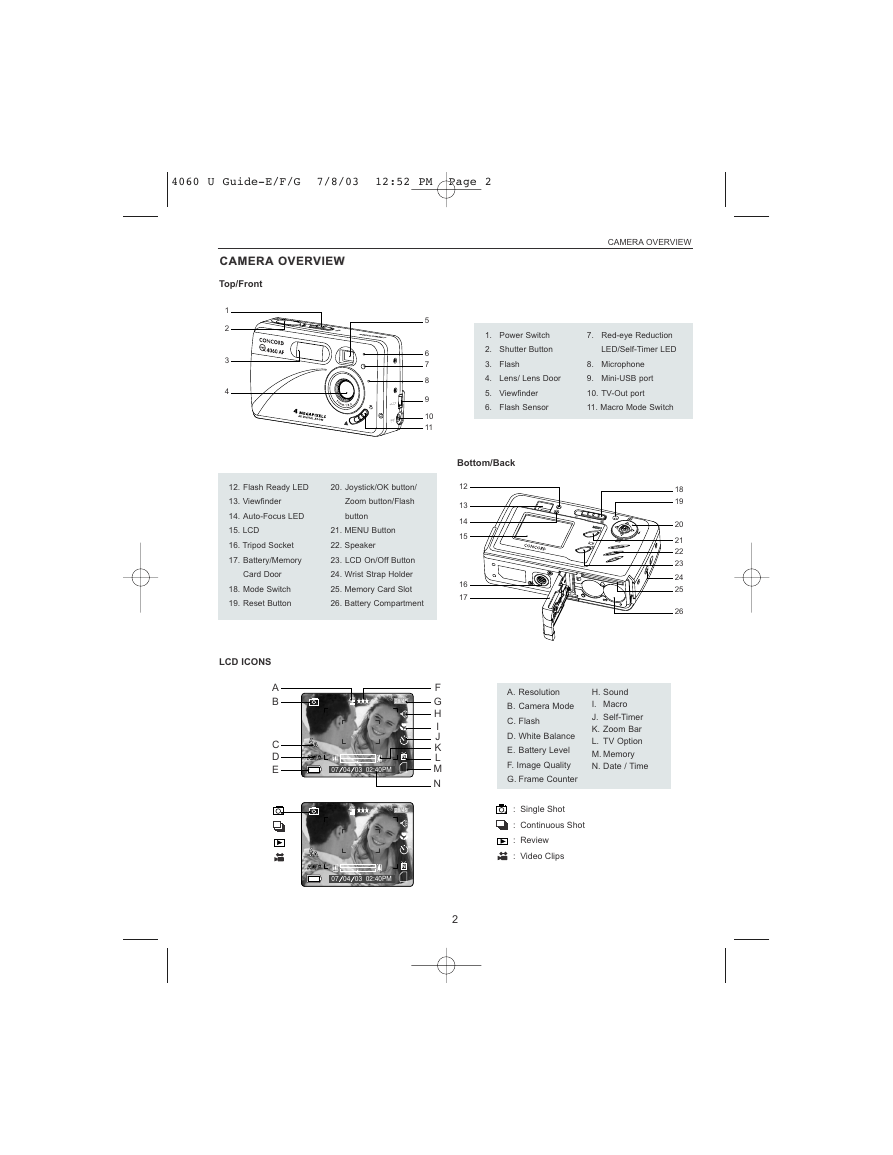

4060 U Guide-E/F/G 7/8/03 12:52 PM Page 2 CAMERA OVEROVERVIEWVIEW CAMERA Top/Front 1 2 3 4 CAMERA OVERVIEW 5 6 7 8 9 10 11 1. Power Switch 7. Red-eye Reduction 2. Shutter Button LED/Self-Timer LED 3. Flash 8. Microphone 4. Lens/ Lens Door 9. Mini-USB port 5. Viewfinder 10. TV-Out port 6. Flash Sensor 11. Macro Mode Switch Bottom/Back 12. Flash Ready LED 20. Joystick/OK button/ 13. Viewfinder Zoom button/Flash 14. Auto-Focus LED button 15. LCD 21. MENU Button 16. Tripod Socket 22. Speaker 17. Battery/Memory 23. LCD On/Off Button Card Door 18. Mode Switch 19. Reset Button 24. Wrist Strap Holder 25. Memory Card Slot 26. Battery Compartment 12 13 14 15 16 17 LCD ICONS A B C D E 4M 28/45 A AWB A AWB N 07 ⁄ 04 ⁄ 03 02:40PM 4M 28/45 N 07 ⁄ 04 ⁄ 03 02:40PM F G H I J K L M N 2 18 19 20 21 22 23 24 25 26 A. Resolution B. Camera Mode C. Flash D. White Balance E. Battery Level F. Image Quality G. Frame Counter H. Sound I. Macro J. Self-Timer K. Zoom Bar L. TV Option M. Memory N. Date / Time : Single Shot : Continuous Shot : Review : Video Clips

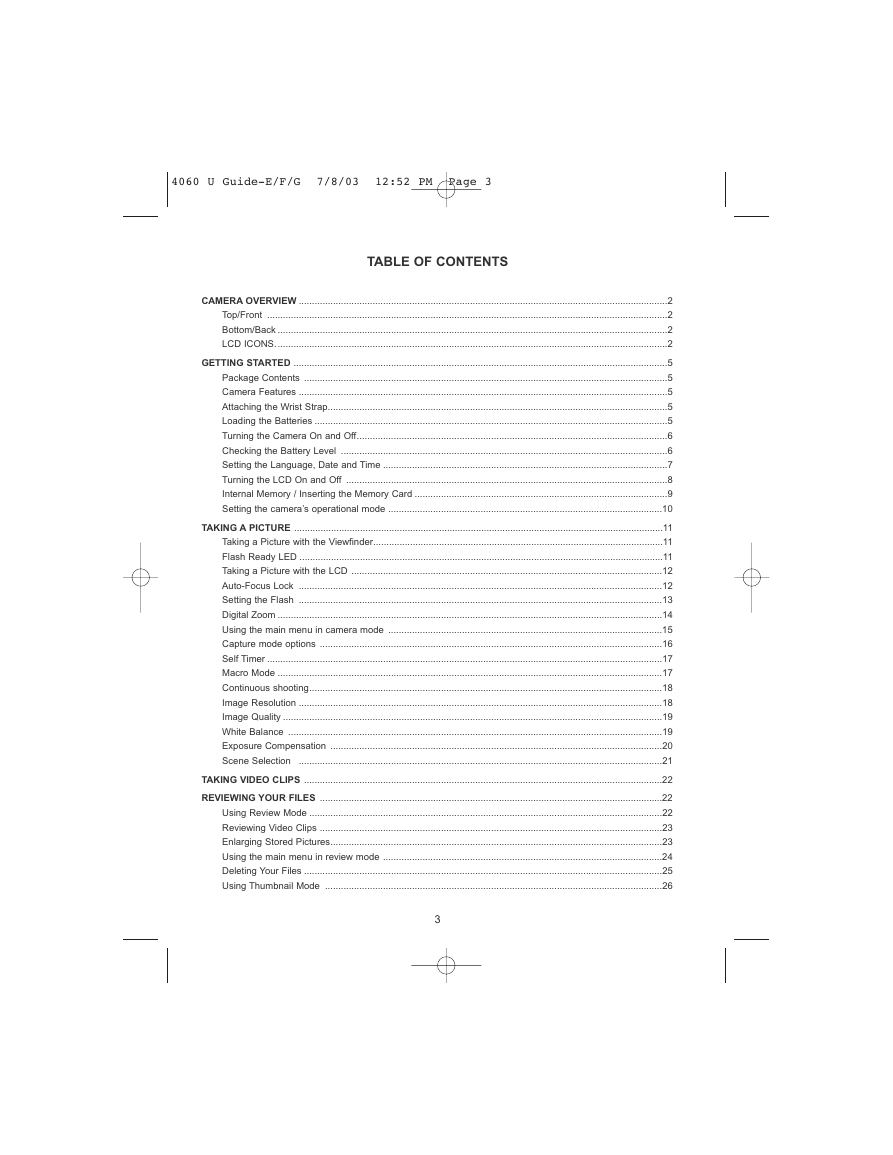

4060 U Guide-E/F/G 7/8/03 12:52 PM Page 3 TABLE OF CONTENTS CAMERA OVERVIEW ............................................................................................................................................2 Top/Front ........................................................................................................................................................2 Bottom/Back ....................................................................................................................................................2 LCD ICONS.....................................................................................................................................................2 GETTING STARTED ..............................................................................................................................................5 Package Contents ..........................................................................................................................................5 Camera Features ............................................................................................................................................5 Attaching the Wrist Strap.................................................................................................................................5 Loading the Batteries ......................................................................................................................................5 Turning the Camera On and Off......................................................................................................................6 Checking the Battery Level ............................................................................................................................6 Setting the Language, Date and Time ............................................................................................................7 Turning the LCD On and Off ..........................................................................................................................8 Internal Memory / Inserting the Memory Card ................................................................................................9 Setting the camera’s operational mode ........................................................................................................10 TAKING A PICTURE ............................................................................................................................................11 Taking a Picture with the Viewfinder..............................................................................................................11 Flash Ready LED ..........................................................................................................................................11 Taking a Picture with the LCD ......................................................................................................................12 Auto-Focus Lock ..........................................................................................................................................12 Setting the Flash ..........................................................................................................................................13 Digital Zoom ..................................................................................................................................................14 Using the main menu in camera mode ........................................................................................................15 Capture mode options ..................................................................................................................................16 Self Timer ......................................................................................................................................................17 Macro Mode ..................................................................................................................................................17 Continuous shooting......................................................................................................................................18 Image Resolution ..........................................................................................................................................18 Image Quality ................................................................................................................................................19 White Balance ..............................................................................................................................................19 Exposure Compensation ..............................................................................................................................20 Scene Selection ..........................................................................................................................................21 TAKING VIDEO CLIPS ........................................................................................................................................22 REVIEWING YOUR FILES ..................................................................................................................................22 Using Review Mode ......................................................................................................................................22 Reviewing Video Clips ..................................................................................................................................23 Enlarging Stored Pictures..............................................................................................................................23 Using the main menu in review mode ..........................................................................................................24 Deleting Your Files ........................................................................................................................................25 Using Thumbnail Mode ................................................................................................................................26 3

4060 U Guide-E/F/G 7/8/03 12:52 PM Page 4 CUSTOMIZING THE CAMERA SETTINGS ........................................................................................................27 Setup Menu and Features ............................................................................................................................29 Setting the Auto Off Time ..............................................................................................................................30 Setting the Language ....................................................................................................................................30 Setting the Date ............................................................................................................................................30 Setting the Time ............................................................................................................................................31 Setting the LCD Brightness ..........................................................................................................................31 Formating internal memory or memory card ................................................................................................32 RESTORE THE CAMERA TO FACTORY DEFAULT SETTINGS ......................................................................33 SOFTWARE INSTALLATION GUIDE ..................................................................................................................34 Computer System Requirements ..................................................................................................................34 Installation Requirements..............................................................................................................................34 Using the installer splash screen ..................................................................................................................35 Flow diagram for software installation ..........................................................................................................36 Identifying your operating system ................................................................................................................37 Installing the driver and DirectX 9 - Windows 98/98SE ................................................................................38 Installing DirectX 9 - Windows 2000 ............................................................................................................40 Installing ArcSoft PhotoImpression - all Windows users ..............................................................................41 Installing Adobe Acrobat Reader 5.1 - all Windows users (optional) ............................................................43 CONNECTING THE CAMERA TO THE COMPUTER ........................................................................................45 Downloading pictures and video clips onto your computer ..........................................................................45 Using ArcSoft PhotoImpression ....................................................................................................................46 Unplugging your camera from the computer ................................................................................................46 TV MODE ..............................................................................................................................................................47 Connecting the camera to the television ......................................................................................................47 Using the TV as a Live Viewfinder ................................................................................................................47 Reviewing pictures and video clips on your TV ............................................................................................47 ERROR MESSAGES ............................................................................................................................................48 TROUBLESHOOTING..........................................................................................................................................49 GETTING HELP....................................................................................................................................................52 CAMERA SPECIFICATIONS................................................................................................................................53 SAFETY TIPS AND MAINTENANCE ..................................................................................................................55 Safety Tips ....................................................................................................................................................55 Precautions for the camera ..........................................................................................................................55 Precautions for batteries ..............................................................................................................................56 Precautions for SD Memory Cards ..............................................................................................................56 REGULATORY INFORMATION............................................................................................................................57 4

4060 U Guide-E/F/G 7/8/03 12:52 PM Page 5 GETTING STARTED GETTING STARTED ARTED GETTING ST Package Contents • Concord Eye-Q 4060AF • Mini-USB Cable • TV Out Cable • User’s Guide/Quick Start Guide/Warranty Card • Camera Case • Wrist Strap • • CD-ROM (for Windows users only) 2x AA Alkaline Batteries – USB Mass Storage Driver – ArcSoft PhotoImpression 2000 – Adobe Acrobat Reader 5.1 – Microsoft DirectX 9 – Multilingual User’s Guide 4 Megapixels, 2272 x 1704 Resolution 1.5” Color LCD 6x Digital Zoom Camera Features • • • • Video Clips • • Compatible with Secure Digital (SD) memory cards (not included) 16MB Internal Memory Attaching the Wrist Strap Please attach the wrist strap to prevent dropping the camera. 1 2 3 Loading the Batteries fig.1.1 fig.1.2 fig.1.3 The camera can use 2x AA alkaline, lithium or rechargeable batteries to operate. 1. Open the Battery/Memory Card door. (fig.1.1) • Slide the door in the direction of the arrow marked on it, and lift it open. 2. Insert the batteries according to the polarity indicators on the top edge of the battery compartment. (fig.1.2) 3. Shut the Battery/Memory Card door by sliding it in the opposite direction of the arrow marked on it, and close it securely. (fig.1.3) 5

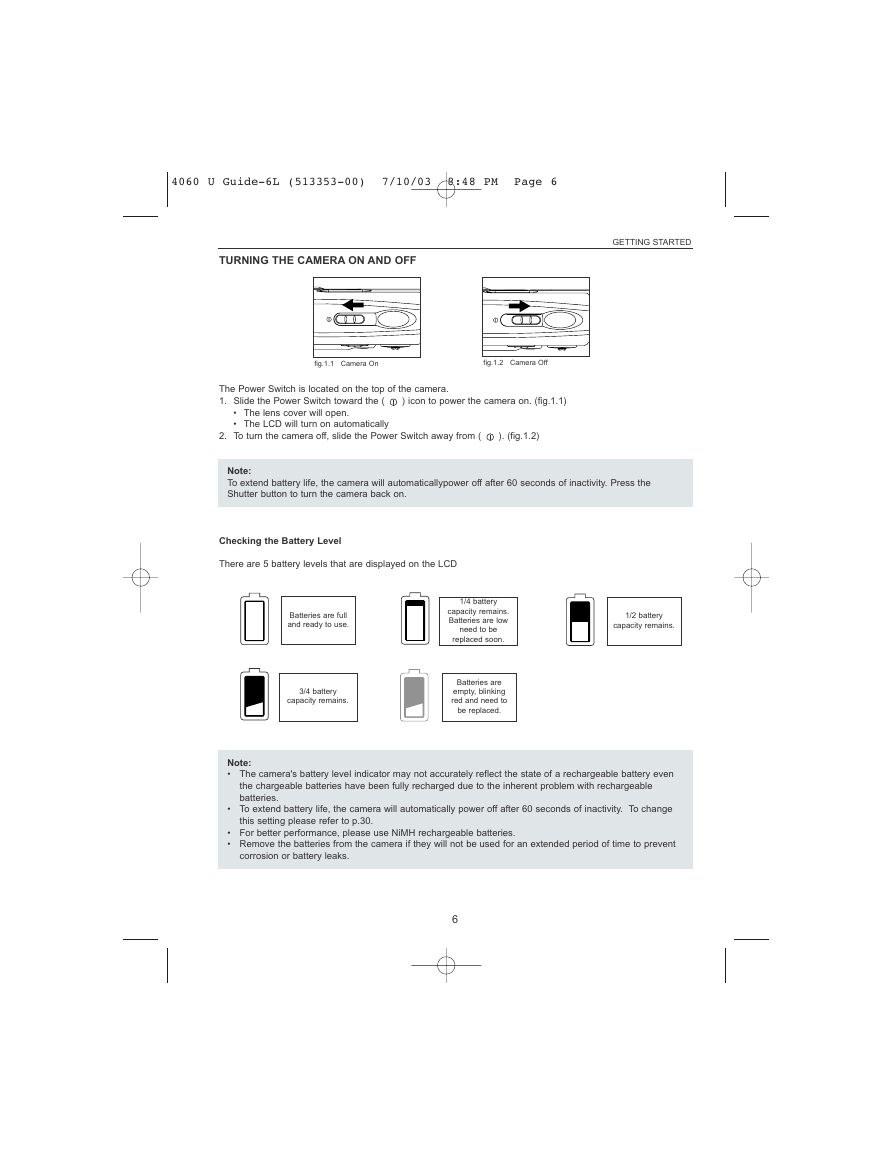

4060 U Guide-6L (513353-00) 7/10/03 8:48 PM Page 6 TURNING THE CAMERA ON AND OFF GETTING STARTED fig.1.1 Camera On fig.1.2 Camera Off The Power Switch is located on the top of the camera. 1. Slide the Power Switch toward the ( ) icon to power the camera on. (fig.1.1) • The lens cover will open. • The LCD will turn on automatically 2. To turn the camera off, slide the Power Switch away from ( ). (fig.1.2) Note: To extend battery life, the camera will automaticallypower off after 60 seconds of inactivity. Press the Shutter button to turn the camera back on. Checking the Battery Level There are 5 battery levels that are displayed on the LCD Batteries are full and ready to use. 3/4 battery capacity remains. 1/4 battery capacity remains. Batteries are low need to be replaced soon. Batteries are empty, blinking red and need to be replaced. 1/2 battery capacity remains. Note: • The camera's battery level indicator may not accurately reflect the state of a rechargeable battery even the chargeable batteries have been fully recharged due to the inherent problem with rechargeable batteries. • To extend battery life, the camera will automatically power off after 60 seconds of inactivity. To change this setting please refer to p.30. • For better performance, please use NiMH rechargeable batteries. • Remove the batteries from the camera if they will not be used for an extended period of time to prevent corrosion or battery leaks. 6
