JVC数码摄像机-GZ-MS130说明书.pdf
Safety Precautions
Easy Start Guide

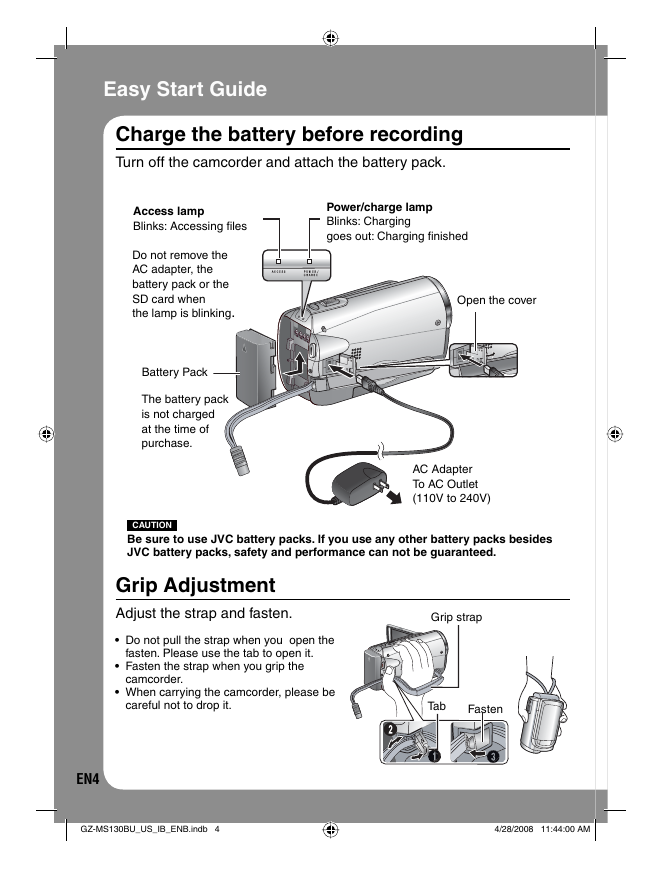

Charge the battery before recording
Grip Adjustment

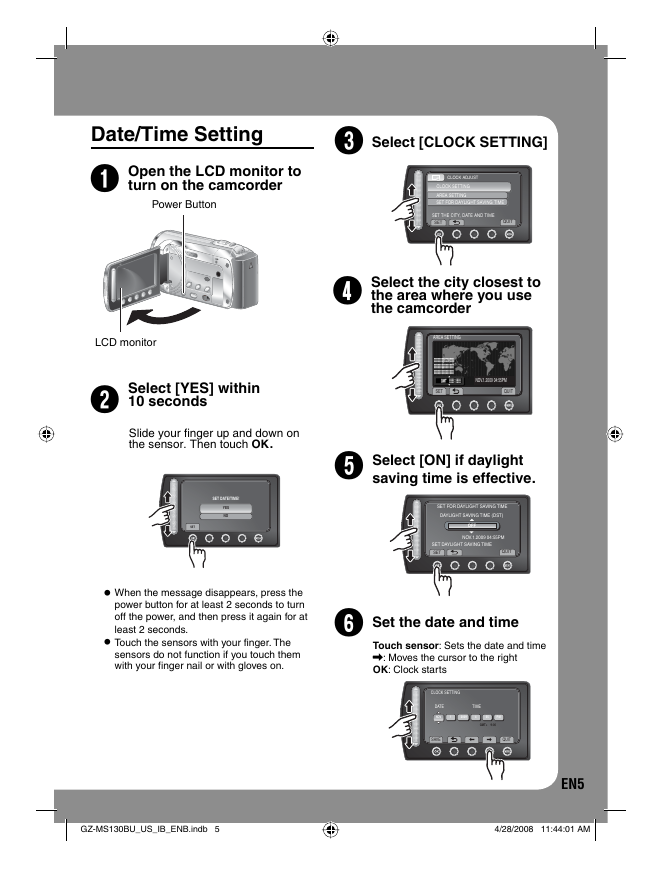

Date/Time Setting

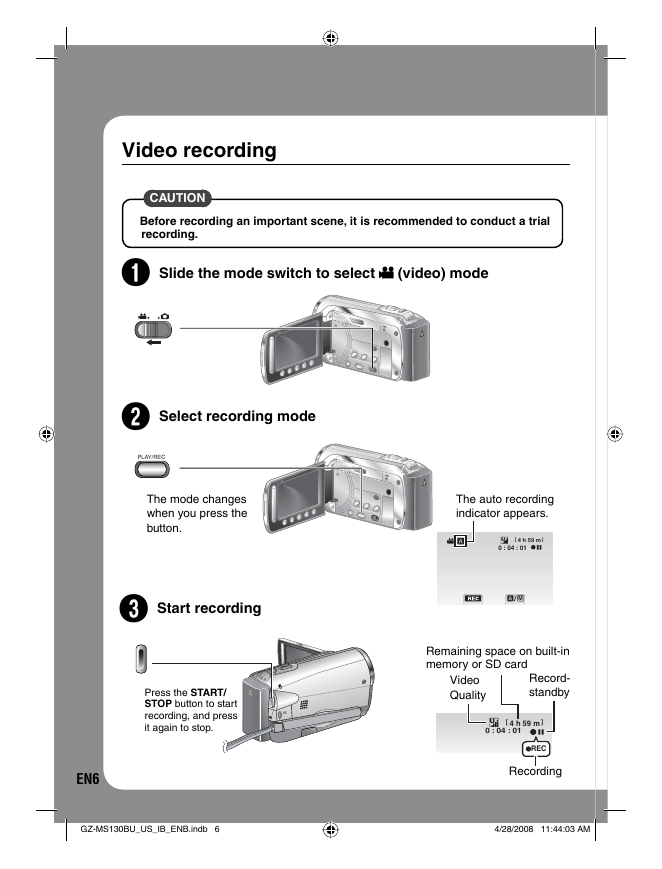

Video recording
Playing back

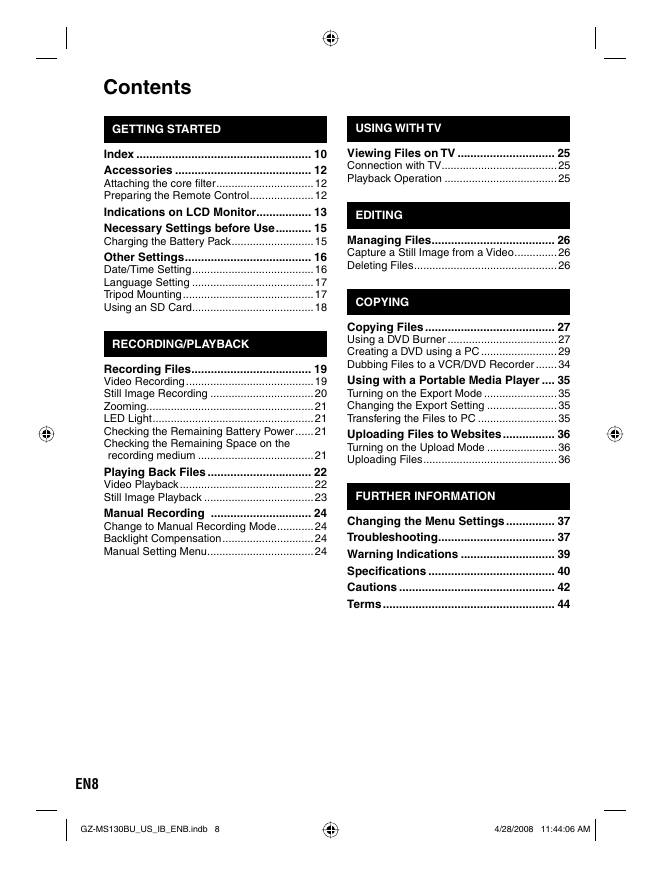

Contents
GETTING STARTED
Index
Camcorder
Remote Control
Accessories
Attaching the Core Filter
Preparing the Remote Control
Indications on LCD Monitor
During both Video and Still ImageRecording
During Video Recording Only
During Still Image Recording Only
During Video Playback
During Still Image Playback
Necessary Settings before Use
Charging the Battery Pack
Other Settings
Date/Time Setting
Language Setting
Tripod Mounting
Using an SD Card
RECORDING/PLAYBACK
Recording Files
Video Recording
Still Image Recording
Zooming
LED Light
Checking the Remaining Battery Power
Checking the Remaining Space onthe recording medium
Playing Back Files
Video Playback
Still Image Playback
Manual Recording
Change to Manual Recording Mode
Backlight Compensation
Manual Setting Menu
USING WITH TV
Viewing Files on TV
Connection with TV
Playback Operation
EDITING
Managing Files
Capture a Still Image from a Video
Deleting Files
COPYING
Copying Files
Using a DVD Burner
Creating a DVD using a PC
Dubbing Files to a VCR/DVD Recorder
Using with a Portable Media Player
Turning on the Export Mode
Changing the Export Setting
Transferring the Files to PC
Uploading Files to Websites
Turning on the Upload Mode
Uploading Files
FURTHER INFORMATION
Changing the Menu Settings
Troubleshooting
Warning Indications
Specifications
Camcorder
AC Adapter
Remote Control
Cautions
AC Adapter
Battery Packs
Recording Medium
LCD Monitor
Main Unit
Terms
GZ-MS130BU_US_IB_SPB.pdf
Precauciones de seguridad
Guía de inicio fácil
Cargue la batería antes de grabar
Ajuste de la fecha/hora
Grabación de vídeo
Reproducción
Contenido
PREPARATIVOS
Índice
Videocámara
Mando a distancia
Accesorios
Colocación del filtro de ferrita
Preparación del mando a distancia
Indicaciones en la pantalla LCD
Durante la grabación de vídeo eimágenes fijas
Sólo durante la grabación de vídeo
Sólo durante la grabación deimágenes fijas
Durante la reproducción de vídeo
Durante la reproducción deimágenes fijas
Ajustes preliminares necesarios
Carga de la batería
Otros ajustes
Ajuste de la fecha/hora
Ajuste del idioma
Instalación en trípode
Utilización de una tarjeta SD
Grabación de archivos
Grabación de vídeo
Grabación de imágenes fijas
Uso del zoom
Luz LED
Comprobación de la carga restantede la batería
Comprobacion del espacio restanteen el soporte de grabacion
Reproducción de archivos
Reproducción de vídeo
Reproducción de imágenes fijas
Grabación manual
Cambio al modo de grabaciónmanual
Compensación de contraluz
Ajuste manual en el menú
USO CON EL TELEVISOR
Visualización de archivos en el televisor
Conexión con un televisor
Operación de reproducción
EDICIÓN
Gestión de archivos
Captura de imágenes fijas de unvídeo
Eliminación de archivos
COPIA
Copia de archivos
Utilización de una grabadorade DVD
Creación de discos DVD mediante unordenador
Copia de archivos en uns grabadorade vídeo/DVD
Utilización con un reproductor multimedia portátil
Activación del modo de exportación
Modificación del ajuste deexportación
Transferencia de archivos a unordenador
Carga de archivos a sitios web
Activación del modo de carga
Carga de archivos
INFORMACIÓN ADICIONAL
Cambio de las configuraciones de menús
Solución de problemas
Indicaciones de advertencia
Especificaciones
Videocámara
Adaptador de CA
Mando a distancia
Precauciones
Adaptador de CA
Baterías
Soporte de grabación
Equipo principal
Términos
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MEMORY CAMERA
VIDEOCÁMARA CON MEMORIA
GZ-MS130 U
LYT2019-001B-M
EN
SP
Dear Customer
Thank you for purchasing
this memory camera. Before
use, please read the safety
information and precautions
contained in pages 2 and 3 to
ensure safe use of this product.
For Future Reference:
Enter the Model No. (located
on the bottom of the memory
camera) and Serial No. (located
on the battery pack mount of the
camcorder) below.
Model No.
Serial No.
Apreciado cliente
Muchas gracias por haber
adquirido esta videocamara con
memoria. Antes de usarla, lea la
informacion de seguridad y las
precauciones contenidas en las
paginas 2 y 3 para garantizar un
uso seguro de este producto.
Para futuras consultas:
Escriba a continuación el número de
modelo (ubicado en la parte inferior
de la videocámara) y el número de
serie (ubicado en el compartimiento
de la batería de la videocámara).
Número de modelo
Número de serie
ENGLISH
ESPANOL
Please read the instruction manual prior to
connecting or operating this product.
Por favor, lea el manual de instrucciones
antes de conectar u operar este producto.
For more details on the
operations, refer to the
GUIDEBOOK in the supplied
CD-ROM.
Para obtener más
información sobre las
operaciones, consulte la
GUÍA incluida en el CD-ROM
suministrado.
GZ-MS130BU_US_IB_ENB.indb 1
GZ-MS130BU_US_IB_ENB.indb 1
4/28/2008 11:43:55 AM
4/28/2008 11:43:55 AM

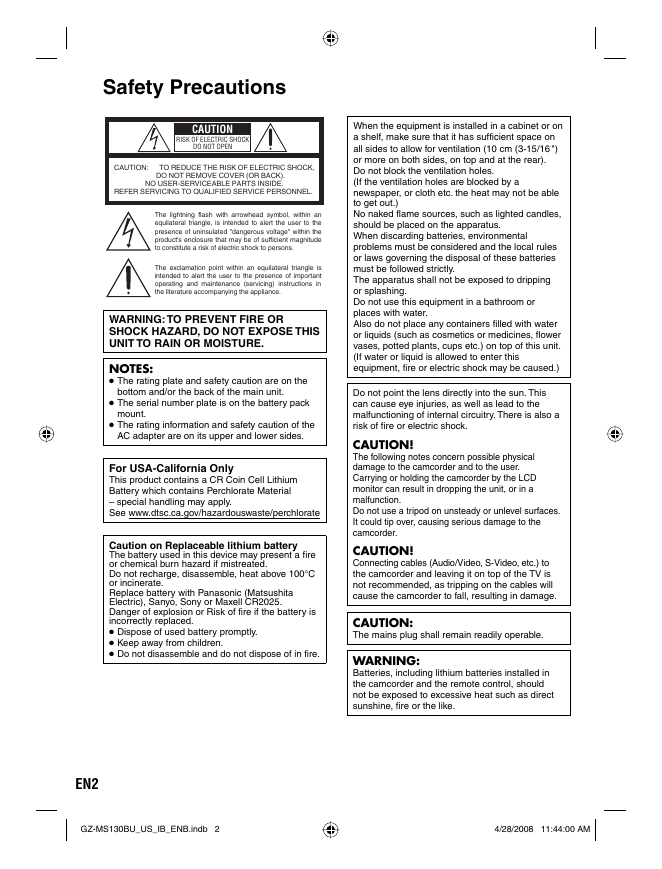

Safety Precautions
CAUTION
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR
SHOCK HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
bottom and/or the back of the main unit.
NOTES:
The rating plate and safety caution are on the
The serial number plate is on the battery pack
The rating information and safety caution of the
AC adapter are on its upper and lower sides.
mount.
For USA-California Only
This product contains a CR Coin Cell Lithium
Battery which contains Perchlorate Material
– special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
Caution on Replaceable lithium battery
The battery used in this device may present a fire
or chemical burn hazard if mistreated.
Do not recharge, disassemble, heat above 100°C
or incinerate.
Replace battery with Panasonic (Matsushita
Electric), Sanyo, Sony or Maxell CR2025.
Danger of explosion or Risk of fire if the battery is
incorrectly replaced.
Dispose of used battery promptly.
Keep away from children.
Do not disassemble and do not dispose of in fire.
When the equipment is installed in a cabinet or on
a shelf, make sure that it has sufficient space on
all sides to allow for ventilation (10 cm (3-15/16 ")
or more on both sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a
newspaper, or cloth etc. the heat may not be able
to get out.)
No naked flame sources, such as lighted candles,
should be placed on the apparatus.
When discarding batteries, environmental
problems must be considered and the local rules
or laws governing the disposal of these batteries
must be followed strictly.
The apparatus shall not be exposed to dripping
or splashing.
Do not use this equipment in a bathroom or
places with water.
Also do not place any containers filled with water
or liquids (such as cosmetics or medicines, flower
vases, potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this
equipment, fire or electric shock may be caused.)
Do not point the lens directly into the sun. This
can cause eye injuries, as well as lead to the
malfunctioning of internal circuitry. There is also a
risk of fire or electric shock.
CAUTION!
The following notes concern possible physical
damage to the camcorder and to the user.
Carrying or holding the camcorder by the LCD
monitor can result in dropping the unit, or in a
malfunction.
Do not use a tripod on unsteady or unlevel surfaces.
It could tip over, causing serious damage to the
camcorder.
CAUTION!
Connecting cables (Audio/Video, S-Video, etc.) to
the camcorder and leaving it on top of the TV is
not recommended, as tripping on the cables will
cause the camcorder to fall, resulting in damage.
CAUTION:
The mains plug shall remain readily operable.
WARNING:
Batteries, including lithium batteries installed in
the camcorder and the remote control, should
not be exposed to excessive heat such as direct
sunshine, fire or the like.
EN2
GZ-MS130BU_US_IB_ENB.indb 2
GZ-MS130BU_US_IB_ENB.indb 2
4/28/2008 11:44:00 AM
4/28/2008 11:44:00 AM
Remember that this camcorder is intended for
private consumer use only.
Any commercial use without proper permission
is prohibited. (Even if you record an event such
as a show, performance or exhibition for personal
enjoyment, it is strongly recommended that you
obtain permission beforehand.)
Trademarks
Manufactured under license from Dolby
Laboratories. Dolby and double-D symbol are
trademarks of Dolby Laboratories.
Windows® is either a registered trademark or
trademark of Microsoft Corporation in the United
States and/or other countries.
Inc.
Macintosh is a registered trademark of Apple
YouTube and the YouTube logo are trademarks
and/or registered trademarks of YouTube LLC.
iTunes is a trademark of Apple Inc., registered
Other product and company names included
in the U. S. and other countries.
in this instruction manual are trademarks
and/or registered trademarks of their respective
holders.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. Only use attachments/accessories specified by
the manufacturer.
10. Use only with the cart,
stand, tripod, bracket,
or table specified by
the manufacturer,
or sold with the
apparatus. When a cart
is used, use caution
when moving the
cart/apparatus combination to avoid injury from
tip-over.
11. Unplug this apparatus during lightning storms
or when unused for long periods of time.
12. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way, such
as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
If this symbol is shown, it is only
valid in the European Union.
GZ-MS130BU_US_IB_ENB.indb 3
GZ-MS130BU_US_IB_ENB.indb 3
4/28/2008 11:44:00 AM
4/28/2008 11:44:00 AM
EN3
Easy Start Guide
Charge the battery before recording
Turn off the camcorder and attach the battery pack.
Power/charge lamp
Blinks: Charging
goes out: Charging finished
Open the cover
Access lamp
Blinks: Accessing files
Do not remove the
AC adapter, the
battery pack or the
SD card when
the lamp is blinking.
Battery Pack
The battery pack
is not charged
at the time of
purchase.
AC Adapter
To AC Outlet
(110V to 240V)
CAUTION
Be sure to use JVC battery packs. If you use any other battery packs besides
JVC battery packs, safety and performance can not be guaranteed.
Grip Adjustment
Adjust the strap and fasten.
Do not pull the strap when you open the
fasten. Please use the tab to open it.
Fasten the strap when you grip the
camcorder.
When carrying the camcorder, please be
careful not to drop it.
Grip strap
DC
Tab
Fasten
EN4
GZ-MS130BU_US_IB_ENB.indb 4
GZ-MS130BU_US_IB_ENB.indb 4
4/28/2008 11:44:00 AM
4/28/2008 11:44:00 AM
Date/Time Setting
Q Open the LCD monitor to
turn on the camcorder
Power Button
LCD monitor
R Select [YES] within
10 seconds
Slide your finger up and down on
the sensor. Then touch OK.
SET DATE/TIME!
YES
NO
SET
When the message disappears, press the
power button for at least 2 seconds to turn
off the power, and then press it again for at
least 2 seconds.
Touch the sensors with your finger. The
sensors do not function if you touch them
with your finger nail or with gloves on.
S Select [CLOCK SETTING]
CLOCK ADJUST
CLOCK SETTING
AREA SETTING
SET FOR DAYLIGHT SAVING TIME
SET THE CITY, DATE AND TIME
SET
QUIT
T
Select the city closest to
the area where you use
the camcorder
AREA SETTING
SET
NOV.1.2009 04:55PM
QUIT
U Select [ON] if daylight
saving time is effective.
SET FOR DAYLIGHT SAVING TIME
DAYLIGHT SAVING TIME (DST)
OFF
NOV.1.2009 04:55PM
SET DAYLIGHT SAVING TIME
SET
QUIT
R
V Set the date and time
Touch sensor: Sets the date and time
}: Moves the cursor to the right
OK: Clock starts
CLOCK SETTING
DATE
TIME
NOV
1
2009
4
55
PM
GMT+
9:00
SAVE
QUIT
GZ-MS130BU_US_IB_ENB.indb 5
GZ-MS130BU_US_IB_ENB.indb 5
4/28/2008 11:44:01 AM
4/28/2008 11:44:01 AM
EN5
Video recording
CAUTION
Before recording an important scene, it is recommended to conduct a trial
recording.
Q Slide the mode switch to select ! (video) mode
R S elect recording mode
PLAY/REC
The mode changes
when you press the
button.
S Start recording
Press the START/
STOP button to start
recording, and press
it again to stop.
DC
EN6
The auto recording
indicator appears.
[
4 h 59 m
]
0 : 04 : 01
M
Remaining space on built-in
memory or SD card
Video
Quality
Record-
standby
[
4 h 59 m
0 : 04 : 01
]
REC
Recording
GZ-MS130BU_US_IB_ENB.indb 6
GZ-MS130BU_US_IB_ENB.indb 6
4/28/2008 11:44:03 AM
4/28/2008 11:44:03 AM
Playing back
Q Select playback mode
PLAY/REC
The mode changes when
you press the button.
R Select the desired fi le
S Select F(Touch OK)
I
N
O
T
A
R
E
P
O
H
C
U
O
T
R
E
S
A
L
I
N
O
T
A
R
E
P
O
H
C
U
O
T
R
E
S
A
L
Index screen
VIDEO PLAYBACK
1/2
NOV.01.2009 04:55PM
DIGEST
Playback screen
L To perform operations such as forward search or reverse search (墌 pg. 22)
L To view files on TV (墌 pg. 25)
It is recommended to copy your important recorded data to a DVD or other recording media
for storage. JVC will not be responsible for any lost data.
CAUTION
Don’t forget to make copies after recording!
To copy files onto DVD discs (墌 pg. 27)
To dub files using a VCR/DVD recorder (墌 pg. 34)
To play back a created DVD disc (墌 pg. 28)
To edit files on your computer (墌 pg. 29)
EN7
GZ-MS130BU_US_IB_ENB.indb 7
GZ-MS130BU_US_IB_ENB.indb 7
4/28/2008 11:44:04 AM
4/28/2008 11:44:04 AM
Contents
GETTING STARTED
USING WITH TV
Index ...................................................... 10
Accessories .......................................... 12
Attaching the core filter ................................12
Preparing the Remote Control .....................12
Indications on LCD Monitor ................. 13
Necessary Settings before Use ........... 15
Charging the Battery Pack ...........................15
Other Settings ....................................... 16
Date/Time Setting ........................................16
Language Setting ........................................17
Tripod Mounting ...........................................17
Using an SD Card ........................................18
RECORDING/PLAYBACK
Recording Files ..................................... 19
Video Recording ..........................................19
Still Image Recording ..................................20
Zooming .......................................................21
LED Light .....................................................21
Checking the Remaining Battery Power ......21
Checking the Remaining Space on the
recording medium ......................................21
Playing Back Files ................................ 22
Video Playback ............................................22
Still Image Playback ....................................23
Manual Recording ............................... 24
Change to Manual Recording Mode ............24
Backlight Compensation ..............................24
Manual Setting Menu ...................................24
Viewing Files on TV .............................. 25
Connection with TV......................................25
Playback Operation .....................................25
EDITING
Managing Files ...................................... 26
Capture a Still Image from a Video ..............26
Deleting Files ...............................................26
COPYING
Copying Files ........................................ 27
Using a DVD Burner ....................................27
Creating a DVD using a PC .........................29
Dubbing Files to a VCR/DVD Recorder .......34
Using with a Portable Media Player .... 35
Turning on the Export Mode ........................35
Changing the Export Setting .......................35
Transfering the Files to PC ..........................35
Uploading Files to Websites ................ 36
Turning on the Upload Mode .......................36
Uploading Files ............................................36
FURTHER INFORMATION
Changing the Menu Settings ............... 37
Troubleshooting .................................... 37
Warning Indications ............................. 39
Specifications ....................................... 40
Cautions ................................................ 42
Terms ..................................................... 44
EN8
GZ-MS130BU_US_IB_ENB.indb 8
GZ-MS130BU_US_IB_ENB.indb 8
4/28/2008 11:44:06 AM
4/28/2008 11:44:06 AM
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
