INSTRUCTIONS
MANUEL D’UTILISATION
HARD DISK CAMERA
CAMÉSCOPE
GZ-MG680
GZ-MG650
GZ-MG630
U
U
U
Please read the instruction manual prior to
connecting or operating this product.
Veuillez lire le mode d’emploi avant de
connecter ou utiliser ce produit.
STOP
PLEASE DO NOT IMMEDIATELY RETURN THIS
PRODUCT TO YOUR PLACE OF PURCHASE.
ASSISTANCE IN PRODUCT HOOK-UP AND USE
IS AVAILABLE AT:
www.jvc.ca or by phone at 1-800-964-2650
ARRÊT
VEUILLEZ NE PAS RETOURNER IMMÉDIATEMENT
CE PRODUIT À L’ENDROIT D’ACHAT D’ORIGINE.
DE L’AIDE POUR LA CONFIGURATION ET
L’UTILISATION DU PRODUIT EST DISPONIBLE À:
www.jvc.ca ou par téléphone au 1-800-964-2650
EN
FR
Dear Customers
Thank you for purchasing this camcorder.
Before use, please read the safety
information and precautions contained
in pages 2 and 3 to ensure safe use of
this product.
For Future Reference:
Enter the Model No. (located on the
bottom of the camcorder) and Serial No.
(located on the battery pack mount of the
camcorder) below.
Model No.
Serial No.
Cher client,
Nous vous remercions d’avoir acheté
ce caméscope. Avant de commencer,
veuillez lire les informations et les
précautions de sécurité présentées dans
les pages 2 et 3 pour utiliser cet appareil
en toute sécurité.
Pour consultation ultérieure:
Noter ci-dessous le N° de modèle
(figurant sous le caméscope) et le N° de
série (sur le logement de la batterie du
caméscope).
N° de modèle
N° de série
ENGLISH
FRANÇAIS
Safety Precautions
CAUTION
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE.
bottom and/or the back of the main unit.
NOTES:
• The rating plate and safety caution are on the
• The serial number plate is on the battery pack
• The rating information and safety caution of the
AC adapter are on its upper and lower sides.
mount.
Caution on Replaceable lithium battery
The battery used in this device may present a fire
or chemical burn hazard if mistreated.
Do not recharge, disassemble, heat above 100°C
or incinerate.
Replace battery with Panasonic, Sanyo, Sony or
Maxell CR2025.
Danger of explosion or Risk of fire if the battery is
incorrectly replaced.
• Dispose of used battery promptly.
• Keep away from children.
• Do not disassemble and do not dispose of in fire.
For USA-California Only
This product contains a CR Coin Cell Lithium
Battery which contains Perchlorate Material
– special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
EN
SAFETY1
When the equipment is installed in a cabinet or on
a shelf, make sure that it has sufficient space on all
sides to allow for ventilation (10 cm (3-15/16") or
more on both sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a
newspaper, or cloth etc. the heat may not be able
to get out.)
No naked flame sources, such as lighted candles,
should be placed on the apparatus.
When discarding batteries, environmental
problems must be considered and the local rules or
laws governing the disposal of these batteries must
be followed strictly.
The apparatus shall not be exposed to dripping or
splashing.
Do not use this equipment in a bathroom or places
with water.
Also do not place any containers filled with water
or liquids (such as cosmetics or medicines, flower
vases, potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this
equipment, fire or electric shock may be caused.)
Do not point the lens directly into the sun. This
can cause eye injuries, as well as lead to the
malfunctioning of internal circuitry. There is also a
risk of fire or electric shock.
CAUTION!
The following notes concern possible physical
damage to the camcorder and to the user.
Carrying or holding the camcorder by the LCD
monitor can result in dropping the unit, or in a
malfunction.
Do not use a tripod on unsteady or unlevel
surfaces. It could tip over, causing serious damage
to the camcorder.
CAUTION!
Connecting cables (Audio/Video, S-Video, etc.) to
the camcorder and leaving it on top of the TV is not
recommended, as tripping on the cables will cause
the camcorder to fall, resulting in damage.
CAUTION:
The mains plug shall remain readily operable.
WARNING:
The battery pack, the camcorder with battery
installed, and the remote control with battery
installed should not be exposed to excessive heat
such as direct sunshine, fire or the like.
Remember that this camcorder is intended for
private consumer use only.
Any commercial use without proper permission
is prohibited. (Even if you record an event such
as a show, performance or exhibition for personal
enjoyment, it is strongly recommended that you
obtain permission beforehand.)
Trademarks
• Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
• HDMI is a trademark of HDMI
• Windows® is either registered
Licensing, LLC.
trademark or trademark of Microsoft Corporation
in the United States and/or other countries.
registered in the U.S. and other countries.
• Macintosh is a registered trademark of Apple Inc.
• iTunes, iMovie, iPhoto are trademarks of Apple Inc.,
• YouTube and the YouTube logo are trademarks
and/or registered trademarks of YouTube LLC.
• Other product and company names included in
this instruction manual are trademarks and/or
registered trademarks of their respective holders.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Only use attachments/accessories specified by the
manufacturer.
10. Use only with the cart,
stand, tripod, bracket,
or table specified by
the manufacturer, or
sold with the apparatus.
When a cart is used,
use caution when
moving the cart/
apparatus combination
to avoid injury from tip-over.
11. Unplug this apparatus during lightning storms or
when unused for long periods of time.
12. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
If this symbol is shown, it is only valid
in the European Union.
SAFETY2
EN
Easy Start Guide
Charge the battery before recording
Turn off the camcorder and attach the battery pack.
Access lamp
blinks: Accessing files
Do not remove the
AC adapter, the
battery pack or the
microSD card when
the lamp is blinking.
Power/charge lamp
blinks: Charging
goes out: Charging finished
Open the cover
The battery pack is not
charged at the time of
purchase.
Battery Pack
AC Adapter
To AC Outlet
(110V to 240V)
CAUTION
• Be sure to use JVC battery packs. If you use any other battery packs besides
JVC battery packs, safety and performance can not be guaranteed.
Grip Adjustment
Adjust the strap and fasten.
• Fasten the strap when you grip the
camcorder.
• When carrying the camcorder,
please be careful not to drop it.
Grip Strap
Fasten
EN
Date/Time Setting
Q Open the LCD monitor to
turn on the camcorder
T Select the city closest to
the area where you use
the camcorder
Power button
LCD monitor
R Select [YES] within
10 seconds
Slide your finger up and down on the
sensor. Then touch OK.
U Select [ON] if daylight
saving time is effective
V Set the date and time
Touch sensor: Sets the date and time
&: Moves the cursor to the right
OK: Clock starts
• When the message disappears, press the
power button for at least 2 seconds to turn
off the power, and then press it again for at
least 2 seconds.
• Touch the sensors with your finger. The
sensors do not function if you touch them
with your finger nail or with gloves on.
S Select [CLOCK SETTING]
EN

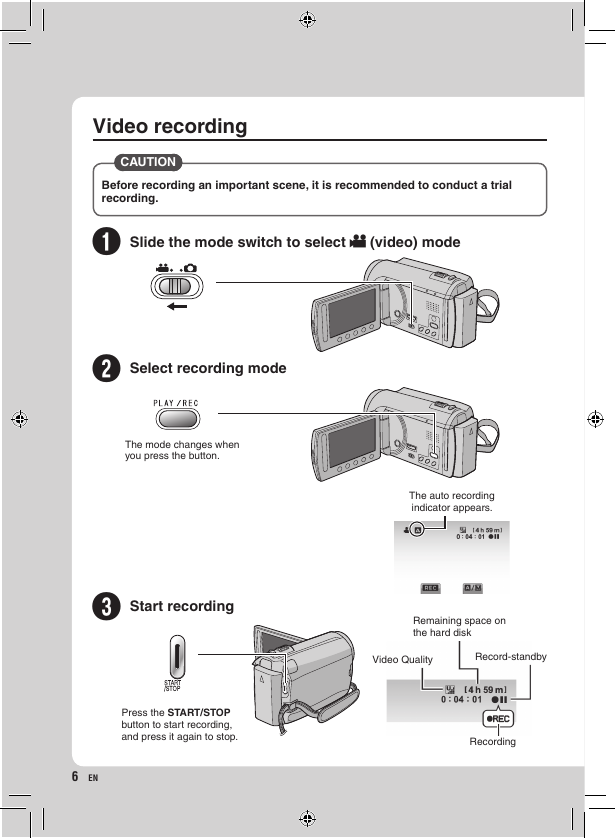

Video recording
CAUTION
Before recording an important scene, it is recommended to conduct a trial
recording.
Q Slide the mode switch to select ! (video) mode
R Select recording mode
The mode changes when
you press the button.
S Start recording
Press the START/STOP
button to start recording,
and press it again to stop.
EN
The auto recording
indicator appears.
Remaining space on
the hard disk
Video Quality
Record-standby
Recording
Playing back
Q Select playback mode
The mode changes when
you press the button.
R Select the desired file
Index screen
S Select F (Touch OK)
Playback screen
To perform operations such as forward search or reverse search (Z p. 22)
To view files on TV (Z p. 25)
CAUTION
Do not forget to make copies after recording!
• To copy files onto DVD discs (Z p. 27)
• To dub files to a VCR/DVD recorder (Z p. 34)
• To play back a created disc (Z p. 28)
• To edit files on your computer (Z p. 29)
EN
Contents
GETTING STARTED
EDITING
Managing Files ........................................26
Capturing a Still Image from a Video ............ 26
Deleting Files ................................................ 26
COPYING
Copying Files ..........................................27
Using a DVD Burner ..................................... 27
Creating a DVD using a PC .......................... 29
Dubbing Files to a VCR/DVD Recorder ........ 34
Using with a Portable Media Player ......35
Turning on the Export Mode ......................... 35
Changing the Export Setting ........................ 35
Transferring the Files to PC .......................... 35
Uploading Files to Websites ..................36
Turning on the Upload Mode ........................ 36
Uploading Files ............................................. 36
FURTHER INFORMATION
Changing the Menu Settings .................37
Troubleshooting ......................................37
Warning Indications ...............................39
Specifications .........................................40
Cautions ..................................................42
Terms .......................................................44
Accessories ............................................10
Preparing the Remote Control ...................... 11
Attaching the Core Filter to the USB Cable ... 11
Index ........................................................12
Tripod Mounting ............................................ 13
Indications on LCD Monitor ...................14
Necessary Settings before Use .............16
Charging the Battery Pack ............................ 16
Date/Time Setting ......................................... 16
Language Setting ......................................... 17
Other Settings .........................................18
Using a microSD Card .................................. 18
RECORDING/PLAYBACK
Recording Files .......................................19
Video Recording ........................................... 19
Still Image Recording ................................... 20
Zooming ........................................................ 21
LED Light ...................................................... 21
Checking the Remaining Battery Power ....... 21
Checking the Remaining Space on the
Recording Media ......................................... 21
Playing Back Files ..................................22
Video Playback ............................................ 22
Still Image Playback ..................................... 23
Manual Recording ..................................24
Changing to Manual Recording Mode .......... 24
Backlight Compensation ............................... 24
Manual Setting in Menu ................................ 24
USING WITH TV
Viewing Files on TV ................................25
Connection with TV....................................... 25
Playback Operation ...................................... 25
EN
