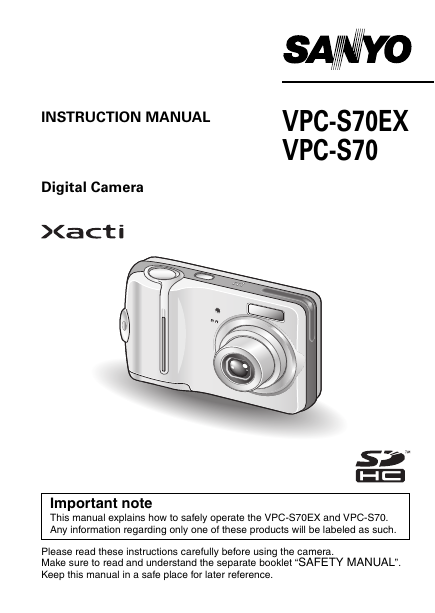

INSTRUCTION MANUAL Digital Camera VPC-S70EX VPC-S70 Important note This manual explains how to safely operate the VPC-S70EX and VPC-S70. Any information regarding only one of these products will be labeled as such. Please read these instructions carefully before using the camera. Make sure to read and understand the separate booklet “SAFETY MANUAL”. Keep this manual in a safe place for later reference.

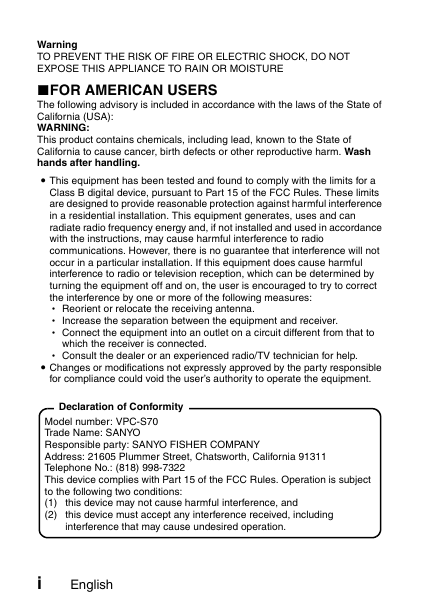

Warning TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE kFOR AMERICAN USERS The following advisory is included in accordance with the laws of the State of California (USA): WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling. i This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: h Reorient or relocate the receiving antenna. h Increase the separation between the equipment and receiver. h Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. h Consult the dealer or an experienced radio/TV technician for help. i Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Declaration of Conformity Model number: VPC-S70 Trade Name: SANYO Responsible party: SANYO FISHER COMPANY Address: 21605 Plummer Street, Chatsworth, California 91311 Telephone No.: (818) 998-7322 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. i English

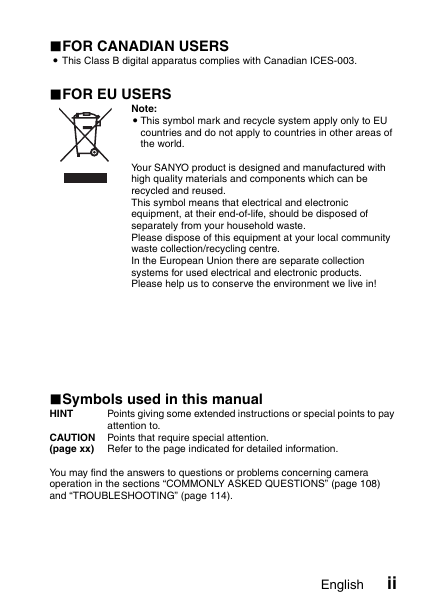

kFOR CANADIAN USERS i This Class B digital apparatus complies with Canadian ICES-003. kFOR EU USERS Note: iThis symbol mark and recycle system apply only to EU countries and do not apply to countries in other areas of the world. Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products. Please help us to conserve the environment we live in! kSymbols used in this manual HINT Points giving some extended instructions or special points to pay attention to. CAUTION Points that require special attention. (page xx) Refer to the page indicated for detailed information. You may find the answers to questions or problems concerning camera operation in the sections “COMMONLY ASKED QUESTIONS” (page 108) and “TROUBLESHOOTING” (page 114). English ii

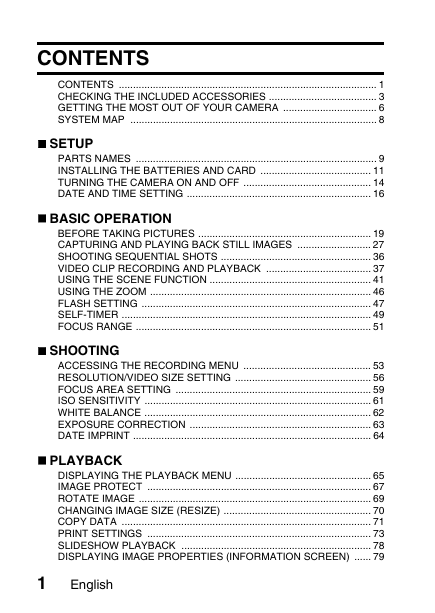

CONTENTS CONTENTS ........................................................................................... 1 CHECKING THE INCLUDED ACCESSORIES ...................................... 3 GETTING THE MOST OUT OF YOUR CAMERA ................................. 6 SYSTEM MAP ....................................................................................... 8 SETUP PARTS NAMES ..................................................................................... 9 INSTALLING THE BATTERIES AND CARD ....................................... 11 TURNING THE CAMERA ON AND OFF ............................................. 14 DATE AND TIME SETTING ................................................................. 16 BASIC OPERATION BEFORE TAKING PICTURES ............................................................. 19 CAPTURING AND PLAYING BACK STILL IMAGES .......................... 27 SHOOTING SEQUENTIAL SHOTS ..................................................... 36 VIDEO CLIP RECORDING AND PLAYBACK ..................................... 37 USING THE SCENE FUNCTION ......................................................... 41 USING THE ZOOM .............................................................................. 46 FLASH SETTING ................................................................................. 47 SELF-TIMER ........................................................................................ 49 FOCUS RANGE ................................................................................... 51 SHOOTING ACCESSING THE RECORDING MENU ............................................. 53 RESOLUTION/VIDEO SIZE SETTING ................................................ 56 FOCUS AREA SETTING ..................................................................... 59 ISO SENSITIVITY ................................................................................ 61 WHITE BALANCE ................................................................................ 62 EXPOSURE CORRECTION ................................................................ 63 DATE IMPRINT .................................................................................... 64 PLAYBACK DISPLAYING THE PLAYBACK MENU ................................................ 65 IMAGE PROTECT ............................................................................... 67 ROTATE IMAGE .................................................................................. 69 CHANGING IMAGE SIZE (RESIZE) .................................................... 70 COPY DATA ........................................................................................ 71 PRINT SETTINGS ............................................................................... 73 SLIDESHOW PLAYBACK ................................................................... 78 DISPLAYING IMAGE PROPERTIES (INFORMATION SCREEN) ...... 79 1 English

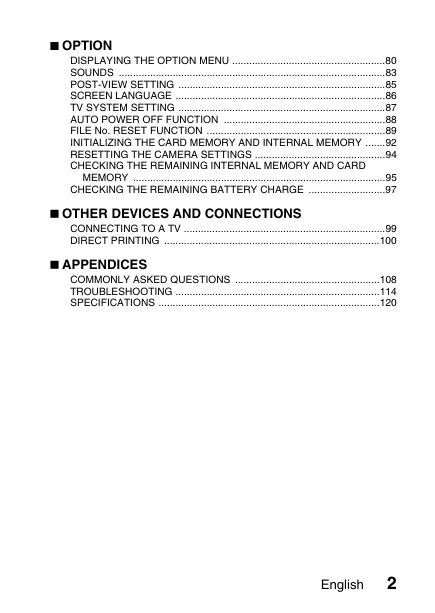

OPTION DISPLAYING THE OPTION MENU ......................................................80 SOUNDS ..............................................................................................83 POST-VIEW SETTING .........................................................................85 SCREEN LANGUAGE ..........................................................................86 TV SYSTEM SETTING .........................................................................87 AUTO POWER OFF FUNCTION .........................................................88 FILE No. RESET FUNCTION ...............................................................89 INITIALIZING THE CARD MEMORY AND INTERNAL MEMORY .......92 RESETTING THE CAMERA SETTINGS ..............................................94 CHECKING THE REMAINING INTERNAL MEMORY AND CARD MEMORY .........................................................................................95 CHECKING THE REMAINING BATTERY CHARGE ...........................97 OTHER DEVICES AND CONNECTIONS CONNECTING TO A TV .......................................................................99 DIRECT PRINTING ............................................................................100 APPENDICES COMMONLY ASKED QUESTIONS ...................................................108 TROUBLESHOOTING ........................................................................114 SPECIFICATIONS ..............................................................................120 English 2

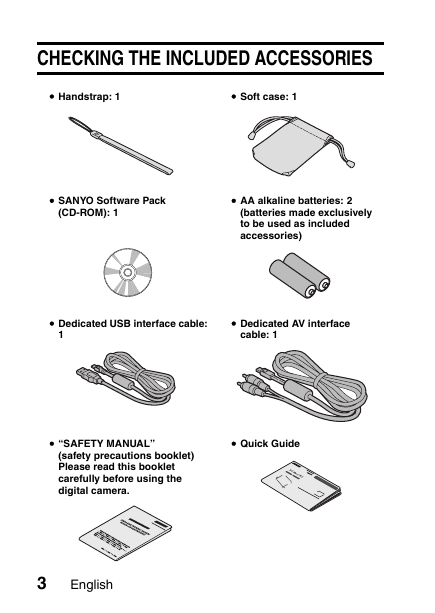

CHECKING THE INCLUDED ACCESSORIES i Handstrap: 1 i Soft case: 1 i SANYO Software Pack (CD-ROM): 1 i AA alkaline batteries: 2 (batteries made exclusively to be used as included accessories) i Dedicated USB interface cable: 1 i Dedicated AV interface cable: 1 i “SAFETY MANUAL” (safety precautions booklet) Please read this booklet carefully before using the digital camera. i Quick Guide 3 English

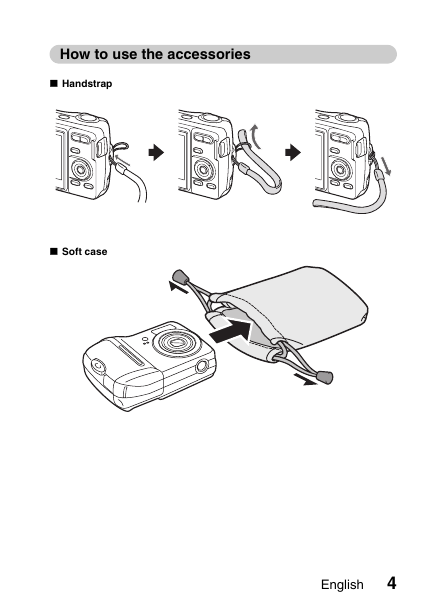

How to use the accessories k Handstrap k Soft case English 4

CHECKING THE INCLUDED ACCESSORIES Media cards that can be used with this camera The types of card that can be inserted into and used with this camera are: i SD Memory Card i Multi Media Card What “card” means in this manual i In this manual, SD Memory Cards and Multi Media Cards that can be used in this digital camera are referred to as “card”. i The cards in the illustrations in this manual are SD Memory Cards, but all installation and removal procedures are the same for both SD Memory Cards and Multi Media Cards. 5 English
