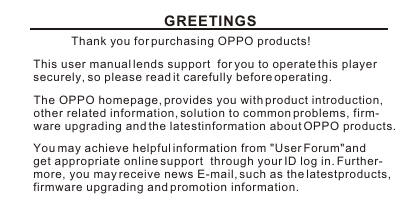

GREETINGS Thank you for purchasing OPPO products! This user manual lends support for you to operate this player securely, so please read it carefully before operating. The OPPO homepage, provides you with product introduction, other related information, solution to common problems, firm- ware upgrading and the latestinformation about OPPO products. You may achieve helpful information from "User Forum"and get appropriate online support through your ID log in. Further- more, you may receive news E-mail, such as the latestproducts, firmware upgrading and promotion information.

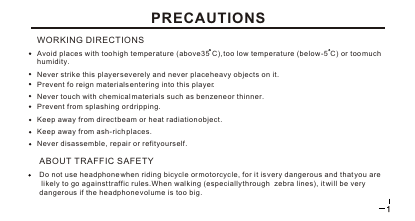

PRECAUTIONS WORKING DIRECTIONS Avoid places with too high temperature (above35 C), too low temperature (below -5 C) or too much humidity. Never strike this player severely and never place heavy objects on it. Prevent fo reign materials entering into this player. Never touch with chemical materials such as benzene or thinner. Prevent from splashing or dripping. Keep away from direct beam or heat radiation object. Keep away from ash-rich places. Never disassemble, repair or refit yourself. ABOUT TRAFFIC SAFETY Do not use headphone when riding bicycle or motorcycle, for it is very dangerous and that you are likely to go against traffic rules.When walking (especially through zebra lines), it will be very dangerous if the headphone volume is too big.

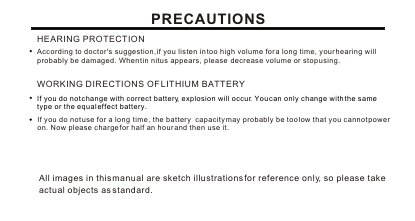

PRECAUTIONS HEARING PROTECTION According to doctor's suggestion, if you listen in too high volume for a long time, your hearing will probably be damaged. When tin nitus appears, please decrease volume or stop using. WORKING DIRECTIONS OF LITHIUM BATTERY If you do not change with correct battery, explosion will occur. You can only change with the same type or the equal effect battery. If you do not use for a long time, the battery capacity may probably be too low that you cannot power on. Now please charge for half an hour and then use it. All images in this manual are sketch illustrations for reference only, so please take actual objects as standard.

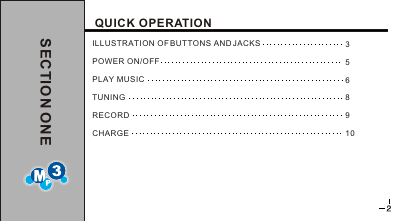

QUICK OPERATION ILLUSTRATION OF BUTTONS AND JACKS POWER ON/OFF PLAY MUSIC TUNING RECORD CHARGE 3 5 6 8 9 10 I S E C T O N O N E

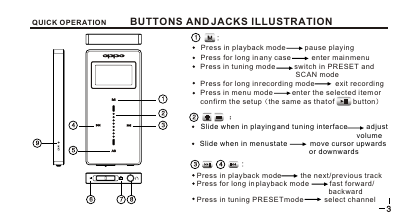

QUICK OPERATION BUTTONS AND JACKS ILLUSTRATION Press in playback mode pause playing Press for long in any case enter main menu Press in tuning mode switch in PRESET and SCAN mode Press for long in recording mode exit recording Press in menu mode enter the selected item or confirm the setup the same as that of button Slide when in playing and tuning interface adjust volume Slide when in menu state move cursor upwards or downwards Press in playback mode the next/previous track Press for long in playback mode fast forward/ backward Press in tuning PRESET mode select channel

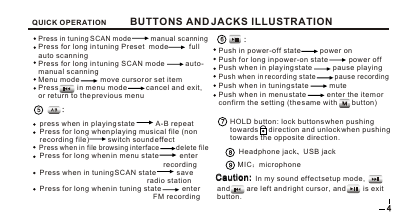

QUICK OPERATION BUTTONS AND JACKS ILLUSTRATION Press in tuning SCAN mode manual scanning Press for long in tuning Preset mode full auto scanning Press for long in tuning SCAN mode auto- manual scanning Menu mode move cursor or set item Press in menu mode cancel and exit, or return to the previous menu Push in power-off state power on Push for long in power-on state power off Push when in playing state pause playing Push when in recording state pause recording Push when in tuning state mute Push when in menu state enter the item or confirm the setting (the same with button) press when in playing state A-B repeat Press for long when playing musical file (non recording file) switch sound effect Press when in file browsing interface delete file Press for long when in menu state enter recording Press when in tuning SCAN state save radio station Press for long when in tuning state enter FM recording HOLD button: lock buttons when pushing towards direction and unlock when pushing towards the opposite direction. Headphone jack USB jack MIC microphone Caution: Caution: In my sound effect setup mode, and are left and right cursor, and is exit button.

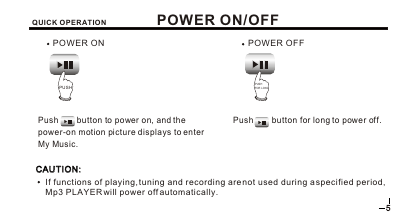

QUICK OPERATION POWER ON POWER ON/OFF POWER OFF PUSH PUSH FOR LONG Push button to power on, and the power-on motion picture displays to enter My Music. Push button for long to power off. CAUTION: CAUTION: If functions of playing, tuning and recording are not used during a specified period, Mp3 PLAYER will power off automatically.

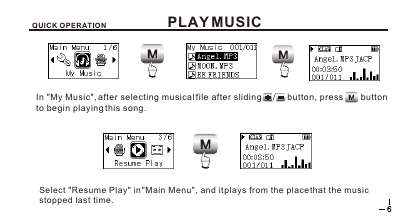

QUICK OPERATION PLAY MUSIC PRESS PRESS In "My Music", after selecting musical file after sliding button, press button to begin playing this song. PRESS Select "Resume Play" in "Main Menu", and it plays from the place that the music stopped last time.
