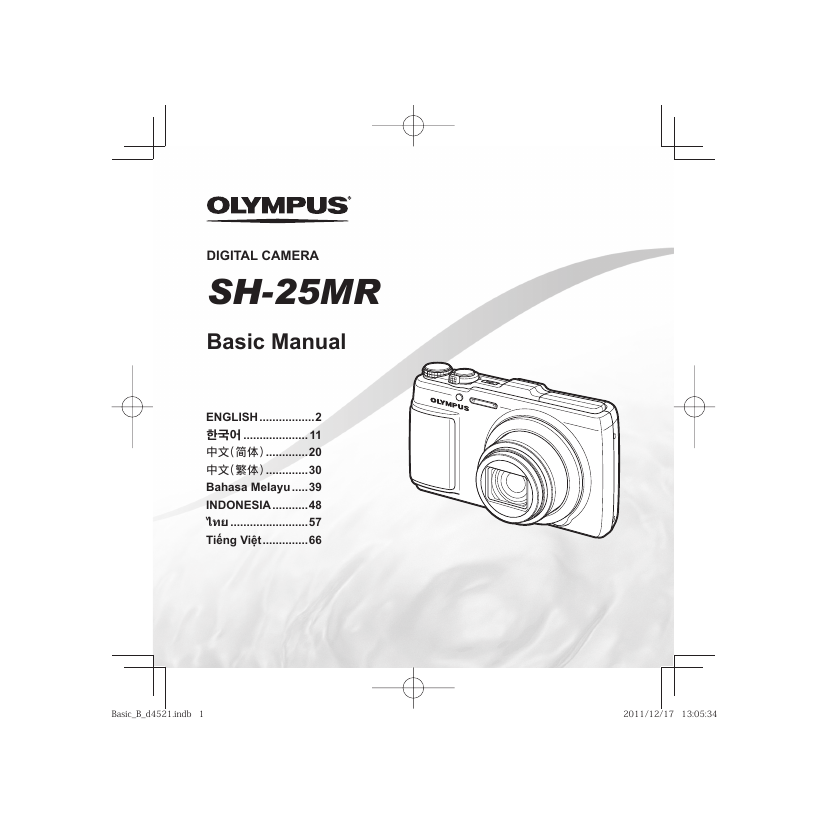

DIGITAL CAMERA SH-25MR Basic Manual ENGLISH .................2 한국어 ....................11 中⽂（简体） .............20 中⽂（繁体） .............30 Bahasa Melayu .....39 INDONESIA ...........48 ไทย ........................57 Tiếng Việt ..............66 Basic_B_d4521.indb 1 Basic_B_d4521.indb 1 2011/12/17 13:05:34 2011/12/17 13:05:34

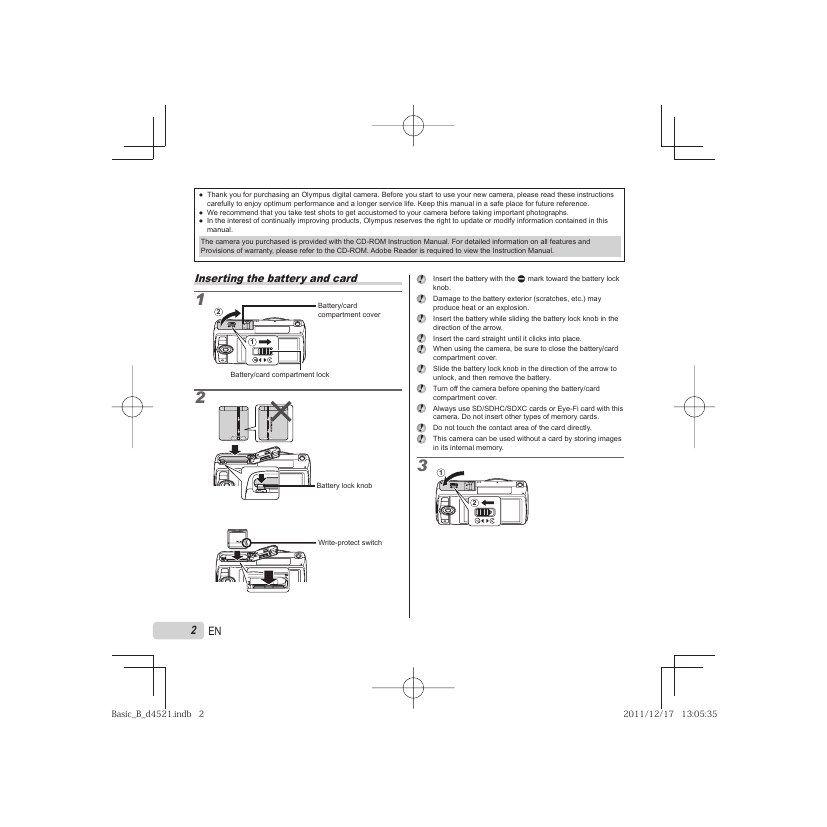

● Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference. ● We recommend that you take test shots to get accustomed to your camera before taking important photographs. ● In the interest of continually improving products, Olympus reserves the right to update or modify information contained in this manual. The camera you purchased is provided with the CD-ROM Instruction Manual. For detailed information on all features and Provisions of warranty, please refer to the CD-ROM. Adobe Reader is required to view the Instruction Manual. Inserting the battery and card 1 2 Battery/card compartment cover 1 Battery/card compartment lock 2 Insert the battery with the C mark toward the battery lock knob. Damage to the battery exterior (scratches, etc.) may produce heat or an explosion. Insert the battery while sliding the battery lock knob in the direction of the arrow. Insert the card straight until it clicks into place. When using the camera, be sure to close the battery/card compartment cover. Slide the battery lock knob in the direction of the arrow to unlock, and then remove the battery. Turn off the camera before opening the battery/card compartment cover. Always use SD/SDHC/SDXC cards or Eye-Fi card with this camera. Do not insert other types of memory cards. Do not touch the contact area of the card directly. This camera can be used without a card by storing images in its internal memory. 3 1 2 Battery lock knob Write-protect switch 2 EN Basic_B_d4521.indb 2 Basic_B_d4521.indb 2 2011/12/17 13:05:35 2011/12/17 13:05:35

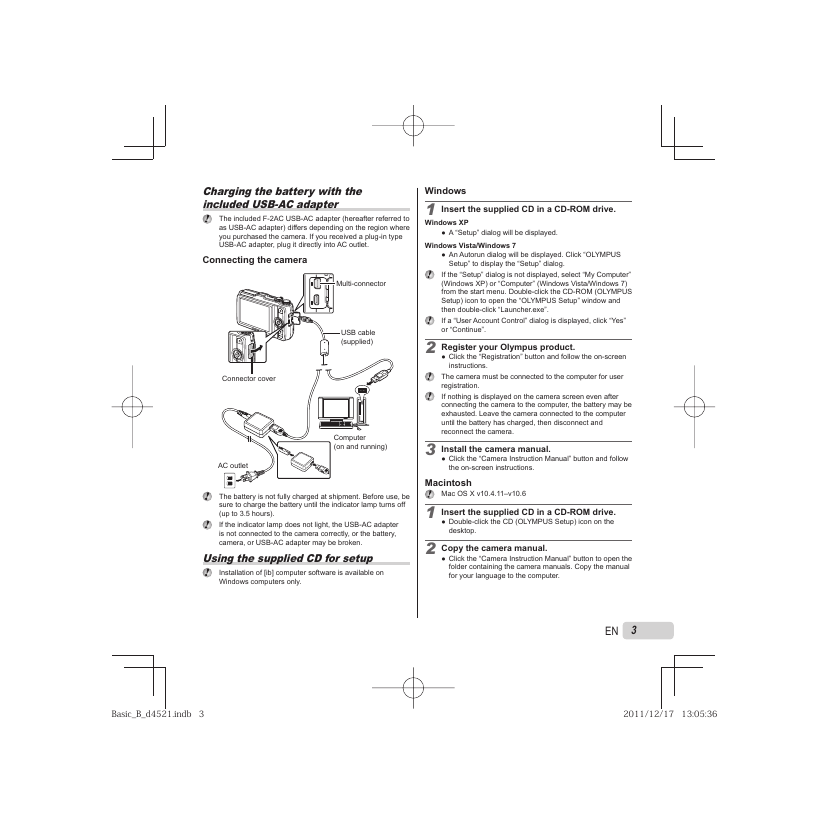

Charging the battery with the included USB-AC adapter The included F-2AC USB-AC adapter (hereafter referred to as USB-AC adapter) differs depending on the region where you purchased the camera. If you received a plug-in type USB-AC adapter, plug it directly into AC outlet. Connecting the camera Multi-connector USB cable (supplied) Computer (on and running) Connector cover AC outlet Windows 1 Insert the supplied CD in a CD-ROM drive. Windows XP ● A “Setup” dialog will be displayed. Windows Vista/Windows 7 ● An Autorun dialog will be displayed. Click “OLYMPUS Setup” to display the “Setup” dialog. If the “Setup” dialog is not displayed, select “My Computer” (Windows XP) or “Computer” (Windows Vista/Windows 7) from the start menu. Double-click the CD-ROM (OLYMPUS Setup) icon to open the “OLYMPUS Setup” window and then double-click “Launcher.exe”. If a “User Account Control” dialog is displayed, click “Yes” or “Continue”. 2 Register your Olympus product. ● Click the “Registration” button and follow the on-screen instructions. The camera must be connected to the computer for user registration. If nothing is displayed on the camera screen even after connecting the camera to the computer, the battery may be exhausted. Leave the camera connected to the computer until the battery has charged, then disconnect and reconnect the camera. 3 Install the camera manual. ● Click the “Camera Instruction Manual” button and follow the on-screen instructions. The battery is not fully charged at shipment. Before use, be sure to charge the battery until the indicator lamp turns off (up to 3.5 hours). If the indicator lamp does not light, the USB-AC adapter is not connected to the camera correctly, or the battery, camera, or USB-AC adapter may be broken. Using the supplied CD for setup Installation of [ib] computer software is available on Windows computers only. Macintosh Mac OS X v10.4.11–v10.6 1 Insert the supplied CD in a CD-ROM drive. ● Double-click the CD (OLYMPUS Setup) icon on the desktop. 2 Copy the camera manual. ● Click the “Camera Instruction Manual” button to open the folder containing the camera manuals. Copy the manual for your language to the computer. EN 3 Basic_B_d4521.indb 3 Basic_B_d4521.indb 3 2011/12/17 13:05:36 2011/12/17 13:05:36

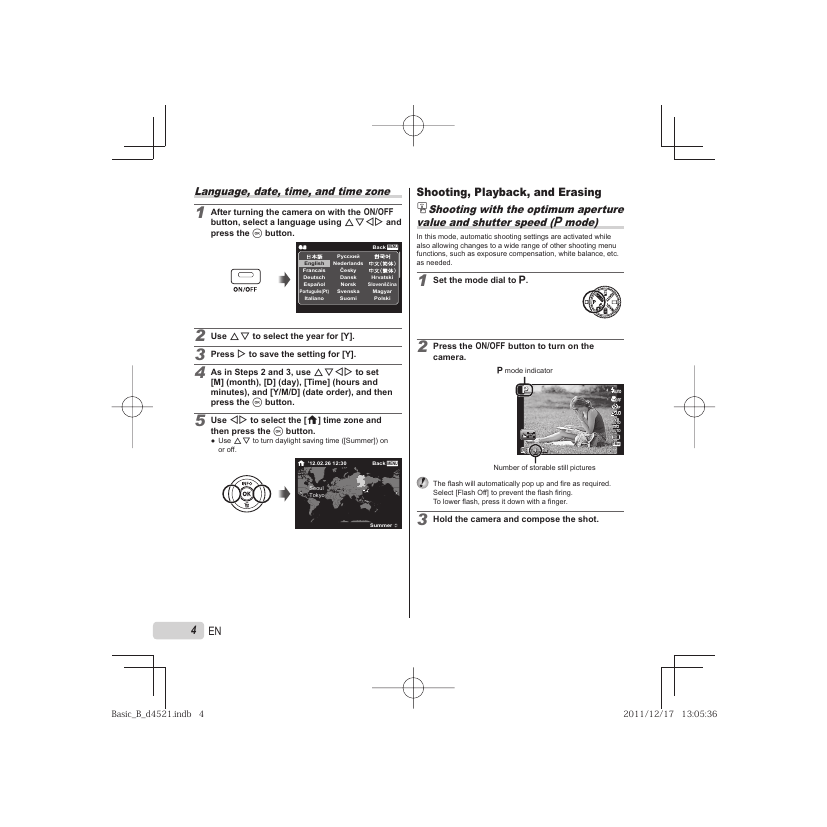

Language, date, time, and time zone 1 After turning the camera on with the n button, select a language using FGHI and press the A button. English Francais Deutsch Español Português(Pt) Italiano Русский Nederlands Česky Dansk Norsk Svenska Suomi Back MENU Hrvatski Slovenščina Magyar Polski Shooting, Playback, and Erasing Shooting with the optimum aperture value and shutter speed (P mode) In this mode, automatic shooting settings are activated while also allowing changes to a wide range of other shooting menu functions, such as exposure compensation, white balance, etc. as needed. 1 Set the mode dial to P. 2 Use FG to select the year for [Y]. 3 Press I to save the setting for [Y]. 4 As in Steps 2 and 3, use FGHI to set [M] (month), [D] (day), [Time] (hours and minutes), and [Y/M/D] (date order), and then press the A button. 5 Use HI to select the [x] time zone and then press the A button. ● Use FG to turn daylight saving time ([Summer]) on or off. ’12.02.26 12:30 Back MENU 2 Press the n button to turn on the camera. P mode indicator PP 0.00.0 WB WB AUTO AUTO ISO ISO AUTO AUTO 16M 44 NORM Number of storable still pictures Seoul Tokyo The ﬂ ash will automatically pop up and ﬁ re as required. Select [Flash Off] to prevent the ﬂ ash ﬁ ring. To lower ﬂ ash, press it down with a ﬁ nger. Summer 3 Hold the camera and compose the shot. 4 EN Basic_B_d4521.indb 4 Basic_B_d4521.indb 4 2011/12/17 13:05:36 2011/12/17 13:05:36

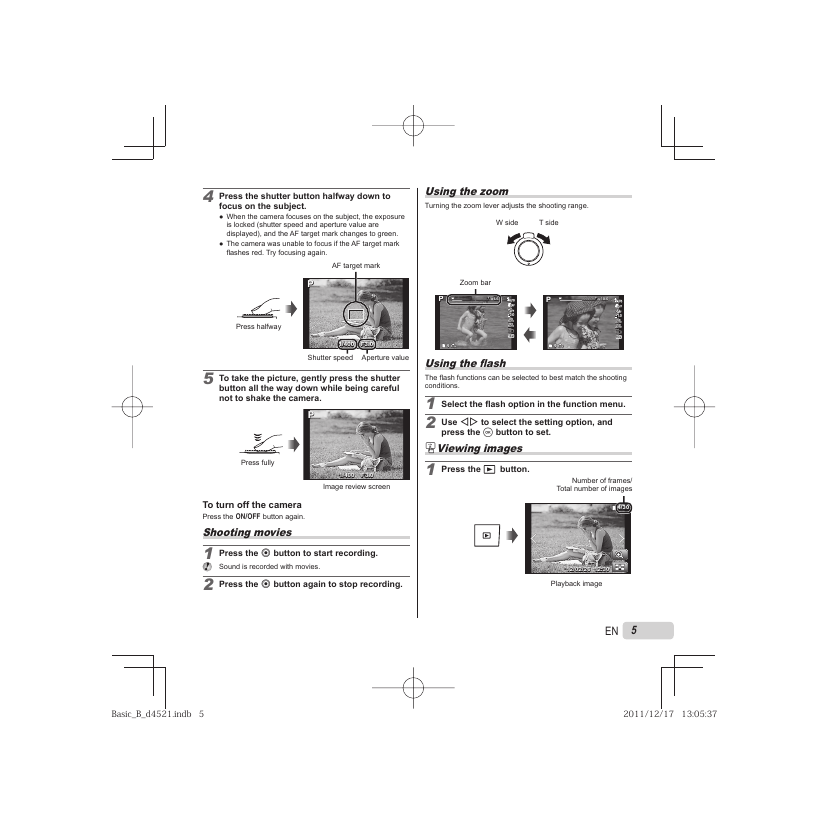

4 Press the shutter button halfway down to focus on the subject. ● When the camera focuses on the subject, the exposure is locked (shutter speed and aperture value are displayed), and the AF target mark changes to green. ● The camera was unable to focus if the AF target mark ﬂ ashes red. Try focusing again. Using the zoom Turning the zoom lever adjusts the shooting range. W side T side AF target mark PP Press halfway Zoom bar PP 4.64.6 PP 10.010.0 0.00.0 WB WB AUTO AUTO ISO ISO AUTO AUTO 16M 0.00.0 WB WB AUTO AUTO ISO ISO AUTO AUTO 16M 1/400 F3.0 1/400 F3.0 44 NORM 44 NORM Shutter speed Aperture value 5 To take the picture, gently press the shutter button all the way down while being careful not to shake the camera. PP Press fully 1/400 F3.0 1/400 F3.0 Image review screen To turn off the camera Press the n button again. Shooting movies 1 Press the R button to start recording. Sound is recorded with movies. 2 Press the R button again to stop recording. Using the ﬂ ash The ﬂ ash functions can be selected to best match the shooting conditions. 1 Select the ﬂ ash option in the function menu. 2 Use HI to select the setting option, and Viewing images 1 Press the q button. press the A button to set. Number of frames/ Total number of images 4/304/30 ’12/02/26 12:30 ’12/02/26 12:30 Playback image EN 5 Basic_B_d4521.indb 5 Basic_B_d4521.indb 5 2011/12/17 13:05:37 2011/12/17 13:05:37

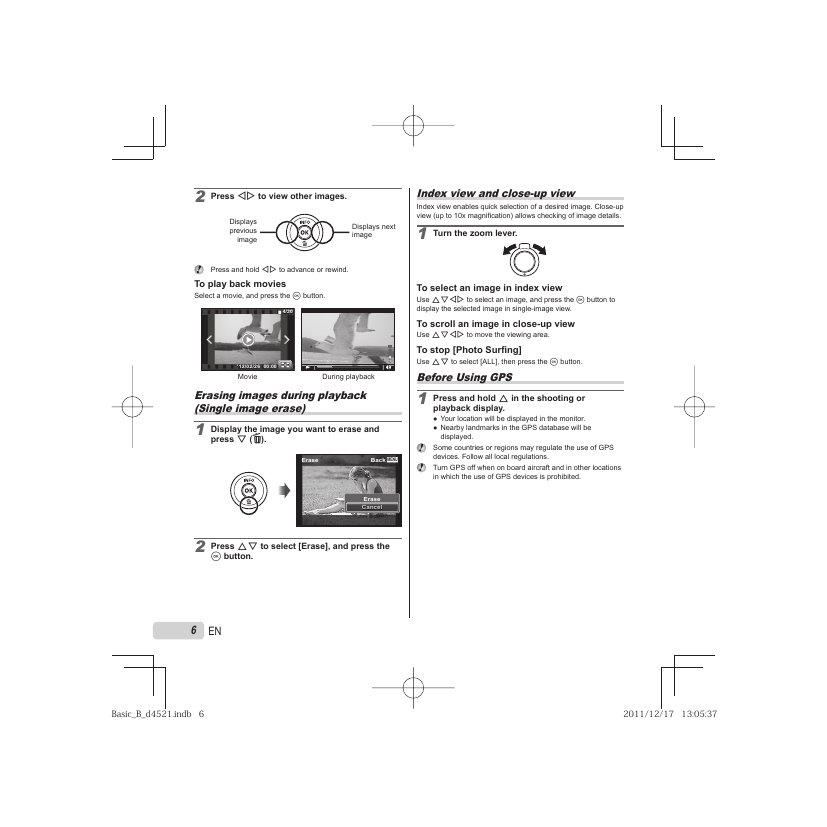

2 Press HI to view other images. Displays previous image Displays next image Index view and close-up view Index view enables quick selection of a desired image. Close-up view (up to 10x magniﬁ cation) allows checking of image details. 1 Turn the zoom lever. To select an image in index view Use FGHI to select an image, and press the A button to display the selected image in single-image view. To scroll an image in close-up view Use FGHI to move the viewing area. To stop [Photo Surﬁ ng] Use FG to select [ALL], then press the A button. Before Using GPS 1 Press and hold F in the shooting or playback display. ● Your location will be displayed in the monitor. ● Nearby landmarks in the GPS database will be displayed. Some countries or regions may regulate the use of GPS devices. Follow all local regulations. Turn GPS off when on board aircraft and in other locations in which the use of GPS devices is prohibited. Press and hold HI to advance or rewind. To play back movies Select a movie, and press the A button. 4/304/30 ’12/02/26 00:00 ’12/02/26 00:00 Movie During playback Erasing images during playback (Single image erase) 1 Display the image you want to erase and press G (D). Erase Back MENU Erase Cancel Cancel 2 Press FG to select [Erase], and press the A button. 6 EN Basic_B_d4521.indb 6 Basic_B_d4521.indb 6 2011/12/17 13:05:37 2011/12/17 13:05:37

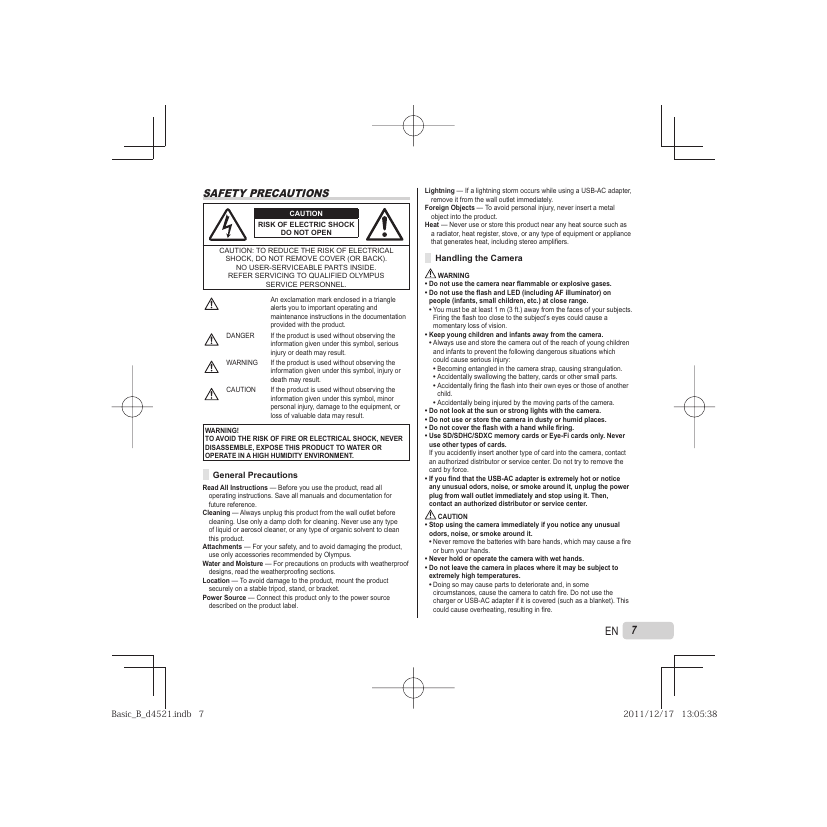

SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL. DANGER WARNING CAUTION An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product. If the product is used without observing the information given under this symbol, serious injury or death may result. If the product is used without observing the information given under this symbol, injury or death may result. If the product is used without observing the information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result. WARNING! TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT. General Precautions Read All Instructions — Before you use the product, read all operating instructions. Save all manuals and documentation for future reference. Cleaning — Always unplug this product from the wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product. Attachments — For your safety, and to avoid damaging the product, use only accessories recommended by Olympus. Water and Moisture — For precautions on products with weatherproof designs, read the weatherprooﬁ ng sections. Location — To avoid damage to the product, mount the product securely on a stable tripod, stand, or bracket. Power Source — Connect this product only to the power source described on the product label. Lightning — If a lightning storm occurs while using a USB-AC adapter, remove it from the wall outlet immediately. Foreign Objects — To avoid personal injury, never insert a metal object into the product. Heat — Never use or store this product near any heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo ampliﬁ ers. Handling the Camera WARNING • Do not use the camera near ﬂ ammable or explosive gases. • Do not use the ﬂ ash and LED (including AF illuminator) on people (infants, small children, etc.) at close range. • You must be at least 1 m (3 ft.) away from the faces of your subjects. Firing the ﬂ ash too close to the subject’s eyes could cause a momentary loss of vision. • Keep young children and infants away from the camera. • Always use and store the camera out of the reach of young children and infants to prevent the following dangerous situations which could cause serious injury: • Becoming entangled in the camera strap, causing strangulation. • Accidentally swallowing the battery, cards or other small parts. • Accidentally ﬁ ring the ﬂ ash into their own eyes or those of another child. • Accidentally being injured by the moving parts of the camera. • Do not look at the sun or strong lights with the camera. • Do not use or store the camera in dusty or humid places. • Do not cover the ﬂ ash with a hand while ﬁ ring. • Use SD/SDHC/SDXC memory cards or Eye-Fi cards only. Never use other types of cards. If you accidently insert another type of card into the camera, contact an authorized distributor or service center. Do not try to remove the card by force. • If you ﬁ nd that the USB-AC adapter is extremely hot or notice any unusual odors, noise, or smoke around it, unplug the power plug from wall outlet immediately and stop using it. Then, contact an authorized distributor or service center. CAUTION • Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it. • Never remove the batteries with bare hands, which may cause a ﬁ re or burn your hands. • Never hold or operate the camera with wet hands. • Do not leave the camera in places where it may be subject to extremely high temperatures. • Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch ﬁ re. Do not use the charger or USB-AC adapter if it is covered (such as a blanket). This could cause overheating, resulting in ﬁ re. EN 7 Basic_B_d4521.indb 7 Basic_B_d4521.indb 7 2011/12/17 13:05:38 2011/12/17 13:05:38

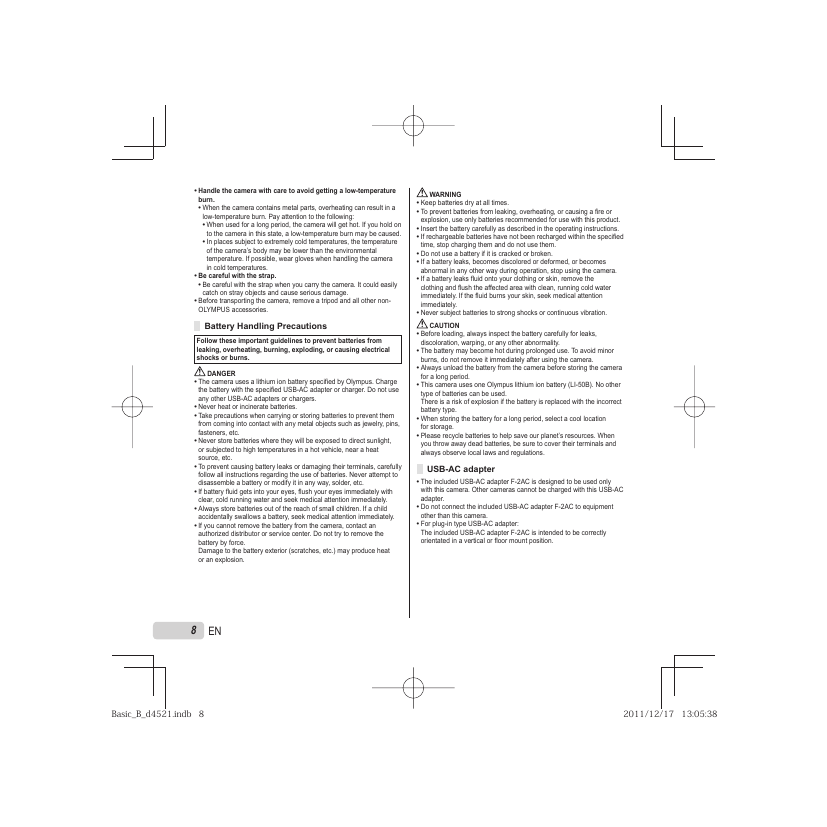

WARNING • Keep batteries dry at all times. • To prevent batteries from leaking, overheating, or causing a ﬁ re or explosion, use only batteries recommended for use with this product. • Insert the battery carefully as described in the operating instructions. • If rechargeable batteries have not been recharged within the speciﬁ ed time, stop charging them and do not use them. • Do not use a battery if it is cracked or broken. • If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera. • If a battery leaks ﬂ uid onto your clothing or skin, remove the clothing and ﬂ ush the affected area with clean, running cold water immediately. If the ﬂ uid burns your skin, seek medical attention immediately. • Never subject batteries to strong shocks or continuous vibration. CAUTION • Before loading, always inspect the battery carefully for leaks, discoloration, warping, or any other abnormality. • The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately after using the camera. • Always unload the battery from the camera before storing the camera for a long period. • This camera uses one Olympus lithium ion battery (LI-50B). No other type of batteries can be used. There is a risk of explosion if the battery is replaced with the incorrect battery type. • When storing the battery for a long period, select a cool location for storage. • Please recycle batteries to help save our planet’s resources. When you throw away dead batteries, be sure to cover their terminals and always observe local laws and regulations. USB-AC adapter • The included USB-AC adapter F-2AC is designed to be used only with this camera. Other cameras cannot be charged with this USB-AC adapter. • Do not connect the included USB-AC adapter F-2AC to equipment other than this camera. • For plug-in type USB-AC adapter: The included USB-AC adapter F-2AC is intended to be correctly orientated in a vertical or ﬂ oor mount position. • Handle the camera with care to avoid getting a low-temperature burn. • When the camera contains metal parts, overheating can result in a low-temperature burn. Pay attention to the following: • When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low-temperature burn may be caused. • In places subject to extremely cold temperatures, the temperature of the camera’s body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures. • Be careful with the strap. • Be careful with the strap when you carry the camera. It could easily catch on stray objects and cause serious damage. • Before transporting the camera, remove a tripod and all other non- OLYMPUS accessories. Battery Handling Precautions Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns. DANGER • The camera uses a lithium ion battery speciﬁ ed by Olympus. Charge the battery with the speciﬁ ed USB-AC adapter or charger. Do not use any other USB-AC adapters or chargers. • Never heat or incinerate batteries. • Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc. • Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc. • To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, solder, etc. • If battery ﬂ uid gets into your eyes, ﬂ ush your eyes immediately with clear, cold running water and seek medical attention immediately. • Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately. • If you cannot remove the battery from the camera, contact an authorized distributor or service center. Do not try to remove the battery by force. Damage to the battery exterior (scratches, etc.) may produce heat or an explosion. 8 EN Basic_B_d4521.indb 8 Basic_B_d4521.indb 8 2011/12/17 13:05:38 2011/12/17 13:05:38
