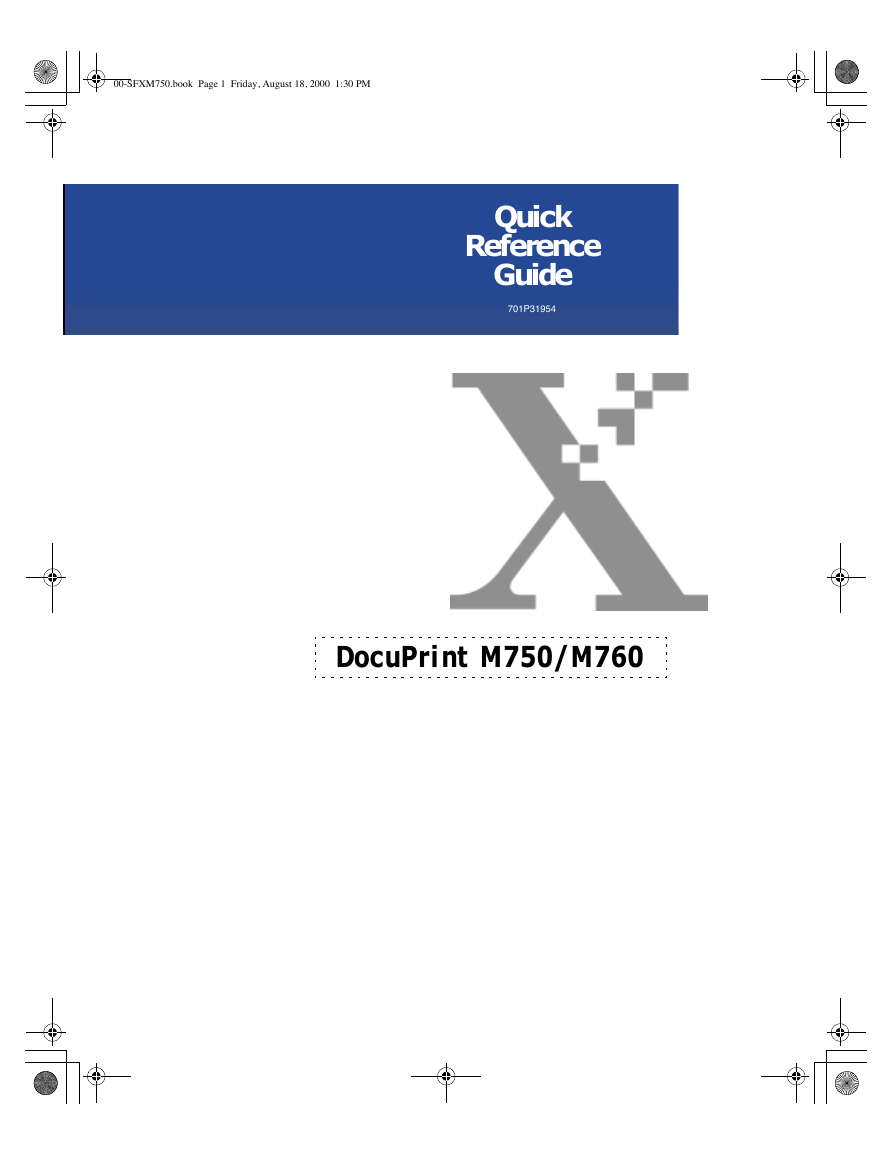

00-SFXM750.book Page 1 Friday, August 18, 2000 1:30 PM Quick Reference Guide 701P31954 D o c u P r i n t M 7 5 0 / M 7 6 0

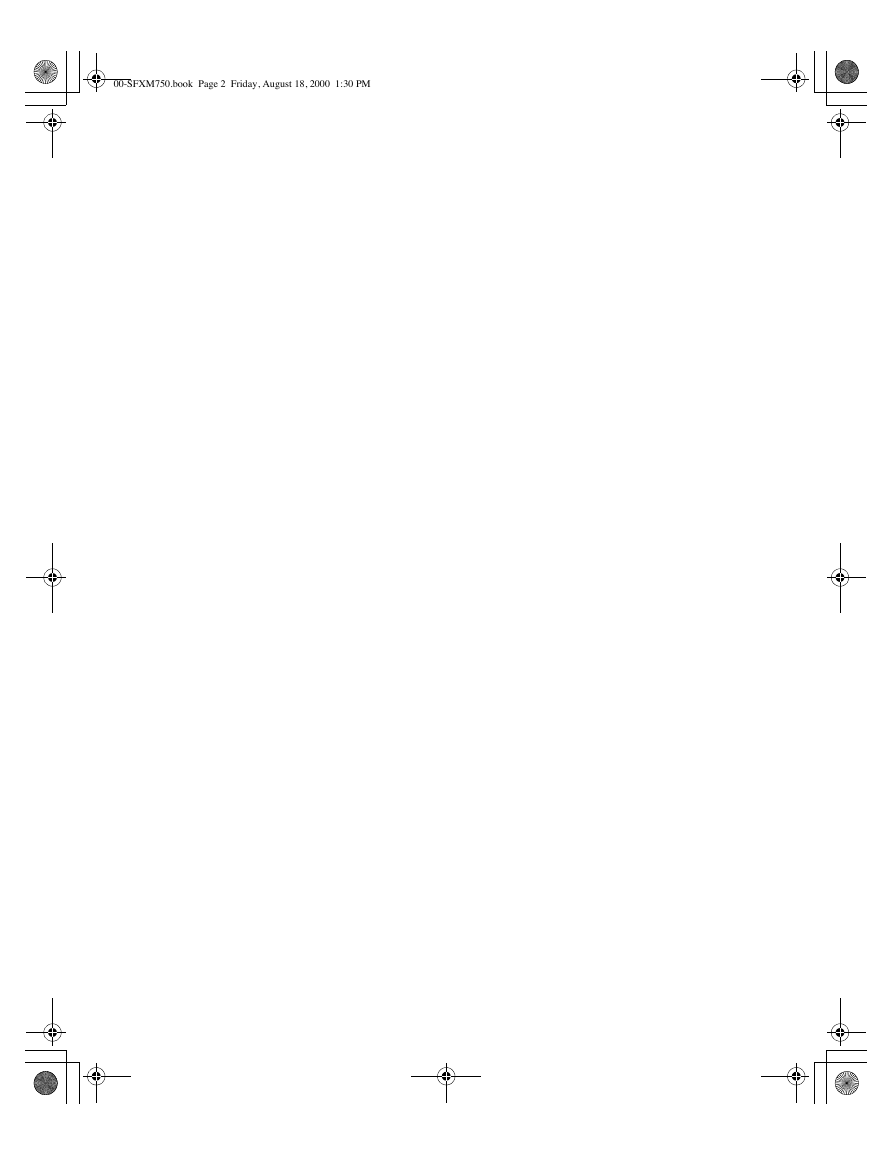

00-SFXM750.book Page 2 Friday, August 18, 2000 1:30 PM

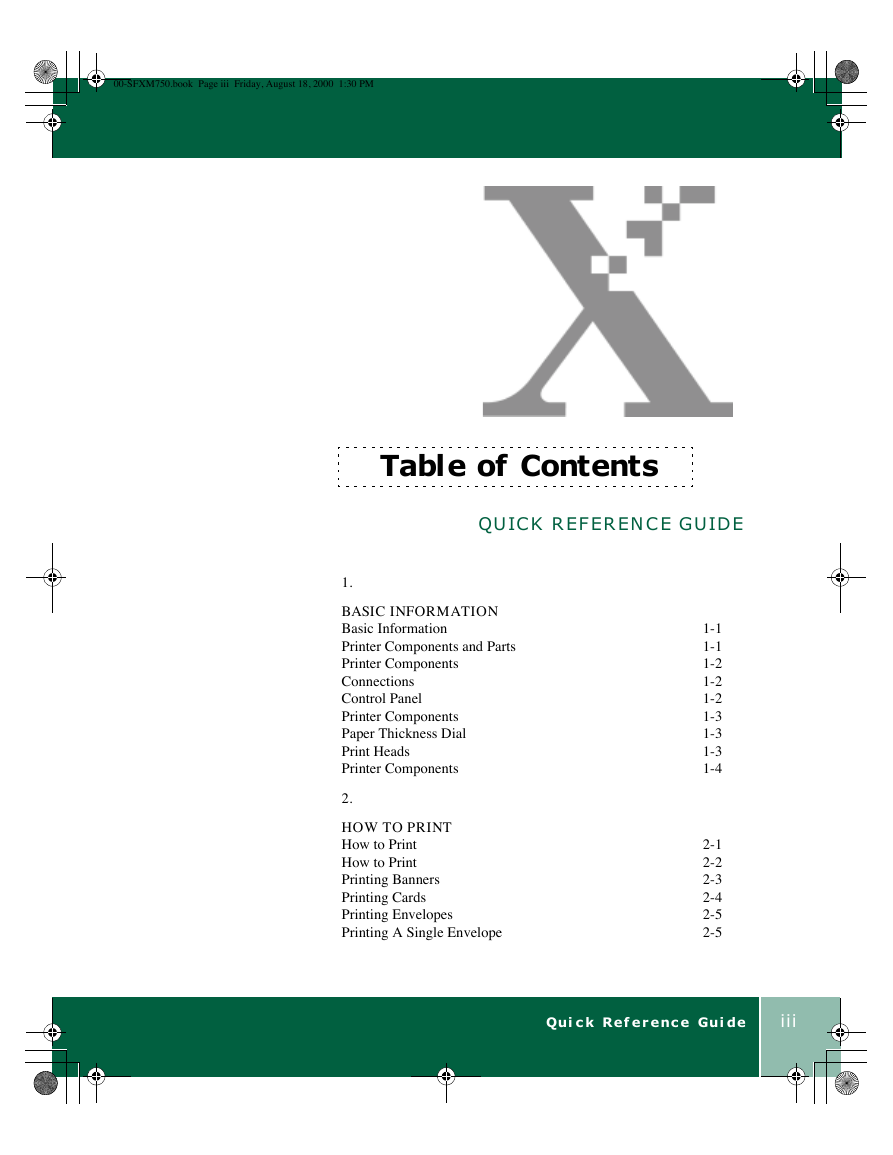

00-SFXM750.book Page iii Friday, August 18, 2000 1:30 PM T a b l e o f C o n t e n t s QUICK REFERENCE GUIDE 1. BASIC INFORMATION Basic Information Printer Components and Parts Printer Components Connections Control Panel Printer Components Paper Thickness Dial Print Heads Printer Components 2. HOW TO PRINT How to Print How to Print Printing Banners Printing Cards Printing Envelopes Printing A Single Envelope 1-1 1-1 1-2 1-2 1-2 1-3 1-3 1-3 1-4 2-1 2-2 2-3 2-4 2-5 2-5 Q u i c k R e f e r e n c e G u i d e iii

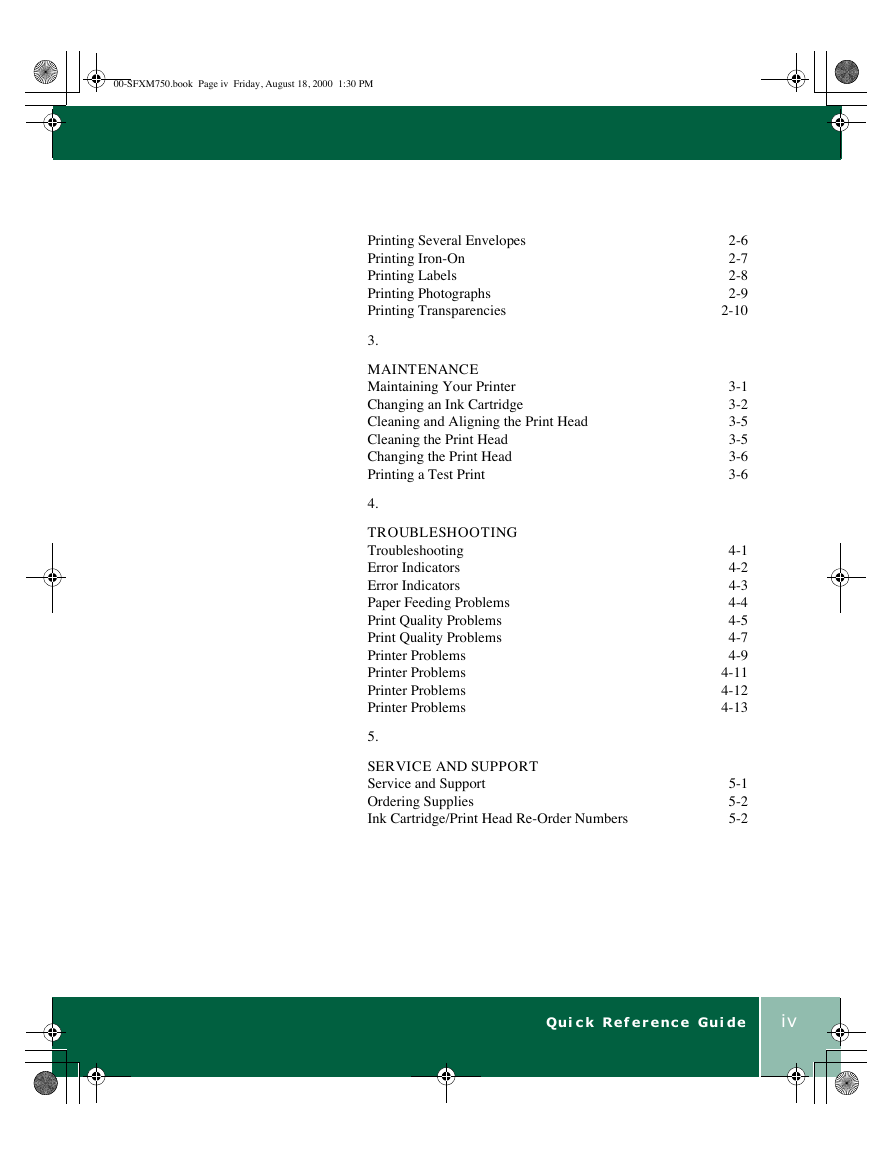

00-SFXM750.book Page iv Friday, August 18, 2000 1:30 PM Printing Several Envelopes Printing Iron-On Printing Labels Printing Photographs Printing Transparencies 3. MAINTENANCE Maintaining Your Printer Changing an Ink Cartridge Cleaning and Aligning the Print Head Cleaning the Print Head Changing the Print Head Printing a Test Print 4. TROUBLESHOOTING Troubleshooting Error Indicators Error Indicators Paper Feeding Problems Print Quality Problems Print Quality Problems Printer Problems Printer Problems Printer Problems Printer Problems 5. SERVICE AND SUPPORT Service and Support Ordering Supplies Ink Cartridge/Print Head Re-Order Numbers 2-6 2-7 2-8 2-9 2-10 3-1 3-2 3-5 3-5 3-6 3-6 4-1 4-2 4-3 4-4 4-5 4-7 4-9 4-11 4-12 4-13 5-1 5-2 5-2 Q u i c k R e f e r e n c e G u i d e iv

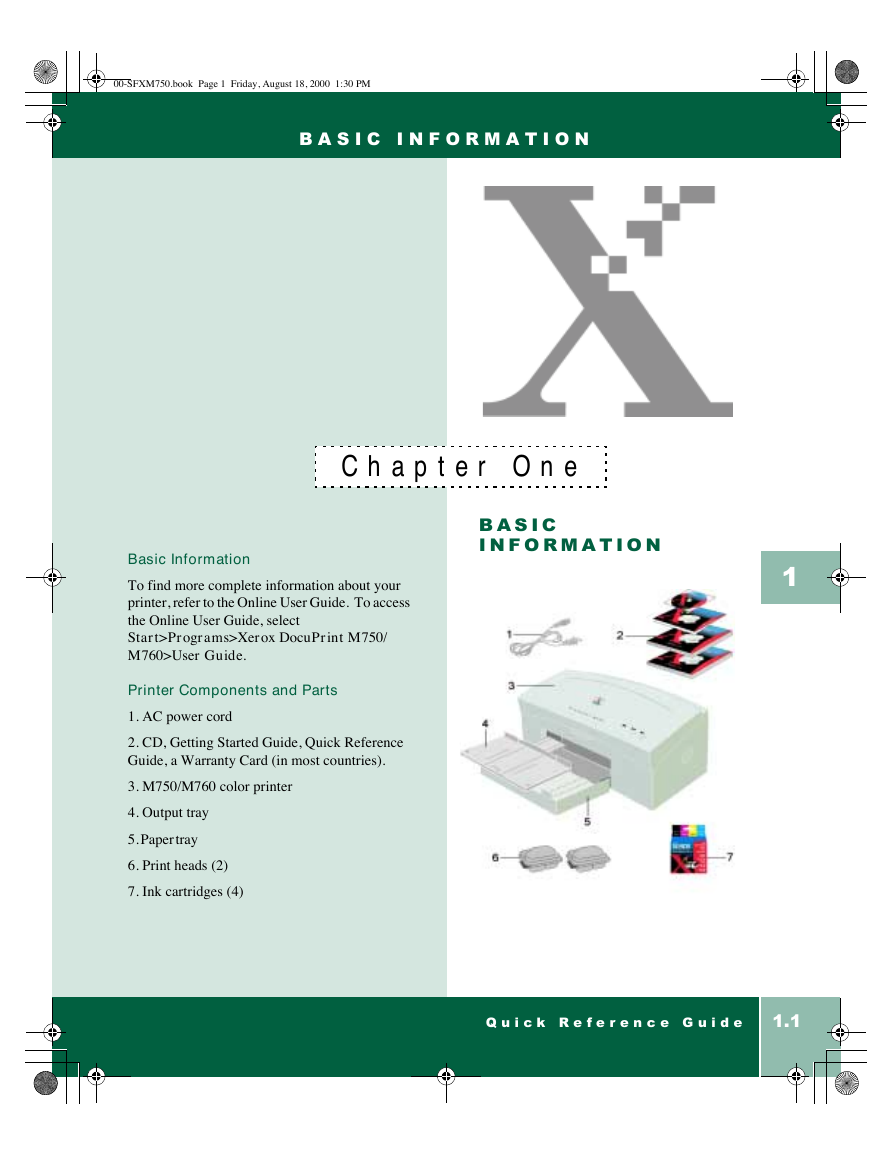

00-SFXM750.book Page 1 Friday, August 18, 2000 1:30 PM B A S I C I N F O R M A T I O N C h a p t e r O n e 1 B A S I C I N F O R M A T I O N 11 Basic Information To find more complete information about your printer, refer to the Online User Guide. To access the Online User Guide, select Start>Programs>Xerox DocuPrint M750/ M760>User Guide. Printer Components and Parts 1. AC power cord 2. CD, Getting Started Guide, Quick Reference Guide, a Warranty Card (in most countries). 3. M750/M760 color printer 4. Output tray 5. Paper tray 6. Print heads (2) 7. Ink cartridges (4) Q u i c k R e f e r e n c e G u i d e 1.1

00-SFXM750.book Page 2 Friday, August 18, 2000 1:30 PM P R I N T E R C O M P O N E N T S Printer Components Connections 1. AC power cord 2. USB cable -OR- 3. Parallel cable Control Panel 1. Ink status light: • Fast blink - Ink cartridge missing, wrong ink cartridge, or out of ink • Slow blink - Cover open or low ink 2. Paper status light: • Fast blink - Out of paper or paper jam 3. Resume button: • Resumes printing after clearing a paper jam or loading paper • Prints a test page 4. Power light: • Light on - Power on • Light off - Power off • Slow blink -Incoming data 5. Power button: • Power on • Low power mode 2 3 1 1 2 3 4 5 1.2 Q u i c k R e f e r e n c e G u i d e

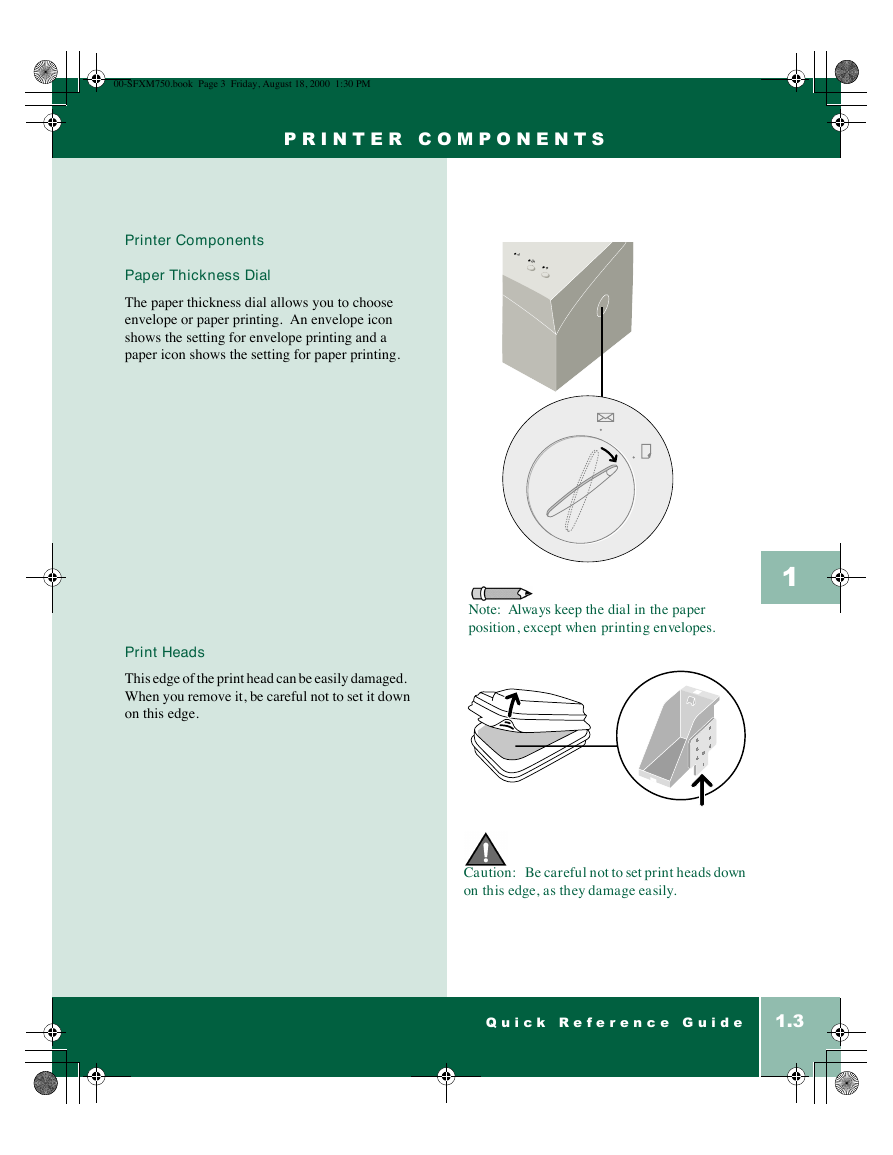

00-SFXM750.book Page 3 Friday, August 18, 2000 1:30 PM P R I N T E R C O M P O N E N T S Printer Components Paper Thickness Dial The paper thickness dial allows you to choose envelope or paper printing. An envelope icon shows the setting for envelope printing and a paper icon shows the setting for paper printing. Note: Always keep the dial in the paper position, except when printing envelopes. 1 Print Heads This edge of the print head can be easily damaged. When you remove it, be careful not to set it down on this edge. Caution: Be careful not to set print heads down on this edge, as they damage easily. Q u i c k R e f e r e n c e G u i d e 1.3

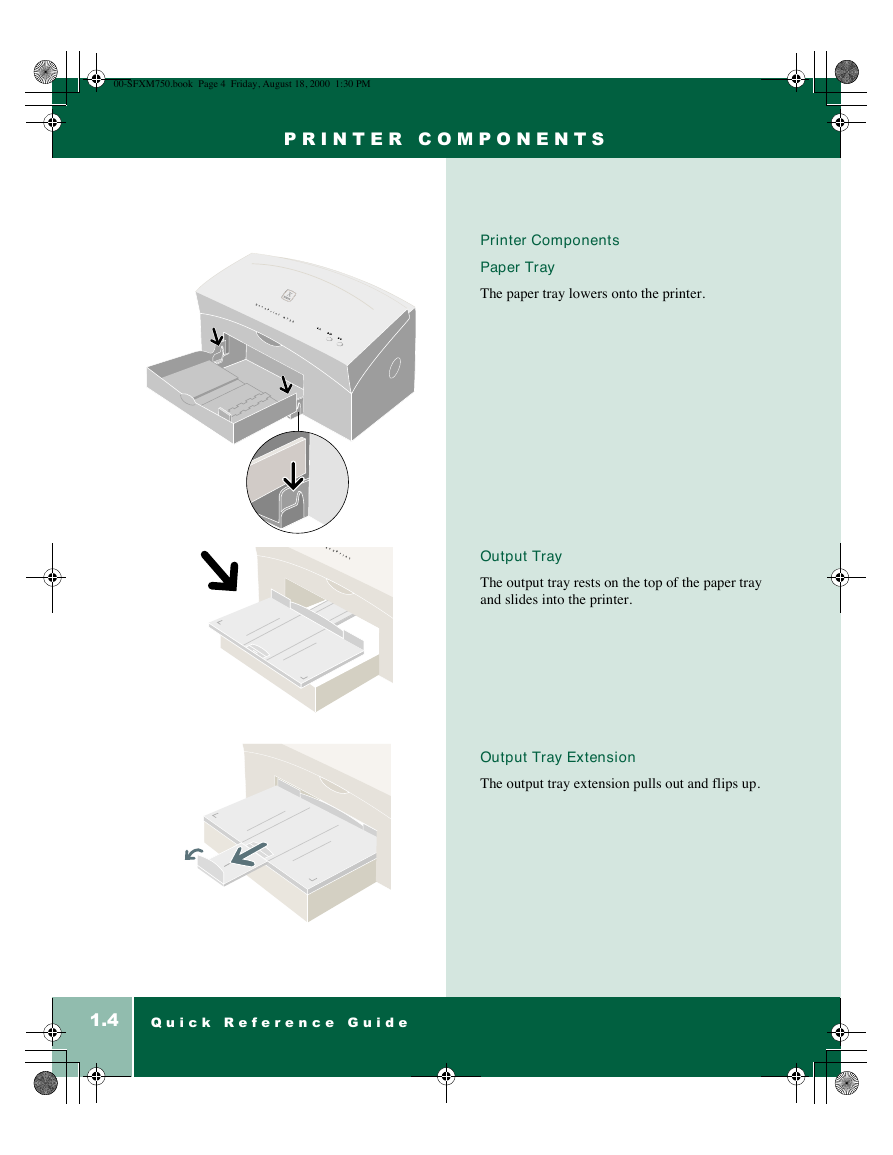

00-SFXM750.book Page 4 Friday, August 18, 2000 1:30 PM P R I N T E R C O M P O N E N T S Printer Components Paper Tray The paper tray lowers onto the printer. Output Tray The output tray rests on the top of the paper tray and slides into the printer. Output Tray Extension The output tray extension pulls out and flips up. D o c u P r i n t M 7 5 0 o c u P r i n t M 7 5 0 D o c u P r i n t M 7 5 0 1.4 Q u i c k R e f e r e n c e G u i d e
