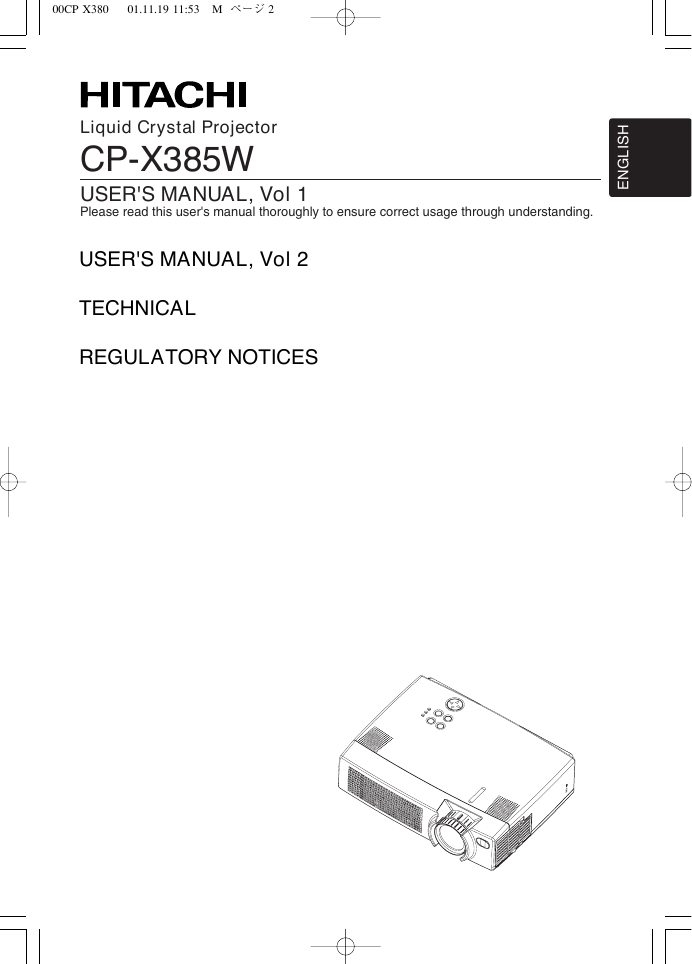

00CP-X380W 01.11.19 11:53 AM ページ 2 Liquid Crystal Projector CP-X385W USER'S MANUAL, Vol 1 Please read this user's manual thoroughly to ensure correct usage through understanding. I H S L G N E

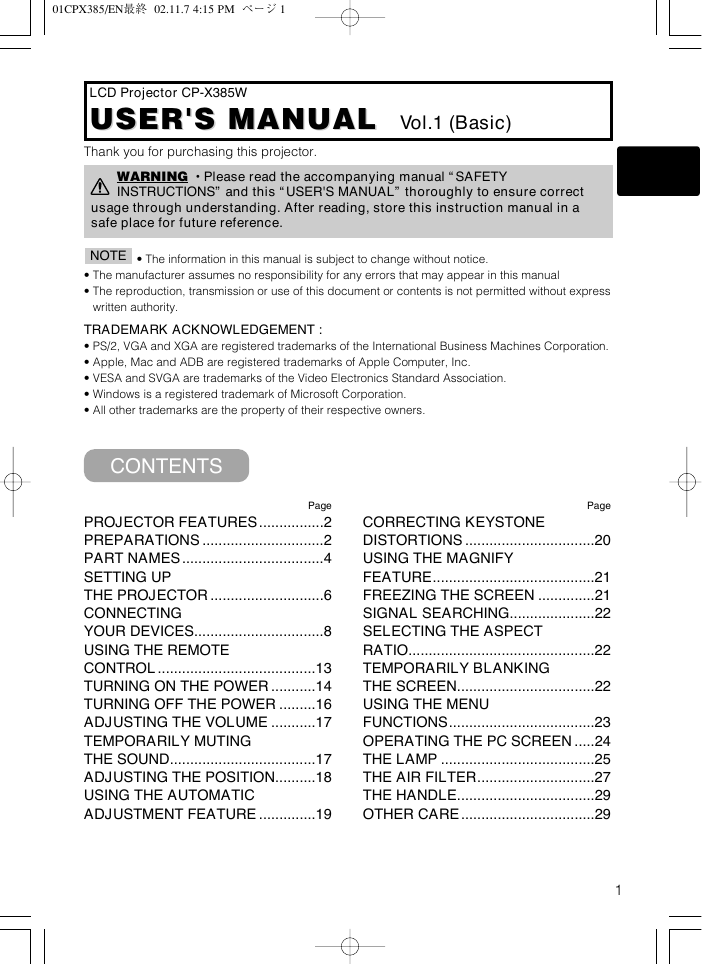

01CPX385/EN最終 02.11.7 4:15 PM ページ 1 LCD Projector CP-X385W USER'S MANUAL Vol.1 (Basic) USER'S MANUAL Thank you for purchasing this projector. WARNING • Please read the accompanying manual “SAFETY INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct usage through understanding. After reading, store this instruction manual in a safe place for future reference. • The information in this manual is subject to change without notice. NOTE • The manufacturer assumes no responsibility for any errors that may appear in this manual • The reproduction, transmission or use of this document or contents is not permitted without express written authority. TRADEMARK ACKNOWLEDGEMENT : • PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation. • Apple, Mac and ADB are registered trademarks of Apple Computer, Inc. • VESA and SVGA are trademarks of the Video Electronics Standard Association. • Windows is a registered trademark of Microsoft Corporation. • All other trademarks are the property of their respective owners. CONTENTS Page PROJECTOR FEATURES................2 PREPARATIONS ..............................2 PART NAMES...................................4 SETTING UP THE PROJECTOR ............................6 CONNECTING YOUR DEVICES................................8 USING THE REMOTE CONTROL.......................................13 TURNING ON THE POWER ...........14 TURNING OFF THE POWER .........16 ADJUSTING THE VOLUME ...........17 TEMPORARILY MUTING THE SOUND....................................17 ADJUSTING THE POSITION..........18 USING THE AUTOMATIC ADJUSTMENT FEATURE ..............19 Page CORRECTING KEYSTONE DISTORTIONS ................................20 USING THE MAGNIFY FEATURE........................................21 FREEZING THE SCREEN ..............21 SIGNAL SEARCHING.....................22 SELECTING THE ASPECT RATIO..............................................22 TEMPORARILY BLANKING THE SCREEN..................................22 USING THE MENU FUNCTIONS....................................23 OPERATING THE PC SCREEN .....24 THE LAMP ......................................25 THE AIR FILTER.............................27 THE HANDLE..................................29 OTHER CARE.................................29 1

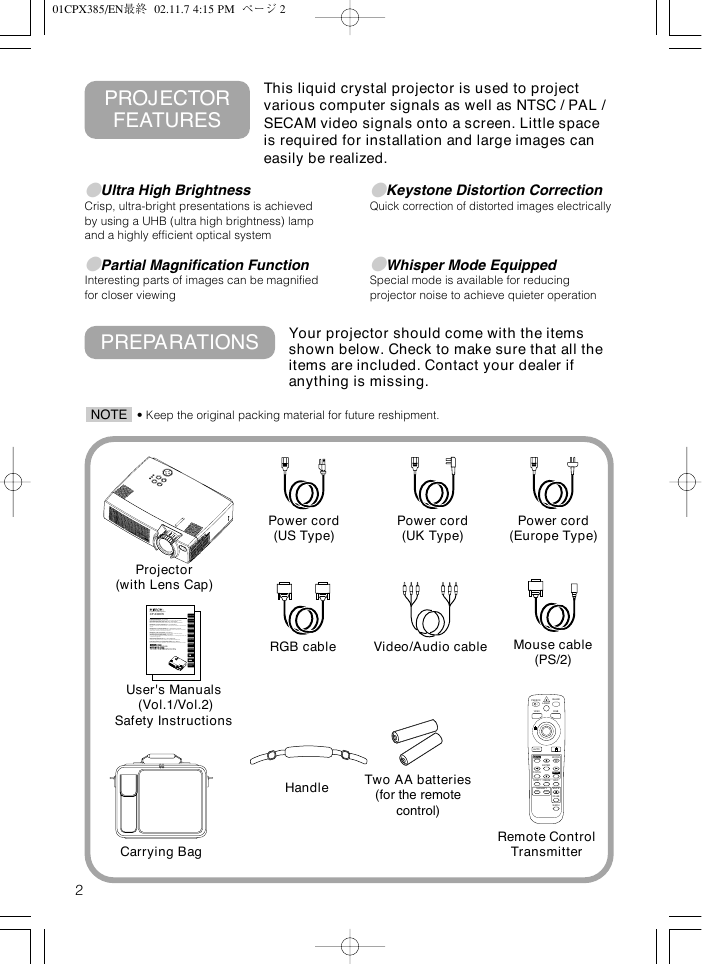

01CPX385/EN最終 02.11.7 4:15 PM ページ 2 PROJECTOR FEATURES This liquid crystal projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized. GUltra High Brightness Crisp, ultra-bright presentations is achieved by using a UHB (ultra high brightness) lamp and a highly efficient optical system GPartial Magnification Function Interesting parts of images can be magnified for closer viewing GKeystone Distortion Correction Quick correction of distorted images electrically GWhisper Mode Equipped Special mode is available for reducing projector noise to achieve quieter operation PREPARATIONS Your projector should come with the items shown below. Check to make sure that all the items are included. Contact your dealer if anything is missing. NOTE • Keep the original packing material for future reshipment. Power cord (US Type) Power cord (UK Type) Power cord (Europe Type) RGB cable Video/Audio cable Mouse cable (PS/2) Handle Two AA batteries (for the remote control) STANDBY/ON BLANK LASER VIDEO RGB AUTO MENU KEYSTONE ENTER POSITION RESET ASPECT FREEZE ESC MAGNIFY ON OFF MUTE VOLUME SEARCH Remote Control Transmitter Projector (with Lens Cap) Liquid Crystal Projector CP-X385W USER'S MANUAL Vol.1 Basic Please read this user's manual thoroughly to ensure correct usage through understanding. BEDIENUNGSANLEITUNG Teil 1 Grundlagen Bitte lessen Sie diese Benutzerhandbuch zugunsten der korrekten Bedienung aufmerksam. MANUEL D'UTILISATION Vol.1 Fondements Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil. MANUALE D'ISTRUZIONI Vol.1 Informazioni di base Vi preghiamo voler leggere attentamente il manuale d'istruzioni in modo tale da poter comprendere quanto riportato ai fini di un corretto utilizzo del proiettore. MANUAL DE USUARIO Vol.1 Básico Lea cuidadosamente este manual del usuario para poder utilizar corretamente el producto. GEBRUIKSAANWIJZING Vol.1 Basis Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te hebben van de uitgebreide mogelijkheden. BRUKERHÅNDBOK Vol.1 Grunnleggende Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk. INSTRUÇÕES DO PROPRIETÁRIO Vol.1 Básico Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do utilizador. ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS NORSK PORTGÊS 中中文文 REGULATORY NOTICES User's Manuals (Vol.1/Vol.2) Safety Instructions Carrying Bag 2

01CPX385/EN最終 02.11.7 4:15 PM ページ 3 WARNING Precautions to observe in regards to the power cord: Please use extra caution when connecting the projector's power cord as incorrect or faulty connections may result in FIRE AND/OR ELECTRICAL SHOCK. Please adhere to the following safety guidelines to insure safe operation of the projector: • Only plug the power cord into outlets rated for use with the power cord's specified voltage range. • Only use the power cord that came with the projector. • NEVER ATTEMPT TO DEFEAT THE GROUND CONNECTION OF THE THREE- PRONGED PLUG! • Make sure that you firmly connect the power cord to the projector and wall outlet. 1 Connect your devices to the projector Connect your computer, VCR and/or other devices you will be using to the projector. 〜8 12 2 Insert the batteries into the remote control 13 3 Connect the power cord (1) Connect the connector of the electrical power cord to the AC inlet of the main unit. (2) Firmly plug the power cord's plug into the outlet Power outlet (2) (1) Power cord AC inlet 3

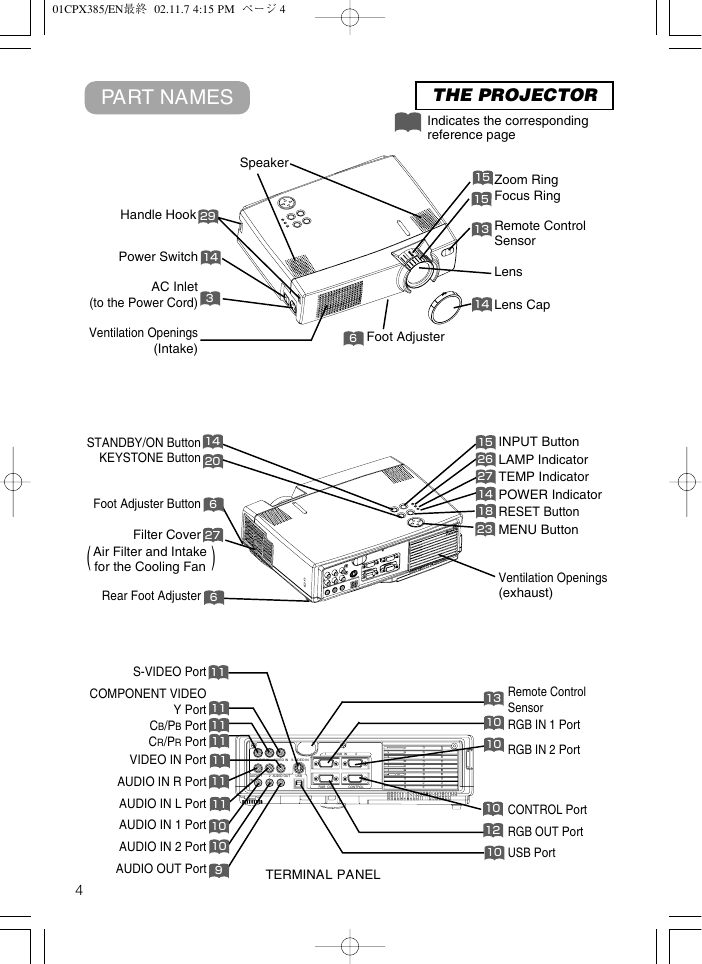

01CPX385/EN最終 02.11.7 4:15 PM ページ 4 PART NAMES Speaker Handle Hook 29 Power Switch 14 AC Inlet (to the Power Cord) 3 Ventilation Openings (Intake) STANDBY/ON Button KEYSTONE Button 14 20 Foot Adjuster Button 6 Filter Cover Air Filter and Intake for the Cooling Fan ( ) 27 Rear Foot Adjuster 6 S-VIDEO Port COMPONENT VIDEO Y Port CB/PB Port CR/PR Port VIDEO IN Port AUDIO IN R Port AUDIO IN L Port AUDIO IN 1 Port AUDIO IN 2 Port AUDIO OUT Port 11 11 11 11 11 11 11 10 10 9 4 AUDIO IN VIDEO IN S-VIDEO IN 1 RGB IN 2 AUDIO IN 1 2 AUDIO OUT USB RGB OUT CONTROL TERMINAL PANEL THE PROJECTOR Indicates the corresponding reference page 15 15 13 Zoom Ring Focus Ring Remote Control Sensor Lens 14 Lens Cap 6 Foot Adjuster 15 26 27 14 18 23 INPUT Button LAMP Indicator TEMP Indicator POWER Indicator RESET Button MENU Button Ventilation Openings (exhaust) 13 10 10 Remote Control Sensor RGB IN 1 Port RGB IN 2 Port 10 12 10 CONTROL Port RGB OUT Port USB Port

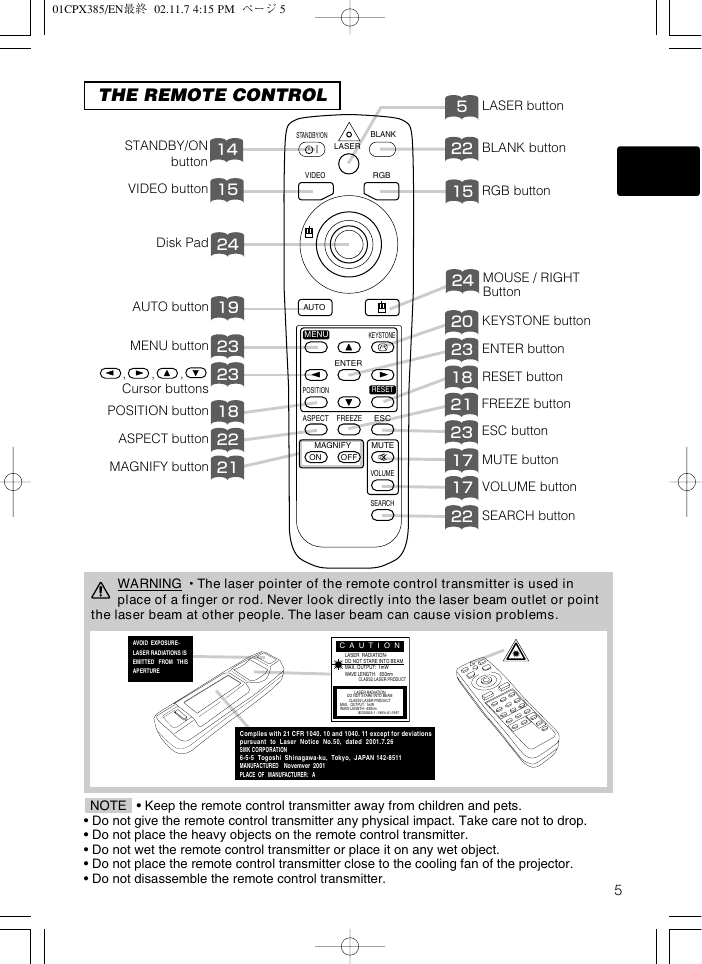

01CPX385/EN最終 02.11.7 4:15 PM ページ 5 THE REMOTE CONTROL STANDBY/ON BLANK LASER VIDEO RGB STANDBY/ON button 14 VIDEO button 15 Disk Pad 24 AUTO button 19 AUTO MENU button 23 , , Cursor buttons , 23 POSITION button 18 ASPECT button 22 MAGNIFY button 21 MENU KEYSTONE ENTER POSITION RESET ASPECT FREEZE ESC MAGNIFY ON OFF MUTE VOLUME SEARCH 5 LASER button 22 BLANK button 15 RGB button 24 MOUSE / RIGHT Button 20 23 18 21 23 17 17 22 KEYSTONE button ENTER button RESET button FREEZE button ESC button MUTE button VOLUME button SEARCH button WARNING • The laser pointer of the remote control transmitter is used in place of a finger or rod. Never look directly into the laser beam outlet or point the laser beam at other people. The laser beam can cause vision problems. AVOID EXPOSURE- LASER RADIATIONS IS EMITTED FROM THIS APERTURE C A U T I O N LASER RADIATION- DO NOT STARE INTO BEAM MAX. OUTPUT: 1mW WAVE LENGTH: 650nm CLASS2 LASER PRODUCT LASER RADIATION DO NOT STARE INTO BEAM CLASS2 LASER PRODUCT MAX. OUTPUT: 1mW WAVE LENGTH: 650nm IEC60825-1 :1993+A1:1997 Complies with 21 CFR 1040. 10 and 1040. 11 except for deviations pursuant to Laser Notice No.50, dated 2001.7.26 SMK CORPORATION 6-5-5 Togoshi Shinagawa-ku, Tokyo, JAPAN 142-8511 MANUFACTURED Novemver 2001 PLACE OF MANUFACTURER: A • Keep the remote control transmitter away from children and pets. NOTE • Do not give the remote control transmitter any physical impact. Take care not to drop. • Do not place the heavy objects on the remote control transmitter. • Do not wet the remote control transmitter or place it on any wet object. • Do not place the remote control transmitter close to the cooling fan of the projector. • Do not disassemble the remote control transmitter. 5

01CPX385/EN最終 02.11.7 4:15 PM ページ 6 SETTING UP THE PROJECTOR CAUTION • Install the projector in a suitable environment according to instructions of the accompanying manual “SAFETY INSTRUCTIONS” and this manual. • If you press the elevator buttons without holding the projector, the projector might crash down, overturn, smash your fingers and possibly result in malfunction. To prevent damaging the projector and injuring yourself, ALWAYS HOLD THE PROJECTOR whenever using the elevator buttons to adjust the elevator feet. Angle Adjustment Use the foot adjusters on the bottom of the projector to adjust the projection angle. It is variable within 0˚ to 9˚ approximately. 1 Lift up the front side of the projector, and pressing the foot adjuster button, adjust the projection angle. 2 Release the button to lock at the desired angle. Press the foot adjuster button 3 Turn the rear foot adjuster to adjust the left-right slope. Do not force the foot adjuster screws. This could damage the adjusters or cause the lock to fail. Rear Foot Adjuster 6

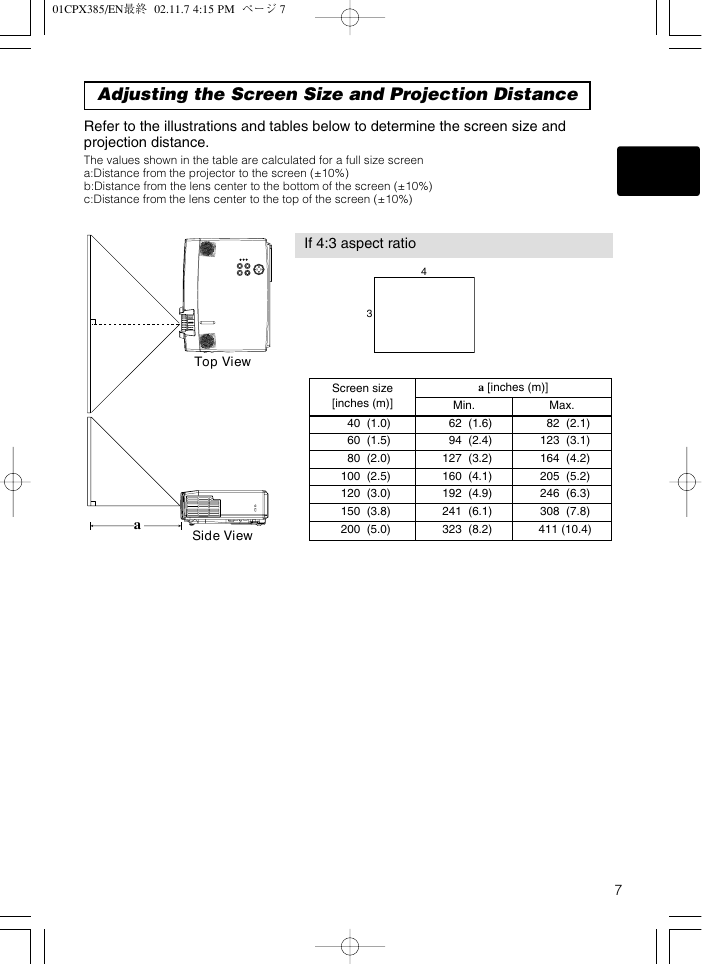

01CPX385/EN最終 02.11.7 4:15 PM ページ 7 Adjusting the Screen Size and Projection Distance Refer to the illustrations and tables below to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen a:Distance from the projector to the screen (±10%) b:Distance from the lens center to the bottom of the screen (±10%) c:Distance from the lens center to the top of the screen (±10%) If 4:3 aspect ratio 4 3 Top View a Side View Screen size [inches (m)] 40 (1.0) 60 (1.5) 80 (2.0) 100 (2.5) 120 (3.0) 150 (3.8) 200 (5.0) a [inches (m)] Min. 62 (1.6) 94 (2.4) 127 (3.2) 160 (4.1) 192 (4.9) 241 (6.1) 323 (8.2) Max. 82 (2.1) 123 (3.1) 164 (4.2) 205 (5.2) 246 (6.3) 308 (7.8) 411 (10.4) 7
