00CP-X380W 01.11.19 11:53 AM ページ 2 Liquid Crystal Projector CP-X380W USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding. I H S L G N E

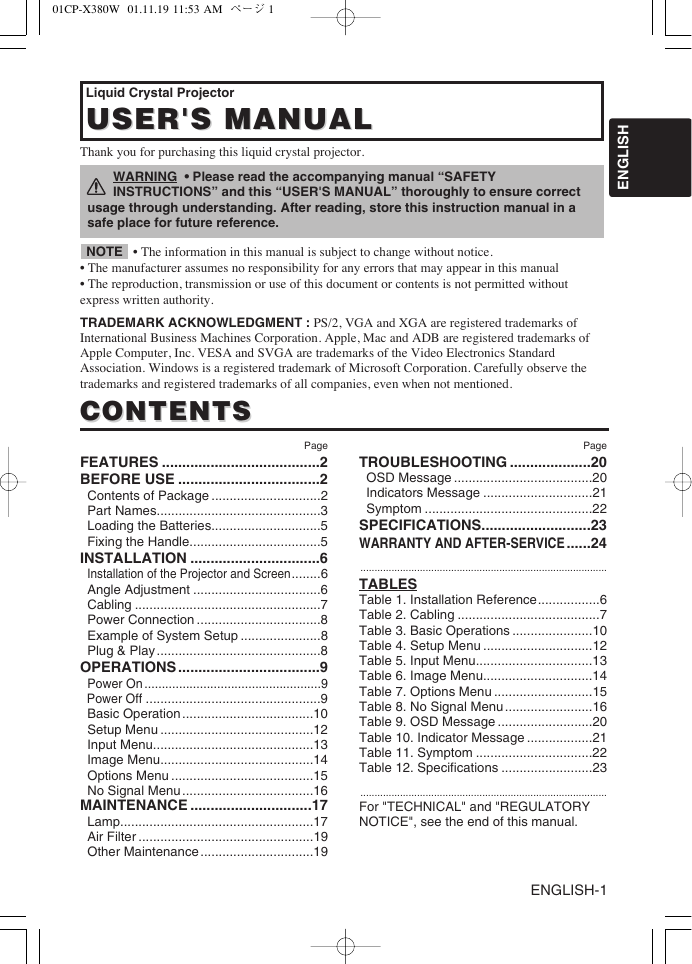

01CP-X380W 01.11.19 11:53 AM ページ 1 Liquid Crystal Projector USER'S MANUAL USER'S MANUAL Thank you for purchasing this liquid crystal projector. WARNING • Please read the accompanying manual “SAFETY INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct usage through understanding. After reading, store this instruction manual in a safe place for future reference. • The information in this manual is subject to change without notice. NOTE • The manufacturer assumes no responsibility for any errors that may appear in this manual • The reproduction, transmission or use of this document or contents is not permitted without express written authority. TRADEMARK ACKNOWLEDGMENT : PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Apple, Mac and ADB are registered trademarks of Apple Computer, Inc. VESA and SVGA are trademarks of the Video Electronics Standard Association. Windows is a registered trademark of Microsoft Corporation. Carefully observe the trademarks and registered trademarks of all companies, even when not mentioned. I H S L G N E CONTENTS CONTENTS Page FEATURES .......................................2 BEFORE USE ...................................2 Contents of Package ..............................2 Part Names.............................................3 Loading the Batteries..............................5 Fixing the Handle....................................5 INSTALLATION ................................6 Installation of the Projector and Screen........6 Angle Adjustment ...................................6 Cabling ...................................................7 Power Connection ..................................8 Example of System Setup ......................8 Plug & Play .............................................8 OPERATIONS...................................9 Power On ...................................................9 Power Off ................................................9 Basic Operation ....................................10 Setup Menu ..........................................12 Input Menu............................................13 Image Menu..........................................14 Options Menu .......................................15 No Signal Menu ....................................16 MAINTENANCE ..............................17 Lamp.....................................................17 Air Filter ................................................19 Other Maintenance...............................19 Page TROUBLESHOOTING ....................20 OSD Message ......................................20 Indicators Message ..............................21 Symptom ..............................................22 SPECIFICATIONS...........................23 WARRANTY AND AFTER-SERVICE......24 ....................................................................................... TABLES Table 1. Installation Reference.................6 Table 2. Cabling .......................................7 Table 3. Basic Operations ......................10 Table 4. Setup Menu ..............................12 Table 5. Input Menu................................13 Table 6. Image Menu..............................14 Table 7. Options Menu ...........................15 Table 8. No Signal Menu........................16 Table 9. OSD Message ..........................20 Table 10. Indicator Message ..................21 Table 11. Symptom ................................22 Table 12. Specifications .........................23 ....................................................................................... For "TECHNICAL" and "REGULATORY NOTICE", see the end of this manual. ENGLISH-1

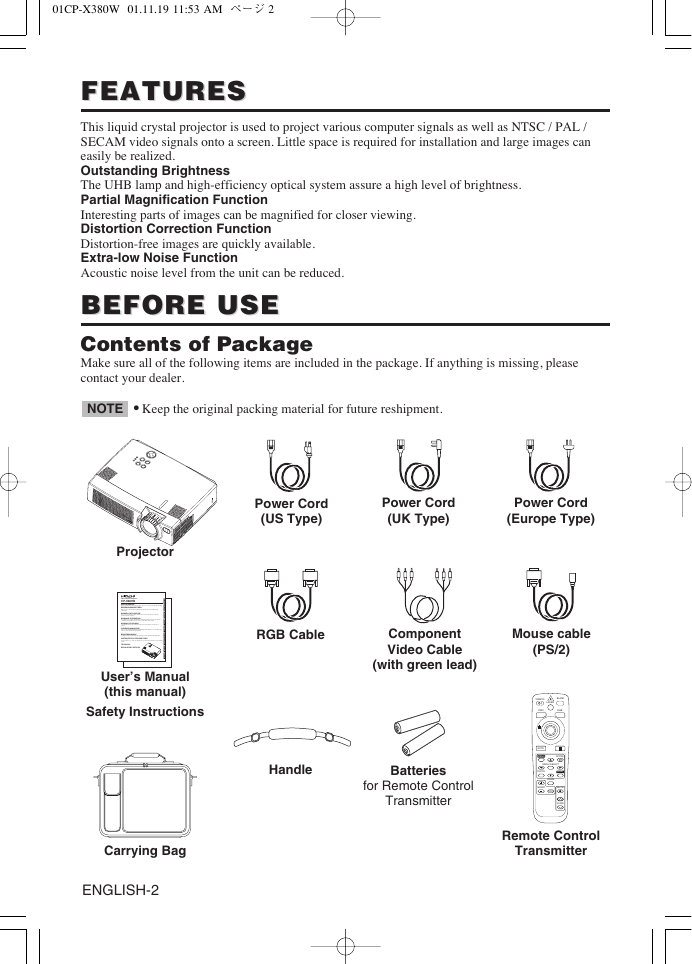

01CP-X380W 01.11.19 11:53 AM ページ 2 FEATURES FEATURES This liquid crystal projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized. Outstanding Brightness The UHB lamp and high-efficiency optical system assure a high level of brightness. Partial Magnification Function Interesting parts of images can be magnified for closer viewing. Distortion Correction Function Distortion-free images are quickly available. Extra-low Noise Function Acoustic noise level from the unit can be reduced. BEFORE USE BEFORE USE Contents of Package Make sure all of the following items are included in the package. If anything is missing, please contact your dealer. NOTE • Keep the original packing material for future reshipment. Power Cord (US Type) Power Cord (UK Type) Power Cord (Europe Type) Projector Liquid Crystal Projector CP-X380W USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding. BEDIENUNGSANLEITUNG Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung aufmerksam. MANUEL D'UTILISATION Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil. MANUALE D'ISTRUZIONI Vi preghiamo voler leggere attentamente il manuale d'sitruzioni in modo tale da poter comprendere quanto riportato ai fini di un corretto utilizzo del proiettore. MANUAL DE USUARIO Lea cuidadosamente este manual del usuario para poder utilizar corretamente el producto. GEBRUIKSAANWIJZNG Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te hebben van de uitgebreide mogelijkheden. BRUKERHÅNDBOK Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk. INSTRUÇÕES DO PROPRIETÁRIO Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do usuário. TECHNICAL REGULATORY NOTICES I H S L G N E H C S T U E D I S A Ç N A R F O N A L A T I I L O Ñ A P S E S D N A L R E D E N K S R O N S Ê G T R O P I L A C N H C E T RGB Cable User’s Manual (this manual) Safety Instructions Carrying Bag ENGLISH-2 Component Video Cable (with green lead) Mouse cable (PS/2) Handle Batteries for Remote Control Transmitter STANDBY/ON BLANK LASER VIDEO RGB AUTO MENU KEYSTONE MENU SELECT POSITION RESET FREEZE MAGNIFY MUTE OFF VOLUME Remote Control Transmitter

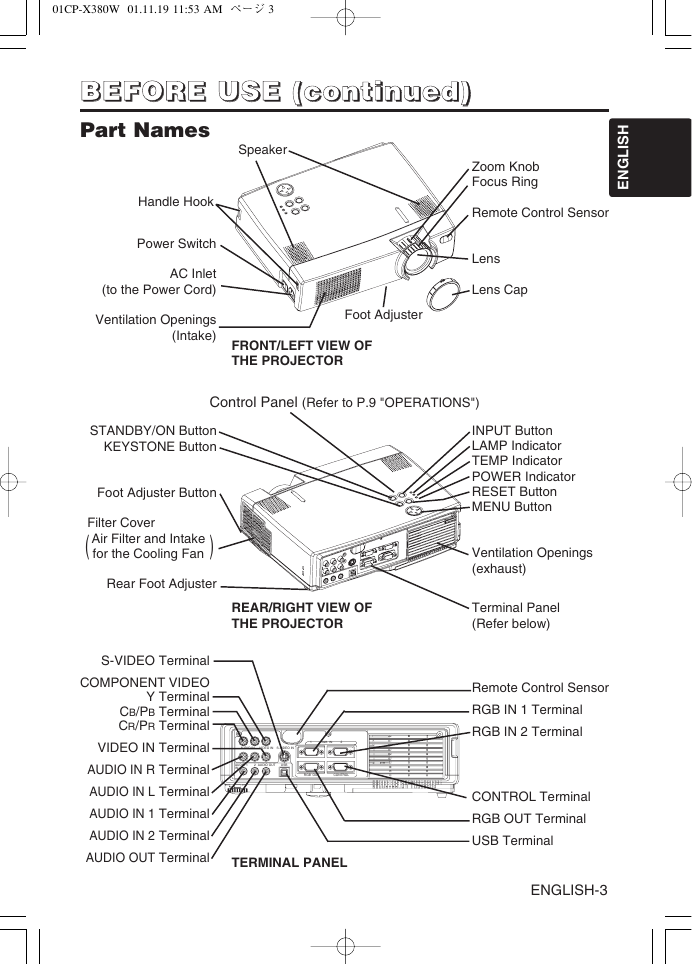

01CP-X380W 01.11.19 11:53 AM ページ 3 BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd)))) Part Names Speaker Handle Hook Power Switch AC Inlet (to the Power Cord) Ventilation Openings (Intake) Foot Adjuster FRONT/LEFT VIEW OF THE PROJECTOR I H S L G N E Zoom Knob Focus Ring Remote Control Sensor Lens Lens Cap Control Panel (Refer to P.9 "OPERATIONS") STANDBY/ON Button KEYSTONE Button Foot Adjuster Button Filter Cover Air Filter and Intake for the Cooling Fan ( ) Rear Foot Adjuster S-VIDEO Terminal COMPONENT VIDEO Y Terminal CB/PB Terminal CR/PR Terminal VIDEO IN Terminal AUDIO IN R Terminal AUDIO IN L Terminal AUDIO IN 1 Terminal AUDIO IN 2 Terminal AUDIO OUT Terminal INPUT Button LAMP Indicator TEMP Indicator POWER Indicator RESET Button MENU Button Ventilation Openings (exhaust) REAR/RIGHT VIEW OF THE PROJECTOR Terminal Panel (Refer below) AUDIO IN VIDEO IN S-VIDEO IN 1 RGB IN 2 AUDIO IN 1 2 AUDIO OUT USB RGB OUT CONTROL TERMINAL PANEL Remote Control Sensor RGB IN 1 Terminal RGB IN 2 Terminal CONTROL Terminal RGB OUT Terminal USB Terminal ENGLISH-3

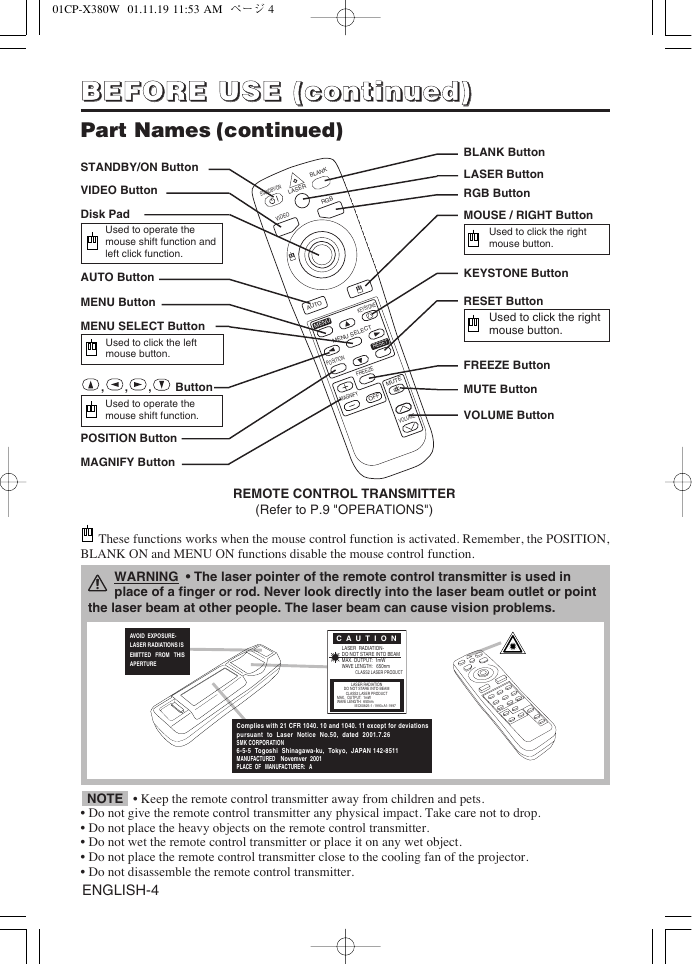

01CP-X380W 01.11.19 11:53 AM ページ 4 BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd)))) Part Names (continued) STANDBY/ON Button VIDEO Button Disk Pad Used to operate the mouse shift function and left click function. AUTO Button MENU Button MENU SELECT Button Used to click the left mouse button. , , , Button Used to operate the mouse shift function. POSITION Button MAGNIFY Button B L A N K R G B N Y / O B D N A T S L A S E R O E V I D A U T O M E N U E N O T S Y E K M E N U S E L E C T T E S E R N S I T I O O P E Z E E R F M U T E Y N I F G A M F O F BLANK Button LASER Button RGB Button MOUSE / RIGHT Button Used to click the right mouse button. KEYSTONE Button RESET Button Used to click the right mouse button. FREEZE Button MUTE Button E M U L O V VOLUME Button REMOTE CONTROL TRANSMITTER (Refer to P.9 "OPERATIONS") These functions works when the mouse control function is activated. Remember, the POSITION, BLANK ON and MENU ON functions disable the mouse control function. WARNING • The laser pointer of the remote control transmitter is used in place of a finger or rod. Never look directly into the laser beam outlet or point the laser beam at other people. The laser beam can cause vision problems. AVOID EXPOSURE- LASER RADIATIONS IS EMITTED FROM THIS APERTURE C A U T I O N LASER RADIATION- DO NOT STARE INTO BEAM MAX. OUTPUT: 1mW WAVE LENGTH: 650nm CLASS2 LASER PRODUCT LASER RADIATION DO NOT STARE INTO BEAM CLASS2 LASER PRODUCT MAX. OUTPUT: 1mW WAVE LENGTH: 650nm IEC60825-1 :1993+A1:1997 Complies with 21 CFR 1040. 10 and 1040. 11 except for deviations pursuant to Laser Notice No.50, dated 2001.7.26 SMK CORPORATION 6-5-5 Togoshi Shinagawa-ku, Tokyo, JAPAN 142-8511 MANUFACTURED Novemver 2001 PLACE OF MANUFACTURER: A • Keep the remote control transmitter away from children and pets. NOTE • Do not give the remote control transmitter any physical impact. Take care not to drop. • Do not place the heavy objects on the remote control transmitter. • Do not wet the remote control transmitter or place it on any wet object. • Do not place the remote control transmitter close to the cooling fan of the projector. • Do not disassemble the remote control transmitter. ENGLISH-4

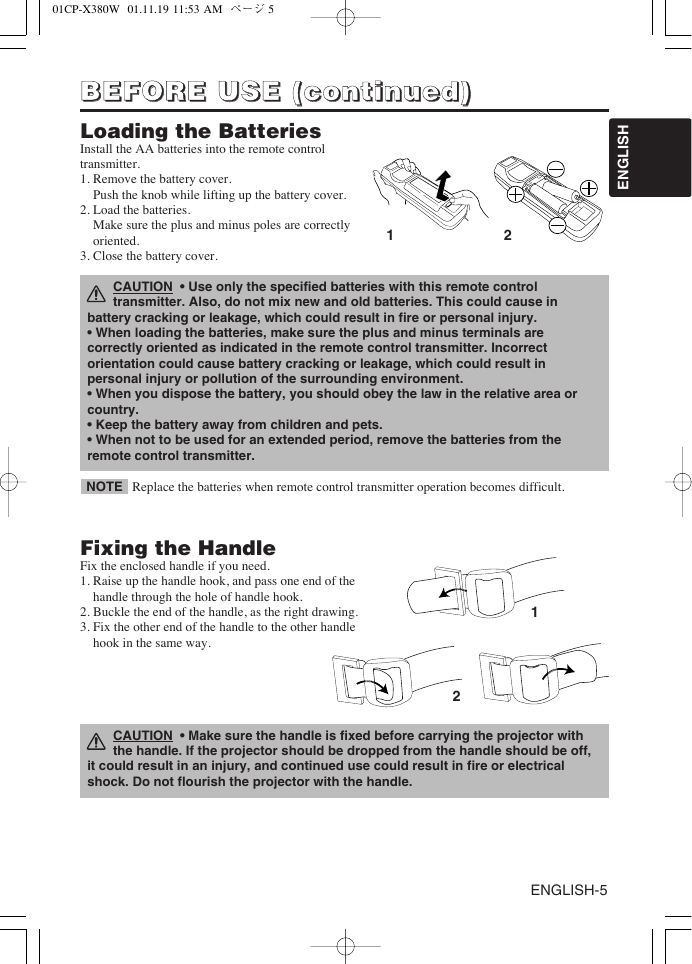

01CP-X380W 01.11.19 11:53 AM ページ 5 I H S L G N E BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd)))) Loading the Batteries Install the AA batteries into the remote control transmitter. 1. Remove the battery cover. Push the knob while lifting up the battery cover. 2. Load the batteries. Make sure the plus and minus poles are correctly oriented. 1 3. Close the battery cover. 2 CAUTION • Use only the specified batteries with this remote control transmitter. Also, do not mix new and old batteries. This could cause in battery cracking or leakage, which could result in fire or personal injury. • When loading the batteries, make sure the plus and minus terminals are correctly oriented as indicated in the remote control transmitter. Incorrect orientation could cause battery cracking or leakage, which could result in personal injury or pollution of the surrounding environment. • When you dispose the battery, you should obey the law in the relative area or country. • Keep the battery away from children and pets. • When not to be used for an extended period, remove the batteries from the remote control transmitter. NOTE Replace the batteries when remote control transmitter operation becomes difficult. Fixing the Handle Fix the enclosed handle if you need. 1. Raise up the handle hook, and pass one end of the handle through the hole of handle hook. 2. Buckle the end of the handle, as the right drawing. 3. Fix the other end of the handle to the other handle hook in the same way. 1 2 CAUTION • Make sure the handle is fixed before carrying the projector with the handle. If the projector should be dropped from the handle should be off, it could result in an injury, and continued use could result in fire or electrical shock. Do not flourish the projector with the handle. ENGLISH-5

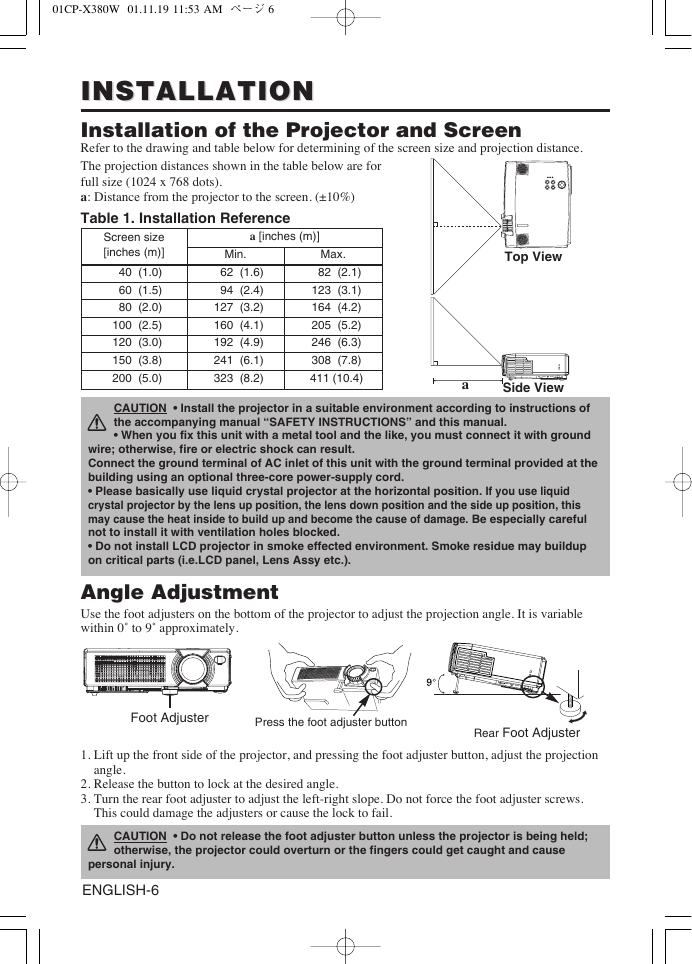

01CP-X380W 01.11.19 11:53 AM ページ 6 INSTALLATION INSTALLATION Installation of the Projector and Screen Refer to the drawing and table below for determining of the screen size and projection distance. The projection distances shown in the table below are for full size (1024 x 768 dots). a: Distance from the projector to the screen. (±10%) Table 1. Installation Reference Screen size [inches (m)] 40 (1.0) 60 (1.5) 80 (2.0) 100 (2.5) 120 (3.0) 150 (3.8) 200 (5.0) a [inches (m)] Min. 62 (1.6) 94 (2.4) 127 (3.2) 160 (4.1) 192 (4.9) 241 (6.1) 323 (8.2) Max. 82 (2.1) 123 (3.1) 164 (4.2) 205 (5.2) 246 (6.3) 308 (7.8) 411 (10.4) Top View a Side View CAUTION • Install the projector in a suitable environment according to instructions of the accompanying manual “SAFETY INSTRUCTIONS” and this manual. • When you fix this unit with a metal tool and the like, you must connect it with ground wire; otherwise, fire or electric shock can result. Connect the ground terminal of AC inlet of this unit with the ground terminal provided at the building using an optional three-core power-supply cord. • Please basically use liquid crystal projector at the horizontal position. If you use liquid crystal projector by the lens up position, the lens down position and the side up position, this may cause the heat inside to build up and become the cause of damage. Be especially careful not to install it with ventilation holes blocked. • Do not install LCD projector in smoke effected environment. Smoke residue may buildup on critical parts (i.e.LCD panel, Lens Assy etc.). Angle Adjustment Use the foot adjusters on the bottom of the projector to adjust the projection angle. It is variable within 0˚ to 9˚ approximately. Foot Adjuster Press the foot adjuster button Rear Foot Adjuster 1. Lift up the front side of the projector, and pressing the foot adjuster button, adjust the projection angle. 2. Release the button to lock at the desired angle. 3. Turn the rear foot adjuster to adjust the left-right slope. Do not force the foot adjuster screws. This could damage the adjusters or cause the lock to fail. CAUTION • Do not release the foot adjuster button unless the projector is being held; otherwise, the projector could overturn or the fingers could get caught and cause personal injury. ENGLISH-6

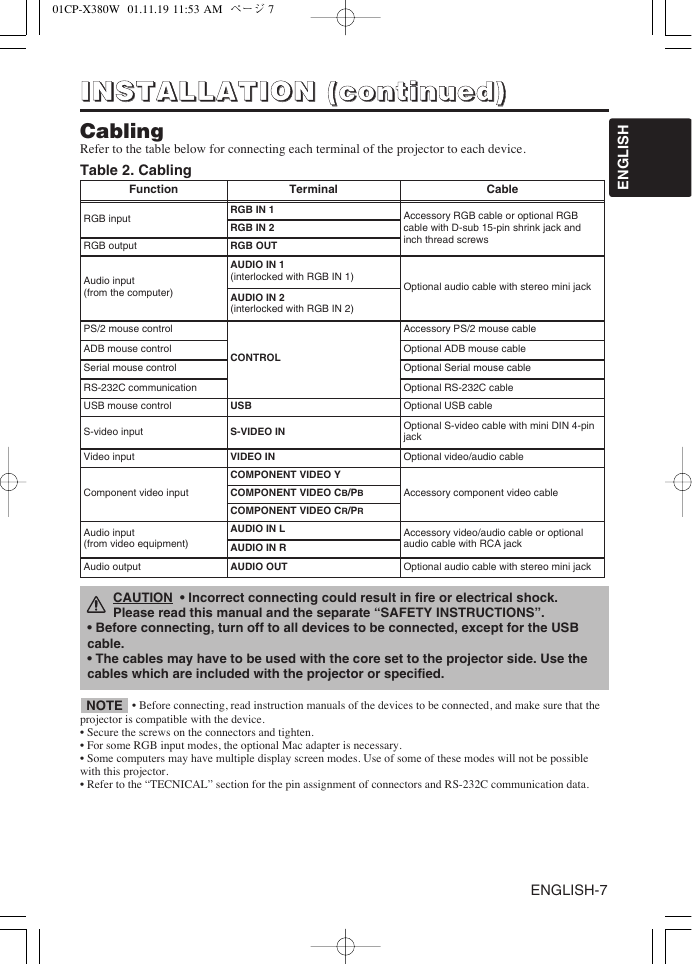

01CP-X380W 01.11.19 11:53 AM ページ 7 IIIINNNNSSSSTTTTAAAALLLLLLLLAAAATTTTIIIIOOOONNNN ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd)))) Cabling Refer to the table below for connecting each terminal of the projector to each device. Table 2. Cabling Function Terminal Cable I H S L G N E RGB input RGB output Audio input (from the computer) PS/2 mouse control ADB mouse control Serial mouse control RGB IN 1 RGB IN 2 RGB OUT AUDIO IN 1 (interlocked with RGB IN 1) AUDIO IN 2 (interlocked with RGB IN 2) CONTROL RS-232C communication USB mouse control USB S-video input Video input Component video input Audio input (from video equipment) S-VIDEO IN VIDEO IN COMPONENT VIDEO Y COMPONENT VIDEO CB/PB COMPONENT VIDEO CR/PR AUDIO IN L AUDIO IN R Accessory RGB cable or optional RGB cable with D-sub 15-pin shrink jack and inch thread screws Optional audio cable with stereo mini jack Accessory PS/2 mouse cable Optional ADB mouse cable Optional Serial mouse cable Optional RS-232C cable Optional USB cable Optional S-video cable with mini DIN 4-pin jack Optional video/audio cable Accessory component video cable Accessory video/audio cable or optional audio cable with RCA jack Audio output AUDIO OUT Optional audio cable with stereo mini jack CAUTION • Incorrect connecting could result in fire or electrical shock. Please read this manual and the separate “SAFETY INSTRUCTIONS”. • Before connecting, turn off to all devices to be connected, except for the USB cable. • The cables may have to be used with the core set to the projector side. Use the cables which are included with the projector or specified. • Before connecting, read instruction manuals of the devices to be connected, and make sure that the NOTE projector is compatible with the device. • Secure the screws on the connectors and tighten. • For some RGB input modes, the optional Mac adapter is necessary. • Some computers may have multiple display screen modes. Use of some of these modes will not be possible with this projector. • Refer to the “TECNICAL” section for the pin assignment of connectors and RS-232C communication data. ENGLISH-7
