Untitled

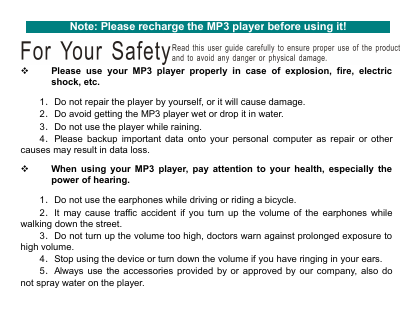

Note: Please recharge the MP3 player before using it!  Please use your MP3 player properly in case of explosion, fire, electric shock, etc. 1．Do not repair the player by yourself, or it will cause damage. 2．Do avoid getting the MP3 player wet or drop it in water. 3．Do not use the player while raining. 4．Please backup important data onto your personal computer as repair or other causes may result in data loss.  When using your MP3 player, pay attention to your health, especially the power of hearing. 1．Do not use the earphones while driving or riding a bicycle. 2．It may cause traffic accident if you turn up the volume of the earphones while 3．Do not turn up the volume too high, doctors warn against prolonged exposure to walking down the street. high volume. 4．Stop using the device or turn down the volume if you have ringing in your ears. 5．Always use the accessories provided by or approved by our company, also do not spray water on the player.

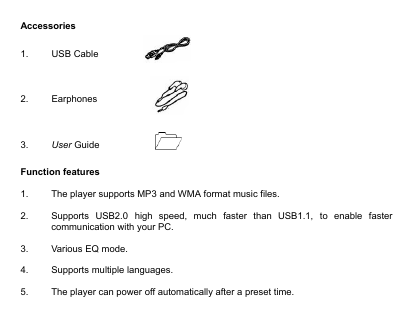

Accessories 1. 2. 3. USB Cable Earphones User Guide Function features 1. 2. 3. 4. 5. The player supports MP3 and WMA format music files. Supports USB2.0 high speed, much faster communication with your PC. than USB1.1, to enable faster Various EQ mode. Supports multiple languages. The player can power off automatically after a preset time.

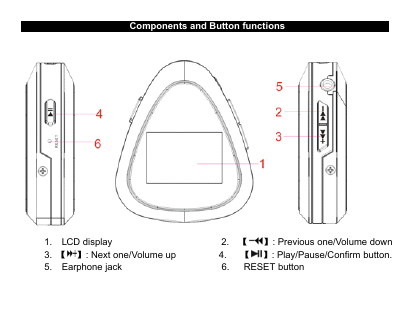

Components and Button functions 1. LCD display 3. 【】: Next one/Volume up 5. Earphone jack 2. 【】: Previous one/Volume down 4. 【】: Play/Pause/Confirm button. 6. RESET button

Charging Li – polymer battery safely 1. 2. 3. 4. Connect the PC USB port and the MP3 USB port with the provided USB cable. The power sign is shown dynamic when charging, once full charged, the power sign will stop moving, power is full, please shut off the power. The charging time is approximately 1.5 hours, it can continuously playback music for 4 hours. The unit could not be used during charge. To stop recharging, disconnect the USB cable. For first time use, fully charge your MP3 Lipolymer rechargeable battery. Your computer must be turned on while connected to your MP3 for charging. Do not overcharge your player, or it may shorten the battery’s life. Notes 1. 2. 3. CAUTIO 1. 2. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not disassemble, crush, shortcircuit or incinerate your battery as it may cause fire, injury, burns, or other hazards. Basic operations Turn power on and play music To Start: 1. 2. Connect earphone to earphone jack. Press and hold 【】 button to enter into “MSC” mode.(The default is “Music” mode.)

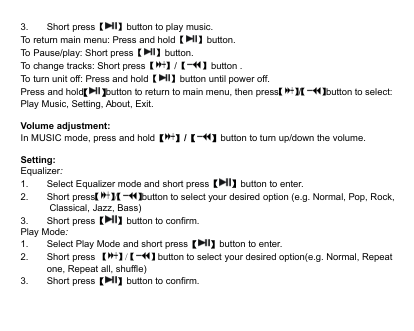

Short press【】button to play music. 3. To return main menu: Press and hold【】button. To Pause/play: Short press【】button. To change tracks: Short press【】/【】button . To turn unit off: Press and hold【】button until power off. Press and hold【】button to return to main menu, then press【】/【】button to select: Play Music, Setting, About, Exit. Volume adjustment: In MUSIC mode, press and hold【】/【】button to turn up/down the volume. Select Equalizer mode and short press【】button to enter. Short press【】/【】button to select your desired option (e.g. Normal, Pop, Rock, Classical, Jazz, Bass) Short press【】button to confirm. Setting: Equalizer: 1. 2. 3. Play Mode: 1. 2. Select Play Mode and short press【】button to enter. Short press 【】/【】button to select your desired option(e.g. Normal, Repeat one, Repeat all, shuffle) Short press【】button to confirm. 3.

Contrast: Select Contrast mode and short press【】button to enter, then press【】/【】 button to adjust the contrast, at last press【】button to save your setup. Backlight: Select Backlight mode and short press【】button to enter, then press【】/【】 button to select the backlight time: Always off/5S/10S/Always on. Power Set: Select Power Set mode and short press【】button to enter, then press【】/【】 button to select the auto off time: 2MIN/10MIN/30MIN Language: 1. 2. Select language mode and short press【】button to confirm. Short press 【】 /【】to select your desired option (e.g. English, French, Chinese (T),Chinese(S), German, Spanish, Italian, Portuguese, Russian, Greek, Hebrew, Arabic, Korean, Japanese, Farsi). Short press【】button to confirm. 3. About: In the main menu, select About menu and enter by pressing【】button, then you can see some system information, like free flash capacity and total flash capacity. Connect the PC USB port and the MP3 USB port with the provided USB cable. Add MP3 files/folders to the USB storage‘s folder. 1. 2. Ⅰ. Open files/folders to transfer from your computer.
