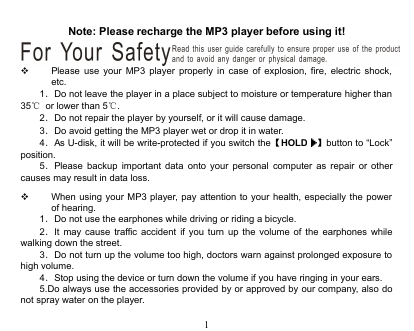

Note: Please recharge the MP3 player before using it!  Please use your MP3 player properly in case of explosion, fire, electric shock, etc. 1．Do not leave the player in a place subject to moisture or temperature higher than 35℃ or lower than 5℃. 2．Do not repair the player by yourself, or it will cause damage. 3．Do avoid getting the MP3 player wet or drop it in water. 4．As Udisk, it will be writeprotected if you switch the【HOLD 】button to “Lock” 5．Please backup important data onto your personal computer as repair or other position. causes may result in data loss.  When using your MP3 player, pay attention to your health, especially the power of hearing. 1．Do not use the earphones while driving or riding a bicycle. 2．It may cause traffic accident if you turn up the volume of the earphones while 3．Do not turn up the volume too high, doctors warn against prolonged exposure to walking down the street. high volume. 4．Stop using the device or turn down the volume if you have ringing in your ears. 5.Do always use the accessories provided by or approved by our company, also do not spray water on the player. 1

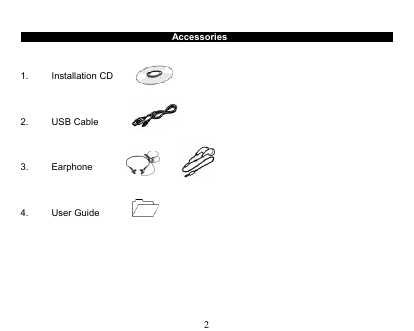

1. 2. 3. 4. Installation CD USB Cable Earphone User Guide Accessories 2

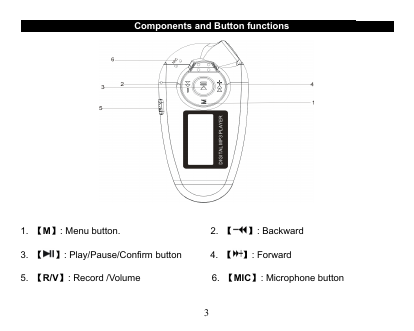

Components and Button functions 1. 【M】: Menu button. 2. 【】: Backward 3. 【】: Play/Pause/Confirm button 4. 【】: Forward 5. 【R/V】: Record /Volume 6. 【MIC】: Microphone button 3

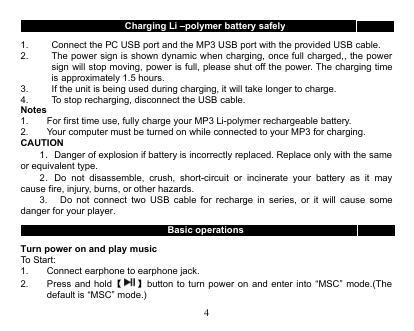

Charging Li –polymer battery safely Connect the PC USB port and the MP3 USB port with the provided USB cable. The power sign is shown dynamic when charging, once full charged,, the power sign will stop moving, power is full, please shut off the power. The charging time is approximately 1.5 hours. If the unit is being used during charging, it will take longer to charge. To stop recharging, disconnect the USB cable. For first time use, fully charge your MP3 Lipolymer rechargeable battery. Your computer must be turned on while connected to your MP3 for charging. 1. 2. 3. 4. Notes 1. 2. CAUTION 1．Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. danger for your player. 2．Do not disassemble, crush, shortcircuit or incinerate your battery as it may cause fire, injury, burns, or other hazards. 3. Do not connect two USB cable for recharge in series, or it will cause some Basic operations Turn power on and play music To Start: 1. 2. Connect earphone to earphone jack. Press and hold 【】button to turn power on and enter into “MSC” mode.(The default is “MSC” mode.) 4

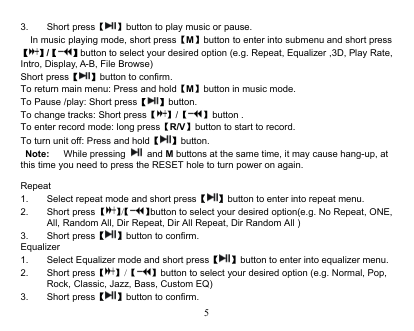

3. Short press【】button to play music or pause. In music playing mode, short press【M】button to enter into submenu and short press 【】/【】button to select your desired option (e.g. Repeat, Equalizer ,3D, Play Rate, Intro, Display, AB, File Browse) Short press【】button to confirm. To return main menu: Press and hold【M】button in music mode. To Pause /play: Short press【】button. To change tracks: Short press【】/【】button . To enter record mode: long press【R/V】button to start to record. To turn unit off: Press and hold【】button. Note: While pressing this time you need to press the RESET hole to turn power on again. and M buttons at the same time, it may cause hangup, at Select repeat mode and short press【】button to enter into repeat menu. Short press【】/【】button to select your desired option(e.g. No Repeat, ONE, All, Random All, Dir Repeat, Dir All Repeat, Dir Random All ) Short press【】button to confirm. Repeat 1. 2. 3. Equalizer 1. 2. Select Equalizer mode and short press【】button to enter into equalizer menu. Short press【】/【】button to select your desired option (e.g. Normal, Pop, Rock, Classic, Jazz, Bass, Custom EQ) Short press【】button to confirm. 3. 5

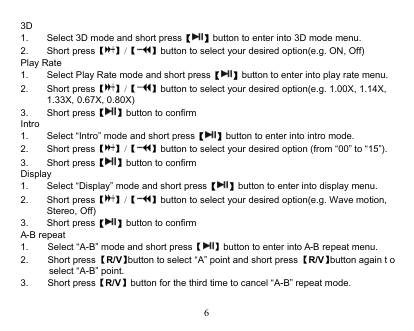

Select 3D mode and short press【】button to enter into 3D mode menu. Short press【】/【】button to select your desired option(e.g. ON, Off) Select Play Rate mode and short press【】button to enter into play rate menu. Short press【】/【】button to select your desired option(e.g. 1.00X, 1.14X, 1.33X, 0.67X, 0.80X) Short press【】button to confirm Select “Intro” mode and short press【】button to enter into intro mode. Short press【】/【】button to select your desired option (from “00” to “15”). Short press【】button to confirm Select “Display” mode and short press【】button to enter into display menu. Short press【】/【】button to select your desired option(e.g. Wave motion, Stereo, Off) Short press【】button to confirm 3D 1. 2. Play Rate 1. 2. 3. Intro 1. 2. 3. Display 1. 2. 3. AB repeat 1. 2. 3. Select “AB” mode and short press【】button to enter into AB repeat menu. Short press 【R/V】button to select “A” point and short press 【R/V】button again t o select “AB” point. Short press【R/V】button for the third time to cancel “AB” repeat mode. 6

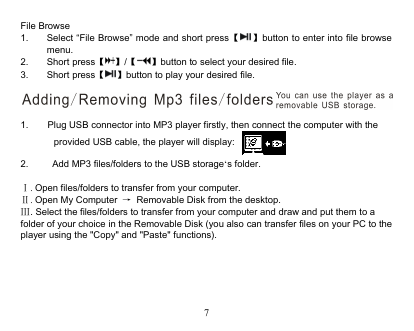

File Browse 1. Select “File Browse” mode and short press【】button to enter into file browse menu. Short press【】/【】button to select your desired file. Short press【】button to play your desired file. 2. 3. 1. 2. Plug USB connector into MP3 player firstly, then connect the computer with the provided USB cable, the player will display: Add MP3 files/folders to the USB storage‘s folder. Ⅰ. Open files/folders to transfer from your computer. Ⅱ. Open My Computer → Removable Disk from the desktop. Ⅲ. Select the files/folders to transfer from your computer and draw and put them to a folder of your choice in the Removable Disk (you also can transfer files on your PC to the player using the "Copy" and "Paste" functions). 7
