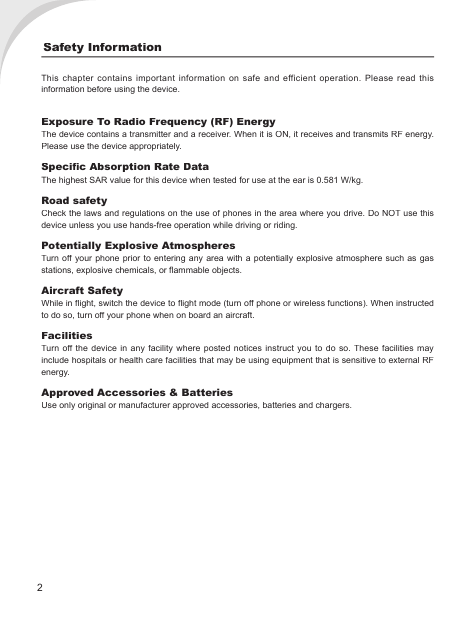

Safety Information This chapter contains important information on safe and efficient operation. Please read this information before using the device. Exposure To Radio Frequency (RF) Energy The device contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. Please use the device appropriately. Speciﬁ c Absorption Rate Data The highest SAR value for this device when tested for use at the ear is 0.581 W/kg. Road safety Check the laws and regulations on the use of phones in the area where you drive. Do NOT use this device unless you use hands-free operation while driving or riding. Potentially Explosive Atmospheres Turn off your phone prior to entering any area with a potentially explosive atmosphere such as gas stations, explosive chemicals, or ﬂ ammable objects. Aircraft Safety While in ﬂ ight, switch the device to ﬂ ight mode (turn off phone or wireless functions). When instructed to do so, turn off your phone when on board an aircraft. Facilities Turn off the device in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy. Approved Accessories & Batteries Use only original or manufacturer approved accessories, batteries and chargers. 2

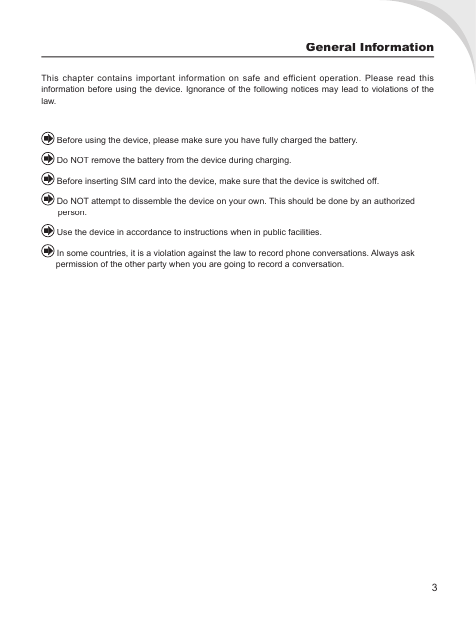

This chapter contains important information on safe and efficient operation. Please read this information before using the device. Ignorance of the following notices may lead to violations of the law. General Information Before using the device, please make sure you have fully charged the battery. Do NOT remove the battery from the device during charging. Before inserting SIM card into the device, make sure that the device is switched off. Do NOT attempt to dissemble the device on your own. This should be done by an authorized person. Use the device in accordance to instructions when in public facilities. In some countries, it is a violation against the law to record phone conversations. Always ask permission of the other party when you are going to record a conversation. 3

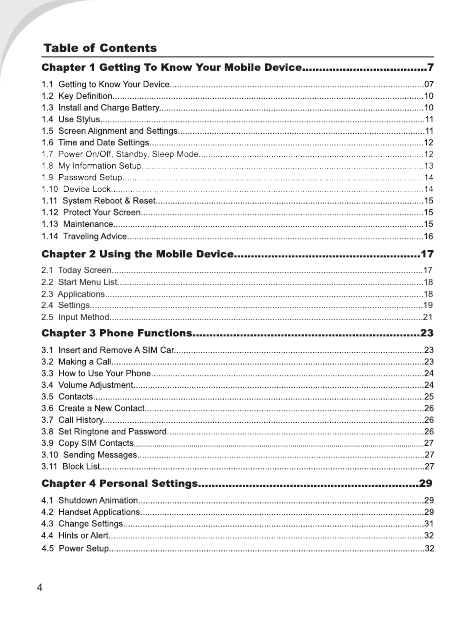

2.1 Today Screen................................................................................................................................17 2.2 Start Menu List..............................................................................................................................18 2.3 Applications...................................................................................................................................18 2.4 Settings.........................................................................................................................................19 2.5 Input Method.................................................................................................................................21 4

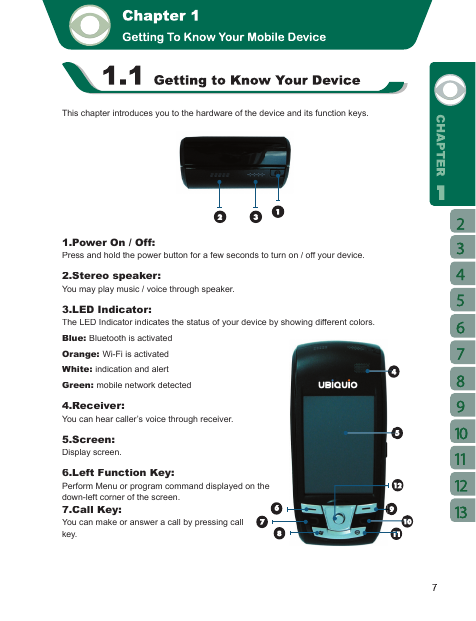

This chapter introduces you to the hardware of the device and its function keys. 1.Power On / Off: Press and hold the power button for a few seconds to turn on / off your device. 2.Stereo speaker: You may play music / voice through speaker. 3.LED Indicator: The LED Indicator indicates the status of your device by showing different colors. Blue: Bluetooth is activated Orange: Wi-Fi is activated White: indication and alert Green: mobile network detected 4.Receiver: You can hear caller’s voice through receiver. 5.Screen: Display screen. 6.Left Function Key: Perform Menu or program command displayed on the down-left corner of the screen. 7.Call Key: You can make or answer a call by pressing call key. 7

8.Flag Key: Press the ﬂ ag key to open “ Start ” menu options. 9.Right Function Key: Perform the function of menu or program command displayed on the down-right corner screen. 10.End Key: Press this key to end a call or to switch between Today & 3D Quick Menu. 11.OK Key: Press this key to execute or terminate a selected function or application. 12.Navigation Key: Use up, down, left and right directions to navigate. Press the center key to execute the selected function or application. 13.Microphone: Receive your voice and conversation. 14.Mini USB1.1 / Charging Slot: Connect a charger adaptor to this slot to start charging. This slot is also a USB slot. You may connect the device to computers or other devices with USB cable and transfer ﬁ les between the device and that device. 15.TV / FM Antenna Headset plug: You can watch TV on the device or listen to FM radio and music via antenna headset. 16.Mini SD Card Slot: You can insert your Mini SD card here to save data in your card. 17.Reset Button: Press the reset button to reboot your device. 8
