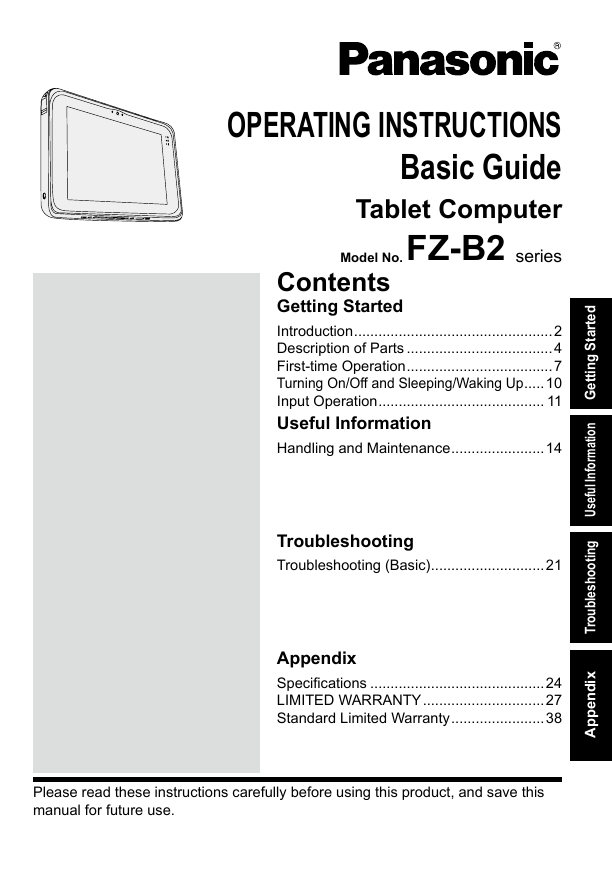

OPERATING INSTRUCTIONS Basic Guide Tablet Computer Model No. FZ-B2 series Contents Getting Started Introduction .................................................2 Description of Parts ....................................4 First-time Operation ....................................7 Turning On/Off and Sleeping/Waking Up .....10 Input Operation ......................................... 11 Useful Information Handling and Maintenance .......................14 Troubleshooting Troubleshooting (Basic) ............................21 Appendix Specifications ...........................................24 LIMITED WARRANTY ..............................27 Standard Limited Warranty .......................38 d e t r a t S g n i t t e G n o i t a m r o f n I l u f e s U g n i t o o h s e b u o r T l i x d n e p p A Please read these instructions carefully before using this product, and save this manual for future use.

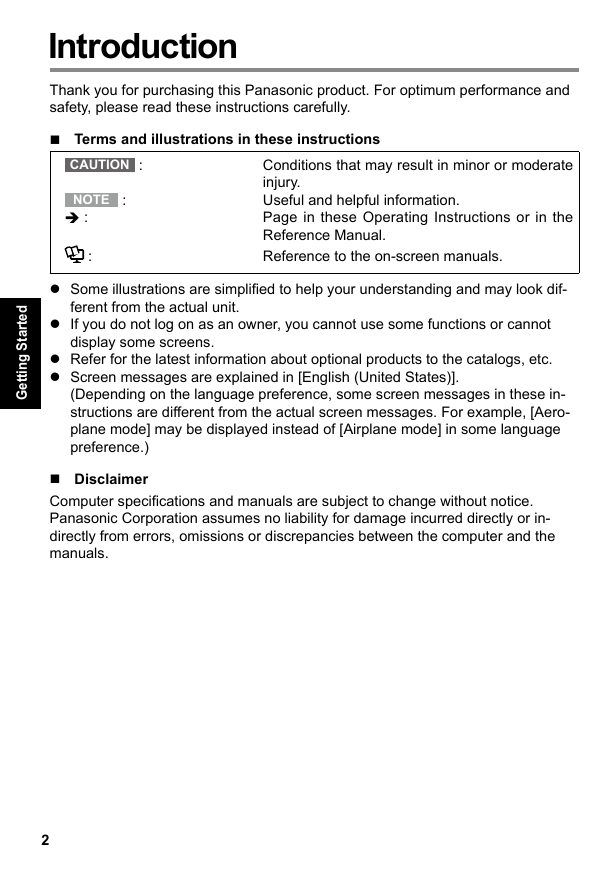

Introduction Thank you for purchasing this Panasonic product. For optimum performance and safety, please read these instructions carefully. n Terms and illustrations in these instructions CAUTION : NOTE : è : : Conditions that may result in minor or moderate injury. Useful and helpful information. Page in these Operating Instructions or in the Reference Manual. Reference to the on-screen manuals. l Some illustrations are simplified to help your understanding and may look dif- ferent from the actual unit. display some screens. l If you do not log on as an owner, you cannot use some functions or cannot l Refer for the latest information about optional products to the catalogs, etc. l Screen messages are explained in [English (United States)]. (Depending on the language preference, some screen messages in these in- structions are different from the actual screen messages. For example, [Aero- plane mode] may be displayed instead of [Airplane mode] in some language preference.) n Disclaimer Computer specifications and manuals are subject to change without notice. Panasonic Corporation assumes no liability for damage incurred directly or in- directly from errors, omissions or discrepancies between the computer and the manuals. d e t r a t S g n i t t e G 2

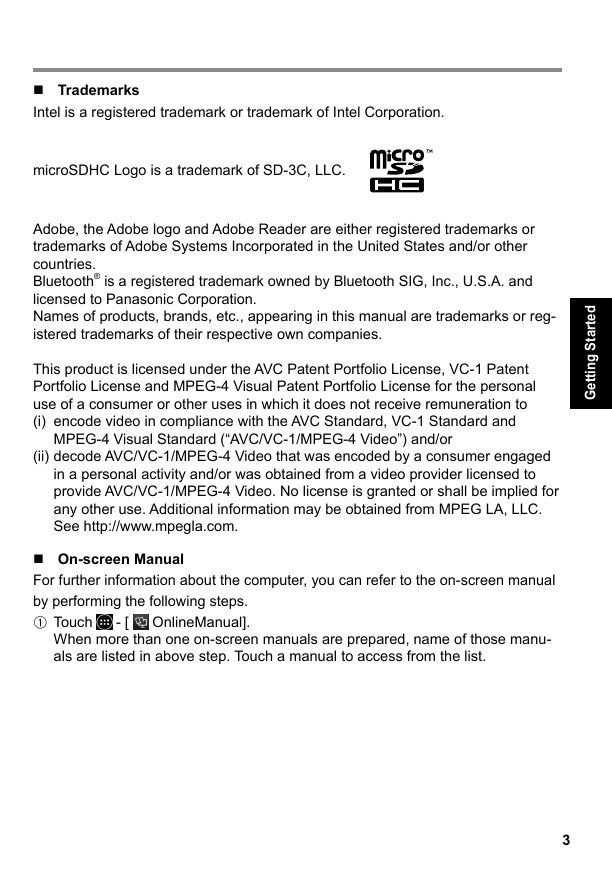

d e t r a t S g n i t t e G n Trademarks Intel is a registered trademark or trademark of Intel Corporation. microSDHC Logo is a trademark of SD-3C, LLC. Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Bluetooth® is a registered trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Panasonic Corporation. Names of products, brands, etc., appearing in this manual are trademarks or reg- istered trademarks of their respective own companies. This product is licensed under the AVC Patent Portfolio License, VC-1 Patent Portfolio License and MPEG-4 Visual Patent Portfolio License for the personal use of a consumer or other uses in which it does not receive remuneration to (i) encode video in compliance with the AVC Standard, VC-1 Standard and MPEG-4 Visual Standard (“AVC/VC-1/MPEG-4 Video”) and/or (ii) decode AVC/VC-1/MPEG-4 Video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to provide AVC/VC-1/MPEG-4 Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com. n On-screen Manual For further information about the computer, you can refer to the on-screen manual by performing the following steps. OnlineManual]. A Touch - [ When more than one on-screen manuals are prepared, name of those manu- als are listed in above step. Touch a manual to access from the list. 3

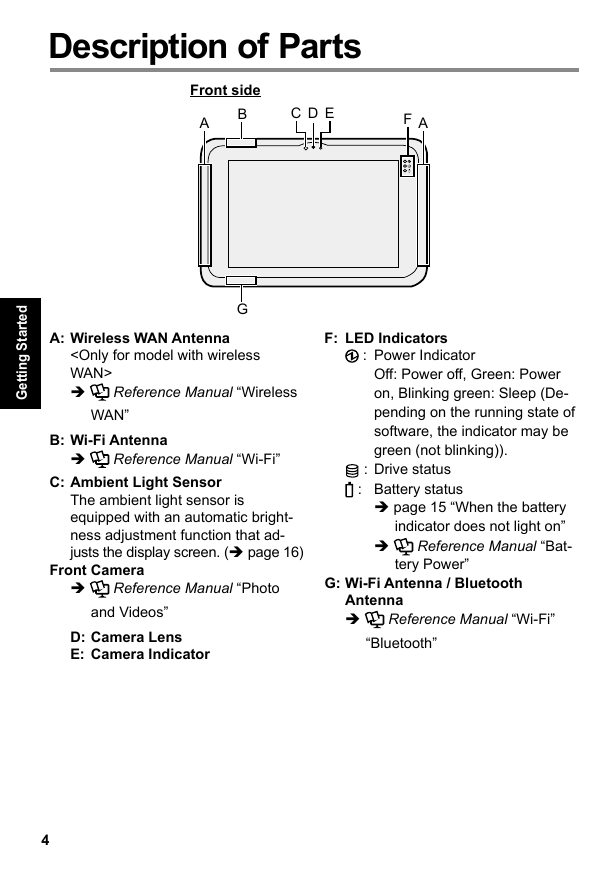

Description of Parts Front side B C D E A F A F: LED Indicators : Power Indicator Off: Power off, Green: Power on, Blinking green: Sleep (De- pending on the running state of software, the indicator may be green (not blinking)). : Drive status : Battery status è page 15 “When the battery indicator does not light on” Reference Manual “Bat- è tery Power” G: Wi-Fi Antenna / Bluetooth Antenna è “Bluetooth” Reference Manual “Wi-Fi” G A: Wireless WAN Antenna è Reference Manual “Wireless WAN” B: Wi-Fi Antenna è Reference Manual “Wi-Fi” C: Ambient Light Sensor The ambient light sensor is equipped with an automatic bright- ness adjustment function that ad- justs the display screen. (è page 16) Front Camera è Reference Manual “Photo and Videos” D: Camera Lens E: Camera Indicator d e t r a t S g n i t t e G 4

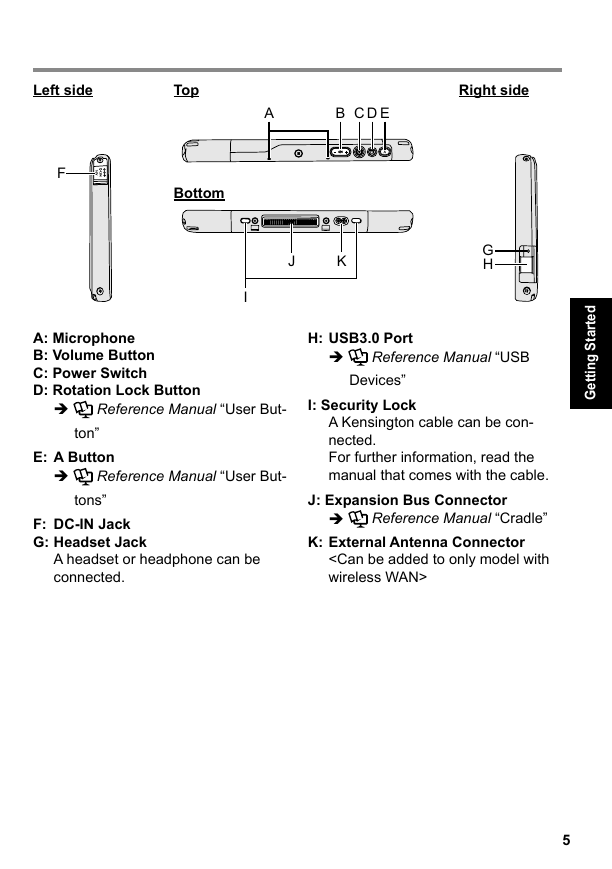

Left side Top Right side A EDCB F Bottom J K I G H A: Microphone B: Volume Button C: Power Switch D: Rotation Lock Button è Reference Manual “User But- ton” E: A Button è Reference Manual “User But- H: USB3.0 Port è Reference Manual “USB Devices” I: Security Lock A Kensington cable can be con- nected. For further information, read the manual that comes with the cable. tons” F: DC-IN Jack G: Headset Jack A headset or headphone can be connected. J: Expansion Bus Connector è Reference Manual “Cradle” K: External Antenna Connector d e t r a t S g n i t t e G 5

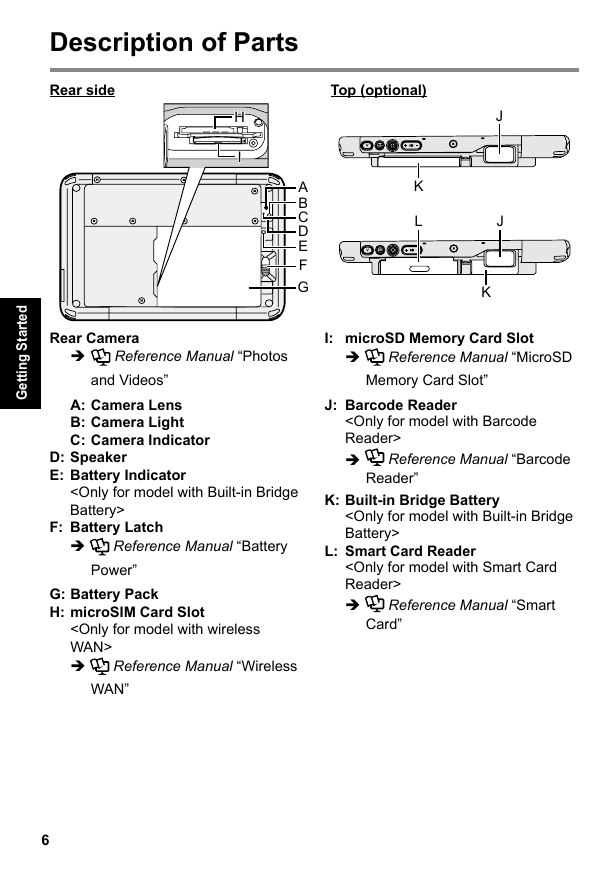

d e t r a t S g n i t t e G Description of Parts Rear side Top (optional) HH II A B C D E F G K L J J K Rear Camera è Reference Manual “Photos I: microSD Memory Card Slot è Reference Manual “MicroSD and Videos” Memory Card Slot” J: Barcode Reader è Reader” Battery> Reader> è Card” K: Built-in Bridge Battery F: Battery Latch Power” è Reference Manual “Battery G: Battery Pack H: microSIM Card Slot è WAN” 6

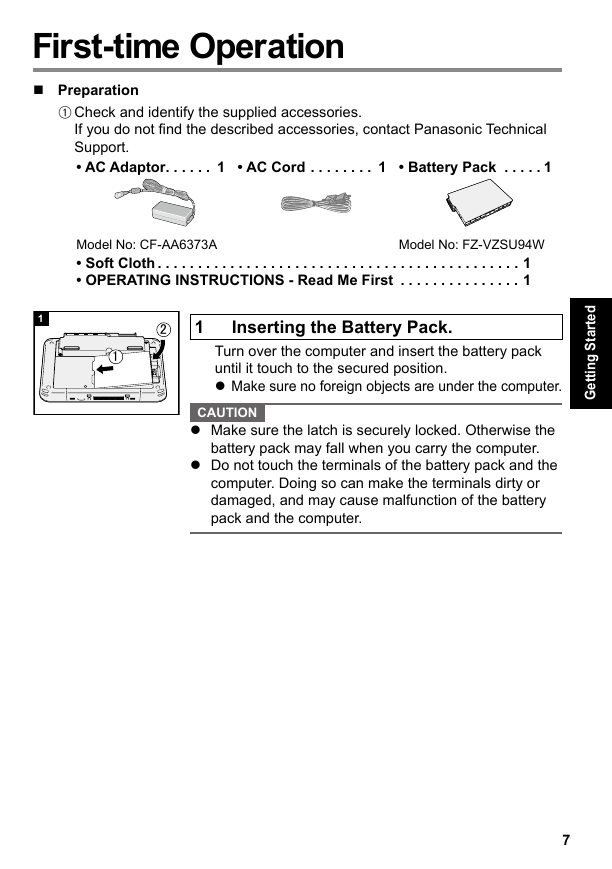

First-time Operation n Preparation A Check and identify the supplied accessories. If you do not find the described accessories, contact Panasonic Technical Support. • AC Adaptor . . . . . . 1 • AC Cord . . . . . . . . 1 • Battery Pack . . . . . 1 Model No: CF-AA6373A • Soft Cloth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 • OPERATING INSTRUCTIONS - Read Me First . . . . . . . . . . . . . . . 1 Model No: FZ-VZSU94W 1 Inserting the Battery Pack. 1 Turn over the computer and insert the battery pack until it touch to the secured position. l Make sure no foreign objects are under the computer. CAUTION l Make sure the latch is securely locked. Otherwise the battery pack may fall when you carry the computer. l Do not touch the terminals of the battery pack and the computer. Doing so can make the terminals dirty or damaged, and may cause malfunction of the battery pack and the computer. d e t r a t S g n i t t e G 7

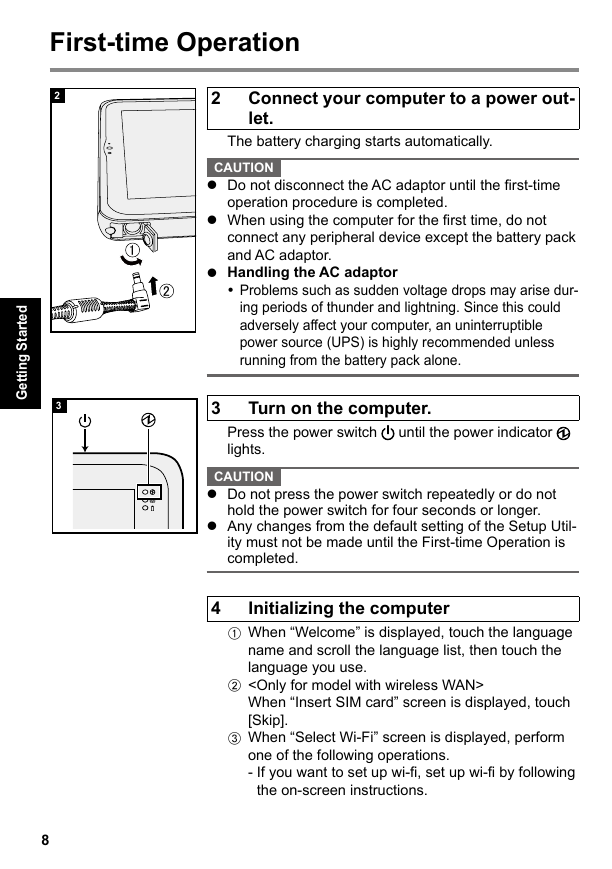

First-time Operation 2 3 d e t r a t S g n i t t e G 8 2 Connect your computer to a power out- let. The battery charging starts automatically. CAUTION l Do not disconnect the AC adaptor until the first-time operation procedure is completed. l When using the computer for the first time, do not connect any peripheral device except the battery pack and AC adaptor. l Handling the AC adaptor Problems such as sudden voltage drops may arise dur- ing periods of thunder and lightning. Since this could adversely affect your computer, an uninterruptible power source (UPS) is highly recommended unless running from the battery pack alone. Turn on the computer. 3 Press the power switch until the power indicator lights. CAUTION l Do not press the power switch repeatedly or do not hold the power switch for four seconds or longer. l Any changes from the default setting of the Setup Util- ity must not be made until the First-time Operation is completed. 4 Initializing the computer A When “Welcome” is displayed, touch the language name and scroll the language list, then touch the language you use. B When “Insert SIM card” screen is displayed, touch [Skip]. C When “Select Wi-Fi” screen is displayed, perform one of the following operations. - If you want to set up wi-fi, set up wi-fi by following the on-screen instructions.
