P/N : 03PD051100007 Rev B Quick Start

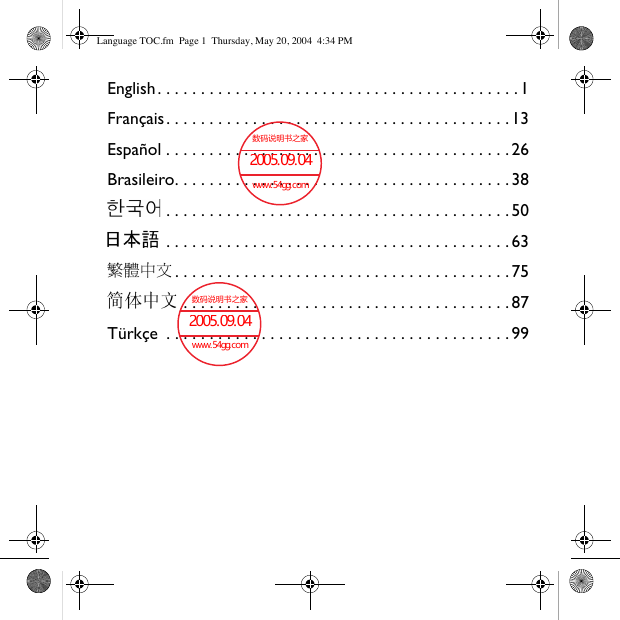

Language TOC.fm Page 1 Thursday, May 20, 2004 4:34 PM English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Français. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Brasileiro. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Türkçe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

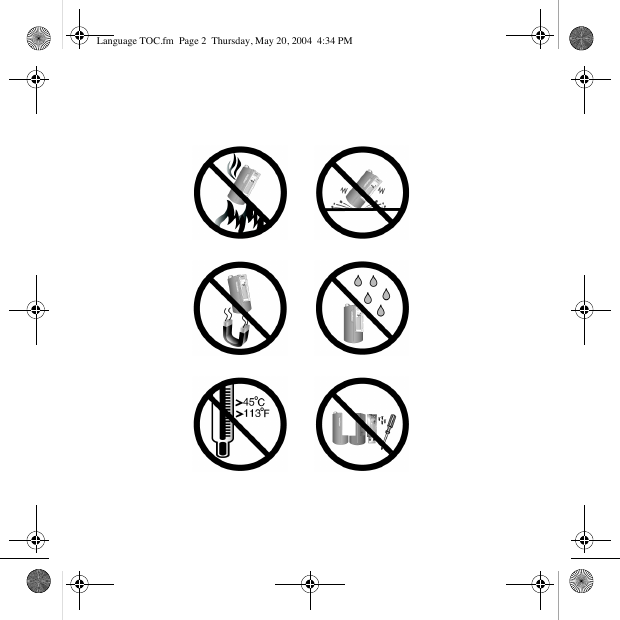

Language TOC.fm Page 2 Thursday, May 20, 2004 4:34 PM

MuVo TX FM QSB English 20th May.fm Page 1 Wednesday, May 19, 2004 4:44 PM Your Player At A Glance English Earphone connector Play/Pause Microphone Liquid Crystal Display (LCD) Scroller Volume Volume Increase Increase Volume Decrease Front View Side View 1

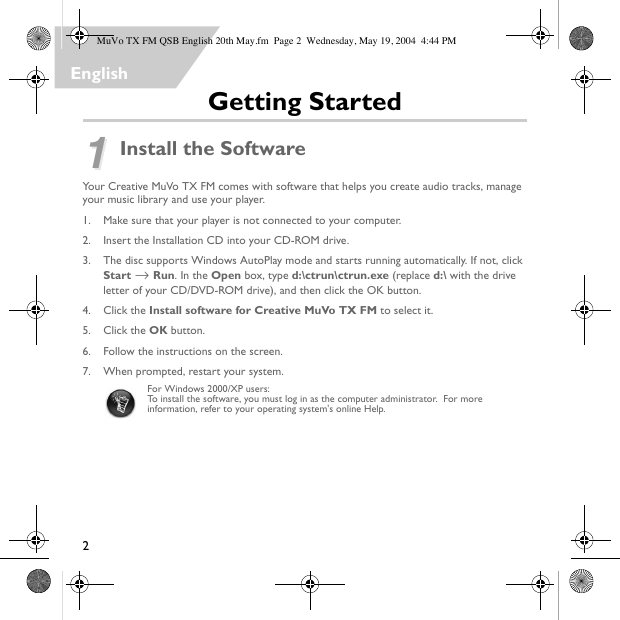

MuVo TX FM QSB English 20th May.fm Page 2 Wednesday, May 19, 2004 4:44 PM English Getting Started 11 Install the Software Your Creative MuVo TX FM comes with software that helps you create audio tracks, manage your music library and use your player. 1. Make sure that your player is not connected to your computer. 2. Insert the Installation CD into your CD-ROM drive. 3. The disc supports Windows AutoPlay mode and starts running automatically. If not, click Start → Run. In the Open box, type d:\ctrun\ctrun.exe (replace d:\ with the drive letter of your CD/DVD-ROM drive), and then click the OK button. 4. Click the Install software for Creative MuVo TX FM to select it. 5. Click the OK button. 6. Follow the instructions on the screen. 7. When prompted, restart your system. For Windows 2000/XP users: To install the software, you must log in as the computer administrator. For more information, refer to your operating system's online Help. 2

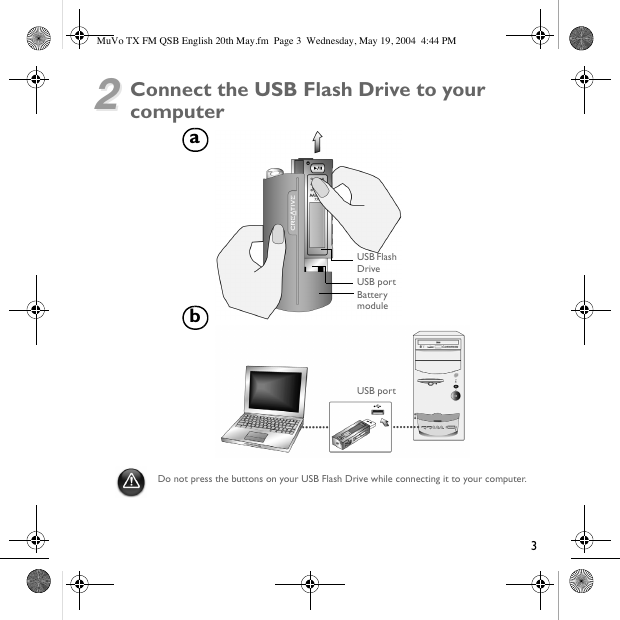

MuVo TX FM QSB English 20th May.fm Page 3 Wednesday, May 19, 2004 4:44 PM 22 Connect the USB Flash Drive to your computer a b USB Flash Drive USB port Battery module USB port Do not press the buttons on your USB Flash Drive while connecting it to your computer. 3

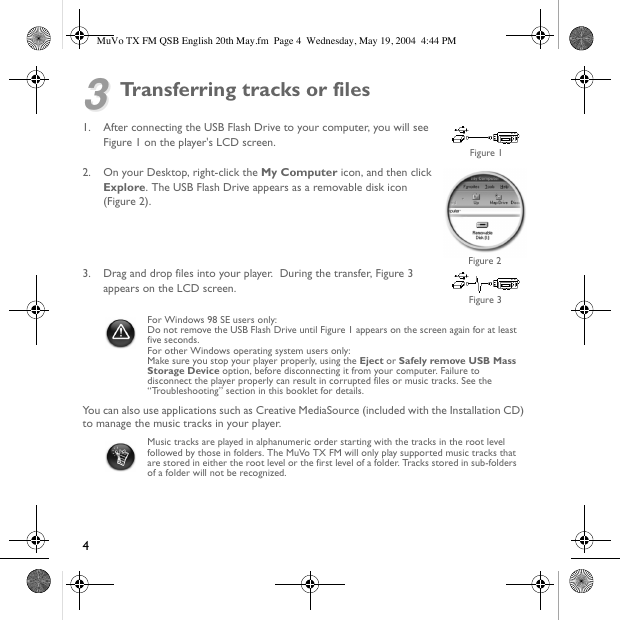

MuVo TX FM QSB English 20th May.fm Page 4 Wednesday, May 19, 2004 4:44 PM 33 Transferring tracks or files 1. After connecting the USB Flash Drive to your computer, you will see Figure 1 on the player's LCD screen. 2. On your Desktop, right-click the My Computer icon, and then click Explore. The USB Flash Drive appears as a removable disk icon (Figure 2). 3. Drag and drop files into your player. During the transfer, Figure 3 appears on the LCD screen. Figure 1 Figure 2 Figure 3 For Windows 98 SE users only: Do not remove the USB Flash Drive until Figure 1 appears on the screen again for at least five seconds. For other Windows operating system users only: Make sure you stop your player properly, using the Eject or Safely remove USB Mass Storage Device option, before disconnecting it from your computer. Failure to disconnect the player properly can result in corrupted files or music tracks. See the “Troubleshooting” section in this booklet for details. You can also use applications such as Creative MediaSource (included with the Installation CD) to manage the music tracks in your player. Music tracks are played in alphanumeric order starting with the tracks in the root level followed by those in folders. The MuVo TX FM will only play supported music tracks that are stored in either the root level or the first level of a folder. Tracks stored in sub-folders of a folder will not be recognized. 4

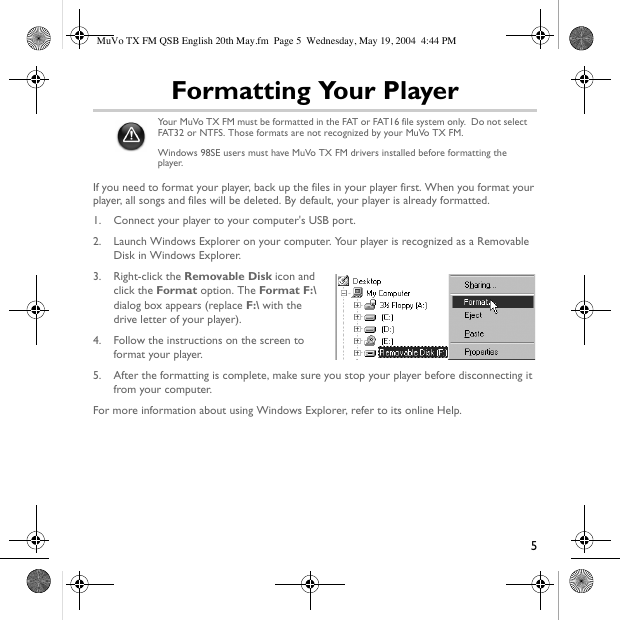

MuVo TX FM QSB English 20th May.fm Page 5 Wednesday, May 19, 2004 4:44 PM Formatting Your Player Your MuVo TX FM must be formatted in the FAT or FAT16 file system only. Do not select FAT32 or NTFS. Those formats are not recognized by your MuVo TX FM. Windows 98SE users must have MuVo TX FM drivers installed before formatting the player. If you need to format your player, back up the files in your player first. When you format your player, all songs and files will be deleted. By default, your player is already formatted. 1. Connect your player to your computer's USB port. 2. Launch Windows Explorer on your computer. Your player is recognized as a Removable Disk in Windows Explorer. 3. Right-click the Removable Disk icon and click the Format option. The Format F:\ dialog box appears (replace F:\ with the drive letter of your player). 4. Follow the instructions on the screen to format your player. 5. After the formatting is complete, make sure you stop your player before disconnecting it from your computer. For more information about using Windows Explorer, refer to its online Help. 5
