XGBoost: A Scalable Tree Boosting System
Tianqi Chen
University of Washington
tqchen@cs.washington.edu
Carlos Guestrin
University of Washington
guestrin@cs.washington.edu
6
1
0
2
y
a
M
3
2
]
G
L
.
s
c
[
2
v
4
5
7
2
0
.
3
0
6
1
:
v
i
X
r
a
ABSTRACT
Tree boosting is a highly effective and widely used machine
learning method. In this paper, we describe a scalable end-
to-end tree boosting system called XGBoost, which is used
widely by data scientists to achieve state-of-the-art results
on many machine learning challenges. We propose a novel
sparsity-aware algorithm for sparse data and weighted quan-
tile sketch for approximate tree learning. More importantly,
we provide insights on cache access patterns, data compres-
sion and sharding to build a scalable tree boosting system.
By combining these insights, XGBoost scales beyond billions
of examples using far fewer resources than existing systems.
CCS Concepts
•Methodologies → Machine learning; •Information
systems → Data mining;
Keywords
Large-scale Machine Learning
1.
INTRODUCTION
Machine learning and data-driven approaches are becom-
ing very important in many areas. Smart spam classifiers
protect our email by learning from massive amounts of spam
data and user feedback; advertising systems learn to match
the right ads with the right context; fraud detection systems
protect banks from malicious attackers; anomaly event de-
tection systems help experimental physicists to find events
that lead to new physics. There are two important factors
that drive these successful applications: usage of effective
(statistical) models that capture the complex data depen-
dencies and scalable learning systems that learn the model
of interest from large datasets.
Among the machine learning methods used in practice,
gradient tree boosting [10]1 is one technique that shines
1Gradient tree boosting is also known as gradient boosting
machine (GBM) or gradient boosted regression tree (GBRT)
Permission to make digital or hard copies of all or part of this work for personal or
classroom use is granted without fee provided that copies are not made or distributed
for profit or commercial advantage and that copies bear this notice and the full cita-
tion on the first page. Copyrights for components of this work owned by others than
ACM must be honored. Abstracting with credit is permitted. To copy otherwise, or re-
publish, to post on servers or to redistribute to lists, requires prior specific permission
and/or a fee. Request permissions from permissions@acm.org.
KDD ’16, August 13-17, 2016, San Francisco, CA, USA
c 2016 ACM. ISBN 978-1-4503-4232-2/16/08. . . $15.00
DOI: http://dx.doi.org/10.1145/2939672.2939785
in many applications. Tree boosting has been shown to
give state-of-the-art results on many standard classification
benchmarks [16]. LambdaMART [5], a variant of tree boost-
ing for ranking, achieves state-of-the-art result for ranking
problems. Besides being used as a stand-alone predictor, it
is also incorporated into real-world production pipelines for
ad click through rate prediction [15]. Finally, it is the de-
facto choice of ensemble method and is used in challenges
such as the Netflix prize [3].
In this paper, we describe XGBoost, a scalable machine
learning system for tree boosting. The system is available as
an open source package2. The impact of the system has been
widely recognized in a number of machine learning and data
mining challenges. Take the challenges hosted by the ma-
chine learning competition site Kaggle for example. Among
the 29 challenge winning solutions 3 published at Kaggle’s
blog during 2015, 17 solutions used XGBoost. Among these
solutions, eight solely used XGBoost to train the model,
while most others combined XGBoost with neural nets in en-
sembles. For comparison, the second most popular method,
deep neural nets, was used in 11 solutions. The success
of the system was also witnessed in KDDCup 2015, where
XGBoost was used by every winning team in the top-10.
Moreover, the winning teams reported that ensemble meth-
ods outperform a well-configured XGBoost by only a small
amount [1].
These results demonstrate that our system gives state-of-
the-art results on a wide range of problems. Examples of
the problems in these winning solutions include: store sales
prediction; high energy physics event classification; web text
classification; customer behavior prediction; motion detec-
tion; ad click through rate prediction; malware classification;
product categorization; hazard risk prediction; massive on-
line course dropout rate prediction. While domain depen-
dent data analysis and feature engineering play an important
role in these solutions, the fact that XGBoost is the consen-
sus choice of learner shows the impact and importance of
our system and tree boosting.
The most important factor behind the success of XGBoost
is its scalability in all scenarios. The system runs more than
ten times faster than existing popular solutions on a single
machine and scales to billions of examples in distributed or
memory-limited settings. The scalability of XGBoost is due
to several important systems and algorithmic optimizations.
These innovations include: a novel tree learning algorithm
is for handling sparse data; a theoretically justified weighted
2https://github.com/dmlc/xgboost
3Solutions come from of top-3 teams of each competitions.
2.1 Regularized Learning Objective
For a given data set with n examples and m features
D = {(xi, yi)} (|D| = n, xi ∈ Rm, yi ∈ R), a tree ensem-
ble model (shown in Fig. 1) uses K additive functions to
predict the output.
ˆyi = φ(xi) =
fk(xi), fk ∈ F ,
(1)
K
k=1

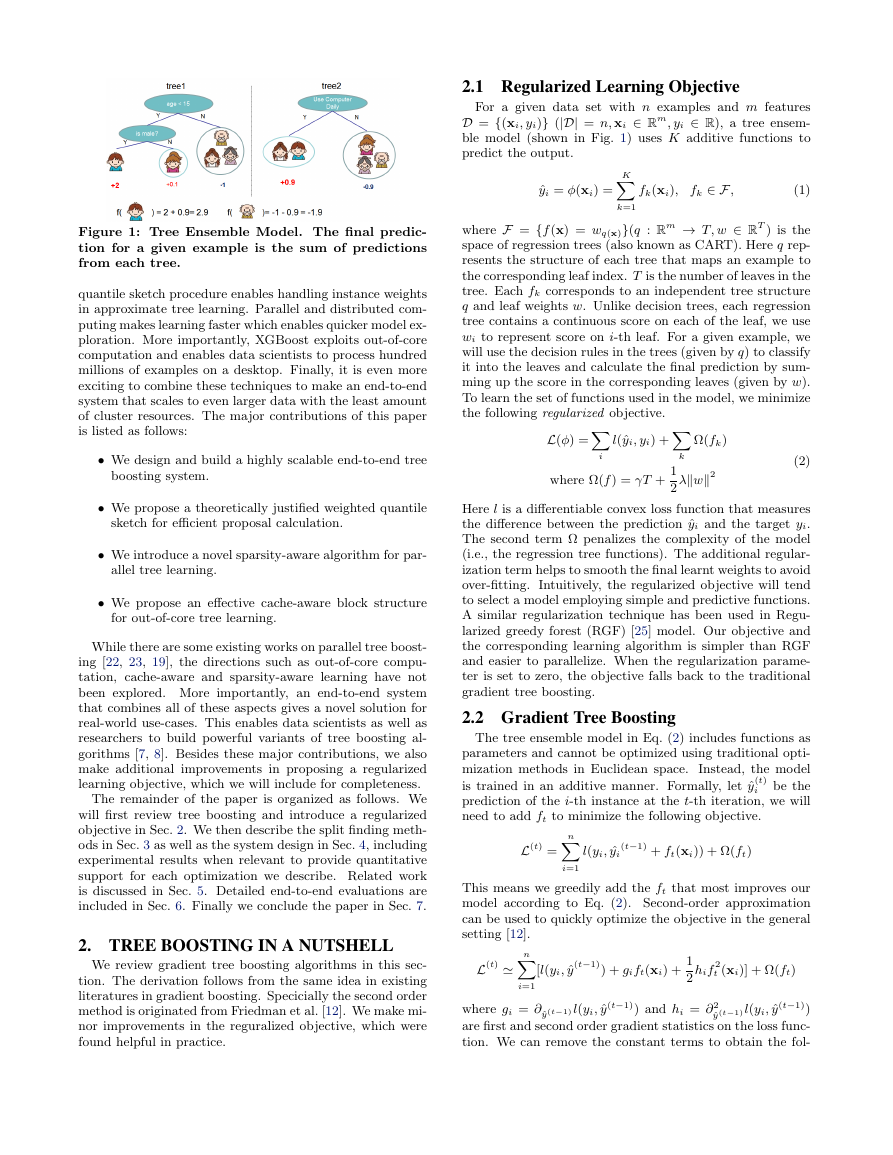

Figure 1: Tree Ensemble Model. The final predic-
tion for a given example is the sum of predictions
from each tree.
quantile sketch procedure enables handling instance weights
in approximate tree learning. Parallel and distributed com-
puting makes learning faster which enables quicker model ex-
ploration. More importantly, XGBoost exploits out-of-core
computation and enables data scientists to process hundred
millions of examples on a desktop. Finally, it is even more
exciting to combine these techniques to make an end-to-end
system that scales to even larger data with the least amount
of cluster resources. The major contributions of this paper
is listed as follows:
• We design and build a highly scalable end-to-end tree
boosting system.
• We propose a theoretically justified weighted quantile
sketch for efficient proposal calculation.
• We introduce a novel sparsity-aware algorithm for par-
allel tree learning.
• We propose an effective cache-aware block structure
for out-of-core tree learning.
While there are some existing works on parallel tree boost-
ing [22, 23, 19], the directions such as out-of-core compu-
tation, cache-aware and sparsity-aware learning have not
been explored. More importantly, an end-to-end system
that combines all of these aspects gives a novel solution for
real-world use-cases. This enables data scientists as well as
researchers to build powerful variants of tree boosting al-
gorithms [7, 8]. Besides these major contributions, we also
make additional improvements in proposing a regularized
learning objective, which we will include for completeness.
The remainder of the paper is organized as follows. We
will first review tree boosting and introduce a regularized
objective in Sec. 2. We then describe the split finding meth-
ods in Sec. 3 as well as the system design in Sec. 4, including
experimental results when relevant to provide quantitative
support for each optimization we describe. Related work
is discussed in Sec. 5. Detailed end-to-end evaluations are
included in Sec. 6. Finally we conclude the paper in Sec. 7.
2. TREE BOOSTING IN A NUTSHELL
We review gradient tree boosting algorithms in this sec-
tion. The derivation follows from the same idea in existing
literatures in gradient boosting. Specicially the second order
method is originated from Friedman et al. [12]. We make mi-
nor improvements in the reguralized objective, which were
found helpful in practice.
where F = {f (x) = wq(x)}(q : Rm → T, w ∈ RT ) is the
space of regression trees (also known as CART). Here q rep-
resents the structure of each tree that maps an example to
the corresponding leaf index. T is the number of leaves in the
tree. Each fk corresponds to an independent tree structure
q and leaf weights w. Unlike decision trees, each regression
tree contains a continuous score on each of the leaf, we use
wi to represent score on i-th leaf. For a given example, we
will use the decision rules in the trees (given by q) to classify
it into the leaves and calculate the final prediction by sum-
ming up the score in the corresponding leaves (given by w).
To learn the set of functions used in the model, we minimize
the following regularized objective.
L(φ) =
l(ˆyi, yi) +
Ω(fk)
i
where Ω(f ) = γT +
k
λw2
1
2
(2)
Here l is a differentiable convex loss function that measures
the difference between the prediction ˆyi and the target yi.
The second term Ω penalizes the complexity of the model
(i.e., the regression tree functions). The additional regular-
ization term helps to smooth the final learnt weights to avoid
over-fitting. Intuitively, the regularized objective will tend
to select a model employing simple and predictive functions.
A similar regularization technique has been used in Regu-
larized greedy forest (RGF) [25] model. Our objective and
the corresponding learning algorithm is simpler than RGF
and easier to parallelize. When the regularization parame-
ter is set to zero, the objective falls back to the traditional
gradient tree boosting.
2.2 Gradient Tree Boosting
The tree ensemble model in Eq. (2) includes functions as
parameters and cannot be optimized using traditional opti-
mization methods in Euclidean space. Instead, the model
is trained in an additive manner. Formally, let ˆy(t)
be the
prediction of the i-th instance at the t-th iteration, we will
need to add ft to minimize the following objective.
i
L(t) =
l(yi, ˆyi
(t−1) + ft(xi)) + Ω(ft)
n
i=1
L(t) n
i=1
This means we greedily add the ft that most improves our
model according to Eq. (2). Second-order approximation
can be used to quickly optimize the objective in the general
setting [12].
[l(yi, ˆy(t−1)) + gift(xi) +
1
2
hif 2
t (xi)] + Ω(ft)
ˆy(t−1) l(yi, ˆy(t−1))
where gi = ∂ˆy(t−1) l(yi, ˆy(t−1)) and hi = ∂2
are first and second order gradient statistics on the loss func-
tion. We can remove the constant terms to obtain the fol-
˜L(t) =
[gift(xi) +
1
2
hif 2
t (xi)] + Ω(ft)
(3)
Algorithm 2: Approximate Algorithm for Split Finding

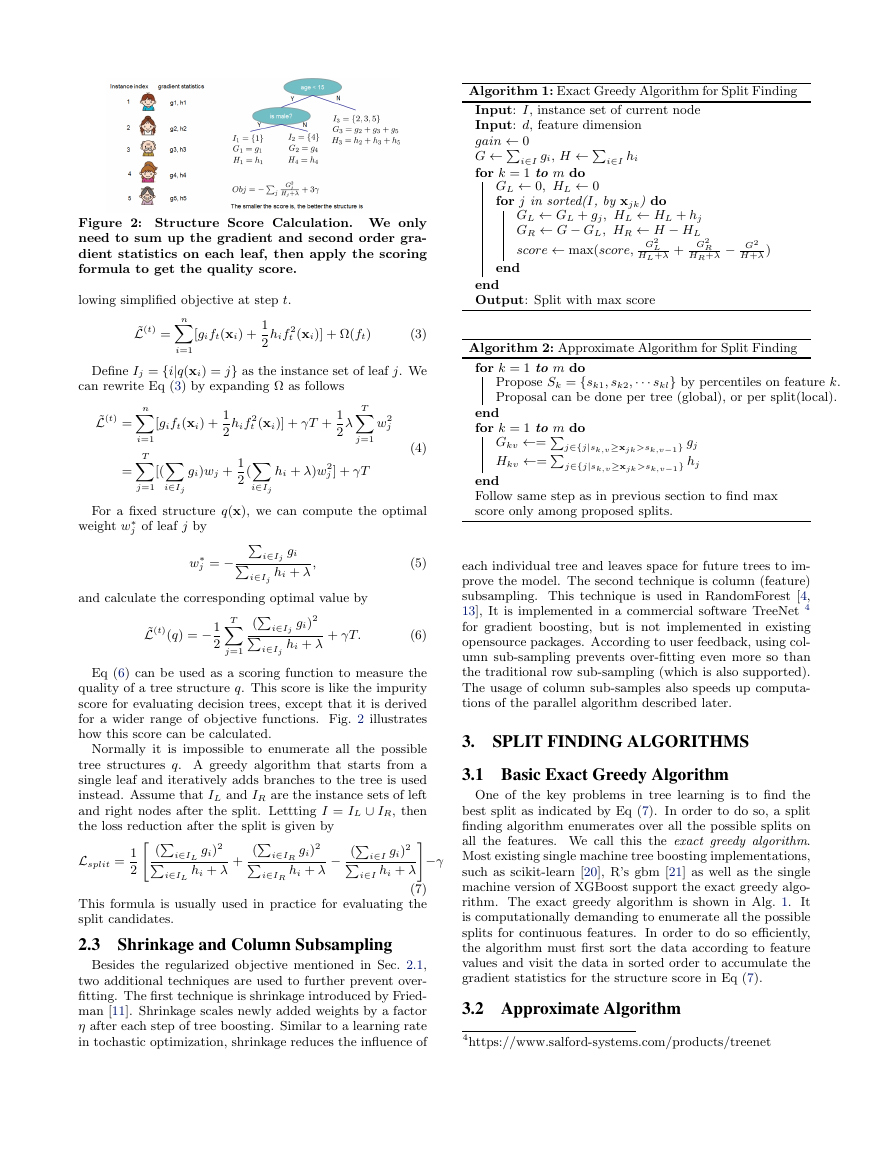

Figure 2: Structure Score Calculation. We only
need to sum up the gradient and second order gra-
dient statistics on each leaf, then apply the scoring
formula to get the quality score.
lowing simplified objective at step t.
n
i=1
Define Ij = {i|q(xi) = j} as the instance set of leaf j. We
can rewrite Eq (3) by expanding Ω as follows
n
T
i=1
j=1
i∈Ij
[(
˜L(t) =
=
T
1
2
λ
j=1
(4)
[gift(xi) +
hif 2
t (xi)] + γT +
w2
j
gi)wj +
1
2
(
hi + λ)w2
j ] + γT
Algorithm 1: Exact Greedy Algorithm for Split Finding
Input: I, instance set of current node
Input: d, feature dimension
gain ← 0
G ←
i∈I gi, H ←
i∈I hi
for k = 1 to m do
GL ← 0, HL ← 0
for j in sorted(I, by xjk) do
GL ← GL + gj, HL ← HL + hj
GR ← G − GL, HR ← H − HL
score ← max(score, G2
HL+λ + G2
L
HR+λ − G2
H+λ )
R
end
end
Output: Split with max score
1
2
i∈Ij
(
T
i∈Ij
j=1
For a fixed structure q(x), we can compute the optimal
weight w∗
j of leaf j by
j = −
∗
w
i∈Ij
gi
hi + λ
,
(5)
and calculate the corresponding optimal value by
˜L(t)(q) = − 1
2
i∈Ij
gi)2
hi + λ
i∈Ij
+ γT.
(6)
(
(
− (
Eq (6) can be used as a scoring function to measure the
quality of a tree structure q. This score is like the impurity
score for evaluating decision trees, except that it is derived
for a wider range of objective functions. Fig. 2 illustrates
how this score can be calculated.
Normally it is impossible to enumerate all the possible
tree structures q. A greedy algorithm that starts from a
single leaf and iteratively adds branches to the tree is used
instead. Assume that IL and IR are the instance sets of left
and right nodes after the split. Lettting I = IL ∪ IR, then
the loss reduction after the split is given by
Lsplit =
1
2
i∈IL
gi)2
hi + λ
i∈IL
+
i∈IR
gi)2
hi + λ
i∈IR
i∈I gi)2
i∈I hi + λ
−γ
(7)
This formula is usually used in practice for evaluating the
split candidates.
2.3 Shrinkage and Column Subsampling
Besides the regularized objective mentioned in Sec. 2.1,
two additional techniques are used to further prevent over-
fitting. The first technique is shrinkage introduced by Fried-
man [11]. Shrinkage scales newly added weights by a factor
η after each step of tree boosting. Similar to a learning rate
in tochastic optimization, shrinkage reduces the influence of
for k = 1 to m do
Propose Sk = {sk1, sk2,··· skl} by percentiles on feature k.
Proposal can be done per tree (global), or per split(local).
end
for k = 1 to m do
Gkv ←=
Hkv ←=
j∈{j|sk,v≥xjk>sk,v−1} gj
j∈{j|sk,v≥xjk>sk,v−1} hj
end
Follow same step as in previous section to find max
score only among proposed splits.
each individual tree and leaves space for future trees to im-
prove the model. The second technique is column (feature)
subsampling. This technique is used in RandomForest [4,
13], It is implemented in a commercial software TreeNet 4
for gradient boosting, but is not implemented in existing
opensource packages. According to user feedback, using col-
umn sub-sampling prevents over-fitting even more so than
the traditional row sub-sampling (which is also supported).
The usage of column sub-samples also speeds up computa-
tions of the parallel algorithm described later.
3. SPLIT FINDING ALGORITHMS
3.1 Basic Exact Greedy Algorithm
One of the key problems in tree learning is to find the
best split as indicated by Eq (7). In order to do so, a split
finding algorithm enumerates over all the possible splits on
all the features. We call this the exact greedy algorithm.
Most existing single machine tree boosting implementations,
such as scikit-learn [20], R’s gbm [21] as well as the single
machine version of XGBoost support the exact greedy algo-
rithm. The exact greedy algorithm is shown in Alg. 1. It
is computationally demanding to enumerate all the possible
splits for continuous features. In order to do so efficiently,
the algorithm must first sort the data according to feature
values and visit the data in sorted order to accumulate the
gradient statistics for the structure score in Eq (7).
3.2 Approximate Algorithm
4https://www.salford-systems.com/products/treenet

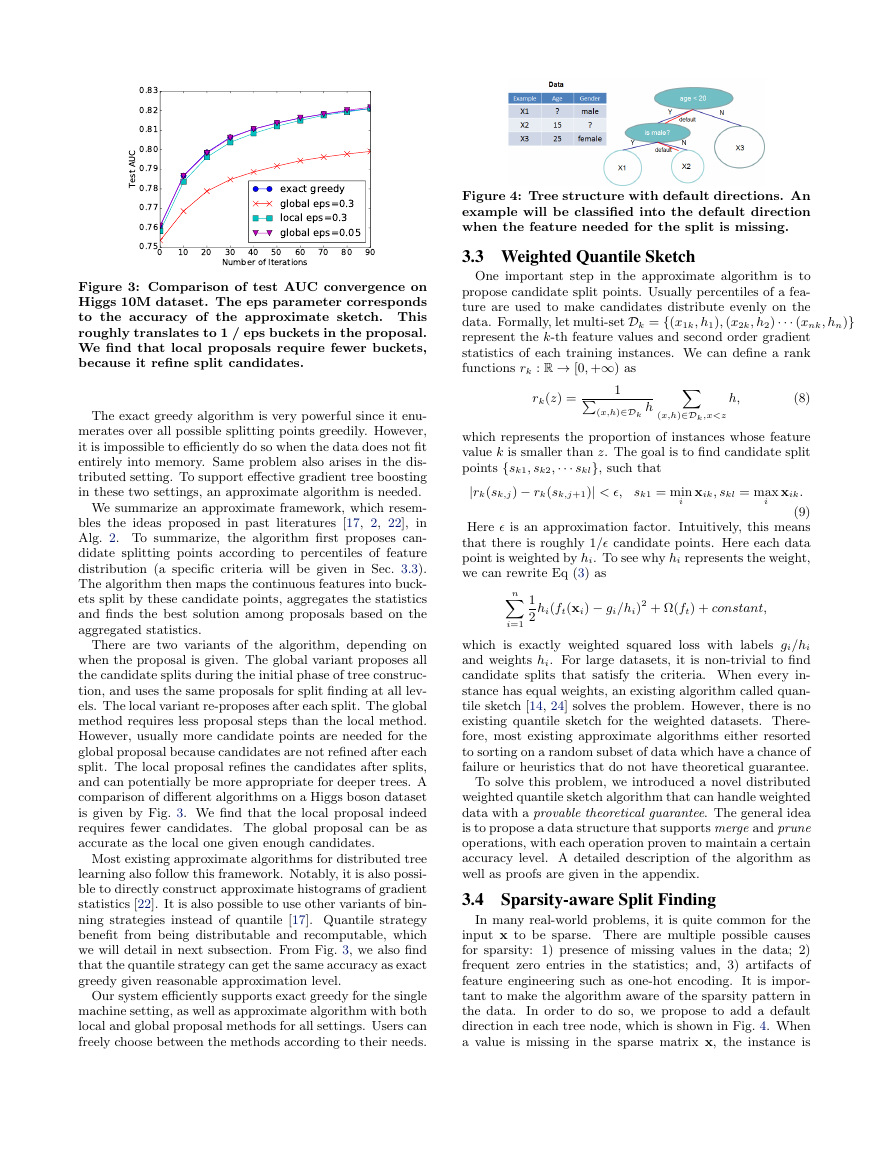

Figure 3: Comparison of test AUC convergence on
Higgs 10M dataset. The eps parameter corresponds
to the accuracy of the approximate sketch. This
roughly translates to 1 / eps buckets in the proposal.
We find that local proposals require fewer buckets,
because it refine split candidates.
The exact greedy algorithm is very powerful since it enu-
merates over all possible splitting points greedily. However,
it is impossible to efficiently do so when the data does not fit
entirely into memory. Same problem also arises in the dis-
tributed setting. To support effective gradient tree boosting
in these two settings, an approximate algorithm is needed.
We summarize an approximate framework, which resem-
bles the ideas proposed in past literatures [17, 2, 22], in
Alg. 2. To summarize, the algorithm first proposes can-
didate splitting points according to percentiles of feature
distribution (a specific criteria will be given in Sec. 3.3).
The algorithm then maps the continuous features into buck-
ets split by these candidate points, aggregates the statistics
and finds the best solution among proposals based on the
aggregated statistics.
There are two variants of the algorithm, depending on
when the proposal is given. The global variant proposes all
the candidate splits during the initial phase of tree construc-
tion, and uses the same proposals for split finding at all lev-
els. The local variant re-proposes after each split. The global
method requires less proposal steps than the local method.
However, usually more candidate points are needed for the
global proposal because candidates are not refined after each
split. The local proposal refines the candidates after splits,
and can potentially be more appropriate for deeper trees. A
comparison of different algorithms on a Higgs boson dataset
is given by Fig. 3. We find that the local proposal indeed
requires fewer candidates. The global proposal can be as
accurate as the local one given enough candidates.
Most existing approximate algorithms for distributed tree
learning also follow this framework. Notably, it is also possi-
ble to directly construct approximate histograms of gradient
statistics [22]. It is also possible to use other variants of bin-
ning strategies instead of quantile [17]. Quantile strategy
benefit from being distributable and recomputable, which
we will detail in next subsection. From Fig. 3, we also find
that the quantile strategy can get the same accuracy as exact
greedy given reasonable approximation level.
Our system efficiently supports exact greedy for the single
machine setting, as well as approximate algorithm with both
local and global proposal methods for all settings. Users can
freely choose between the methods according to their needs.
Figure 4: Tree structure with default directions. An
example will be classified into the default direction
when the feature needed for the split is missing.
3.3 Weighted Quantile Sketch
One important step in the approximate algorithm is to
propose candidate split points. Usually percentiles of a fea-
ture are used to make candidates distribute evenly on the
data. Formally, let multi-set Dk = {(x1k, h1), (x2k, h2)··· (xnk, hn)}
represent the k-th feature values and second order gradient
statistics of each training instances. We can define a rank
functions rk : R → [0, +∞) as
1
rk(z) =
(x,h)∈Dk
h
(x,h)∈Dk,x

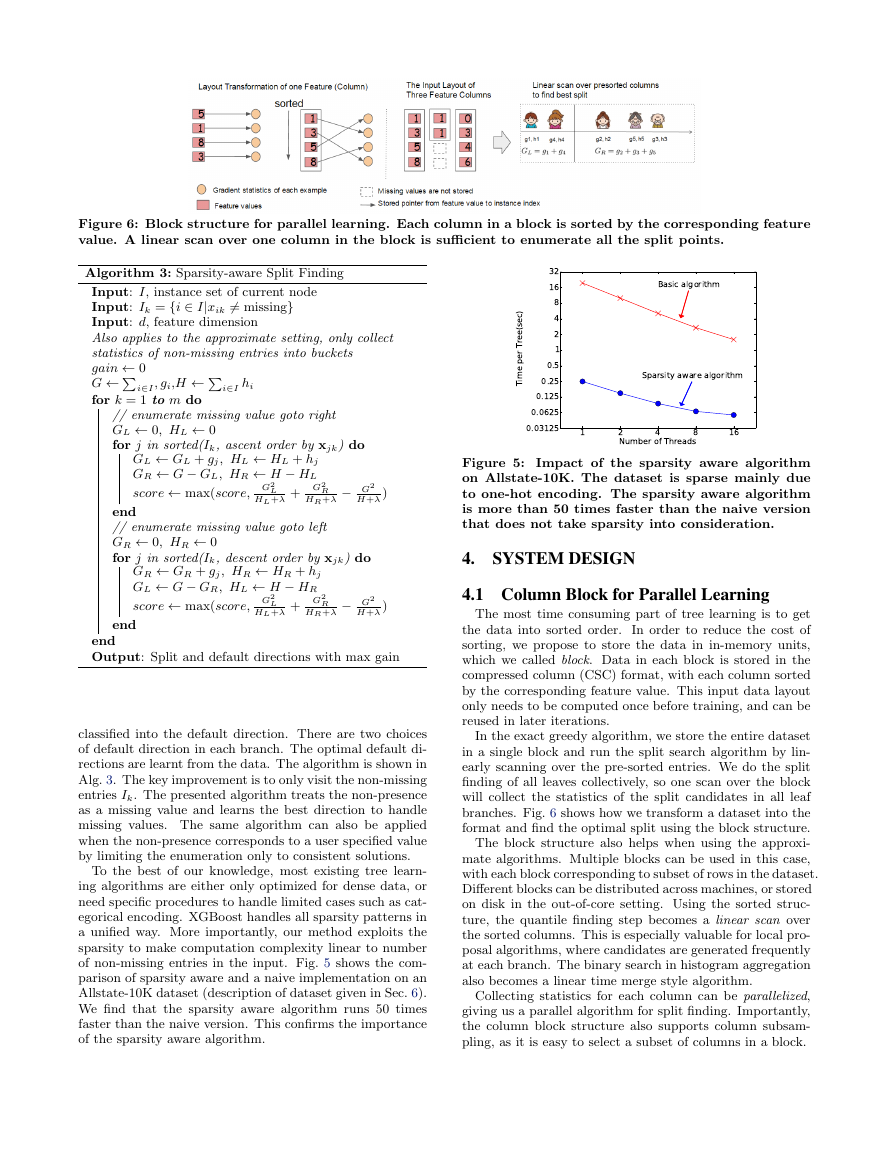

Figure 6: Block structure for parallel learning. Each column in a block is sorted by the corresponding feature
value. A linear scan over one column in the block is sufficient to enumerate all the split points.
Algorithm 3: Sparsity-aware Split Finding
Input: I, instance set of current node
Input: Ik = {i ∈ I|xik = missing}
Input: d, feature dimension
Also applies to the approximate setting, only collect
statistics of non-missing entries into buckets
gain ← 0
G ←
i∈I , gi,H ←
i∈I hi
for k = 1 to m do
// enumerate missing value goto right
GL ← 0, HL ← 0
for j in sorted(Ik, ascent order by xjk) do
GL ← GL + gj, HL ← HL + hj
GR ← G − GL, HR ← H − HL
score ← max(score, G2
HL+λ + G2
L
HR+λ − G2
H+λ )
R
end
// enumerate missing value goto left
GR ← 0, HR ← 0
for j in sorted(Ik, descent order by xjk) do
GR ← GR + gj, HR ← HR + hj
GL ← G − GR, HL ← H − HR
score ← max(score, G2
HL+λ + G2
L
HR+λ − G2
H+λ )
R
end
end
Output: Split and default directions with max gain
classified into the default direction. There are two choices
of default direction in each branch. The optimal default di-
rections are learnt from the data. The algorithm is shown in
Alg. 3. The key improvement is to only visit the non-missing
entries Ik. The presented algorithm treats the non-presence
as a missing value and learns the best direction to handle
missing values. The same algorithm can also be applied
when the non-presence corresponds to a user specified value
by limiting the enumeration only to consistent solutions.
To the best of our knowledge, most existing tree learn-
ing algorithms are either only optimized for dense data, or
need specific procedures to handle limited cases such as cat-
egorical encoding. XGBoost handles all sparsity patterns in
a unified way. More importantly, our method exploits the
sparsity to make computation complexity linear to number
of non-missing entries in the input. Fig. 5 shows the com-
parison of sparsity aware and a naive implementation on an
Allstate-10K dataset (description of dataset given in Sec. 6).
We find that the sparsity aware algorithm runs 50 times
faster than the naive version. This confirms the importance
of the sparsity aware algorithm.
Figure 5: Impact of the sparsity aware algorithm
on Allstate-10K. The dataset is sparse mainly due
to one-hot encoding. The sparsity aware algorithm
is more than 50 times faster than the naive version
that does not take sparsity into consideration.
4. SYSTEM DESIGN
4.1 Column Block for Parallel Learning
The most time consuming part of tree learning is to get
the data into sorted order. In order to reduce the cost of
sorting, we propose to store the data in in-memory units,
which we called block. Data in each block is stored in the
compressed column (CSC) format, with each column sorted
by the corresponding feature value. This input data layout
only needs to be computed once before training, and can be
reused in later iterations.
In the exact greedy algorithm, we store the entire dataset
in a single block and run the split search algorithm by lin-
early scanning over the pre-sorted entries. We do the split
finding of all leaves collectively, so one scan over the block
will collect the statistics of the split candidates in all leaf
branches. Fig. 6 shows how we transform a dataset into the
format and find the optimal split using the block structure.
The block structure also helps when using the approxi-
mate algorithms. Multiple blocks can be used in this case,
with each block corresponding to subset of rows in the dataset.
Different blocks can be distributed across machines, or stored
on disk in the out-of-core setting. Using the sorted struc-
ture, the quantile finding step becomes a linear scan over
the sorted columns. This is especially valuable for local pro-
posal algorithms, where candidates are generated frequently
at each branch. The binary search in histogram aggregation
also becomes a linear time merge style algorithm.
Collecting statistics for each column can be parallelized,
giving us a parallel algorithm for split finding. Importantly,
the column block structure also supports column subsam-
pling, as it is easy to select a subset of columns in a block.
124816Number of Threads0.031250.06250.1250.250.512481632Time per Tree(sec)Sparsity aware algorithmBasic algorithm
(a) Allstate 10M
(b) Higgs 10M
(c) Allstate 1M
(d) Higgs 1M
Figure 7: Impact of cache-aware prefetching in exact greedy algorithm. We find that the cache-miss effect
impacts the performance on the large datasets (10 million instances). Using cache aware prefetching improves
the performance by factor of two when the dataset is large.
Figure 8:
that can cause stall due to cache miss.
Short range data dependency pattern
Time Complexity Analysis Let d be the maximum depth
of the tree and K be total number of trees. For the ex-
act greedy algorithm, the time complexity of original spase
aware algorithm is O(Kdx0 log n). Here we use x0 to
denote number of non-missing entries in the training data.
On the other hand, tree boosting on the block structure only
cost O(Kdx0 + x0 log n). Here O(x0 log n) is the one
time preprocessing cost that can be amortized. This analysis
shows that the block structure helps to save an additional
log n factor, which is significant when n is large. For the
approximate algorithm, the time complexity of original al-
gorithm with binary search is O(Kdx0 log q). Here q is
the number of proposal candidates in the dataset. While q
is usually between 32 and 100, the log factor still introduces
overhead. Using the block structure, we can reduce the time
to O(Kdx0 +x0 log B), where B is the maximum num-
ber of rows in each block. Again we can save the additional
log q factor in computation.
4.2 Cache-aware Access
While the proposed block structure helps optimize the
computation complexity of split finding, the new algorithm
requires indirect fetches of gradient statistics by row index,
since these values are accessed in order of feature. This is
a non-continuous memory access. A naive implementation
of split enumeration introduces immediate read/write de-
pendency between the accumulation and the non-continuous
memory fetch operation (see Fig. 8). This slows down split
finding when the gradient statistics do not fit into CPU cache
and cache miss occur.
For the exact greedy algorithm, we can alleviate the prob-
lem by a cache-aware prefetching algorithm. Specifically,
we allocate an internal buffer in each thread, fetch the gra-
dient statistics into it, and then perform accumulation in
a mini-batch manner. This prefetching changes the direct
read/write dependency to a longer dependency and helps to
reduce the runtime overhead when number of rows in the
is large. Figure 7 gives the comparison of cache-aware vs.
(a) Allstate 10M
(b) Higgs 10M
Figure 9: The impact of block size in the approxi-
mate algorithm. We find that overly small blocks re-
sults in inefficient parallelization, while overly large
blocks also slows down training due to cache misses.
non cache-aware algorithm on the the Higgs and the All-
state dataset. We find that cache-aware implementation of
the exact greedy algorithm runs twice as fast as the naive
version when the dataset is large.
For approximate algorithms, we solve the problem by choos-
ing a correct block size. We define the block size to be max-
imum number of examples in contained in a block, as this
reflects the cache storage cost of gradient statistics. Choos-
ing an overly small block size results in small workload for
each thread and leads to inefficient parallelization. On the
other hand, overly large blocks result in cache misses, as the
gradient statistics do not fit into the CPU cache. A good
choice of block size balances these two factors. We compared
various choices of block size on two data sets. The results
124816Number of Threads8163264128Time per Tree(sec)Basic algorithmCache-aware algorithm124816Number of Threads8163264128256Time per Tree(sec)Basic algorithmCache-aware algorithm124816Number of Threads0.250.51248Time per Tree(sec)Basic algorithmCache-aware algorithm124816Number of Threads0.250.51248Time per Tree(sec)Basic algorithmCache-aware algorithm124816Number of Threads48163264128Time per Tree(sec)block size=2^12block size=2^16block size=2^20block size=2^24124816Number of Threads48163264128256512Time per Tree(sec)block size=2^12block size=2^16block size=2^20block size=2^24

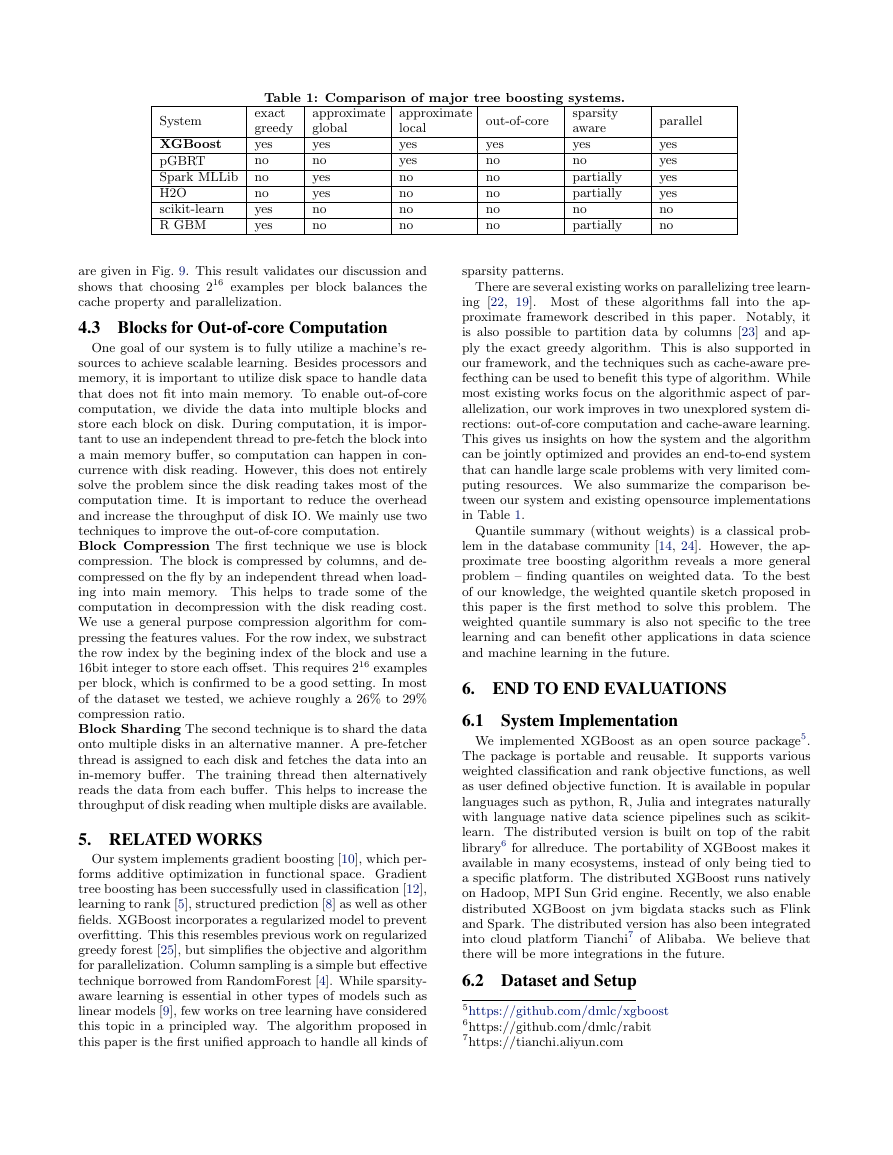

Table 1: Comparison of major tree boosting systems.
System
XGBoost
pGBRT
Spark MLLib
H2O
scikit-learn
R GBM
exact
greedy
yes
no
no
no
yes
yes
approximate
global
yes
no
yes
yes
no
no
approximate
local
yes
yes
no
no
no
no
out-of-core
yes
no
no
no
no
no
sparsity
aware
yes
no
partially
partially
no
partially
parallel
yes
yes
yes
yes
no
no
are given in Fig. 9. This result validates our discussion and
shows that choosing 216 examples per block balances the
cache property and parallelization.
4.3 Blocks for Out-of-core Computation
One goal of our system is to fully utilize a machine’s re-
sources to achieve scalable learning. Besides processors and
memory, it is important to utilize disk space to handle data
that does not fit into main memory. To enable out-of-core
computation, we divide the data into multiple blocks and
store each block on disk. During computation, it is impor-
tant to use an independent thread to pre-fetch the block into
a main memory buffer, so computation can happen in con-
currence with disk reading. However, this does not entirely
solve the problem since the disk reading takes most of the
computation time. It is important to reduce the overhead
and increase the throughput of disk IO. We mainly use two
techniques to improve the out-of-core computation.
Block Compression The first technique we use is block
compression. The block is compressed by columns, and de-
compressed on the fly by an independent thread when load-
ing into main memory. This helps to trade some of the
computation in decompression with the disk reading cost.
We use a general purpose compression algorithm for com-
pressing the features values. For the row index, we substract
the row index by the begining index of the block and use a
16bit integer to store each offset. This requires 216 examples
per block, which is confirmed to be a good setting. In most
of the dataset we tested, we achieve roughly a 26% to 29%
compression ratio.
Block Sharding The second technique is to shard the data
onto multiple disks in an alternative manner. A pre-fetcher
thread is assigned to each disk and fetches the data into an
in-memory buffer. The training thread then alternatively
reads the data from each buffer. This helps to increase the
throughput of disk reading when multiple disks are available.
5. RELATED WORKS
Our system implements gradient boosting [10], which per-
forms additive optimization in functional space. Gradient
tree boosting has been successfully used in classification [12],
learning to rank [5], structured prediction [8] as well as other
fields. XGBoost incorporates a regularized model to prevent
overfitting. This this resembles previous work on regularized
greedy forest [25], but simplifies the objective and algorithm
for parallelization. Column sampling is a simple but effective
technique borrowed from RandomForest [4]. While sparsity-
aware learning is essential in other types of models such as
linear models [9], few works on tree learning have considered
this topic in a principled way. The algorithm proposed in
this paper is the first unified approach to handle all kinds of
sparsity patterns.
There are several existing works on parallelizing tree learn-
ing [22, 19]. Most of these algorithms fall into the ap-
proximate framework described in this paper. Notably, it
is also possible to partition data by columns [23] and ap-
ply the exact greedy algorithm. This is also supported in
our framework, and the techniques such as cache-aware pre-
fecthing can be used to benefit this type of algorithm. While
most existing works focus on the algorithmic aspect of par-
allelization, our work improves in two unexplored system di-
rections: out-of-core computation and cache-aware learning.
This gives us insights on how the system and the algorithm
can be jointly optimized and provides an end-to-end system
that can handle large scale problems with very limited com-
puting resources. We also summarize the comparison be-
tween our system and existing opensource implementations
in Table 1.
Quantile summary (without weights) is a classical prob-
lem in the database community [14, 24]. However, the ap-
proximate tree boosting algorithm reveals a more general
problem – finding quantiles on weighted data. To the best
of our knowledge, the weighted quantile sketch proposed in
this paper is the first method to solve this problem. The
weighted quantile summary is also not specific to the tree
learning and can benefit other applications in data science
and machine learning in the future.
6. END TO END EVALUATIONS
6.1 System Implementation
We implemented XGBoost as an open source package5.
The package is portable and reusable. It supports various
weighted classification and rank objective functions, as well
as user defined objective function. It is available in popular
languages such as python, R, Julia and integrates naturally
with language native data science pipelines such as scikit-
learn. The distributed version is built on top of the rabit
library6 for allreduce. The portability of XGBoost makes it
available in many ecosystems, instead of only being tied to
a specific platform. The distributed XGBoost runs natively
on Hadoop, MPI Sun Grid engine. Recently, we also enable
distributed XGBoost on jvm bigdata stacks such as Flink
and Spark. The distributed version has also been integrated
into cloud platform Tianchi7 of Alibaba. We believe that
there will be more integrations in the future.
6.2 Dataset and Setup
5https://github.com/dmlc/xgboost
6https://github.com/dmlc/rabit
7https://tianchi.aliyun.com

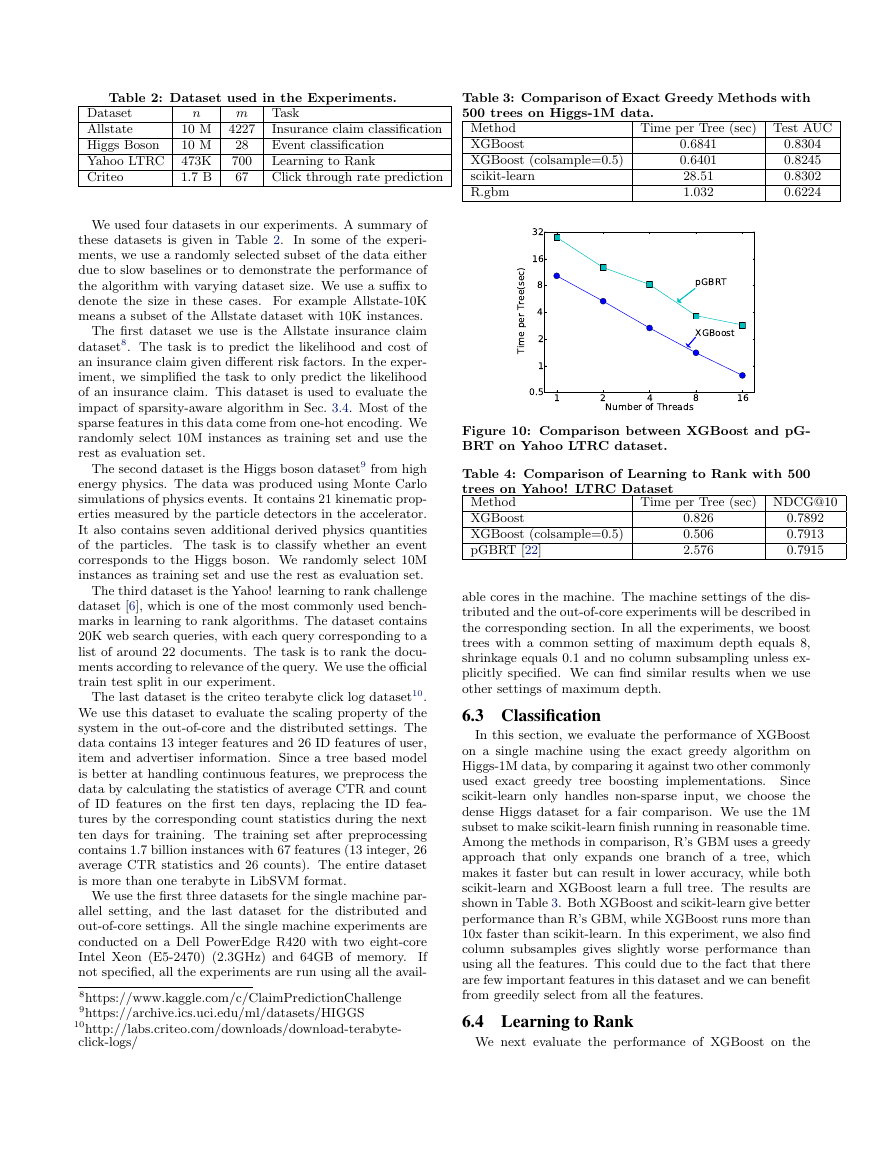

Table 2: Dataset used in the Experiments.
n
m
Dataset
10 M 4227
Allstate
Higgs Boson
10 M 28
Yahoo LTRC 473K 700
Criteo
67
1.7 B
Task
Insurance claim classification
Event classification
Learning to Rank
Click through rate prediction
We used four datasets in our experiments. A summary of
these datasets is given in Table 2. In some of the experi-
ments, we use a randomly selected subset of the data either
due to slow baselines or to demonstrate the performance of
the algorithm with varying dataset size. We use a suffix to
denote the size in these cases. For example Allstate-10K
means a subset of the Allstate dataset with 10K instances.
The first dataset we use is the Allstate insurance claim
dataset8. The task is to predict the likelihood and cost of
an insurance claim given different risk factors. In the exper-
iment, we simplified the task to only predict the likelihood
of an insurance claim. This dataset is used to evaluate the
impact of sparsity-aware algorithm in Sec. 3.4. Most of the
sparse features in this data come from one-hot encoding. We
randomly select 10M instances as training set and use the
rest as evaluation set.
The second dataset is the Higgs boson dataset9 from high
energy physics. The data was produced using Monte Carlo
simulations of physics events. It contains 21 kinematic prop-
erties measured by the particle detectors in the accelerator.
It also contains seven additional derived physics quantities
of the particles. The task is to classify whether an event
corresponds to the Higgs boson. We randomly select 10M
instances as training set and use the rest as evaluation set.
The third dataset is the Yahoo! learning to rank challenge
dataset [6], which is one of the most commonly used bench-
marks in learning to rank algorithms. The dataset contains
20K web search queries, with each query corresponding to a
list of around 22 documents. The task is to rank the docu-
ments according to relevance of the query. We use the official
train test split in our experiment.
The last dataset is the criteo terabyte click log dataset10.
We use this dataset to evaluate the scaling property of the
system in the out-of-core and the distributed settings. The
data contains 13 integer features and 26 ID features of user,
item and advertiser information. Since a tree based model
is better at handling continuous features, we preprocess the
data by calculating the statistics of average CTR and count
of ID features on the first ten days, replacing the ID fea-
tures by the corresponding count statistics during the next
ten days for training. The training set after preprocessing
contains 1.7 billion instances with 67 features (13 integer, 26
average CTR statistics and 26 counts). The entire dataset
is more than one terabyte in LibSVM format.
We use the first three datasets for the single machine par-
allel setting, and the last dataset for the distributed and
out-of-core settings. All the single machine experiments are
conducted on a Dell PowerEdge R420 with two eight-core
Intel Xeon (E5-2470) (2.3GHz) and 64GB of memory.
If
not specified, all the experiments are run using all the avail-
8https://www.kaggle.com/c/ClaimPredictionChallenge
9https://archive.ics.uci.edu/ml/datasets/HIGGS
10http://labs.criteo.com/downloads/download-terabyte-
click-logs/
Table 3: Comparison of Exact Greedy Methods with
500 trees on Higgs-1M data.
Method
XGBoost
XGBoost (colsample=0.5)
scikit-learn
R.gbm
Time per Tree (sec) Test AUC
0.6841
0.6401
28.51
1.032
0.8304
0.8245
0.8302
0.6224
Figure 10: Comparison between XGBoost and pG-
BRT on Yahoo LTRC dataset.
Table 4: Comparison of Learning to Rank with 500
trees on Yahoo! LTRC Dataset
Time per Tree (sec) NDCG@10
Method
XGBoost
XGBoost (colsample=0.5)
pGBRT [22]
0.826
0.506
2.576
0.7892
0.7913
0.7915
able cores in the machine. The machine settings of the dis-
tributed and the out-of-core experiments will be described in
the corresponding section. In all the experiments, we boost
trees with a common setting of maximum depth equals 8,
shrinkage equals 0.1 and no column subsampling unless ex-
plicitly specified. We can find similar results when we use
other settings of maximum depth.
6.3 Classification
In this section, we evaluate the performance of XGBoost
on a single machine using the exact greedy algorithm on
Higgs-1M data, by comparing it against two other commonly
used exact greedy tree boosting implementations. Since
scikit-learn only handles non-sparse input, we choose the
dense Higgs dataset for a fair comparison. We use the 1M
subset to make scikit-learn finish running in reasonable time.
Among the methods in comparison, R’s GBM uses a greedy
approach that only expands one branch of a tree, which
makes it faster but can result in lower accuracy, while both
scikit-learn and XGBoost learn a full tree. The results are
shown in Table 3. Both XGBoost and scikit-learn give better
performance than R’s GBM, while XGBoost runs more than
10x faster than scikit-learn. In this experiment, we also find
column subsamples gives slightly worse performance than
using all the features. This could due to the fact that there
are few important features in this dataset and we can benefit
from greedily select from all the features.
6.4 Learning to Rank
We next evaluate the performance of XGBoost on the
124816Number of Threads0.512481632Time per Tree(sec)XGBoostpGBRT
