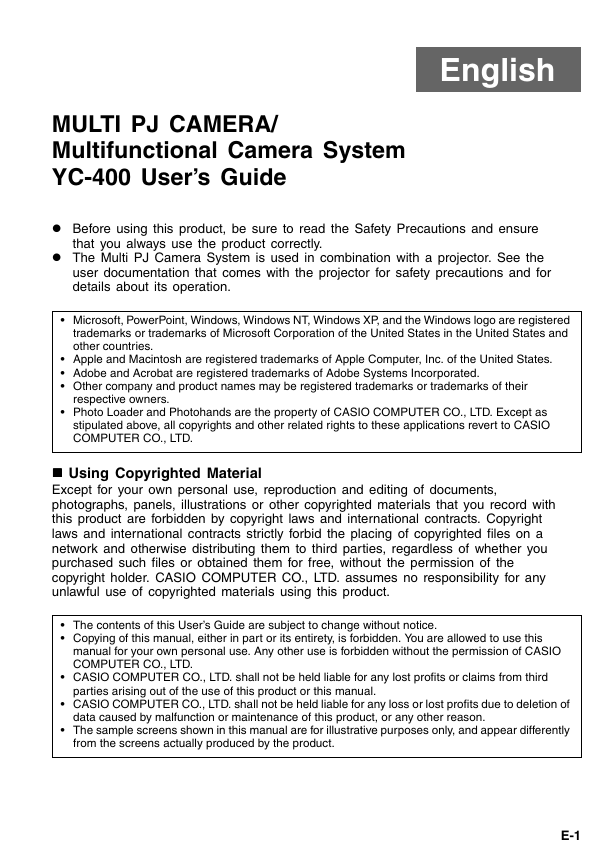

English MULTI PJ CAMERA/ Multifunctional Camera System YC-400 User’s Guide Before using this product, be sure to read the Safety Precautions and ensure that you always use the product correctly. The Multi PJ Camera System is used in combination with a projector. See the user documentation that comes with the projector for safety precautions and for details about its operation. • Microsoft, PowerPoint, Windows, Windows NT, Windows XP, and the Windows logo are registered trademarks or trademarks of Microsoft Corporation of the United States in the United States and other countries. Apple and Macintosh are registered trademarks of Apple Computer, Inc. of the United States. Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. Other company and product names may be registered trademarks or trademarks of their respective owners. Photo Loader and Photohands are the property of CASIO COMPUTER CO., LTD. Except as stipulated above, all copyrights and other related rights to these applications revert to CASIO COMPUTER CO., LTD. Using Copyrighted Material Except for your own personal use, reproduction and editing of documents, photographs, panels, illustrations or other copyrighted materials that you record with this product are forbidden by copyright laws and international contracts. Copyright laws and international contracts strictly forbid the placing of copyrighted files on a network and otherwise distributing them to third parties, regardless of whether you purchased such files or obtained them for free, without the permission of the copyright holder. CASIO COMPUTER CO., LTD. assumes no responsibility for any unlawful use of copyrighted materials using this product. The contents of this User’s Guide are subject to change without notice. Copying of this manual, either in part or its entirety, is forbidden. You are allowed to use this manual for your own personal use. Any other use is forbidden without the permission of CASIO COMPUTER CO., LTD. CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims from third parties arising out of the use of this product or this manual. CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due to deletion of data caused by malfunction or maintenance of this product, or any other reason. The sample screens shown in this manual are for illustrative purposes only, and appear differently from the screens actually produced by the product. E-1

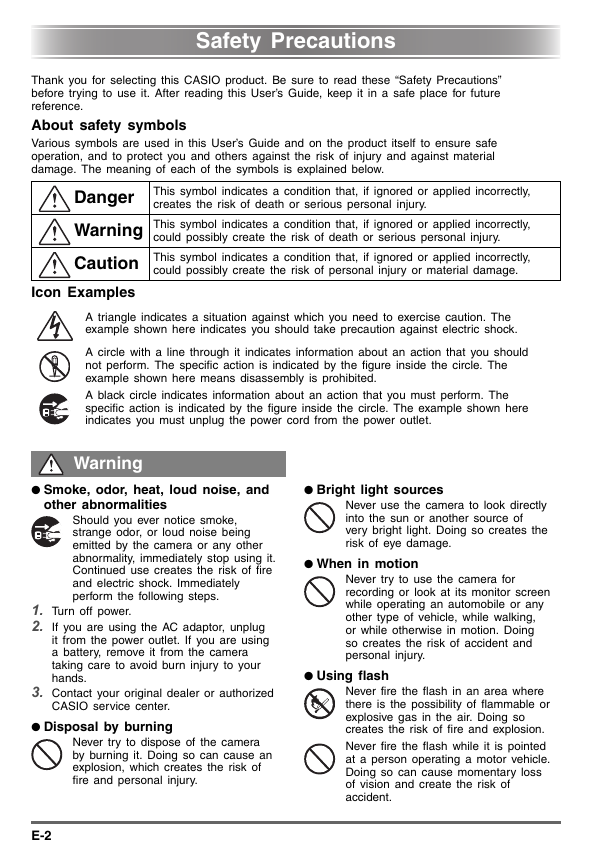

Safety Precautions Safety Precautions Thank you for selecting this CASIO product. Be sure to read these “Safety Precautions” before trying to use it. After reading this User’s Guide, keep it in a safe place for future reference. About safety symbols Various symbols are used in this User’s Guide and on the product itself to ensure safe operation, and to protect you and others against the risk of injury and against material damage. The meaning of each of the symbols is explained below. Danger This symbol indicates a condition that, if ignored or applied incorrectly, creates the risk of death or serious personal injury. Warning This symbol indicates a condition that, if ignored or applied incorrectly, could possibly create the risk of death or serious personal injury. Caution This symbol indicates a condition that, if ignored or applied incorrectly, could possibly create the risk of personal injury or material damage. Icon Examples A triangle indicates a situation against which you need to exercise caution. The example shown here indicates you should take precaution against electric shock. A circle with a line through it indicates information about an action that you should not perform. The specific action is indicated by the figure inside the circle. The example shown here means disassembly is prohibited. A black circle indicates information about an action that you must perform. The specific action is indicated by the figure inside the circle. The example shown here indicates you must unplug the power cord from the power outlet. Warning G Smoke, odor, heat, loud noise, and other abnormalities Should you ever notice smoke, strange odor, or loud noise being emitted by the camera or any other abnormality, immediately stop using it. Continued use creates the risk of fire and electric shock. Immediately perform the following steps. 1. Turn off power. 2. If you are using the AC adaptor, unplug it from the power outlet. If you are using a battery, remove it from the camera taking care to avoid burn injury to your hands. 3. Contact your original dealer or authorized CASIO service center. G Disposal by burning Never try to dispose of the camera by burning it. Doing so can cause an explosion, which creates the risk of fire and personal injury. E-2 G Bright light sources Never use the camera to look directly into the sun or another source of very bright light. Doing so creates the risk of eye damage. G When in motion Never try to use the camera for recording or look at its monitor screen while operating an automobile or any other type of vehicle, while walking, or while otherwise in motion. Doing so creates the risk of accident and personal injury. G Using flash Never fire the flash in an area where there is the possibility of flammable or explosive gas in the air. Doing so creates the risk of fire and explosion. Never fire the flash while it is pointed at a person operating a motor vehicle. Doing so can cause momentary loss of vision and create the risk of accident.

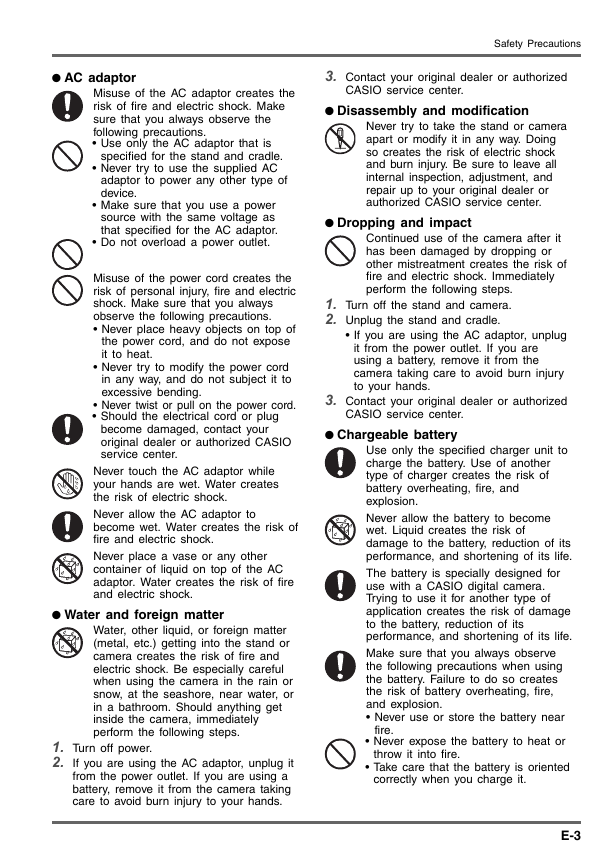

G AC adaptor Misuse of the AC adaptor creates the risk of fire and electric shock. Make sure that you always observe the following precautions. Use only the AC adaptor that is specified for the stand and cradle. Never try to use the supplied AC adaptor to power any other type of device. Make sure that you use a power source with the same voltage as that specified for the AC adaptor. Do not overload a power outlet. Misuse of the power cord creates the risk of personal injury, fire and electric shock. Make sure that you always observe the following precautions. Never place heavy objects on top of the power cord, and do not expose it to heat. Never try to modify the power cord in any way, and do not subject it to excessive bending. Never twist or pull on the power cord. Should the electrical cord or plug become damaged, contact your original dealer or authorized CASIO service center. Never touch the AC adaptor while your hands are wet. Water creates the risk of electric shock. Never allow the AC adaptor to become wet. Water creates the risk of fire and electric shock. Never place a vase or any other container of liquid on top of the AC adaptor. Water creates the risk of fire and electric shock. G Water and foreign matter Water, other liquid, or foreign matter (metal, etc.) getting into the stand or camera creates the risk of fire and electric shock. Be especially careful when using the camera in the rain or snow, at the seashore, near water, or in a bathroom. Should anything get inside the camera, immediately perform the following steps. 1. Turn off power. 2. If you are using the AC adaptor, unplug it from the power outlet. If you are using a battery, remove it from the camera taking care to avoid burn injury to your hands. Safety Precautions 3. Contact your original dealer or authorized CASIO service center. G Disassembly and modification Never try to take the stand or camera apart or modify it in any way. Doing so creates the risk of electric shock and burn injury. Be sure to leave all internal inspection, adjustment, and repair up to your original dealer or authorized CASIO service center. G Dropping and impact Continued use of the camera after it has been damaged by dropping or other mistreatment creates the risk of fire and electric shock. Immediately perform the following steps. 1. Turn off the stand and camera. 2. Unplug the stand and cradle. If you are using the AC adaptor, unplug it from the power outlet. If you are using a battery, remove it from the camera taking care to avoid burn injury to your hands. 3. Contact your original dealer or authorized CASIO service center. G Chargeable battery Use only the specified charger unit to charge the battery. Use of another type of charger creates the risk of battery overheating, fire, and explosion. Never allow the battery to become wet. Liquid creates the risk of damage to the battery, reduction of its performance, and shortening of its life. The battery is specially designed for use with a CASIO digital camera. Trying to use it for another type of application creates the risk of damage to the battery, reduction of its performance, and shortening of its life. Make sure that you always observe the following precautions when using the battery. Failure to do so creates the risk of battery overheating, fire, and explosion. Never use or store the battery near fire. Never expose the battery to heat or throw it into fire. Take care that the battery is oriented correctly when you charge it. E-3

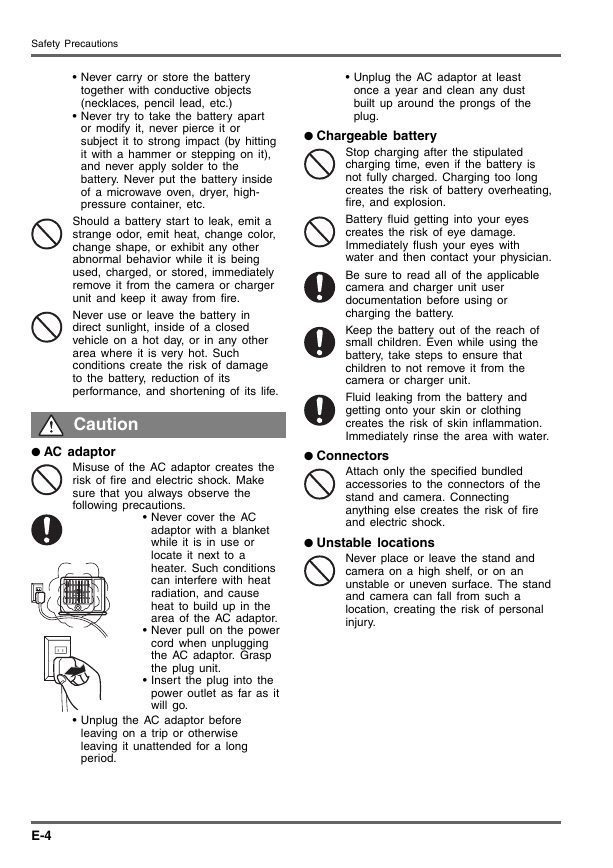

Unplug the AC adaptor at least once a year and clean any dust built up around the prongs of the plug. G Chargeable battery Stop charging after the stipulated charging time, even if the battery is not fully charged. Charging too long creates the risk of battery overheating, fire, and explosion. Battery fluid getting into your eyes creates the risk of eye damage. Immediately flush your eyes with water and then contact your physician. Be sure to read all of the applicable camera and charger unit user documentation before using or charging the battery. Keep the battery out of the reach of small children. Even while using the battery, take steps to ensure that children to not remove it from the camera or charger unit. Fluid leaking from the battery and getting onto your skin or clothing creates the risk of skin inflammation. Immediately rinse the area with water. G Connectors Attach only the specified bundled accessories to the connectors of the stand and camera. Connecting anything else creates the risk of fire and electric shock. G Unstable locations Never place or leave the stand and camera on a high shelf, or on an unstable or uneven surface. The stand and camera can fall from such a location, creating the risk of personal injury. Safety Precautions Never carry or store the battery together with conductive objects (necklaces, pencil lead, etc.) Never try to take the battery apart or modify it, never pierce it or subject it to strong impact (by hitting it with a hammer or stepping on it), and never apply solder to the battery. Never put the battery inside of a microwave oven, dryer, high- pressure container, etc. Should a battery start to leak, emit a strange odor, emit heat, change color, change shape, or exhibit any other abnormal behavior while it is being used, charged, or stored, immediately remove it from the camera or charger unit and keep it away from fire. Never use or leave the battery in direct sunlight, inside of a closed vehicle on a hot day, or in any other area where it is very hot. Such conditions create the risk of damage to the battery, reduction of its performance, and shortening of its life. Caution G AC adaptor Misuse of the AC adaptor creates the risk of fire and electric shock. Make sure that you always observe the following precautions. Never cover the AC adaptor with a blanket while it is in use or locate it next to a heater. Such conditions can interfere with heat radiation, and cause heat to build up in the area of the AC adaptor. Never pull on the power cord when unplugging the AC adaptor. Grasp the plug unit. Insert the plug into the power outlet as far as it will go. Unplug the AC adaptor before leaving on a trip or otherwise leaving it unattended for a long period. E-4

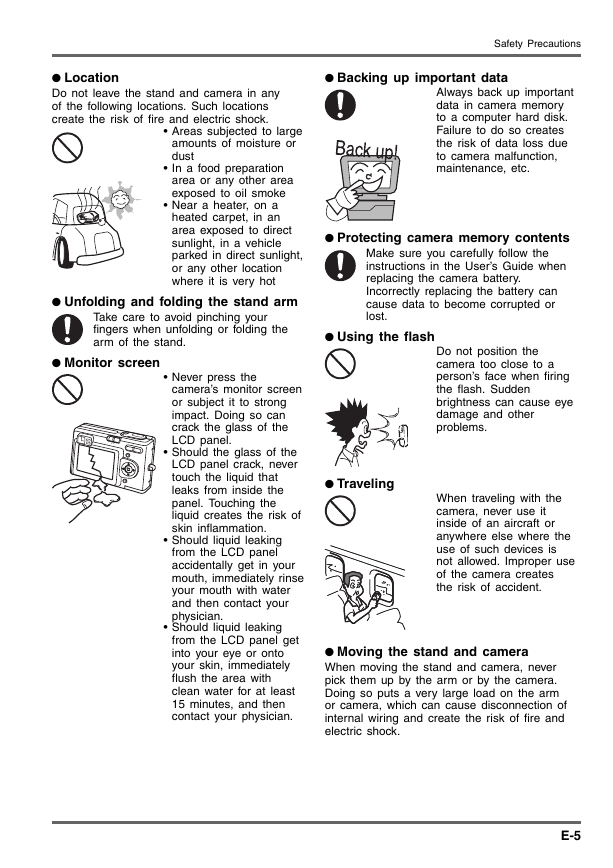

G Location Do not leave the stand and camera in any of the following locations. Such locations create the risk of fire and electric shock. Areas subjected to large amounts of moisture or dust In a food preparation area or any other area exposed to oil smoke Near a heater, on a heated carpet, in an area exposed to direct sunlight, in a vehicle parked in direct sunlight, or any other location where it is very hot G Unfolding and folding the stand arm Take care to avoid pinching your fingers when unfolding or folding the arm of the stand. G Monitor screen Never press the camera’s monitor screen or subject it to strong impact. Doing so can crack the glass of the LCD panel. Should the glass of the LCD panel crack, never touch the liquid that leaks from inside the panel. Touching the liquid creates the risk of skin inflammation. Should liquid leaking from the LCD panel accidentally get in your mouth, immediately rinse your mouth with water and then contact your physician. Should liquid leaking from the LCD panel get into your eye or onto your skin, immediately flush the area with clean water for at least 15 minutes, and then contact your physician. Safety Precautions G Backing up important data Always back up important data in camera memory to a computer hard disk. Failure to do so creates the risk of data loss due to camera malfunction, maintenance, etc. G Protecting camera memory contents Make sure you carefully follow the instructions in the User’s Guide when replacing the camera battery. Incorrectly replacing the battery can cause data to become corrupted or lost. G Using the flash G Traveling Do not position the camera too close to a person’s face when firing the flash. Sudden brightness can cause eye damage and other problems. When traveling with the camera, never use it inside of an aircraft or anywhere else where the use of such devices is not allowed. Improper use of the camera creates the risk of accident. G Moving the stand and camera When moving the stand and camera, never pick them up by the arm or by the camera. Doing so puts a very large load on the arm or camera, which can cause disconnection of internal wiring and create the risk of fire and electric shock. E-5

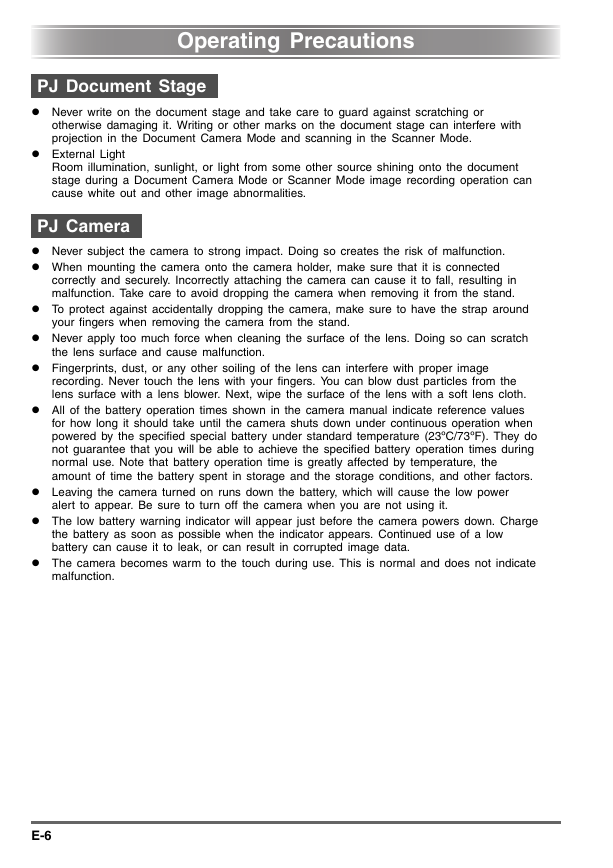

Operating Precautions Operating Precautions PJ Document Stage Never write on the document stage and take care to guard against scratching or otherwise damaging it. Writing or other marks on the document stage can interfere with projection in the Document Camera Mode and scanning in the Scanner Mode. External Light Room illumination, sunlight, or light from some other source shining onto the document stage during a Document Camera Mode or Scanner Mode image recording operation can cause white out and other image abnormalities. PJ Camera Never subject the camera to strong impact. Doing so creates the risk of malfunction. When mounting the camera onto the camera holder, make sure that it is connected correctly and securely. Incorrectly attaching the camera can cause it to fall, resulting in malfunction. Take care to avoid dropping the camera when removing it from the stand. To protect against accidentally dropping the camera, make sure to have the strap around your fingers when removing the camera from the stand. Never apply too much force when cleaning the surface of the lens. Doing so can scratch the lens surface and cause malfunction. Fingerprints, dust, or any other soiling of the lens can interfere with proper image recording. Never touch the lens with your fingers. You can blow dust particles from the lens surface with a lens blower. Next, wipe the surface of the lens with a soft lens cloth. All of the battery operation times shown in the camera manual indicate reference values for how long it should take until the camera shuts down under continuous operation when powered by the specified special battery under standard temperature (23ºC/73ºF). They do not guarantee that you will be able to achieve the specified battery operation times during normal use. Note that battery operation time is greatly affected by temperature, the amount of time the battery spent in storage and the storage conditions, and other factors. Leaving the camera turned on runs down the battery, which will cause the low power alert to appear. Be sure to turn off the camera when you are not using it. The low battery warning indicator will appear just before the camera powers down. Charge the battery as soon as possible when the indicator appears. Continued use of a low battery can cause it to leak, or can result in corrupted image data. The camera becomes warm to the touch during use. This is normal and does not indicate malfunction. E-6

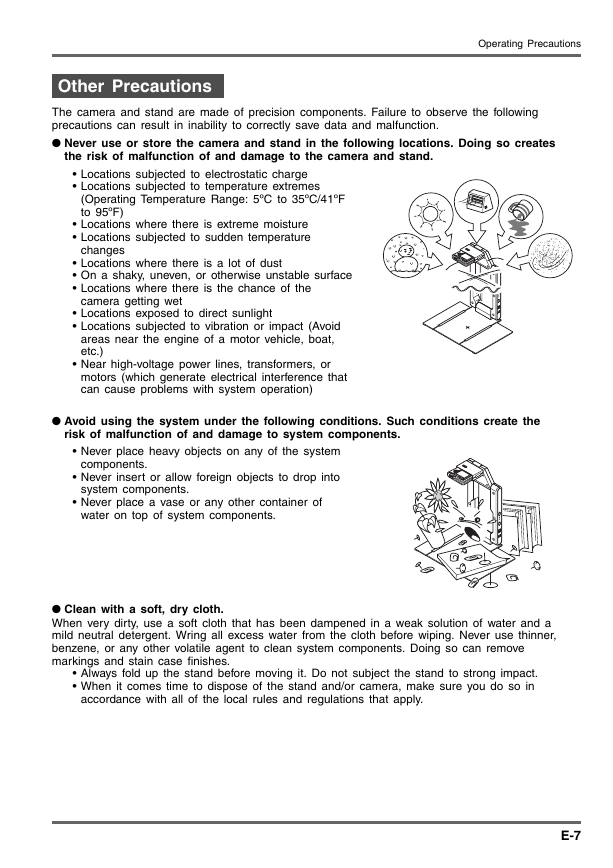

Operating Precautions Other Precautions The camera and stand are made of precision components. Failure to observe the following precautions can result in inability to correctly save data and malfunction. G Never use or store the camera and stand in the following locations. Doing so creates the risk of malfunction of and damage to the camera and stand. Locations subjected to electrostatic charge Locations subjected to temperature extremes (Operating Temperature Range: 5ºC to 35ºC/41ºF to 95ºF) Locations where there is extreme moisture Locations subjected to sudden temperature changes Locations where there is a lot of dust On a shaky, uneven, or otherwise unstable surface Locations where there is the chance of the camera getting wet Locations exposed to direct sunlight Locations subjected to vibration or impact (Avoid areas near the engine of a motor vehicle, boat, etc.) Near high-voltage power lines, transformers, or motors (which generate electrical interference that can cause problems with system operation) G Avoid using the system under the following conditions. Such conditions create the risk of malfunction of and damage to system components. Never place heavy objects on any of the system components. Never insert or allow foreign objects to drop into system components. Never place a vase or any other container of water on top of system components. G Clean with a soft, dry cloth. When very dirty, use a soft cloth that has been dampened in a weak solution of water and a mild neutral detergent. Wring all excess water from the cloth before wiping. Never use thinner, benzene, or any other volatile agent to clean system components. Doing so can remove markings and stain case finishes. Always fold up the stand before moving it. Do not subject the stand to strong impact. When it comes time to dispose of the stand and/or camera, make sure you do so in accordance with all of the local rules and regulations that apply.U E-7

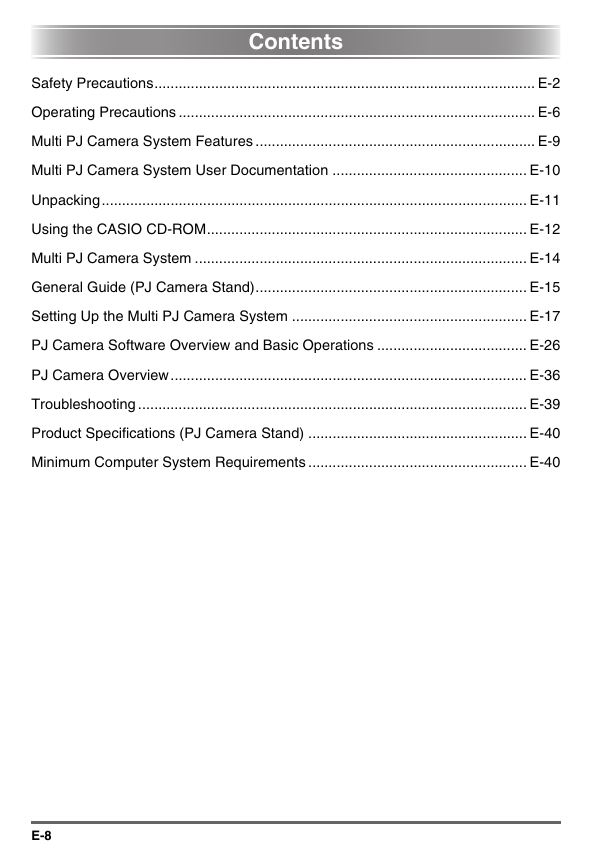

Contents ContentsSafety Precautions.............................................................................................. E-2 Operating Precautions ........................................................................................ E-6 Multi PJ Camera System Features ..................................................................... E-9 Multi PJ Camera System User Documentation ................................................ E-10 Unpacking......................................................................................................... E-11 Using the CASIO CD-ROM............................................................................... E-12 Multi PJ Camera System .................................................................................. E-14 General Guide (PJ Camera Stand)................................................................... E-15 Setting Up the Multi PJ Camera System .......................................................... E-17 PJ Camera Software Overview and Basic Operations ..................................... E-26 PJ Camera Overview........................................................................................ E-36 Troubleshooting ................................................................................................ E-39 Product Specifications (PJ Camera Stand) ...................................................... E-40 Minimum Computer System Requirements ...................................................... E-40 E-8
