DV 3100 E-Manual

Notice

Content

Identifying your camera parts

Preparing Your Camera

Installing Batteries

Inserting CF card (Optional)

Attaching strap (Optional)

Using tripod (Optional)

How to hold your camera

Using Your Camera

Turning on your camera

Turning off your camera

Recording AVI movies

Taking Pictures

Playback

Deleting a single picture

Voice Recording

Self Timer

Setting

The description for Setting item

Exporting to TV

Connecting your camera to your TV

Previewing and playback on TV

Copying pictures to your computer

Installing the driver and application

Connecting your camera to computer

Copying pictures to your computer

Viewing pictures on your computer

Using PC Camera (Video Conferencing) Function

Installing the driver and application

Connecting your camera to your computer

Open PC Camera (Video Conferencing) interface

Using your PC Camera

Advanced Settings in PC Camera

Battery indication and reduce power consumption

Battery Indicators

LCD Backlight

Storage Capacity

Tips for best shoot

Language Reference Table

Troubleshooting

Specifications

AIPTEK Service

English

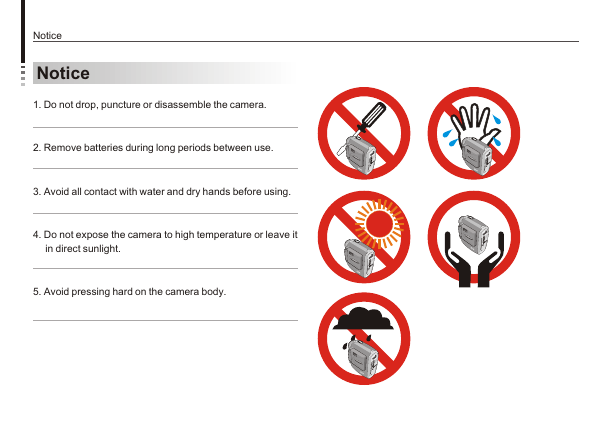

Notice Notice 1. Do not drop, puncture or disassemble the camera. 2. Remove batteries during long periods between use. 3. Avoid all contact with water and dry hands before using. 4. Do not expose the camera to high temperature or leave it in direct sunlight. 5. Avoid pressing hard on the camera body.

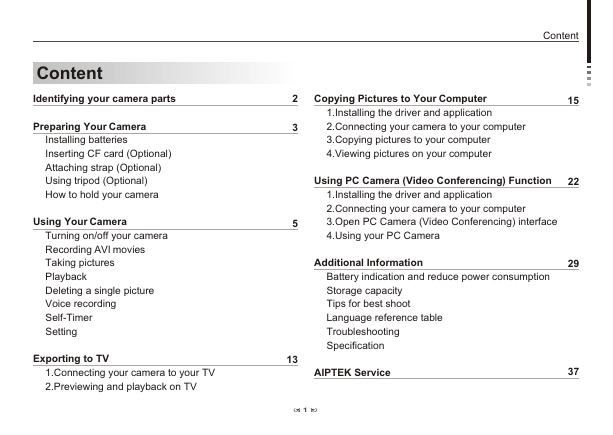

Content Identifying your camera parts Preparing Your Camera Installing batteries Inserting CF card (Optional) Attaching strap (Optional) Using tripod (Optional) How to hold your camera Using Your Camera Turning on/off your camera Recording AVI movies Taking pictures Playback Deleting a single picture Voice recording Self-Timer Setting Exporting to TV 1.Connecting your camera to your TV 2.Previewing and playback on TV Contents Content 2 3 5 Copying Pictures to Your Computer 1.Installing the driver and application 2.Connecting your camera to your computer 3.Copying pictures to your computer 4.Viewing pictures on your computer Using PC Camera (Video Conferencing) Function 1.Installing the driver and application 2.Connecting your camera to your computer 3.Open PC Camera (Video Conferencing) interface 4.Using your PC Camera Additional Information Battery indication and reduce power consumption Storage capacity Tips for best shoot Language reference table Troubleshooting Specification AIPTEK Service 13 1 15 22 29 37

Identifying your camera parts Identifying your camera parts Shutter button Record button Up button Down button MENU/OK button (Power button) USB port AV-out port CF Card slot Eject ( CF Card) LED light LCD display View finder LCD on/ off button Strap-holder Focus Lens Microphone Mirror Tripod port Battery cover Speaker 2

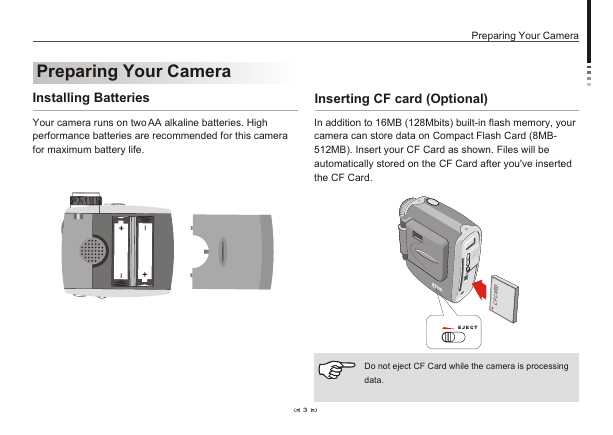

Preparing Your Camera Installing Batteries Your camera runs on two AA alkaline batteries. High performance batteries are recommended for this camera for maximum battery life. Preparing Your Camera Inserting CF card (Optional) In addition to 16MB (128Mbits) built-in flash memory, your camera can store data on Compact Flash Card (8MB- 512MB). Insert your CF Card as shown. Files will be automatically stored on the CF Card after you've inserted the CF Card. CF CARD E J E C T Do not eject CF Card while the camera is processing data. 3

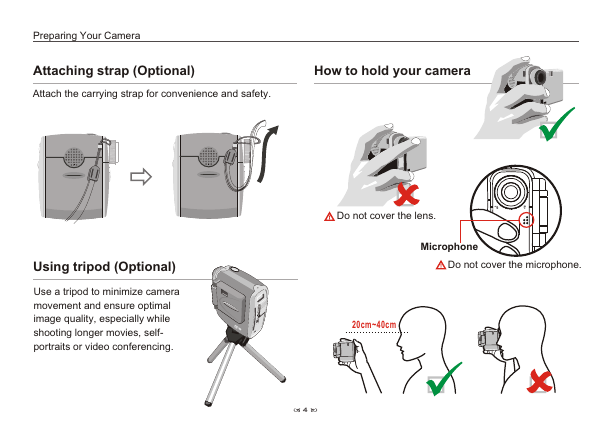

Preparing Your Camera Attaching strap (Optional) Attach the carrying strap for convenience and safety. How to hold your camera Using tripod (Optional) Use a tripod to minimize camera movement and ensure optimal image quality, especially while shooting longer movies, self- portraits or video conferencing. Do not cover the lens. Microphone Do not cover the microphone. 20cm~40cm 4

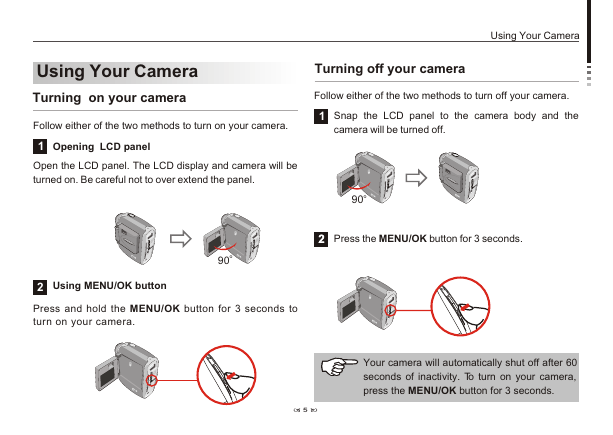

Using Your Camera Turning on your camera Opening LCD panel Follow either of the two methods to turn on your camera. 1 Open the LCD panel. The LCD display and camera will be turned on. Be careful not to over extend the panel. o90 Using MENU/OK button 2 Press and hold the MENU/OK button for 3 seconds to turn on your camera. Using Your Camera Turning off your camera Follow either of the two methods to turn off your camera. 1 Snap the LCD panel to the camera body and the camera will be turned off. o90 22 Press the MENU/OK button for 3 seconds. Your camera will automatically shut off after 60 seconds of inactivity. To turn on your camera, press the MENU/OK button for 3 seconds. 5

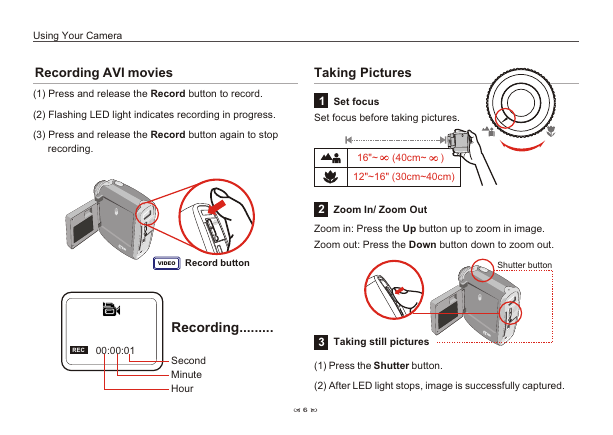

Using Your Camera Recording AVI movies (1) Press and release the Record button to record. (2) Flashing LED light indicates recording in progress. (3) Press and release the Record button again to stop recording. Taking Pictures Set focus 1 Set focus before taking pictures. 16"~ (40cm~ ) 12"~16" (30cm~40cm) Zoom In/ Zoom Out 2 Zoom in: Press the Up button up to zoom in image. Zoom out: Press the Down button down to zoom out. VIDEO Record button Shutter button REC 00:00:01 Recording......... Second Minute Hour 6 Taking still pictures 3 (1) Press the Shutter button. (2) After LED light stops, image is successfully captured.
