how to block call in CUCM.docx

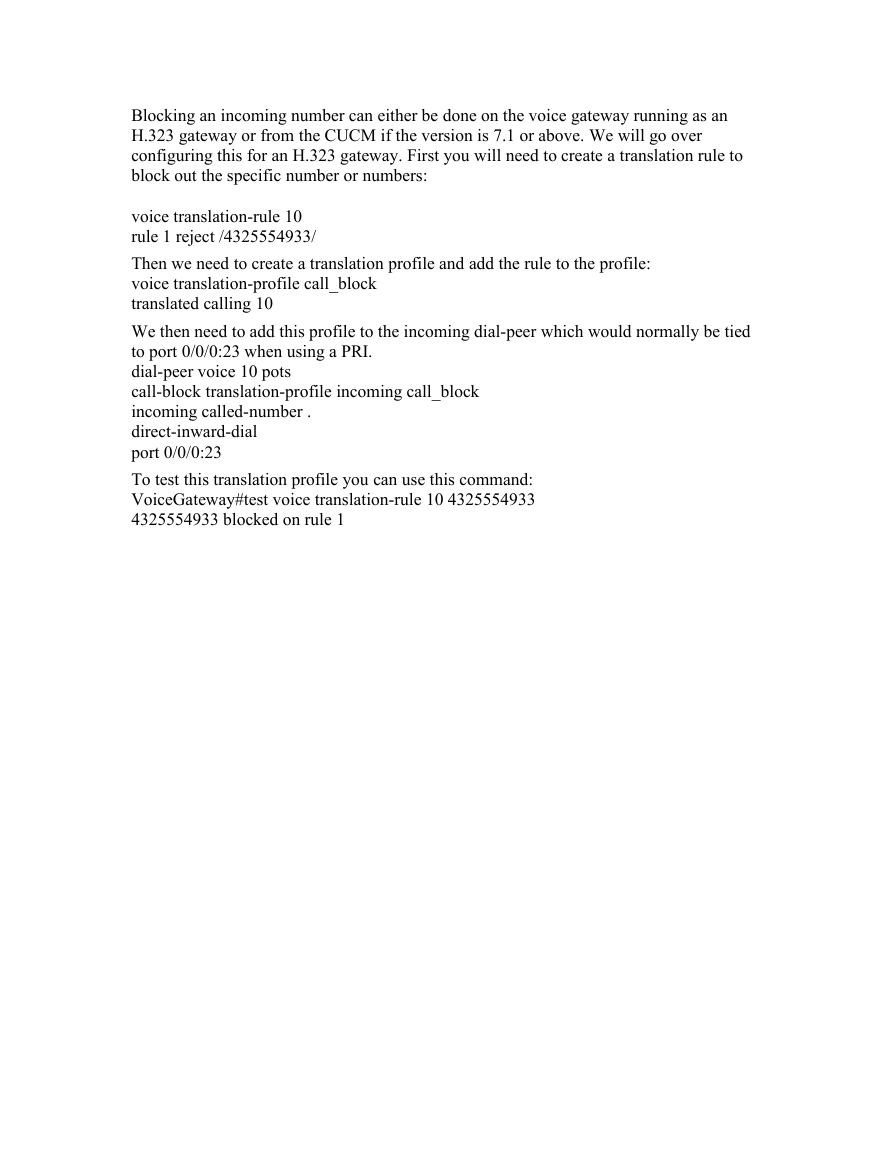

Blocking an incoming number can either be done on the voice gateway running as an
H.323 gateway or from the CUCM if the version is 7.1 or above. We will go over
configuring this for an H.323 gateway. First you will need to create a translation rule to
block out the specific number or numbers:
voice translation-rule 10
rule 1 reject /4325554933/
Then we need to create a translation profile and add the rule to the profile:
voice translation-profile call_block
translated calling 10
We then need to add this profile to the incoming dial-peer which would normally be tied
to port 0/0/0:23 when using a PRI.
dial-peer voice 10 pots
call-block translation-profile incoming call_block
incoming called-number .
direct-inward-dial
port 0/0/0:23
To test this translation profile you can use this command:
VoiceGateway#test voice translation-rule 10 4325554933
4325554933 blocked on rule 1
