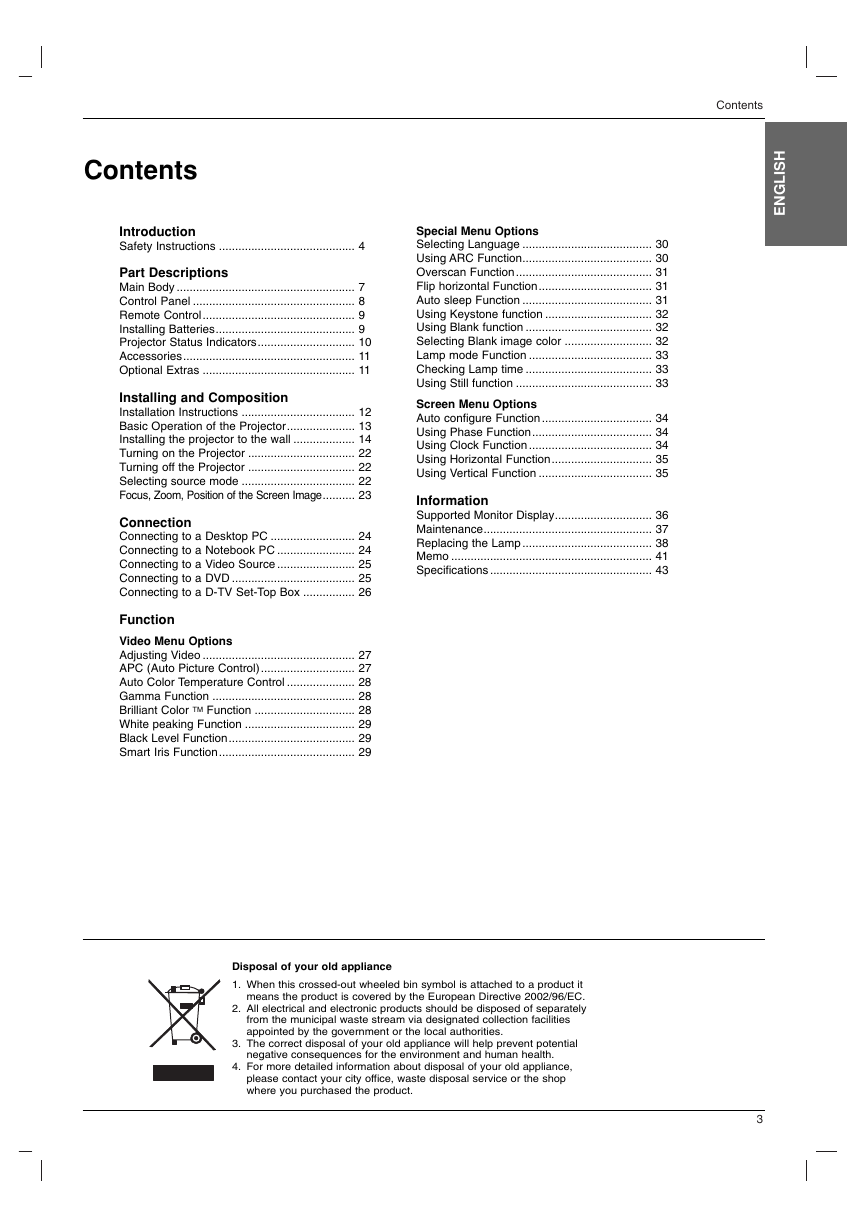

Contents

Safety Instructions

Part Descriptions

Main Body

Control Panel

Remote Control

Installing Batteries

Projector Status Indicators

Accessories

Optional Extras

Installation and Composition

Installation Instructions

Basic Operation of the Projector

Installing the projector to the wall

Turning on the Projector

Turning off the Projector

Selecting source mode

Focus, Zoom, Position of the Screen Image

Connection

Connecting to a Desktop PC

Connecting to a Notebook PC

Connecting to a Video Source

Connecting to a DVD

Connecting to a D-TV Set-Top Box

Function

Video Menu Options

Adjusting Video

APC (Auto Picture Control)

Auto Color Temperature Control

Gamma Function

Brilliant Color TM Function

White peaking Function

Black Level Function

Smart Iris Function

Special Menu Options

Selecting Language

Using ARC Function

Overscan Function

Flip horizontal Function

Auto sleep Function

Using Keystone Function

Using Blank Function

Selecting Blank image color

Lamp mode Function

Checking Lamp time

Using Still Function

Screen Menu Options

Auto Configure Function

Using Phase Function

Using Clock Function

Using Horizontal Function

Using Vertical Function

Supported Monitor Display

Maintenance

Replacing the Lamp

Memo

Specifications

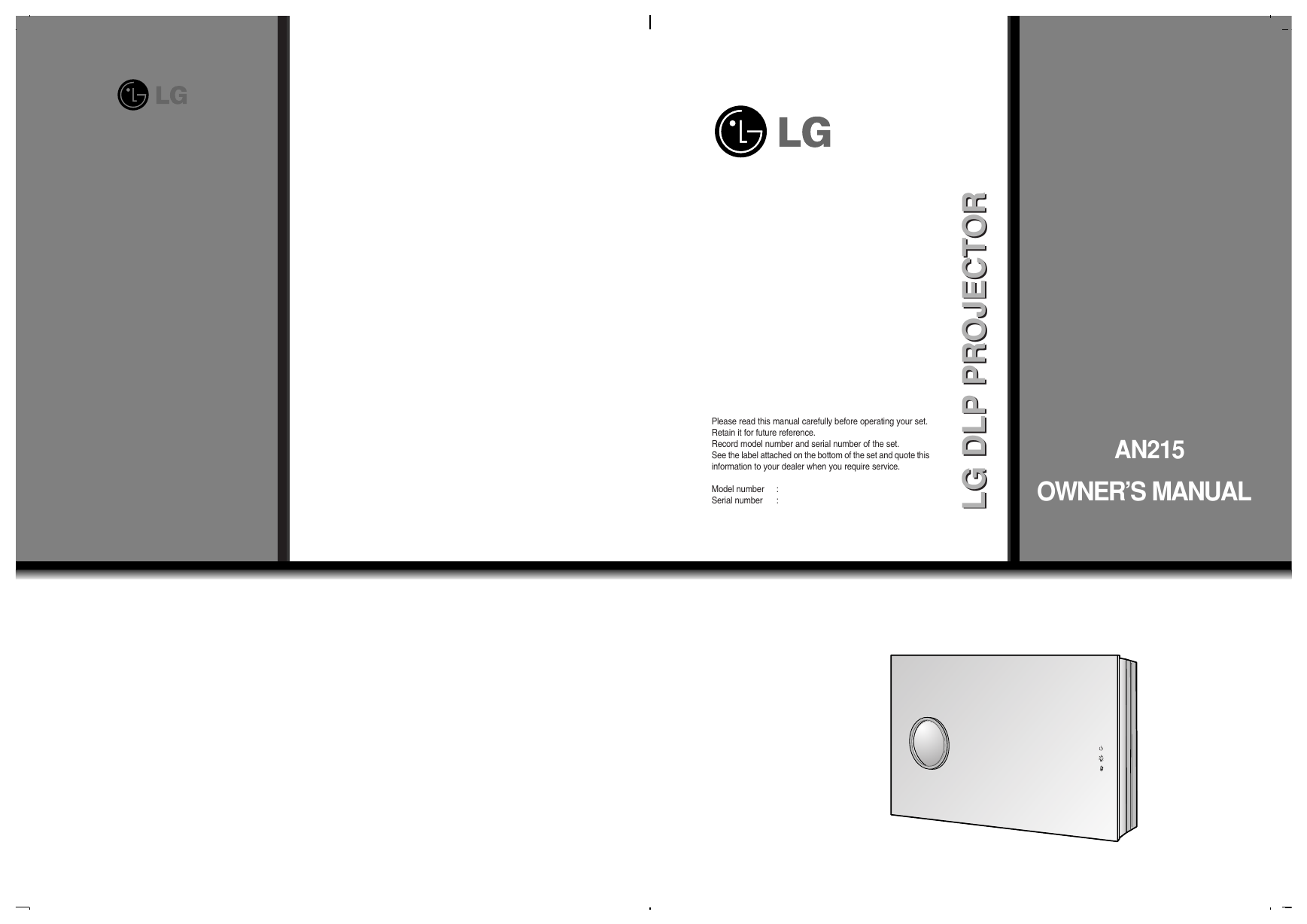

R R O O T T C C E E J J O O R R P P P P L L D D G G L L Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the bottom of the set and quote this information to your dealer when you require service. Model number Serial number : : AN215 OWNER’S MANUAL

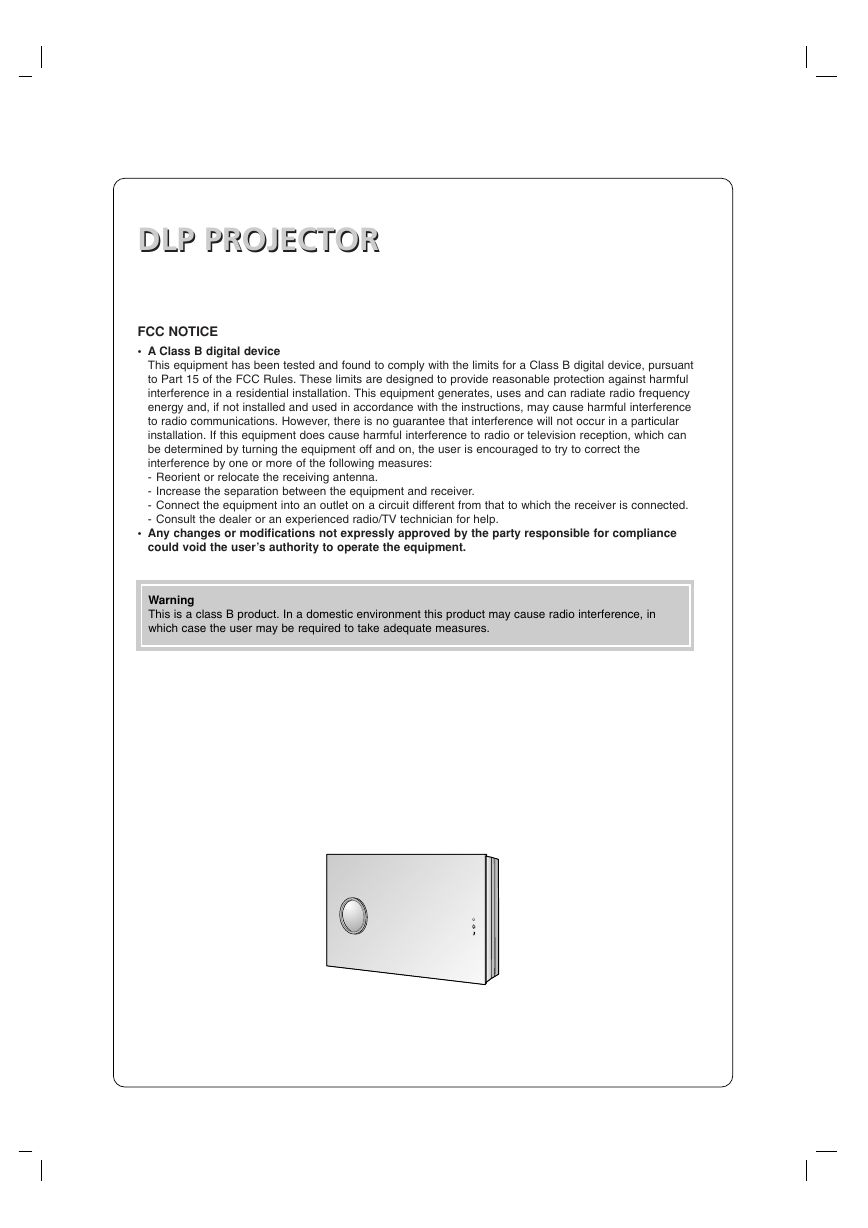

DLP PROJECTOR DLP PROJECTOR FCC NOTICE • A Class B digital device This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. • Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Warning This is a class B product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

Special Menu Options Selecting Language ........................................ 30 Using ARC Function........................................ 30 Overscan Function.......................................... 31 Flip horizontal Function................................... 31 Auto sleep Function ........................................ 31 Using Keystone function ................................. 32 Using Blank function ....................................... 32 Selecting Blank image color ........................... 32 Lamp mode Function ...................................... 33 Checking Lamp time ....................................... 33 Using Still function .......................................... 33 Screen Menu Options Auto configure Function .................................. 34 Using Phase Function..................................... 34 Using Clock Function ...................................... 34 Using Horizontal Function............................... 35 Using Vertical Function ................................... 35 Information Supported Monitor Display.............................. 36 Maintenance.................................................... 37 Replacing the Lamp ........................................ 38 Memo .............................................................. 41 Specifications .................................................. 43 Contents Introduction Safety Instructions .......................................... 4 Part Descriptions Main Body ....................................................... 7 Control Panel .................................................. 8 Remote Control............................................... 9 Installing Batteries........................................... 9 Projector Status Indicators.............................. 10 Accessories..................................................... 11 Optional Extras ............................................... 11 Installing and Composition Installation Instructions ................................... 12 Basic Operation of the Projector..................... 13 Installing the projector to the wall ................... 14 Turning on the Projector ................................. 22 Turning off the Projector ................................. 22 Selecting source mode ................................... 22 Focus, Zoom, Position of the Screen Image.......... 23 Connection Connecting to a Desktop PC .......................... 24 Connecting to a Notebook PC ........................ 24 Connecting to a Video Source ........................ 25 Connecting to a DVD ...................................... 25 Connecting to a D-TV Set-Top Box ................ 26 Function Video Menu Options Adjusting Video ............................................... 27 APC (Auto Picture Control)............................. 27 Auto Color Temperature Control ..................... 28 Gamma Function ............................................ 28 Brilliant Color TM Function ............................... 28 White peaking Function .................................. 29 Black Level Function....................................... 29 Smart Iris Function.......................................... 29 Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. 4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. Contents I H S L G N E 3

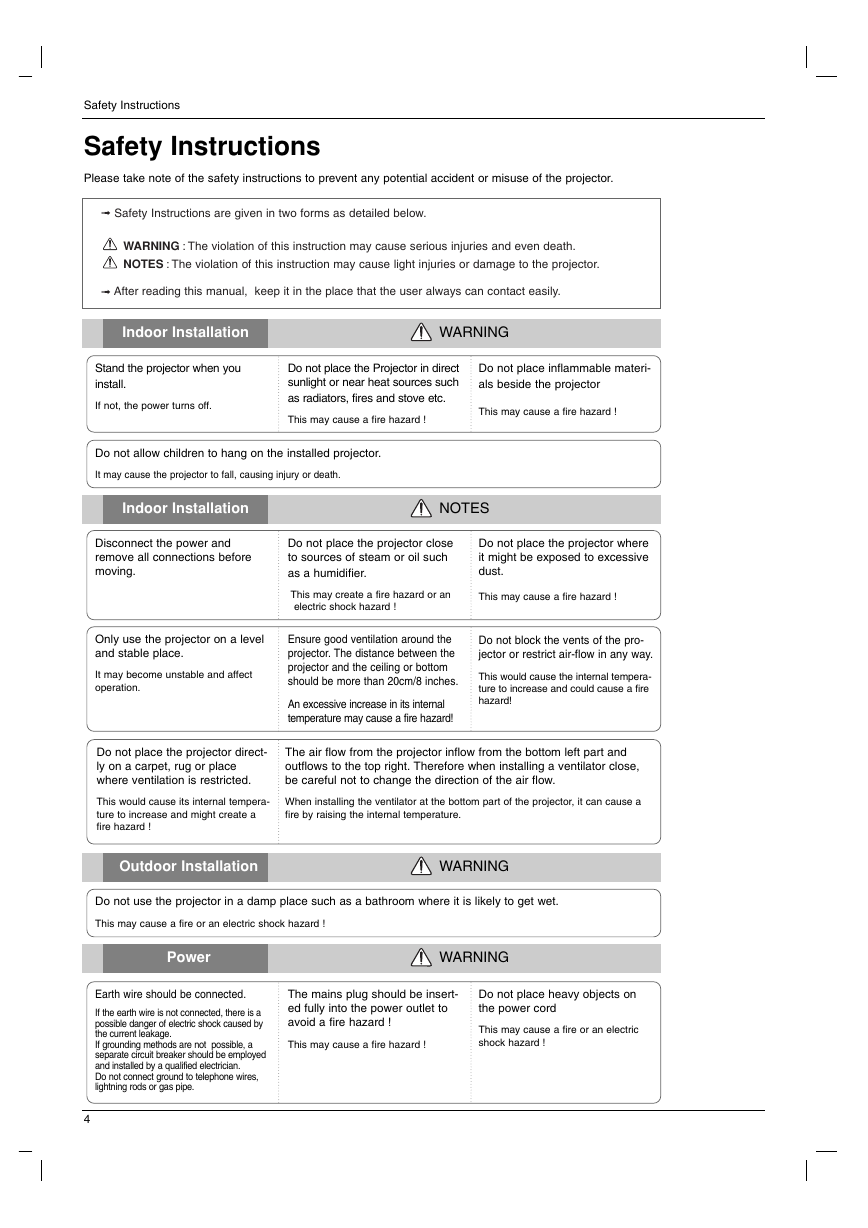

Safety Instructions Safety Instructions Please take note of the safety instructions to prevent any potential accident or misuse of the projector. ➟ Safety Instructions are given in two forms as detailed below. WARNING : The violation of this instruction may cause serious injuries and even death. NOTES : The violation of this instruction may cause light injuries or damage to the projector. ➟ After reading this manual, keep it in the place that the user always can contact easily. Indoor Installation WARNING Stand the projector when you install. If not, the power turns off. Do not place the Projector in direct sunlight or near heat sources such as radiators, fires and stove etc. This may cause a fire hazard ! Do not place inflammable materi- als beside the projector This may cause a fire hazard ! Do not allow children to hang on the installed projector. It may cause the projector to fall, causing injury or death. Indoor Installation NOTES Disconnect the power and remove all connections before moving. Do not place the projector close to sources of steam or oil such as a humidifier. Do not place the projector where it might be exposed to excessive dust. This may create a fire hazard or an electric shock hazard ! This may cause a fire hazard ! Only use the projector on a level and stable place. It may become unstable and affect operation. Ensure good ventilation around the projector. The distance between the projector and the ceiling or bottom should be more than 20cm/8 inches. An excessive increase in its internal temperature may cause a fire hazard! Do not block the vents of the pro- jector or restrict air-flow in any way. This would cause the internal tempera- ture to increase and could cause a fire hazard! Do not place the projector direct- ly on a carpet, rug or place where ventilation is restricted. The air flow from the projector inflow from the bottom left part and outflows to the top right. Therefore when installing a ventilator close, be careful not to change the direction of the air flow. This would cause its internal tempera- ture to increase and might create a fire hazard ! When installing the ventilator at the bottom part of the projector, it can cause a fire by raising the internal temperature. Outdoor Installation WARNING Do not use the projector in a damp place such as a bathroom where it is likely to get wet. This may cause a fire or an electric shock hazard ! Power WARNING The mains plug should be insert- ed fully into the power outlet to avoid a fire hazard ! This may cause a fire hazard ! Do not place heavy objects on the power cord This may cause a fire or an electric shock hazard ! Earth wire should be connected. If the earth wire is not connected, there is a possible danger of electric shock caused by the current leakage. If grounding methods are not possible, a separate circuit breaker should be employed and installed by a qualified electrician. Do not connect ground to telephone wires, lightning rods or gas pipe. 4

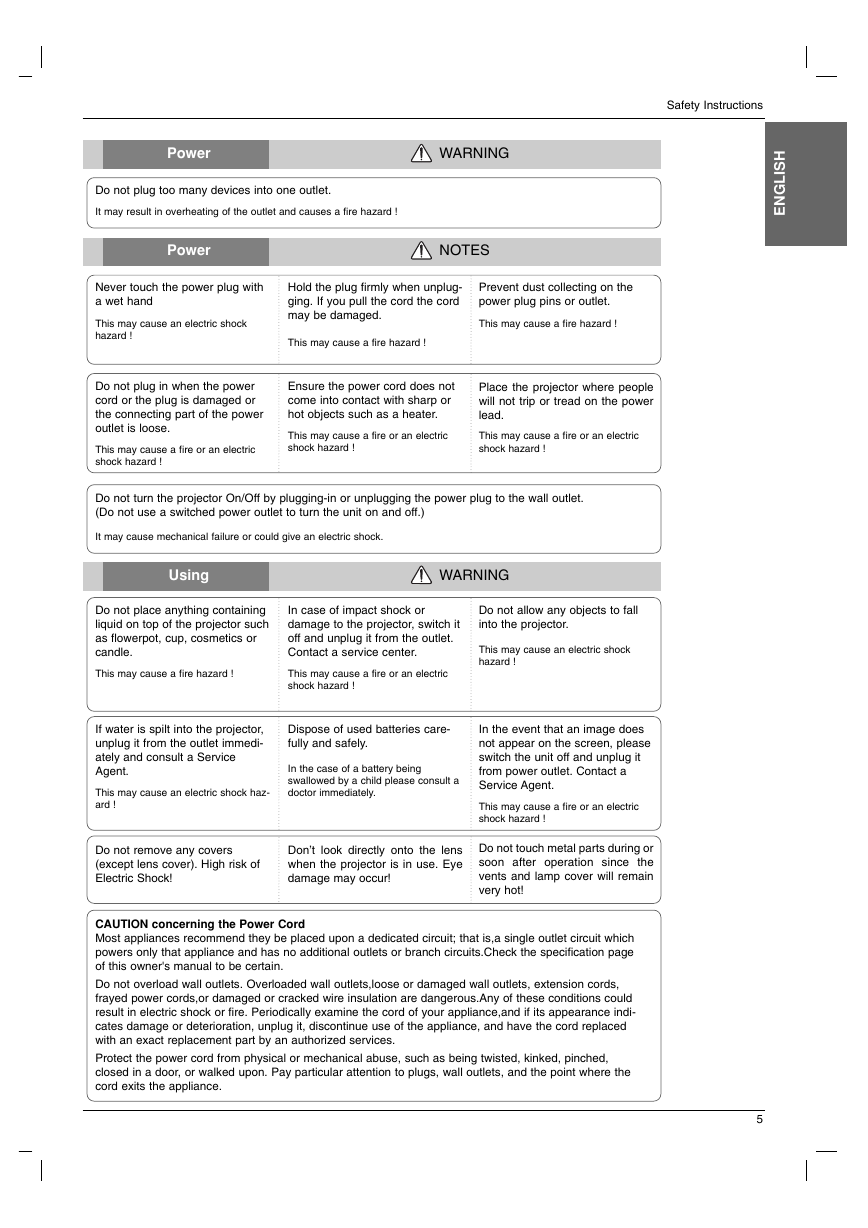

Power WARNING Do not plug too many devices into one outlet. It may result in overheating of the outlet and causes a fire hazard ! Power NOTES Never touch the power plug with a wet hand This may cause an electric shock hazard ! Hold the plug firmly when unplug- ging. If you pull the cord the cord may be damaged. Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard ! This may cause a fire hazard ! Do not plug in when the power cord or the plug is damaged or the connecting part of the power outlet is loose. This may cause a fire or an electric shock hazard ! Ensure the power cord does not come into contact with sharp or hot objects such as a heater. Place the projector where people will not trip or tread on the power lead. This may cause a fire or an electric shock hazard ! This may cause a fire or an electric shock hazard ! Do not turn the projector On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use a switched power outlet to turn the unit on and off.) It may cause mechanical failure or could give an electric shock. Using WARNING Do not place anything containing liquid on top of the projector such as flowerpot, cup, cosmetics or candle. In case of impact shock or damage to the projector, switch it off and unplug it from the outlet. Contact a service center. This may cause a fire hazard ! This may cause a fire or an electric shock hazard ! Do not allow any objects to fall into the projector. This may cause an electric shock hazard ! If water is spilt into the projector, unplug it from the outlet immedi- ately and consult a Service Agent. This may cause an electric shock haz- ard ! Dispose of used batteries care- fully and safely. In the case of a battery being swallowed by a child please consult a doctor immediately. Do not remove any covers (except lens cover). High risk of Electric Shock! Don’t look directly onto the lens when the projector is in use. Eye damage may occur! In the event that an image does not appear on the screen, please switch the unit off and unplug it from power outlet. Contact a Service Agent. This may cause a fire or an electric shock hazard ! Do not touch metal parts during or soon after operation since the vents and lamp cover will remain very hot! CAUTION concerning the Power Cord Most appliances recommend they be placed upon a dedicated circuit; that is,a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets,loose or damaged wall outlets, extension cords, frayed power cords,or damaged or cracked wire insulation are dangerous.Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance,and if its appearance indi- cates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized services. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Safety Instructions I H S L G N E 5

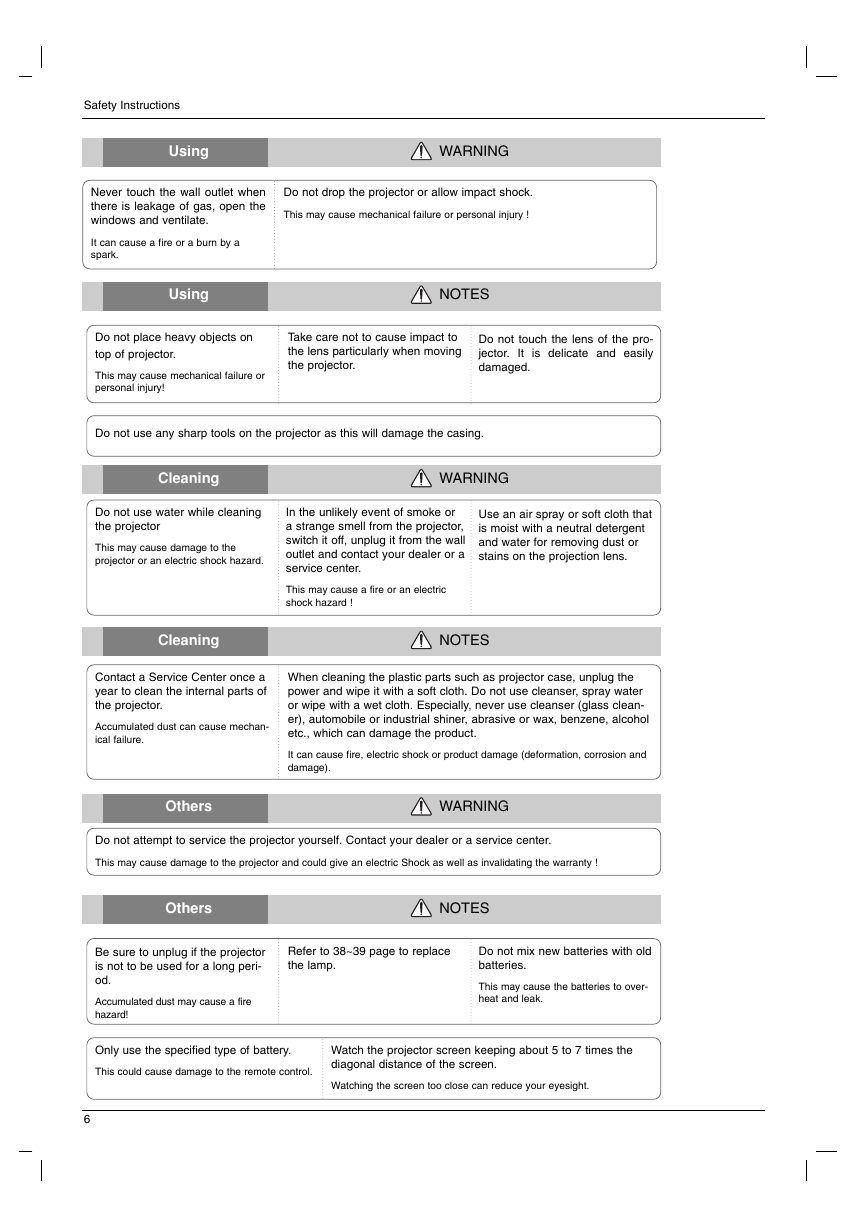

Safety Instructions Using WARNING Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It can cause a fire or a burn by a spark. Do not drop the projector or allow impact shock. This may cause mechanical failure or personal injury ! Using NOTES Do not place heavy objects on top of projector. This may cause mechanical failure or personal injury! Take care not to cause impact to the lens particularly when moving the projector. Do not touch the lens of the pro- jector. It is delicate and easily damaged. Do not use any sharp tools on the projector as this will damage the casing. Cleaning WARNING Do not use water while cleaning the projector This may cause damage to the projector or an electric shock hazard. In the unlikely event of smoke or a strange smell from the projector, switch it off, unplug it from the wall outlet and contact your dealer or a service center. This may cause a fire or an electric shock hazard ! Use an air spray or soft cloth that is moist with a neutral detergent and water for removing dust or stains on the projection lens. Cleaning NOTES Contact a Service Center once a year to clean the internal parts of the projector. Accumulated dust can cause mechan- ical failure. When cleaning the plastic parts such as projector case, unplug the power and wipe it with a soft cloth. Do not use cleanser, spray water or wipe with a wet cloth. Especially, never use cleanser (glass clean- er), automobile or industrial shiner, abrasive or wax, benzene, alcohol etc., which can damage the product. It can cause fire, electric shock or product damage (deformation, corrosion and damage). Others WARNING Do not attempt to service the projector yourself. Contact your dealer or a service center. This may cause damage to the projector and could give an electric Shock as well as invalidating the warranty ! Others NOTES Be sure to unplug if the projector is not to be used for a long peri- od. Accumulated dust may cause a fire hazard! Refer to 38~39 page to replace the lamp. Do not mix new batteries with old batteries. This may cause the batteries to over- heat and leak. Only use the specified type of battery. This could cause damage to the remote control. Watch the projector screen keeping about 5 to 7 times the diagonal distance of the screen. Watching the screen too close can reduce your eyesight. 6

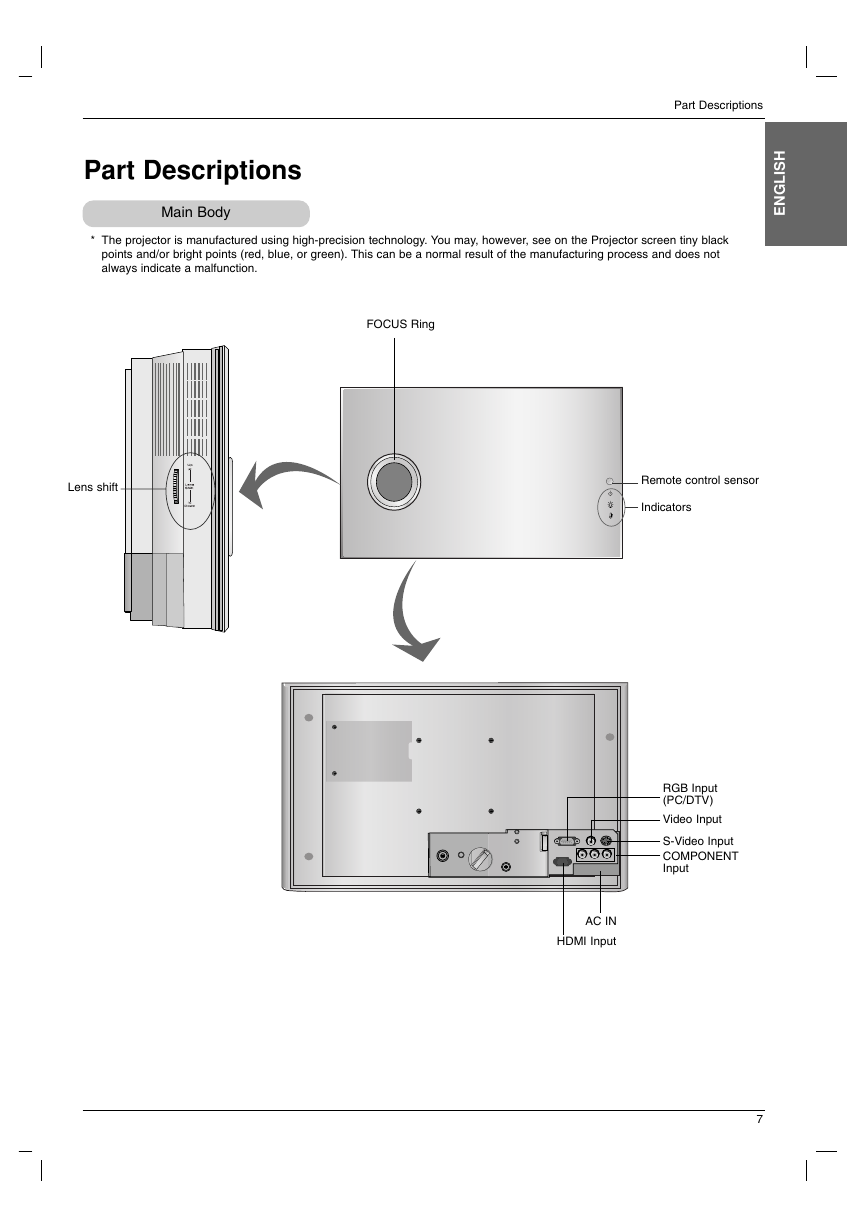

Part Descriptions Main Body Part Descriptions I H S L G N E * The projector is manufactured using high-precision technology. You may, however, see on the Projector screen tiny black points and/or bright points (red, blue, or green). This can be a normal result of the manufacturing process and does not always indicate a malfunction. FOCUS Ring Lens shift Remote control sensor Indicators RGB Input (PC/DTV) Video Input S-Video Input COMPONENT Input AC IN HDMI Input 7

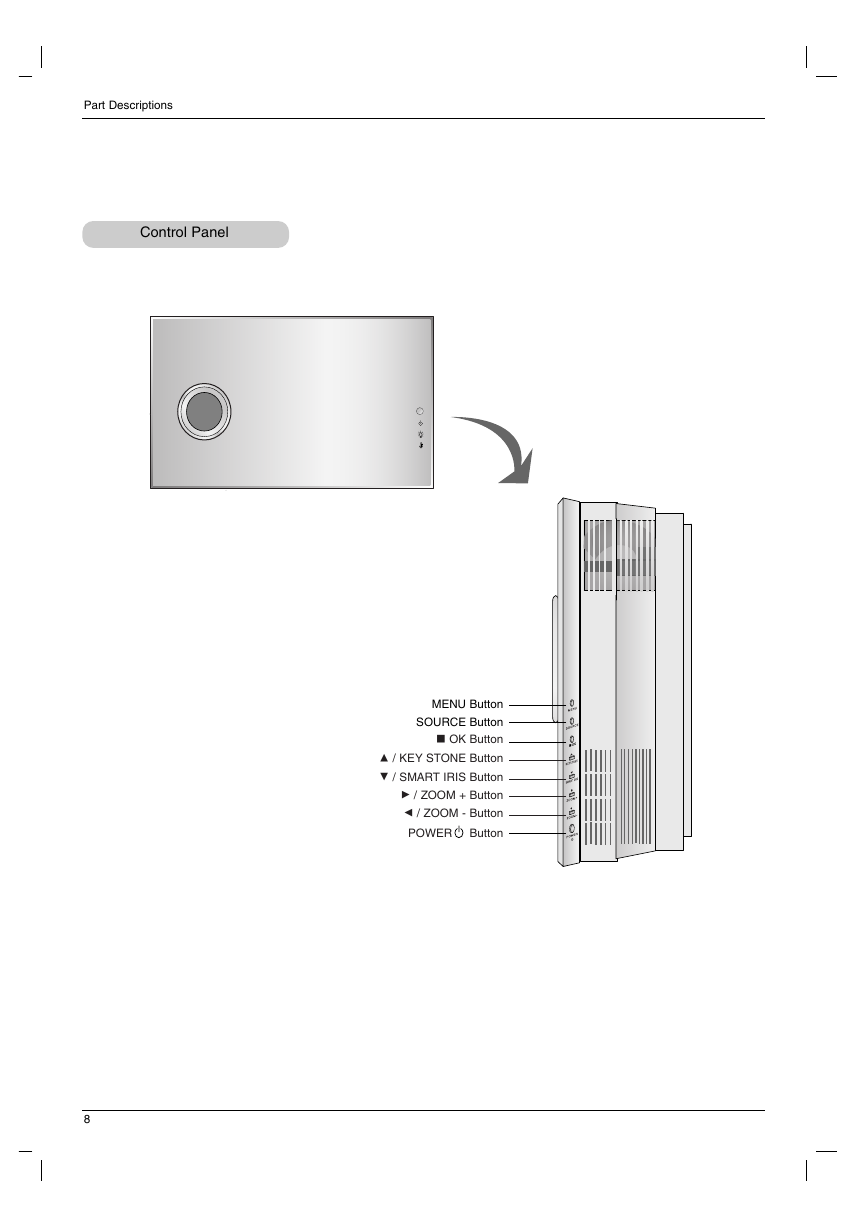

Part Descriptions Control Panel 8 MENU Button SOURCE Button A OK Button D / KEY STONE Button E / SMART IRIS Button G / ZOOM + Button F / ZOOM - Button POWER Button
