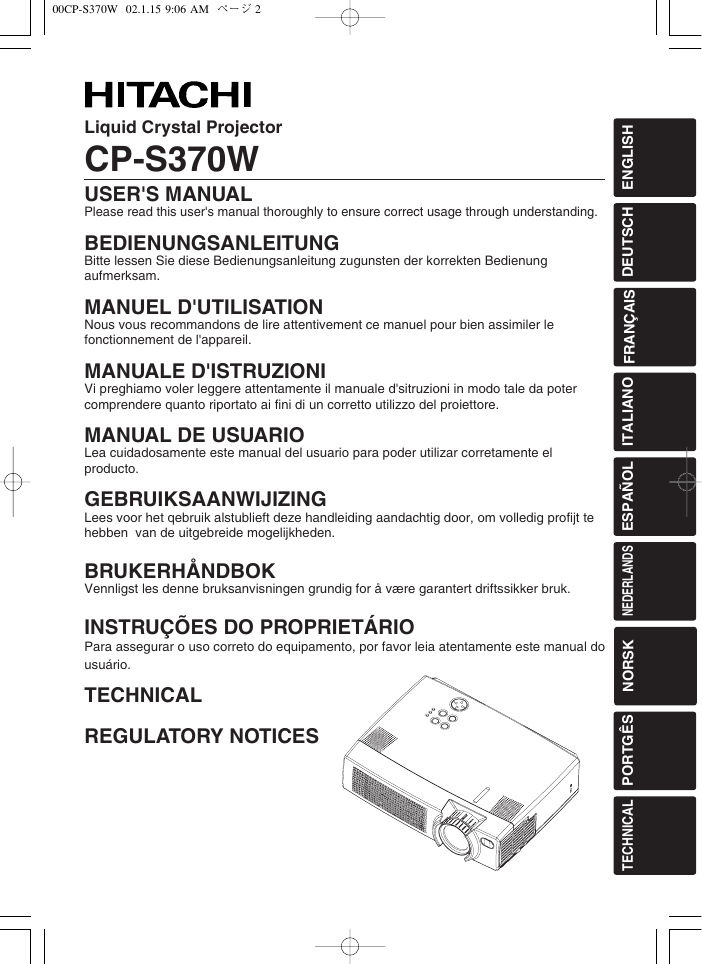

00CP-S370W 02.1.15 9:06 AM ページ 2 Liquid Crystal Projector CP-S370W USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding. BEDIENUNGSANLEITUNG Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung aufmerksam. MANUEL D'UTILISATION Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil. MANUALE D'ISTRUZIONI Vi preghiamo voler leggere attentamente il manuale d'sitruzioni in modo tale da poter comprendere quanto riportato ai fini di un corretto utilizzo del proiettore. MANUAL DE USUARIO Lea cuidadosamente este manual del usuario para poder utilizar corretamente el producto. GEBRUIKSAANWIJIZING Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te hebben van de uitgebreide mogelijkheden. BRUKERHÅNDBOK Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk. INSTRUÇÕES DO PROPRIETÁRIO Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do usuário. TECHNICAL REGULATORY NOTICES I H S L G N E H C S T U E D I S A Ç N A R F O N A L A T I I L O Ñ A P S E S D N A L R E D E N K S R O N S Ê G T R O P I L A C N H C E T

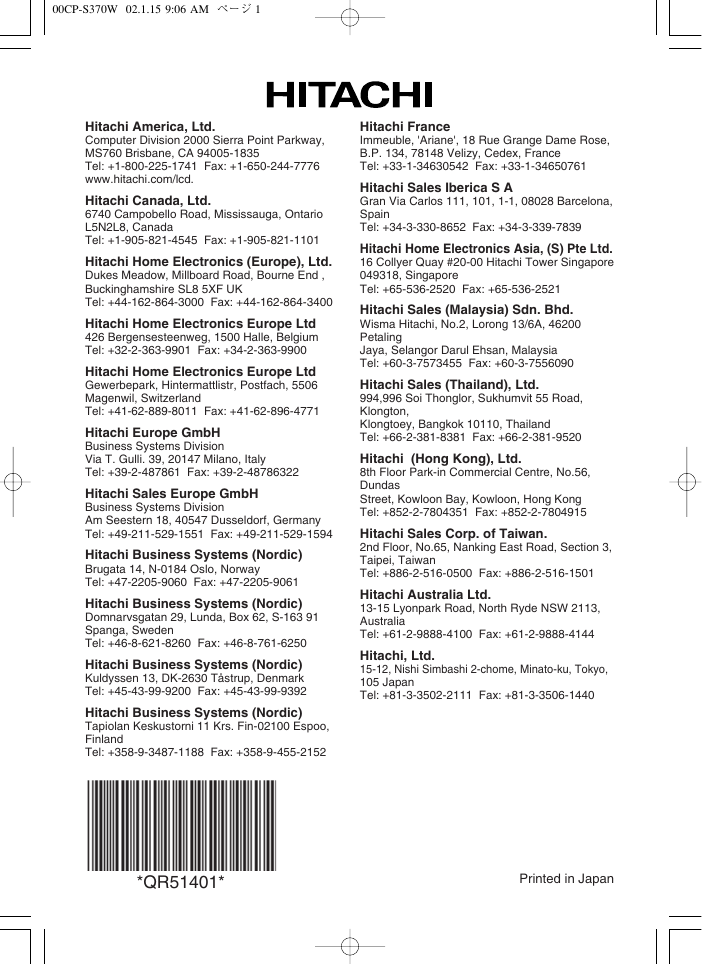

00CP-S370W 02.1.15 9:06 AM ページ 1 Hitachi America, Ltd. Computer Division 2000 Sierra Point Parkway, MS760 Brisbane, CA 94005-1835 Tel: +1-800-225-1741 Fax: +1-650-244-7776 www.hitachi.com/lcd. Hitachi Canada, Ltd. 6740 Campobello Road, Mississauga, Ontario L5N2L8, Canada Tel: +1-905-821-4545 Fax: +1-905-821-1101 Hitachi Home Electronics (Europe), Ltd. Dukes Meadow, Millboard Road, Bourne End , Buckinghamshire SL8 5XF UK Tel: +44-162-864-3000 Fax: +44-162-864-3400 Hitachi Home Electronics Europe Ltd 426 Bergensesteenweg, 1500 Halle, Belgium Tel: +32-2-363-9901 Fax: +34-2-363-9900 Hitachi Home Electronics Europe Ltd Gewerbepark, Hintermattlistr, Postfach, 5506 Magenwil, Switzerland Tel: +41-62-889-8011 Fax: +41-62-896-4771 Hitachi Europe GmbH Business Systems Division Via T. Gulli. 39, 20147 Milano, Italy Tel: +39-2-487861 Fax: +39-2-48786322 Hitachi Sales Europe GmbH Business Systems Division Am Seestern 18, 40547 Dusseldorf, Germany Tel: +49-211-529-1551 Fax: +49-211-529-1594 Hitachi Business Systems (Nordic) Brugata 14, N-0184 Oslo, Norway Tel: +47-2205-9060 Fax: +47-2205-9061 Hitachi Business Systems (Nordic) Domnarvsgatan 29, Lunda, Box 62, S-163 91 Spanga, Sweden Tel: +46-8-621-8260 Fax: +46-8-761-6250 Hitachi Business Systems (Nordic) Kuldyssen 13, DK-2630 Tåstrup, Denmark Tel: +45-43-99-9200 Fax: +45-43-99-9392 Hitachi Business Systems (Nordic) Tapiolan Keskustorni 11 Krs. Fin-02100 Espoo, Finland Tel: +358-9-3487-1188 Fax: +358-9-455-2152 Hitachi France Immeuble, 'Ariane', 18 Rue Grange Dame Rose, B.P. 134, 78148 Velizy, Cedex, France Tel: +33-1-34630542 Fax: +33-1-34650761 Hitachi Sales Iberica S A Gran Via Carlos 111, 101, 1-1, 08028 Barcelona, Spain Tel: +34-3-330-8652 Fax: +34-3-339-7839 Hitachi Home Electronics Asia, (S) Pte Ltd. 16 Collyer Quay #20-00 Hitachi Tower Singapore 049318, Singapore Tel: +65-536-2520 Fax: +65-536-2521 Hitachi Sales (Malaysia) Sdn. Bhd. Wisma Hitachi, No.2, Lorong 13/6A, 46200 Petaling Jaya, Selangor Darul Ehsan, Malaysia Tel: +60-3-7573455 Fax: +60-3-7556090 Hitachi Sales (Thailand), Ltd. 994,996 Soi Thonglor, Sukhumvit 55 Road, Klongton, Klongtoey, Bangkok 10110, Thailand Tel: +66-2-381-8381 Fax: +66-2-381-9520 Hitachi (Hong Kong), Ltd. 8th Floor Park-in Commercial Centre, No.56, Dundas Street, Kowloon Bay, Kowloon, Hong Kong Tel: +852-2-7804351 Fax: +852-2-7804915 Hitachi Sales Corp. of Taiwan. 2nd Floor, No.65, Nanking East Road, Section 3, Taipei, Taiwan Tel: +886-2-516-0500 Fax: +886-2-516-1501 Hitachi Australia Ltd. 13-15 Lyonpark Road, North Ryde NSW 2113, Australia Tel: +61-2-9888-4100 Fax: +61-2-9888-4144 Hitachi, Ltd. 15-12, Nishi Simbashi 2-chome, Minato-ku, Tokyo, 105 Japan Tel: +81-3-3502-2111 Fax: +81-3-3506-1440 *QR51401* Printed in Japan

01CP-S370W 02.1.15 9:06 AM ページ 1 Liquid Crystal Projector USER'S MANUAL USER'S MANUAL Thank you for purchasing this liquid crystal projector. WARNING • Please read the accompanying manual “SAFETY INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct usage through understanding. After reading, store this instruction manual in a safe place for future reference. • The information in this manual is subject to change without notice. NOTE • The manufacturer assumes no responsibility for any errors that may appear in this manual • The reproduction, transmission or use of this document or contents is not permitted without express written authority. TRADEMARK ACKNOWLEDGMENT : PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Apple, Mac and ADB are registered trademarks of Apple Computer, Inc. VESA and SVGA are trademarks of the Video Electronics Standard Association. Windows is a registered trademark of Microsoft Corporation. Carefully observe the trademarks and registered trademarks of all companies, even when not mentioned. I H S L G N E CONTENTS CONTENTS Page FEATURES .......................................2 BEFORE USE ...................................2 Contents of Package ..............................2 Part Names.............................................3 Loading the Battery ................................5 Fixing the Handle....................................5 INSTALLATION ................................6 Installation of the Projector and Screen........6 Angle Adjustment ...................................6 Cabling ...................................................7 Power Connection ..................................8 Example of System Setup ......................8 Plug & Play .............................................8 OPERATIONS...................................9 Power ON ..................................................9 Power OFF ..............................................9 Basic Operation ....................................10 Setup Menu ..........................................12 Input Menu............................................13 Image Menu..........................................14 Options Menu .......................................15 No Signal Menu ....................................16 MAINTENANCE ..............................17 Lamp.....................................................17 Air Filter ................................................19 Other Maintenance...............................19 Page TROUBLESHOOTING ....................20 OSD Message ......................................20 Indicators Message ..............................21 Symptom ..............................................22 SPECIFICATIONS...........................23 WARRANTY AND AFTER-SERVICE......24 ....................................................................................... TABLES Table 1. Installation Reference.................6 Table 2. Cabling .......................................7 Table 3. Basic Operations ......................10 Table 4. Setup Menu ..............................12 Table 5. Input Menu................................13 Table 6. Image Menu..............................14 Table 7. Options Menu ...........................15 Table 8. No Signal Menu........................16 Table 9. OSD Message ..........................20 Table 10. Indicator Message ..................21 Table 11. Symptom ................................22 Table 12. Specifications .........................23 ....................................................................................... For "TECHNICAL" and "REGULATORY NOTICE", see the end of this manual. ENGLISH-1

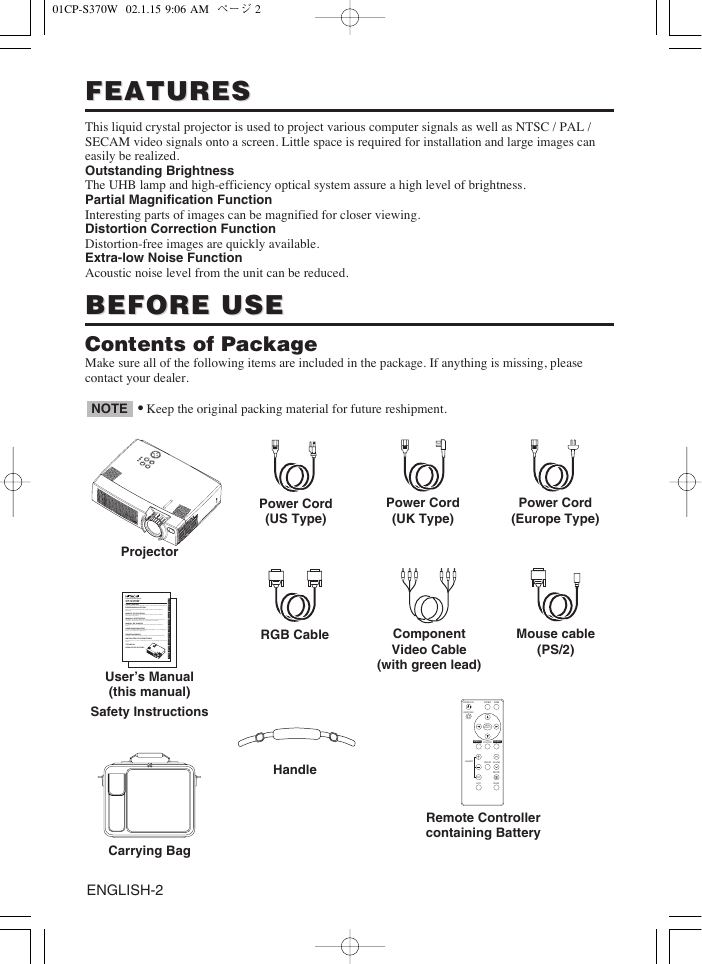

01CP-S370W 02.1.15 9:06 AM ページ 2 FEATURES FEATURES This liquid crystal projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized. Outstanding Brightness The UHB lamp and high-efficiency optical system assure a high level of brightness. Partial Magnification Function Interesting parts of images can be magnified for closer viewing. Distortion Correction Function Distortion-free images are quickly available. Extra-low Noise Function Acoustic noise level from the unit can be reduced. BEFORE USE BEFORE USE Contents of Package Make sure all of the following items are included in the package. If anything is missing, please contact your dealer. NOTE • Keep the original packing material for future reshipment. Power Cord (US Type) Power Cord (UK Type) Power Cord (Europe Type) Projector Liquid Crystal Projector CP-S370W USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding. BEDIENUNGSANLEITUNG Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung aufmerksam. MANUEL D'UTILISATION Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil. MANUALE D'ISTRUZIONI Vi preghiamo voler leggere attentamente il manuale d'sitruzioni in modo tale da poter comprendere quanto riportato ai fini di un corretto utilizzo del proiettore. MANUAL DE USUARIO Lea cuidadosamente este manual del usuario para poder utilizar corretamente el producto. GEBRUIKSAANWIJIZING Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te hebben van de uitgebreide mogelijkheden. BRUKERHÅNDBOK Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk. INSTRUÇÕES DO PROPRIETÁRIO Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do usuário. TECHNICAL REGULATORY NOTICES I H S L G N E H C S T U E D I S A Ç N A R F O N A L A T I I L O Ñ A P S E S D N A L R E D E N K S R O N S Ê G T R O P I L A C N H C E T RGB Cable User’s Manual (this manual) Safety Instructions Carrying Bag ENGLISH-2 Component Video Cable (with green lead) Mouse cable (PS/2) Handle STANDBY/ON VIDEO RGB KEYSTONE MENU SELECT MENU POSITION RESET MAGNIFY FREEZE VOLUME OFF AUTO MUTE BLANK Remote Controller containing Battery

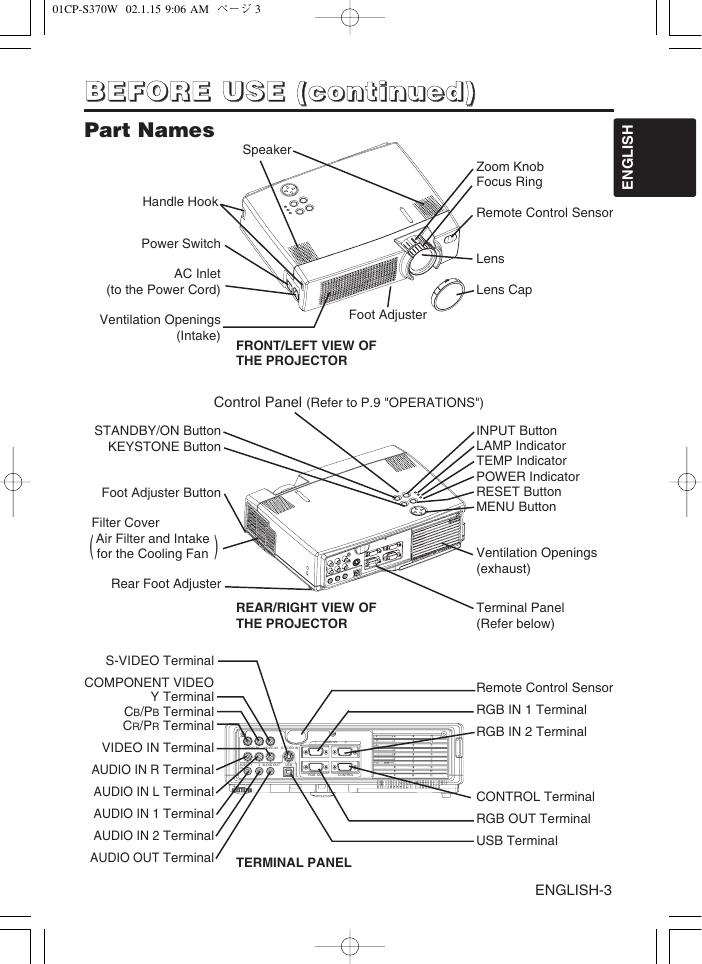

01CP-S370W 02.1.15 9:06 AM ページ 3 BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd)))) Part Names Speaker Handle Hook Power Switch AC Inlet (to the Power Cord) Ventilation Openings (Intake) Foot Adjuster FRONT/LEFT VIEW OF THE PROJECTOR I H S L G N E Zoom Knob Focus Ring Remote Control Sensor Lens Lens Cap Control Panel (Refer to P.9 "OPERATIONS") STANDBY/ON Button KEYSTONE Button Foot Adjuster Button Filter Cover Air Filter and Intake for the Cooling Fan ( ) Rear Foot Adjuster S-VIDEO Terminal COMPONENT VIDEO Y Terminal CB/PB Terminal CR/PR Terminal VIDEO IN Terminal AUDIO IN R Terminal AUDIO IN L Terminal AUDIO IN 1 Terminal AUDIO IN 2 Terminal AUDIO OUT Terminal INPUT Button LAMP Indicator TEMP Indicator POWER Indicator RESET Button MENU Button Ventilation Openings (exhaust) REAR/RIGHT VIEW OF THE PROJECTOR Terminal Panel (Refer below) AUDIO IN VIDEO IN S-VIDEO IN 1 RGB IN 2 AUDIO IN 1 2 AUDIO OUT USB RGB OUT CONTROL TERMINAL PANEL Remote Control Sensor RGB IN 1 Terminal RGB IN 2 Terminal CONTROL Terminal RGB OUT Terminal USB Terminal ENGLISH-3

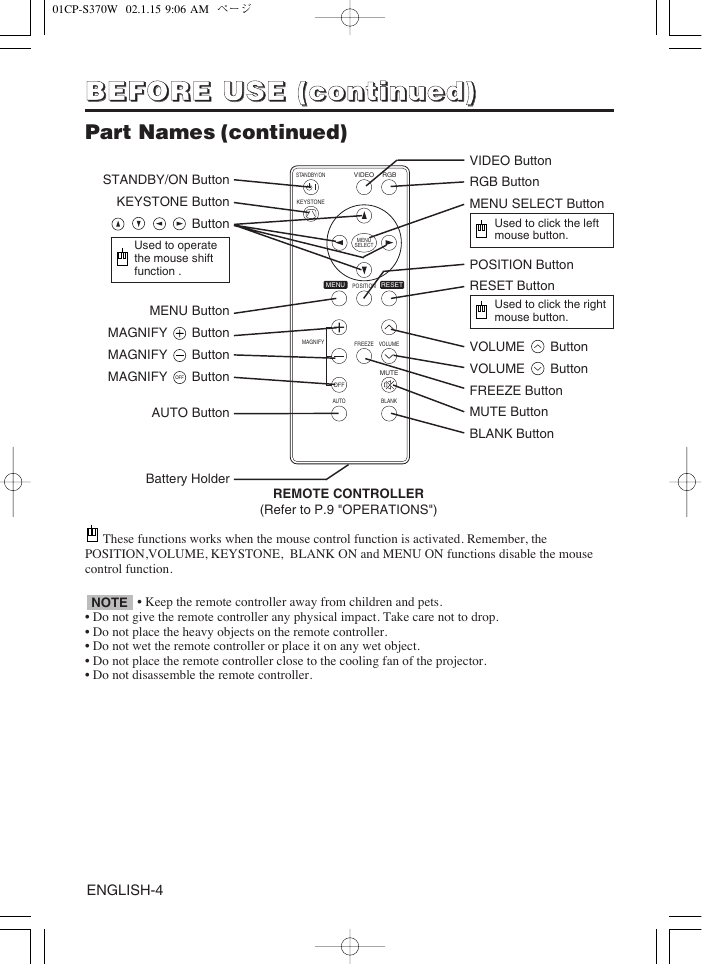

01CP-S370W 02.1.15 9:06 AM ページ 4 BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd)))) Part Names (continued) STANDBY/ON Button KEYSTONE Button Button Used to operate the mouse shift function . MENU Button Button Button Button MAGNIFY MAGNIFY MAGNIFY OFF STANDBY/ON VIDEO RGB KEYSTONE MENU SELECT MENU POSITION RESET MAGNIFY FREEZE VOLUME OFF AUTO MUTE BLANK AUTO Button Battery Holder REMOTE CONTROLLER (Refer to P.9 "OPERATIONS") VIDEO Button RGB Button MENU SELECT Button Used to click the left mouse button. POSITION Button RESET Button Used to click the right mouse button. Button Button VOLUME VOLUME FREEZE Button MUTE Button BLANK Button These functions works when the mouse control function is activated. Remember, the POSITION,VOLUME, KEYSTONE, BLANK ON and MENU ON functions disable the mouse control function. • Keep the remote controller away from children and pets. NOTE • Do not give the remote controller any physical impact. Take care not to drop. • Do not place the heavy objects on the remote controller. • Do not wet the remote controller or place it on any wet object. • Do not place the remote controller close to the cooling fan of the projector. • Do not disassemble the remote controller. ENGLISH-4

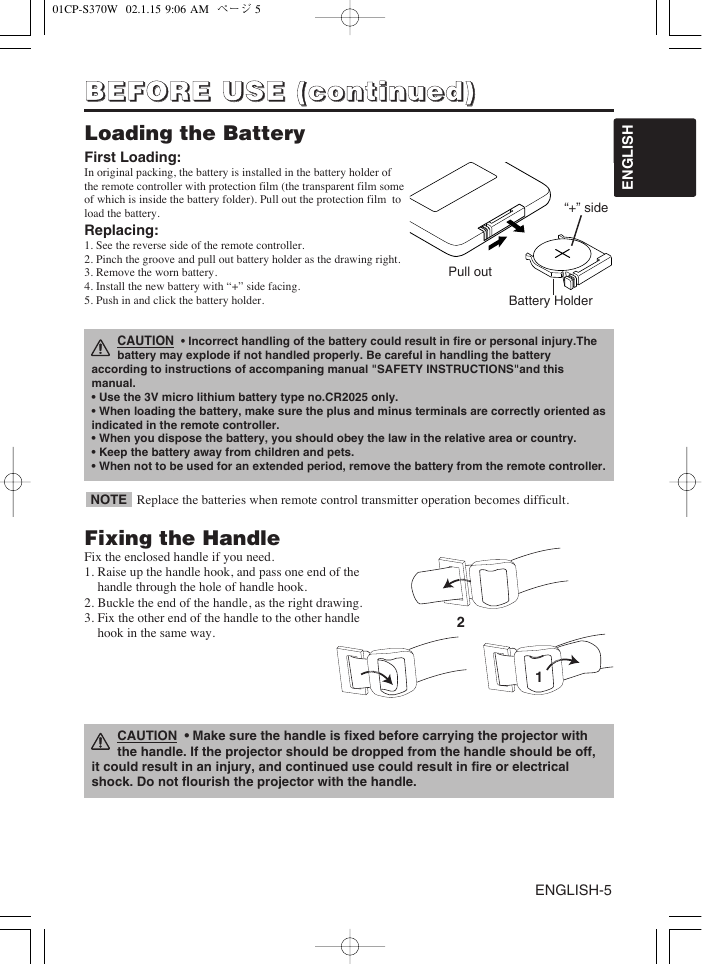

01CP-S370W 02.1.15 9:06 AM ページ 5 BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd)))) Loading the Battery First Loading: In original packing, the battery is installed in the battery holder of the remote controller with protection film (the transparent film some of which is inside the battery folder). Pull out the protection film to load the battery. Replacing: 1. See the reverse side of the remote controller. 2. Pinch the groove and pull out battery holder as the drawing right. 3. Remove the worn battery. 4. Install the new battery with “+” side facing. 5. Push in and click the battery holder. Pull out I H S L G N E “+” side Battery Holder CAUTION • Incorrect handling of the battery could result in fire or personal injury.The battery may explode if not handled properly. Be careful in handling the battery according to instructions of accompaning manual "SAFETY INSTRUCTIONS"and this manual. • Use the 3V micro lithium battery type no.CR2025 only. • When loading the battery, make sure the plus and minus terminals are correctly oriented as indicated in the remote controller. • When you dispose the battery, you should obey the law in the relative area or country. • Keep the battery away from children and pets. • When not to be used for an extended period, remove the battery from the remote controller. NOTE Replace the batteries when remote control transmitter operation becomes difficult. Fixing the Handle Fix the enclosed handle if you need. 1. Raise up the handle hook, and pass one end of the handle through the hole of handle hook. 2. Buckle the end of the handle, as the right drawing. 3. Fix the other end of the handle to the other handle hook in the same way. 2 1 CAUTION • Make sure the handle is fixed before carrying the projector with the handle. If the projector should be dropped from the handle should be off, it could result in an injury, and continued use could result in fire or electrical shock. Do not flourish the projector with the handle. ENGLISH-5

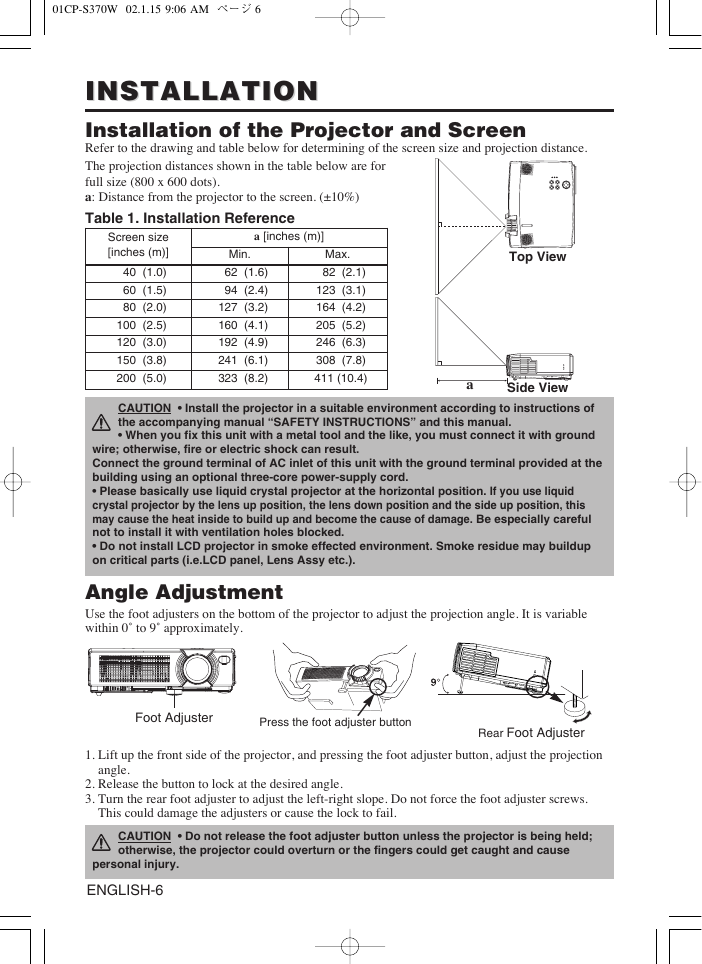

01CP-S370W 02.1.15 9:06 AM ページ 6 INSTALLATION INSTALLATION Installation of the Projector and Screen Refer to the drawing and table below for determining of the screen size and projection distance. The projection distances shown in the table below are for full size (800 x 600 dots). a: Distance from the projector to the screen. (±10%) Table 1. Installation Reference Screen size [inches (m)] 40 (1.0) 60 (1.5) 80 (2.0) 100 (2.5) 120 (3.0) 150 (3.8) 200 (5.0) a [inches (m)] Min. 62 (1.6) 94 (2.4) 127 (3.2) 160 (4.1) 192 (4.9) 241 (6.1) 323 (8.2) Max. 82 (2.1) 123 (3.1) 164 (4.2) 205 (5.2) 246 (6.3) 308 (7.8) 411 (10.4) Top View a Side View CAUTION • Install the projector in a suitable environment according to instructions of the accompanying manual “SAFETY INSTRUCTIONS” and this manual. • When you fix this unit with a metal tool and the like, you must connect it with ground wire; otherwise, fire or electric shock can result. Connect the ground terminal of AC inlet of this unit with the ground terminal provided at the building using an optional three-core power-supply cord. • Please basically use liquid crystal projector at the horizontal position. If you use liquid crystal projector by the lens up position, the lens down position and the side up position, this may cause the heat inside to build up and become the cause of damage. Be especially careful not to install it with ventilation holes blocked. • Do not install LCD projector in smoke effected environment. Smoke residue may buildup on critical parts (i.e.LCD panel, Lens Assy etc.). Angle Adjustment Use the foot adjusters on the bottom of the projector to adjust the projection angle. It is variable within 0˚ to 9˚ approximately. Foot Adjuster Press the foot adjuster button Rear Foot Adjuster 1. Lift up the front side of the projector, and pressing the foot adjuster button, adjust the projection angle. 2. Release the button to lock at the desired angle. 3. Turn the rear foot adjuster to adjust the left-right slope. Do not force the foot adjuster screws. This could damage the adjusters or cause the lock to fail. CAUTION • Do not release the foot adjuster button unless the projector is being held; otherwise, the projector could overturn or the fingers could get caught and cause personal injury. ENGLISH-6
