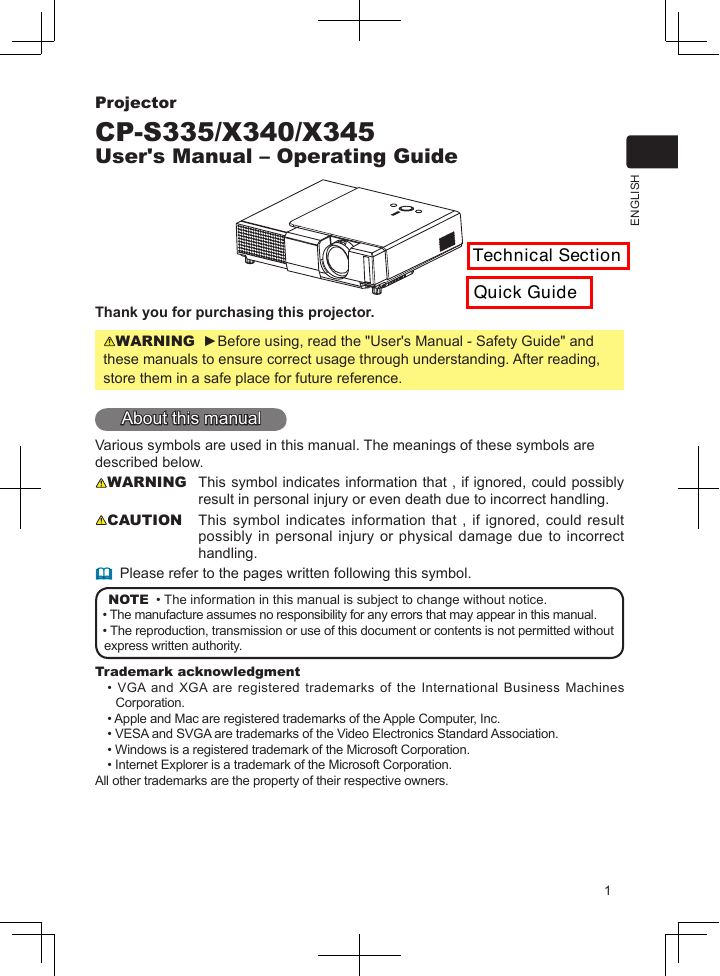

Projector CP-S335/X340/X345 User's Manual – Operating Guide H S I L G N E Thank you for purchasing this projector. WARNING ►Before using, read the "User's Manual - Safety Guide" and these manuals to ensure correct usage through understanding. After reading, store them in a safe place for future reference. About this manual Various symbols are used in this manual. The meanings of these symbols are described below. WARNING This symbol indicates information that , if ignored, could possibly result in personal injury or even death due to incorrect handling. CAUTION This symbol indicates information that , if ignored, could result possibly in personal injury or physical damage due to incorrect handling.  Please refer to the pages written following this symbol. NOTE • The information in this manual is subject to change without notice. • The manufacture assumes no responsibility for any errors that may appear in this manual. • The reproduction, transmission or use of this document or contents is not permitted without express written authority. Trademark acknowledgment • VGA and XGA are registered trademarks of the International Business Machines Corporation. • Apple and Mac are registered trademarks of the Apple Computer, Inc. • VESA and SVGA are trademarks of the Video Electronics Standard Association. • Windows is a registered trademark of the Microsoft Corporation. • Internet Explorer is a trademark of the Microsoft Corporation. All other trademarks are the property of their respective owners. 1

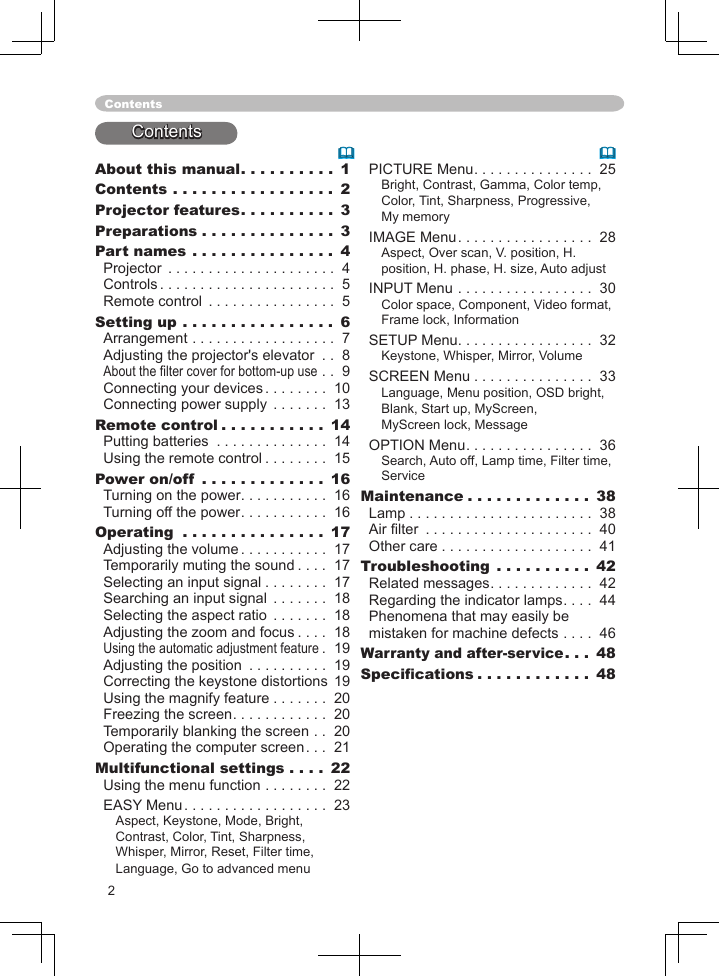

 PICTURE Menu . . . . . . . . . . . . . . . 25 Bright, Contrast, Gamma, Color temp, Color, Tint, Sharpness, Progressive, My memory IMAGE Menu . . . . . . . . . . . . . . . . . 28 Aspect, Over scan, V. position, H. position, H. phase, H. size, Auto adjust INPUT Menu . . . . . . . . . . . . . . . . . 30 Color space, Component, Video format, Frame lock, Information SETUP Menu . . . . . . . . . . . . . . . . . 32 Keystone, Whisper, Mirror, Volume SCREEN Menu . . . . . . . . . . . . . . . 33 Language, Menu position, OSD bright, Blank, Start up, MyScreen, MyScreen lock, Message OPTION Menu . . . . . . . . . . . . . . . . 36 Search, Auto off, Lamp time, Filter time, Service Maintenance . . . . . . . . . . . . . 38 Lamp . . . . . . . . . . . . . . . . . . . . . . . 38 Air ﬁlter . . . . . . . . . . . . . . . . . . . . . 40 Other care . . . . . . . . . . . . . . . . . . . 41 Troubleshooting . . . . . . . . . . 42 Related messages . . . . . . . . . . . . . 42 Regarding the indicator lamps . . . . 44 Phenomena that may easily be mistaken for machine defects . . . . 46 Warranty and after-service . . . 48 Speciﬁcations . . . . . . . . . . . . 48 Contents Contents  About this manual . . . . . . . . . . 1 Contents . . . . . . . . . . . . . . . . . 2 Projector features . . . . . . . . . . 3 Preparations . . . . . . . . . . . . . . 3 Part names . . . . . . . . . . . . . . . 4 Projector . . . . . . . . . . . . . . . . . . . . . 4 Controls . . . . . . . . . . . . . . . . . . . . . . 5 Remote control . . . . . . . . . . . . . . . . 5 Setting up . . . . . . . . . . . . . . . . 6 Arrangement . . . . . . . . . . . . . . . . . . 7 Adjusting the projector's elevator . . 8 About the ﬁlter cover for bottom-up use . . 9 Connecting your devices . . . . . . . . 10 Connecting power supply . . . . . . . 13 Remote control . . . . . . . . . . . 14 Putting batteries . . . . . . . . . . . . . . 14 Using the remote control . . . . . . . . 15 Power on/off . . . . . . . . . . . . . 16 Turning on the power . . . . . . . . . . . 16 Turning off the power . . . . . . . . . . . 16 Operating . . . . . . . . . . . . . . . 17 Adjusting the volume . . . . . . . . . . . 17 Temporarily muting the sound . . . . 17 Selecting an input signal . . . . . . . . 17 Searching an input signal . . . . . . . 18 Selecting the aspect ratio . . . . . . . 18 Adjusting the zoom and focus . . . . 18 Using the automatic adjustment feature . 19 Adjusting the position . . . . . . . . . . 19 Correcting the keystone distortions 19 Using the magnify feature . . . . . . . 20 Freezing the screen . . . . . . . . . . . . 20 Temporarily blanking the screen . . 20 Operating the computer screen . . . 21 Multifunctional settings . . . . 22 Using the menu function . . . . . . . . 22 EASY Menu . . . . . . . . . . . . . . . . . . 23 Aspect, Keystone, Mode, Bright, Contrast, Color, Tint, Sharpness, Whisper, Mirror, Reset, Filter time, Language, Go to advanced menu 2

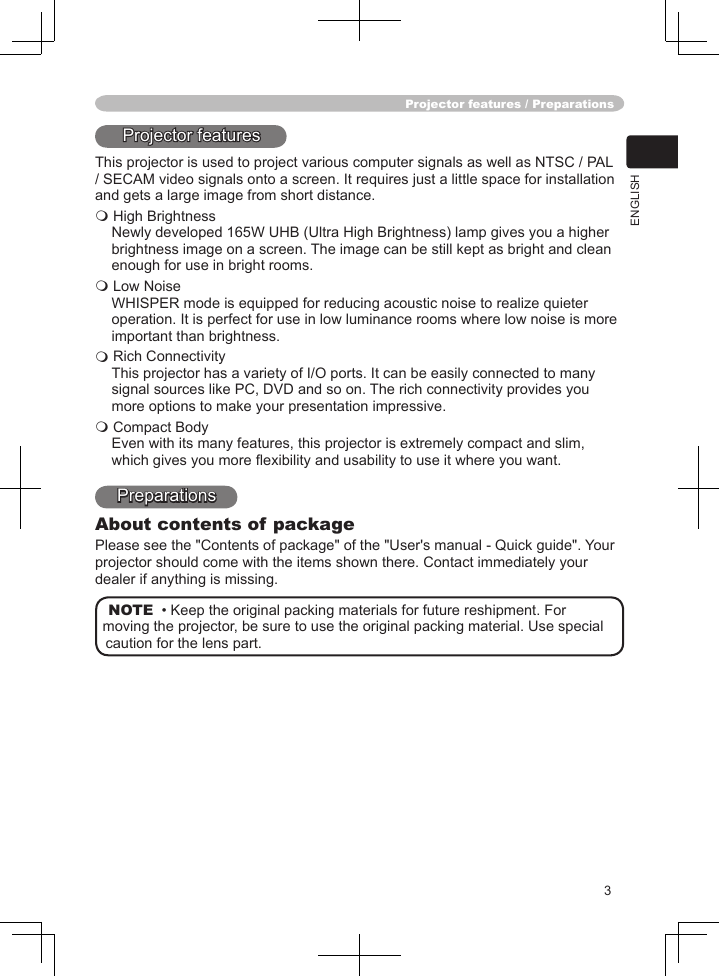

Projector features / Preparations Projector features This projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. It requires just a little space for installation and gets a large image from short distance.  High Brightness Newly developed 165W UHB (Ultra High Brightness) lamp gives you a higher brightness image on a screen. The image can be still kept as bright and clean enough for use in bright rooms. H S I L G N E  Low Noise WHISPER mode is equipped for reducing acoustic noise to realize quieter operation. It is perfect for use in low luminance rooms where low noise is more important than brightness.  Rich Connectivity This projector has a variety of I/O ports. It can be easily connected to many signal sources like PC, DVD and so on. The rich connectivity provides you more options to make your presentation impressive.  Compact Body Even with its many features, this projector is extremely compact and slim, which gives you more ﬂexibility and usability to use it where you want. Preparations About contents of package Please see the "Contents of package" of the "User's manual - Quick guide". Your projector should come with the items shown there. Contact immediately your dealer if anything is missing. NOTE • Keep the original packing materials for future reshipment. For moving the projector, be sure to use the original packing material. Use special caution for the lens part. 3

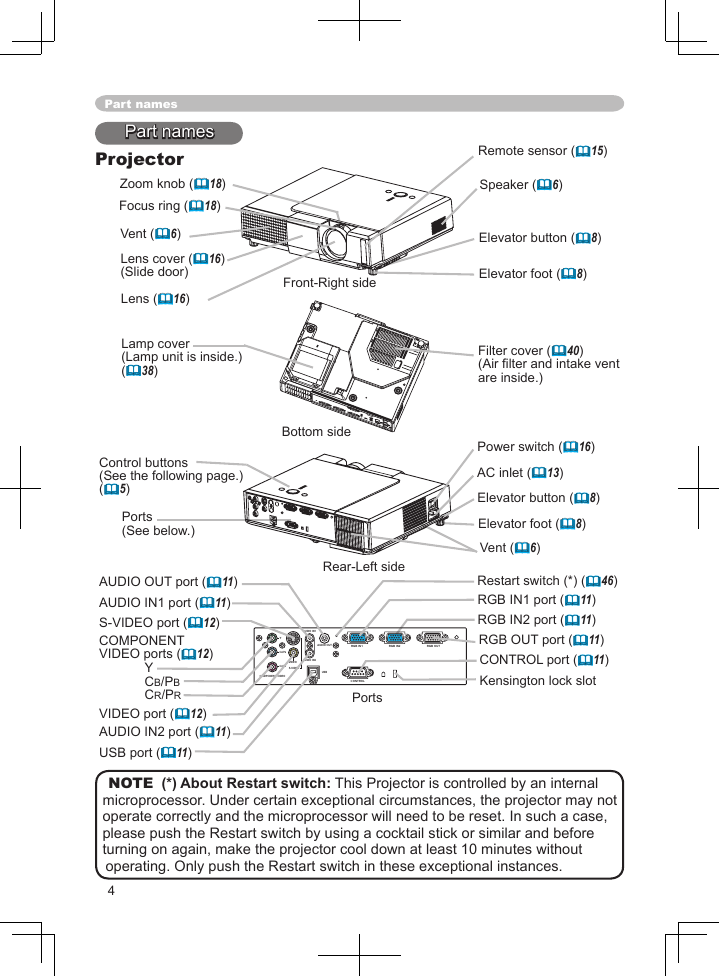

Part names Part names Projector Zoom knob (18) Focus ring (18) Vent (6) Lens cover (16) (Slide door) Lens (16) Lamp cover (Lamp unit is inside.) (38) Control buttons (See the following page.) (5) Ports (See below.) AUDIO OUT port (11) AUDIO IN1 port (11) S-VIDEO port (12) COMPONENT VIDEO ports (12) Y CB/PB CR/PR VIDEO port (12) AUDIO IN2 port (11) USB port (11) Remote sensor (15) Speaker (6) Elevator button (8) Elevator foot (8) Filter cover (40) (Air ﬁlter and intake vent are inside.) Power switch (16) AC inlet (13) Elevator button (8) Elevator foot (8) Vent (6) Restart switch (*) (46) RGB IN1 port (11) RGB IN2 port (11) RGB OUT port (11) CONTROL port (11) Kensington lock slot Front-Right side Bottom side Rear-Left side Y CB/PB CR/PR COMPONENT VIDEO AUDIO IN1 AUDIO OUT RGB IN1 RGB IN2 RGB OUT AUDIO IN2 VIDEO S-VIDEO USB CONTROL Ports NOTE (*) About Restart switch: This Projector is controlled by an internal microprocessor. Under certain exceptional circumstances, the projector may not operate correctly and the microprocessor will need to be reset. In such a case, please push the Restart switch by using a cocktail stick or similar and before turning on again, make the projector cool down at least 10 minutes without operating. Only push the Restart switch in these exceptional instances. 4

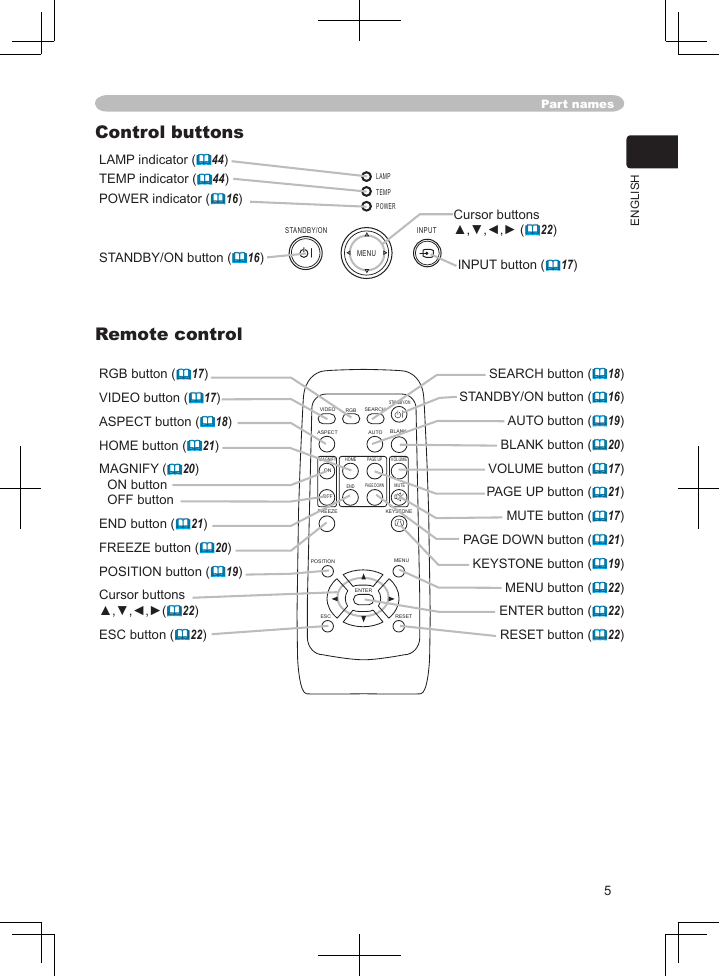

Part names Control buttons LAMP indicator (44) TEMP indicator (44) POWER indicator (16) STANDBY/ON button (16) MENU STANDBY/ON LAMP TEMP POWER Cursor buttons ▲,▼,◄,► (22) INPUT INPUT button (17) H S I L G N E Remote control RGB button (17) VIDEO button (17) ASPECT button (18) HOME button (21) MAGNIFY (20) ON button OFF button END button (21) FREEZE button (20) POSITION button (19) Cursor buttons ▲,▼,◄,►(22) ESC button (22) VIDEO RGB SEARCH STANDBY/ON ASPECT AUTO BLANK MAGNIFY HOME PAGE UP VOLUME ON OFF END PAGE DOWN MUTE FREEZE KEYSTONE POSITION MENU ENTER ESC RESET SEARCH button (18) STANDBY/ON button (16) AUTO button (19) BLANK button (20) VOLUME button (17) PAGE UP button (21) MUTE button (17) PAGE DOWN button (21) KEYSTONE button (19) MENU button (22) ENTER button (22) RESET button (22) 5

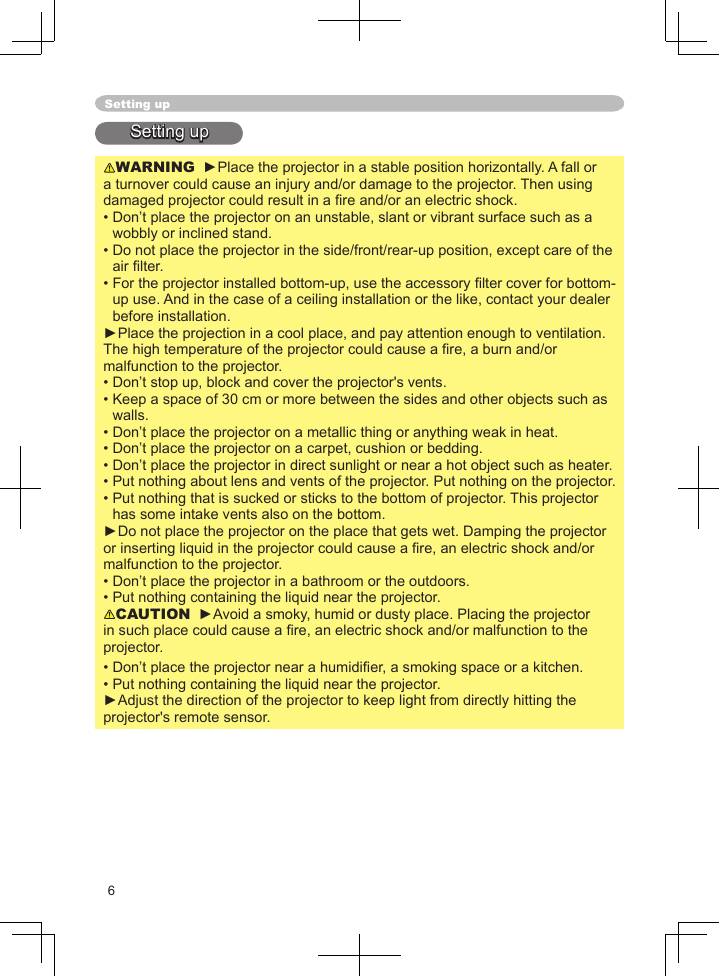

Setting up Setting up WARNING ►Place the projector in a stable position horizontally. A fall or a turnover could cause an injury and/or damage to the projector. Then using damaged projector could result in a ﬁre and/or an electric shock. • Don’t place the projector on an unstable, slant or vibrant surface such as a wobbly or inclined stand. • Do not place the projector in the side/front/rear-up position, except care of the air ﬁlter. • For the projector installed bottom-up, use the accessory ﬁlter cover for bottom- up use. And in the case of a ceiling installation or the like, contact your dealer before installation. ►Place the projection in a cool place, and pay attention enough to ventilation. The high temperature of the projector could cause a ﬁre, a burn and/or malfunction to the projector. • Don’t stop up, block and cover the projector's vents. • Keep a space of 30 cm or more between the sides and other objects such as walls. • Don’t place the projector on a metallic thing or anything weak in heat. • Don’t place the projector on a carpet, cushion or bedding. • Don’t place the projector in direct sunlight or near a hot object such as heater. • Put nothing about lens and vents of the projector. Put nothing on the projector. • Put nothing that is sucked or sticks to the bottom of projector. This projector has some intake vents also on the bottom. ►Do not place the projector on the place that gets wet. Damping the projector or inserting liquid in the projector could cause a ﬁre, an electric shock and/or malfunction to the projector. • Don’t place the projector in a bathroom or the outdoors. • Put nothing containing the liquid near the projector. CAUTION ►Avoid a smoky, humid or dusty place. Placing the projector in such place could cause a ﬁre, an electric shock and/or malfunction to the projector. • Don’t place the projector near a humidiﬁer, a smoking space or a kitchen. • Put nothing containing the liquid near the projector. ►Adjust the direction of the projector to keep light from directly hitting the projector's remote sensor. 6

Setting up Arrangement Refer to the illustrations and tables below to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen: 1280 x 720 (a) The screen size (diagonal) (b) Distance from the projector to the screen (±10%) (c) The height of the screen (±10%) (b) H S I L G N E 4:3 (a) 16:9 (a) (c) up (c) down At 4:3 screen (a) Screen size (b) Projection distance [m (inch)] (c) Screen height [cm (inch)] min. max. down up 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.1 3.7 4.6 6.1 7.6 9.2 (35) (47) (59) (72) (84) (96) (108) (120) (144) (181) (242) (303) (363) 1.1 1.4 1.8 2.2 2.5 2.9 3.3 3.6 4.4 5.5 7.3 9.2 11.0 (42) (56) (71) (85) (100) (114) (129) (143) (172) (216) (288) (361) (433) 5 6 8 9 11 12 14 15 18 23 30 38 46 (2) (2) (3) (4) (4) (5) (5) (6) (7) (9) (12) (15) (18) 41 55 69 82 96 110 123 137 165 206 274 343 411 (16) (22) (27) (32) (38) (43) (49) (54) (65) (81) (108) (135) (162) At 16:9 screen (a) Screen size (b) Projection distance [m (inch)] (c) Screen height [cm (inch)] min. max. down up [inch (m)] (0.8) 30 40 (1.0) (1.3) 50 (1.5) 60 (1.8) 70 (2.0) 80 90 (2.3) (2.5) 100 (3.0) 120 (3.8) 150 (5.1) 200 250 (6.4) (7.6) 300 [inch (m)] (0.8) 30 (1.0) 40 (1.3) 50 (1.5) 60 70 (1.8) (2.0) 80 (2.3) 90 (2.5) 100 120 (3.0) (3.8) 150 (5.1) 200 (6.4) 250 300 (7.6) 1.0 1.3 1.6 2.0 2.3 2.7 3.0 3.3 4.0 5.0 6.7 8.4 10.1 (38) (52) (65) (78) (91) (105) (118) (131) (158) (197) (264) (330) (396) 1.2 1.6 2.0 2.4 2.8 3.2 3.6 4.0 4.8 6.0 8.0 10.0 12.0 (46) (62) (77) (93) (109) (125) (140) (156) (188) (235) (314) (393) (472) -1 -2 -2 -2 -3 -3 -4 -4 -5 -6 -8 -10 -12 (0) (-1) (-1) (-1) (-1) (-1) (-1) (-2) (-2) (-2) (-3) (-4) (-5) 39 51 64 77 90 103 116 129 154 193 257 322 386 (15) (20) (25) (30) (35) (41) (46) (51) (61) (76) (101) (127) (152) 7

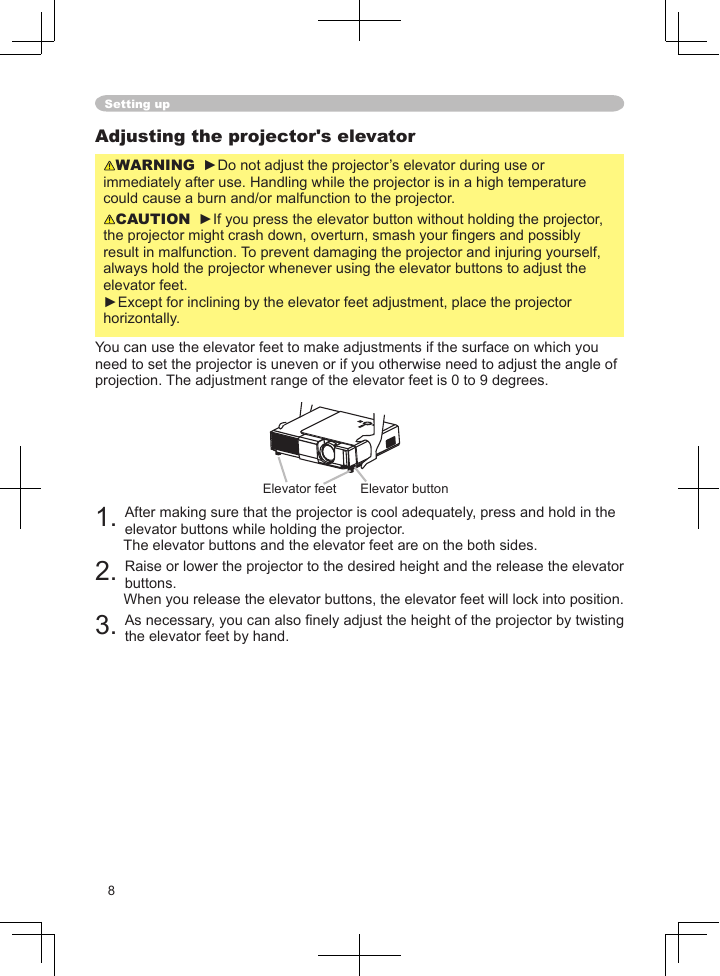

Setting up Adjusting the projector's elevator WARNING ►Do not adjust the projector’s elevator during use or immediately after use. Handling while the projector is in a high temperature could cause a burn and/or malfunction to the projector. CAUTION ►If you press the elevator button without holding the projector, the projector might crash down, overturn, smash your ﬁngers and possibly result in malfunction. To prevent damaging the projector and injuring yourself, always hold the projector whenever using the elevator buttons to adjust the elevator feet. ►Except for inclining by the elevator feet adjustment, place the projector horizontally. You can use the elevator feet to make adjustments if the surface on which you need to set the projector is uneven or if you otherwise need to adjust the angle of projection. The adjustment range of the elevator feet is 0 to 9 degrees. Elevator feet Elevator button elevator buttons while holding the projector. 1. After making sure that the projector is cool adequately, press and hold in the The elevator buttons and the elevator feet are on the both sides. 2. Raise or lower the projector to the desired height and the release the elevator When you release the elevator buttons, the elevator feet will lock into position. 3. As necessary, you can also ﬁnely adjust the height of the projector by twisting buttons. the elevator feet by hand. 8
