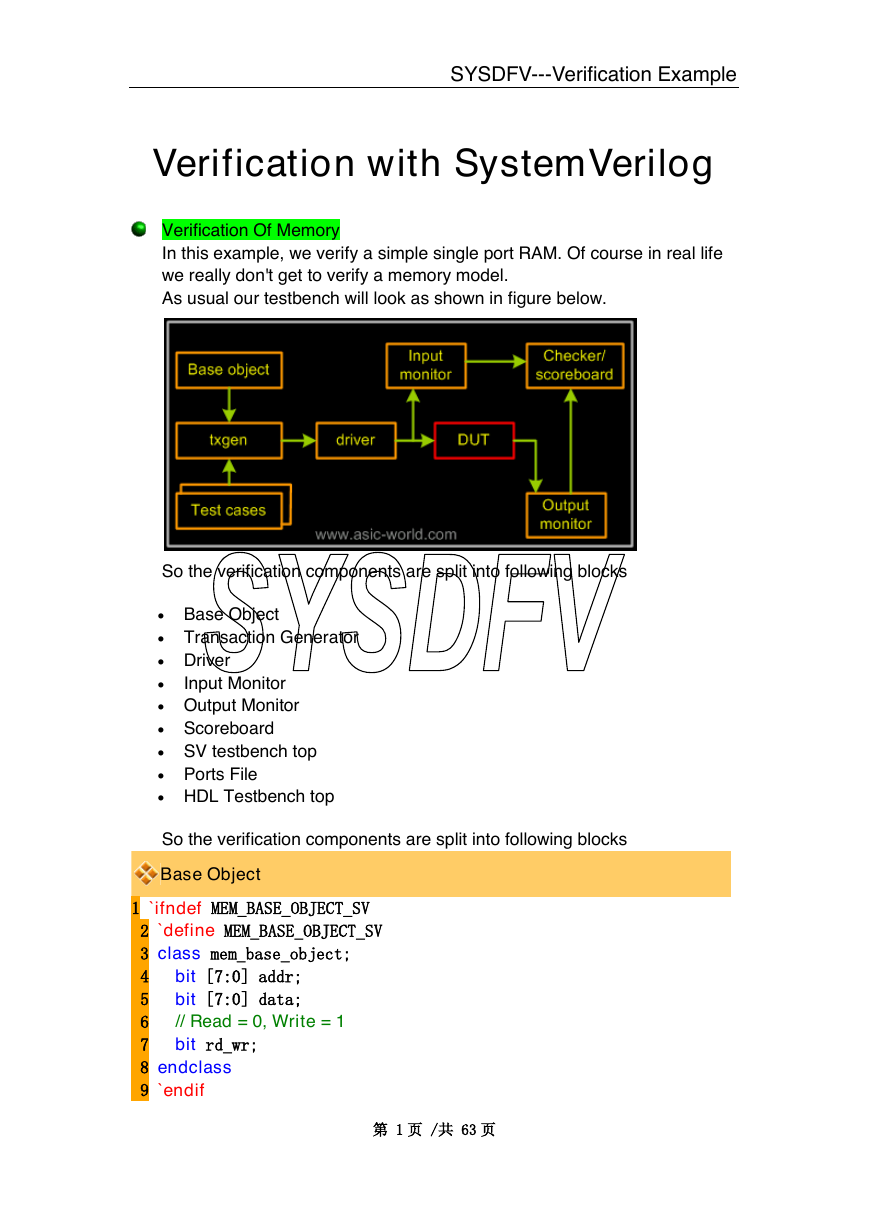

SYSDFV---Verification Example Verification with SystemVerilog Verification Of Memory In this example, we verify a simple single port RAM. Of course in real life we really don't get to verify a memory model. As usual our testbench will look as shown in figure below. So the verification components are split into following blocks  Base Object  Transaction Generator  Driver Input Monitor   Output Monitor  Scoreboard  SV testbench top  Ports File  HDL Testbench top So the verification components are split into following blocks Base Object 1 `ifndef MEM_BASE_OBJECT_SV 2 `define MEM_BASE_OBJECT_SV 3 class mem_base_object; 4 bit [7:0] addr; 5 bit [7:0] data; 6 // Read = 0, Write = 1 7 bit rd_wr; 8 endclass 9 `endif 第 1 页 /共 63 页

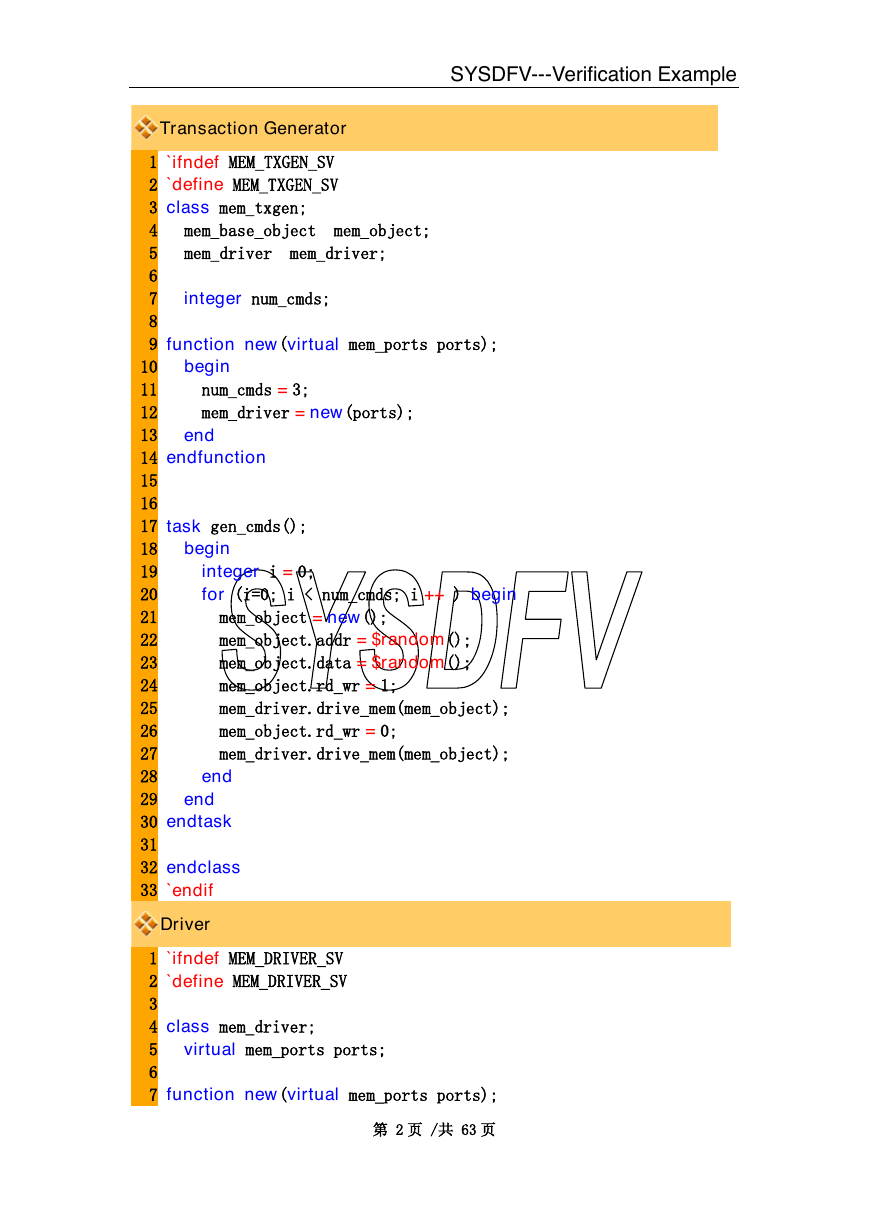

SYSDFV---Verification Example Transaction Generator 1 `ifndef MEM_TXGEN_SV 2 `define MEM_TXGEN_SV 3 class mem_txgen; 4 mem_base_object mem_object; 5 mem_driver mem_driver; 6 7 integer num_cmds; 8 9 function new(virtual mem_ports ports); 10 begin 11 num_cmds = 3; 12 mem_driver = new(ports); 13 end 14 endfunction 15 16 17 task gen_cmds(); 18 begin 19 integer i = 0; 20 for (i=0; i < num_cmds; i ++ ) begin 21 mem_object = new(); 22 mem_object.addr = $random(); 23 mem_object.data = $random(); 24 mem_object.rd_wr = 1; 25 mem_driver.drive_mem(mem_object); 26 mem_object.rd_wr = 0; 27 mem_driver.drive_mem(mem_object); 28 end 29 end 30 endtask 31 32 endclass 33 `endif Driver 1 `ifndef MEM_DRIVER_SV 2 `define MEM_DRIVER_SV 3 4 class mem_driver; 5 virtual mem_ports ports; 6 7 function new(virtual mem_ports ports); 第 2 页 /共 63 页

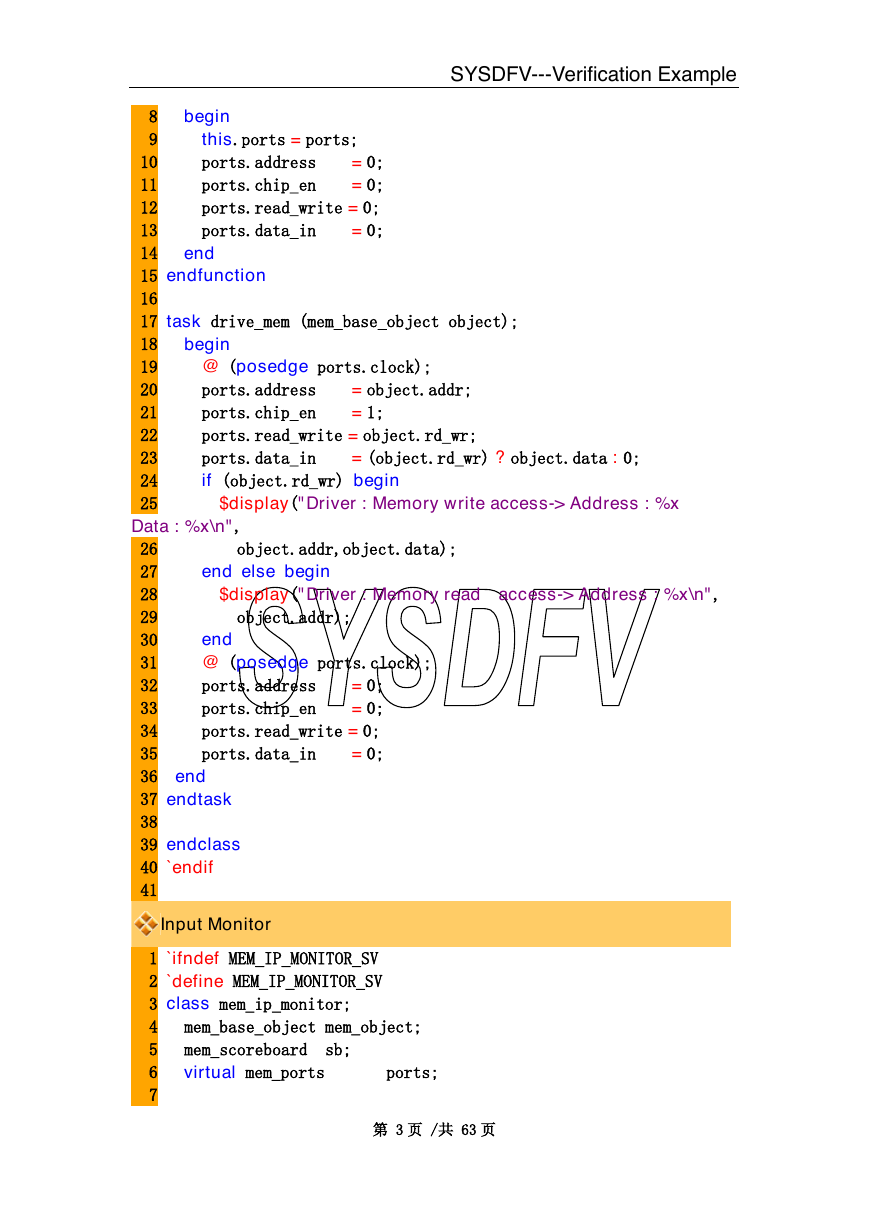

SYSDFV---Verification Example 8 begin 9 this.ports = ports; 10 ports.address = 0; 11 ports.chip_en = 0; 12 ports.read_write = 0; 13 ports.data_in = 0; 14 end 15 endfunction 16 17 task drive_mem (mem_base_object object); 18 begin 19 @ (posedge ports.clock); 20 ports.address = object.addr; 21 ports.chip_en = 1; 22 ports.read_write = object.rd_wr; 23 ports.data_in = (object.rd_wr) ? object.data : 0; 24 if (object.rd_wr) begin 25 $display("Driver : Memory write access-> Address : %x Data : %x\n", 26 object.addr,object.data); 27 end else begin 28 $display("Driver : Memory read access-> Address : %x\n", 29 object.addr); 30 end 31 @ (posedge ports.clock); 32 ports.address = 0; 33 ports.chip_en = 0; 34 ports.read_write = 0; 35 ports.data_in = 0; 36 end 37 endtask 38 39 endclass 40 `endif 41 Input Monitor 1 `ifndef MEM_IP_MONITOR_SV 2 `define MEM_IP_MONITOR_SV 3 class mem_ip_monitor; 4 mem_base_object mem_object; 5 mem_scoreboard sb; 6 virtual mem_ports ports; 7 第 3 页 /共 63 页

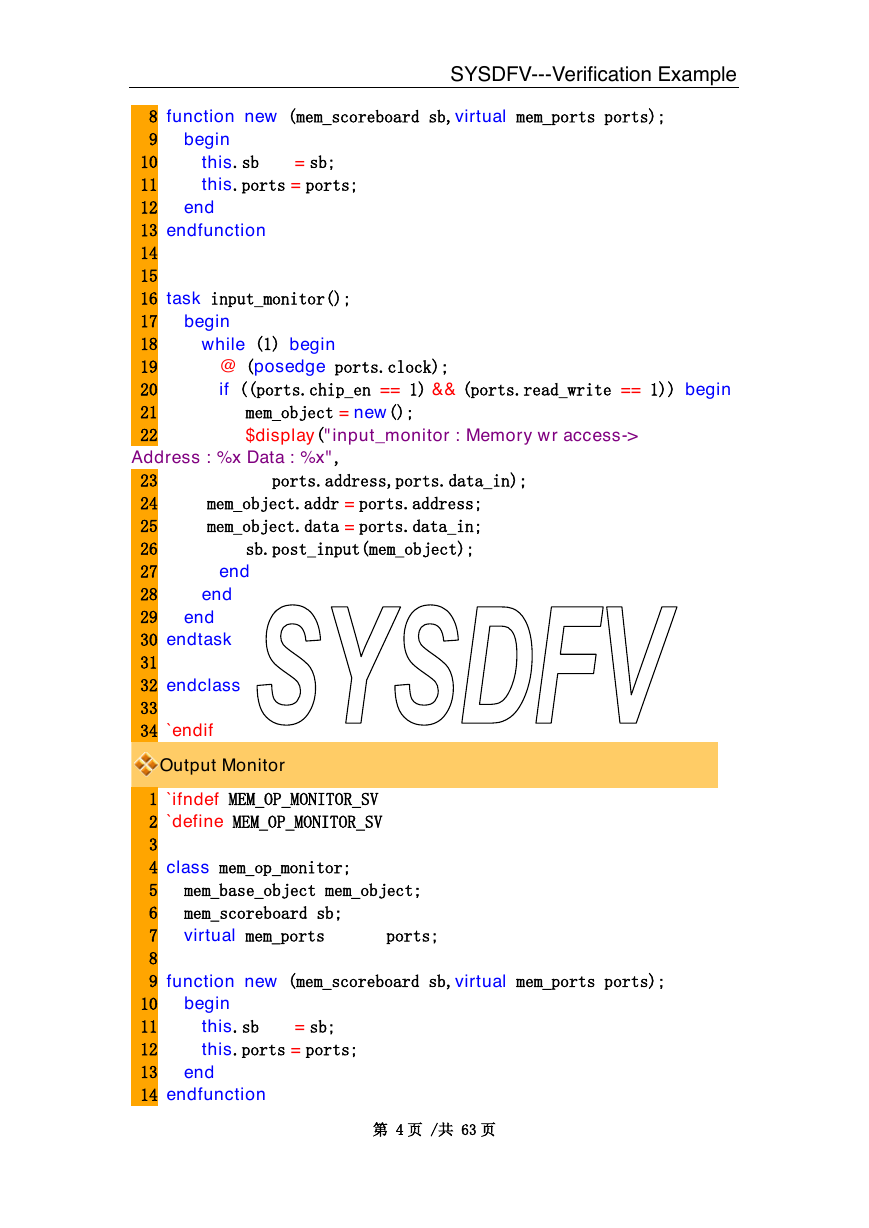

SYSDFV---Verification Example 8 function new (mem_scoreboard sb,virtual mem_ports ports); 9 begin 10 this.sb = sb; 11 this.ports = ports; 12 end 13 endfunction 14 15 16 task input_monitor(); 17 begin 18 while (1) begin 19 @ (posedge ports.clock); 20 if ((ports.chip_en == 1) && (ports.read_write == 1)) begin 21 mem_object = new(); 22 $display("input_monitor : Memory wr access-> Address : %x Data : %x", 23 ports.address,ports.data_in); mem_object.addr = ports.address; 24 25 mem_object.data = ports.data_in; 26 sb.post_input(mem_object); 27 end 28 end 29 end 30 endtask 31 32 endclass 33 34 `endif Output Monitor 1 `ifndef MEM_OP_MONITOR_SV 2 `define MEM_OP_MONITOR_SV 3 4 class mem_op_monitor; 5 mem_base_object mem_object; 6 mem_scoreboard sb; 7 virtual mem_ports ports; 8 9 function new (mem_scoreboard sb,virtual mem_ports ports); 10 begin 11 this.sb = sb; 12 this.ports = ports; 13 end 14 endfunction 第 4 页 /共 63 页

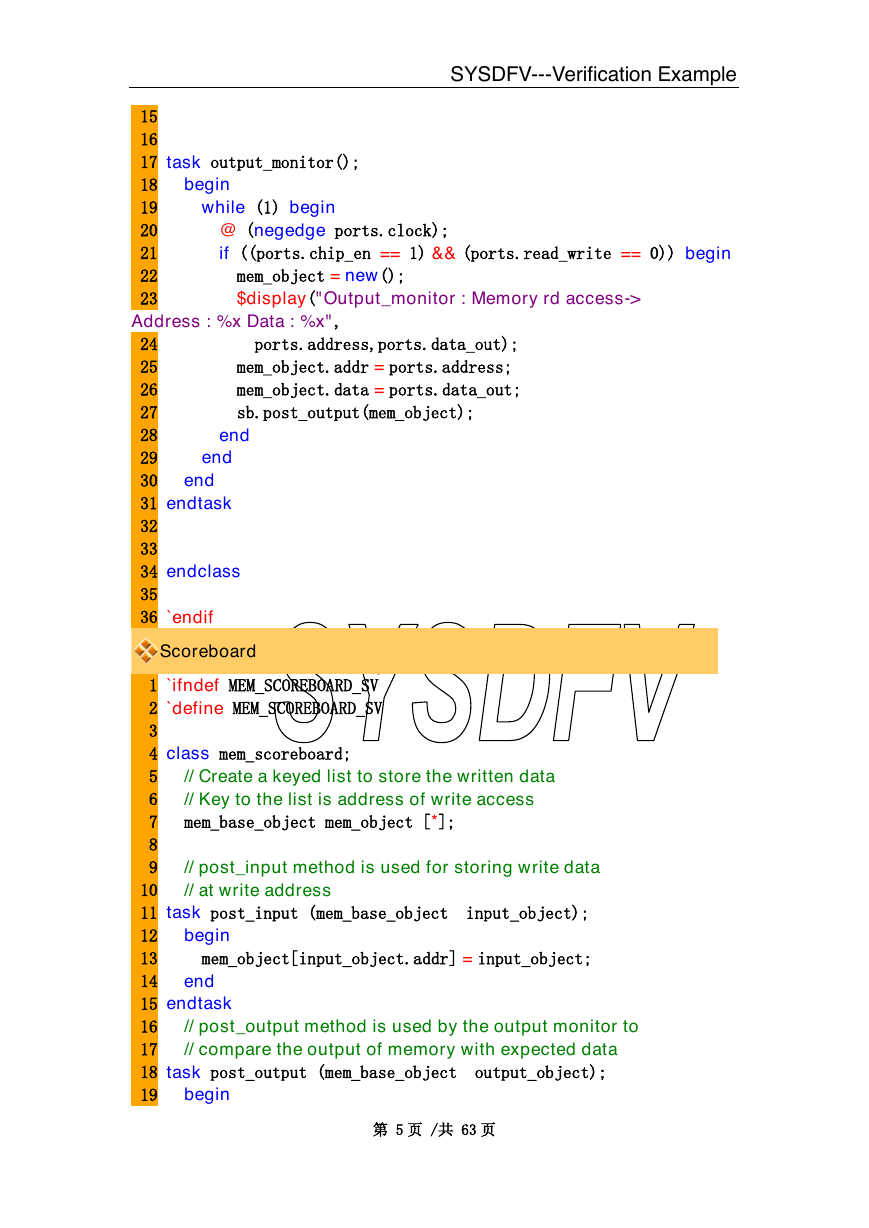

SYSDFV---Verification Example 15 16 17 task output_monitor(); 18 begin 19 while (1) begin 20 @ (negedge ports.clock); 21 if ((ports.chip_en == 1) && (ports.read_write == 0)) begin 22 mem_object = new(); 23 $display("Output_monitor : Memory rd access-> Address : %x Data : %x", 24 ports.address,ports.data_out); 25 mem_object.addr = ports.address; 26 mem_object.data = ports.data_out; 27 sb.post_output(mem_object); 28 end 29 end 30 end 31 endtask 32 33 34 endclass 35 36 `endif Scoreboard 1 `ifndef MEM_SCOREBOARD_SV 2 `define MEM_SCOREBOARD_SV 3 4 class mem_scoreboard; 5 // Create a keyed list to store the written data 6 // Key to the list is address of write access 7 mem_base_object mem_object [*]; 8 9 // post_input method is used for storing write data 10 // at write address 11 task post_input (mem_base_object input_object); 12 begin 13 mem_object[input_object.addr] = input_object; 14 end 15 endtask 16 // post_output method is used by the output monitor to 17 // compare the output of memory with expected data 18 task post_output (mem_base_object output_object); 19 begin 第 5 页 /共 63 页

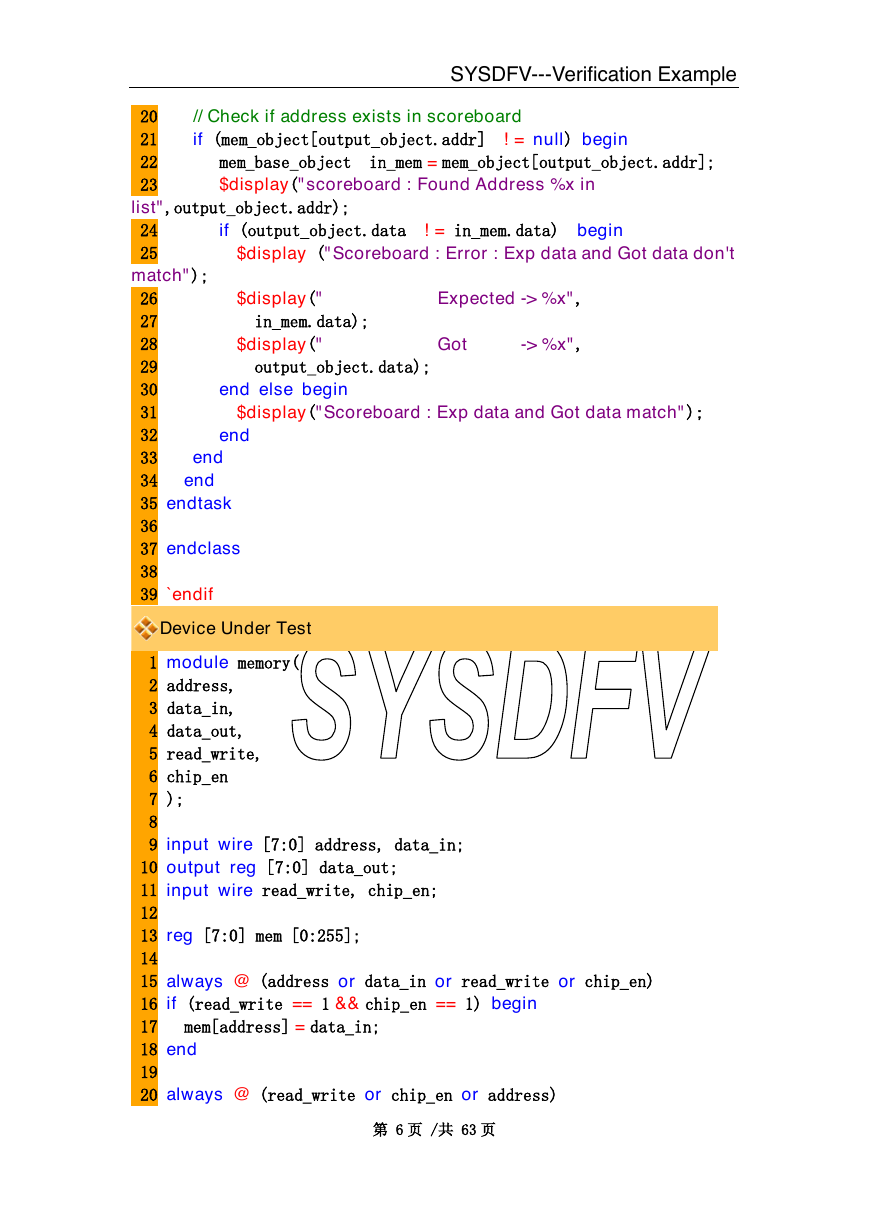

SYSDFV---Verification Example 20 // Check if address exists in scoreboard 21 if (mem_object[output_object.addr] ! = null) begin 22 mem_base_object in_mem = mem_object[output_object.addr]; 23 $display("scoreboard : Found Address %x in list",output_object.addr); 24 if (output_object.data ! = in_mem.data) begin 25 $display ("Scoreboard : Error : Exp data and Got data don't match"); 26 $display(" Expected -> %x", 27 in_mem.data); 28 $display(" Got -> %x", 29 output_object.data); 30 end else begin 31 $display("Scoreboard : Exp data and Got data match"); 32 end 33 end 34 end 35 endtask 36 37 endclass 38 39 `endif Device Under Test 1 module memory( 2 address, 3 data_in, 4 data_out, 5 read_write, 6 chip_en 7 ); 8 9 input wire [7:0] address, data_in; 10 output reg [7:0] data_out; 11 input wire read_write, chip_en; 12 13 reg [7:0] mem [0:255]; 14 15 always @ (address or data_in or read_write or chip_en) 16 if (read_write == 1 && chip_en == 1) begin 17 mem[address] = data_in; 18 end 19 20 always @ (read_write or chip_en or address) 第 6 页 /共 63 页

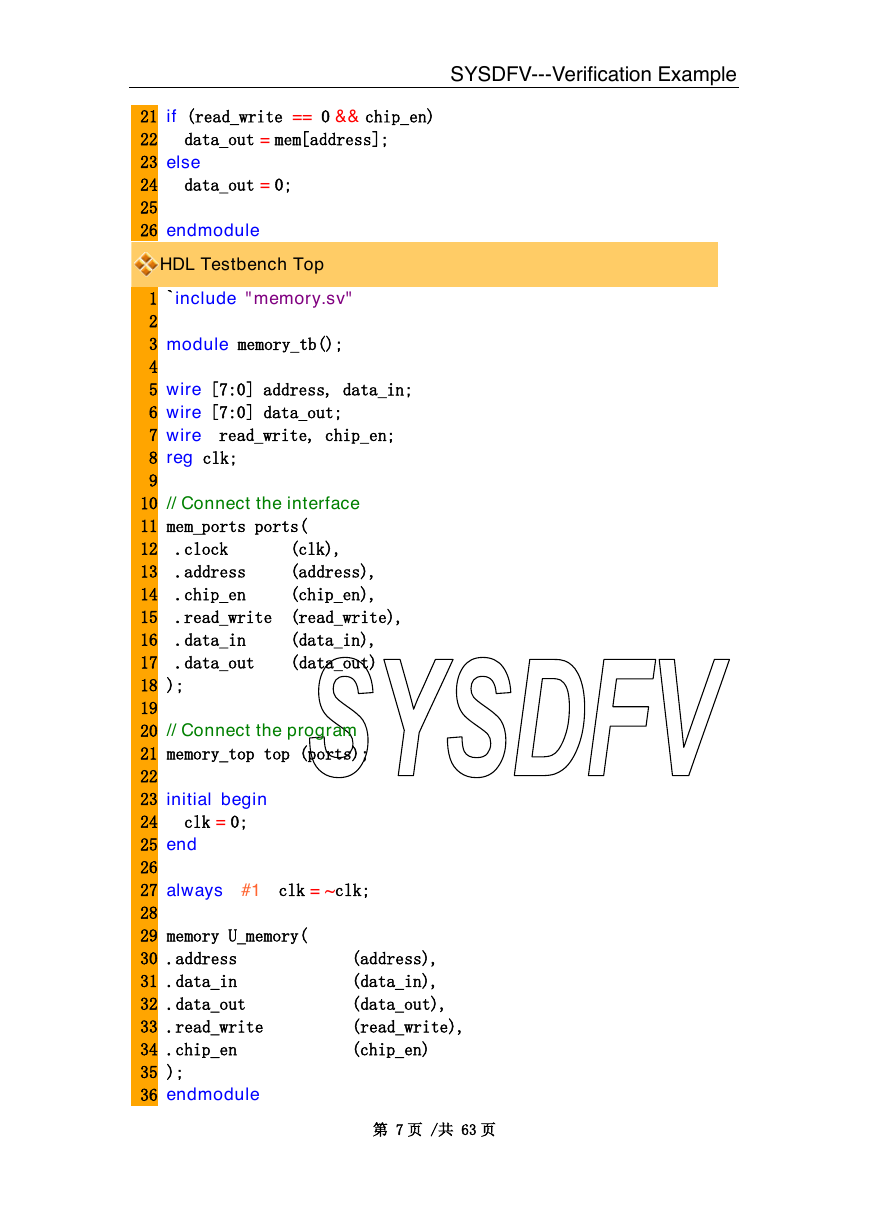

SYSDFV---Verification Example 21 if (read_write == 0 && chip_en) 22 data_out = mem[address]; 23 else 24 data_out = 0; 25 26 endmodule HDL Testbench Top 1 `include "memory.sv" 2 3 module memory_tb(); 4 5 wire [7:0] address, data_in; 6 wire [7:0] data_out; 7 wire read_write, chip_en; 8 reg clk; 9 10 // Connect the interface 11 mem_ports ports( 12 .clock (clk), 13 .address (address), 14 .chip_en (chip_en), 15 .read_write (read_write), 16 .data_in (data_in), 17 .data_out (data_out) 18 ); 19 20 // Connect the program 21 memory_top top (ports); 22 23 initial begin 24 clk = 0; 25 end 26 27 always #1 clk = ~clk; 28 29 memory U_memory( 30 .address (address), 31 .data_in (data_in), 32 .data_out (data_out), 33 .read_write (read_write), 34 .chip_en (chip_en) 35 ); 36 endmodule 第 7 页 /共 63 页

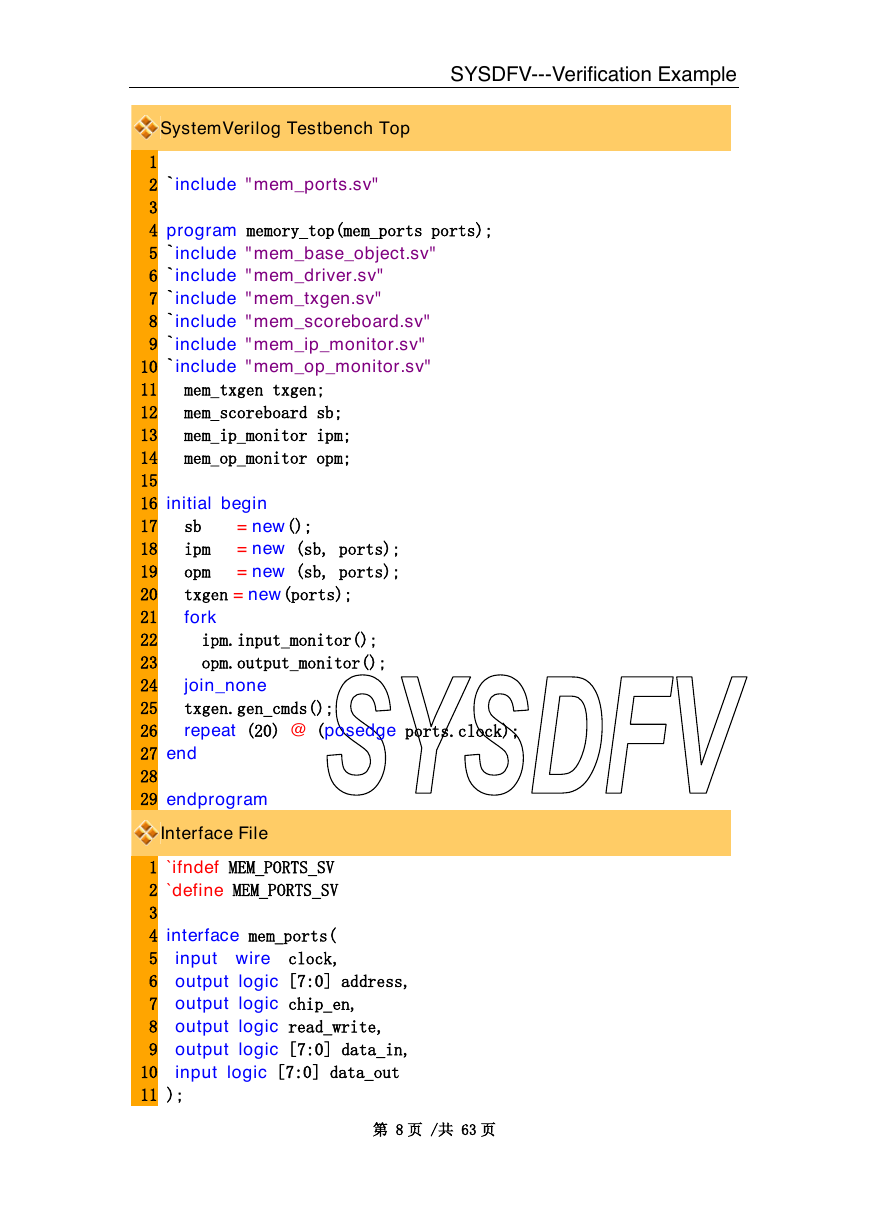

SYSDFV---Verification Example SystemVerilog Testbench Top 1 2 `include "mem_ports.sv" 3 4 program memory_top(mem_ports ports); 5 `include "mem_base_object.sv" 6 `include "mem_driver.sv" 7 `include "mem_txgen.sv" 8 `include "mem_scoreboard.sv" 9 `include "mem_ip_monitor.sv" 10 `include "mem_op_monitor.sv" 11 mem_txgen txgen; 12 mem_scoreboard sb; 13 mem_ip_monitor ipm; 14 mem_op_monitor opm; 15 16 initial begin 17 sb = new(); 18 ipm = new (sb, ports); 19 opm = new (sb, ports); 20 txgen = new(ports); 21 fork 22 ipm.input_monitor(); 23 opm.output_monitor(); 24 join_none 25 txgen.gen_cmds(); 26 repeat (20) @ (posedge ports.clock); 27 end 28 29 endprogram Interface File 1 `ifndef MEM_PORTS_SV 2 `define MEM_PORTS_SV 3 4 interface mem_ports( 5 input wire clock, 6 output logic [7:0] address, 7 output logic chip_en, 8 output logic read_write, 9 output logic [7:0] data_in, 10 input logic [7:0] data_out 11 ); 第 8 页 /共 63 页
