1 Your mobile ������������������
1�1 Keys and connectors
Quick Start Guide
For more information about how to use the phone, please go to
www.alcatelonetouch.com to download the complete user manual.
From the website you can also consult the FAQ, upgrade software,
etc.
www.sar-tick.com
This product meets applicable
national SAR limits of 2.0 W/kg. The
specific maximum SAR values can be
found on page 32 of this user guide.
When carrying the product or using
it while worn on your body, either
use an approved accessory such as
a holster or otherwise maintain a
distance of 10 mm from the body to
ensure compliance with RF exposure
requirements. Note that the product
may be transmitting even if you are
not making a phone call.
Back key
Home key
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high
volume levels for long periods. Exercise caution when
holding your device near your ear while the loudspeaker
is in use.
English - CJB2870ALAAA
1
Headset connector
Front Camera
Touch screen
Menu key
Micro-USB
connector
2
Pixi3-4_4013X_4013D GB QG_Eng_EN_07_150113.indd 1-2
2015/1/13 13:56:13
Camera
Flash/Torch
Power key
Volume up
Volume down
Menu key
• Option menu. Touch to access Manage Home-
screen, Add widgets, Manage applications,
Wallpaper and Settings.
• Recent apps. Touch and hold to open a list of
thumbnail
images of apps you've worked with
recently. Touch it to open an app. Swipe it upwards or
downwards to remove a thumbnail from the list.
Home key
• While on any application or screen, touch to return
to the Home screen.
Back key
• Touch to go back to the previous screen, or to close a
dialog box, options menu, the notification panel, etc.
Power key
• Press: Lock the screen/Light up the screen.
• Press and hold: Power on or generate a pop up menu
selecting from Power off/Restart/Airplane mode
or icons of Ringer mode.
• Press to mute the ringtone when there’s an incoming
call.
• Press and hold for more than 10 seconds to restart the
phone when the system halted.
• Press and hold Power key and Volume down key to
capture a screenshot.
• Press and hold Power key and Volume up key under
power off mode to restore factory set.
Volume keys
• Under call mode, adjust the earpiece or headset
volume.
• In Music/Video/Streaming mode, adjust the media
volume.
• In general mode, adjust the ring tone volume.
• Mute the ringtone of an incoming call.
• In Camera mode, using it as the capture key allows you
to take a photo.
3
4
Pixi3-4_4013X_4013D GB QG_Eng_EN_07_150113.indd 3-4
2015/1/13 13:56:14
1�2 Getting started
1�2�1 Set-up
Removing or installing the back cover
Installing or removing the battery
Please power off your phone before removing the battery.
Inserting or removing the SIM card
You must insert your SIM card to make phone calls. Please power off
your phone before inserting or removing the SIM card.
• Insert and click the battery into place, then close the cover.
• Unclip the cover, then remove the battery.
Installing or removing the microSD card
4013X
4013D
To install, please open microSD card lock first, and then place the
external microSD card into the slot with the gold contact facing
down. To remove the external microSD card, please open microSD
card lock and take it out from the slot.
Charging the battery
Place the SIM card with the chip facing downwards and slide it into its
housing. Make sure that it is correctly inserted. To remove the card,
press and slide it out.
For dual SIM models, both SIM1 and SIM2 can support 2G
and 3G networks. If both of them are 3G SIM cards, only one
card can support 3G network (1). Your phone only supports
mini-SIM card. Do not attempt to insert other SIM types
like micro and nano cards, otherwise you may damage your
phone.
Connect battery charger to your phone and plug into the socket.
If the battery is very low, there will be no indication that
power is being received until the charge is sufficient to show
the charging status bar. To reduce power consumption and
energy waste, once the battery is fully charged, disconnect
your charger from the plug; switch off Wi-Fi, GPS, Bluetooth
or background-running applications when not in use; reduce
the backlight time, etc.
(1) 4013D only.
5
6
Pixi3-4_4013X_4013D GB QG_Eng_EN_07_150113.indd 5-6
2015/1/13 13:56:22

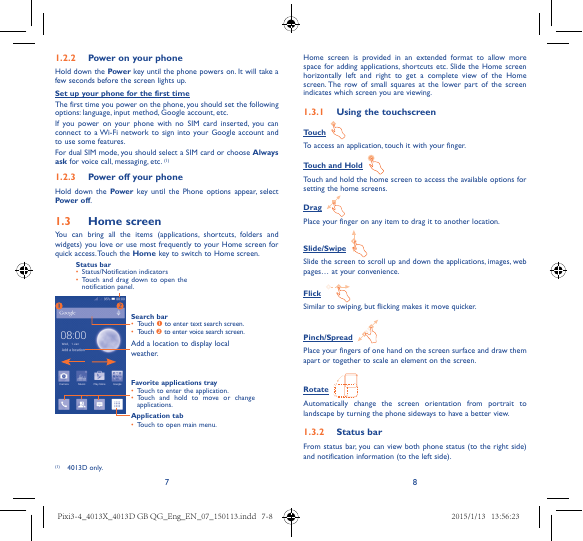

1�2�2 Power on your phone
Hold down the Power key until the phone powers on. It will take a
few seconds before the screen lights up.
Set up your phone for the first time
The first time you power on the phone, you should set the following
options: language, input method, Google account, etc.
If you power on your phone with no SIM card inserted, you can
connect to a Wi-Fi network to sign into your Google account and
to use some features.
For dual SIM mode, you should select a SIM card or choose Always
ask for voice call, messaging, etc. (1)
1�2�3 Power off your phone
Hold down the Power key until the Phone options appear, select
Power off.
1�3 Home screen
You can bring all the items (applications, shortcuts, folders and
widgets) you love or use most frequently to your Home screen for
quick access. Touch the Home key to switch to Home screen.
Status bar
• Status/Notification indicators
• Touch and drag down to open the
notification panel.
Search bar
• Touch to enter text search screen.
• Touch to enter voice search screen.
Add a location to display local
weather.
Favorite applications tray
• Touch to enter the application.
• Touch and hold to move or change
applications.
Application tab
• Touch to open main menu.
Home screen is provided in an extended format to allow more
space for adding applications, shortcuts etc. Slide the Home screen
horizontally left and right to get a complete view of the Home
screen. The row of small squares at the lower part of the screen
indicates which screen you are viewing.
1�3�1 Using the touchscreen
Touch
To access an application, touch it with your finger.
Touch and Hold
Touch and hold the home screen to access the available options for
setting the home screens.
Drag
Place your finger on any item to drag it to another location.
Slide/Swipe
Slide the screen to scroll up and down the applications, images, web
pages… at your convenience.
Flick
Similar to swiping, but flicking makes it move quicker.
Pinch/Spread
Place your fingers of one hand on the screen surface and draw them
apart or together to scale an element on the screen.
Rotate
Automatically change the screen orientation from portrait to
landscape by turning the phone sideways to have a better view.
1�3�2 Status bar
From status bar, you can view both phone status (to the right side)
and notification information (to the left side).
(1) 4013D only.
7
8
Pixi3-4_4013X_4013D GB QG_Eng_EN_07_150113.indd 7-8
2015/1/13 13:56:23

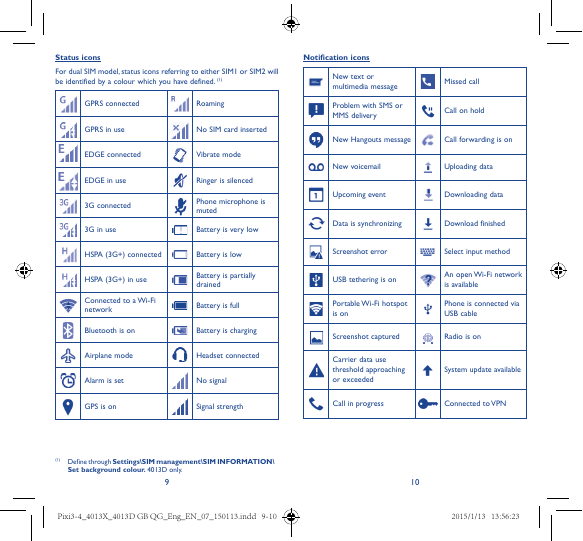

Status icons
For dual SIM model, status icons referring to either SIM1 or SIM2 will
be identified by a colour which you have defined. (1)
GPRS connected
Roaming
GPRS in use
No SIM card inserted
EDGE connected
Vibrate mode
EDGE in use
Ringer is silenced
3G connected
Phone microphone is
muted
3G in use
Battery is very low
Notification icons
New text or
multimedia message
Problem with SMS or
MMS delivery
Missed call
Call on hold
New Hangouts message
Call forwarding is on
New voicemail
Uploading data
Upcoming event
Downloading data
Data is synchronizing
Download finished
HSPA (3G+) connected
Battery is low
Screenshot error
Select input method
HSPA (3G+) in use
Connected to a Wi-Fi
network
Battery is partially
drained
Battery is full
Bluetooth is on
Battery is charging
Airplane mode
Headset connected
Alarm is set
No signal
USB tethering is on
An open Wi-Fi network
is available
Portable Wi-Fi hotspot
is on
Phone is connected via
USB cable
Screenshot captured
Radio is on
Carrier data use
threshold approaching
or exceeded
System update available
GPS is on
Signal strength
Call in progress
Connected to VPN
(1) Define through Settings\SIM management\SIM INFORMATION\
Set background colour� 4013D only.
9
10
Pixi3-4_4013X_4013D GB QG_Eng_EN_07_150113.indd 9-10
2015/1/13 13:56:23

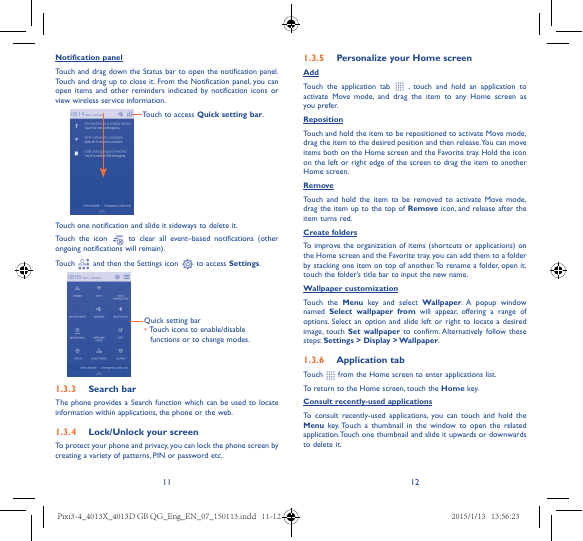

Notification panel
Touch and drag down the Status bar to open the notification panel.
Touch and drag up to close it. From the Notification panel, you can
open items and other reminders indicated by notification icons or
view wireless service information.
Touch to access Quick setting bar.
Touch one notification and slide it sideways to delete it.
Touch the icon
ongoing notifications will remain).
to clear all event–based notifications (other
Touch
and then the Settings icon
to access Settings.
Quick setting bar
• Touch icons to enable/disable
functions or to change modes.
1�3�3 Search bar
The phone provides a Search function which can be used to locate
information within applications, the phone or the web.
1�3�4 Lock/Unlock your screen
To protect your phone and privacy, you can lock the phone screen by
creating a variety of patterns, PIN or password etc.
1�3�5 Personalize your Home screen
Add
Touch the application tab
, touch and hold an application to
activate Move mode, and drag the item to any Home screen as
you prefer.
Reposition
Touch and hold the item to be repositioned to activate Move mode,
drag the item to the desired position and then release. You can move
items both on the Home screen and the Favorite tray. Hold the icon
on the left or right edge of the screen to drag the item to another
Home screen.
Remove
Touch and hold the item to be removed to activate Move mode,
drag the item up to the top of Remove icon, and release after the
item turns red.
Create folders
To improve the organization of items (shortcuts or applications) on
the Home screen and the Favorite tray, you can add them to a folder
by stacking one item on top of another. To rename a folder, open it,
touch the folder’s title bar to input the new name.
Wallpaper customization
Touch the Menu key and select Wallpaper. A popup window
named Select wallpaper from will appear, offering a range of
options. Select an option and slide left or right to locate a desired
image, touch Set wallpaper to confirm. Alternatively follow these
steps: Settings > Display > Wallpaper.
from the Home screen to enter applications list.
1�3�6 Application tab
Touch
To return to the Home screen, touch the Home key.
Consult recently-used applications
To consult recently-used applications, you can touch and hold the
Menu key. Touch a thumbnail in the window to open the related
application.Touch one thumbnail and slide it upwards or downwards
to delete it.
11
12
Pixi3-4_4013X_4013D GB QG_Eng_EN_07_150113.indd 11-12
2015/1/13 13:56:23

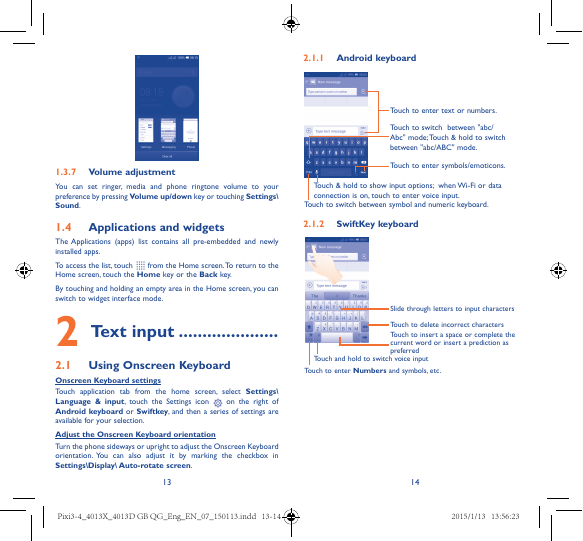

2�1�1 Android keyboard
Touch to enter text or numbers.
Touch to switch between "abc/
Abc" mode; Touch & hold to switch
between "abc/ABC" mode.
Touch to enter symbols/emoticons.
Touch & hold to show input options; when Wi-Fi or data
connection is on, touch to enter voice input.
Touch to switch between symbol and numeric keyboard.
2�1�2 SwiftKey keyboard
Slide through letters to input characters
Touch to delete incorrect characters
Touch to insert a space or complete the
current word or insert a prediction as
preferred
Touch and hold to switch voice input
Touch to enter Numbers and symbols, etc.
1�3�7 Volume adjustment
You can set ringer, media and phone ringtone volume to your
preference by pressing Volume up/down key or touching Settings\
Sound.
1�4 Applications and widgets
The Applications (apps) list contains all pre-embedded and newly
installed apps.
To access the list, touch
Home screen, touch the Home key or the Back key.
By touching and holding an empty area in the Home screen, you can
switch to widget interface mode.
from the Home screen. To return to the
2 Text input ���������������������
2�1 Using Onscreen Keyboard
Onscreen Keyboard settings
Touch application tab from the home screen, select Settings\
on the right of
Language & input, touch the Settings icon
Android keyboard or Swiftkey, and then a series of settings are
available for your selection.
Adjust the Onscreen Keyboard orientation
Turn the phone sideways or upright to adjust the Onscreen Keyboard
orientation. You can also adjust it by marking the checkbox in
Settings\Display\ Auto-rotate screen.
13
14
Pixi3-4_4013X_4013D GB QG_Eng_EN_07_150113.indd 13-14
2015/1/13 13:56:23

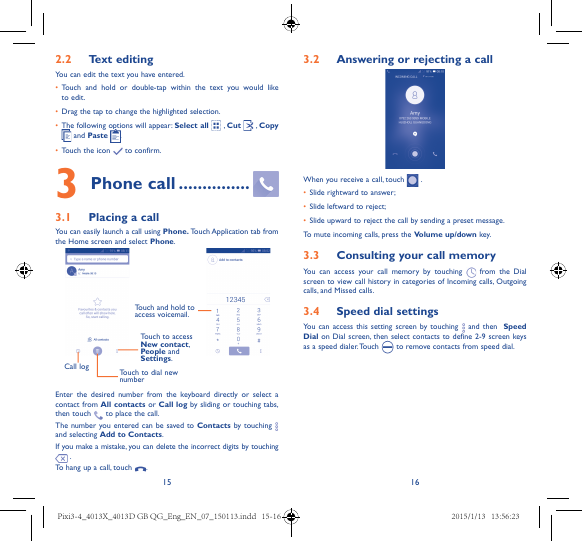

2�2 Text editing
You can edit the text you have entered.
• Touch and hold or double-tap within the text you would like
to edit.
• Drag the tap to change the highlighted selection.
• The following options will appear: Select all
, Cut
, Copy
and Paste
.
• Touch the icon
to confirm.
3 Phone call ���������������
3�1 Placing a call
You can easily launch a call using Phone� Touch Application tab from
the Home screen and select Phone.
Touch and hold to
access voicemail.
Touch to access
New contact,
People and
Settings.
Touch to dial new
number
Call log
3�2 Answering or rejecting a call
.
When you receive a call, touch
• Slide rightward to answer;
• Slide leftward to reject;
• Slide upward to reject the call by sending a preset message.
To mute incoming calls, press the Volume up/down key.
3�3 Consulting your call memory
You can access your call memory by touching
from the Dial
screen to view call history in categories of Incoming calls, Outgoing
calls, and Missed calls.
3�4 Speed dial settings
and then Speed
You can access this setting screen by touching
Dial on Dial screen, then select contacts to define 2-9 screen keys
as a speed dialer. Touch
to remove contacts from speed dial.
Enter the desired number from the keyboard directly or select a
contact from All contacts or Call log by sliding or touching tabs,
then touch
The number you entered can be saved to Contacts by touching
and selecting Add to Contacts.
If you make a mistake, you can delete the incorrect digits by touching
to place the call.
.
To hang up a call, touch
.
15
16
Pixi3-4_4013X_4013D GB QG_Eng_EN_07_150113.indd 15-16
2015/1/13 13:56:23
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
