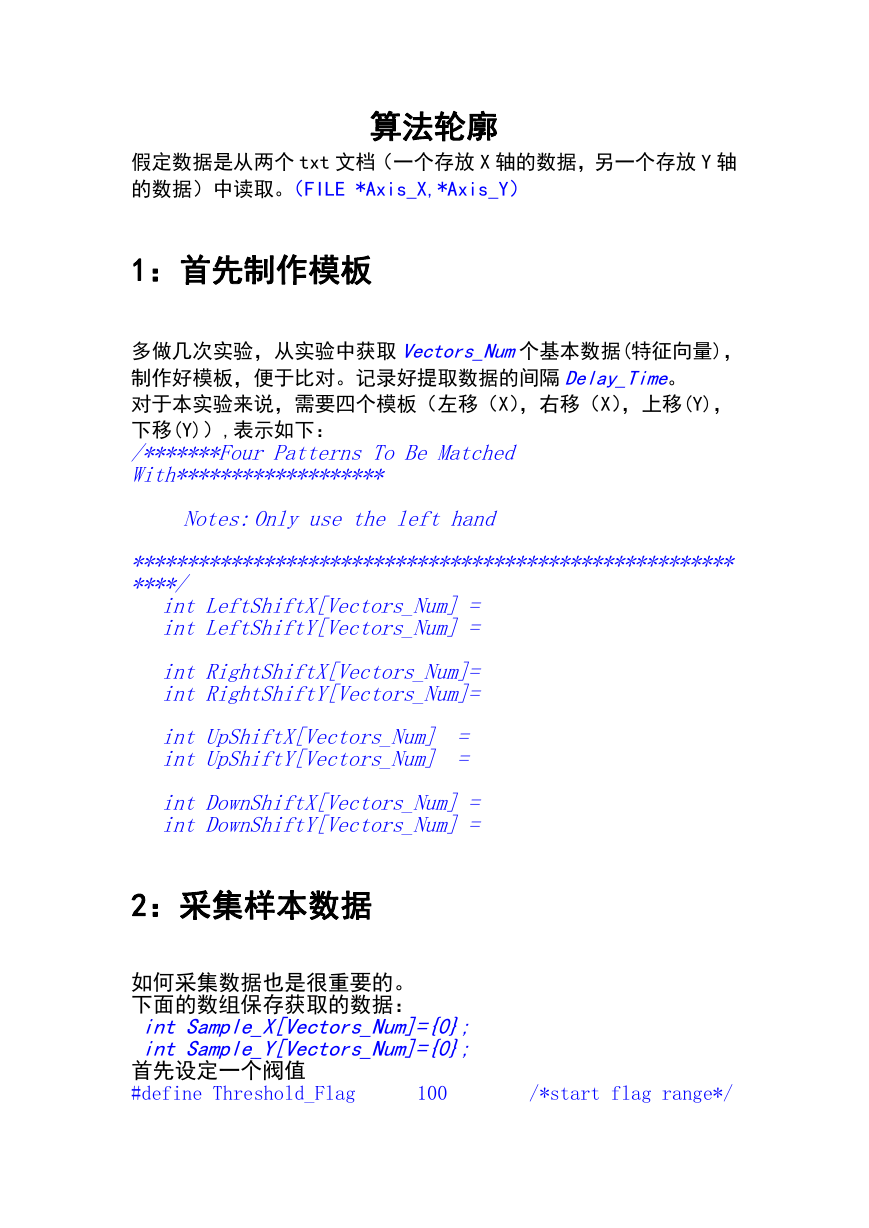

算法轮廓
假定数据是从两个 txt 文档(一个存放 X 轴的数据,另一个存放 Y 轴
的数据)中读取。(FILE *Axis_X,*Axis_Y)
1:首先制作模板
多做几次实验,从实验中获取 Vectors_Num个基本数据(特征向量),
制作好模板,便于比对。记录好提取数据的间隔 Delay_Time。
对于本实验来说,需要四个模板(左移(X),右移(X),上移(Y),
下移(Y)),表示如下:
/*******Four Patterns To Be Matched
With*******************
Notes:Only use the left hand
*******************************************************
****/
int LeftShiftX[Vectors_Num] =
int LeftShiftY[Vectors_Num] =
int RightShiftX[Vectors_Num]=
int RightShiftY[Vectors_Num]=
int UpShiftX[Vectors_Num] =
int UpShiftY[Vectors_Num] =
int DownShiftX[Vectors_Num] =
int DownShiftY[Vectors_Num] =
2:采集样本数据
如何采集数据也是很重要的。
下面的数组保存获取的数据:
int Sample_X[Vectors_Num]={0};
int Sample_Y[Vectors_Num]={0};
首先设定一个阀值
#define Threshold_Flag
100
/*start flag range*/

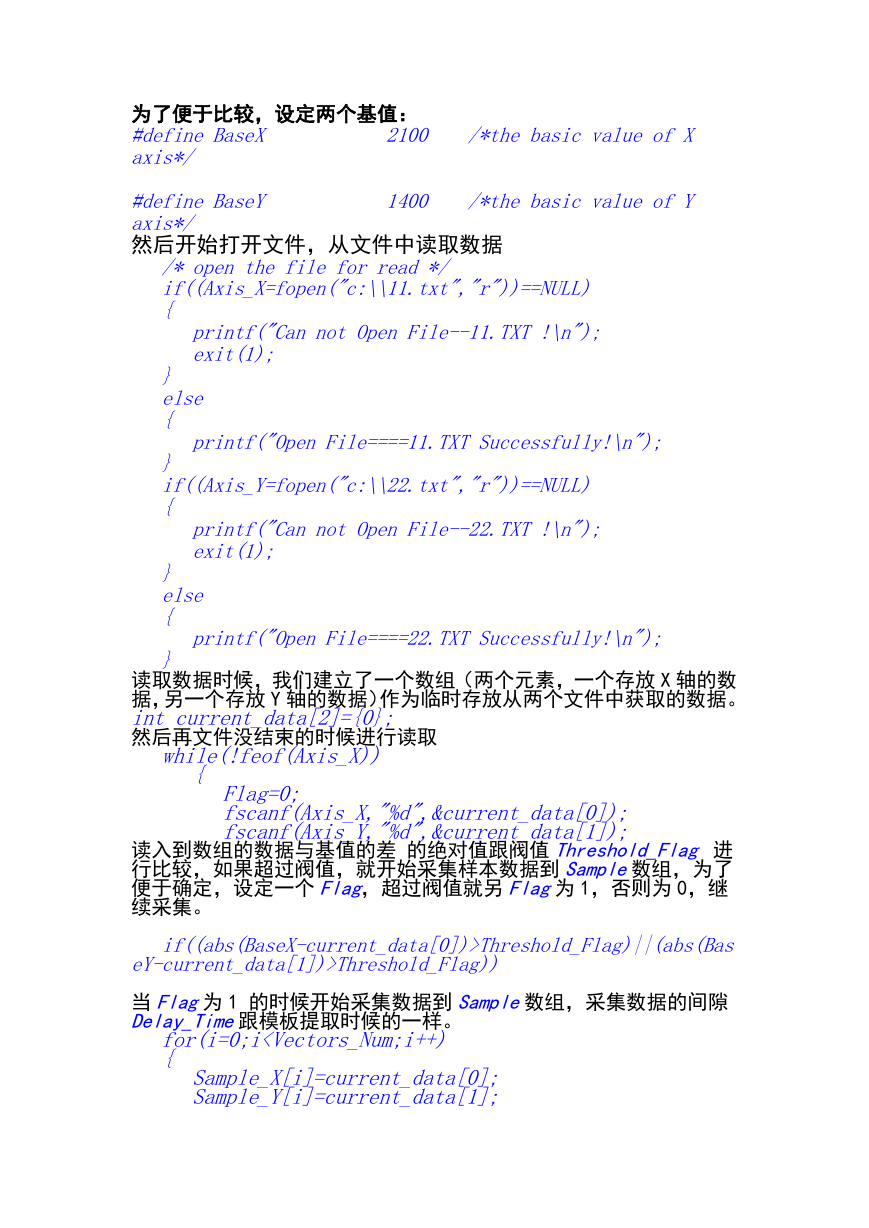

为了便于比较,设定两个基值:
#define BaseX
axis*/
2100
/*the basic value of X
#define BaseY
axis*/
然后开始打开文件,从文件中读取数据
1400
/*the basic value of Y
/* open the file for read */
if((Axis_X=fopen("c:\\11.txt","r"))==NULL)
{
printf("Can not Open File--11.TXT !\n");
exit(1);
}
else
{
printf("Open File====11.TXT Successfully!\n");
}
if((Axis_Y=fopen("c:\\22.txt","r"))==NULL)
{
printf("Can not Open File--22.TXT !\n");
exit(1);
}
else
{
printf("Open File====22.TXT Successfully!\n");
}
读取数据时候,我们建立了一个数组(两个元素,一个存放 X 轴的数
据,另一个存放 Y 轴的数据)作为临时存放从两个文件中获取的数据。
int current_data[2]={0};
然后再文件没结束的时候进行读取
while(!feof(Axis_X))
{
Flag=0;
fscanf(Axis_X,"%d",¤t_data[0]);
fscanf(Axis_Y,"%d",¤t_data[1]);
读入到数组的数据与基值的差 的绝对值跟阀值 Threshold_Flag 进
行比较,如果超过阀值,就开始采集样本数据到 Sample数组,为了
便于确定,设定一个 Flag,超过阀值就另 Flag为 1,否则为 0,继
续采集。
if((abs(BaseX-current_data[0])>Threshold_Flag)||(abs(Bas
eY-current_data[1])>Threshold_Flag))
当 Flag为 1 的时候开始采集数据到 Sample数组,采集数据的间隙
Delay_Time跟模板提取时候的一样。
for(i=0;i

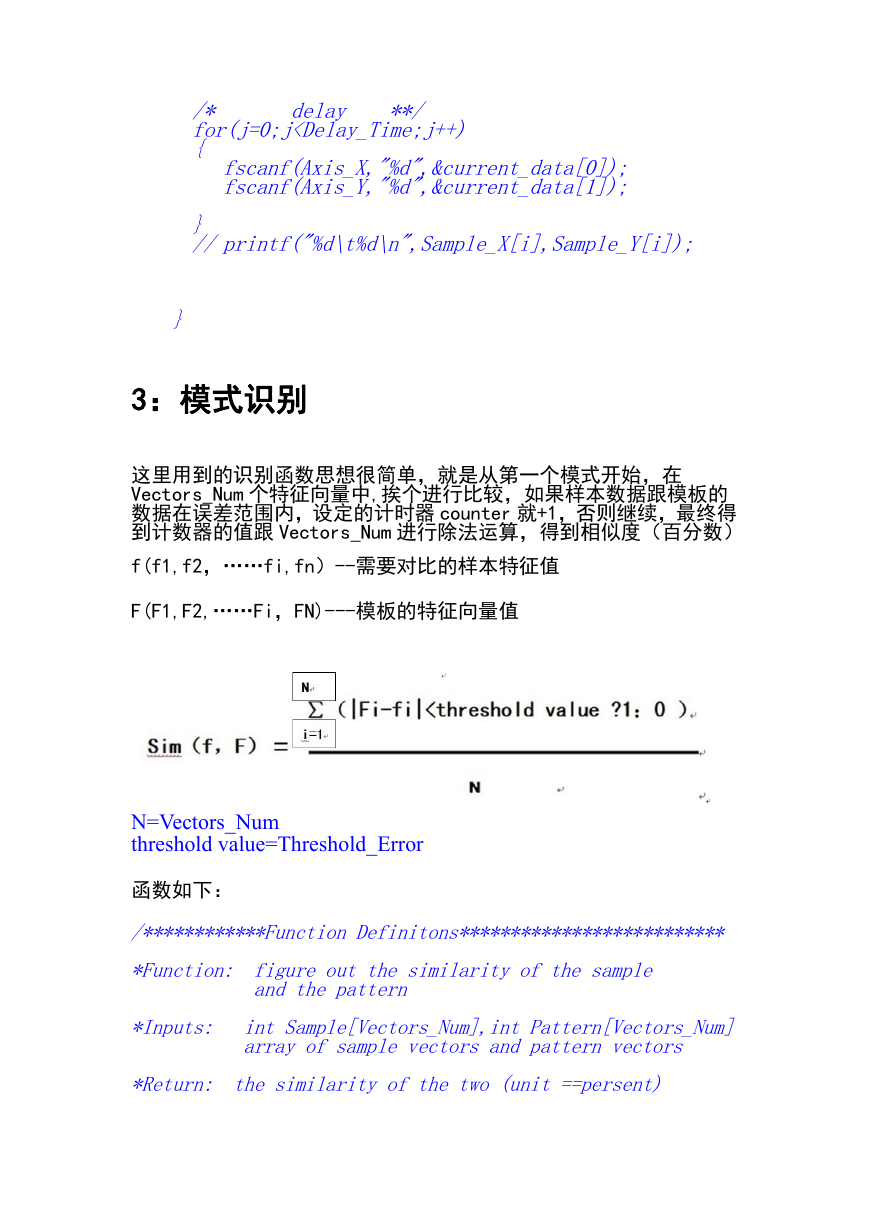

delay
/*
for(j=0;j
*********************************************************/

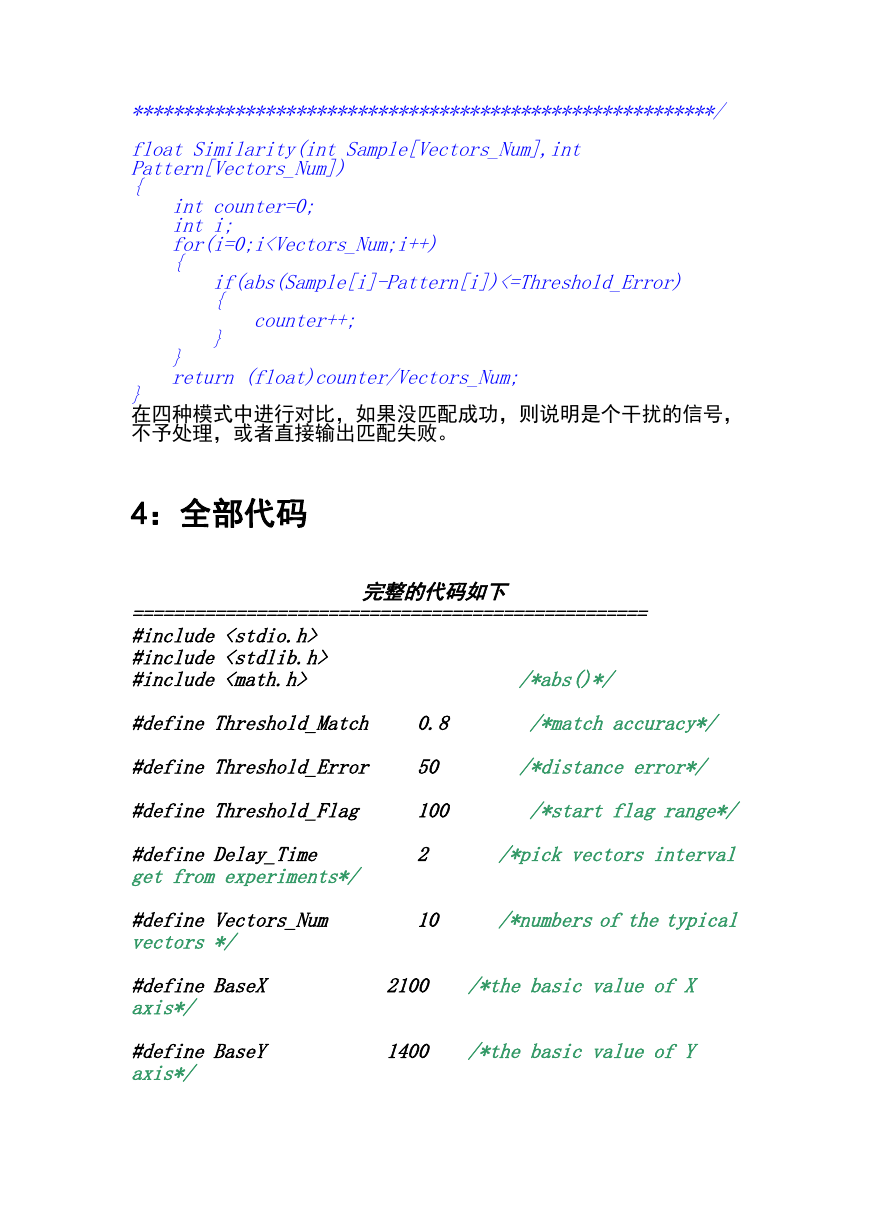

float Similarity(int Sample[Vectors_Num],int
Pattern[Vectors_Num])
{
int counter=0;
int i;
for(i=0;i
#include
#include
/*abs()*/
#define Threshold_Match
0.8
/*match accuracy*/
#define Threshold_Error
50
/*distance error*/
#define Threshold_Flag
100
/*start flag range*/
#define Delay_Time
get from experiments*/
#define Vectors_Num
vectors */
2
/*pick vectors interval
10
/*numbersofthetypical
#define BaseX
axis*/
#define BaseY
axis*/
2100
/*the basic value of X
1400
/*the basic value of Y

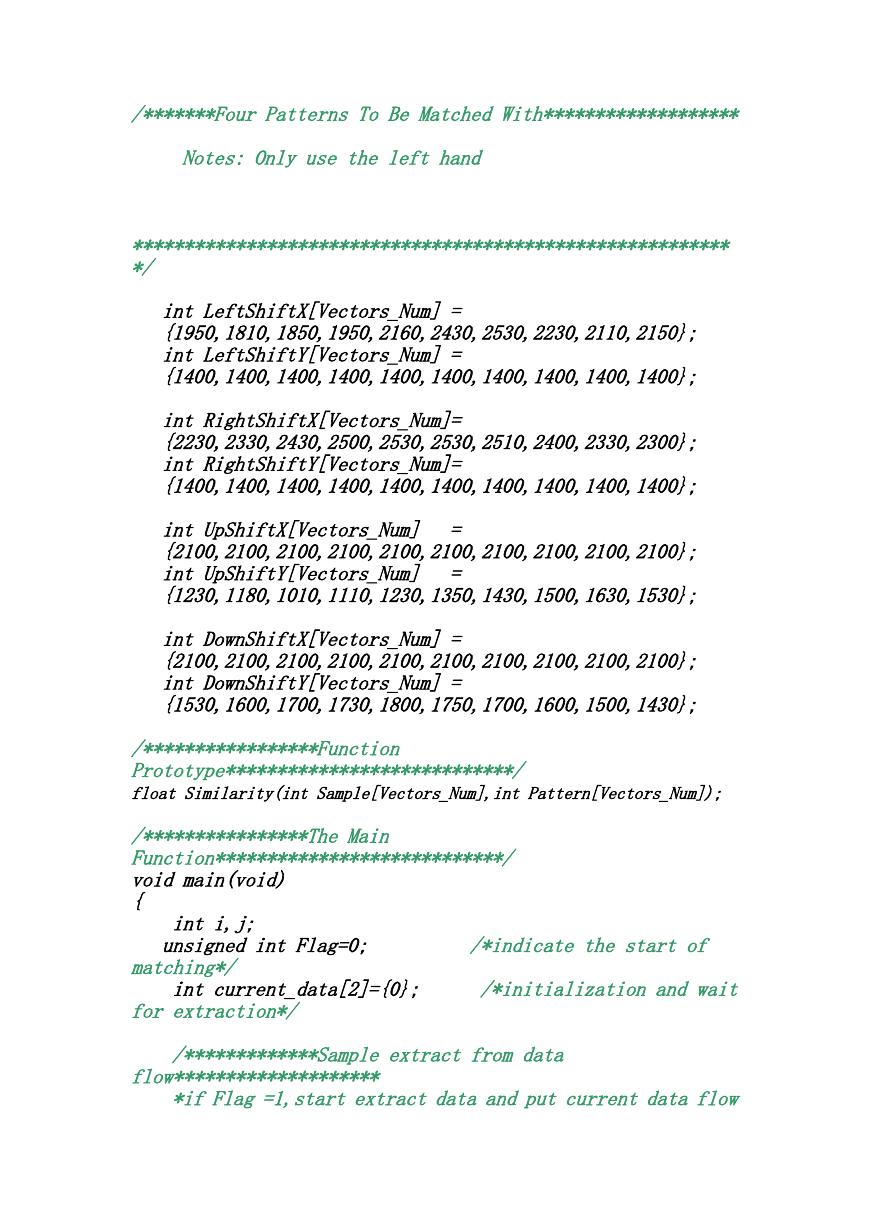

/*******Four Patterns To Be Matched With*******************
Notes: Only use the left hand
**********************************************************
*/
int LeftShiftX[Vectors_Num] =
{1950,1810,1850,1950,2160,2430,2530,2230,2110,2150};
int LeftShiftY[Vectors_Num] =
{1400,1400,1400,1400,1400,1400,1400,1400,1400,1400};
int RightShiftX[Vectors_Num]=
{2230,2330,2430,2500,2530,2530,2510,2400,2330,2300};
int RightShiftY[Vectors_Num]=
{1400,1400,1400,1400,1400,1400,1400,1400,1400,1400};
int UpShiftX[Vectors_Num] =
{2100,2100,2100,2100,2100,2100,2100,2100,2100,2100};
int UpShiftY[Vectors_Num] =
{1230,1180,1010,1110,1230,1350,1430,1500,1630,1530};
int DownShiftX[Vectors_Num] =
{2100,2100,2100,2100,2100,2100,2100,2100,2100,2100};
int DownShiftY[Vectors_Num] =
{1530,1600,1700,1730,1800,1750,1700,1600,1500,1430};
/*****************Function
Prototype****************************/
float Similarity(int Sample[Vectors_Num],int Pattern[Vectors_Num]);
/****************The Main
Function****************************/
void main(void)
{
int i,j;
unsigned int Flag=0;
/*indicate the start of
matching*/
int current_data[2]={0};
/*initialization and wait
for extraction*/
/*************Sample extract from data
flow********************
*if Flag =1,start extract data and put current data flow
in the arrays,
data extraction's interval depends on
delay(Delay_Time)*/

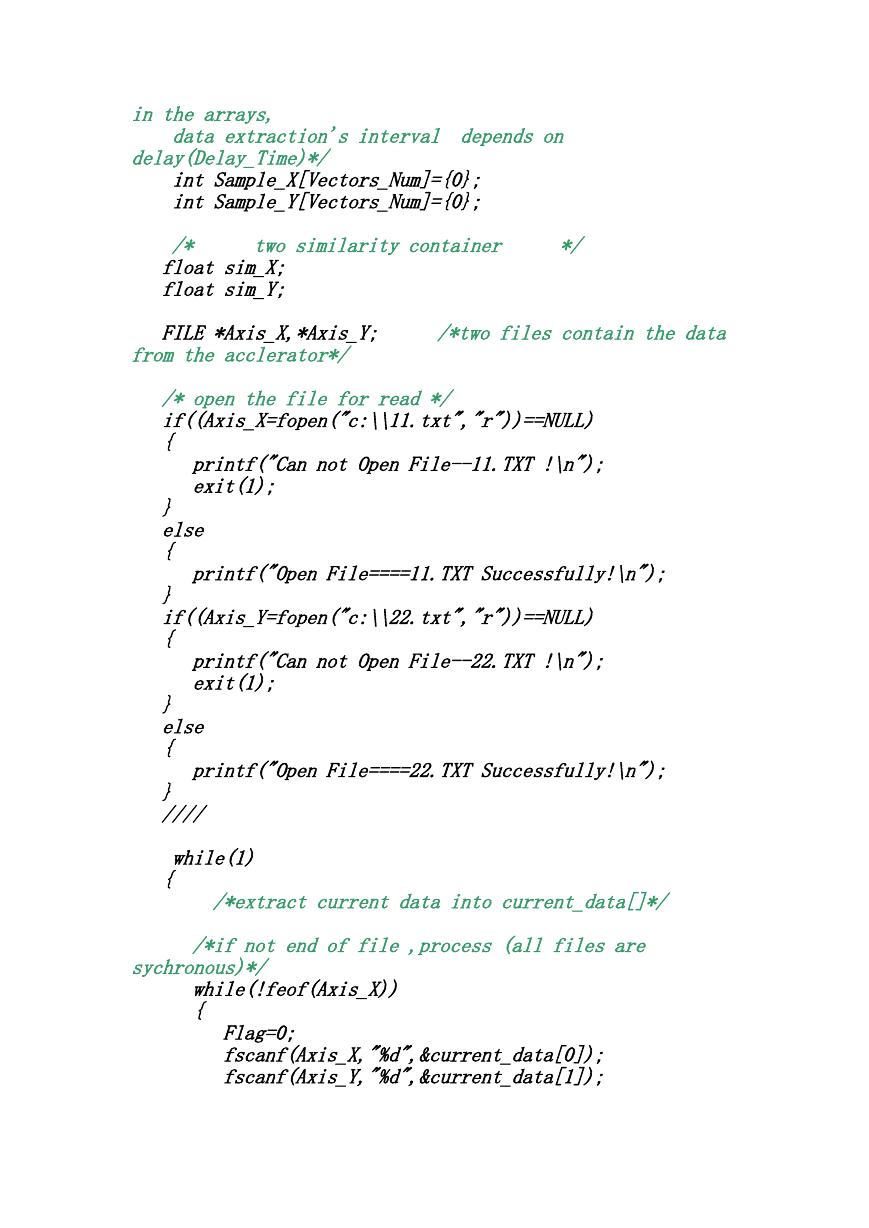

int Sample_X[Vectors_Num]={0};
int Sample_Y[Vectors_Num]={0};
/*
two similarity container
*/
float sim_X;
float sim_Y;
FILE *Axis_X,*Axis_Y;
/*two files contain the data
from the acclerator*/
/* open the file for read */
if((Axis_X=fopen("c:\\11.txt","r"))==NULL)
{
printf("Can not Open File--11.TXT !\n");
exit(1);
}
else
{
printf("Open File====11.TXT Successfully!\n");
}
if((Axis_Y=fopen("c:\\22.txt","r"))==NULL)
{
printf("Can not Open File--22.TXT !\n");
exit(1);
}
else
{
printf("Open File====22.TXT Successfully!\n");
}
////
while(1)
{
/*extract current data into current_data[]*/
/*if not end of file ,process (all files are
sychronous)*/
while(!feof(Axis_X))
{
Flag=0;
fscanf(Axis_X,"%d",¤t_data[0]);
fscanf(Axis_Y,"%d",¤t_data[1]);

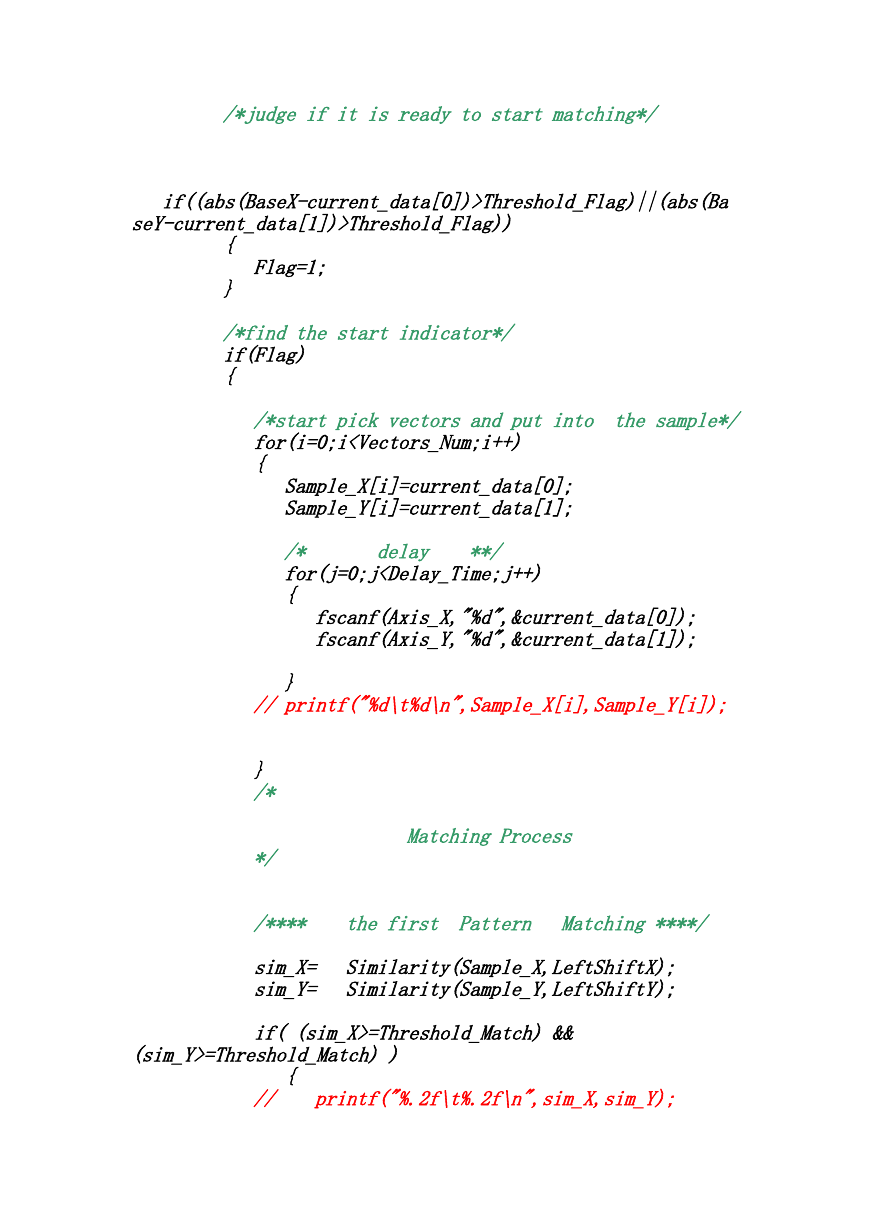

/*judge if it is ready to start matching*/
if((abs(BaseX-current_data[0])>Threshold_Flag)||(abs(Ba
seY-current_data[1])>Threshold_Flag))
{
}
Flag=1;
/*find the start indicator*/
if(Flag)
{
/*start pick vectors and put into the sample*/
for(i=0;i=Threshold_Match) &&
(sim_Y>=Threshold_Match) )
{
//
printf("%.2f\t%.2f\n",sim_X,sim_Y);

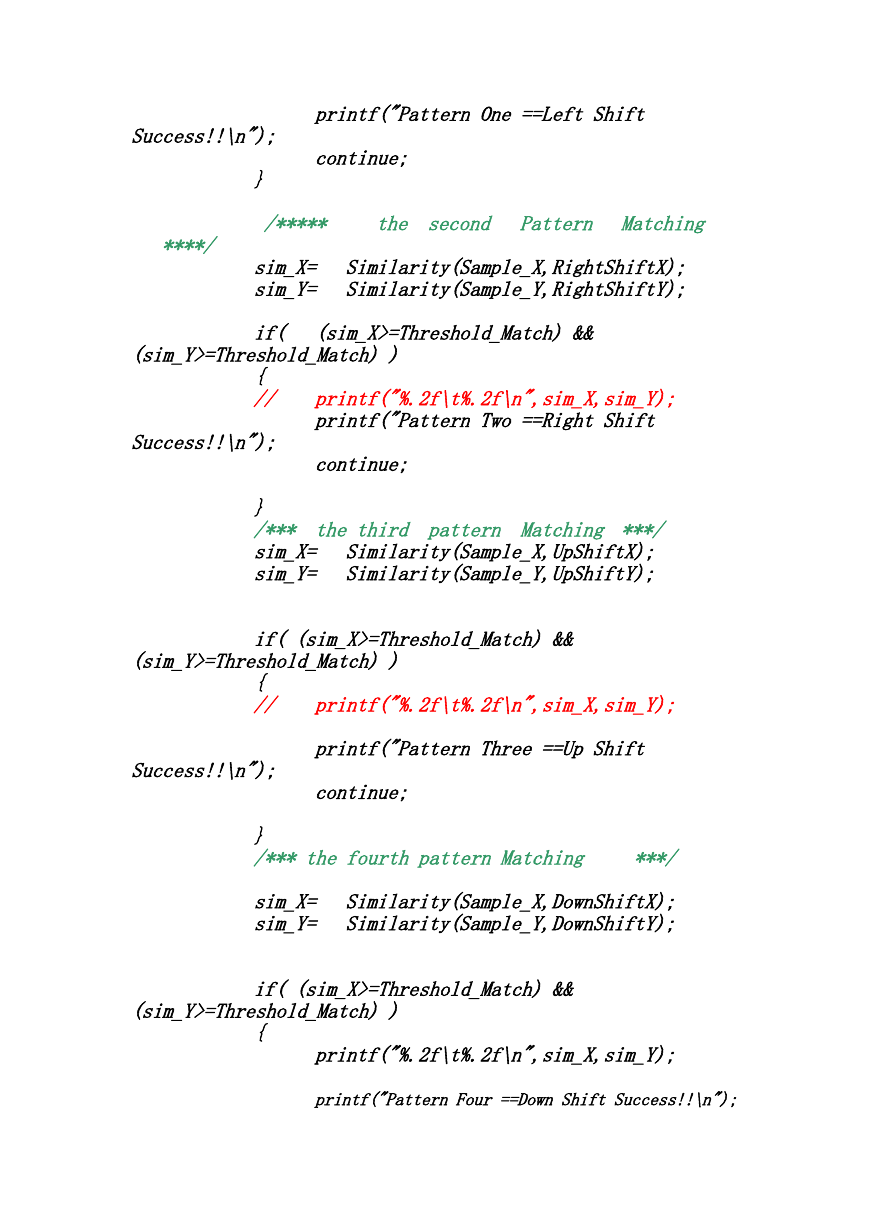

printf("Pattern One ==Left Shift
Success!!\n");
continue;
}
****/
/*****
the second Pattern Matching
sim_X= Similarity(Sample_X,RightShiftX);
sim_Y= Similarity(Sample_Y,RightShiftY);
if( (sim_X>=Threshold_Match) &&
(sim_Y>=Threshold_Match) )
{
//
printf("%.2f\t%.2f\n",sim_X,sim_Y);
printf("Pattern Two ==Right Shift
Success!!\n");
continue;
}
/*** the third pattern Matching ***/
sim_X= Similarity(Sample_X,UpShiftX);
sim_Y= Similarity(Sample_Y,UpShiftY);
if( (sim_X>=Threshold_Match) &&
(sim_Y>=Threshold_Match) )
{
//
printf("%.2f\t%.2f\n",sim_X,sim_Y);
printf("Pattern Three ==Up Shift
Success!!\n");
continue;
}
/*** the fourth pattern Matching
***/
sim_X= Similarity(Sample_X,DownShiftX);
sim_Y= Similarity(Sample_Y,DownShiftY);
if( (sim_X>=Threshold_Match) &&
(sim_Y>=Threshold_Match) )
{
printf("%.2f\t%.2f\n",sim_X,sim_Y);
printf("Pattern Four ==Down Shift Success!!\n");
