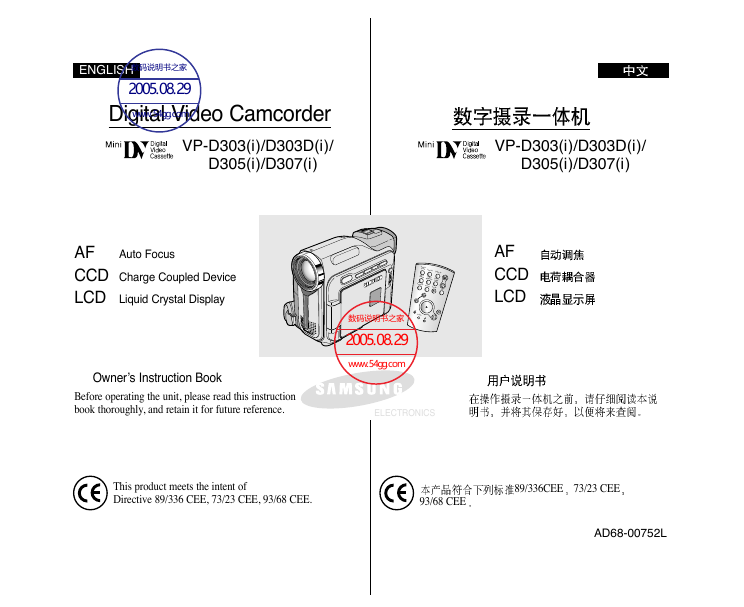

ENGLISH Digital Video Camcorder VP-D303(i)/D303D(i)/ D305(i)/D307(i) VP-D303(i)/D303D(i)/ D305(i)/D307(i) Auto Focus AF CCD Charge Coupled Device LCD Liquid Crystal Display AF CCD LCD START/ STOP PHOTO DISPLAY SELF TIMER PHOTO SEARCH ZEROMEMORY DATE/ TIME A.DUB SLOW X2 F.ADV Owner’s Instruction Book Before operating the unit, please read this instruction book thoroughly, and retain it for future reference. ELECTRONICS This product meets the intent of Directive 89/336 CEE, 73/23 CEE, 93/68 CEE. 93/68 CEE 89/336CEE 73/23 CEE AD68-00752L

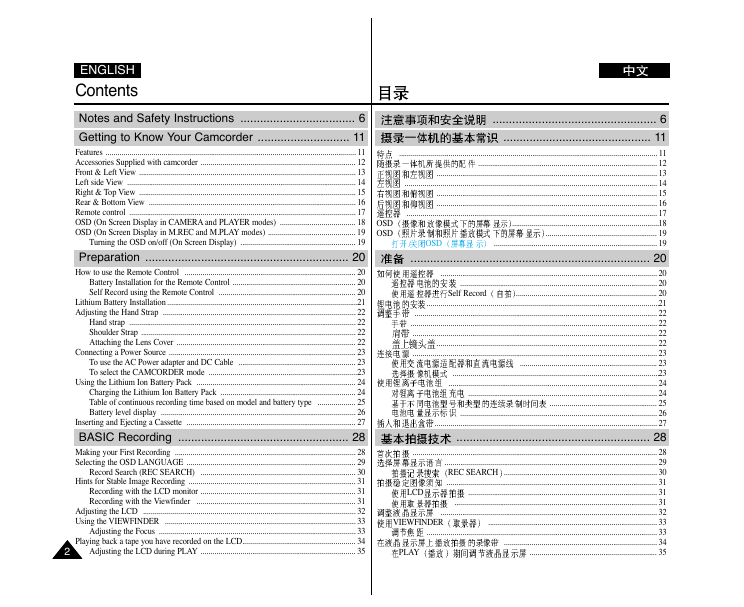

ENGLISH Contents OSD OSD Notes and Safety Instructions ................................... 6 Getting to Know Your Camcorder ............................ 11 Features .............................................................................................................................. 11 Accessories Supplied with camcorder .............................................................................. 12 Front & Left View ............................................................................................................. 13 Left side View ................................................................................................................... 14 Right & Top View ............................................................................................................. 15 Rear & Bottom View ........................................................................................................ 16 Remote control .................................................................................................................. 17 OSD (On Screen Display in CAMERA and PLAYER modes) ...................................... 18 OSD (On Screen Display in M.REC and M.PLAY modes) ............................................ 19 Turning the OSD on/off (On Screen Display) .......................................................... 19 Preparation .............................................................. 20 How to use the Remote Control ...................................................................................... 20 Battery Installation for the Remote Control .............................................................. 20 Self Record using the Remote Control ..................................................................... 20 Lithium Battery Installation................................................................................................21 Adjusting the Hand Strap ................................................................................................. 22 Hand strap .................................................................................................................. 22 Shoulder Strap ............................................................................................................ 22 Attaching the Lens Cover .......................................................................................... 22 Connecting a Power Source .............................................................................................. 23 To use the AC Power adapter and DC Cable ........................................................... 23 To select the CAMCORDER mode ...........................................................................23 Using the Lithium Ion Battery Pack ................................................................................ 24 Charging the Lithium Ion Battery Pack .................................................................... 24 Table of continuous recording time based on model and battery type ................... 25 Battery level display .................................................................................................. 26 Inserting and Ejecting a Cassette ..................................................................................... 27 BASIC Recording .................................................... 28 Making your First Recording ........................................................................................... 28 Selecting the OSD LANGUAGE ..................................................................................... 29 Record Search (REC SEARCH) .............................................................................. 30 Hints for Stable Image Recording .................................................................................... 31 Recording with the LCD monitor .............................................................................. 31 Recording with the Viewfinder ................................................................................ 31 Adjusting the LCD ........................................................................................................... 32 Using the VIEWFINDER ................................................................................................ 33 Adjusting the Focus ................................................................................................... 33 Playing back a tape you have recorded on the LCD......................................................... 34 Adjusting the LCD during PLAY .............................................................................. 35 22 OSD Self Record .................................................. 6 ............................................. 11 .................................................................................................................................. 11 .......................................................................................... 12 ............................................................................................................... 13 ............................................................................................................................... 14 ............................................................................................................... 15 ............................................................................................................... 16 .............................................................................................................................. 17 ..........................................................................18 ........................................................ 19 .................................................................................. 19 ......................................................................... 20 ............................................................................................................. 20 ................................................................................................... 20 ....................................................................... 20 .....................................................................................................................21 .......................................................................................................................... 22 ............................................................................................................................ 22 ........................................................................................................................... 22 ............................................................................................................... 22 ........................................................................................................................... 23 ..................................................................... 23 ........................................................................................................23 ......................................................................................................... 24 ............................................................................................... 24 ...................................................... 25 ................................................................................................... 26 ................................................................................................................ 27 ........................................................... 28 ........................................................................................................................... 28 ........................................................................................................... 29 REC SEARCH ............................................................................. 30 .......................................................................................................... 31 ............................................................................................... 31 ...................................................................................................... 31 ............................................................................................................. 32 ..................................................................................... 33 .................................................................................................................... 33 ............................................................................. 34 ................................................................ 35 LCD VIEWFINDER PLAY

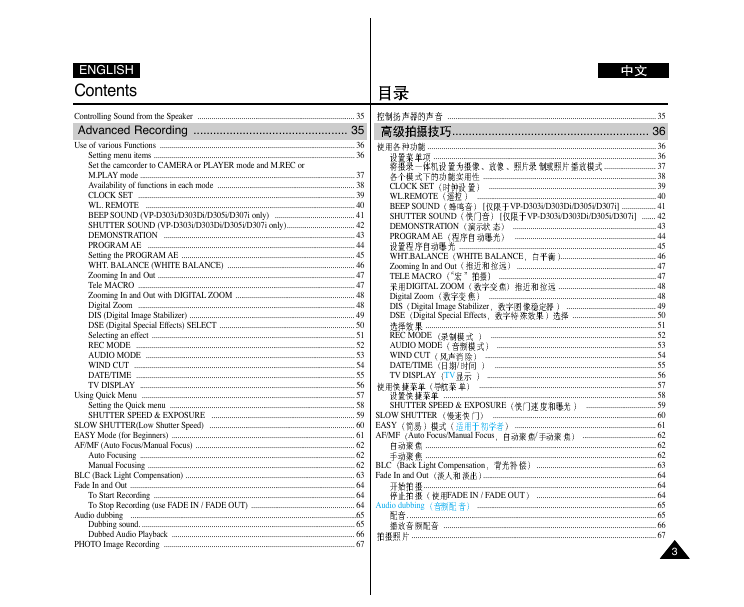

ENGLISH Contents Controlling Sound from the Speaker ............................................................................... 35 Advanced Recording ............................................... 35 Use of various Functions .................................................................................................. 36 Setting menu items ..................................................................................................... 36 Set the camcorder to CAMERA or PLAYER mode and M.REC or M.PLAY mode ............................................................................................................ 37 Availability of functions in each mode ..................................................................... 38 CLOCK SET ............................................................................................................. 39 WL. REMOTE ......................................................................................................... 40 BEEP SOUND (VP-D303i/D303Di/D305i/D307i only) ........................................ 41 SHUTTER SOUND (VP-D303i/D303Di/D305i/D307i only).................................. 42 DEMONSTRATION ................................................................................................ 43 PROGRAM AE ........................................................................................................ 44 Setting the PROGRAM AE ....................................................................................... 45 WHT. BALANCE (WHITE BALANCE) ................................................................ 46 Zooming In and Out ................................................................................................... 47 Tele MACRO ............................................................................................................. 47 Zooming In and Out with DIGITAL ZOOM ............................................................ 48 Digital Zoom ............................................................................................................. 48 DIS (Digital Image Stabilizer) ................................................................................... 49 DSE (Digital Special Effects) SELECT .................................................................... 50 Selecting an effect ...................................................................................................... 51 REC MODE .............................................................................................................. 52 AUDIO MODE ......................................................................................................... 53 WIND CUT ............................................................................................................... 54 DATE/TIME .............................................................................................................. 55 TV DISPLAY ............................................................................................................ 56 Using Quick Menu ........................................................................................................... 57 Setting the Quick menu ............................................................................................. 58 SHUTTER SPEED & EXPOSURE ........................................................................ 59 SLOW SHUTTER(Low Shutter Speed) ......................................................................... 60 EASY Mode (for Beginners) ............................................................................................ 61 AF/MF (Auto Focus/Manual Focus) ................................................................................ 62 Auto Focusing ............................................................................................................ 62 Manual Focusing ........................................................................................................ 62 BLC (Back Light Compensation) ..................................................................................... 63 Fade In and Out ................................................................................................................. 64 To Start Recording ..................................................................................................... 64 To Stop Recording (use FADE IN / FADE OUT) .................................................... 64 Audio dubbing ..................................................................................................................65 Dubbing sound. ........................................................................................................... 65 Dubbed Audio Playback ............................................................................................ 66 PHOTO Image Recording ................................................................................................ 67 CLOCK SET WL.REMOTE BEEP SOUND SHUTTER SOUND DEMONSTRATION PROGRAM AE WHT.BALANCE WHITE BALANCE Zooming In and Out TELE MACRO Digital Zoom DIS Digital Image Stabilizer DSE Digital Special Effects [ [ DIGITAL ZOOM ......................................................................................................... 35 ............................................................ 36 ................................................................................................................... 36 ................................................................................................................ 36 .......................... 37 ....................................................................................... 38 .................................................................................... 39 .......................................................................................... 40 VP-D303i/D303Di/D305i/D307i] ................. 41 VP-D303i/D303Di/D305i/D307i] ....... 42 ........................................................................ 43 ....................................................................... 44 ................................................................................................... 45 ................................................ 46 ...................................................................... 47 ............................................................................... 47 ................................................. 48 .................................................................................... 48 ............................................. 49 .......................................... 50 .................................................................................................................... 51 ................................................................................... 52 ................................................................................ 53 ...................................................................................... 54 ................................................................................. 55 ..................................................................................... 56 ......................................................................................... 57 ........................................................................................................... 58 ................................... 59 .................................................................................. 60 ....................................................................... 61 ..................................... 62 .................................................................................................................... 62 .................................................................................................................... 62 ............................................................ 63 ....................................................................................... 64 ..................................................................................................................... 64 ............................................................ 64 .......................................................................................... 65 . ............................................................................................................................ 65 ........................................................................................................... 66 ........................................................................................................................... 67 FADE IN / FADE OUT / REC MODE AUDIO MODE WIND CUT DATE/TIME TV DISPLAY TV / SHUTTER SPEED & EXPOSURE SLOW SHUTTER EASY AF/MF Auto Focus/Manual Focus BLC Back Light Compensation Fade In and Out Audio dubbing 33

ENGLISH Contents Searching for a PHOTO picture ................................................................................ 67 NIGHT CAPTURE (0 lux recording) ................................................................................68 POWER NIGHT CAPTURE..............................................................................................69 Various Recording Techniques ......................................................................................... 70 Playback .................................................................. 71 Tape Playback ................................................................................................................... 71 Playback on the LCD ................................................................................................. 71 Playback on a TV monitor ......................................................................................... 71 Connecting to a TV which has Audio/Video input jacks ......................................... 71 Connecting to a TV which has no Audio and Video input jacks ............................. 72 Playback ..................................................................................................................... 72 Various Functions while in PLAYER mode ..................................................................... 73 Playback pause ........................................................................................................... 73 Picture search (Forward/Reverse) ............................................................................ 73 Slow playback (Forward/Reverse) ........................................................................... 73 Frame advance (To play back frame by frame) ........................................................ 74 X2 playback (Forward/Reverse ) .............................................................................. 74 Reverse playback ....................................................................................................... 74 ZERO MEMORY ............................................................................................................ 75 PB DSE (Playback Digital Special Effects) .................................................................... 76 PB ZOOM ........................................................................................................................ 77 Recording in PLAYER mode (VP-D303i/D303Di/D305i/D307i only) ..... 78 IEEE 1394 Data Transfer ........................................... 79 Transferring IEEE1394 (i.LINK)-DV standard data connections ................................... 79 Connecting to a DV device ........................................................................................ 79 Connecting to a PC .................................................................................................... 79 System requirements .................................................................................................. 80 Recording with a DV connection cable (VP-D303i/D303Di/D305i/D307i only)... 80 USB interface .......................................................... 81 Transferring a Digital Image through a USB Connection ............................................... 81 System Requirements ........................................................................................................ 81 Installing DVC Media 5.1 Program................................................................................... 82 Using the “PC camera” function ................................................................................ 82 Using the “removable Disk” function ........................................................................ 83 Using the “USB streaming” function......................................................................... 83 Connecting to a PC ........................................................................................................... 83 Digital Still Camera mode ........................................... 84 MEMORY STICK (Optional Accessory).......................................................................... 84 Memory Stick Functions............................................................................................. 84 44 NIGHT CAPTURE POWER NIGHT CAPTURE PLAYER X2 / ZERO MEMORY PB DSE PB ZOOM / 0 / / A/V .................................................................................................................... 67 .............................................................68 ............................................................69 ................................................................................................................... 70 ......................................................................... 71 ................................................................................................................... 71 ............................................................................................... 71 ....................................................................................................... 71 ............................................... 71 .......................................................... 72 ............................................................................................................................ 72 .......................................................................... 73 .................................................................................................................... 73 .......................................................................................... 73 ..................................................................................................... 73 .................................................................................................. 74 ................................................................................................ 74 ..................................................................................................... 74 ....................................................................................... 75 ....................................................................................... 76 ................................................................................................ 77 VP-D303i/D303Di/D305i/D307i] ......... 78 .................................................. 79 .............................................................. 79 .......................................................................................................... 79 ............................................................................................................... 79 .................................................................................................................... 80 VP-D303i/D303Di/D305i/D307i] ........................ 80 ................................................................. 81 USB ...................................................................... 81 ........................................................................................................................... 81 ................................................................................................ 82 .......................................................................................... 82 ........................................................................................ 83 ................................................................................... 83 PC .......................................................................................................................... 83 ........................................................... 84 ]............................................................................................... 84 ................................................................................................. 84 USB STREAMING PC [ [ DVC Media 5.1 IEEE 1394 IEEE1394 i.LINK -DV DV PC DV USB Memory Stick [ Memory Stick

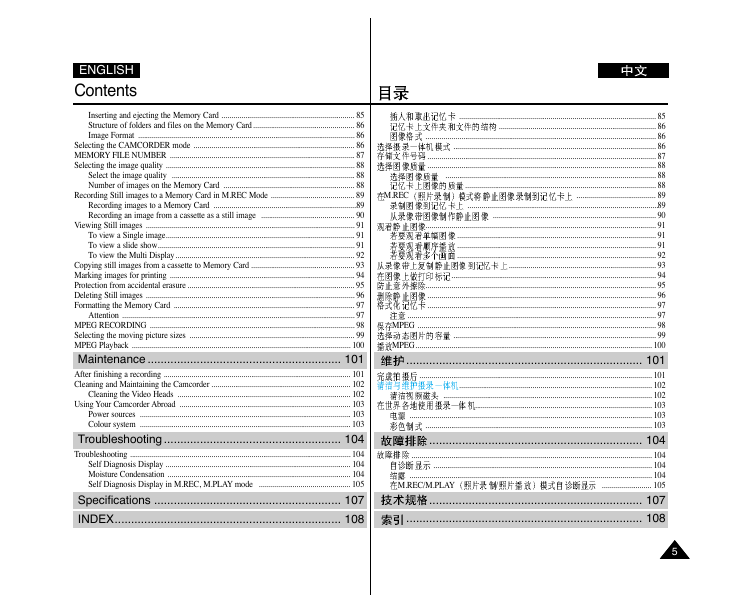

ENGLISH Contents Inserting and ejecting the Memory Card ................................................................... 85 Structure of folders and files on the Memory Card................................................... 86 Image Format ............................................................................................................. 86 Selecting the CAMCORDER mode ................................................................................. 86 MEMORY FILE NUMBER ............................................................................................. 87 Selecting the image quality ............................................................................................... 88 Select the image quality ............................................................................................ 88 Number of images on the Memory Card .................................................................. 88 Recording Still images to a Memory Card in M.REC Mode .......................................... 89 Recording images to a Memory Card ........................................................................89 Recording an image from a cassette as a still image ............................................... 90 Viewing Still images ......................................................................................................... 91 To view a Single image............................................................................................... 91 To view a slide show................................................................................................... 91 To view the Multi Display.......................................................................................... 92 Copying still images from a cassette to Memory Card .................................................... 93 Marking images for printing ............................................................................................. 94 Protection from accidental erasure .................................................................................... 95 Deleting Still images ......................................................................................................... 96 Formatting the Memory Card ........................................................................................... 97 Attention ..................................................................................................................... 97 MPEG RECORDING ....................................................................................................... 98 Selecting the moving picture sizes ................................................................................... 99 MPEG Playback .............................................................................................................. 100 Maintenance ........................................................... 101 After finishing a recording .............................................................................................. 101 Cleaning and Maintaining the Camcorder ...................................................................... 102 Cleaning the Video Heads ....................................................................................... 102 Using Your Camcorder Abroad ...................................................................................... 103 Power sources .......................................................................................................... 103 Colour system .......................................................................................................... 103 Troubleshooting ...................................................... 104 Troubleshooting ............................................................................................................... 104 Self Diagnosis Display ............................................................................................. 104 Moisture Condensation ............................................................................................ 104 Self Diagnosis Display in M.REC, M.PLAY mode .............................................. 105 Specifications ......................................................... 107 INDEX..................................................................... 108 M.REC ................................................................................................... 85 ............................................................................... 86 .................................................................................................................... 86 ...................................................................................................... 86 ................................................................................................................... 87 ................................................................................................................... 88 .......................................................................................................... 88 ................................................................................................ 88 ........................................ 89 ................................................................................................89 .................................................................................. 90 .................................................................................................................... 91 .................................................................................................... 91 .................................................................................................... 91 .................................................................................................... 92 .......................................................................... 93 ....................................................................................................... 94 .................................................................................................................... 95 ................................................................................................................... 96 ................................................................................................................... 97 ............................................................................................................................. 97 MPEG ........................................................................................................................ 98 ...................................................................................................... 99 MPEG....................................................................................................................... 100 ........................................................................ 101 ..................................................................................................................... 101 ................................................................................................. 102 ......................................................................................................... 102 ......................................................................................... 103 .......................................................................................................................... 103 .................................................................................................................. 103 ................................................................. 104 ......................................................................................................................... 104 .............................................................................................................. 104 .......................................................................................................................... 104 ......................... 105 ................................................................. 107 ........................................................................ 108 M.REC/M.PLAY / 55

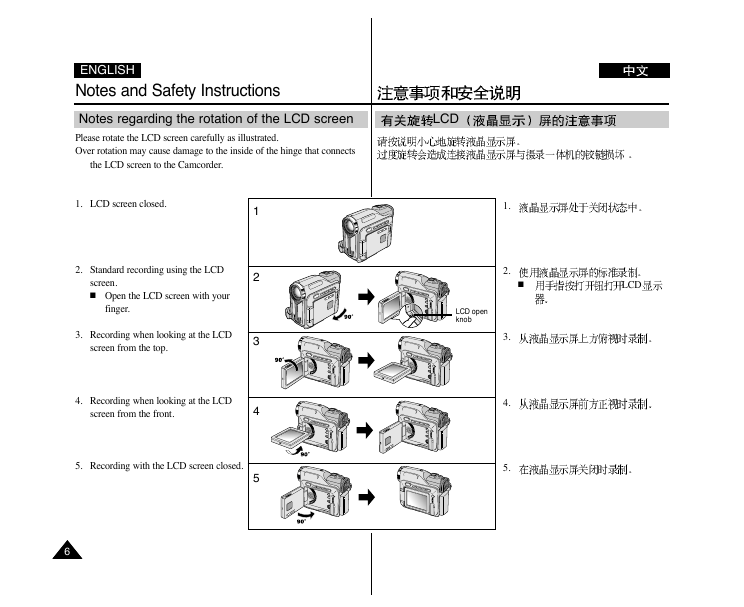

ENGLISH Notes and Safety Instructions Notes regarding the rotation of the LCD screen Please rotate the LCD screen carefully as illustrated. Over rotation may cause damage to the inside of the hinge that connects the LCD screen to the Camcorder. LCD 1. LCD screen closed. 2. Standard recording using the LCD screen. I Open the LCD screen with your finger. 3. Recording when looking at the LCD screen from the top. 4. Recording when looking at the LCD screen from the front. 5. Recording with the LCD screen closed. 1 2 3 4 5 66 LCD LCD open knob 1. 2. I 3. 4. 5.

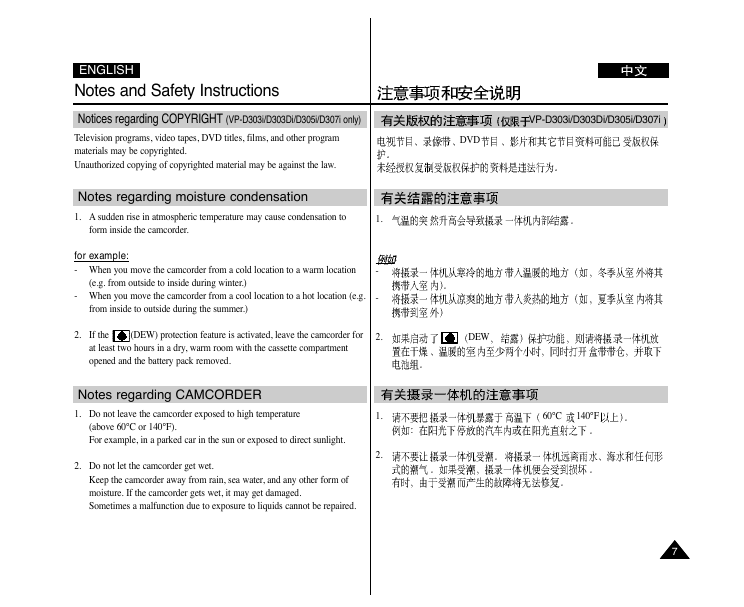

ENGLISH Notes and Safety Instructions Notices regarding COPYRIGHT (VP-D303i/D303Di/D305i/D307i only) Television programs, video tapes, DVD titles, films, and other program materials may be copyrighted. Unauthorized copying of copyrighted material may be against the law. Notes regarding moisture condensation 1. A sudden rise in atmospheric temperature may cause condensation to form inside the camcorder. for example: - When you move the camcorder from a cold location to a warm location (e.g. from outside to inside during winter.) - When you move the camcorder from a cool location to a hot location (e.g. from inside to outside during the summer.) 2. (DEW) protection feature is activated, leave the camcorder for If the at least two hours in a dry, warm room with the cassette compartment opened and the battery pack removed. Notes regarding CAMCORDER 1. Do not leave the camcorder exposed to high temperature (above 60°C or 140°F). For example, in a parked car in the sun or exposed to direct sunlight. 2. Do not let the camcorder get wet. Keep the camcorder away from rain, sea water, and any other form of moisture. If the camcorder gets wet, it may get damaged. Sometimes a malfunction due to exposure to liquids cannot be repaired. : 1. - - 2. 1. 2. VP-D303i/D303Di/D305i/D307i DVD DEW 60°C 140°F 77

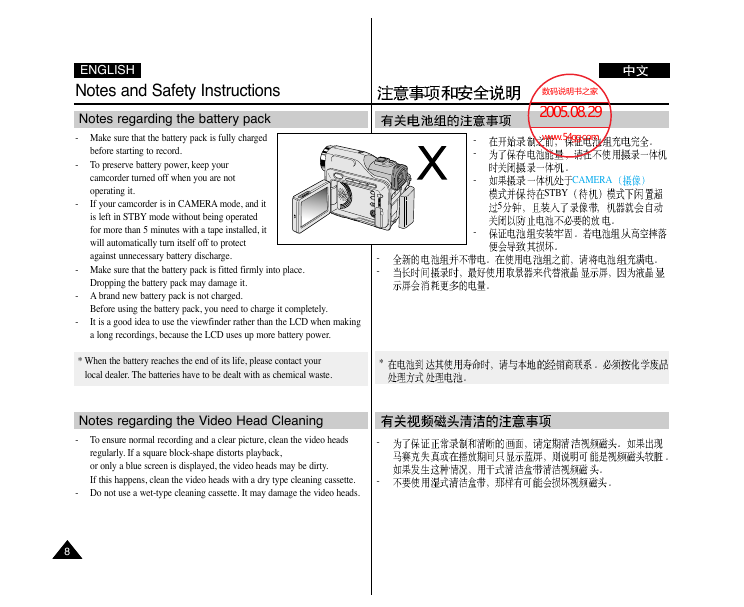

- - - - 5 CAMERA STBY ENGLISH Notes and Safety Instructions Notes regarding the battery pack - Make sure that the battery pack is fully charged before starting to record. - To preserve battery power, keep your - camcorder turned off when you are not operating it. If your camcorder is in CAMERA mode, and it is left in STBY mode without being operated for more than 5 minutes with a tape installed, it will automatically turn itself off to protect against unnecessary battery discharge. - Make sure that the battery pack is fitted firmly into place. Dropping the battery pack may damage it. - A brand new battery pack is not charged. - Before using the battery pack, you need to charge it completely. It is a good idea to use the viewfinder rather than the LCD when making a long recordings, because the LCD uses up more battery power. * When the battery reaches the end of its life, please contact your local dealer. The batteries have to be dealt with as chemical waste. Notes regarding the Video Head Cleaning - To ensure normal recording and a clear picture, clean the video heads regularly. If a square block-shape distorts playback, or only a blue screen is displayed, the video heads may be dirty. If this happens, clean the video heads with a dry type cleaning cassette. - Do not use a wet-type cleaning cassette. It may damage the video heads. - - * - - 88
