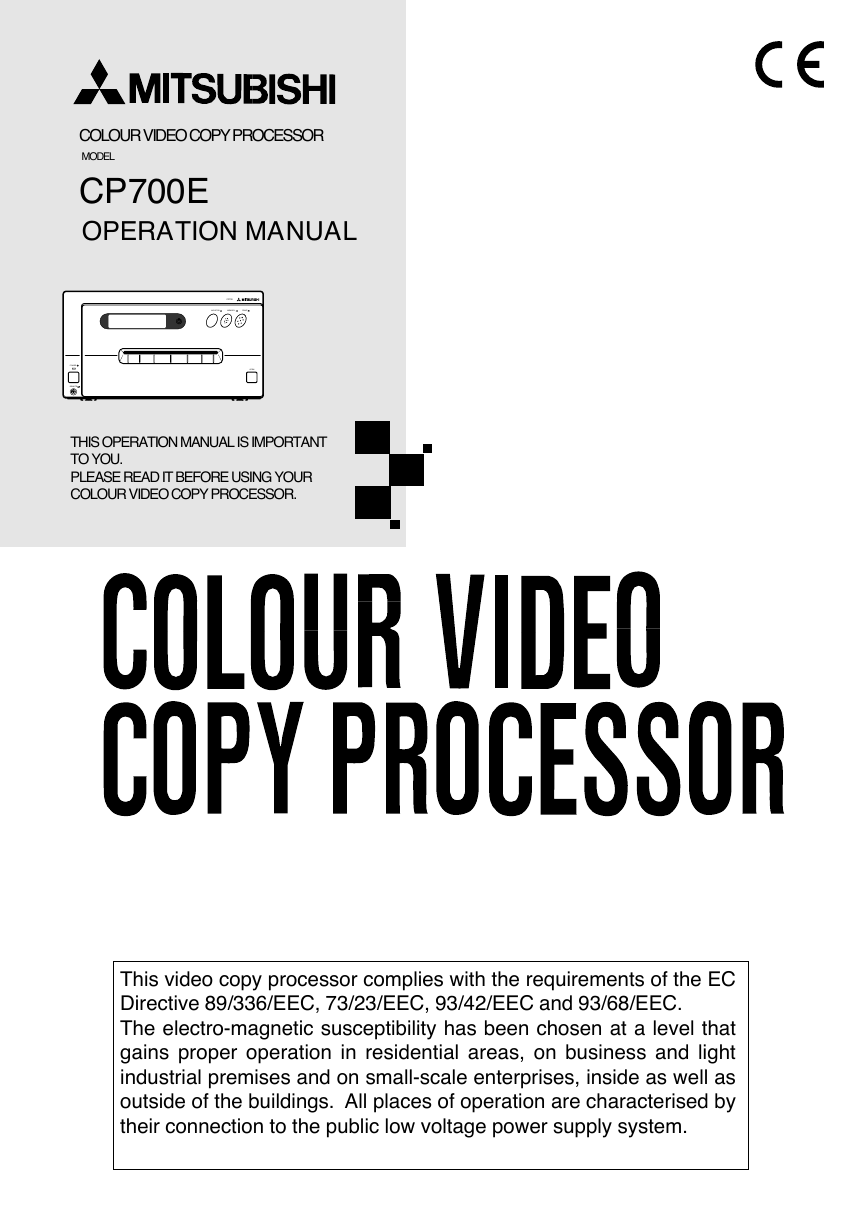

COLOUR VIDEO COPY PROCESSOR MODEL CP700E OPERATION MANUAL CP700 MONITOR MEMORY PRINT OPEN POWER REMOTE THIS OPERATION MANUAL IS IMPORTANT TO YOU. PLEASE READ IT BEFORE USING YOUR COLOUR VIDEO COPY PROCESSOR. This video copy processor complies with the requirements of the EC Directive 89/336/EEC, 73/23/EEC, 93/42/EEC and 93/68/EEC. The electro-magnetic susceptibility has been chosen at a level that gains proper operation in residential areas, on business and light industrial premises and on small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterised by their connection to the public low voltage power supply system.

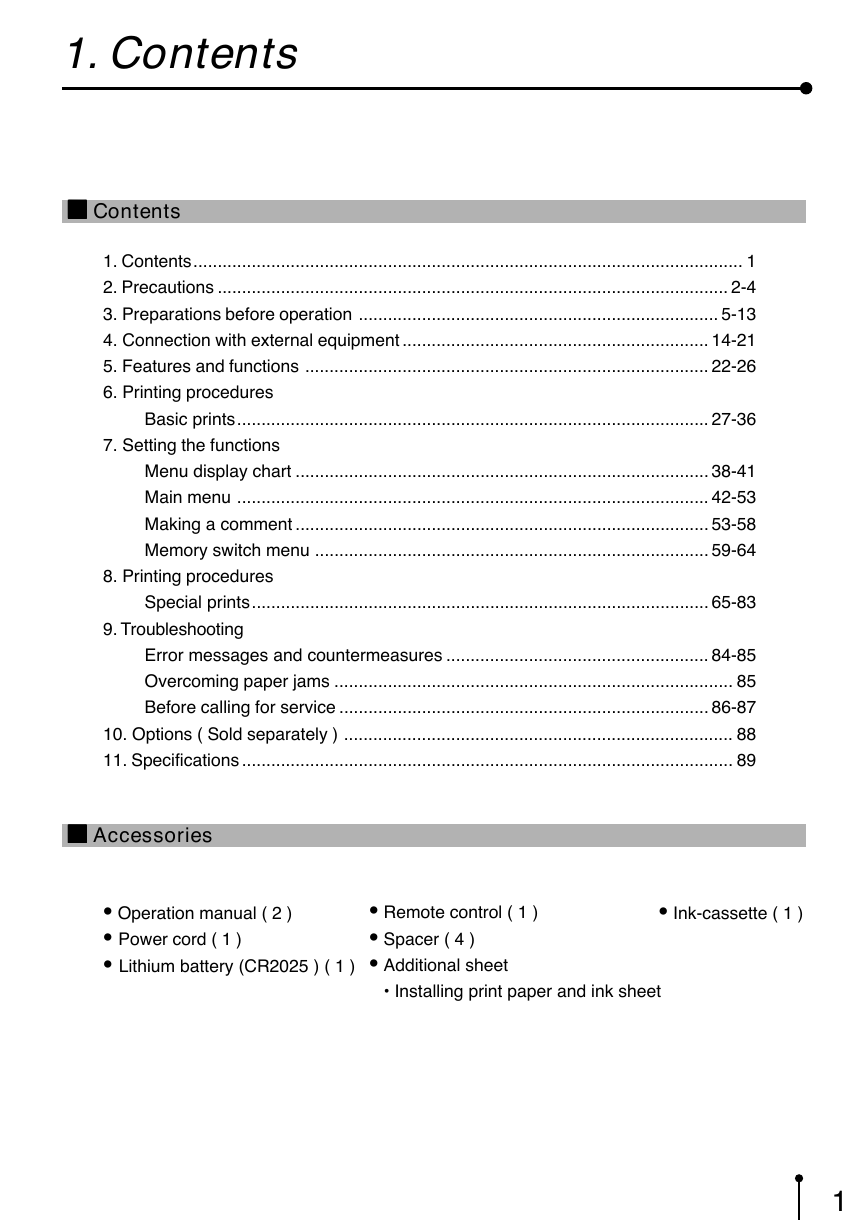

1. Contents 11111 Contents 1. Contents................................................................................................................. 1 2. Precautions ......................................................................................................... 2-4 3. Preparations before operation .......................................................................... 5-13 4. Connection with external equipment ............................................................... 14-21 5. Features and functions ................................................................................... 22-26 6. Printing procedures Basic prints................................................................................................. 27-36 7. Setting the functions Menu display chart ..................................................................................... 38-41 Main menu ................................................................................................. 42-53 Making a comment ..................................................................................... 53-58 Memory switch menu ................................................................................. 59-64 8. Printing procedures Special prints.............................................................................................. 65-83 9. Troubleshooting Error messages and countermeasures ...................................................... 84-85 Overcoming paper jams .................................................................................. 85 Before calling for service ............................................................................ 86-87 10. Options ( Sold separately ) ................................................................................ 88 11. Specifications ..................................................................................................... 89 11111 Accessories 0 Operation manual ( 2 ) 0 Power cord ( 1 ) 0 Lithium battery (CR2025 ) ( 1 ) 0 Remote control ( 1 ) 0 Spacer ( 4 ) 0 Additional sheet 0 Ink-cassette ( 1 ) • Installing print paper and ink sheet 1

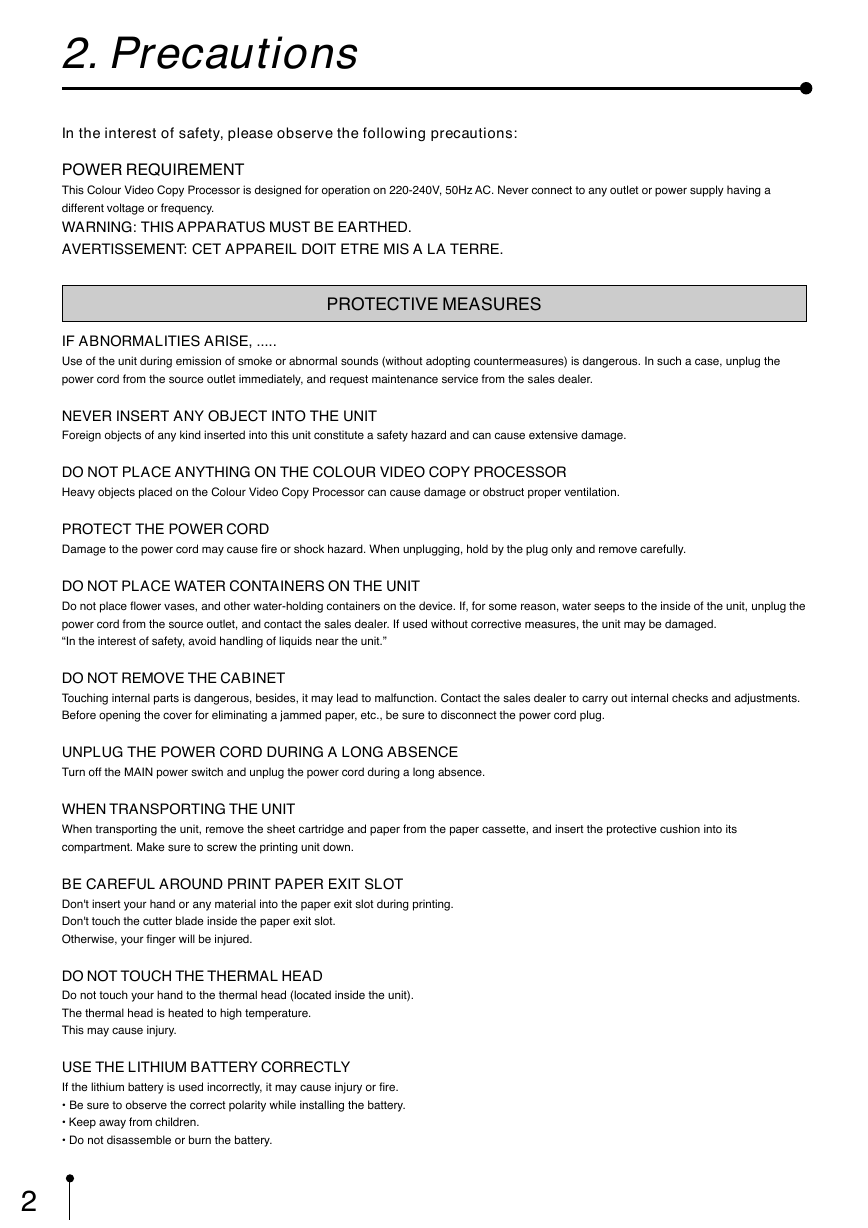

2. Precautions In the interest of safety, please observe the following precautions: POWER REQUIREMENT This Colour Video Copy Processor is designed for operation on 220-240V, 50Hz AC. Never connect to any outlet or power supply having a different voltage or frequency. WARNING: THIS APPARATUS MUST BE EARTHED. AVERTISSEMENT: CET APPAREIL DOIT ETRE MIS A LA TERRE. PROTECTIVE MEASURES IF ABNORMALITIES ARISE, ..... Use of the unit during emission of smoke or abnormal sounds (without adopting countermeasures) is dangerous. In such a case, unplug the power cord from the source outlet immediately, and request maintenance service from the sales dealer. NEVER INSERT ANY OBJECT INTO THE UNIT Foreign objects of any kind inserted into this unit constitute a safety hazard and can cause extensive damage. DO NOT PLACE ANYTHING ON THE COLOUR VIDEO COPY PROCESSOR Heavy objects placed on the Colour Video Copy Processor can cause damage or obstruct proper ventilation. PROTECT THE POWER CORD Damage to the power cord may cause fire or shock hazard. When unplugging, hold by the plug only and remove carefully. DO NOT PLACE WATER CONTAINERS ON THE UNIT Do not place flower vases, and other water-holding containers on the device. If, for some reason, water seeps to the inside of the unit, unplug the power cord from the source outlet, and contact the sales dealer. If used without corrective measures, the unit may be damaged. “In the interest of safety, avoid handling of liquids near the unit.” DO NOT REMOVE THE CABINET Touching internal parts is dangerous, besides, it may lead to malfunction. Contact the sales dealer to carry out internal checks and adjustments. Before opening the cover for eliminating a jammed paper, etc., be sure to disconnect the power cord plug. UNPLUG THE POWER CORD DURING A LONG ABSENCE Turn off the MAIN power switch and unplug the power cord during a long absence. WHEN TRANSPORTING THE UNIT When transporting the unit, remove the sheet cartridge and paper from the paper cassette, and insert the protective cushion into its compartment. Make sure to screw the printing unit down. BE CAREFUL AROUND PRINT PAPER EXIT SLOT Don't insert your hand or any material into the paper exit slot during printing. Don't touch the cutter blade inside the paper exit slot. Otherwise, your finger will be injured. DO NOT TOUCH THE THERMAL HEAD Do not touch your hand to the thermal head (located inside the unit). The thermal head is heated to high temperature. This may cause injury. USE THE LITHIUM BATTERY CORRECTLY If the lithium battery is used incorrectly, it may cause injury or fire. • Be sure to observe the correct polarity while installing the battery. • Keep away from children. • Do not disassemble or burn the battery. 2

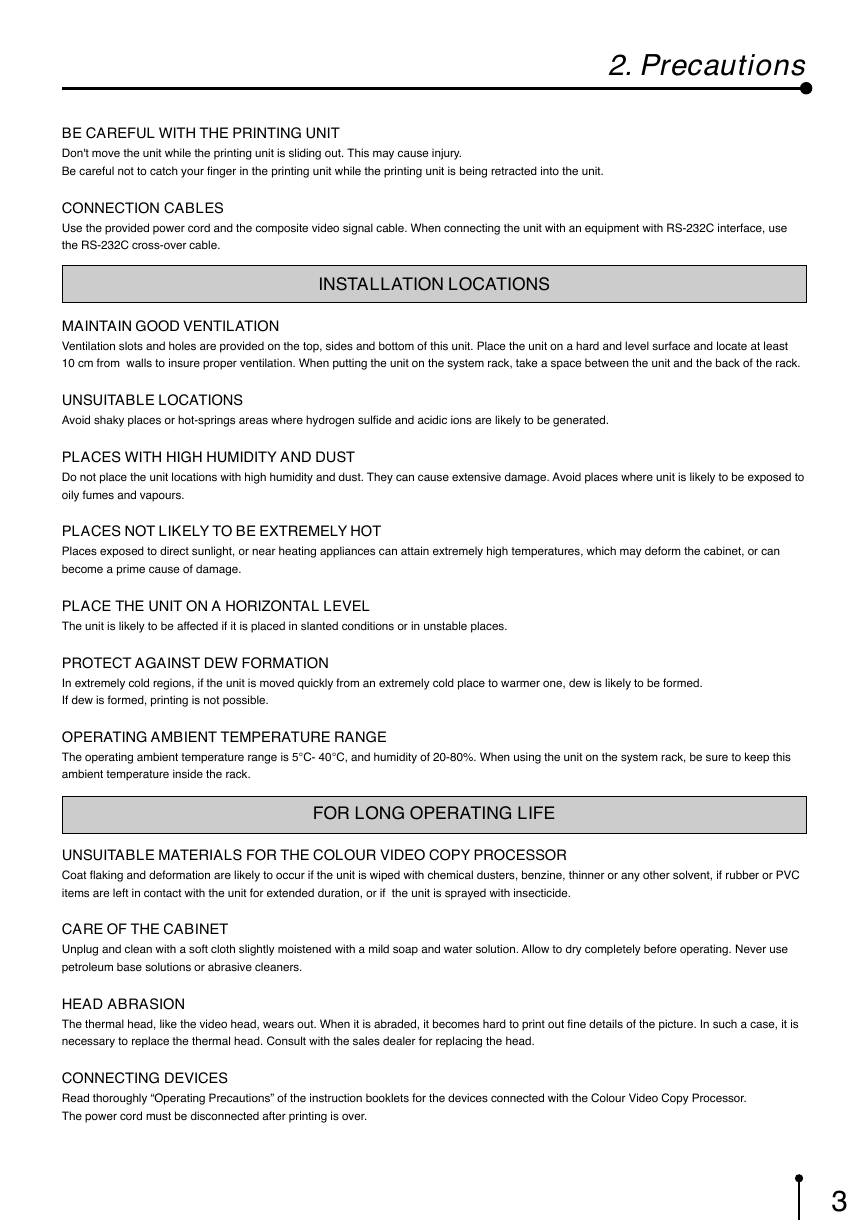

2. Precautions BE CAREFUL WITH THE PRINTING UNIT Don't move the unit while the printing unit is sliding out. This may cause injury. Be careful not to catch your finger in the printing unit while the printing unit is being retracted into the unit. CONNECTION CABLES Use the provided power cord and the composite video signal cable. When connecting the unit with an equipment with RS-232C interface, use the RS-232C cross-over cable. INSTALLATION LOCATIONS MAINTAIN GOOD VENTILATION Ventilation slots and holes are provided on the top, sides and bottom of this unit. Place the unit on a hard and level surface and locate at least 10 cm from walls to insure proper ventilation. When putting the unit on the system rack, take a space between the unit and the back of the rack. UNSUITABLE LOCATIONS Avoid shaky places or hot-springs areas where hydrogen sulfide and acidic ions are likely to be generated. PLACES WITH HIGH HUMIDITY AND DUST Do not place the unit locations with high humidity and dust. They can cause extensive damage. Avoid places where unit is likely to be exposed to oily fumes and vapours. PLACES NOT LIKELY TO BE EXTREMELY HOT Places exposed to direct sunlight, or near heating appliances can attain extremely high temperatures, which may deform the cabinet, or can become a prime cause of damage. PLACE THE UNIT ON A HORIZONTAL LEVEL The unit is likely to be affected if it is placed in slanted conditions or in unstable places. PROTECT AGAINST DEW FORMATION In extremely cold regions, if the unit is moved quickly from an extremely cold place to warmer one, dew is likely to be formed. If dew is formed, printing is not possible. OPERATING AMBIENT TEMPERATURE RANGE The operating ambient temperature range is 5 C- 40 C, and humidity of 20-80%. When using the unit on the system rack, be sure to keep this ambient temperature inside the rack. FOR LONG OPERATING LIFE UNSUITABLE MATERIALS FOR THE COLOUR VIDEO COPY PROCESSOR Coat flaking and deformation are likely to occur if the unit is wiped with chemical dusters, benzine, thinner or any other solvent, if rubber or PVC items are left in contact with the unit for extended duration, or if the unit is sprayed with insecticide. CARE OF THE CABINET Unplug and clean with a soft cloth slightly moistened with a mild soap and water solution. Allow to dry completely before operating. Never use petroleum base solutions or abrasive cleaners. HEAD ABRASION The thermal head, like the video head, wears out. When it is abraded, it becomes hard to print out fine details of the picture. In such a case, it is necessary to replace the thermal head. Consult with the sales dealer for replacing the head. CONNECTING DEVICES Read thoroughly “Operating Precautions” of the instruction booklets for the devices connected with the Colour Video Copy Processor. The power cord must be disconnected after printing is over. 3

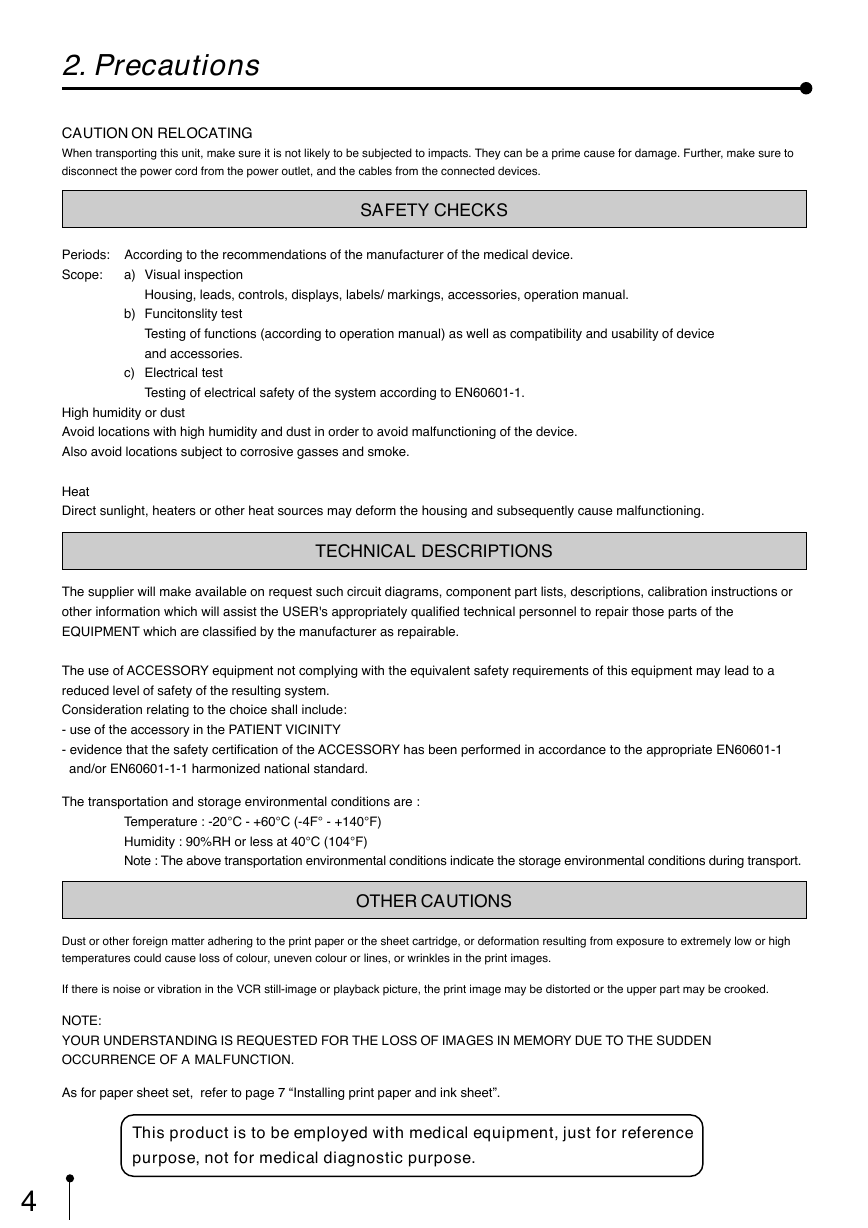

2. Precautions CAUTION ON RELOCATING When transporting this unit, make sure it is not likely to be subjected to impacts. They can be a prime cause for damage. Further, make sure to disconnect the power cord from the power outlet, and the cables from the connected devices. SAFETY CHECKS Periods: According to the recommendations of the manufacturer of the medical device. Scope: a) Visual inspection Housing, leads, controls, displays, labels/ markings, accessories, operation manual. b) Funcitonslity test Testing of functions (according to operation manual) as well as compatibility and usability of device and accessories. c) Electrical test Testing of electrical safety of the system according to EN60601-1. High humidity or dust Avoid locations with high humidity and dust in order to avoid malfunctioning of the device. Also avoid locations subject to corrosive gasses and smoke. Heat Direct sunlight, heaters or other heat sources may deform the housing and subsequently cause malfunctioning. TECHNICAL DESCRIPTIONS The supplier will make available on request such circuit diagrams, component part lists, descriptions, calibration instructions or other information which will assist the USER's appropriately qualified technical personnel to repair those parts of the EQUIPMENT which are classified by the manufacturer as repairable. The use of ACCESSORY equipment not complying with the equivalent safety requirements of this equipment may lead to a reduced level of safety of the resulting system. Consideration relating to the choice shall include: - use of the accessory in the PATIENT VICINITY - evidence that the safety certification of the ACCESSORY has been performed in accordance to the appropriate EN60601-1 and/or EN60601-1-1 harmonized national standard. The transportation and storage environmental conditions are : Temperature : -20 C - +60 C (-4F - +140 F) Humidity : 90%RH or less at 40 C (104 F) Note : The above transportation environmental conditions indicate the storage environmental conditions during transport. OTHER CAUTIONS Dust or other foreign matter adhering to the print paper or the sheet cartridge, or deformation resulting from exposure to extremely low or high temperatures could cause loss of colour, uneven colour or lines, or wrinkles in the print images. If there is noise or vibration in the VCR still-image or playback picture, the print image may be distorted or the upper part may be crooked. NOTE: YOUR UNDERSTANDING IS REQUESTED FOR THE LOSS OF IMAGES IN MEMORY DUE TO THE SUDDEN OCCURRENCE OF A MALFUNCTION. As for paper sheet set, refer to page 7 “Installing print paper and ink sheet”. This product is to be employed with medical equipment, just for reference purpose, not for medical diagnostic purpose. 4

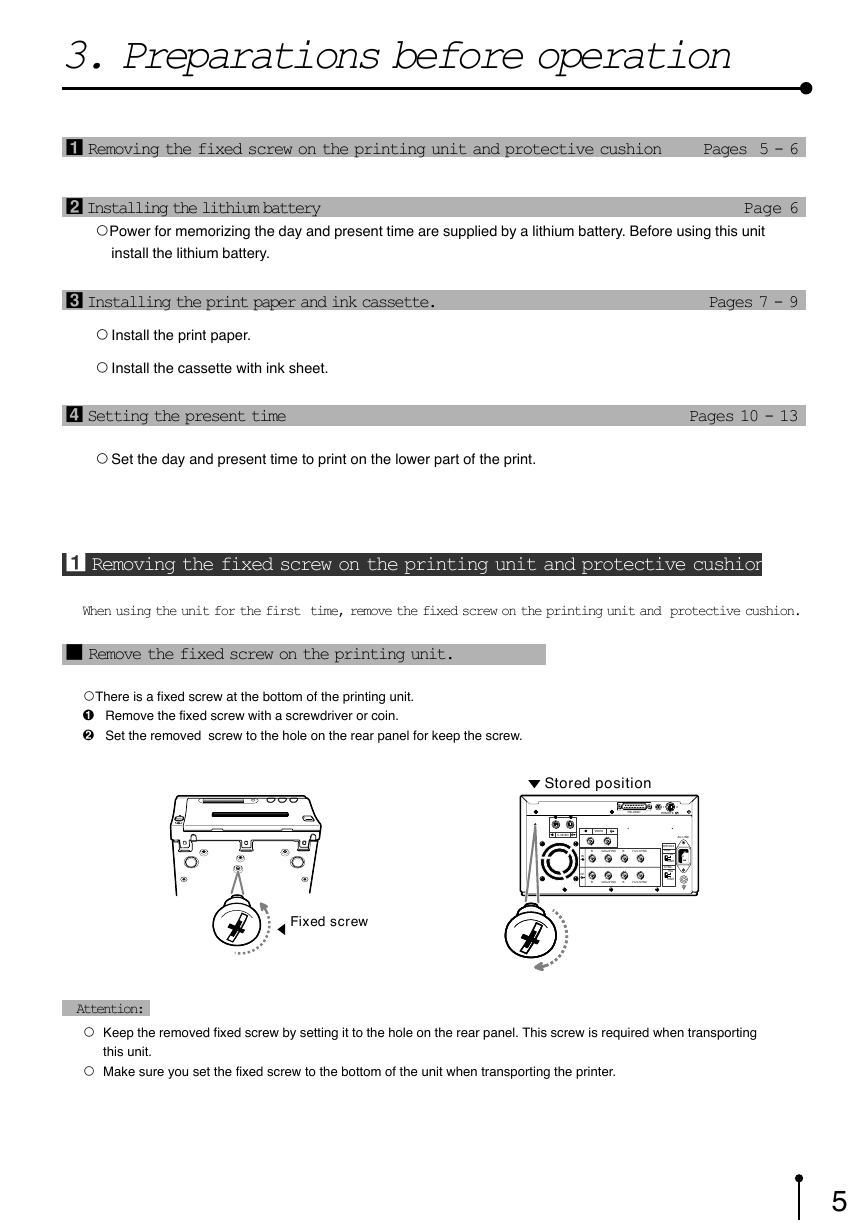

3. Preparations before operation 1 Removing the fixed screw on the printing unit and protective cushion Pages 5 - 6 2 Installing the lithium battery Page 6 ,Power for memorizing the day and present time are supplied by a lithium battery. Before using this unit install the lithium battery. 3 Installing the print paper and ink cassette. Pages 7 - 9 , Install the print paper. , Install the cassette with ink sheet. 4 Setting the present time , Set the day and present time to print on the lower part of the print. Pages 10 - 13 1 Removing the fixed screw on the printing unit and protective cushion Pag When using the unit for the first time, remove the fixed screw on the printing unit and protective cushion. 1 Remove the fixed screw on the printing unit. ,There is a fixed screw at the bottom of the printing unit. 1 Remove the fixed screw with a screwdriver or coin. 2 Set the removed screw to the hole on the rear panel for keep the screw. Stored position RS-232C 1 2 REMOTE S-VIDEO VIDEO R G/G+SYNC B H+V-SYNC IN OUT R G/G+SYNC B H+V-SYNC AC LINE IMPEDANCE RGB 75W HIGH SYNC. 75W HIGH Fixed screw Attention: , Keep the removed fixed screw by setting it to the hole on the rear panel. This screw is required when transporting this unit. , Make sure you set the fixed screw to the bottom of the unit when transporting the printer. 5

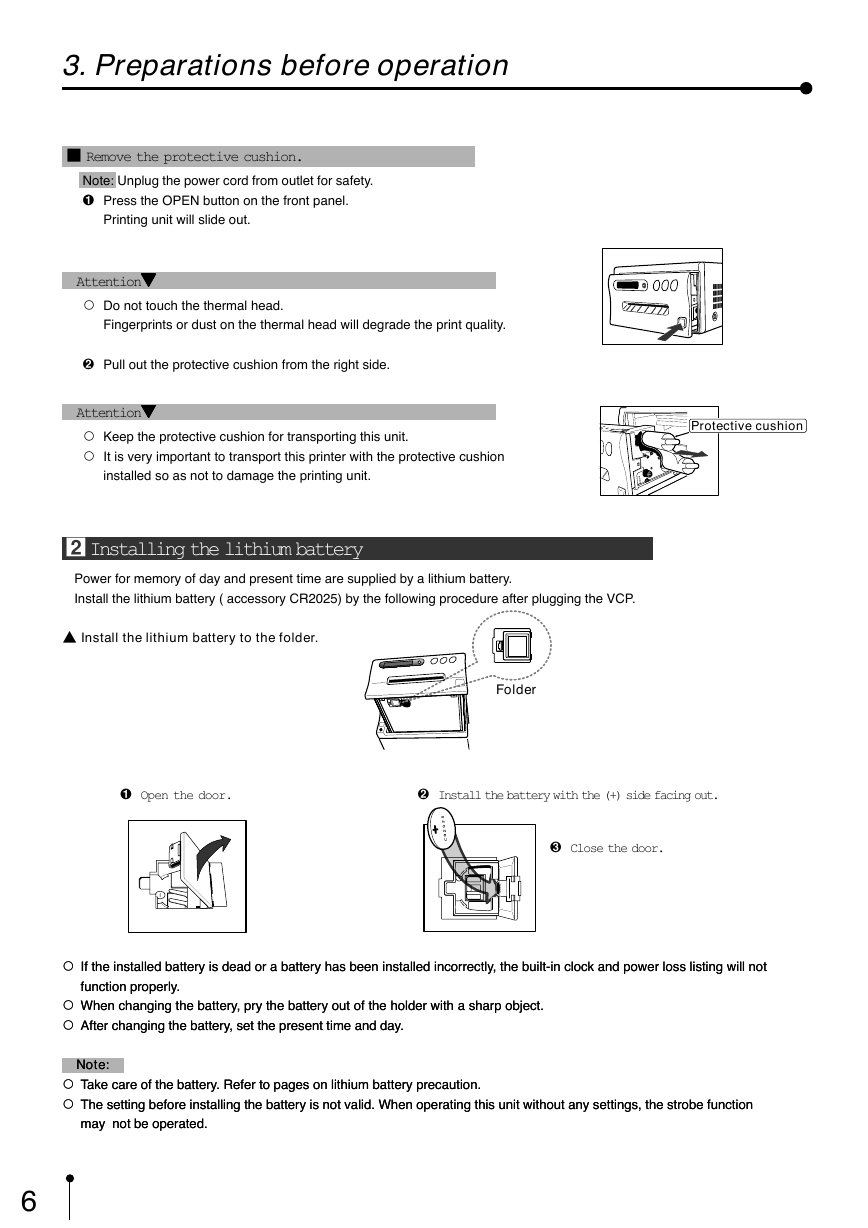

3. Preparations before operation 1 Remove the protective cushion. Note: Unplug the power cord from outlet for safety. 1 Press the OPEN button on the front panel. Printing unit will slide out. Attention}}}}} , Do not touch the thermal head. Fingerprints or dust on the thermal head will degrade the print quality. 2 Pull out the protective cushion from the right side. Attention}}}}} , Keep the protective cushion for transporting this unit. , It is very important to transport this printer with the protective cushion installed so as not to damage the printing unit. Protective cushion 2 Installing the lithium battery Power for memory of day and present time are supplied by a lithium battery. Install the lithium battery ( accessory CR2025) by the following procedure after plugging the VCP. { Install the lithium battery to the folder. Folder 1 Open the door. 2 Install the battery with the (+) side facing out. 3 Close the door. , If the installed battery is dead or a battery has been installed incorrectly, the built-in clock and power loss listing will not , If the installed battery is dead or a battery has been installed incorrectly, the built-in clock and power loss listing will not function properly. function properly. , When changing the battery, pry the battery out of the holder with a sharp object. , When changing the battery, pry the battery out of the holder with a sharp object. , After changing the battery, set the present time and day. , After changing the battery, set the present time and day. Note: Note: , Take care of the battery. Refer to pages on lithium battery precaution. , Take care of the battery. Refer to pages on lithium battery precaution. , The setting before installing the battery is not valid. When operating this unit without any settings, the strobe function , The setting before installing the battery is not valid. When operating this unit without any settings, the strobe function may not be operated. may not be operated. 6

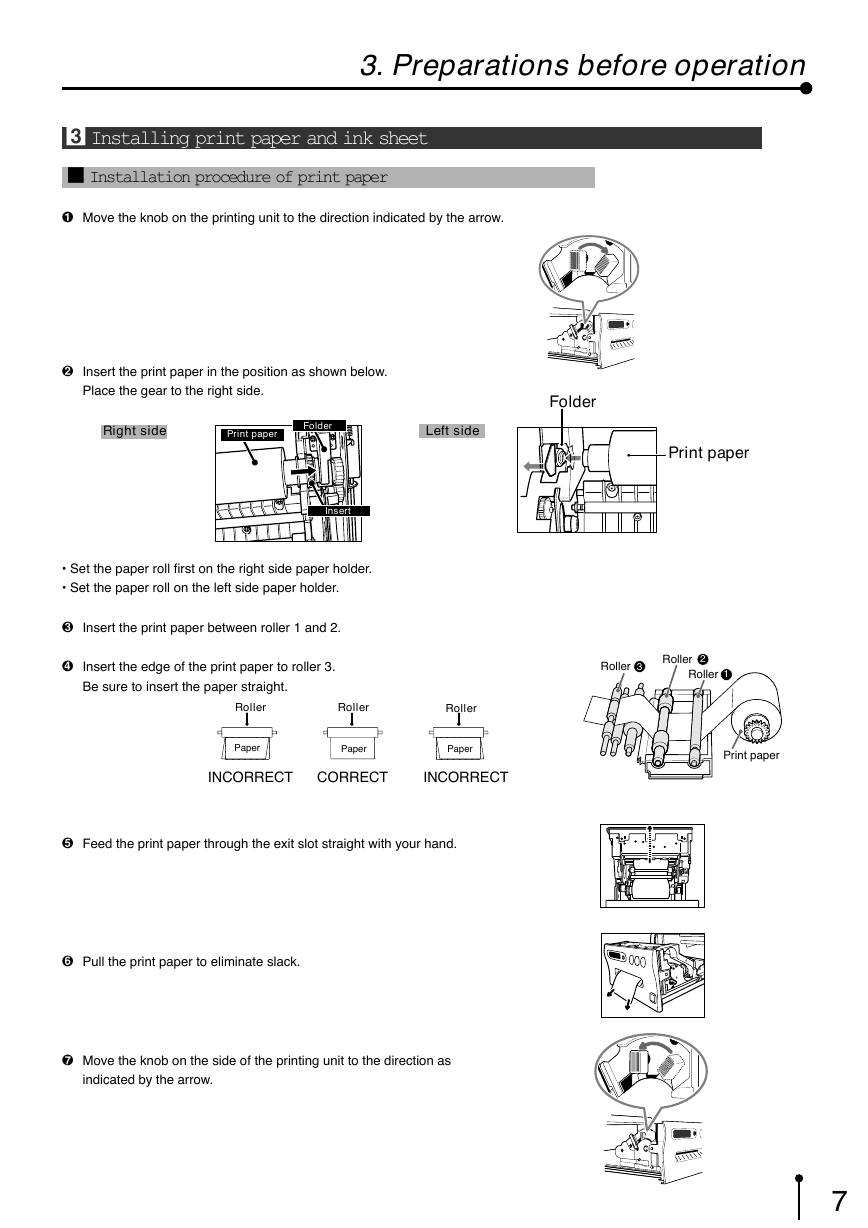

3. Preparations before operation 3 Installing print paper and ink sheet 1 Installation procedure of print paper 1 Move the knob on the printing unit to the direction indicated by the arrow. 2 Insert the print paper in the position as shown below. Place the gear to the right side. Right side Print paper Folder Left side Folder Print paper Insert • Set the paper roll first on the right side paper holder. • Set the paper roll on the left side paper holder. 3 Insert the print paper between roller 1 and 2. 4 Insert the edge of the print paper to roller 3. Be sure to insert the paper straight. Roller Roller Roller Paper Paper Paper INCORRECT CORRECT INCORRECT 5 Feed the print paper through the exit slot straight with your hand. 6 Pull the print paper to eliminate slack. 7 Move the knob on the side of the printing unit to the direction as indicated by the arrow. Roller 3 Roller 2 Roller 1 Print paper 7
