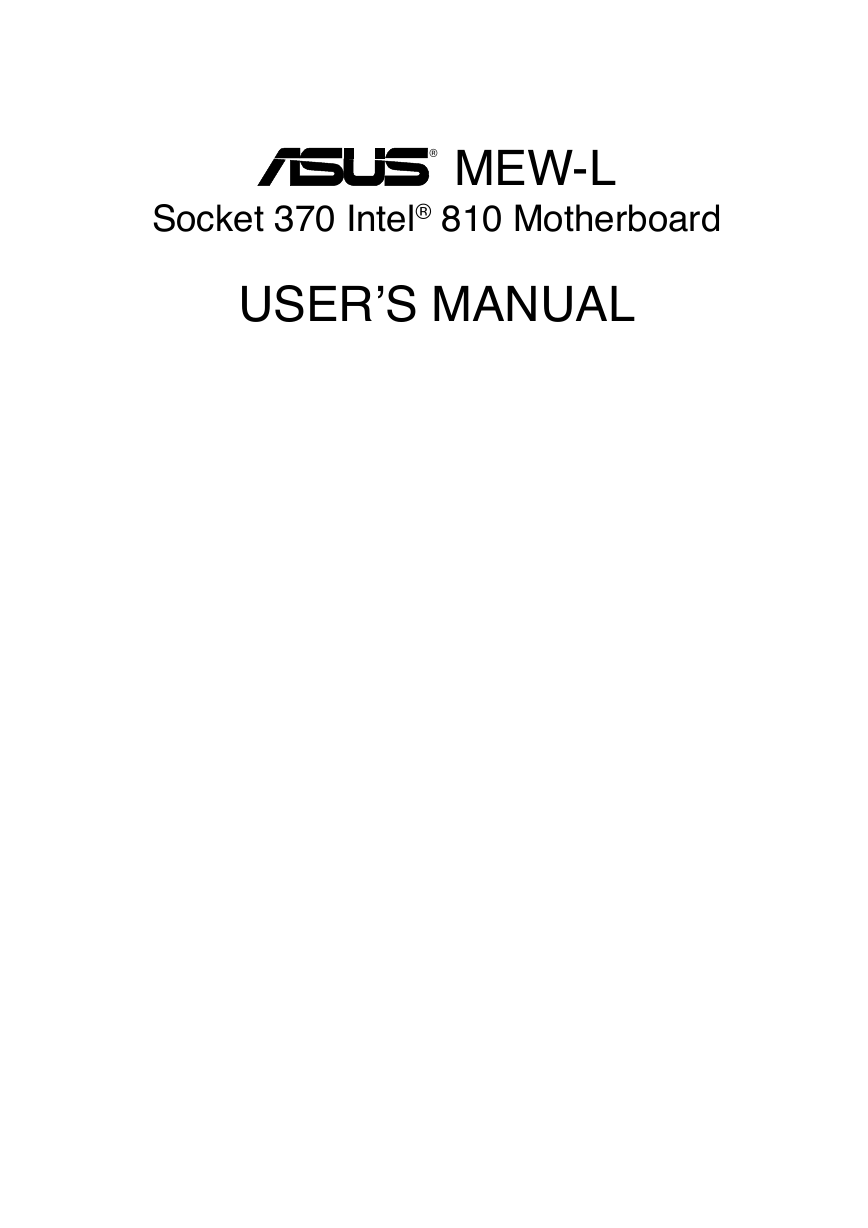

® MEW-L Socket 370 Intel® 810 Motherboard USER’S MANUAL

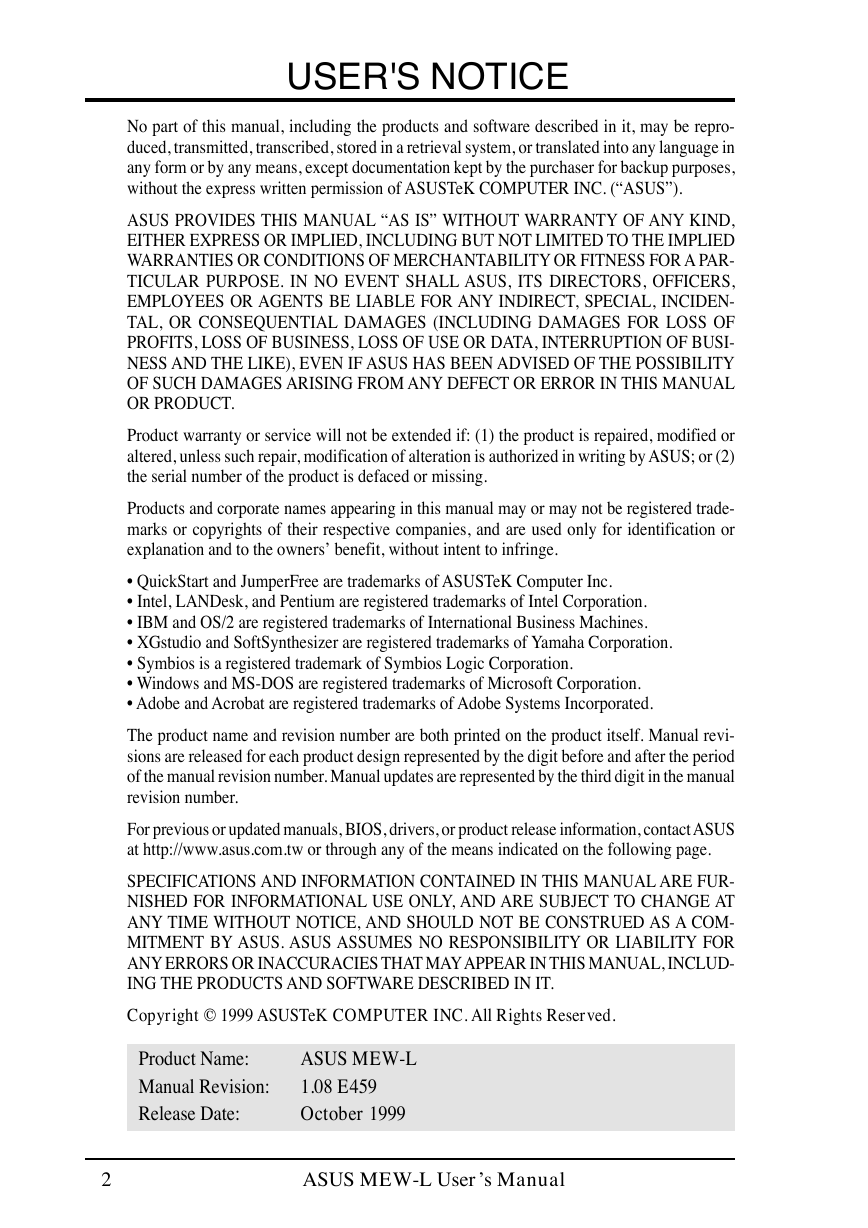

USER'S NOTICE No part of this manual, including the products and software described in it, may be repro- duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PAR- TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN- TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI- NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trade- marks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. • QuickStart and JumperFree are trademarks of ASUSTeK Computer Inc. • Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation. • IBM and OS/2 are registered trademarks of International Business Machines. • XGstudio and SoftSynthesizer are registered trademarks of Yamaha Corporation. • Symbios is a registered trademark of Symbios Logic Corporation. • Windows and MS-DOS are registered trademarks of Microsoft Corporation. • Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. The product name and revision number are both printed on the product itself. Manual revi- sions are released for each product design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number. For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at http://www.asus.com.tw or through any of the means indicated on the following page. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR- NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM- MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUD- ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 1999 ASUSTeK COMPUTER INC. All Rights Reserved. Product Name: Manual Revision: Release Date: ASUS MEW-L 1.08 E459 October 1999 2 ASUS MEW-L User’s Manual

ASUS CONTACT INFORMATION ASUSTeK COMPUTER INC. (Asia-Pacific) Marketing Address: Telephone: Fax: Email: 150 Li-Te Road, Peitou, Taipei, Taiwan 112 +886-2-2894-3447 +886-2-2894-3449 info@asus.com.tw Technical Support MB/Others (tel): +886-2-2890-7121 (English) Notebook (tel): +886-2-2890-7122 (English) Desktop/Server (tel): +886-2-2890-7123 (English) Fax: Email: Newsgroup: WWW: FTP: +886-2-2895-9254 tsd@asus.com.tw news2.asus.com.tw www.asus.com.tw ftp.asus.com.tw/pub/ASUS ASUS COMPUTER INTERNATIONAL (America) Marketing Address: 6737 Mowry Avenue, Mowry Business Center, Building 2 Newark, CA 94560, USA +1-510-608-4555 info-usa@asus.com.tw Fax: Email: Technical Support Fax: BBS: Email: WWW: FTP: +1-510-608-4555 +1-510-739-3774 tsd@asus.com www.asus.com ftp.asus.com/Pub/ASUS ASUS COMPUTER GmbH (Europe) Marketing Address: Fax: Email: Harkortstr. 25, 40880 Ratingen, BRD, Germany +49-2102-4420-66 sales@asuscom.de Technical Support Hotline: Fax: Online Support: WWW: FTP: MB/Others: +49-2102-9599-0 Notebook: +49-2102-9599-10 +49-2102-9599-11 www.asuscom.de/de/support www.asuscom.de ftp.asuscom.de/pub/ASUSCOM ASUS MEW-L User’s Manual 3

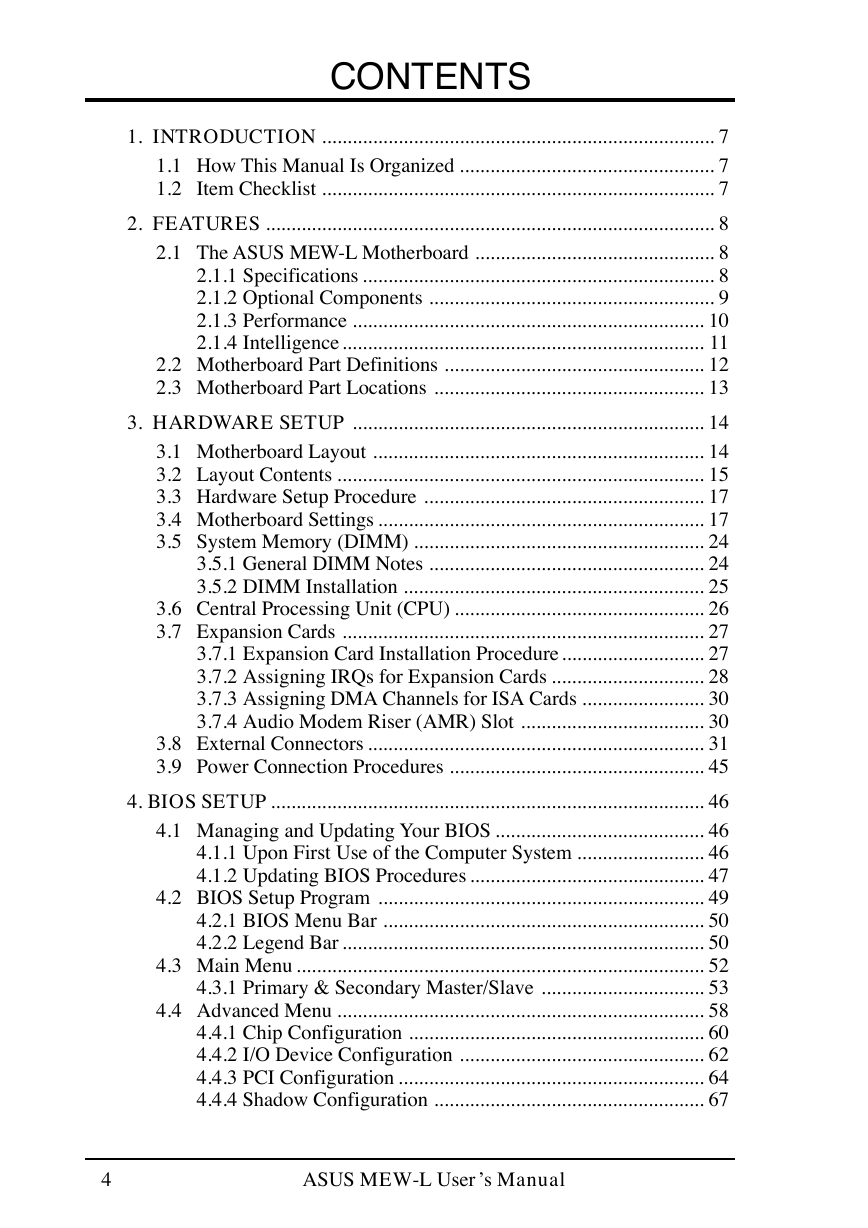

CONTENTS 1. INTRODUCTION ............................................................................. 7 1.1 How This Manual Is Organized .................................................. 7 1.2 Item Checklist ............................................................................. 7 2. FEATURES ........................................................................................ 8 2.1 The ASUS MEW-L Motherboard ............................................... 8 2.1.1 Specifications ..................................................................... 8 2.1.2 Optional Components ........................................................ 9 2.1.3 Performance ..................................................................... 10 2.1.4 Intelligence....................................................................... 11 2.2 Motherboard Part Definitions ................................................... 12 2.3 Motherboard Part Locations ..................................................... 13 3. HARDWARE SETUP ..................................................................... 14 3.1 Motherboard Layout ................................................................. 14 3.2 Layout Contents ........................................................................ 15 3.3 Hardware Setup Procedure ....................................................... 17 3.4 Motherboard Settings ................................................................ 17 3.5 System Memory (DIMM) ......................................................... 24 3.5.1 General DIMM Notes ...................................................... 24 3.5.2 DIMM Installation ........................................................... 25 3.6 Central Processing Unit (CPU) ................................................. 26 3.7 Expansion Cards ....................................................................... 27 3.7.1 Expansion Card Installation Procedure............................ 27 3.7.2 Assigning IRQs for Expansion Cards .............................. 28 3.7.3 Assigning DMA Channels for ISA Cards ........................ 30 3.7.4 Audio Modem Riser (AMR) Slot .................................... 30 3.8 External Connectors .................................................................. 31 3.9 Power Connection Procedures .................................................. 45 4. BIOS SETUP ..................................................................................... 46 4.1 Managing and Updating Your BIOS ......................................... 46 4.1.1 Upon First Use of the Computer System ......................... 46 4.1.2 Updating BIOS Procedures .............................................. 47 4.2 BIOS Setup Program ................................................................ 49 4.2.1 BIOS Menu Bar ............................................................... 50 4.2.2 Legend Bar ....................................................................... 50 4.3 Main Menu ................................................................................ 52 4.3.1 Primary & Secondary Master/Slave ................................ 53 4.4 Advanced Menu ........................................................................ 58 4.4.1 Chip Configuration .......................................................... 60 4.4.2 I/O Device Configuration ................................................ 62 4.4.3 PCI Configuration ............................................................ 64 4.4.4 Shadow Configuration ..................................................... 67 4 ASUS MEW-L User’s Manual

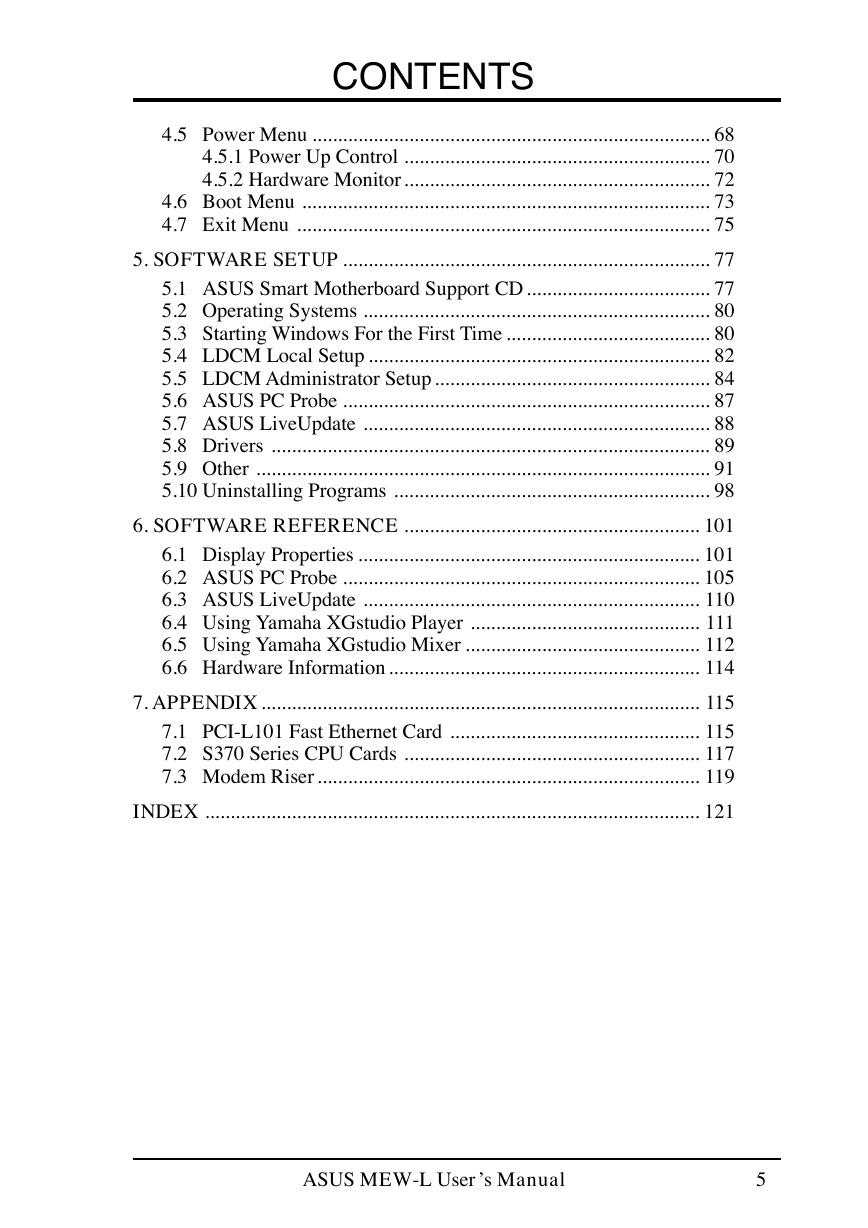

CONTENTS 4.5 Power Menu .............................................................................. 68 4.5.1 Power Up Control ............................................................ 70 4.5.2 Hardware Monitor ............................................................ 72 4.6 Boot Menu ................................................................................ 73 4.7 Exit Menu ................................................................................. 75 5. SOFTWARE SETUP ........................................................................ 77 5.1 ASUS Smart Motherboard Support CD .................................... 77 5.2 Operating Systems .................................................................... 80 5.3 Starting Windows For the First Time ........................................ 80 5.4 LDCM Local Setup ................................................................... 82 5.5 LDCM Administrator Setup ...................................................... 84 5.6 ASUS PC Probe ........................................................................ 87 5.7 ASUS LiveUpdate .................................................................... 88 5.8 Drivers ...................................................................................... 89 5.9 Other ......................................................................................... 91 5.10 Uninstalling Programs .............................................................. 98 6. SOFTWARE REFERENCE .......................................................... 101 6.1 Display Properties ................................................................... 101 6.2 ASUS PC Probe ...................................................................... 105 6.3 ASUS LiveUpdate .................................................................. 110 6.4 Using Yamaha XGstudio Player ............................................. 111 6.5 Using Yamaha XGstudio Mixer .............................................. 112 6.6 Hardware Information ............................................................. 114 7. APPENDIX ...................................................................................... 115 7.1 PCI-L101 Fast Ethernet Card ................................................. 115 7.2 S370 Series CPU Cards .......................................................... 117 7.3 Modem Riser ........................................................................... 119 INDEX ................................................................................................. 121 ASUS MEW-L User’s Manual 5

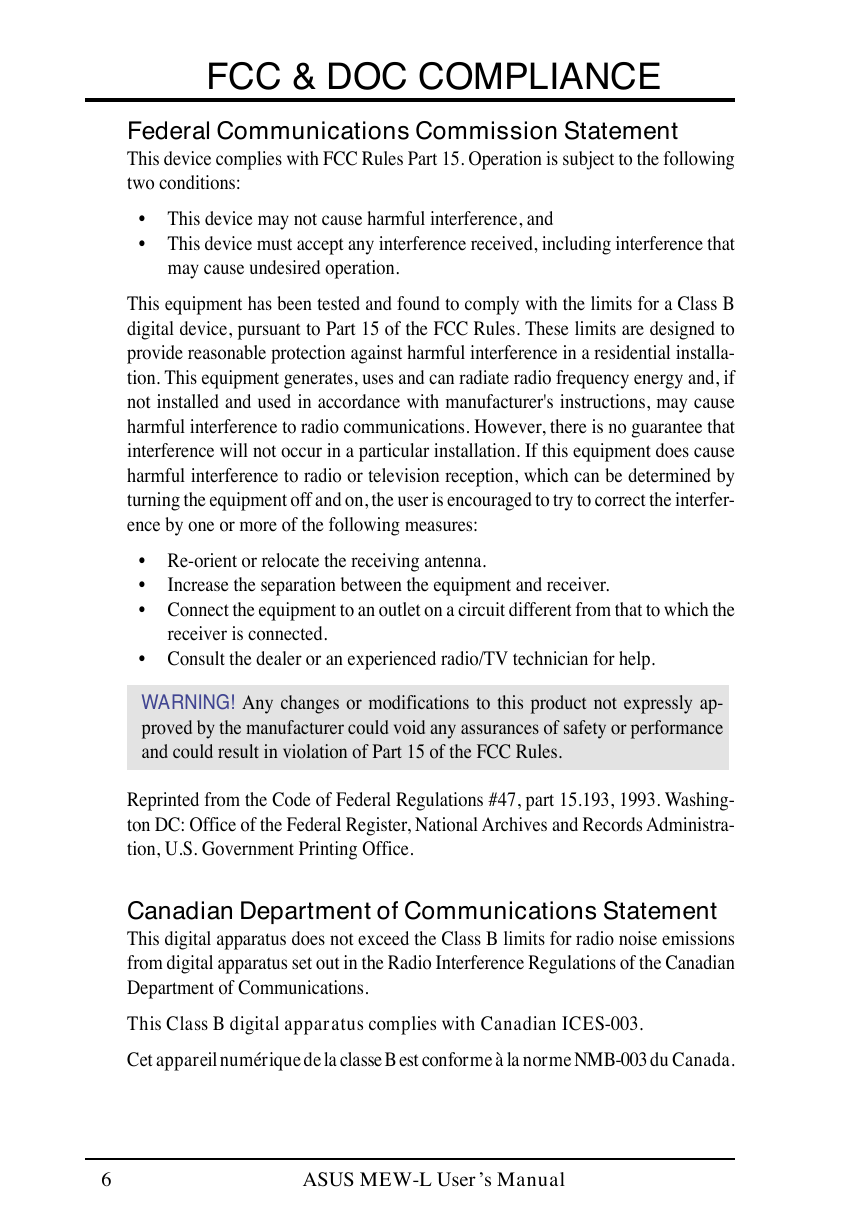

FCC & DOC COMPLIANCE Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: • Re-orient or relocate the receiving antenna. • • Connect the equipment to an outlet on a circuit different from that to which the Increase the separation between the equipment and receiver. receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING! Any changes or modifications to this product not expressly ap- proved by the manufacturer could void any assurances of safety or performance and could result in violation of Part 15 of the FCC Rules. Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washing- ton DC: Office of the Federal Register, National Archives and Records Administra- tion, U.S. Government Printing Office. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 6 ASUS MEW-L User’s Manual

I N O T C U D O R T N I . 1 t s i l k c e h C / s n o i t c e S 1. INTRODUCTION 1.1 How This Manual Is Organized This manual is divided into the following sections: 1) INTRODUCTION 2) FEATURES 3) HARDWARE SETUP 4) BIOS SETUP 5) SOFTWARE SETUP 6) SOFTWARE REFERENCE Reference material for the included software 7) APPENDIX Manual information and checklist Product information and specifications Instructions on setting up the motherboard Instructions on setting up the BIOS software Instructions on setting up the included software Optional items 1.2 Item Checklist Check that your package is complete. If you discover damaged or missing items, please contact your retailer. (1) ASUS Motherboard (1) 80-conductor ribbon cable for internal UltraDMA/66 or UltraDMA/33 IDE drives NOTE: The 80-conductor ribbon cable is designed with a 40-pin connector. (1) Ribbon cable for (1) 5.25” and (2) 3.5” floppy disk drives (1) Bag of spare jumper caps (1) Support CD with drivers and utilities (1) This Motherboard User’s Manual I/O Shield (for LAN model only; metallic plate which replaces the chassis’ pro- vided standard ATX connector shield) Serial COM2 connector with bracket (for non-LCD model only) LCD panel & Serial COM2 connector with bracket (for LCD model only) ASUS IrDA-compliant Infrared module (optional) ASUS consumer infrared set (optional) ASUS MEW-L User’s Manual 7

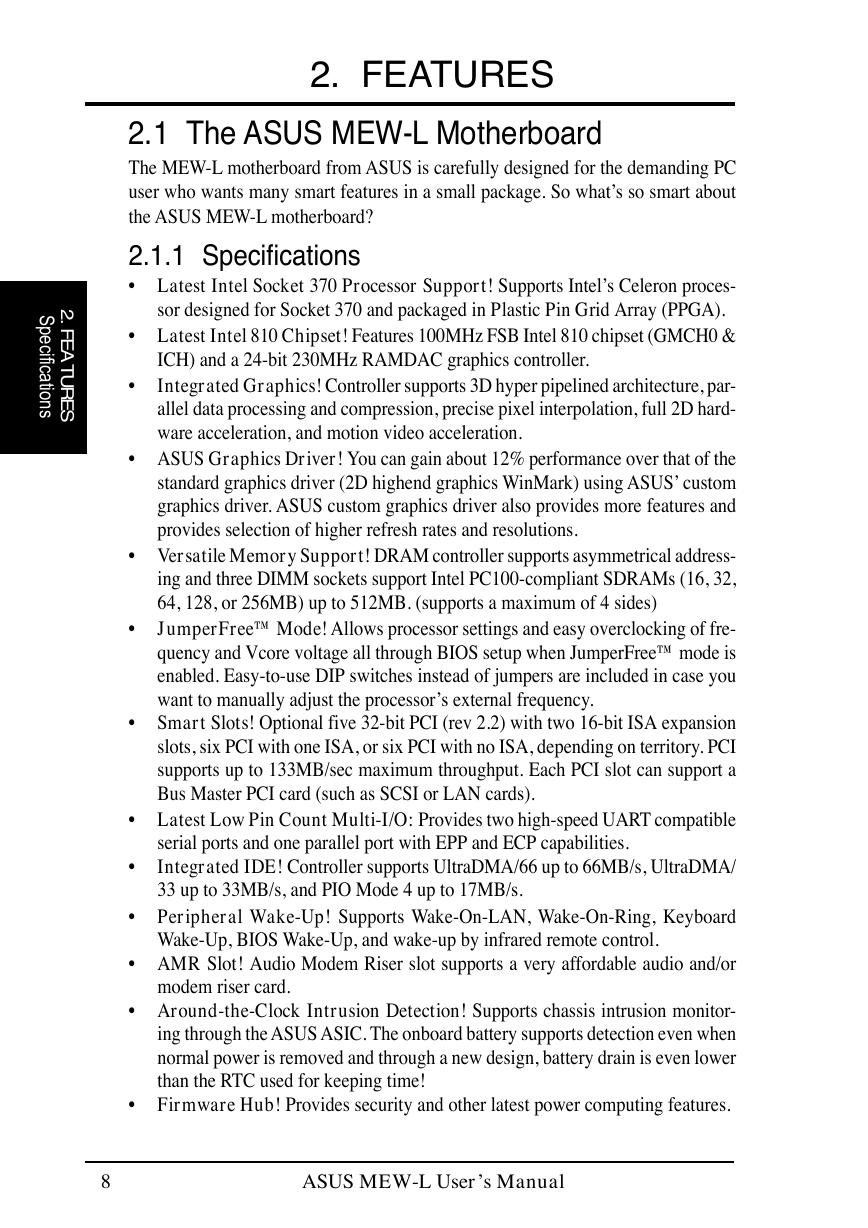

S p e c i f i c a t i o n s 2 . F E A T U R E S 2. FEATURES 2.1 The ASUS MEW-L Motherboard The MEW-L motherboard from ASUS is carefully designed for the demanding PC user who wants many smart features in a small package. So what’s so smart about the ASUS MEW-L motherboard? 2.1.1 Specifications • Latest Intel Socket 370 Processor Support! Supports Intel’s Celeron proces- sor designed for Socket 370 and packaged in Plastic Pin Grid Array (PPGA). • Latest Intel 810 Chipset! Features 100MHz FSB Intel 810 chipset (GMCH0 & • ICH) and a 24-bit 230MHz RAMDAC graphics controller. Integrated Graphics! Controller supports 3D hyper pipelined architecture, par- allel data processing and compression, precise pixel interpolation, full 2D hard- ware acceleration, and motion video acceleration. • ASUS Graphics Driver! You can gain about 12% performance over that of the standard graphics driver (2D highend graphics WinMark) using ASUS’ custom graphics driver. ASUS custom graphics driver also provides more features and provides selection of higher refresh rates and resolutions. • • Versatile Memory Support! DRAM controller supports asymmetrical address- ing and three DIMM sockets support Intel PC100-compliant SDRAMs (16, 32, 64, 128, or 256MB) up to 512MB. (supports a maximum of 4 sides) JumperFree™ Mode! Allows processor settings and easy overclocking of fre- quency and Vcore voltage all through BIOS setup when JumperFree™ mode is enabled. Easy-to-use DIP switches instead of jumpers are included in case you want to manually adjust the processor’s external frequency. Smart Slots! Optional five 32-bit PCI (rev 2.2) with two 16-bit ISA expansion slots, six PCI with one ISA, or six PCI with no ISA, depending on territory. PCI supports up to 133MB/sec maximum throughput. Each PCI slot can support a Bus Master PCI card (such as SCSI or LAN cards). • • Latest Low Pin Count Multi-I/O: Provides two high-speed UART compatible • serial ports and one parallel port with EPP and ECP capabilities. Integrated IDE! Controller supports UltraDMA/66 up to 66MB/s, UltraDMA/ 33 up to 33MB/s, and PIO Mode 4 up to 17MB/s. • Peripheral Wake-Up! Supports Wake-On-LAN, Wake-On-Ring, Keyboard Wake-Up, BIOS Wake-Up, and wake-up by infrared remote control. • AMR Slot! Audio Modem Riser slot supports a very affordable audio and/or modem riser card. • Around-the-Clock Intrusion Detection! Supports chassis intrusion monitor- ing through the ASUS ASIC. The onboard battery supports detection even when normal power is removed and through a new design, battery drain is even lower than the RTC used for keeping time! • Firmware Hub! Provides security and other latest power computing features. 8 ASUS MEW-L User’s Manual
