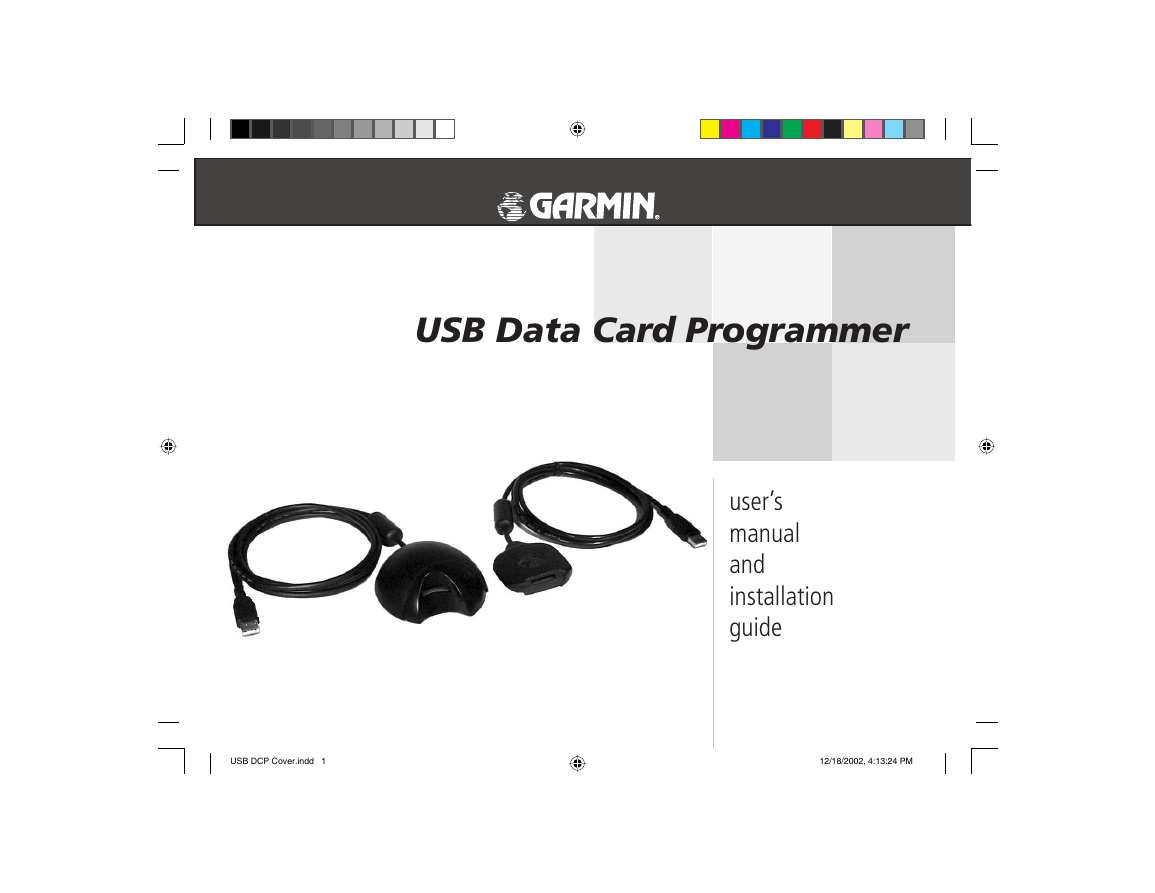

USB Data Card Programmer user’s manual and installation guide USB DCP Cover.indd 1 12/18/2002, 4:13:24 PM

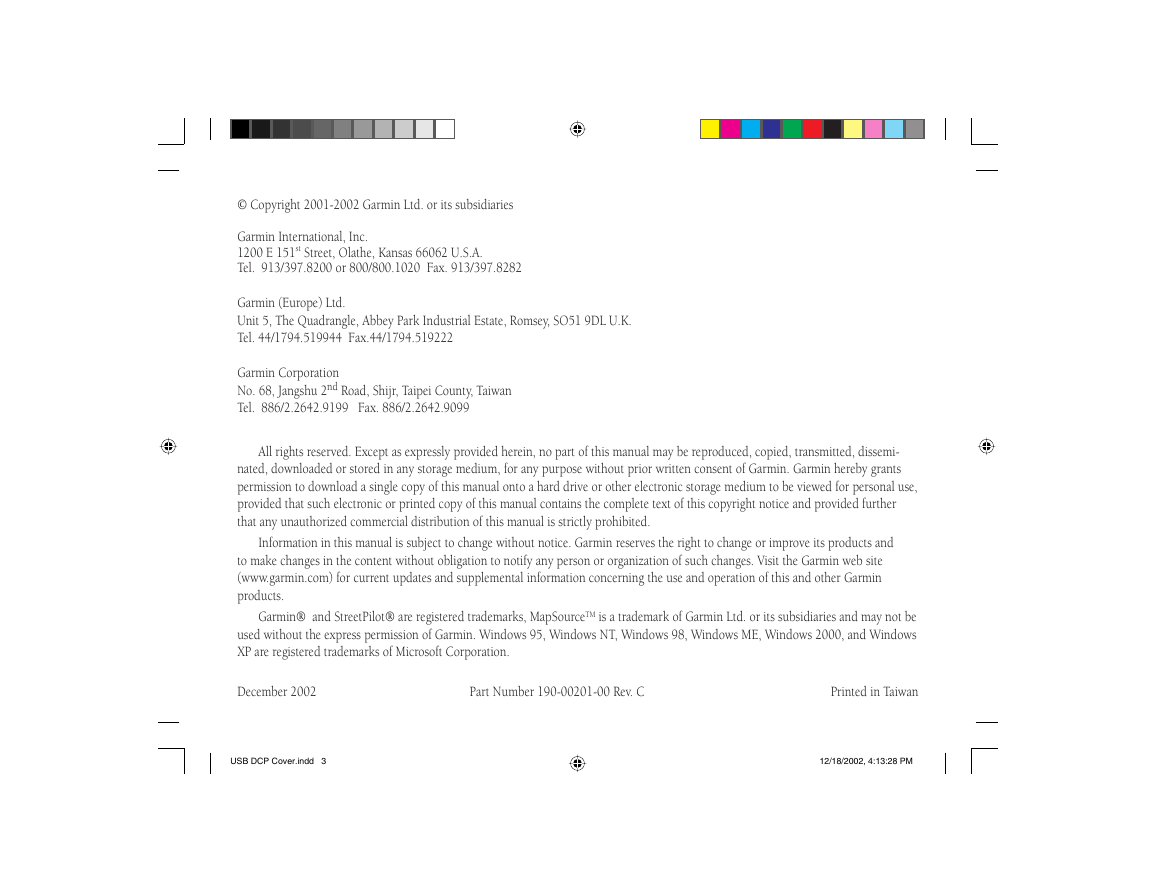

© Copyright 2001-2002 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 E 151st Street, Olathe, Kansas 66062 U.S.A. Tel. 913/397.8200 or 800/800.1020 Fax. 913/397.8282 Garmin (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL U.K. Tel. 44/1794.519944 Fax.44/1794.519222 Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax. 886/2.2642.9099 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, dissemi- nated, downloaded or stored in any storage medium, for any purpose without prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed for personal use, provided that such electronic or printed copy of this manual contains the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual is strictly prohibited. Information in this manual is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes. Visit the Garmin web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin® and StreetPilot® are registered trademarks, MapSourceTM is a trademark of Garmin Ltd. or its subsidiaries and may not be used without the express permission of Garmin. Windows 95, Windows NT, Windows 98, Windows ME, Windows 2000, and Windows XP are registered trademarks of Microsoft Corporation. December 2002 Part Number 190-00201-00 Rev. C Printed in Taiwan USB DCP Cover.indd 3 12/18/2002, 4:13:28 PM

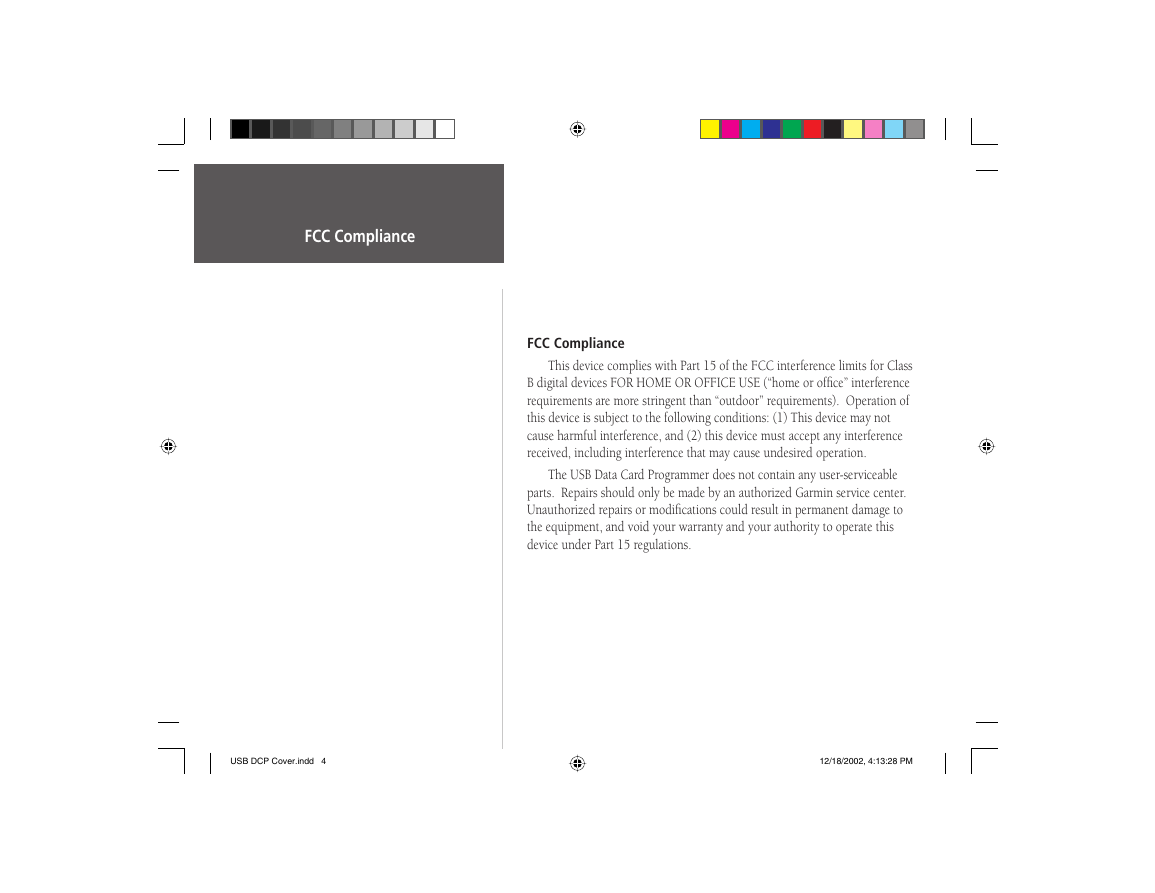

FCC Compliance FCC Compliance This device complies with Part 15 of the FCC interference limits for Class B digital devices FOR HOME OR OFFICE USE (“home or ofﬁ ce” interference requirements are more stringent than “outdoor” requirements). Operation of this device is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The USB Data Card Programmer does not contain any user-serviceable parts. Repairs should only be made by an authorized Garmin service center. Unauthorized repairs or modiﬁ cations could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. USB DCP Cover.indd 4 12/18/2002, 4:13:28 PM

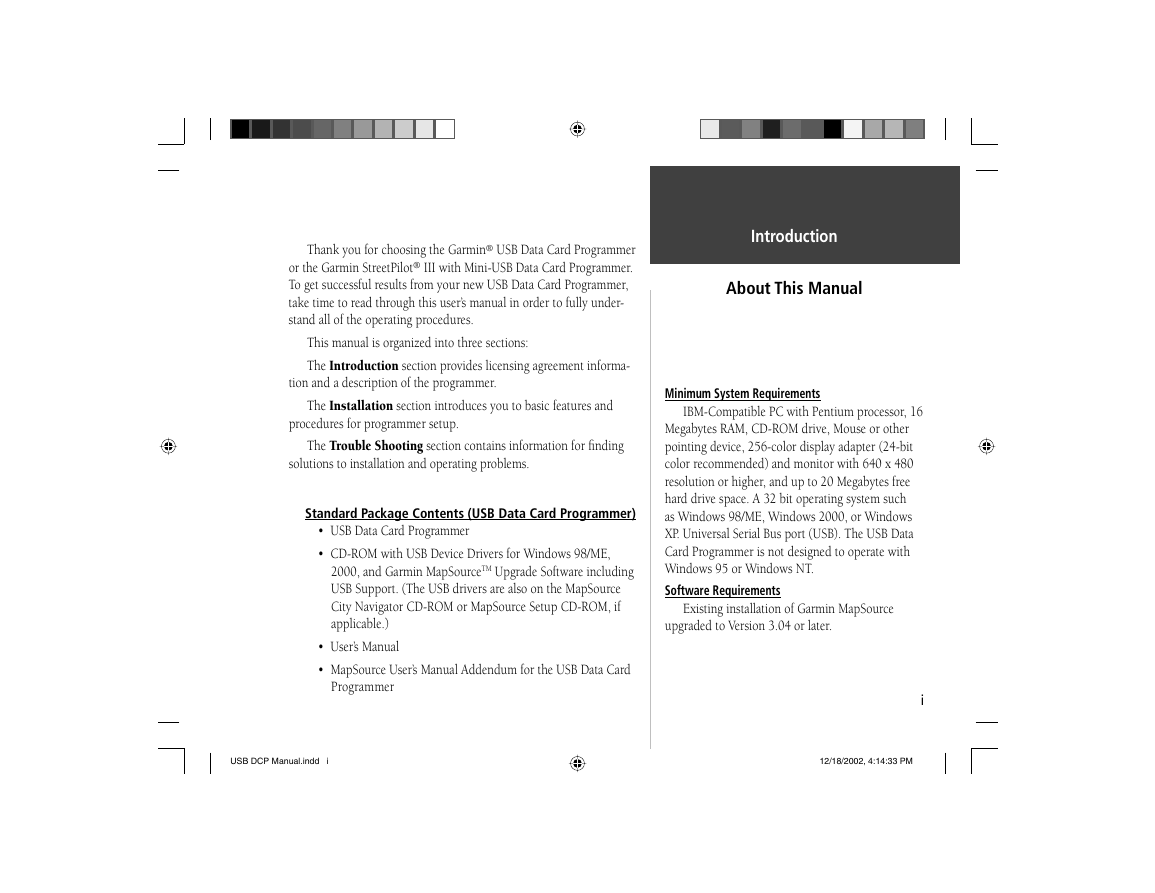

Thank you for choosing the Garmin® USB Data Card Programmer or the Garmin StreetPilot® III with Mini-USB Data Card Programmer. To get successful results from your new USB Data Card Programmer, take time to read through this user’s manual in order to fully under- stand all of the operating procedures. This manual is organized into three sections: The Introduction section provides licensing agreement informa- tion and a description of the programmer. The Installation section introduces you to basic features and procedures for programmer setup. The Trouble Shooting section contains information for ﬁ nding solutions to installation and operating problems. Standard Package Contents (USB Data Card Programmer) • USB Data Card Programmer • CD-ROM with USB Device Drivers for Windows 98/ME, 2000, and Garmin MapSourceTM Upgrade Software including USB Support. (The USB drivers are also on the MapSource City Navigator CD-ROM or MapSource Setup CD-ROM, if applicable.) • User’s Manual • MapSource User’s Manual Addendum for the USB Data Card Programmer Introduction About This Manual Minimum System Requirements IBM-Compatible PC with Pentium processor, 16 Megabytes RAM, CD-ROM drive, Mouse or other pointing device, 256-color display adapter (24-bit color recommended) and monitor with 640 x 480 resolution or higher, and up to 20 Megabytes free hard drive space. A 32 bit operating system such as Windows 98/ME, Windows 2000, or Windows XP. Universal Serial Bus port (USB). The USB Data Card Programmer is not designed to operate with Windows 95 or Windows NT. Software Requirements Existing installation of Garmin MapSource upgraded to Version 3.04 or later. i USB DCP Manual.indd i 12/18/2002, 4:14:33 PM

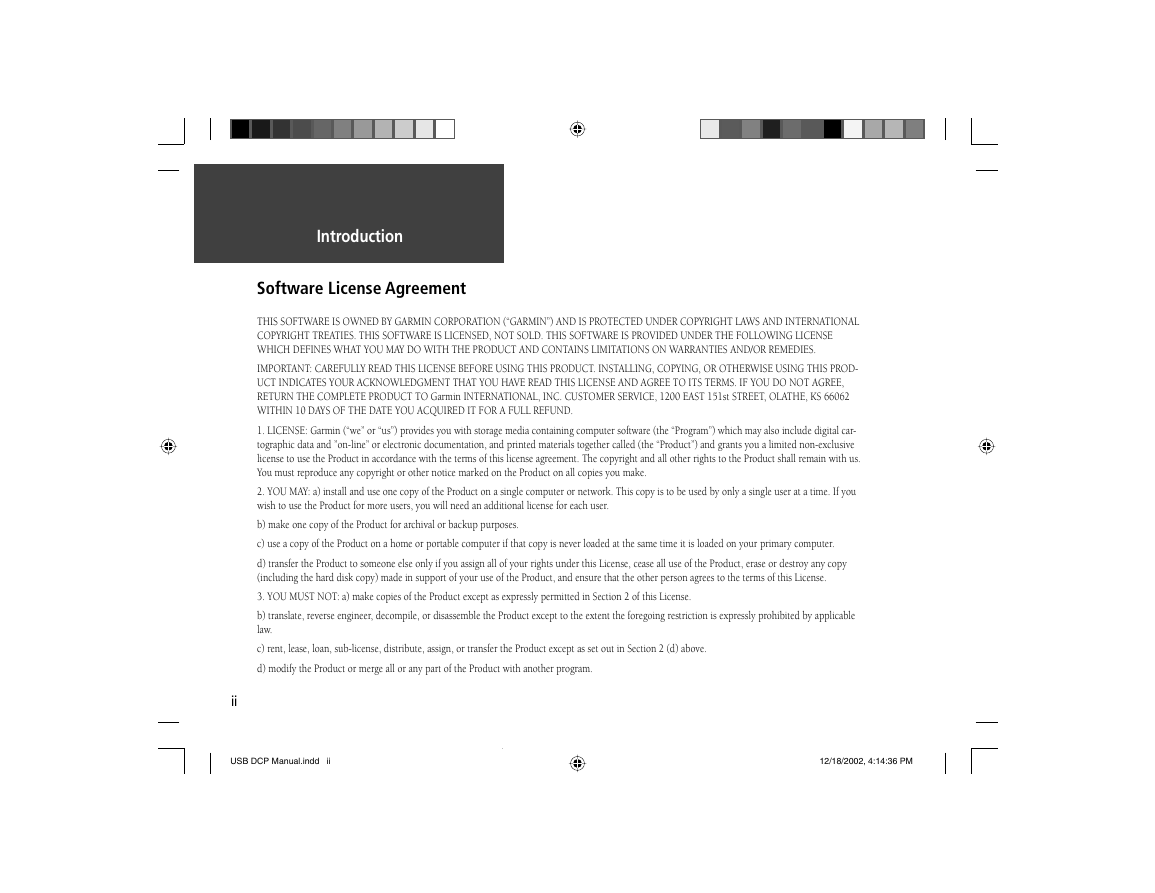

Introduction Software License Agreement THIS SOFTWARE IS OWNED BY GARMIN CORPORATION (“GARMIN”) AND IS PROTECTED UNDER COPYRIGHT LAWS AND INTERNATIONAL COPYRIGHT TREATIES. THIS SOFTWARE IS LICENSED, NOT SOLD. THIS SOFTWARE IS PROVIDED UNDER THE FOLLOWING LICENSE WHICH DEFINES WHAT YOU MAY DO WITH THE PRODUCT AND CONTAINS LIMITATIONS ON WARRANTIES AND/OR REMEDIES. IMPORTANT: CAREFULLY READ THIS LICENSE BEFORE USING THIS PRODUCT. INSTALLING, COPYING, OR OTHERWISE USING THIS PROD- UCT INDICATES YOUR ACKNOWLEDGMENT THAT YOU HAVE READ THIS LICENSE AND AGREE TO ITS TERMS. IF YOU DO NOT AGREE, RETURN THE COMPLETE PRODUCT TO Garmin INTERNATIONAL, INC. CUSTOMER SERVICE, 1200 EAST 151st STREET, OLATHE, KS 66062 WITHIN 10 DAYS OF THE DATE YOU ACQUIRED IT FOR A FULL REFUND. 1. LICENSE: Garmin (“we” or “us”) provides you with storage media containing computer software (the “Program”) which may also include digital car- tographic data and ”on-line” or electronic documentation, and printed materials together called (the “Product”) and grants you a limited non-exclusive license to use the Product in accordance with the terms of this license agreement. The copyright and all other rights to the Product shall remain with us. You must reproduce any copyright or other notice marked on the Product on all copies you make. 2. YOU MAY: a) install and use one copy of the Product on a single computer or network. This copy is to be used by only a single user at a time. If you wish to use the Product for more users, you will need an additional license for each user. b) make one copy of the Product for archival or backup purposes. c) use a copy of the Product on a home or portable computer if that copy is never loaded at the same time it is loaded on your primary computer. d) transfer the Product to someone else only if you assign all of your rights under this License, cease all use of the Product, erase or destroy any copy (including the hard disk copy) made in support of your use of the Product, and ensure that the other person agrees to the terms of this License. 3. YOU MUST NOT: a) make copies of the Product except as expressly permitted in Section 2 of this License. b) translate, reverse engineer, decompile, or disassemble the Product except to the extent the foregoing restriction is expressly prohibited by applicable law. c) rent, lease, loan, sub-license, distribute, assign, or transfer the Product except as set out in Section 2 (d) above. d) modify the Product or merge all or any part of the Product with another program. ii USB DCP Manual.indd ii 12/18/2002, 4:14:36 PM

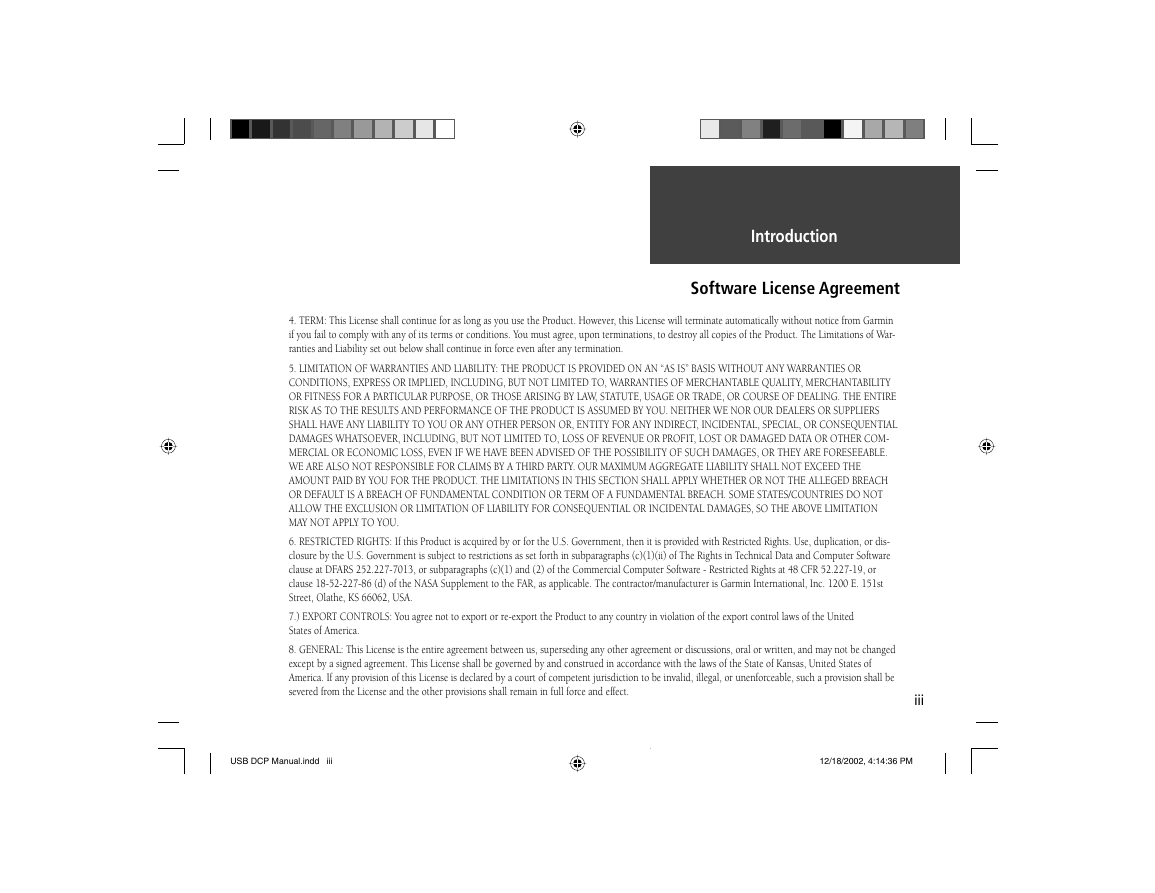

Introduction Software License Agreement 4. TERM: This License shall continue for as long as you use the Product. However, this License will terminate automatically without notice from Garmin if you fail to comply with any of its terms or conditions. You must agree, upon terminations, to destroy all copies of the Product. The Limitations of War- ranties and Liability set out below shall continue in force even after any termination. 5. LIMITATION OF WARRANTIES AND LIABILITY: THE PRODUCT IS PROVIDED ON AN “AS IS” BASIS WITHOUT ANY WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABLE QUALITY, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR THOSE ARISING BY LAW, STATUTE, USAGE OR TRADE, OR COURSE OF DEALING. THE ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF THE PRODUCT IS ASSUMED BY YOU. NEITHER WE NOR OUR DEALERS OR SUPPLIERS SHALL HAVE ANY LIABILITY TO YOU OR ANY OTHER PERSON OR, ENTITY FOR ANY INDIRECT, INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, BUT NOT LIMITED TO, LOSS OF REVENUE OR PROFIT, LOST OR DAMAGED DATA OR OTHER COM- MERCIAL OR ECONOMIC LOSS, EVEN IF WE HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR THEY ARE FORESEEABLE. WE ARE ALSO NOT RESPONSIBLE FOR CLAIMS BY A THIRD PARTY. OUR MAXIMUM AGGREGATE LIABILITY SHALL NOT EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT. THE LIMITATIONS IN THIS SECTION SHALL APPLY WHETHER OR NOT THE ALLEGED BREACH OR DEFAULT IS A BREACH OF FUNDAMENTAL CONDITION OR TERM OF A FUNDAMENTAL BREACH. SOME STATES/COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. 6. RESTRICTED RIGHTS: If this Product is acquired by or for the U.S. Government, then it is provided with Restricted Rights. Use, duplication, or dis- closure by the U.S. Government is subject to restrictions as set forth in subparagraphs (c)(1)(ii) of The Rights in Technical Data and Computer Software clause at DFARS 252.227-7013, or subparagraphs (c)(1) and (2) of the Commercial Computer Software - Restricted Rights at 48 CFR 52.227-19, or clause 18-52-227-86 (d) of the NASA Supplement to the FAR, as applicable. The contractor/manufacturer is Garmin International, Inc. 1200 E. 151st Street, Olathe, KS 66062, USA. 7.) EXPORT CONTROLS: You agree not to export or re-export the Product to any country in violation of the export control laws of the United States of America. 8. GENERAL: This License is the entire agreement between us, superseding any other agreement or discussions, oral or written, and may not be changed except by a signed agreement. This License shall be governed by and construed in accordance with the laws of the State of Kansas, United States of America. If any provision of this License is declared by a court of competent jurisdiction to be invalid, illegal, or unenforceable, such a provision shall be severed from the License and the other provisions shall remain in full force and effect. iii USB DCP Manual.indd iii 12/18/2002, 4:14:36 PM

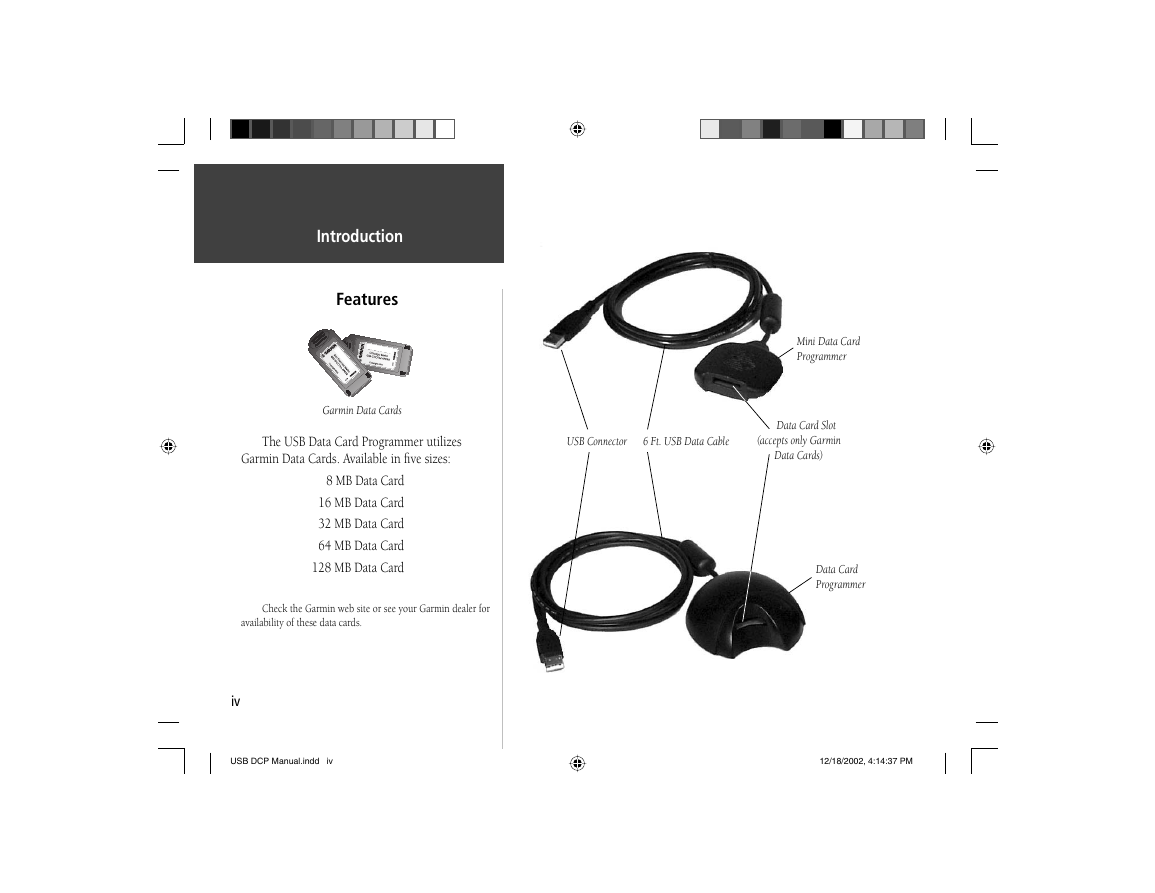

Introduction Features Garmin Data Cards The USB Data Card Programmer utilizes USB Connector 6 Ft. USB Data Cable Garmin Data Cards. Available in ﬁ ve sizes: 8 MB Data Card 16 MB Data Card 32 MB Data Card 64 MB Data Card 128 MB Data Card Check the Garmin web site or see your Garmin dealer for availability of these data cards. iv Mini Data Card Programmer Data Card Slot (accepts only Garmin Data Cards) Data Card Programmer USB DCP Manual.indd iv 12/18/2002, 4:14:37 PM

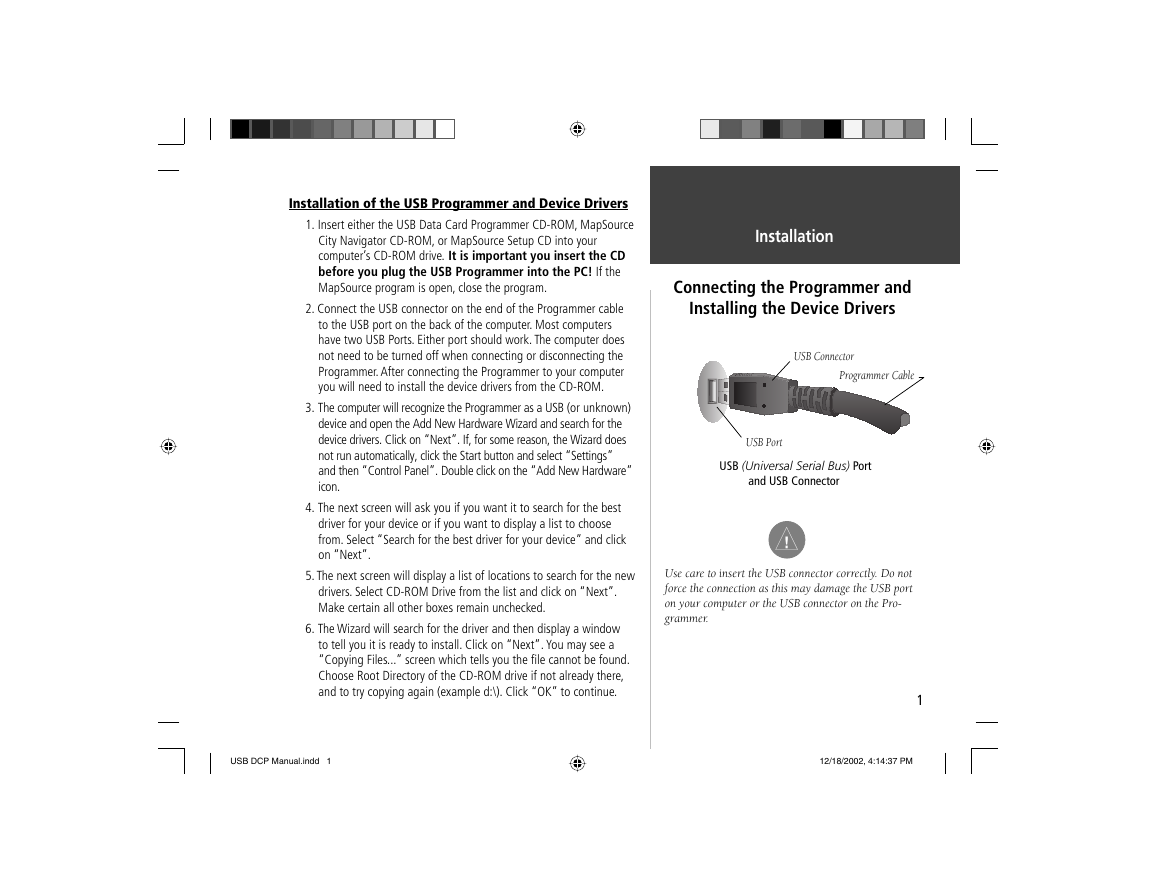

Installation of the USB Programmer and Device Drivers 1. Insert either the USB Data Card Programmer CD-ROM, MapSource City Navigator CD-ROM, or MapSource Setup CD into your computer’s CD-ROM drive. It is important you insert the CD before you plug the USB Programmer into the PC! If the MapSource program is open, close the program. 2. Connect the USB connector on the end of the Programmer cable to the USB port on the back of the computer. Most computers have two USB Ports. Either port should work. The computer does not need to be turned off when connecting or disconnecting the Programmer. After connecting the Programmer to your computer you will need to install the device drivers from the CD-ROM. 3. The computer will recognize the Programmer as a USB (or unknown) device and open the Add New Hardware Wizard and search for the device drivers. Click on “Next”. If, for some reason, the Wizard does not run automatically, click the Start button and select “Settings” and then “Control Panel”. Double click on the “Add New Hardware” icon. 4. The next screen will ask you if you want it to search for the best driver for your device or if you want to display a list to choose from. Select “Search for the best driver for your device” and click on “Next”. 5. The next screen will display a list of locations to search for the new drivers. Select CD-ROM Drive from the list and click on “Next”. Make certain all other boxes remain unchecked. 6. The Wizard will search for the driver and then display a window to tell you it is ready to install. Click on “Next”. You may see a “Copying Files...” screen which tells you the ﬁ le cannot be found. Choose Root Directory of the CD-ROM drive if not already there, and to try copying again (example d:\). Click “OK” to continue. Installation Connecting the Programmer and Installing the Device Drivers USB Connector Programmer Cable USB Port USB (Universal Serial Bus) Port and USB Connector Use care to insert the USB connector correctly. Do not force the connection as this may damage the USB port on your computer or the USB connector on the Pro- grammer. 1 USB DCP Manual.indd 1 12/18/2002, 4:14:37 PM
