Data Guard 11g
Installation and Configuration
On Oracle RAC Systems
An Oracle White Paper
October 2008
Maximum
Availability
Architecture
Oracle Best Practices For High Availability
Contents
1
2.7
INTRODUCTION ................................................................................................................................................................4
PURPOSE ...........................................................................................................................................................................4
1.1
BACKGROUND ..................................................................................................................................................................4
1.2
SCOPE & APPLICATION....................................................................................................................................................4
1.3
1.4
RELATED DOCUMENTS.....................................................................................................................................................5
1.5 ASSUMPTIONS...................................................................................................................................................................5
2 ARCHITECTURE AND CONCEPTS ...............................................................................................................................6
2.1 GLOSSARY.........................................................................................................................................................................6
2.2
RAC ARCHITECTURE.......................................................................................................................................................6
2.3 DATA GUARD ARCHITECTURE.........................................................................................................................................6
2.4 NETWORK.........................................................................................................................................................................7
2.5 DATA GUARD ARCHITECTURE.........................................................................................................................................8
2.5.1 Log Transport Services.................................................................................................................................................8
2.5.2 Log Apply Services.......................................................................................................................................................8
2.5.3 Data Guard Broker........................................................................................................................................................9
2.6 HOW IT WORKS ................................................................................................................................................................9
2.6.1 Archived Log Shipping................................................................................................................................................9
2.6.2 Standby Redo logs ........................................................................................................................................................9
LEVELS OF PROTECTION.................................................................................................................................................10
2.7.1 Maximum Protection..................................................................................................................................................10
2.7.2 Maximum Availability...............................................................................................................................................10
2.7.3 Maximum Performance .............................................................................................................................................10
2.7.4 Pros and Cons..............................................................................................................................................................10
3 PREREQUISITES................................................................................................................................................................11
3.1 HARDWARE ....................................................................................................................................................................11
3.2 NETWORK.......................................................................................................................................................................11
SOFTWARE ......................................................................................................................................................................11
3.3
3.4
REAL APPLICATION CLUSTERS ......................................................................................................................................11
3.4.1 ASM ..............................................................................................................................................................................11
3.4.2 Raw Devices ................................................................................................................................................................11
4 CREATING A DATA GUARD ENVIRONMENT.......................................................................................................13
4.1 ASSUMPTIONS.................................................................................................................................................................13
PROCEDURE - SUMMARY................................................................................................................................................13
4.2
CREATING THE RAC STANDBY DATABASE...................................................................................................................14
4.3
4.3.1 Configure Primary and Standby sites......................................................................................................................14
4.3.2 Install Oracle Software on each site..........................................................................................................................14
4.3.3 Server Names / VIPs..................................................................................................................................................14
4.3.4 Configure Oracle Networking ..................................................................................................................................15
4.3.5 Configure ASM on each Site .....................................................................................................................................17
2
4.5
4.4
4.3.6 Prepare Primary Database for Duplication.............................................................................................................18
4.3.7 Duplicate the Primary database................................................................................................................................20
4.3.8 Create an SPFILE for the Standby Database ...........................................................................................................20
4.3.9 Create secondary control files...................................................................................................................................21
4.3.10 Cluster-enable the Standby Database ....................................................................................................................22
4.3.11 Temporary Files ........................................................................................................................................................23
4.3.12 Create Standby Redo Logs.......................................................................................................................................23
CONFIGURING DATA GUARD USING SQL PLUS ...........................................................................................................24
4.4.1 Introduction.................................................................................................................................................................24
4.4.2 Configure the Standby Database ..............................................................................................................................24
4.4.3 Configure the Primary Database ..............................................................................................................................25
4.4.4 Set the Protection Mode .............................................................................................................................................25
4.4.5 Enable Redo Transport & Redo Apply ....................................................................................................................26
CONFIGURING DATA GUARD USING THE DATA GUARD BROKER................................................................................26
4.5.1 Introduction.................................................................................................................................................................26
4.5.2 Broker Configuration Files ........................................................................................................................................27
4.5.3 Enabling the Broker ....................................................................................................................................................27
4.5.4 Creating a Broker Configuration ..............................................................................................................................27
4.5.5 Enable the Broker Configuration..............................................................................................................................27
4.5.6 Broker Customisation.................................................................................................................................................28
5 MONITORING ...................................................................................................................................................................29
5.1.1 Introduction.................................................................................................................................................................29
5.1.2 Log Files .......................................................................................................................................................................29
5.1.3 Fixed Views .................................................................................................................................................................29
6 MANAGEMENT.................................................................................................................................................................30
SWITCHOVER ..................................................................................................................................................................30
6.1.1 Switchover using SQL Plus .......................................................................................................................................30
6.1.2 Switchover using Data Guard Broker......................................................................................................................30
FAILOVER........................................................................................................................................................................31
6.2.1 Failover using SQL Plus.............................................................................................................................................31
6.2.2 Failover using Data Guard Broker ...........................................................................................................................31
FORCED FAILOVER..........................................................................................................................................................31
6.3.1 Forced Failover using Data Guard Broker ..............................................................................................................32
6.4 OPENING A STANDBY DATABASE READ ONLY .............................................................................................................32
REAL TIME APPLY / REAL TIME QUERY .......................................................................................................................32
6.5
7 APPENDIX A – USING RMAN TO CREATE THE STANDBY DATABASE (TRADITIONAL METHOD ....33
7.1 ASSUMPTIONS.................................................................................................................................................................33
RMAN BACKUP.............................................................................................................................................................33
7.2
7.2.1 New Backup ................................................................................................................................................................33
7.2.2 Existing Backup...........................................................................................................................................................34
CREATING THE STANDBY DATABASE ............................................................................................................................34
7.3.1 Prerequisites ................................................................................................................................................................34
7.3.2 Procedure .....................................................................................................................................................................34
8 APPENDIX B – FURTHER READING...........................................................................................................................36
8.1 ORACLE MANUALS ........................................................................................................................................................36
8.2 METALINK ......................................................................................................................................................................36
7.3
6.1
6.2
6.3
3
1
Introduction

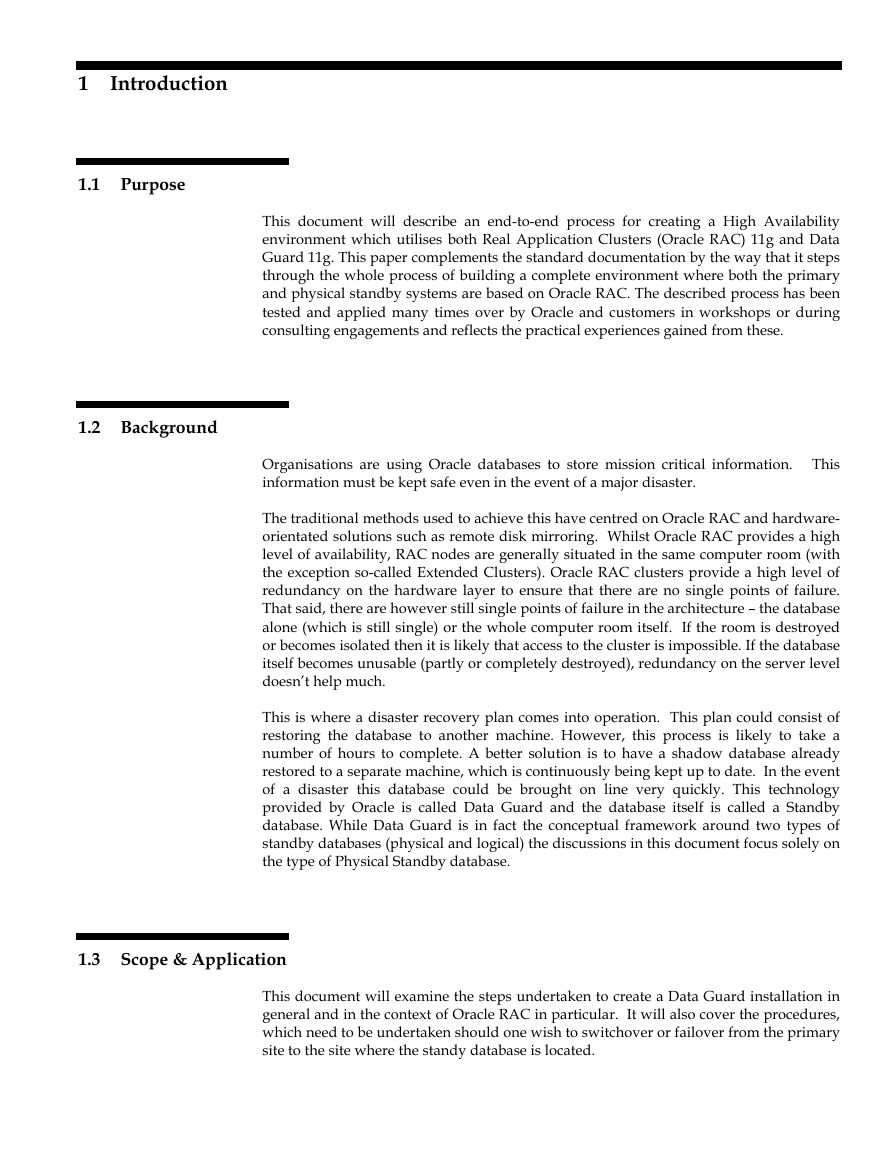

1.1 Purpose
This document will describe an end-to-end process for creating a High Availability
environment which utilises both Real Application Clusters (Oracle RAC) 11g and Data
Guard 11g. This paper complements the standard documentation by the way that it steps
through the whole process of building a complete environment where both the primary
and physical standby systems are based on Oracle RAC. The described process has been
tested and applied many times over by Oracle and customers in workshops or during
consulting engagements and reflects the practical experiences gained from these.
1.2 Background
Organisations are using Oracle databases to store mission critical information. This
information must be kept safe even in the event of a major disaster.
The traditional methods used to achieve this have centred on Oracle RAC and hardware-
orientated solutions such as remote disk mirroring. Whilst Oracle RAC provides a high
level of availability, RAC nodes are generally situated in the same computer room (with
the exception so-called Extended Clusters). Oracle RAC clusters provide a high level of
redundancy on the hardware layer to ensure that there are no single points of failure.
That said, there are however still single points of failure in the architecture – the database
alone (which is still single) or the whole computer room itself. If the room is destroyed
or becomes isolated then it is likely that access to the cluster is impossible. If the database
itself becomes unusable (partly or completely destroyed), redundancy on the server level
doesn’t help much.
This is where a disaster recovery plan comes into operation. This plan could consist of
restoring the database to another machine. However, this process is likely to take a
number of hours to complete. A better solution is to have a shadow database already
restored to a separate machine, which is continuously being kept up to date. In the event
of a disaster this database could be brought on line very quickly. This technology
provided by Oracle is called Data Guard and the database itself is called a Standby
database. While Data Guard is in fact the conceptual framework around two types of
standby databases (physical and logical) the discussions in this document focus solely on
the type of Physical Standby database.
1.3 Scope & Application
This document will examine the steps undertaken to create a Data Guard installation in
general and in the context of Oracle RAC in particular. It will also cover the procedures,
which need to be undertaken should one wish to switchover or failover from the primary
site to the site where the standy database is located.

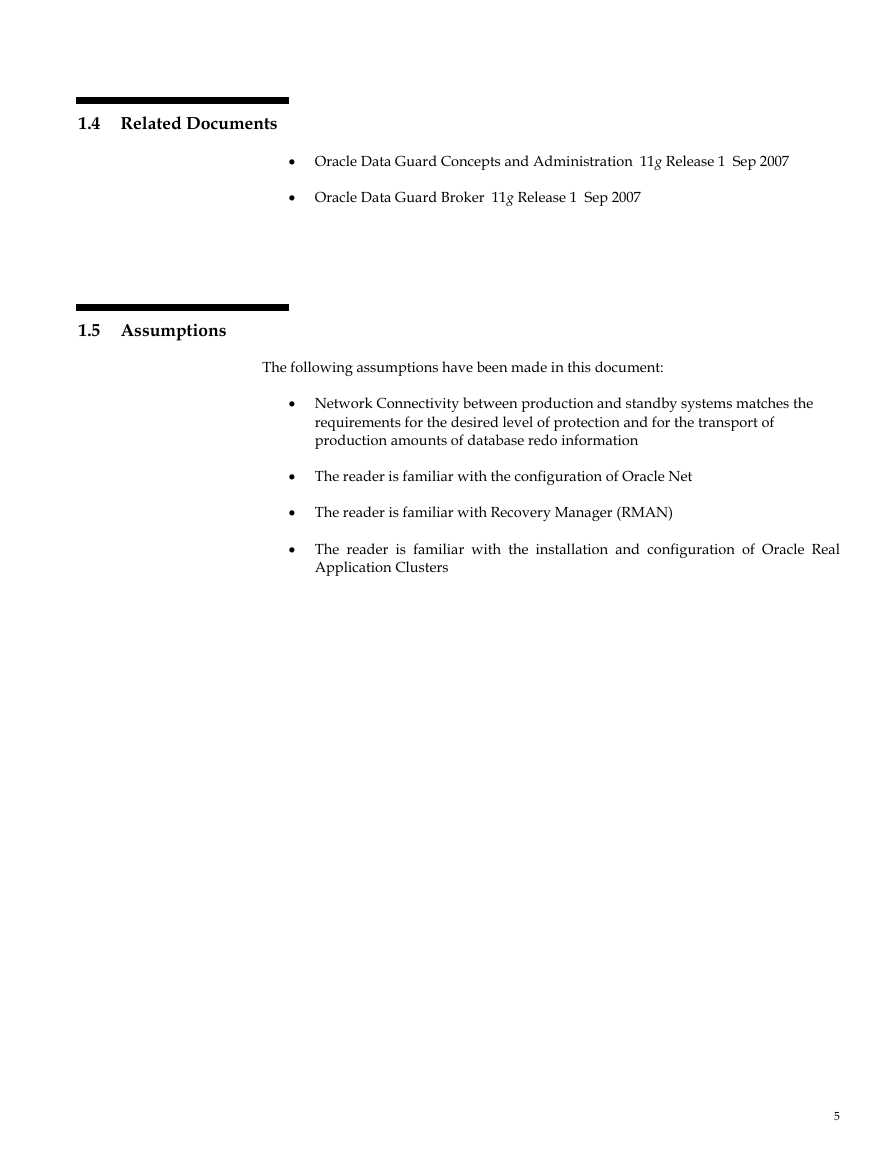

1.4 Related Documents
• Oracle Data Guard Concepts and Administration 11g Release 1 Sep 2007
• Oracle Data Guard Broker 11g Release 1 Sep 2007
1.5 Assumptions
The following assumptions have been made in this document:
• Network Connectivity between production and standby systems matches the
requirements for the desired level of protection and for the transport of
production amounts of database redo information
• The reader is familiar with the configuration of Oracle Net
• The reader is familiar with Recovery Manager (RMAN)
• The reader is familiar with the installation and configuration of Oracle Real
Application Clusters
5
2 Architecture and Concepts
2.1 Glossary
Primary Site
This is where the users connect to access the production database.
Standby Site
This is where the standby database is maintained. It is also known as
the disaster recovery (DR) site. Users will only connect to this site in
the event of a failover or switchover.
Disaster
Non-availability of the primary site.
2.2 RAC Architecture

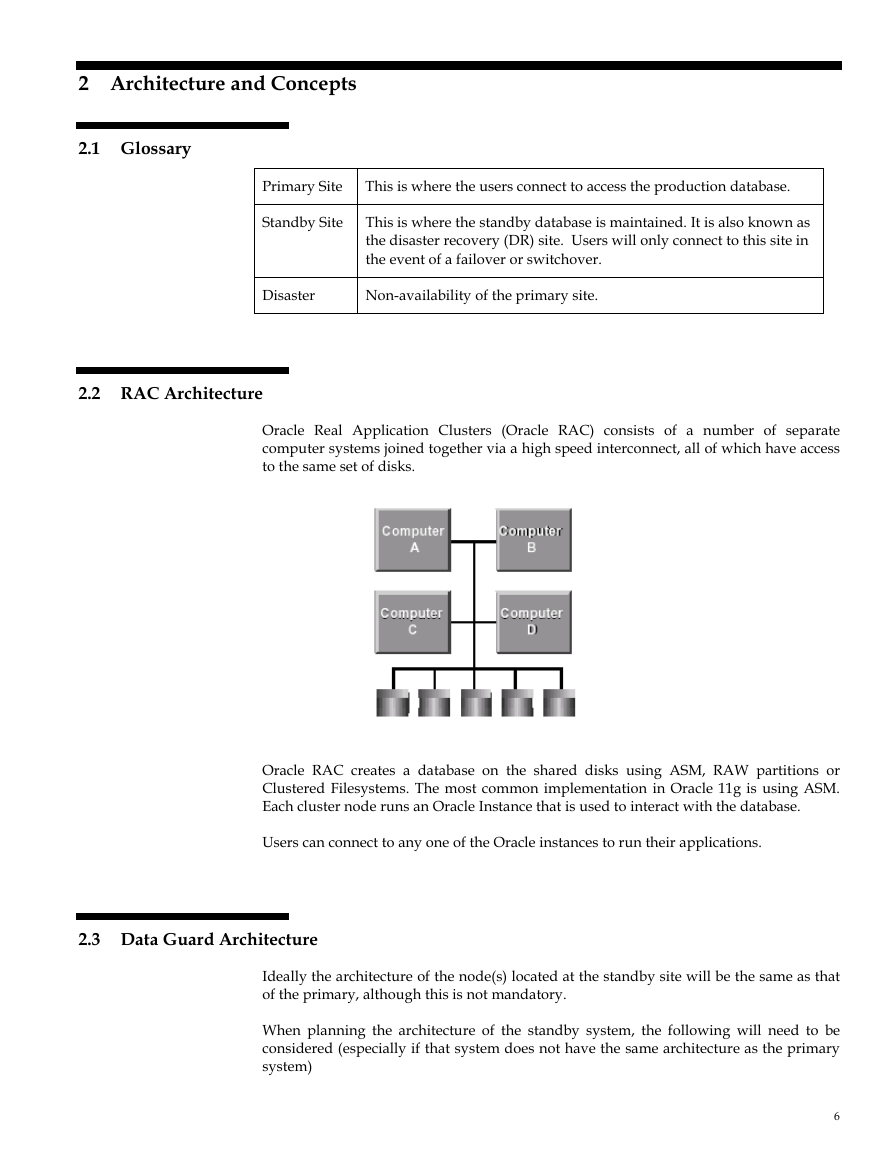

Oracle Real Application Clusters (Oracle RAC) consists of a number of separate
computer systems joined together via a high speed interconnect, all of which have access
to the same set of disks.
Oracle RAC creates a database on the shared disks using ASM, RAW partitions or
Clustered Filesystems. The most common implementation in Oracle 11g is using ASM.
Each cluster node runs an Oracle Instance that is used to interact with the database.
Users can connect to any one of the Oracle instances to run their applications.
2.3 Data Guard Architecture
Ideally the architecture of the node(s) located at the standby site will be the same as that
of the primary, although this is not mandatory.
When planning the architecture of the standby system, the following will need to be
considered (especially if that system does not have the same architecture as the primary
system)
6
•
•
If a failover is required (unplanned outage of the primary site), can the standby
site handle the expected workload?
If the standby site is going to be used whilst maintenance is being performed on
the primary site (planned outage), can it handle the expected workload?
Assuming that capacities have been catered for, then the following is true:
It is not necessary for:
•
•
the standby site to be clustered.
the standby site to use RAW devices (unless it is a cluster itself).
NOTE: The requirement for having both sites (primary and standby) equipped with
identical software versions and/or operating systems has been relaxed. Customers can
now have flexible configurations. The status of what is currently allowed is reflected in
Metalink Note 413484.1:
“Data Guard Support for Heterogeneous Primary and Standby Systems in Same Data
Guard Configuration”
This note will always have the latest support information.
NOTE: If the standby system is a cluster, only one node of that cluster will be able to
synchronize the standby database. The remaining nodes will stay idle until the database
on the standby system is opened for normal (productive) operation. The Data Guard
Broker, discussed later in this document, enables automatic failover of the “apply node”
to a surviving node of the standby cluster in the event that the original apply node fails
for whatever reason.
2.4 Network
The primary and standby sites will be connected together via a Network link. This
network link must be reliable and have suitable bandwidth and latency.
Data Guard provides 3 different modes:
• Maximum Protection
• Maximum Availability
• Maximum Performance
These are discussed later; however, the first 2 require synchronous writes to the standby
site. Note that there is often a performance tradeoff using synchronous writes. While
providing zero data loss protection, these modes may impact primary database
performance if bandwidth is limited or if the round-trip network latency (RTT) between
the primary and the standby database is high.
7
2.5 Data Guard Architecture

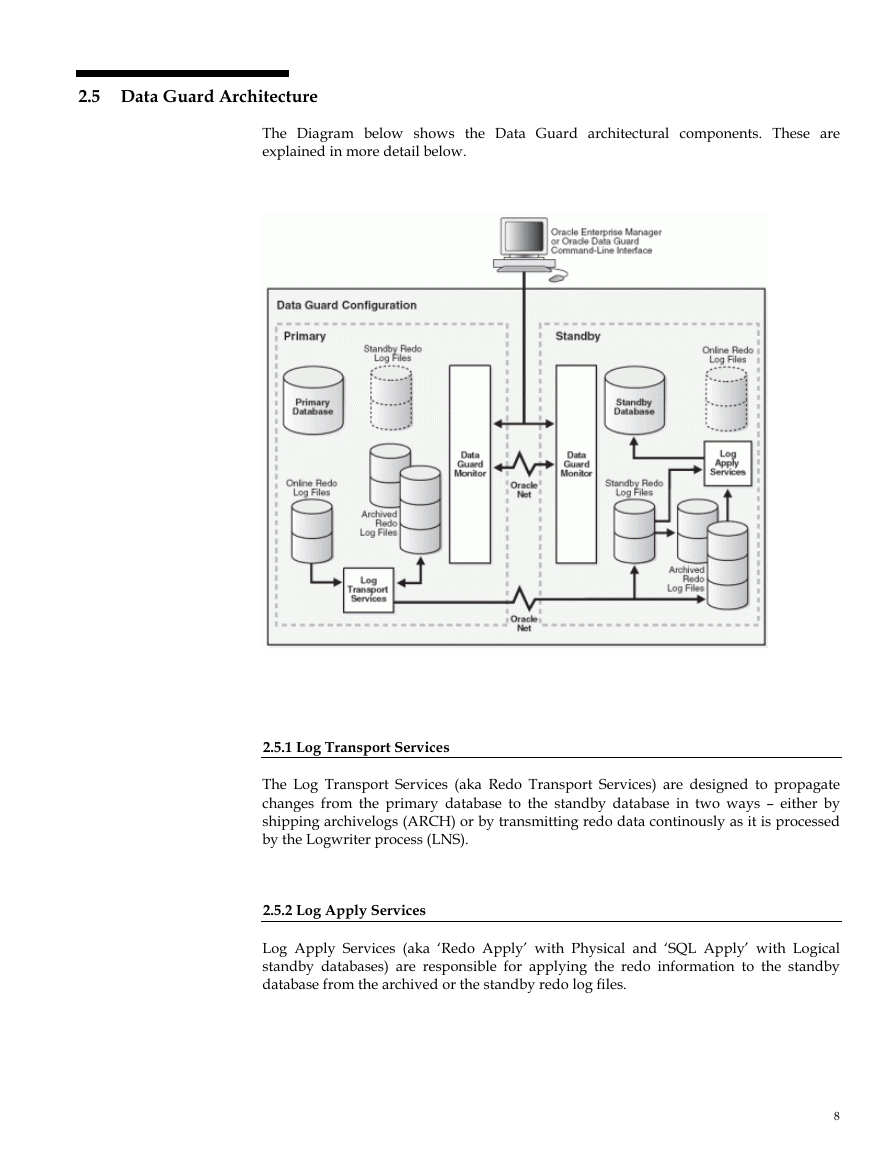

The Diagram below shows the Data Guard architectural components. These are
explained in more detail below.
2.5.1 Log Transport Services
The Log Transport Services (aka Redo Transport Services) are designed to propagate
changes from the primary database to the standby database in two ways – either by
shipping archivelogs (ARCH) or by transmitting redo data continously as it is processed
by the Logwriter process (LNS).
2.5.2 Log Apply Services
Log Apply Services (aka ‘Redo Apply’ with Physical and ‘SQL Apply’ with Logical
standby databases) are responsible for applying the redo information to the standby
database from the archived or the standby redo log files.
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
