Contents

Introduction

Safety information

Features

Package contents

Front

Back

Side

Using the LCD

Setting up your camcorder

Installing the batteries

Inserting or removing a memory card

Getting started

Turning your camcorder on or off

Taking a picture

Recording a movie

Recording sound

Working with movies

Selecting the resolution for movies

Using digital zoom

Selecting the exposure for movies

Using the LED as a light source

Using Night Mode for low-light movies

Adjusting the sharpness for movies

Adjusting the white balance for movies

Using motion stabilization for movies

Using motion detection to record movies

Selecting an effect for movies

Watching a movie

Deleting movies

Using movie thumbnails

Locking or unlocking movies

Repeating movies

Watching movies on a PC

Viewing pictures or movies on a TV

Working with pictures

Taking close up pictures

Using digital zoom

Selecting the resolution for pictures

Selecting the exposure for pictures

Using Night Mode for low-light pictures

Adjusting the sharpness for pictures

Adjusting the white balance for pictures

Combining two pictures into one

Adding photo frames to pictures

Selecting the flash setting for pictures

Using the self-timer for pictures

Taking a sequence of pictures

Taking pictures with bright backgrounds

Adding the date to pictures

Selecting an effect for pictures

Viewing pictures

Deleting pictures

Using picture thumbnails

Locking or unlocking pictures

Viewing pictures in a slideshow

Working with voice recordings

Playing voice recordings

Deleting voice recordings

Repeating voice recordings

Transferring MP3s to your camcorder

Listening to MP3s

Repeating MP3s

Using an earphone

Configuring your camcorder

Default camcorder settings

Setting the time

Displaying or hiding camcorder status information

Turning sound effects on or off

Customizing the startup screen

Formatting the built-in memory or a memory card

Selecting the TV system type

Selecting the on-screen menu language

Restoring default settings

Transferring files to a PC

Maintaining

Troubleshooting

Specifications

Installing the device driver software

Accessing the User Guide

Legal notices

One-Year Limited Warranty

User Guide 5 MP Digital Camcorder with 2.4" LCD Moniotr SD-Blue NS-DCC5SR09

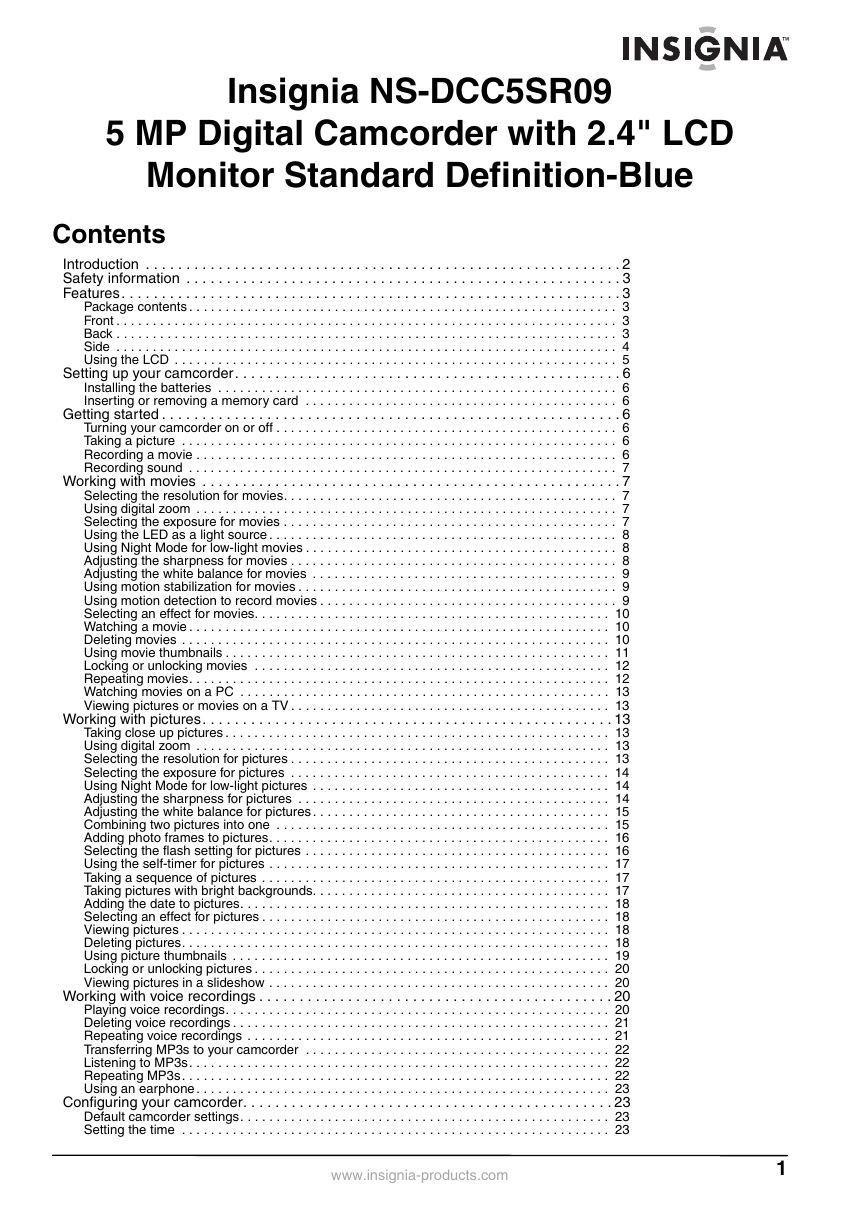

Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Using the LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Setting up your camcorder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Installing the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Inserting or removing a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Turning your camcorder on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Taking a picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Recording a movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Recording sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Working with movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Selecting the resolution for movies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Using digital zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Selecting the exposure for movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Using the LED as a light source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Using Night Mode for low-light movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Adjusting the sharpness for movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Adjusting the white balance for movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Using motion stabilization for movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Using motion detection to record movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Selecting an effect for movies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Watching a movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Deleting movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Using movie thumbnails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Locking or unlocking movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Repeating movies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Watching movies on a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Viewing pictures or movies on a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Working with pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Taking close up pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Using digital zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Selecting the resolution for pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Selecting the exposure for pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Using Night Mode for low-light pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Adjusting the sharpness for pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Adjusting the white balance for pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Combining two pictures into one . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Adding photo frames to pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Selecting the flash setting for pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Using the self-timer for pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Taking a sequence of pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Taking pictures with bright backgrounds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Adding the date to pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Selecting an effect for pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Viewing pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Deleting pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Using picture thumbnails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Locking or unlocking pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Viewing pictures in a slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Working with voice recordings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Playing voice recordings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Deleting voice recordings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Repeating voice recordings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Transferring MP3s to your camcorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Listening to MP3s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Repeating MP3s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Using an earphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Configuring your camcorder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Default camcorder settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Setting the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 www.insignia-products.com 1

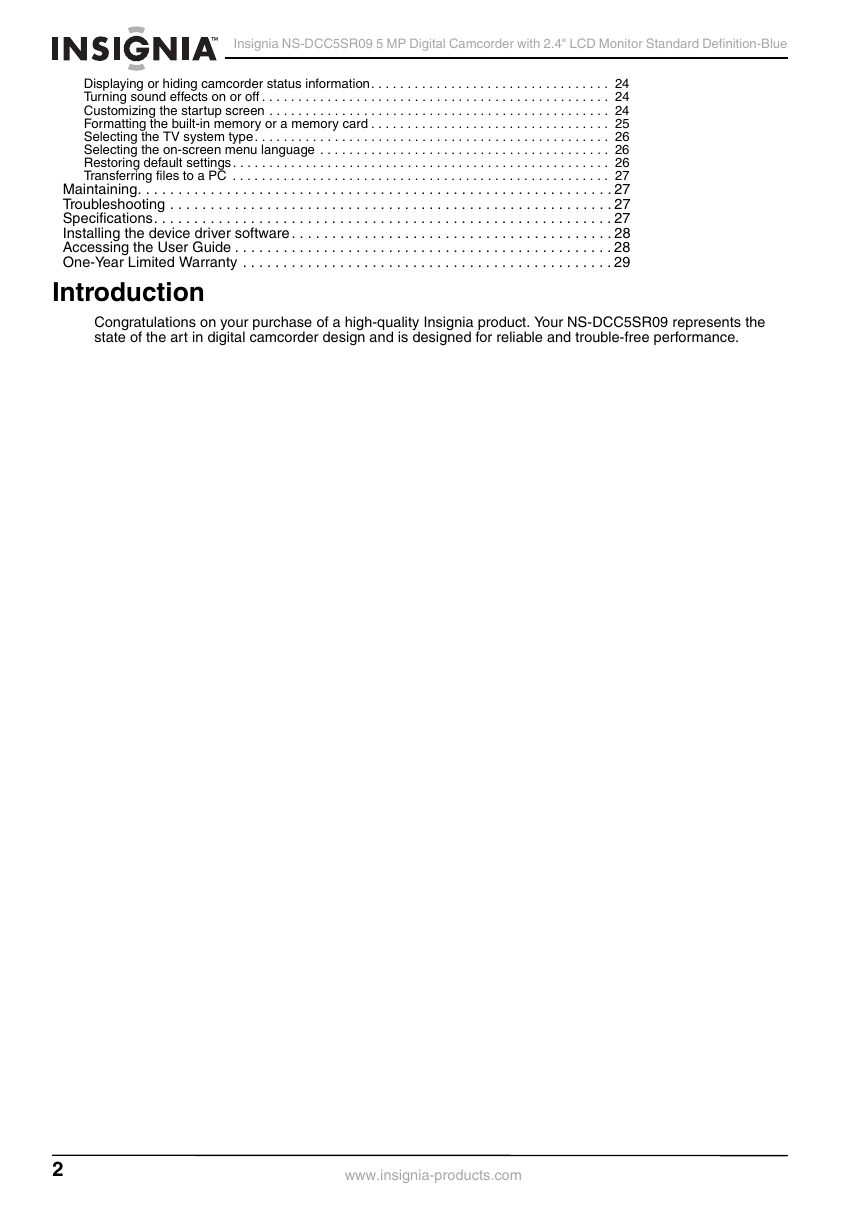

Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue Displaying or hiding camcorder status information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Turning sound effects on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Customizing the startup screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Formatting the built-in memory or a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Selecting the TV system type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Selecting the on-screen menu language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Restoring default settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Transferring files to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Maintaining. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Installing the device driver software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Accessing the User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 One-Year Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-DCC5SR09 represents the state of the art in digital camcorder design and is designed for reliable and trouble-free performance. 2 www.insignia-products.com

Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue Safety information Front • Do not drop, puncture, or disassemble your camcorder. This voids your warranty. Avoid contact with water, and make sure that your hands are dry before using your camcorder. Do not expose your camcorder to high temperature or leave it in direct sunlight. High temperature or the heat from direct sunlight may damage your camcorder. For your protection, do not use your camcorder during a storm or when lightning is present. Do not use your camcorder while driving or riding a vehicle (such as a bicycle). An accident may occur. Do not use the flash close to eyes. Damage to vision may result. Keep your camcorder out the reach of small children or infants. Do not use the battery if it shows signs of leakage or distortion. Make sure that you replace the battery with one of the same type. Using a different type battery can lead to an explosion. Dispose of used batteries according to local hazardous waste regulations. Features 5 mega-pixel sensor MPEG-4 technology that compresses video to let you store more movies than traditional camcorders Up to 11 mega-pixel quality pictures AV OUT port for connecting a TV or earphone High-speed mini-USB 2.0 port for connecting a PC Automatic and manual exposure and color balance controls 8× digital zoom for enlarging pictures and movies Built-in 64 MB memory that lets you store pictures and movies without using a memory card Memory card slot that lets you increase storage capacity to 4 GB Package contents Camcorder USB cable AV cable AA alkaline batteries (2) Quick Start Guide CD with device driver and User Guide Wrist strap Pouch 1 2 3 # 1 2 3 Component Lens LED Power button Description Focuses the image when taking pictures or movies. Lights green in PC camera mode. Lights red when connected to a PC in mass storage mode. Blinks during self-timer mode. Press down for one second to turn your camcorder on or off. Back 1 5 6 7 8 9 10 11 12 2 3 4 # 1 2 Component LCD panel TV/ port 3 Mini-USB 2.0 port Description Lets you view pictures and movies while you are capturing them. Lets you view stored pictures and movies. Displays camcorder status information. Connect the earphone or a TV to this port. For more information, see “Viewing pictures or movies on a TV” on page 13 or “Using an earphone” on page 23. Connect the USB cable to this port and a USB port on a PC. For more information, see “Watching movies on a PC” on page 13. www.insignia-products.com 3

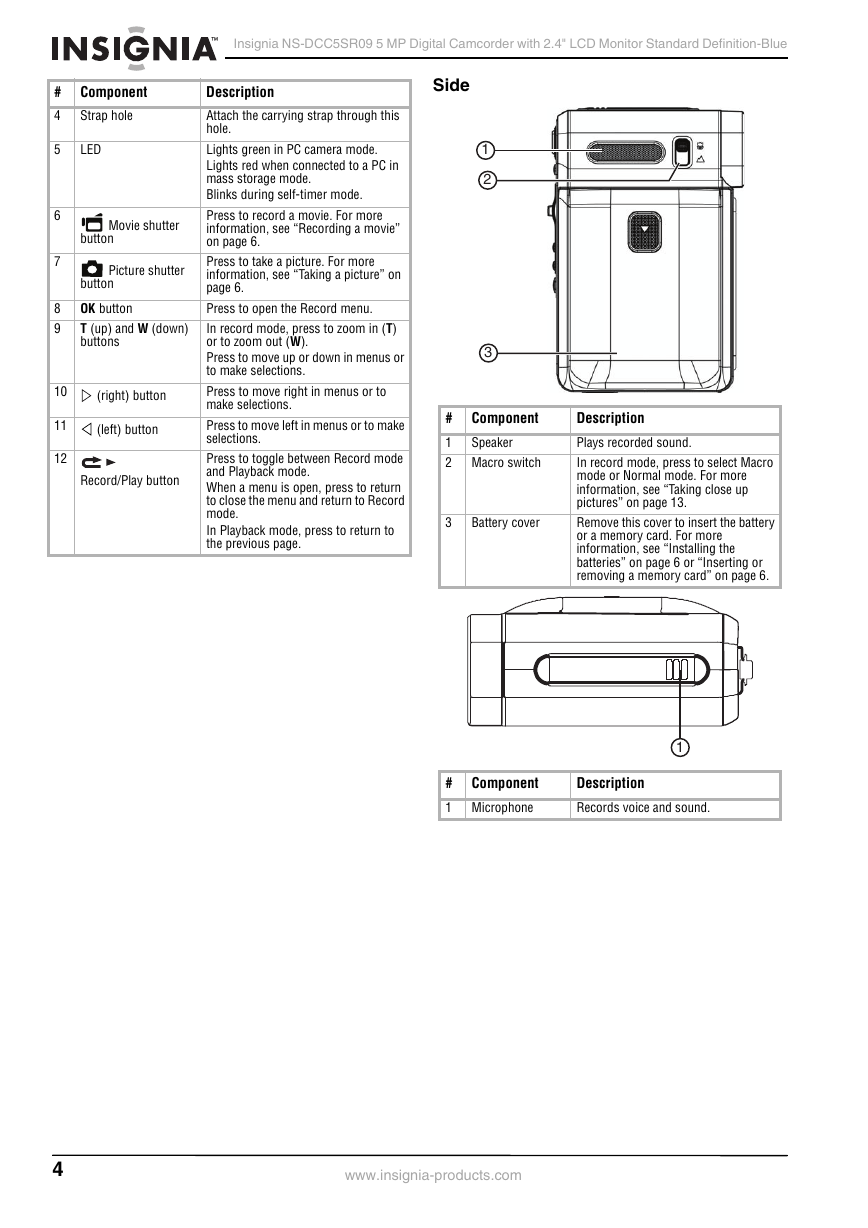

Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue # 4 5 6 7 8 9 10 11 12 Component Strap hole LED Movie shutter button Picture shutter button OK button T (up) and W (down) buttons (right) button (left) button Record/Play button Description Attach the carrying strap through this hole. Lights green in PC camera mode. Lights red when connected to a PC in mass storage mode. Blinks during self-timer mode. Press to record a movie. For more information, see “Recording a movie” on page 6. Press to take a picture. For more information, see “Taking a picture” on page 6. Press to open the Record menu. In record mode, press to zoom in (T) or to zoom out (W). Press to move up or down in menus or to make selections. Press to move right in menus or to make selections. Press to move left in menus or to make selections. Press to toggle between Record mode and Playback mode. When a menu is open, press to return to close the menu and return to Record mode. In Playback mode, press to return to the previous page. Side 1 2 3 Component Speaker # 1 2 Macro switch 3 Battery cover Description Plays recorded sound. In record mode, press to select Macro mode or Normal mode. For more information, see “Taking close up pictures” on page 13. Remove this cover to insert the battery or a memory card. For more information, see “Installing the batteries” on page 6 or “Inserting or removing a memory card” on page 6. 1 # Component 1 Microphone Description Records voice and sound. 4 www.insignia-products.com

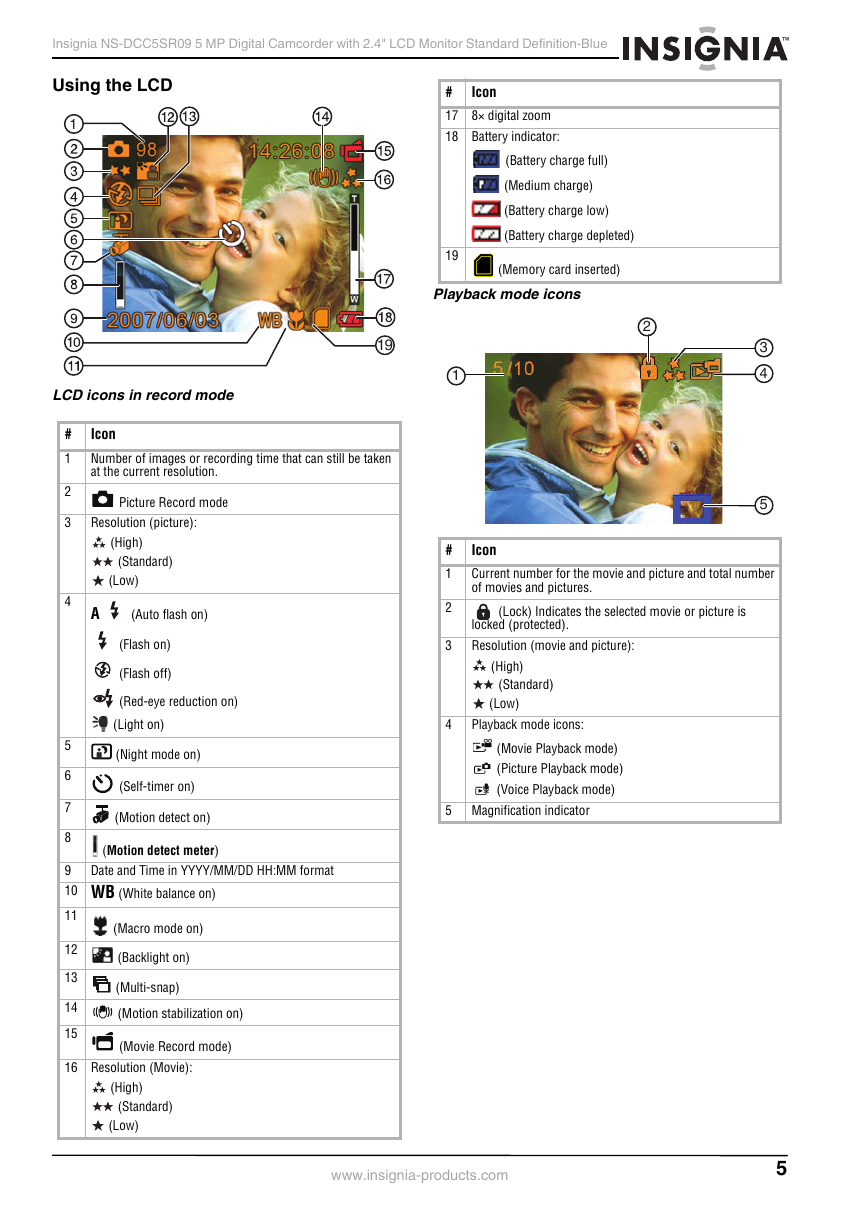

Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue Using the LCD LCD icons in record mode Icon 8× digital zoom # 17 18 Battery indicator: (Battery charge full) (Medium charge) (Battery charge low) (Battery charge depleted) 19 (Memory card inserted) Playback mode icons 19 2 3 4 5 Icon Current number for the movie and picture and total number of movies and pictures. (Lock) Indicates the selected movie or picture is locked (protected). Resolution (movie and picture): (High) (Standard) (Low) 4 Playback mode icons: (Movie Playback mode) (Picture Playback mode) (Voice Playback mode) 5 Magnification indicator 1 # 1 2 3 # 1 2 3 4 5 6 7 8 Icon Number of images or recording time that can still be taken at the current resolution. Picture Record mode Resolution (picture): (High) (Standard) (Low) A (Auto flash on) (Flash on) (Flash off) (Red-eye reduction on) (Light on) (Night mode on) (Self-timer on) (Motion detect on) (Motion detect meter) Date and Time in YYYY/MM/DD HH:MM format 9 10 WB (White balance on) 11 (Macro mode on) 12 13 14 15 (Backlight on) (Multi-snap) (Motion stabilization on) (Movie Record mode) 16 Resolution (Movie): (High) (Standard) (Low) www.insignia-products.com 5

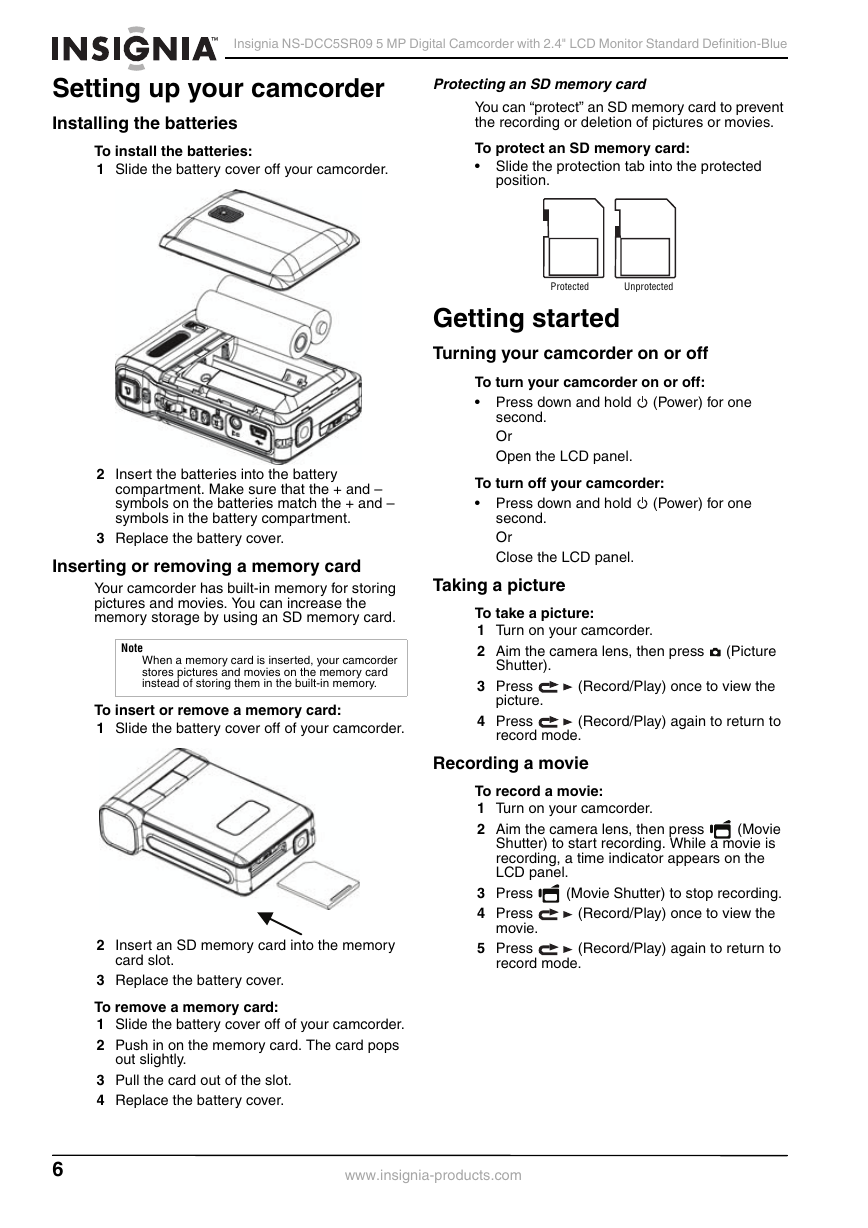

Insignia NS-DCC5SR09 5 MP Digital Camcorder with 2.4" LCD Monitor Standard Definition-Blue Setting up your camcorder Installing the batteries To install the batteries: 1 Slide the battery cover off your camcorder. Protecting an SD memory card You can “protect” an SD memory card to prevent the recording or deletion of pictures or movies. To protect an SD memory card: Slide the protection tab into the protected position. Protected Unprotected Getting started Turning your camcorder on or off To turn your camcorder on or off: Press down and hold (Power) for one second. Or Open the LCD panel. To turn off your camcorder: Press down and hold (Power) for one second. Or Close the LCD panel. Taking a picture To take a picture: 1 Turn on your camcorder. 2 Aim the camera lens, then press Shutter). (Picture 3 Press picture. 4 Press record mode. Recording a movie (Record/Play) once to view the (Record/Play) again to return to To record a movie: 1 Turn on your camcorder. 2 Aim the camera lens, then press (Movie Shutter) to start recording. While a movie is recording, a time indicator appears on the LCD panel. 3 Press 4 Press movie. 5 Press record mode. (Movie Shutter) to stop recording. (Record/Play) once to view the (Record/Play) again to return to 2 Insert the batteries into the battery compartment. Make sure that the + and – symbols on the batteries match the + and – symbols in the battery compartment. 3 Replace the battery cover. Inserting or removing a memory card Your camcorder has built-in memory for storing pictures and movies. You can increase the memory storage by using an SD memory card. Note When a memory card is inserted, your camcorder stores pictures and movies on the memory card instead of storing them in the built-in memory. To insert or remove a memory card: 1 Slide the battery cover off of your camcorder. 2 Insert an SD memory card into the memory card slot. 3 Replace the battery cover. To remove a memory card: 1 Slide the battery cover off of your camcorder. 2 Push in on the memory card. The card pops out slightly. 3 Pull the card out of the slot. 4 Replace the battery cover. 6 www.insignia-products.com
