Introduction

Features & Specifications

Layout Diagram

Hardware Setup

Install The Motherboard

Install CPU, Heatsink and Fan Assembly

Install System Memory

Connectors, Headers and Switches

BIOS Setup

Esc:

↑↓← →:

F10:

SoftMenu Setup

Brand Name:

Frequency:

CPU Operating Speed:

User Define:

Voltage Control:

Spread Spectrum:

Standard CMOS Features

Date (mm:dd:yy):

Time (hh:mm:ss):

IDE HDD Auto-Detection:

IDE Channel 0 Master/Slave, IDE Channel 1 Master/Slave:

Access Mode:

Capacity:

Cylinder:

Head:

Precomp:

Landing Zone:

Sector:

Drive A:

Floppy 3 Mode Support:

Halt On:

Base Memory:

Extended Memory:

Total Memory:

Advanced BIOS Features

Quick Power On Self Test:

Hard Disk Boot Priority:

First Boot Device / Second Boot Device / Third Boot Device / Boot Other Device:

Boot Up Floppy Seek:

Boot Up NumLock Status:

Security Option:

MPS Version Ctrl For OS:

Report No FDD For OS:

Delay IDE Initial(Seconds):

Full Screen LOGO Show:

Advanced Chipset Features

DRAM Timing Selectable:

32 bit Dram Memory Hole:

MTRR mapping mode

M1689 Gated Clock:

PCI/14H/USB CLK Powerdown:

AGP 3.0 Transfer Mode:

Fast Write:

AGP Aperture Size (MB):

AGP Secondary Lat Timer:

Hammer to M1689 Freq.:

Hammer to M1689 Width:

M1689 HTT Tristate:

ALI HPET:

Init Display First:

Integrated Peripherals

IDE Bus Master:

OnChip IDE-1 Controller/OnChip IDE-2 Controller:

OnCip SATA:

OnChip USB Controller:

OnChip Audio Controller:

Onboard FDC Controller:

Onboard Serial Port 1:

Onboard Parallel Port:

Parallel Port Mode:

Onboard LAN Controller:

Power Management Setup

ACPI Suspend Type:

Power Button Function:

Wake-up by PME# of PCI:

Resume by Ring:

Wakeup by Alarm:

Cool ’n’ Quiet Technology:

Power On Function:

Restore on AC Power Loss:

PnP/PCI Configurations

Resources Controlled By:

PCI/VGA Palette Snoop:

PIRQ 1 Use IRQ No. ~ PIRQ 8 Use IRQ No.:

PC Health Status

Shutdown Temperature:

CPU Warning Temperature:

FAN Fail Alarm Selectable:

CPU FANEQ Control:

All Voltages, Fans Speed and Thermal Monitoring:

Load Fail-Safe Defaults

Load Optimized Defaults

Set Password

Save & Exit Setup

Exit Without Saving

Install ULi M1689 single chipset

Install Audio Driver

Install LAN Driver

Install ULi M5289 SATA Driver

Install Cool 'n' Quiet Driver

ABIT EQ (The Hardware Doctor Utility)

Troubleshooting (Need Assistance?)

Q & A:

Main instructions:

How to Get Technical Support

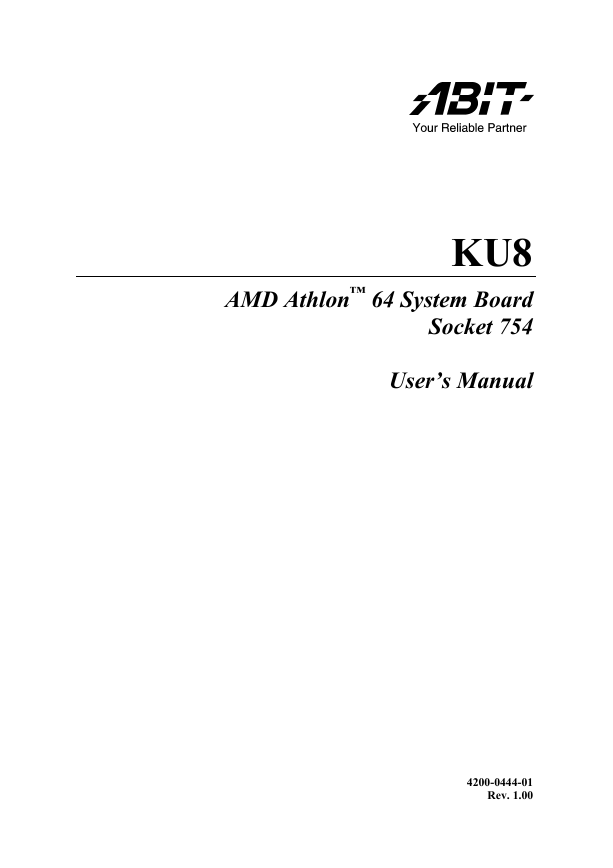

KU8 AMD Athlon 64 System Board Socket 754 Users Manual 4200-0444-01 Rev. 1.00

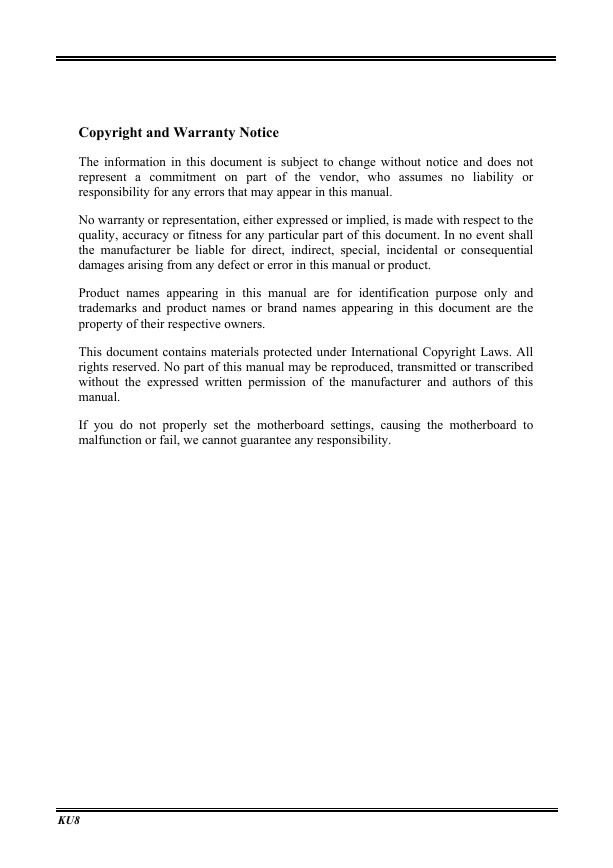

Copyright and Warranty Notice The information in this document is subject to change without notice and does not represent a commitment on part of the vendor, who assumes no liability or responsibility for any errors that may appear in this manual. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular part of this document. In no event shall the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising from any defect or error in this manual or product. Product names appearing in this manual are for identification purpose only and trademarks and product names or brand names appearing in this document are the property of their respective owners. This document contains materials protected under International Copyright Laws. All rights reserved. No part of this manual may be reproduced, transmitted or transcribed without the expressed written permission of the manufacturer and authors of this manual. If you do not properly set the motherboard settings, causing the motherboard to malfunction or fail, we cannot guarantee any responsibility. KU8

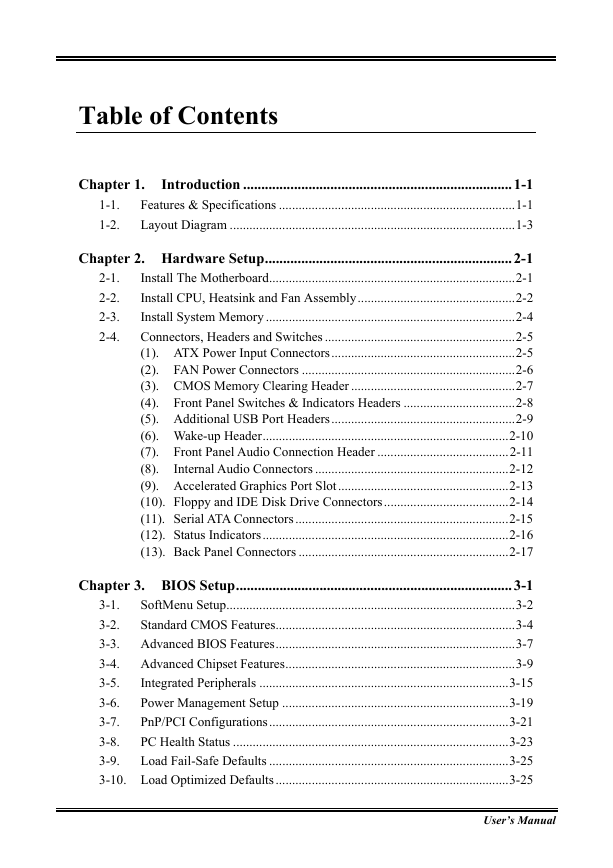

Table of Contents 1-1. 1-2. Chapter 1. Introduction ..........................................................................1-1 Features & Specifications ........................................................................1-1 Layout Diagram .......................................................................................1-3 Chapter 2. Hardware Setup....................................................................2-1 Install The Motherboard...........................................................................2-1 2-1. Install CPU, Heatsink and Fan Assembly................................................2-2 2-2. 2-3. Install System Memory ............................................................................2-4 2-4. Connectors, Headers and Switches ..........................................................2-5 (1). ATX Power Input Connectors........................................................2-5 (2). FAN Power Connectors .................................................................2-6 (3). CMOS Memory Clearing Header ..................................................2-7 (4). Front Panel Switches & Indicators Headers ..................................2-8 (5). Additional USB Port Headers........................................................2-9 (6). Wake-up Header...........................................................................2-10 (7). Front Panel Audio Connection Header ........................................2-11 (8). Internal Audio Connectors ...........................................................2-12 (9). Accelerated Graphics Port Slot....................................................2-13 (10). Floppy and IDE Disk Drive Connectors......................................2-14 (11). Serial ATA Connectors.................................................................2-15 (12). Status Indicators...........................................................................2-16 (13). Back Panel Connectors ................................................................2-17 Chapter 3. BIOS Setup............................................................................3-1 SoftMenu Setup........................................................................................3-2 3-1. Standard CMOS Features.........................................................................3-4 3-2. 3-3. Advanced BIOS Features.........................................................................3-7 3-4. Advanced Chipset Features......................................................................3-9 Integrated Peripherals ............................................................................3-15 3-5. 3-6. Power Management Setup .....................................................................3-19 PnP/PCI Configurations.........................................................................3-21 3-7. PC Health Status ....................................................................................3-23 3-8. 3-9. Load Fail-Safe Defaults .........................................................................3-25 3-10. Load Optimized Defaults.......................................................................3-25 Users Manual

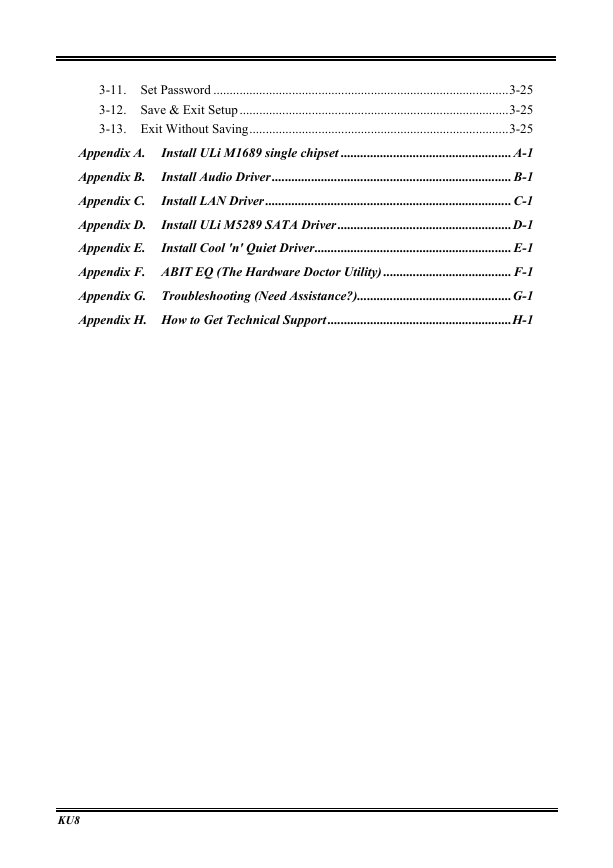

3-11. Set Password ..........................................................................................3-25 3-12. Save & Exit Setup..................................................................................3-25 3-13. Exit Without Saving...............................................................................3-25 Install ULi M1689 single chipset .................................................... A-1 Appendix A. Install Audio Driver......................................................................... B-1 Appendix B. Install LAN Driver ........................................................................... C-1 Appendix C. Install ULi M5289 SATA Driver.....................................................D-1 Appendix D. Appendix E. Install Cool ’n’ Quiet Driver............................................................ E-1 Appendix F. ABIT EQ (The Hardware Doctor Utility) ....................................... F-1 Appendix G. Troubleshooting (Need Assistance?)...............................................G-1 Appendix H. How to Get Technical Support ........................................................H-1 KU8

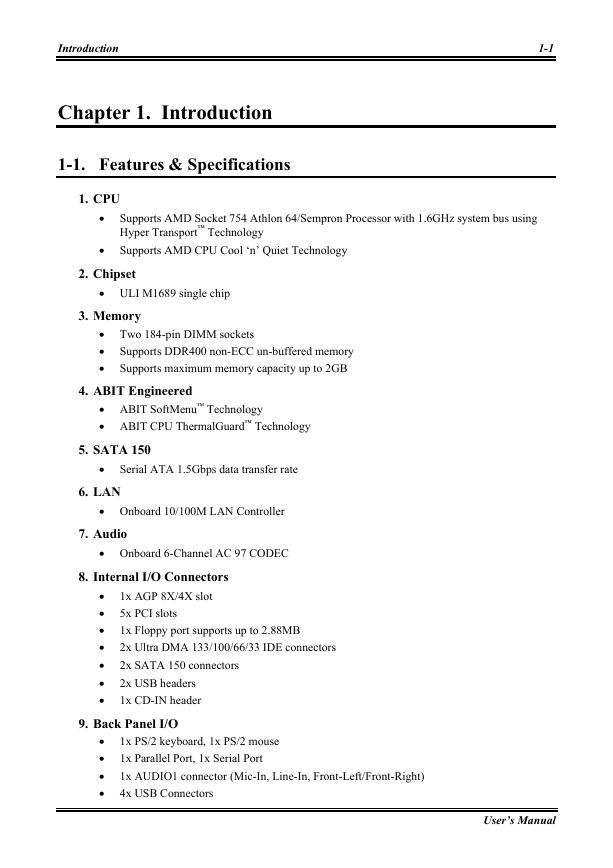

Introduction 1-1 Chapter 1. Introduction 1-1. Features & Specifications 1. CPU • Supports AMD Socket 754 Athlon 64/Sempron Processor with 1.6GHz system bus using Hyper Transport Technology • Supports AMD CPU Cool n Quiet Technology 2. Chipset • ULI M1689 single chip 3. Memory • Two 184-pin DIMM sockets • Supports DDR400 non-ECC un-buffered memory • Supports maximum memory capacity up to 2GB 4. ABIT Engineered • ABIT SoftMenu Technology • ABIT CPU ThermalGuard Technology 5. SATA 150 • Serial ATA 1.5Gbps data transfer rate 6. LAN • Onboard 10/100M LAN Controller 7. Audio • Onboard 6-Channel AC 97 CODEC 8. Internal I/O Connectors • • • • • • • 1x AGP 8X/4X slot 5x PCI slots 1x Floppy port supports up to 2.88MB 2x Ultra DMA 133/100/66/33 IDE connectors 2x SATA 150 connectors 2x USB headers 1x CD-IN header 9. Back Panel I/O • • • • 1x PS/2 keyboard, 1x PS/2 mouse 1x Parallel Port, 1x Serial Port 1x AUDIO1 connector (Mic-In, Line-In, Front-Left/Front-Right) 4x USB Connectors Users Manual

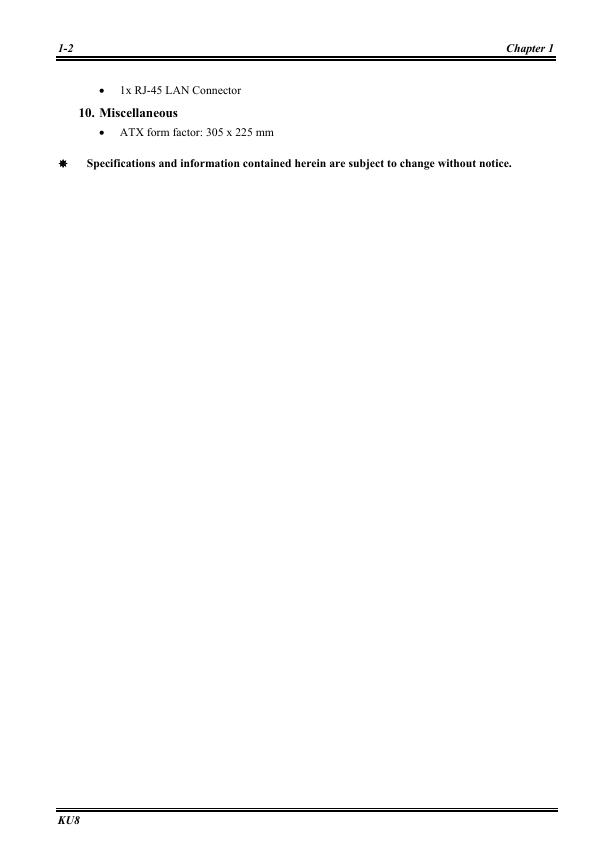

1-2 Chapter 1 • 1x RJ-45 LAN Connector 10. Miscellaneous • ATX form factor: 305 x 225 mm ! Specifications and information contained herein are subject to change without notice. KU8

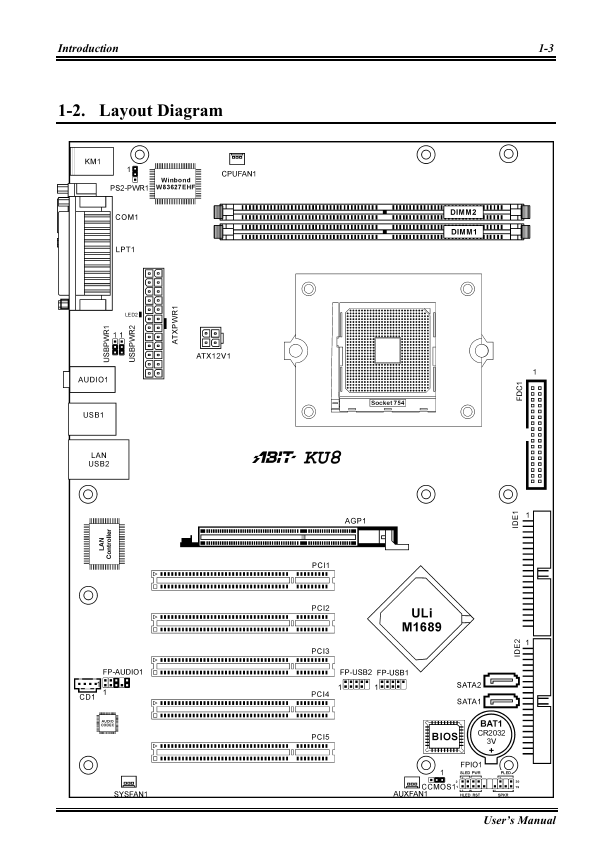

Introduction 1-3 1-2. Layout Diagram Users Manual

1-4 1-4 Chapter 1 Chapter 1 KU8 KU8
