WELCOME

SAFETY NOTICE

TABLE OF CONTENTS

CAMERA PARTS

GETTING STARTED

Loading the batteries

Inserting the CF card ( optional)

Attaching the wrist strap ( optional)

How to hold your camera

How to open the connector cover

Using the tripod ( optional)

BASIC OPERATIONS

Turning on your camera

Turning off your camera

Setting the language

Recording a video clip

Taking a still picture

Using the flash strobe ( optional)

Recording a voice clip

Playing back your recordings

Playing back your recordings- Thumbnails

Connecting the camera to your TV

ADVANCED OPERATIONS

Changing video resolution

Setting video quality

Setting video compress method

Changing picture resolution

Setting picture quality

Setting self timer

Setting flash strobe

Deleting files

Viewing file information

CAMERA SETTINGS

Switching to Settings mode

Setting power auto-off

Setting AV output mode

Setting language

Setting timestamp

Setting date

Setting time

Formatting media

COPYING FILES YOUR PC

Installing the driver to your PC

Connecting the camera to your PC

Copying files to the PC

File location

TROUBLESHOOTING

ADDENDA

Storage Capacity Table

AV System Settings Table

System Message Table

Specifications

Users Manual

WELCOME Dear user, thanks for purchasing this product. Much investment in time and effort has gone into its development, and it is our hope that it will give you many years of trouble-free service. SAFETY NOTICE 1. Do not drop, puncture or disassemble the camera; otherwise the warranty will be voided. 2. Avoid all contact with water, and dry hands before using. 3. Do not expose the camera to high temperature or leave it in direct sunlight. Doing so may damage the camera. 4. Use the camera with care. Avoid pressing hard on the camera body. 5. For your own safety, avoid using the camera when there is a storm or lightning. 6. Avoid using batteries of different brands or types at the same time. This may lead to the potential for serious damage. 7. Remove batteries during long periods between usage, as deteriorated batteries may affect the functionality of the camera. 8. Remove batteries if they show signs of leaking or distortion. 9. Use only the accessories supplied by the manufacturer. 10. Keep the camera out of the reach of children. 1

TABLE OF CONTENTS WELCOME SAFETY NOTICE CAMERA PARTS GETTING STARTED LOADING THE BATTERIES INSERTING THE CF CARD (OPTIONAL) ATTACHING THE WRIST STRAP (OPTIONAL) HOW TO OPEN THE CONNECTOR COVER HOW TO HOLD YOUR CAMERA USING THE TRIPOD (OPTIONAL) BASIC OPERATIONS TURNING ON YOUR CAMERA TURNING OFF YOUR CAMERA SETTING THE LANGUAGE RECORDING A VIDEO CLIP TAKING A STILL PICTURE USING THE FLASH STROBE (OPTIONAL) RECORDING A VOICE CLIP PLAYING BACK YOUR RECORDINGS PLAYING BACK YOUR RECORDINGS- THUMBNAILS CONNECTING THE CAMERA TO YOUR TV ADVANCED OPERATIONS CHANGING VIDEO RESOLUTION SETTING VIDEO QUALITY SETTING VIDEO COMPRESS METHOD CHANGING PICTURE RESOLUTION SETTING PICTURE QUALITY SETTING SELF TIMER SETTING FLASH STROBE 2 1 1 4 5 5 6 7 8 8 9 10 10 10 11 12 13 14 15 16 17 18 19 19 20 21 22 23 24 25

26 27 28 28 28 29 29 30 30 31 31 32 32 33 34 35 36 37 38 39 41 DELETING FILES VIEWING FILE INFORMATION CAMERA SETTINGS SWITCHING TO SETTINGS MODE SETTING POWER AUTO-OFF SETTING AV OUTPUT MODE SETTING LANGUAGE SETTING TIMESTAMP SETTING DATE SETTING TIME FORMAT MEDIA COPYING FILES TO YOUR PC INSTALLING THE DRIVER TO YOUR PC INSTALLING THE DRIVER TO YOUR PC (CONTINUED) CONNECTING THE CAMERA TO YOUR PC COPYING FILES TO THE PC COPYING FILES TO THE PC (CONTINUED) VIEWING/PLAYING FILES ON YOUR PC FILE LOCATION TROUBLESHOOTING ADDENDA 3

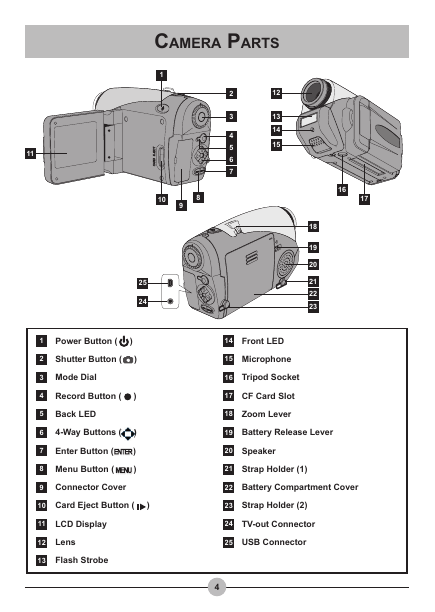

CAMERA PARTS 1 11 10 9 8 25 24 1 2 3 4 5 6 7 8 9 10 11 12 Power Button ( ) Shutter Button ( ) Mode Dial Record Button ( ) Back LED 4-Way Buttons ( ) 4-Way Buttons ( ) Enter Button ( ) Enter Button ( ) Menu Button ( ) Menu Button ( ) Connector Cover Card Eject Button ( ) LCD Display Lens 13 Flash Strobe 12 13 14 15 16 17 18 19 20 21 22 23 Front LED Microphone Tripod Socket CF Card Slot Zoom Lever Battery Release Lever Speaker Strap Holder (1) Battery Compartment Cover Strap Holder (2) TV-out Connector USB Connector 2 3 4 5 6 7 14 15 16 17 18 19 20 21 22 23 24 25 4

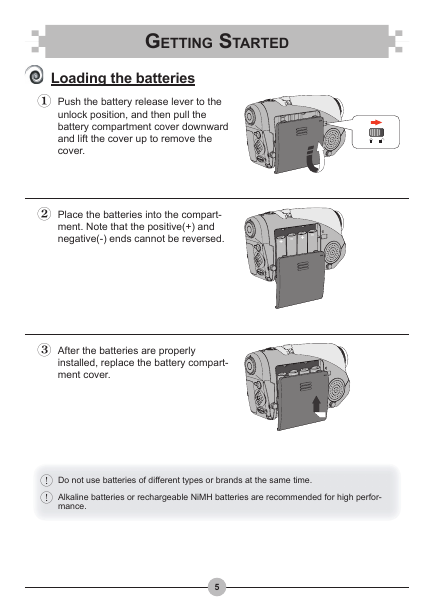

GETTING STARTED  Loading the batteries Push the battery release lever to the unlock position, and then pull the battery compartment cover downward and lift the cover up to remove the cover.  Place the batteries into the compart- ment. Note that the positive(+) and negative(-) ends cannot be reversed. _ _ + +  After the batteries are properly installed, replace the battery compart- ment cover. _ _ + +   Do not use batteries of different types or brands at the same time. Alkaline batteries or rechargeable NiMH batteries are recommended for high perfor- mance. 5

Inserting the CF card (optional) In addition to 16MB (128Mbits) of built-in ﬂ ash memory, your camera can store data on a Compact Flash (CF) card or a microdrive. The sup- ported memory size ranges from 8MB to 1GB (1024MB). To insert a CF card, gently push the card as indicated until the card reaches the end of the slot. To remove the card, ﬁ rst make sure that the power is off. Then open the LCD panel, and push the card eject button to pop out the card or microdrive. Đ Đ Đ    Do not remove the CF card when the camera is powered on. When a CF card is inserted, the camera will use the card as the main storage media. Files stored in the camera’s built-in memory will become inaccessible until the CF card is removed. If the CF card cannot be identiﬁ ed by your camera but is usable on other device, it is probably because of incompatible format. Please see the Troubleshooting section for more information. 6

Attaching the wrist strap (optional) Unfold and spread the wrist strap as illustrated.   Follow the instructions as illustrated to thread and fasten the wrist strap. 1 2 3  Fold the wrapping cover to secure the wrist strap. 7
