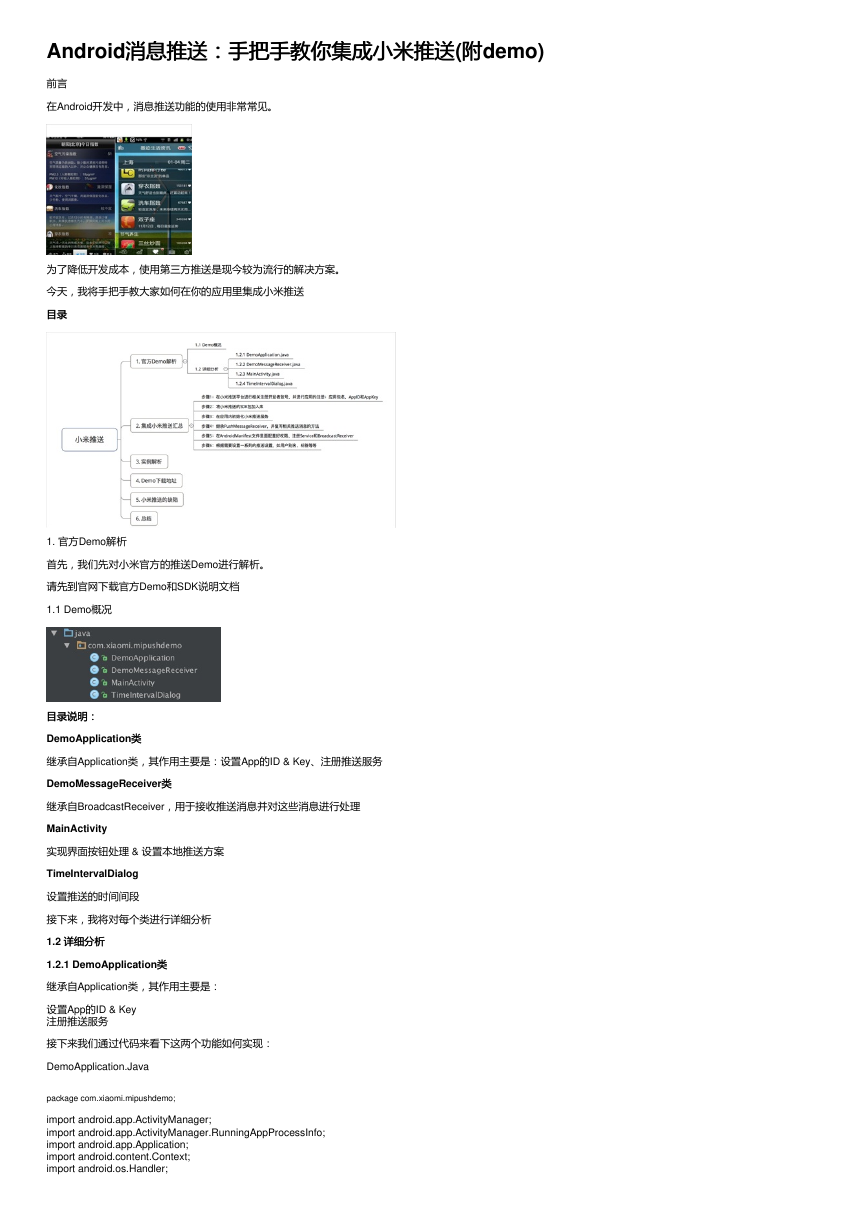

Android消息推送：手把手教你集成小米推送(附demo).pdf
Android消息推送：手把手教你集成小米推送
消息推送：手把手教你集成小米推送(附附demo)
前言
在Android开发中，消息推送功能的使用非常常见。
为了降低开发成本，使用第三方推送是现今较为流行的解决方案。
今天，我将手把手教大家如何在你的应用里集成小米推送
目录目录
1. 官方Demo解析
首先，我们先对小米官方的推送Demo进行解析。
请先到官网下载官方Demo和SDK说明文档
1.1 Demo概况
目录说明：
目录说明：
DemoApplication类类
继承自Application类，其作用主要是：设置App的ID & Key、注册推送服务
DemoMessageReceiver类类
继承自BroadcastReceiver，用于接收推送消息并对这些消息进行处理
MainActivity
实现界面按钮处理 & 设置本地推送方案
TimeIntervalDialog
设置推送的时间间段
接下来，我将对每个类进行详细分析
1.2 详细分析
详细分析
1.2.1 DemoApplication类类
继承自Application类，其作用主要是：
设置App的ID & Key
注册推送服务
接下来我们通过代码来看下这两个功能如何实现：
DemoApplication.Java
package com.xiaomi.mipushdemo;
import android.app.ActivityManager;
import android.app.ActivityManager.RunningAppProcessInfo;
import android.app.Application;
import android.content.Context;
import android.os.Handler;

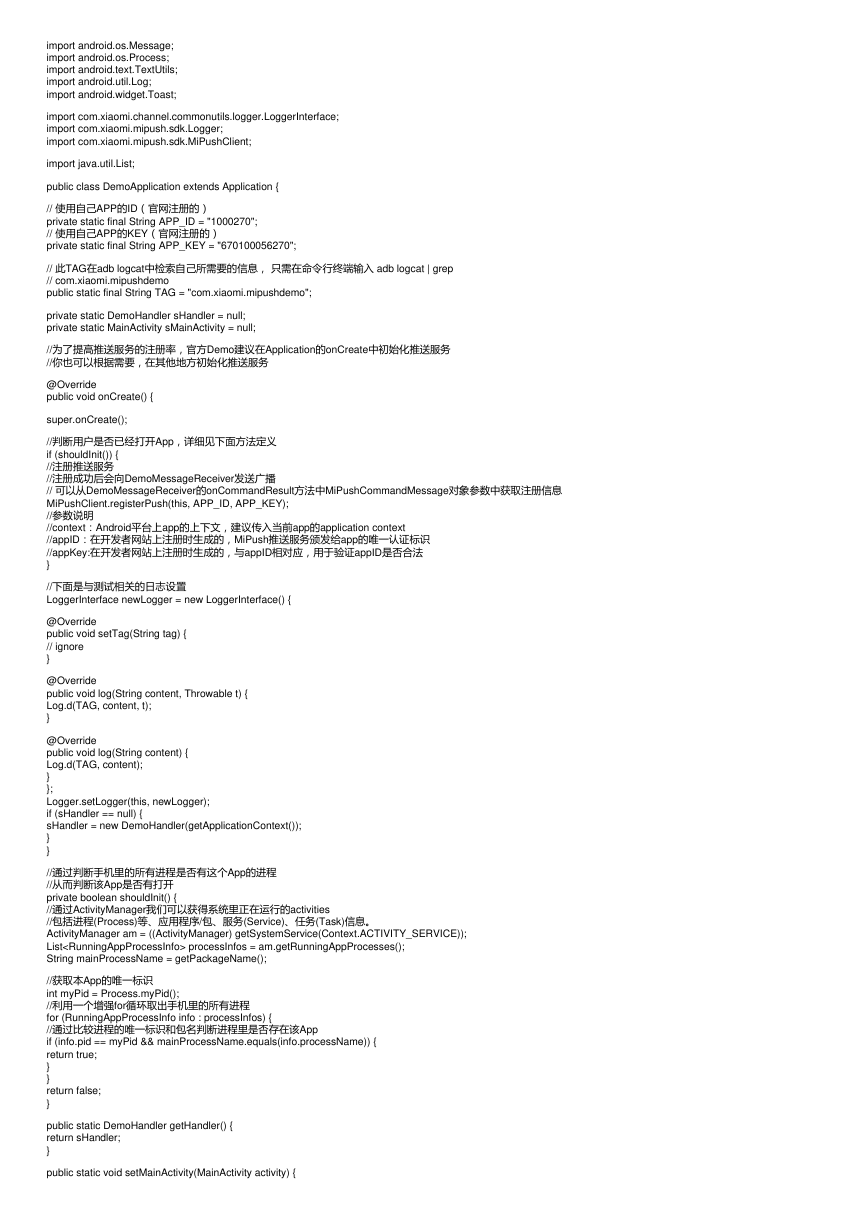

import android.os.Message;
import android.os.Process;
import android.text.TextUtils;
import android.util.Log;
import android.widget.Toast;
import com.xiaomi.channel.commonutils.logger.LoggerInterface;
import com.xiaomi.mipush.sdk.Logger;
import com.xiaomi.mipush.sdk.MiPushClient;
import java.util.List;
public class DemoApplication extends Application {
// 使用自己APP的ID（官网注册的）
private static final String APP_ID = "1000270";
// 使用自己APP的KEY（官网注册的）
private static final String APP_KEY = "670100056270";
// 此TAG在adb logcat中检索自己所需要的信息， 只需在命令行终端输入 adb logcat | grep
// com.xiaomi.mipushdemo
public static final String TAG = "com.xiaomi.mipushdemo";
private static DemoHandler sHandler = null;
private static MainActivity sMainActivity = null;
//为了提高推送服务的注册率，官方Demo建议在Application的onCreate中初始化推送服务
//你也可以根据需要，在其他地方初始化推送服务
@Override
public void onCreate() {
super.onCreate();
//判断用户是否已经打开App，详细见下面方法定义
if (shouldInit()) {
//注册推送服务
//注册成功后会向DemoMessageReceiver发送广播
// 可以从DemoMessageReceiver的onCommandResult方法中MiPushCommandMessage对象参数中获取注册信息
MiPushClient.registerPush(this, APP_ID, APP_KEY);
//参数说明
//context：Android平台上app的上下文，建议传入当前app的application context
//appID：在开发者网站上注册时生成的，MiPush推送服务颁发给app的唯一认证标识
//appKey:在开发者网站上注册时生成的，与appID相对应，用于验证appID是否合法
}
//下面是与测试相关的日志设置
LoggerInterface newLogger = new LoggerInterface() {
@Override
public void setTag(String tag) {
// ignore
}
@Override
public void log(String content, Throwable t) {
Log.d(TAG, content, t);
}
@Override
public void log(String content) {
Log.d(TAG, content);
}
};
Logger.setLogger(this, newLogger);
if (sHandler == null) {
sHandler = new DemoHandler(getApplicationContext());
}
}
//通过判断手机里的所有进程是否有这个App的进程
//从而判断该App是否有打开
private boolean shouldInit() {
//通过ActivityManager我们可以获得系统里正在运行的activities
//包括进程(Process)等、应用程序/包、服务(Service)、任务(Task)信息。
ActivityManager am = ((ActivityManager) getSystemService(Context.ACTIVITY_SERVICE));
List processInfos = am.getRunningAppProcesses();
String mainProcessName = getPackageName();
//获取本App的唯一标识
int myPid = Process.myPid();
//利用一个增强for循环取出手机里的所有进程
for (RunningAppProcessInfo info : processInfos) {
//通过比较进程的唯一标识和包名判断进程里是否存在该App
if (info.pid == myPid && mainProcessName.equals(info.processName)) {
return true;
}
}
return false;
}
public static DemoHandler getHandler() {
return sHandler;
}
public static void setMainActivity(MainActivity activity) {

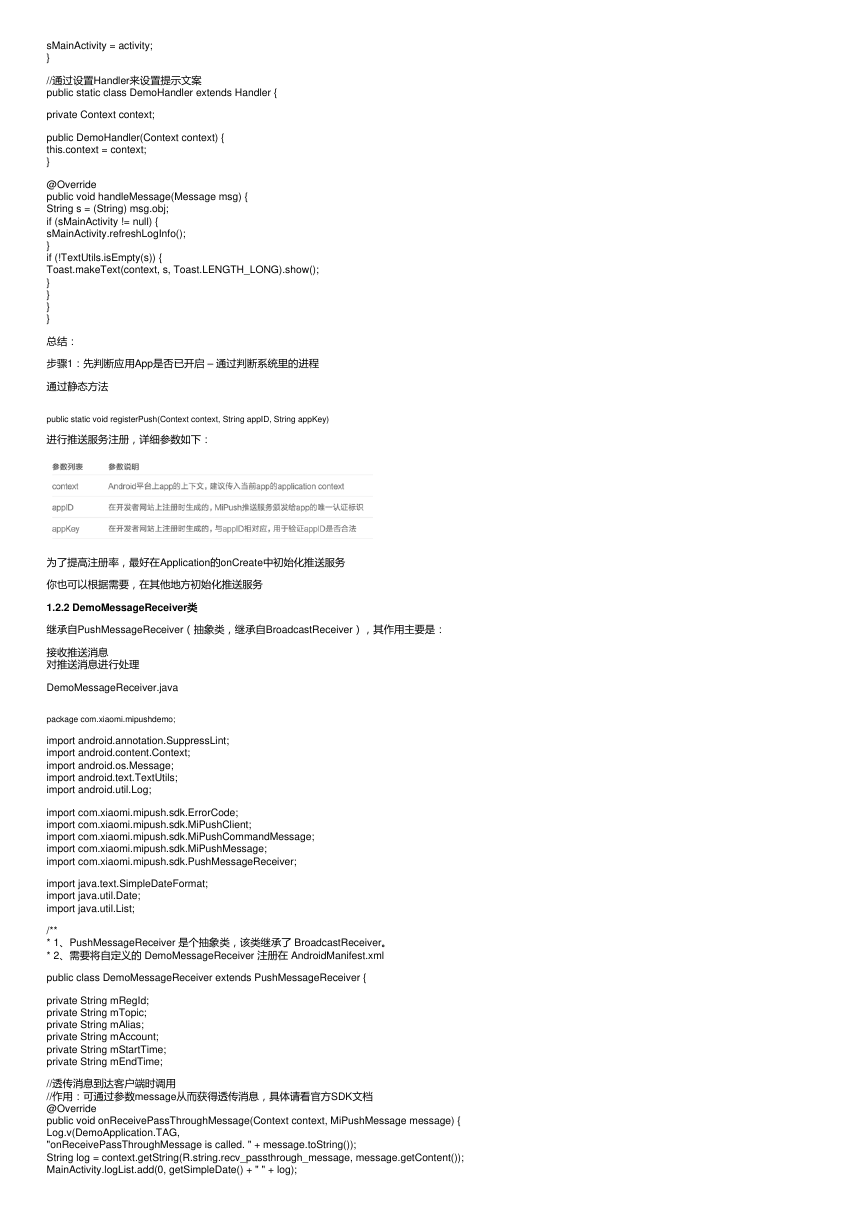

sMainActivity = activity;
}
//通过设置Handler来设置提示文案
public static class DemoHandler extends Handler {
private Context context;
public DemoHandler(Context context) {
this.context = context;
}
@Override
public void handleMessage(Message msg) {
String s = (String) msg.obj;
if (sMainActivity != null) {
sMainActivity.refreshLogInfo();
}
if (!TextUtils.isEmpty(s)) {
Toast.makeText(context, s, Toast.LENGTH_LONG).show();
}
}
}
}
总结：
步骤1：先判断应用App是否已开启 – 通过判断系统里的进程
通过静态方法
public static void registerPush(Context context, String appID, String appKey)
进行推送服务注册，详细参数如下：
为了提高注册率，最好在Application的onCreate中初始化推送服务
你也可以根据需要，在其他地方初始化推送服务
1.2.2 DemoMessageReceiver类类
继承自PushMessageReceiver（抽象类，继承自BroadcastReceiver），其作用主要是：
接收推送消息
对推送消息进行处理
DemoMessageReceiver.java
package com.xiaomi.mipushdemo;
import android.annotation.SuppressLint;
import android.content.Context;
import android.os.Message;
import android.text.TextUtils;
import android.util.Log;
import com.xiaomi.mipush.sdk.ErrorCode;
import com.xiaomi.mipush.sdk.MiPushClient;
import com.xiaomi.mipush.sdk.MiPushCommandMessage;
import com.xiaomi.mipush.sdk.MiPushMessage;
import com.xiaomi.mipush.sdk.PushMessageReceiver;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.List;
/**
* 1、PushMessageReceiver 是个抽象类，该类继承了 BroadcastReceiver。
* 2、需要将自定义的 DemoMessageReceiver 注册在 AndroidManifest.xml
public class DemoMessageReceiver extends PushMessageReceiver {
private String mRegId;
private String mTopic;
private String mAlias;
private String mAccount;
private String mStartTime;
private String mEndTime;
//透传消息到达客户端时调用
//作用：可通过参数message从而获得透传消息，具体请看官方SDK文档
@Override
public void onReceivePassThroughMessage(Context context, MiPushMessage message) {
Log.v(DemoApplication.TAG,
"onReceivePassThroughMessage is called. " + message.toString());
String log = context.getString(R.string.recv_passthrough_message, message.getContent());
MainActivity.logList.add(0, getSimpleDate() + " " + log);

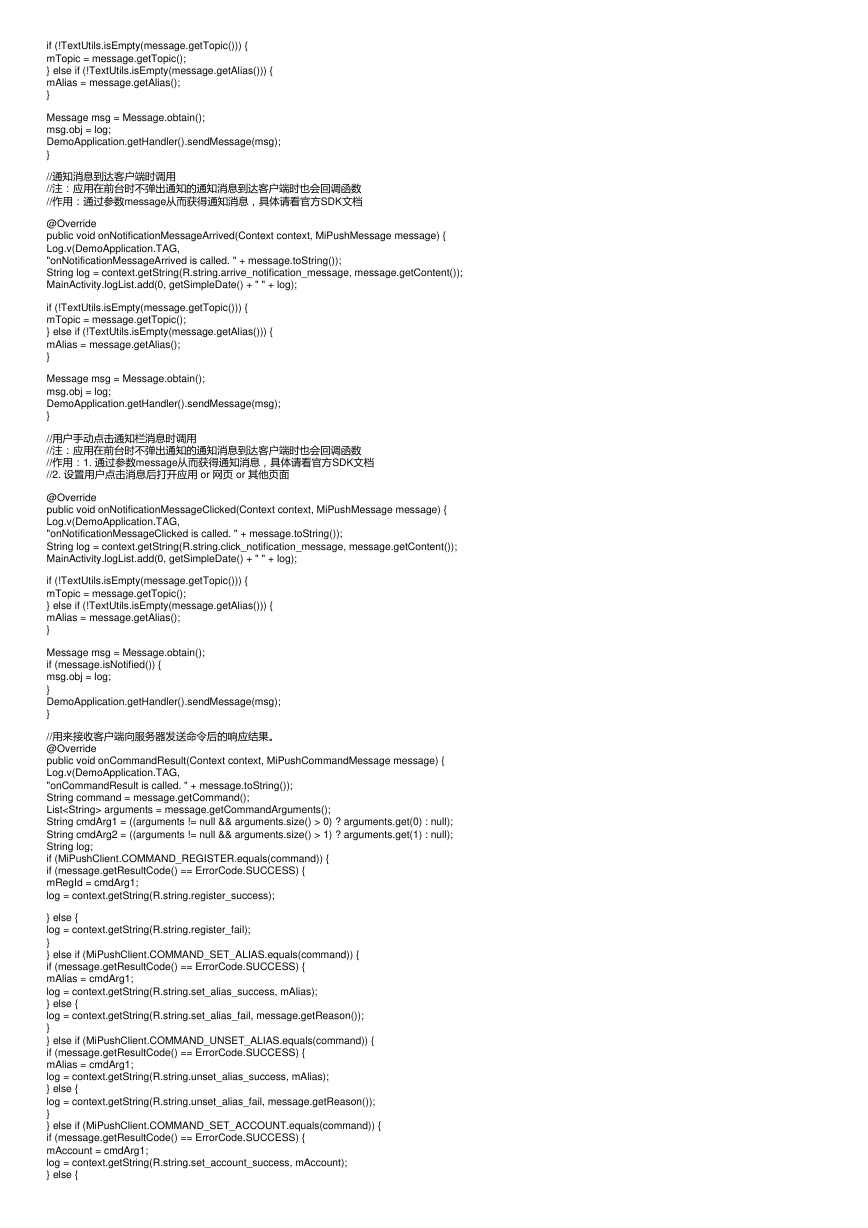

if (!TextUtils.isEmpty(message.getTopic())) {
mTopic = message.getTopic();
} else if (!TextUtils.isEmpty(message.getAlias())) {
mAlias = message.getAlias();
}
Message msg = Message.obtain();
msg.obj = log;
DemoApplication.getHandler().sendMessage(msg);
}
//通知消息到达客户端时调用
//注：应用在前台时不弹出通知的通知消息到达客户端时也会回调函数
//作用：通过参数message从而获得通知消息，具体请看官方SDK文档
@Override
public void onNotificationMessageArrived(Context context, MiPushMessage message) {
Log.v(DemoApplication.TAG,
"onNotificationMessageArrived is called. " + message.toString());
String log = context.getString(R.string.arrive_notification_message, message.getContent());
MainActivity.logList.add(0, getSimpleDate() + " " + log);
if (!TextUtils.isEmpty(message.getTopic())) {
mTopic = message.getTopic();
} else if (!TextUtils.isEmpty(message.getAlias())) {
mAlias = message.getAlias();
}
Message msg = Message.obtain();
msg.obj = log;
DemoApplication.getHandler().sendMessage(msg);
}
//用户手动点击通知栏消息时调用
//注：应用在前台时不弹出通知的通知消息到达客户端时也会回调函数
//作用：1. 通过参数message从而获得通知消息，具体请看官方SDK文档
//2. 设置用户点击消息后打开应用 or 网页 or 其他页面
@Override
public void onNotificationMessageClicked(Context context, MiPushMessage message) {
Log.v(DemoApplication.TAG,
"onNotificationMessageClicked is called. " + message.toString());
String log = context.getString(R.string.click_notification_message, message.getContent());
MainActivity.logList.add(0, getSimpleDate() + " " + log);
if (!TextUtils.isEmpty(message.getTopic())) {
mTopic = message.getTopic();
} else if (!TextUtils.isEmpty(message.getAlias())) {
mAlias = message.getAlias();
}
Message msg = Message.obtain();
if (message.isNotified()) {
msg.obj = log;
}
DemoApplication.getHandler().sendMessage(msg);
}
//用来接收客户端向服务器发送命令后的响应结果。
@Override
public void onCommandResult(Context context, MiPushCommandMessage message) {
Log.v(DemoApplication.TAG,
"onCommandResult is called. " + message.toString());
String command = message.getCommand();
List arguments = message.getCommandArguments();
String cmdArg1 = ((arguments != null && arguments.size() > 0) ? arguments.get(0) : null);
String cmdArg2 = ((arguments != null && arguments.size() > 1) ? arguments.get(1) : null);
String log;
if (MiPushClient.COMMAND_REGISTER.equals(command)) {
if (message.getResultCode() == ErrorCode.SUCCESS) {
mRegId = cmdArg1;
log = context.getString(R.string.register_success);
} else {
log = context.getString(R.string.register_fail);
}
} else if (MiPushClient.COMMAND_SET_ALIAS.equals(command)) {
if (message.getResultCode() == ErrorCode.SUCCESS) {
mAlias = cmdArg1;
log = context.getString(R.string.set_alias_success, mAlias);
} else {
log = context.getString(R.string.set_alias_fail, message.getReason());
}
} else if (MiPushClient.COMMAND_UNSET_ALIAS.equals(command)) {
if (message.getResultCode() == ErrorCode.SUCCESS) {
mAlias = cmdArg1;
log = context.getString(R.string.unset_alias_success, mAlias);
} else {
log = context.getString(R.string.unset_alias_fail, message.getReason());
}
} else if (MiPushClient.COMMAND_SET_ACCOUNT.equals(command)) {
if (message.getResultCode() == ErrorCode.SUCCESS) {
mAccount = cmdArg1;
log = context.getString(R.string.set_account_success, mAccount);
} else {

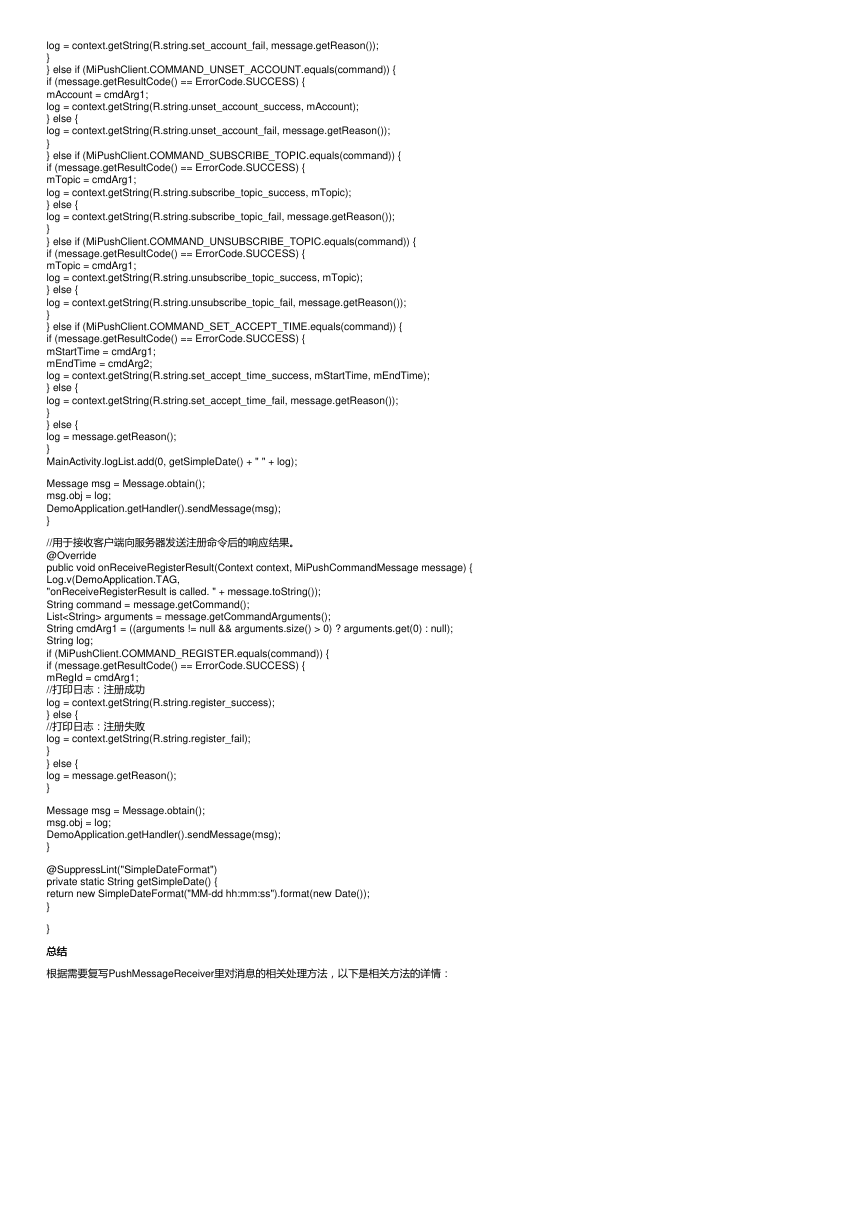

log = context.getString(R.string.set_account_fail, message.getReason());
}
} else if (MiPushClient.COMMAND_UNSET_ACCOUNT.equals(command)) {
if (message.getResultCode() == ErrorCode.SUCCESS) {
mAccount = cmdArg1;
log = context.getString(R.string.unset_account_success, mAccount);
} else {
log = context.getString(R.string.unset_account_fail, message.getReason());
}
} else if (MiPushClient.COMMAND_SUBSCRIBE_TOPIC.equals(command)) {
if (message.getResultCode() == ErrorCode.SUCCESS) {
mTopic = cmdArg1;
log = context.getString(R.string.subscribe_topic_success, mTopic);
} else {
log = context.getString(R.string.subscribe_topic_fail, message.getReason());
}
} else if (MiPushClient.COMMAND_UNSUBSCRIBE_TOPIC.equals(command)) {
if (message.getResultCode() == ErrorCode.SUCCESS) {
mTopic = cmdArg1;
log = context.getString(R.string.unsubscribe_topic_success, mTopic);
} else {
log = context.getString(R.string.unsubscribe_topic_fail, message.getReason());
}
} else if (MiPushClient.COMMAND_SET_ACCEPT_TIME.equals(command)) {
if (message.getResultCode() == ErrorCode.SUCCESS) {
mStartTime = cmdArg1;
mEndTime = cmdArg2;
log = context.getString(R.string.set_accept_time_success, mStartTime, mEndTime);
} else {
log = context.getString(R.string.set_accept_time_fail, message.getReason());
}
} else {
log = message.getReason();
}
MainActivity.logList.add(0, getSimpleDate() + " " + log);
Message msg = Message.obtain();
msg.obj = log;
DemoApplication.getHandler().sendMessage(msg);
}
//用于接收客户端向服务器发送注册命令后的响应结果。
@Override
public void onReceiveRegisterResult(Context context, MiPushCommandMessage message) {
Log.v(DemoApplication.TAG,
"onReceiveRegisterResult is called. " + message.toString());
String command = message.getCommand();
List arguments = message.getCommandArguments();
String cmdArg1 = ((arguments != null && arguments.size() > 0) ? arguments.get(0) : null);
String log;
if (MiPushClient.COMMAND_REGISTER.equals(command)) {
if (message.getResultCode() == ErrorCode.SUCCESS) {
mRegId = cmdArg1;
//打印日志：注册成功
log = context.getString(R.string.register_success);
} else {
//打印日志：注册失败
log = context.getString(R.string.register_fail);
}
} else {
log = message.getReason();
}
Message msg = Message.obtain();
msg.obj = log;
DemoApplication.getHandler().sendMessage(msg);
}
@SuppressLint("SimpleDateFormat")
private static String getSimpleDate() {
return new SimpleDateFormat("MM-dd hh:mm:ss").format(new Date());
}
}
总结总结

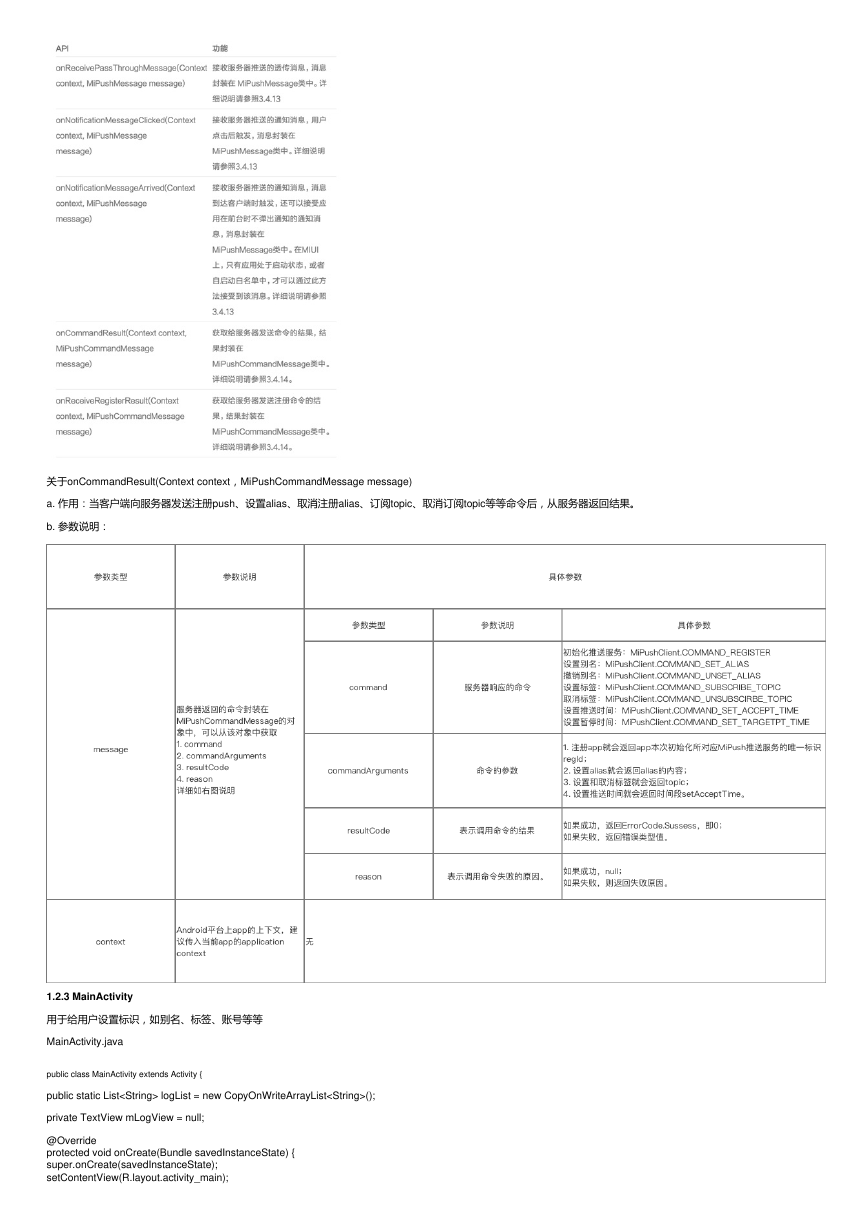

根据需要复写PushMessageReceiver里对消息的相关处理方法，以下是相关方法的详情：
关于onCommandResult(Context context，MiPushCommandMessage message)
a. 作用：当客户端向服务器发送注册push、设置alias、取消注册alias、订阅topic、取消订阅topic等等命令后，从服务器返回结果。
b. 参数说明：
1.2.3 MainActivity
用于给用户设置标识，如别名、标签、账号等等
MainActivity.java
public class MainActivity extends Activity {
public static List logList = new CopyOnWriteArrayList();
private TextView mLogView = null;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
DemoApplication.setMainActivity(this);
mLogView = (TextView) findViewById(R.id.log);
// 设置别名
findViewById(R.id.set_alias).setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
final EditText editText = new EditText(MainActivity.this);
new AlertDialog.Builder(MainActivity.this)
.setTitle(R.string.set_alias)
.setView(editText)
.setPositiveButton(R.string.ok, new DialogInterface.OnClickListener() {
@Override
public void onClick(DialogInterface dialog, int which) {
String alias = editText.getText().toString();
//调用静态方法进行设置 MiPushClient.setAlias(MainActivity.this, alias, null);
}
})
.setNegativeButton(R.string.cancel, null)
.show();
}
});
// 撤销别名
findViewById(R.id.unset_alias).setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
final EditText editText = new EditText(MainActivity.this);
new AlertDialog.Builder(MainActivity.this)
.setTitle(R.string.unset_alias)
.setView(editText)
.setPositiveButton(R.string.ok, new DialogInterface.OnClickListener() {
@Override
public void onClick(DialogInterface dialog, int which) {
String alias = editText.getText().toString();
//调用静态方法进行设置 MiPushClient.unsetAlias(MainActivity.this, alias, null);
}
})
.setNegativeButton(R.string.cancel, null)
.show();
}
});
// 设置帐号
findViewById(R.id.set_account).setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
final EditText editText = new EditText(MainActivity.this);
new AlertDialog.Builder(MainActivity.this)
.setTitle(R.string.set_account)
.setView(editText)
.setPositiveButton(R.string.ok, new DialogInterface.OnClickListener() {
@Override
public void onClick(DialogInterface dialog, int which) {
String account = editText.getText().toString();
//调用静态方法进行设置 MiPushClient.setUserAccount(MainActivity.this, account, null);
}
})
.setNegativeButton(R.string.cancel, null)
.show();
}
});
// 撤销帐号
findViewById(R.id.unset_account).setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
final EditText editText = new EditText(MainActivity.this);
new AlertDialog.Builder(MainActivity.this)
.setTitle(R.string.unset_account)
.setView(editText)
.setPositiveButton(R.string.ok, new DialogInterface.OnClickListener() {
@Override
public void onClick(DialogInterface dialog, int which) {
String account = editText.getText().toString();
//调用静态方法进行设置 MiPushClient.unsetUserAccount(MainActivity.this, account, null);
}
})
.setNegativeButton(R.string.cancel, null)
.show();
}
});
// 设置标签
findViewById(R.id.subscribe_topic).setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
final EditText editText = new EditText(MainActivity.this);
new AlertDialog.Builder(MainActivity.this)
.setTitle(R.string.subscribe_topic)
.setView(editText)
.setPositiveButton(R.string.ok, new DialogInterface.OnClickListener() {
@Override
public void onClick(DialogInterface dialog, int which) {
String topic = editText.getText().toString();
//调用静态方法进行设置 MiPushClient.subscribe(MainActivity.this, topic, null);
}
})
.setNegativeButton(R.string.cancel, null)
.show();
}
});
// 撤销标签

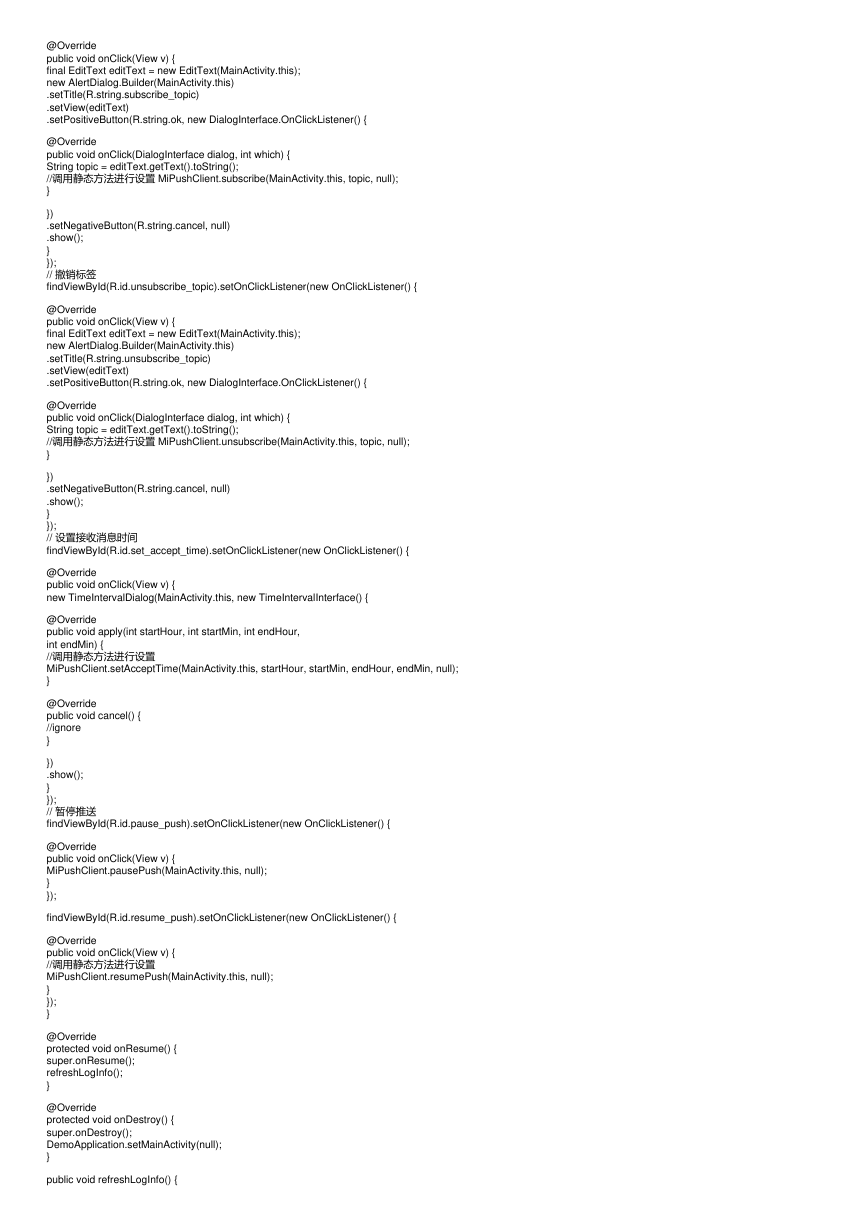

findViewById(R.id.unsubscribe_topic).setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
final EditText editText = new EditText(MainActivity.this);
new AlertDialog.Builder(MainActivity.this)
.setTitle(R.string.unsubscribe_topic)
.setView(editText)
.setPositiveButton(R.string.ok, new DialogInterface.OnClickListener() {
@Override
public void onClick(DialogInterface dialog, int which) {
String topic = editText.getText().toString();
//调用静态方法进行设置 MiPushClient.unsubscribe(MainActivity.this, topic, null);
}
})
.setNegativeButton(R.string.cancel, null)
.show();
}
});
// 设置接收消息时间
findViewById(R.id.set_accept_time).setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
new TimeIntervalDialog(MainActivity.this, new TimeIntervalInterface() {
@Override
public void apply(int startHour, int startMin, int endHour,
int endMin) {
//调用静态方法进行设置
MiPushClient.setAcceptTime(MainActivity.this, startHour, startMin, endHour, endMin, null);
}
@Override
public void cancel() {
//ignore
}
})
.show();
}
});
// 暂停推送
findViewById(R.id.pause_push).setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
MiPushClient.pausePush(MainActivity.this, null);
}
});
findViewById(R.id.resume_push).setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
//调用静态方法进行设置
MiPushClient.resumePush(MainActivity.this, null);
}
});
}
@Override
protected void onResume() {
super.onResume();
refreshLogInfo();
}
@Override
protected void onDestroy() {
super.onDestroy();
DemoApplication.setMainActivity(null);
}
public void refreshLogInfo() {
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
