How to use this manual

Playable discs

Getting Started

Hooking up the system

Setting the clock

CD/MP3 – Play

Loading a disc

Playing a disc

— Normal Play/Shuffle Play

Playing repeatedly

— Repeat Play

Creating your own program

— Program Play

Tuner

Presetting radio stations

Listening to the radio

— Preset Tuning

— Manual Tuning

Using the Radio Data System (RDS)

(European model only)

Tape – Play

Loading a tape

Playing a tape

Tape – Recording

Recording your favorite CD tracks on a tape

— CD-TAPE Synchro Recording

Recording on a tape manually

— Manual Recording

Sound Adjustment

Adjusting the sound

Timer

Falling asleep to music

— Sleep Timer

Waking up to music

— Play Timer

Timer recording radio programs

— Rec Timer

Display

Turning off the display

— Power Saving Mode

Viewing information about the disc in the display

Optional Personal Computer

Connecting a personal computer to the system

Installing the driver

Listening to audio files on a personal computer

Optional Components

Hooking up optional components

Listening to audio from a connected component

Troubleshooting

Problems and remedies

Messages

Additional Information

Precautions

Specifications

List of button locations and reference pages

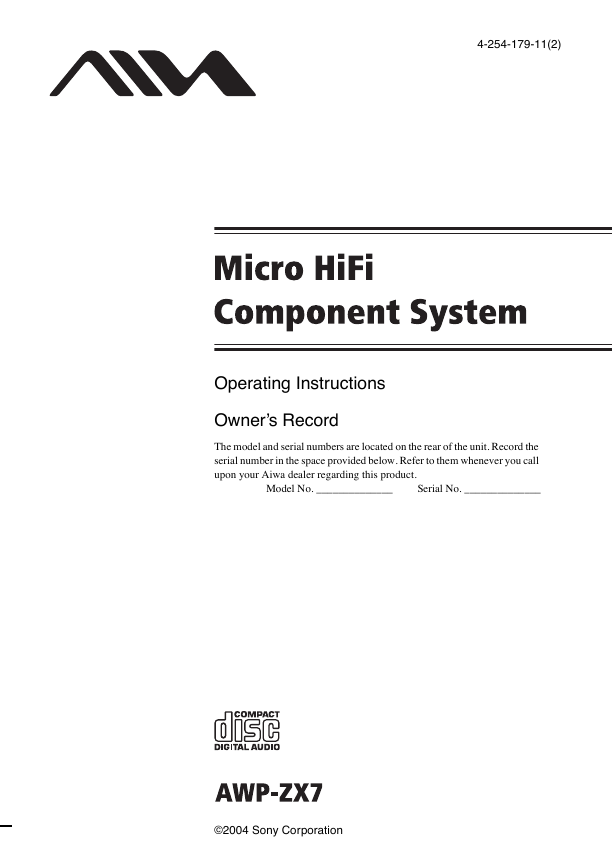

4-254-179-11(2) Operating Instructions Owner’s Record The model and serial numbers are located on the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Aiwa dealer regarding this product. Model No. ______________ Serial No. ______________ ©2004 Sony Corporation

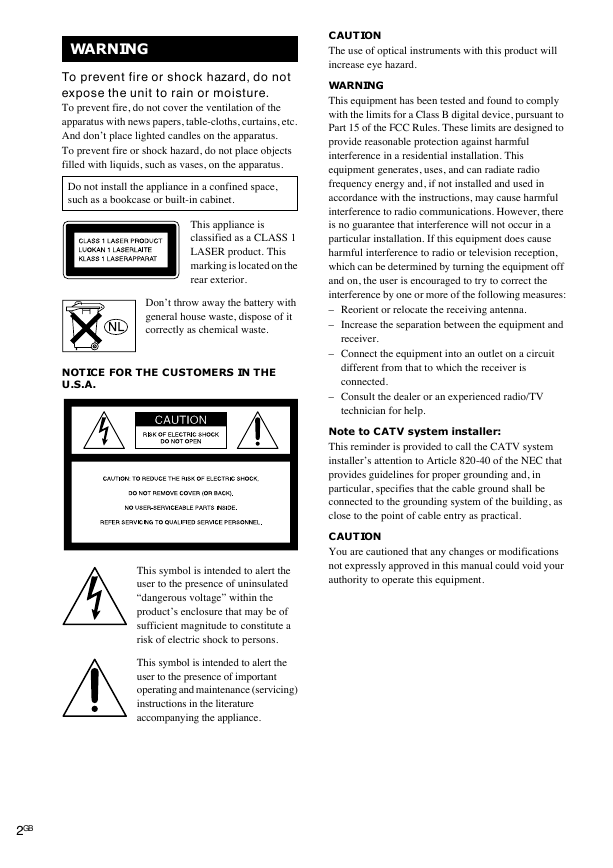

CAUTION The use of optical instruments with this product will increase eye hazard. WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Note to CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent fire, do not cover the ventilation of the apparatus with news papers, table-cloths, curtains, etc. And don’t place lighted candles on the apparatus. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. This appliance is classified as a CLASS 1 LASER product. This marking is located on the rear exterior. Don’t throw away the battery with general house waste, dispose of it correctly as chemical waste. NOTICE FOR THE CUSTOMERS IN THE U.S.A. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. 2GB

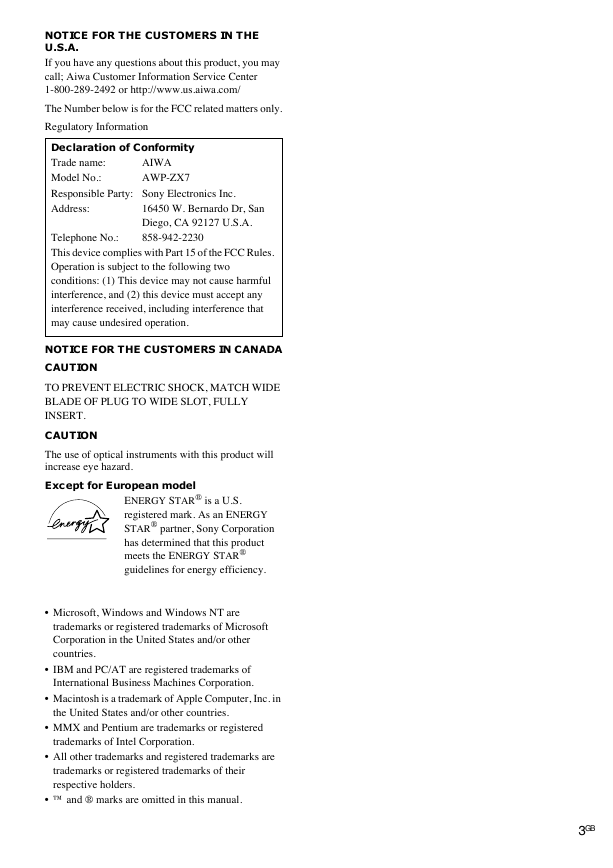

NOTICE FOR THE CUSTOMERS IN THE U.S.A. If you have any questions about this product, you may call; Aiwa Customer Information Service Center 1-800-289-2492 or http://www.us.aiwa.com/ The Number below is for the FCC related matters only. Regulatory Information Declaration of Conformity Trade name: Model No.: Responsible Party: Sony Electronics Inc. Address: AIWA AWP-ZX7 16450 W. Bernardo Dr, San Diego, CA 92127 U.S.A. 858-942-2230 Telephone No.: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTICE FOR THE CUSTOMERS IN CANADA CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. CAUTION The use of optical instruments with this product will increase eye hazard. Except for European model ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® partner, Sony Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. Microsoft, Windows and Windows NT are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. IBM and PC/AT are registered trademarks of International Business Machines Corporation. Macintosh is a trademark of Apple Computer, Inc. in the United States and/or other countries. MMX and Pentium are trademarks or registered trademarks of Intel Corporation. All other trademarks and registered trademarks are trademarks or registered trademarks of their respective holders. ™ and ® marks are omitted in this manual. 3GB

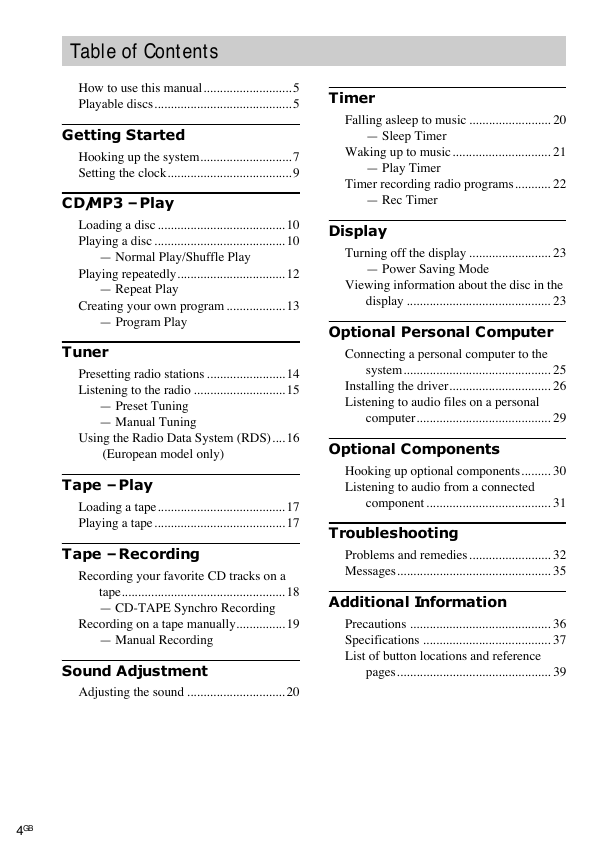

Table of Contents How to use this manual...........................5 Playable discs..........................................5 Timer Getting Started Hooking up the system............................7 Setting the clock......................................9 CD/MP3 – Play Loading a disc ....................................... 10 Playing a disc ........................................ 10 — Normal Play/Shuffle Play Playing repeatedly................................. 12 — Repeat Play Creating your own program .................. 13 — Program Play Tuner Presetting radio stations ........................14 Listening to the radio ............................15 — Preset Tuning — Manual Tuning Falling asleep to music ......................... 20 — Sleep Timer Waking up to music.............................. 21 — Play Timer Timer recording radio programs........... 22 — Rec Timer Display Turning off the display ......................... 23 — Power Saving Mode Viewing information about the disc in the display ............................................ 23 Optional Personal Computer Connecting a personal computer to the system............................................. 25 Installing the driver............................... 26 Listening to audio files on a personal computer......................................... 29 Using the Radio Data System (RDS).... 16 (European model only) Optional Components Tape – Play Loading a tape....................................... 17 Playing a tape........................................ 17 Tape – Recording Recording your favorite CD tracks on a tape.................................................. 18 — CD-TAPE Synchro Recording Recording on a tape manually............... 19 — Manual Recording Sound Adjustment Adjusting the sound .............................. 20 Hooking up optional components......... 30 Listening to audio from a connected component ...................................... 31 Troubleshooting Problems and remedies......................... 32 Messages............................................... 35 Additional Information Precautions ........................................... 36 Specifications ....................................... 37 List of button locations and reference pages............................................... 39 4GB

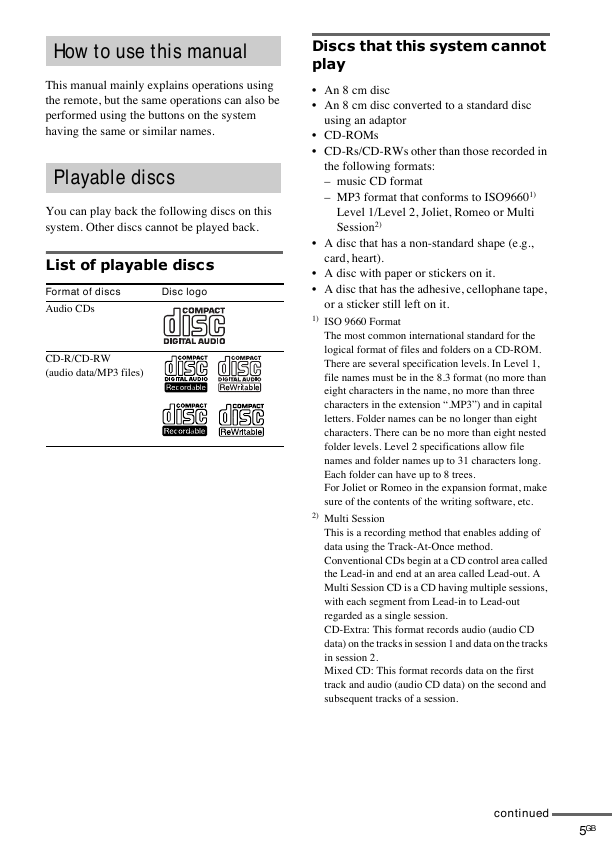

How to use this manual This manual mainly explains operations using the remote, but the same operations can also be performed using the buttons on the system having the same or similar names. Playable discs You can play back the following discs on this system. Other discs cannot be played back. List of playable discs Format of discs Audio CDs Disc logo CD-R/CD-RW (audio data/MP3 files) Discs that this system cannot play An 8 cm disc An 8 cm disc converted to a standard disc using an adaptor CD-ROMs CD-Rs/CD-RWs other than those recorded in the following formats: – music CD format – MP3 format that conforms to ISO96601) Level 1/Level 2, Joliet, Romeo or Multi Session2) A disc that has a non-standard shape (e.g., card, heart). A disc with paper or stickers on it. A disc that has the adhesive, cellophane tape, or a sticker still left on it. 1) ISO 9660 Format The most common international standard for the logical format of files and folders on a CD-ROM. There are several specification levels. In Level 1, file names must be in the 8.3 format (no more than eight characters in the name, no more than three characters in the extension “.MP3”) and in capital letters. Folder names can be no longer than eight characters. There can be no more than eight nested folder levels. Level 2 specifications allow file names and folder names up to 31 characters long. Each folder can have up to 8 trees. For Joliet or Romeo in the expansion format, make sure of the contents of the writing software, etc. 2) Multi Session This is a recording method that enables adding of data using the Track-At-Once method. Conventional CDs begin at a CD control area called the Lead-in and end at an area called Lead-out. A Multi Session CD is a CD having multiple sessions, with each segment from Lead-in to Lead-out regarded as a single session. CD-Extra: This format records audio (audio CD data) on the tracks in session 1 and data on the tracks in session 2. Mixed CD: This format records data on the first track and audio (audio CD data) on the second and subsequent tracks of a session. continued 5GB

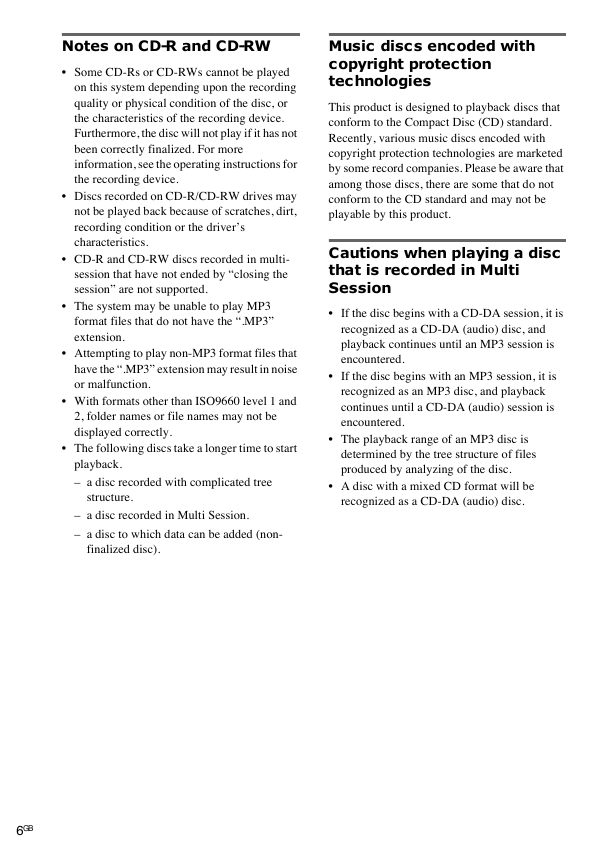

Notes on CD-R and CD-RW Some CD-Rs or CD-RWs cannot be played on this system depending upon the recording quality or physical condition of the disc, or the characteristics of the recording device. Furthermore, the disc will not play if it has not been correctly finalized. For more information, see the operating instructions for the recording device. Discs recorded on CD-R/CD-RW drives may not be played back because of scratches, dirt, recording condition or the driver’s characteristics. CD-R and CD-RW discs recorded in multi- session that have not ended by “closing the session” are not supported. The system may be unable to play MP3 format files that do not have the “.MP3” extension. Attempting to play non-MP3 format files that have the “.MP3” extension may result in noise or malfunction. With formats other than ISO9660 level 1 and 2, folder names or file names may not be displayed correctly. The following discs take a longer time to start playback. – a disc recorded with complicated tree structure. – a disc recorded in Multi Session. – a disc to which data can be added (non- finalized disc). Music discs encoded with copyright protection technologies This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product. Cautions when playing a disc that is recorded in Multi Session If the disc begins with a CD-DA session, it is recognized as a CD-DA (audio) disc, and playback continues until an MP3 session is encountered. If the disc begins with an MP3 session, it is recognized as an MP3 disc, and playback continues until a CD-DA (audio) session is encountered. The playback range of an MP3 disc is determined by the tree structure of files produced by analyzing of the disc. A disc with a mixed CD format will be recognized as a CD-DA (audio) disc. 6GB

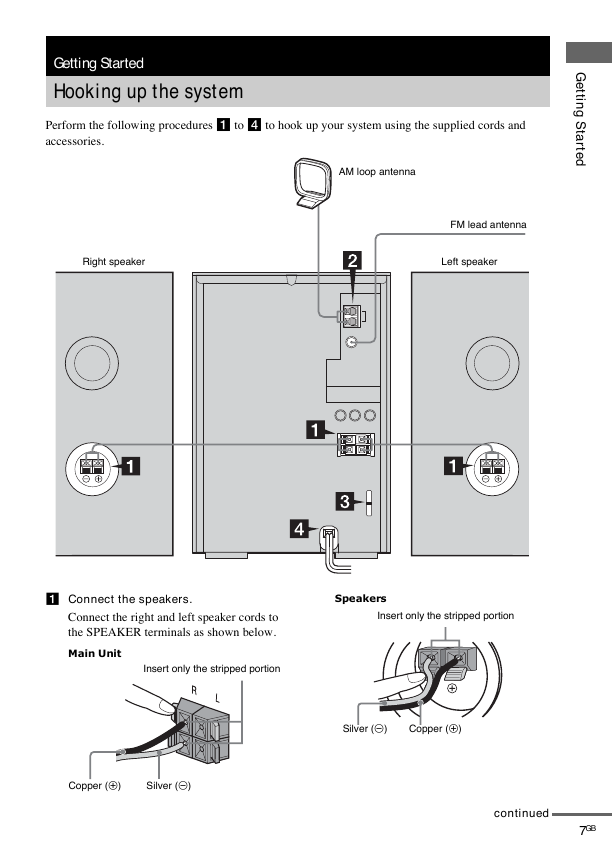

Getting Started Hooking up the system Perform the following procedures 1 to 4 to hook up your system using the supplied cords and accessories. AM loop antenna Right speaker FM lead antenna Left speaker G e t t i n g S t a r t e d 1 Connect the speakers. Speakers Connect the right and left speaker cords to the SPEAKER terminals as shown below. Main Unit Insert only the stripped portion Insert only the stripped portion Silver (#) Copper (3) Copper (3) Silver (#) continued 7GB

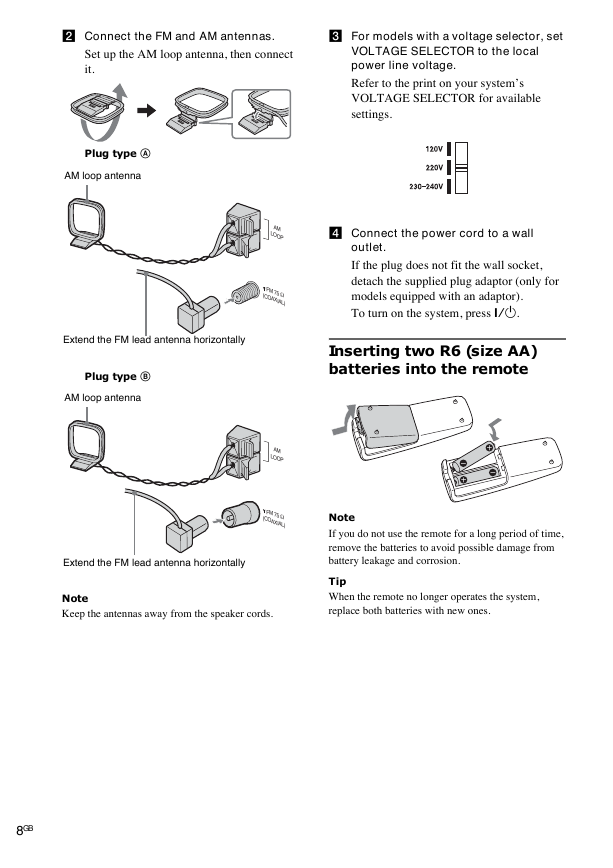

2 Connect the FM and AM antennas. 3 For models with a voltage selector, set Set up the AM loop antenna, then connect it. VOLTAGE SELECTOR to the local power line voltage. Refer to the print on your system’s VOLTAGE SELECTOR for available settings. Plug type A AM loop antenna Extend the FM lead antenna horizontally Plug type B AM loop antenna AM LOOP FM 75 Ω (COAXIAL) AM LOOP FM 75 Ω (COAXIAL) Extend the FM lead antenna horizontally Note Keep the antennas away from the speaker cords. 4 Connect the power cord to a wall outlet. If the plug does not fit the wall socket, detach the supplied plug adaptor (only for models equipped with an adaptor). To turn on the system, press ?/1. Inserting two R6 (size AA) batteries into the remote Note If you do not use the remote for a long period of time, remove the batteries to avoid possible damage from battery leakage and corrosion. Tip When the remote no longer operates the system, replace both batteries with new ones. 8GB
