Muratec村田传真机-F-68P说明书.pdf
F-68P Manual
Before using your Muratec fax machine
Where to set up your fax machine
Power requirements
General Precautions
Storing and handling toner cartridge
For your printout quality

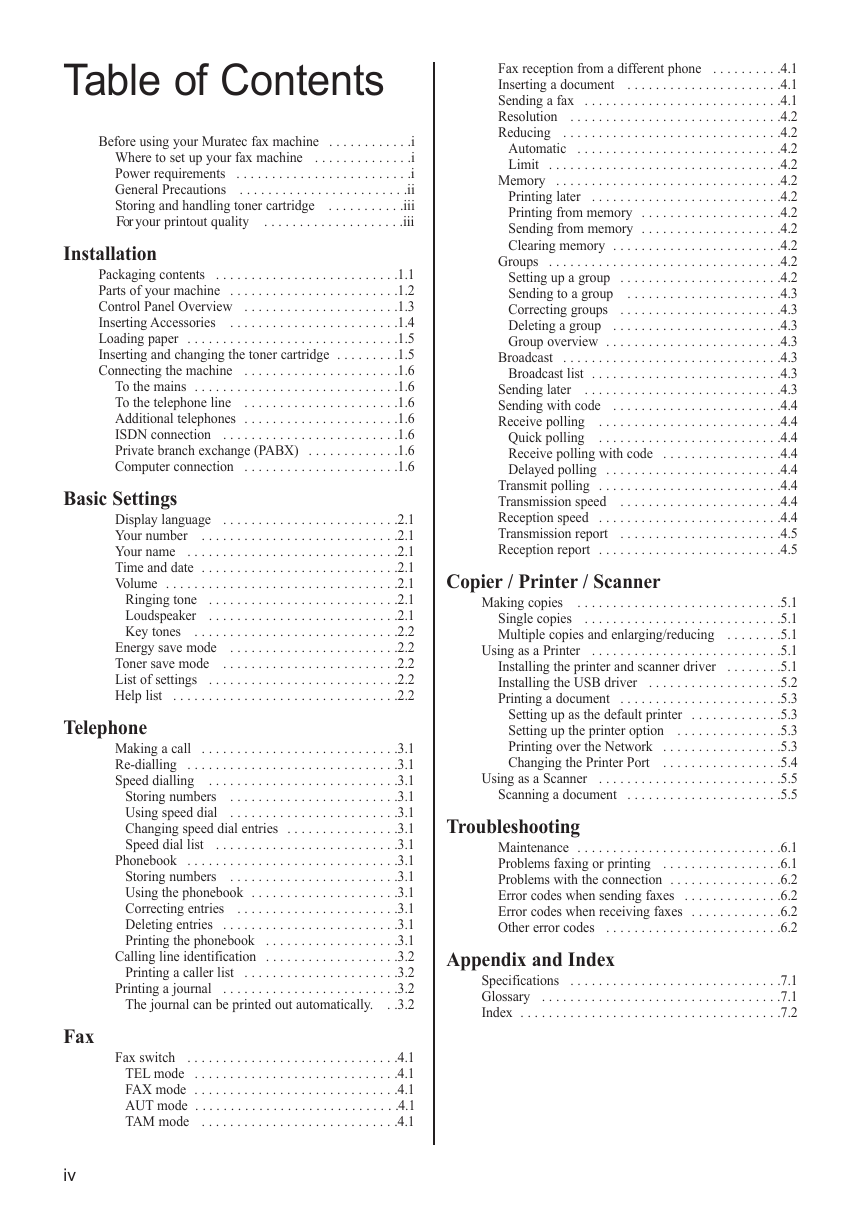

Table of Contents
Installation

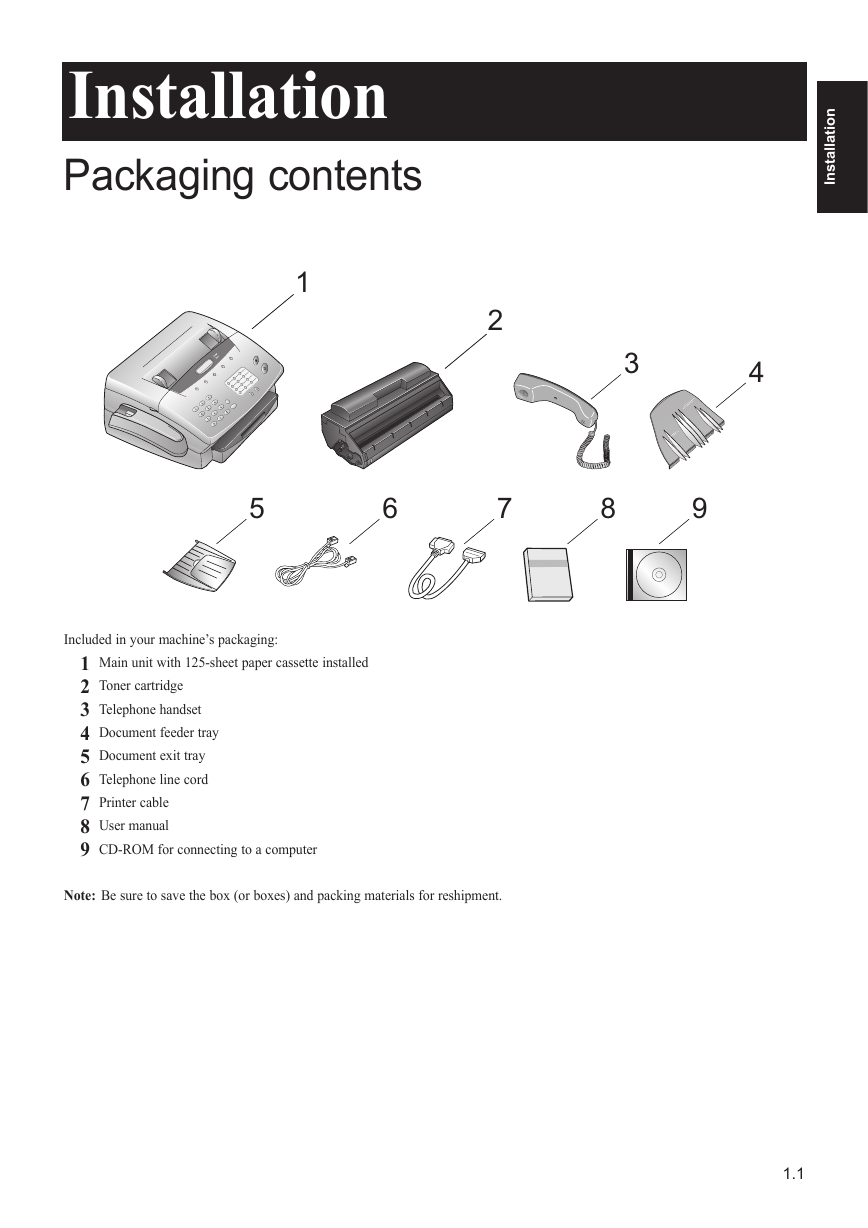

Packaging contents

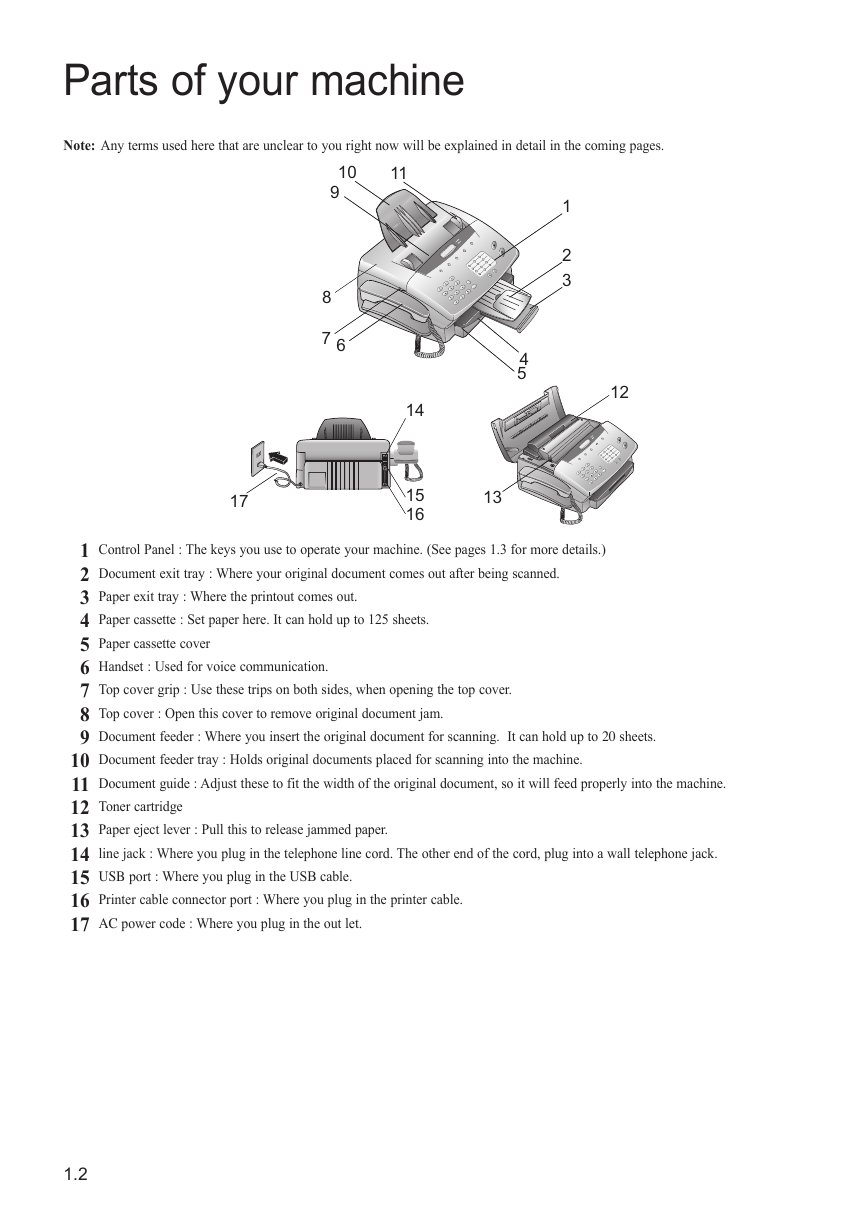

Parts of your machine

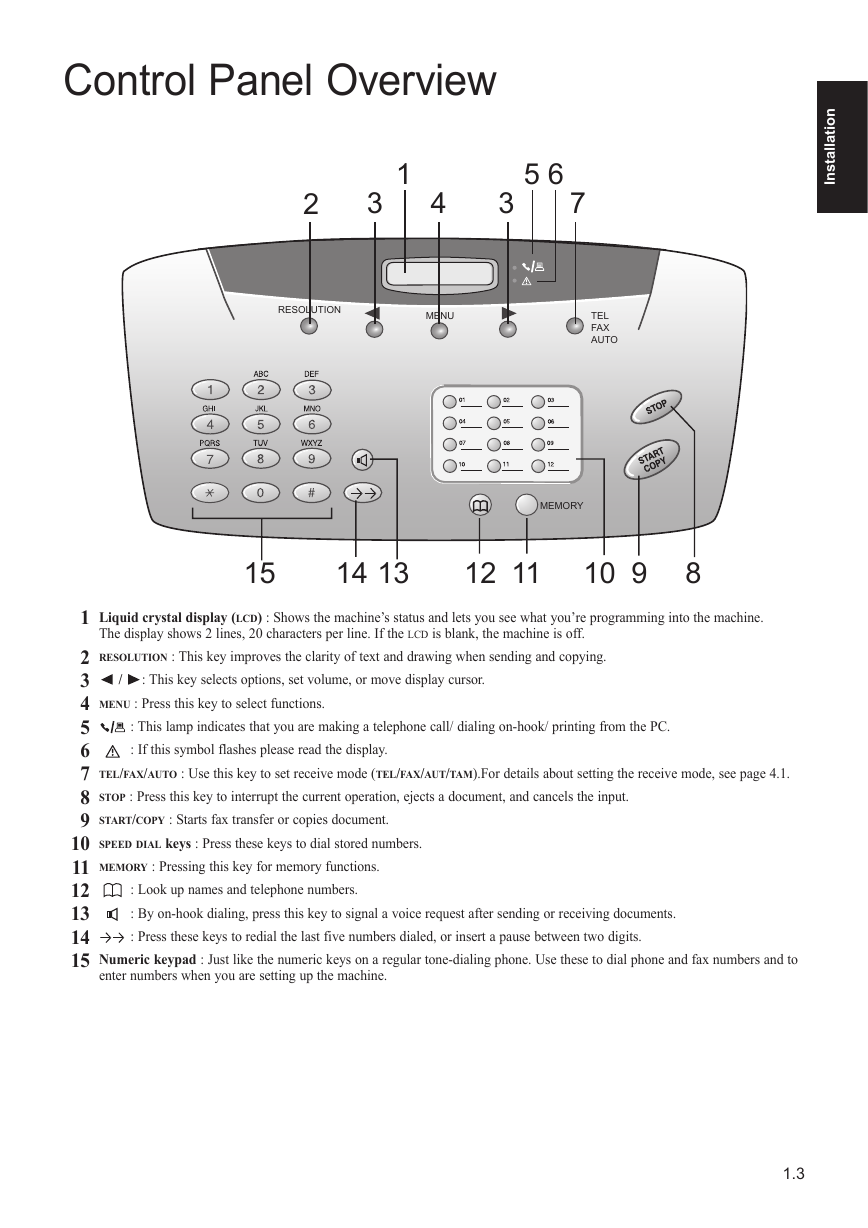

Control Panel Overview
Inserting Accessories
Loading paper
Inserting and changing the toner cartridge
Connecting the machine
Basic Settings
Display language
Your number
Your name
Time and date
Volume
Energy save mode
Toner save mode
List of settings
Help list
Telephone
Making a call
Re-dialling
Speed dialling
Phonebook
Calling line identification
Printing a journal
Fax
Fax switch
Fax reception from a different phone
Inserting a document
Sending a fax
Resolution
Reducing
Memory
Groups
Broadcast
Sending later
Sending with code
Receive polling
Transmit polling
Transmission speed
Reception speed
Transmission report
Reception report
Copier / Printer / Scanner
Making copies
Single copies
Multiple copies and enlarging/reducing
Using as a Printer
Installing the printer and scanner driver
Installing the USB driver
Printing a document
Using as a Scanner
Scanning a document
Troubleshooting
Maintenance
Problems faxing or printing
Problems with the connection
Error codes when sending faxes
Error codes when receiving faxes
Other error codes
Appendix and Index
Specifications
Glossary
Index
n
o
i
t
a
l
l
a
t
s
n
I
s
g
n
i
t
t
e
S
c
i
s
a
B
e
n
o
h
p
e
l
e
T
x
a
F
User’s Guide
r
e
t
n
i
r
P
i
/
r
e
p
o
C
r
e
n
n
a
c
S
/
g
n
i
t
o
o
h
s
e
b
u
o
r
T
l
i
x
d
n
e
p
p
A
x
e
d
n
I
&
Before using your Muratec fax machine

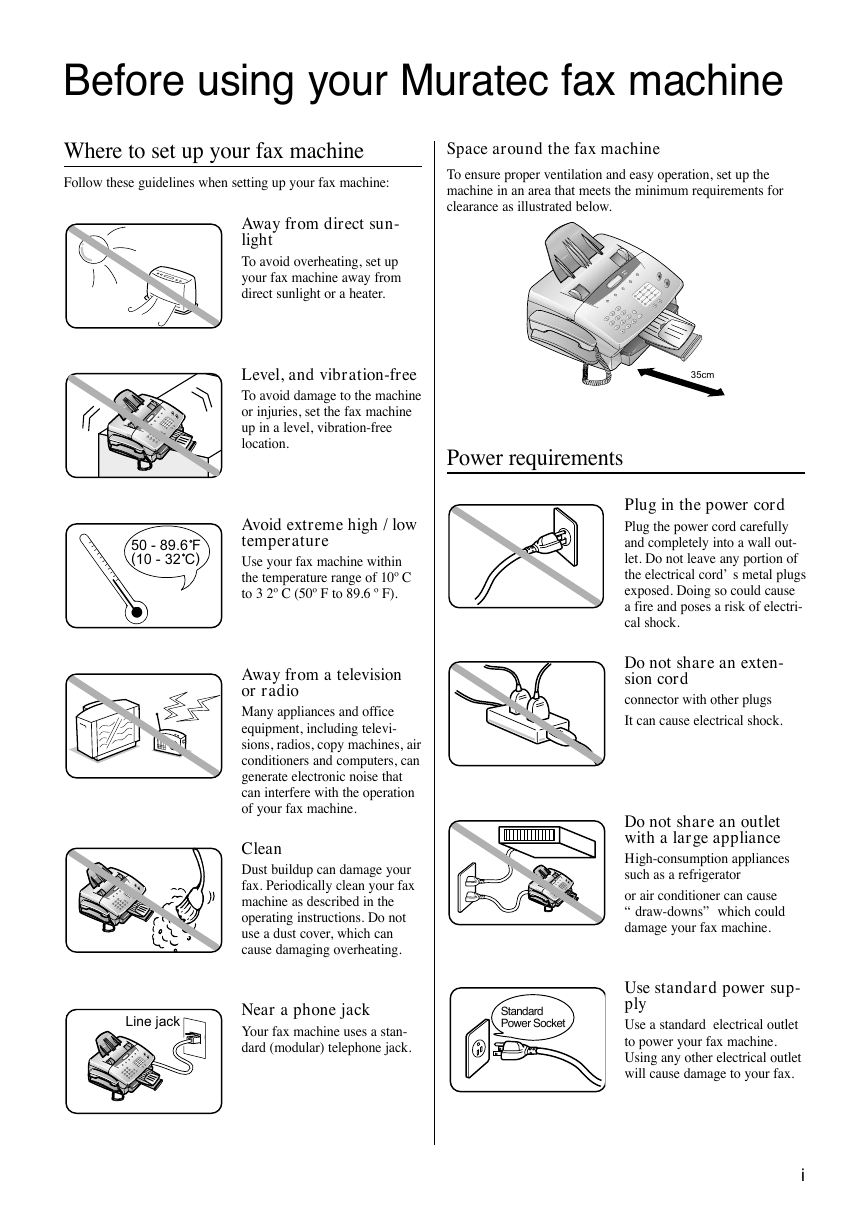

Where to set up your fax machine
Follow these guidelines when setting up your fax machine:
Space around the fax machine
To ensure proper ventilation and easy operation, set up the
machine in an area that meets the minimum requirements for
clearance as illustrated below.
Away from direct sun-
light
To avoid overheating, set up
your fax machine away from
direct sunlight or a heater.
Level, and vibration-free
To avoid damage to the machine
or injuries, set the fax machine
up in a level, vibration-free
location.
50 - 89.6 F
(10 - 32 C)
Avoid extreme high / low
temperature
Use your fax machine within
the temperature range of 10º C
to 32º C (50º F to 89.6º F).
Away from a television
or radio
Many appliances and office
equipment, including televi-
sions, radios, copy machines, air
conditioners and computers, can
generate electronic noise that
can interfere with the operation
of your fax machine.
Clean
Dust buildup can damage your
fax. Periodically clean your fax
machine as described in the
operating instructions. Do not
use a dust cover, which can
cause damaging overheating.
Line jack
Near a phone jack
Your fax machine uses a stan-
dard (modular) telephone jack.
Standard
Power Socket
35cm
Power requirements
Plug in the power cord
Plug the power cord carefully
and completely into a wall out-
let. Do not leave any portion of
the electrical cord’s metal plugs
exposed. Doing so could cause
a fire and poses a risk of electri-
cal shock.
Do not share an exten-
sion cord
connector with other plugs
It can cause electrical shock.
Do not share an outlet
with a large appliance
High-consumption appliances
such as a refrigerator
or air conditioner can cause
“draw-downs” which could
damage your fax machine.
Use standard power sup-
ply
Use a standard electrical outlet
to power your fax machine.
Using any other electrical outlet
will cause damage to your fax.
i
Avoid temperature fluc-
tuations
Sudden changes in temperature
can cause damaging condensa-
tion to form inside your fax
machine.
Allow clearance around
the outlet
Don’t stack boxes or furniture
around the outlet.
Use caution when carry-
ing the fax
Lift and carry the fax machine
as described in your operating
instructions. Some fax machines
require two people to safely and
properly carry.
Use supplies manufac-
tured specifically for
Muratec fax machines
Using toner cartridges and other
supplies that are not manufac-
tured specifically for Muratec
machines may affect the opera-
tion of your unit.
For domestic use only
Never use your fax machine
outside the country in which
you purchased it. Doing so may
violate telecommunication and
safety regulations of that coun-
try, and variations in electrical
and telephone standards can
cause poor performance and
damage to your fax.
Never disassemble your
fax machine!
Disassembling your fax
machine can cause serious
injury to you and damage to
your fax. If service is required,
call your authorized Muratec
dealer.
Keep away from liquids
Keep liquids and metal pins or
other objects away from your
fax machine. If something falls
into the fax machine, remove
the plug from the outlet, and
call your authorized Muratec
dealer.
Never handle your fax
machine or power cord
with wet hands
Never touch your fax machine
or power cord if your hands are
wet.
During electrical storms,
disconnect the plug from
the outlet
Electrical storms can cause elec-
trical shock or
damage to the fax machine.
Do not put furniture or
equipment on the power
cord
Do not put anything on or over
the electrical power cord, and
do not route the power cord
under rugs or carpets. Doing so
can damage the power cord or
fax, and can cause fire or elec-
trical shock.

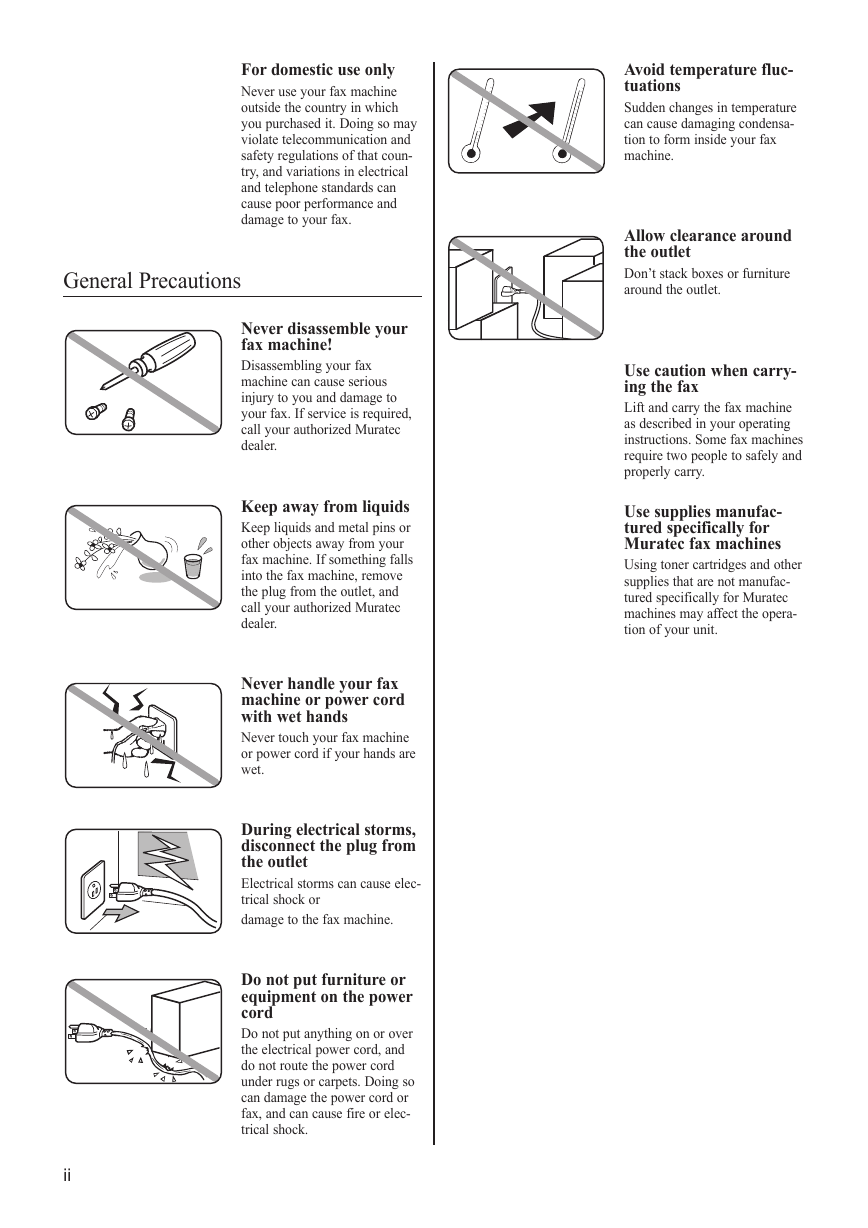

General Precautions
ii
For your printout quality
Your fax machine has a page counter inside to alarm you replac-
ing the toner cartridge. When it comes to a certain amount, the
display shows “LOW TONER !”.
However the toner spent varies depending on the using condi-
tions. In some conditions, the toner may run out before your
machine alarms you for replacing it.
So in order to have always a good printout quality, check the
printout quality by yourself. When the received faxes or copies
are too light, the toner may be almost gone.
There is a case that you may extend the toner service life by
shaking the toner cartridge several times. In such case, make
also sure that you have a new toner cartridge on hand for the
toner finally runs out.

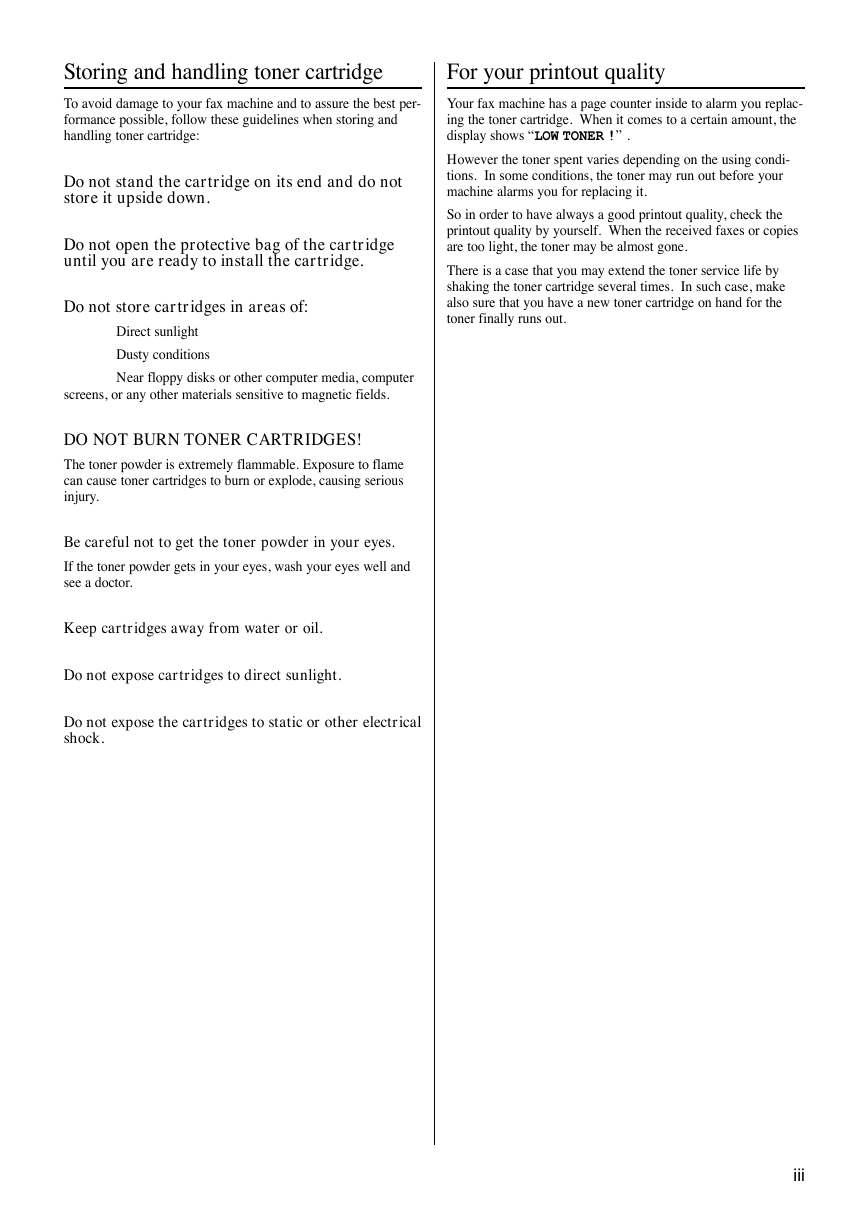

Storing and handling toner cartridge
To avoid damage to your fax machine and to assure the best per-
formance possible, follow these guidelines when storing and
handling toner cartridge:
Do not stand the cartridge on its end and do not
store it upside down.
Do not open the protective bag of the cartridge
until you are ready to install the cartridge.
Do not store cartridges in areas of:
Direct sunlight
Dusty conditions
Near floppy disks or other computer media, computer
screens, or any other materials sensitive to magnetic fields.
DO NOT BURN TONER CARTRIDGES!
The toner powder is extremely flammable. Exposure to flame
can cause toner cartridges to burn or explode, causing serious
injury.
Be careful not to get the toner powder in your eyes.
If the toner powder gets in your eyes, wash your eyes well and
see a doctor.
Keep cartridges away from water or oil.
Do not expose cartridges to direct sunlight.
Do not expose the cartridges to static or other electrical
shock.
iii
Fax reception from a different phone . . . . . . . . . .4.1
Inserting a document . . . . . . . . . . . . . . . . . . . . . .4.1
Sending a fax . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.1
Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.2
Reducing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.2
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.2
Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.2
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.2
Printing later . . . . . . . . . . . . . . . . . . . . . . . . . . .4.2
Printing from memory . . . . . . . . . . . . . . . . . . . .4.2
Sending from memory . . . . . . . . . . . . . . . . . . . .4.2
Clearing memory . . . . . . . . . . . . . . . . . . . . . . . .4.2
Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.2
Setting up a group . . . . . . . . . . . . . . . . . . . . . . .4.2
Sending to a group . . . . . . . . . . . . . . . . . . . . . .4.3
Correcting groups . . . . . . . . . . . . . . . . . . . . . . .4.3
Deleting a group . . . . . . . . . . . . . . . . . . . . . . . .4.3
Group overview . . . . . . . . . . . . . . . . . . . . . . . . .4.3
Broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.3
Broadcast list . . . . . . . . . . . . . . . . . . . . . . . . . . .4.3
Sending later . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.3
Sending with code . . . . . . . . . . . . . . . . . . . . . . . .4.4
Receive polling . . . . . . . . . . . . . . . . . . . . . . . . . .4.4
Quick polling
. . . . . . . . . . . . . . . . . . . . . . . . . .4.4
Receive polling with code . . . . . . . . . . . . . . . . .4.4
Delayed polling . . . . . . . . . . . . . . . . . . . . . . . . .4.4
Transmit polling . . . . . . . . . . . . . . . . . . . . . . . . . .4.4
Transmission speed . . . . . . . . . . . . . . . . . . . . . . .4.4
Reception speed . . . . . . . . . . . . . . . . . . . . . . . . . .4.4
Transmission report . . . . . . . . . . . . . . . . . . . . . . .4.5
Reception report . . . . . . . . . . . . . . . . . . . . . . . . . .4.5
Copier / Printer / Scanner
Making copies
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.1
Single copies . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.1
Multiple copies and enlarging/reducing . . . . . . . .5.1
Using as a Printer . . . . . . . . . . . . . . . . . . . . . . . . . . .5.1
Installing the printer and scanner driver . . . . . . . .5.1
Installing the USB driver . . . . . . . . . . . . . . . . . . .5.2
Printing a document . . . . . . . . . . . . . . . . . . . . . . .5.3
Setting up as the default printer . . . . . . . . . . . . .5.3
Setting up the printer option . . . . . . . . . . . . . . .5.3
Printing over the Network . . . . . . . . . . . . . . . . .5.3
Changing the Printer Port . . . . . . . . . . . . . . . . .5.4
Using as a Scanner . . . . . . . . . . . . . . . . . . . . . . . . . .5.5
Scanning a document . . . . . . . . . . . . . . . . . . . . . .5.5
Troubleshooting
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6.1
Problems faxing or printing . . . . . . . . . . . . . . . . .6.1
Problems with the connection . . . . . . . . . . . . . . . .6.2
Error codes when sending faxes . . . . . . . . . . . . . .6.2
Error codes when receiving faxes . . . . . . . . . . . . .6.2
Other error codes . . . . . . . . . . . . . . . . . . . . . . . . .6.2
Appendix and Index
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7.1
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7.1
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7.2
Table of Contents
Before using your Muratec fax machine . . . . . . . . . . . .i
Where to set up your fax machine . . . . . . . . . . . . . .i
Power requirements . . . . . . . . . . . . . . . . . . . . . . . . .i
General Precautions . . . . . . . . . . . . . . . . . . . . . . . .ii
Storing and handling toner cartridge . . . . . . . . . . .iii
For your printout quality . . . . . . . . . . . . . . . . . . . .iii
Installation
Packaging contents . . . . . . . . . . . . . . . . . . . . . . . . . .1.1
Parts of your machine . . . . . . . . . . . . . . . . . . . . . . . .1.2
Control Panel Overview . . . . . . . . . . . . . . . . . . . . . .1.3
Inserting Accessories
. . . . . . . . . . . . . . . . . . . . . . . .1.4
Loading paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5
Inserting and changing the toner cartridge . . . . . . . . .1.5
Connecting the machine . . . . . . . . . . . . . . . . . . . . . .1.6
To the mains . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.6
To the telephone line . . . . . . . . . . . . . . . . . . . . . .1.6
Additional telephones . . . . . . . . . . . . . . . . . . . . . .1.6
ISDN connection . . . . . . . . . . . . . . . . . . . . . . . . .1.6
Private branch exchange (PABX) . . . . . . . . . . . . .1.6
Computer connection . . . . . . . . . . . . . . . . . . . . . .1.6
Basic Settings
Display language . . . . . . . . . . . . . . . . . . . . . . . . .2.1
Your number . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.1
Your name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.1
Time and date . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.1
Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.1
Ringing tone . . . . . . . . . . . . . . . . . . . . . . . . . . .2.1
Loudspeaker . . . . . . . . . . . . . . . . . . . . . . . . . . .2.1
Key tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.2
Energy save mode . . . . . . . . . . . . . . . . . . . . . . . .2.2
Toner save mode . . . . . . . . . . . . . . . . . . . . . . . . .2.2
List of settings . . . . . . . . . . . . . . . . . . . . . . . . . . .2.2
Help list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.2
Telephone
Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.1
Re-dialling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.1
Speed dialling
. . . . . . . . . . . . . . . . . . . . . . . . . . .3.1
Storing numbers . . . . . . . . . . . . . . . . . . . . . . . .3.1
Using speed dial . . . . . . . . . . . . . . . . . . . . . . . .3.1
Changing speed dial entries . . . . . . . . . . . . . . . .3.1
Speed dial list . . . . . . . . . . . . . . . . . . . . . . . . . .3.1
Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.1
Storing numbers . . . . . . . . . . . . . . . . . . . . . . . .3.1
Using the phonebook . . . . . . . . . . . . . . . . . . . . .3.1
Correcting entries . . . . . . . . . . . . . . . . . . . . . . .3.1
Deleting entries . . . . . . . . . . . . . . . . . . . . . . . . .3.1
Printing the phonebook . . . . . . . . . . . . . . . . . . .3.1
Calling line identification . . . . . . . . . . . . . . . . . . .3.2
Printing a caller list . . . . . . . . . . . . . . . . . . . . . .3.2
Printing a journal . . . . . . . . . . . . . . . . . . . . . . . . .3.2
The journal can be printed out automatically. . .3.2
Fax switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.1
TEL mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.1
FAX mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.1
AUT mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.1
TAM mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.1
Fax
iv
Installation
Packaging contents
1
2
3
4
5
6
7
8
9
Included in your machine’s packaging:
1 Main unit with 125-sheet paper cassette installed
2 Toner cartridge
3 Telephone handset
4 Document feeder tray
5 Document exit tray
6 Telephone line cord
7 Printer cable
8 User manual
9 CD-ROM for connecting to a computer
Note: Be sure to save the box (or boxes) and packing materials for reshipment.
n
o
i
t
a
l
l
a
t
s
n
I
1.1
Parts of your machine
Note: Any terms used here that are unclear to you right now will be explained in detail in the coming pages.
10
11
9
8
7
6
1
2
3
4
5
12
14
15
16
13
17
1 Control Panel : The keys you use to operate your machine. (See pages 1.3 for more details.)
2 Document exit tray : Where your original document comes out after being scanned.
3 Paper exit tray : Where the printout comes out.
4 Paper cassette : Set paper here. It can hold up to 125 sheets.
5 Paper cassette cover
6 Handset : Used for voice communication.
7 Top cover grip : Use these trips on both sides, when opening the top cover.
8 Top cover : Open this cover to remove original document jam.
9 Document feeder : Where you insert the original document for scanning. It can hold up to 20 sheets.
10 Document feeder tray : Holds original documents placed for scanning into the machine.
11 Document guide : Adjust these to fit the width of the original document, so it will feed properly into the machine.
12 Toner cartridge
13 Paper eject lever : Pull this to release jammed paper.
14 line jack : Where you plug in the telephone line cord. The other end of the cord, plug into a wall telephone jack.
15 USB port : Where you plug in the USB cable.
16 Printer cable connector port : Where you plug in the printer cable.
17 AC power code : Where you plug in the out let.
1.2
Control Panel Overview
n
o
i
t
a
l
l
a
t
s
n
I
1
3
4
5 6
7
3
2
RESOLUTION
MENU
TEL
FAX
AUTO
MEMORY
15
14
13
12
11
10
9
8
The display shows 2 lines, 20 characters per line. If the LCD is blank, the machine is off.
/
: This key selects options, set volume, or move display cursor.
: This lamp indicates that you are making a telephone call/ dialing on-hook/ printing from the PC.
: If this symbol flashes please read the display.
1 Liquid crystal display (LCD) : Shows the machine’s status and lets you see what you’re programming into the machine.
2 RESOLUTION : This key improves the clarity of text and drawing when sending and copying.
3
4 MENU : Press this key to select functions.
5
6
7 TEL/FAX/AUTO : Use this key to set receive mode (TEL/FAX/AUT/TAM).For details about setting the receive mode, see page 4.1.
8 STOP : Press this key to interrupt the current operation, ejects a document, and cancels the input.
9 START/COPY : Starts fax transfer or copies document.
10 SPEED DIAL keys : Press these keys to dial stored numbers.
11 MEMORY : Pressing this key for memory functions.
12
13
14
15 Numeric keypad : Just like the numeric keys on a regular tone-dialing phone. Use these to dial phone and fax numbers and to
: Look up names and telephone numbers.
: By on-hook dialing, press this key to signal a voice request after sending or receiving documents.
: Press these keys to redial the last five numbers dialed, or insert a pause between two digits.
enter numbers when you are setting up the machine.
1.3
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
