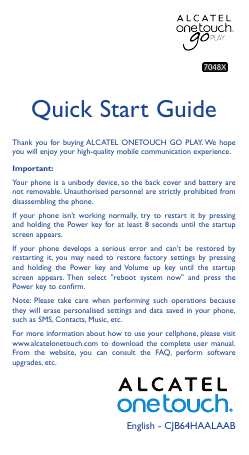

7048X Quick Start Guide Thank you for buying ALCATEL ONETOUCH GO PLAY. We hope you will enjoy your high-quality mobile communication experience. Important: Your phone is a unibody device, so the back cover and battery are not removable. Unauthorised personnel are strictly prohibited from disassembling the phone. If your phone isn’t working normally, try to restart it by pressing and holding the Power key for at least 8 seconds until the startup screen appears. If your phone develops a serious error and can’t be restored by restarting it, you may need to restore factory settings by pressing and holding the Power key and Volume up key until the startup screen appears. Then select "reboot system now" and press the Power key to confirm. Note: Please take care when performing such operations because they will erase personalised settings and data saved in your phone, such as SMS, Contacts, Music, etc. For more information about how to use your cellphone, please visit www.alcatelonetouch.com to download the complete user manual. From the website, you can consult the FAQ, perform software upgrades, etc. English - CJB64HAALAAB

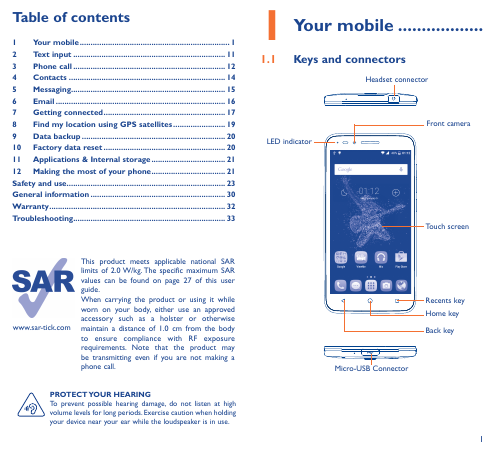

Table of contents Your mobile �� 1 1 Text input �� 11 2 Phone call �� 12 3 Contacts �� 14 4 5 Messaging�� 15 Email �� 16 6 Getting connected �� 17 7 Find my location using GPS satellites �� 19 8 9 Data backup �� 20 10 Factory data reset �� 20 Applications & Internal storage �� 21 11 12 Making the most of your phone �� 21 Safety and use �� 23 General information �� 30 Warranty �� 32 Troubleshooting�� 33 This product meets applicable national SAR limits of 2.0 W/kg. The specific maximum SAR values can be found on page 27 of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 1.0 cm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. www.sar-tick.com PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. 1 Your mobile �� 1�1 Keys and connectors Headset connector LED indicator Front camera Touch screen Recents key Home key Back key 1 Micro-USB Connector

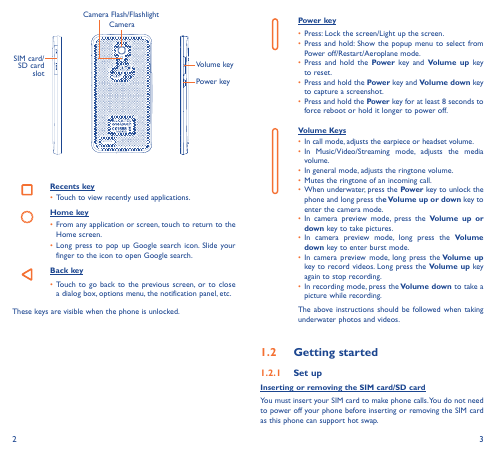

Camera Flash/Flashlight Camera SIM card/ SD card slot Volume key Power key Recents key • Touch to view recently used applications. Home key • From any application or screen, touch to return to the Home screen. • Long press to pop up Google search icon. Slide your finger to the icon to open Google search. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. These keys are visible when the phone is unlocked. 2 Power key • Press: Lock the screen/Light up the screen. • Press and hold: Show the popup menu to select from Power off/Restart/Aeroplane mode. • Press and hold the Power key and Volume up key to reset. • Press and hold the Power key and Volume down key to capture a screenshot. • Press and hold the Power key for at least 8 seconds to force reboot or hold it longer to power off. Volume Keys • In call mode, adjusts the earpiece or headset volume. • In Music/Video/Streaming mode, adjusts the media volume. • In general mode, adjusts the ringtone volume. • Mutes the ringtone of an incoming call. • When underwater, press the Power key to unlock the phone and long press the Volume up or down key to enter the camera mode. • In camera preview mode, press the Volume up or down key to take pictures. • In camera preview mode, long press the Volume down key to enter burst mode. • In camera preview mode, long press the Volume up key to record videos. Long press the Volume up key again to stop recording. • In recording mode, press the Volume down to take a picture while recording. The above instructions should be followed when taking underwater photos and videos. 1�2 Getting started 1�2�1 Set up Inserting or removing the SIM card/SD card You must insert your SIM card to make phone calls. You do not need to power off your phone before inserting or removing the SIM card as this phone can support hot swap. 3

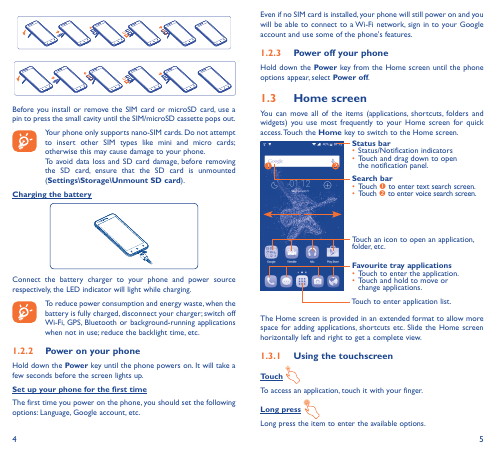

Even if no SIM card is installed, your phone will still power on and you will be able to connect to a Wi-Fi network, sign in to your Google account and use some of the phone's features. 1�2�3 Power off your phone Hold down the Power key from the Home screen until the phone options appear, select Power off. 1�3 Home screen You can move all of the items (applications, shortcuts, folders and widgets) you use most frequently to your Home screen for quick access. Touch the Home key to switch to the Home screen. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Search bar • Touch  to enter text search screen. • Touch  to enter voice search screen. Touch an icon to open an application, folder, etc. Favourite tray applications • Touch to enter the application. • Touch and hold to move or change applications. Touch to enter application list. The Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view. 1�3�1 Using the touchscreen Touch To access an application, touch it with your finger. Long press Long press the item to enter the available options. Before you install or remove the SIM card or microSD card, use a pin to press the small cavity until the SIM/microSD cassette pops out. Your phone only supports nano-SIM cards. Do not attempt to insert other SIM types like mini and micro cards; otherwise this may cause damage to your phone. To avoid data loss and SD card damage, before removing the SD card, ensure that the SD card is unmounted (Settings\Storage\Unmount SD card). Charging the battery Connect the battery charger to your phone and power source respectively, the LED indicator will light while charging. To reduce power consumption and energy waste, when the battery is fully charged, disconnect your charger; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: Language, Google account, etc. 4 5

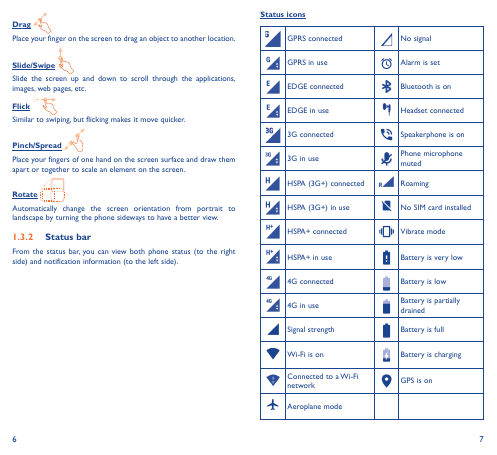

Drag Place your finger on the screen to drag an object to another location. Slide/Swipe Slide the screen up and down to scroll through the applications, images, web pages, etc. Flick Similar to swiping, but flicking makes it move quicker. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen. Rotate Automatically change the screen orientation from portrait to landscape by turning the phone sideways to have a better view. 1�3�2 Status bar From the status bar, you can view both phone status (to the right side) and notification information (to the left side). Status icons GPRS connected No signal GPRS in use Alarm is set EDGE connected Bluetooth is on EDGE in use Headset connected 3G connected Speakerphone is on 3G in use Phone microphone muted HSPA (3G+) connected Roaming HSPA (3G+) in use No SIM card installed HSPA+ connected Vibrate mode HSPA+ in use Battery is very low 4G connected Battery is low 4G in use Battery is partially drained Signal strength Battery is full Wi-Fi is on Battery is charging Connected to a Wi-Fi network Aeroplane mode GPS is on 6 7

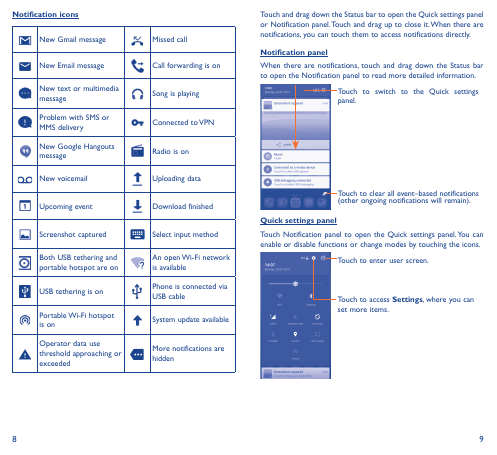

Notification icons New Gmail message Missed call New Email message Call forwarding is on New text or multimedia message Problem with SMS or MMS delivery New Google Hangouts message Song is playing Connected to VPN Radio is on New voicemail Uploading data Upcoming event Download finished Screenshot captured Select input method Both USB tethering and portable hotspot are on An open Wi-Fi network is available USB tethering is on Portable Wi-Fi hotspot is on Operator data use threshold approaching or exceeded Phone is connected via USB cable System update available More notifications are hidden Touch and drag down the Status bar to open the Quick settings panel or Notification panel. Touch and drag up to close it. When there are notifications, you can touch them to access notifications directly. Notification panel When there are notifications, touch and drag down the Status bar to open the Notification panel to read more detailed information. Touch to switch to the Quick settings panel. Touch to clear all event–based notifications (other ongoing notifications will remain). Quick settings panel Touch Notification panel to open the Quick settings panel. You can enable or disable functions or change modes by touching the icons. Touch to enter user screen. Touch to access Settings, where you can set more items. 8 9

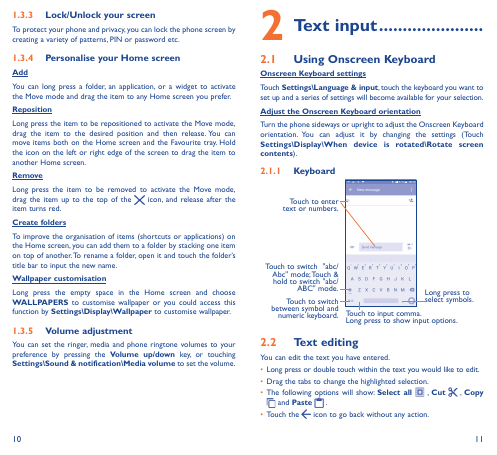

1�3�3 Lock/Unlock your screen To protect your phone and privacy, you can lock the phone screen by creating a variety of patterns, PIN or password etc. 1�3�4 Personalise your Home screen Add You can long press a folder, an application, or a widget to activate the Move mode and drag the item to any Home screen you prefer. Reposition Long press the item to be repositioned to activate the Move mode, drag the item to the desired position and then release. You can move items both on the Home screen and the Favourite tray. Hold the icon on the left or right edge of the screen to drag the item to another Home screen. Remove Long press the item to be removed to activate the Move mode, drag the item up to the top of the icon, and release after the item turns red. Create folders To improve the organisation of items (shortcuts or applications) on the Home screen, you can add them to a folder by stacking one item on top of another. To rename a folder, open it and touch the folder’s title bar to input the new name. Wallpaper customisation Long press the empty space in the Home screen and choose WALLPAPERS to customise wallpaper or you could access this function by Settings\Display\Wallpaper to customise wallpaper. 1�3�5 Volume adjustment You can set the ringer, media and phone ringtone volumes to your preference by pressing the Volume up/down key, or touching Settings\Sound & notification\Media volume to set the volume. 2 Text input �� 2�1 Using Onscreen Keyboard Onscreen Keyboard settings Touch Settings\Language & input, touch the keyboard you want to set up and a series of settings will become available for your selection. Adjust the Onscreen Keyboard orientation Turn the phone sideways or upright to adjust the Onscreen Keyboard orientation. You can adjust it by changing the settings (Touch Settings\Display\When device is rotated\Rotate screen contents). 2�1�1 Keyboard Touch to enter text or numbers. Touch to switch "abc/ Abc" mode; Touch & hold to switch "abc/ ABC" mode. Touch to switch between symbol and numeric keyboard. Long press to select symbols. Touch to input comma. Long press to show input options. 2�2 Text editing You can edit the text you have entered. • Long press or double touch within the text you would like to edit. • Drag the tabs to change the highlighted selection. • The following options will show: Select all , Cut , Copy 10 11 and Paste . • Touch the icon to go back without any action.

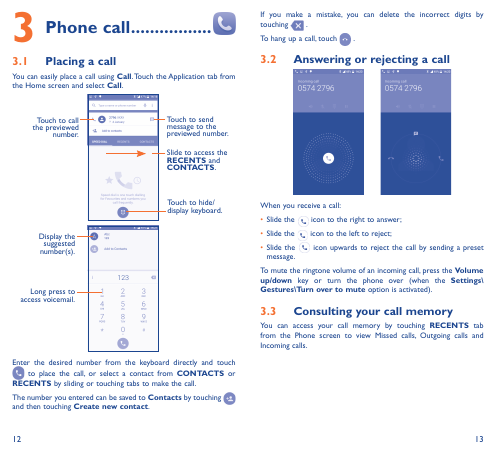

3 Phone call �� 3�1 Placing a call You can easily place a call using Call. Touch the Application tab from the Home screen and select Call. Touch to send message to the previewed number. Slide to access the RECENTS and CONTACTS. Touch to hide/ display keyboard. Touch to call the previewed number. Display the suggested number(s). Long press to access voicemail. Enter the desired number from the keyboard directly and touch to place the call, or select a contact from CONTACTS or RECENTS by sliding or touching tabs to make the call. The number you entered can be saved to Contacts by touching and then touching Create new contact. If you make a mistake, you can delete the incorrect digits by touching To hang up a call, touch . . 3�2 Answering or rejecting a call When you receive a call: • Slide the • Slide the • Slide the message. icon to the right to answer; icon to the left to reject; icon upwards to reject the call by sending a preset To mute the ringtone volume of an incoming call, press the Volume up/down key or turn the phone over (when the Settings\ Gestures\Turn over to mute option is activated). 3�3 Consulting your call memory You can access your call memory by touching RECENTS tab from the Phone screen to view Missed calls, Outgoing calls and Incoming calls. 12 13
