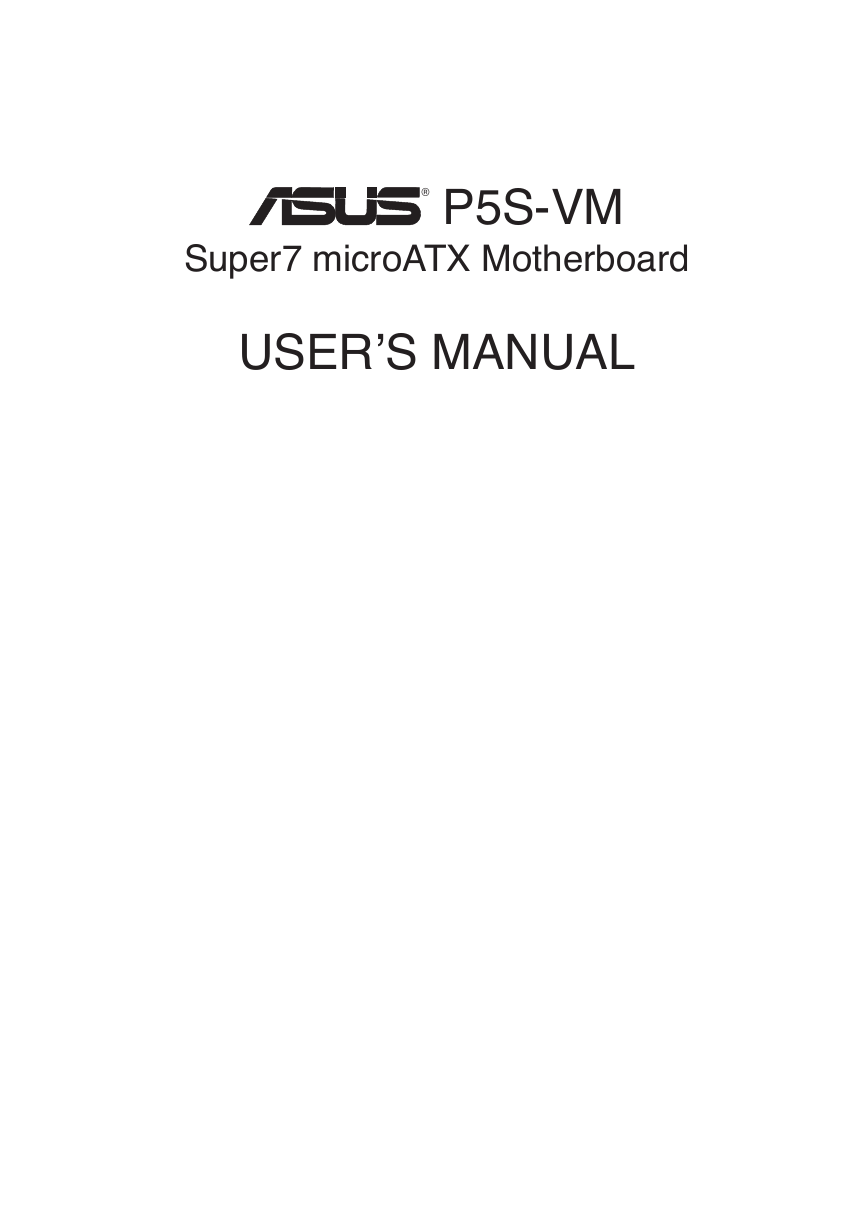

® P5S-VM Super7 microATX Motherboard USER’S MANUAL

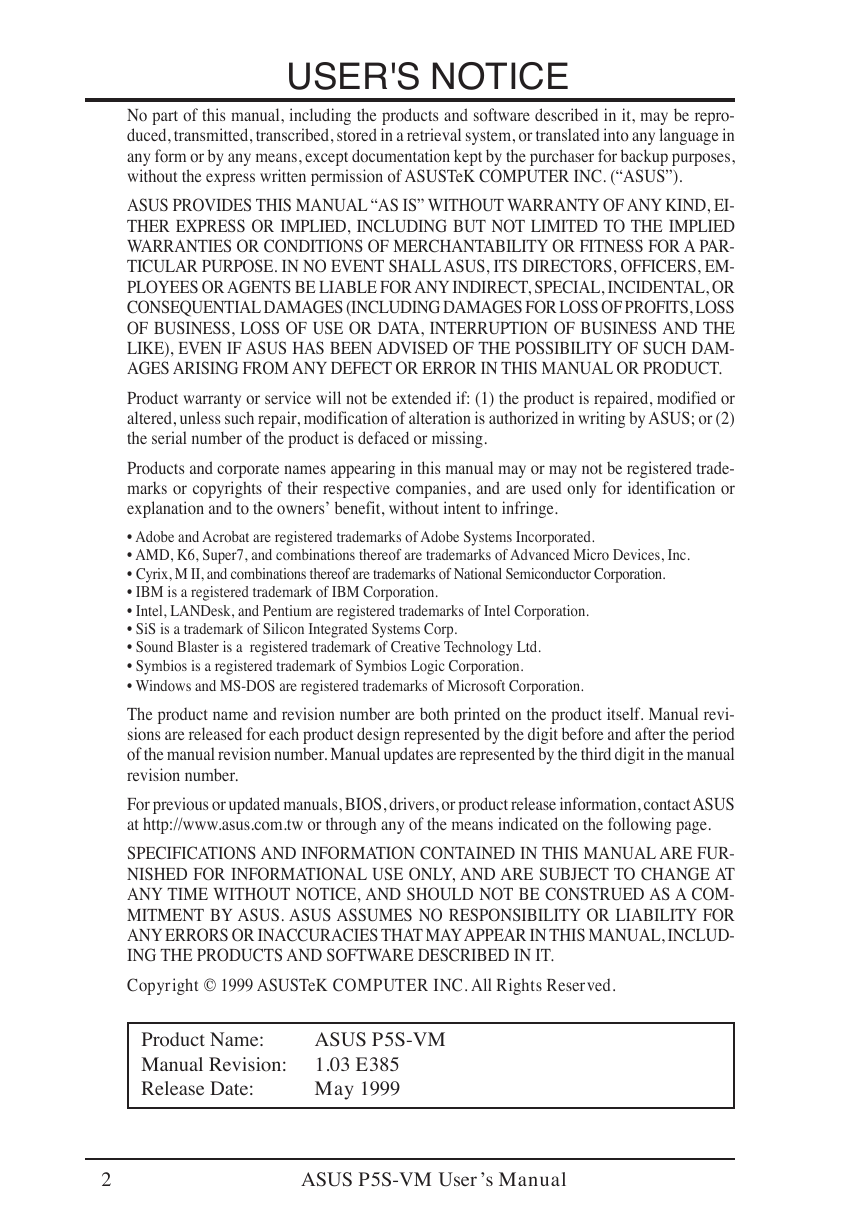

USER'S NOTICE No part of this manual, including the products and software described in it, may be repro- duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EI- THER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PAR- TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EM- PLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAM- AGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trade- marks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. • Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. • AMD, K6, Super7, and combinations thereof are trademarks of Advanced Micro Devices, Inc. • Cyrix, M II, and combinations thereof are trademarks of National Semiconductor Corporation. • IBM is a registered trademark of IBM Corporation. • Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation. • SiS is a trademark of Silicon Integrated Systems Corp. • Sound Blaster is a registered trademark of Creative Technology Ltd. • Symbios is a registered trademark of Symbios Logic Corporation. • Windows and MS-DOS are registered trademarks of Microsoft Corporation. The product name and revision number are both printed on the product itself. Manual revi- sions are released for each product design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number. For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at http://www.asus.com.tw or through any of the means indicated on the following page. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR- NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM- MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUD- ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 1999 ASUSTeK COMPUTER INC. All Rights Reserved. Product Name: Manual Revision: Release Date: ASUS P5S-VM 1.03 E385 May 1999 2 ASUS P5S-VM User’s Manual

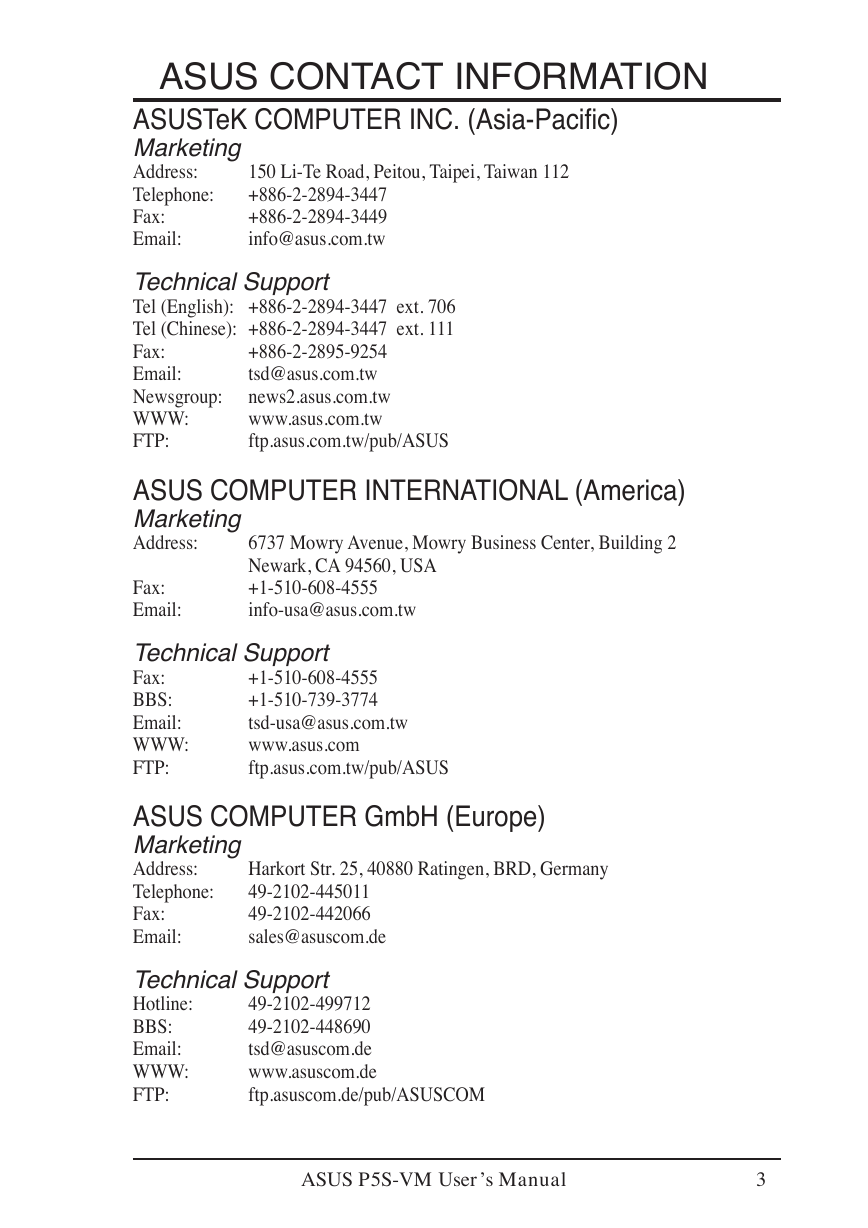

ASUS CONTACT INFORMATION ASUSTeK COMPUTER INC. (Asia-Pacific) Marketing Address: Telephone: Fax: Email: 150 Li-Te Road, Peitou, Taipei, Taiwan 112 +886-2-2894-3447 +886-2-2894-3449 info@asus.com.tw Technical Support Tel (English): +886-2-2894-3447 ext. 706 Tel (Chinese): +886-2-2894-3447 ext. 111 Fax: Email: Newsgroup: WWW: FTP: +886-2-2895-9254 tsd@asus.com.tw news2.asus.com.tw www.asus.com.tw ftp.asus.com.tw/pub/ASUS ASUS COMPUTER INTERNATIONAL (America) Marketing Address: 6737 Mowry Avenue, Mowry Business Center, Building 2 Newark, CA 94560, USA +1-510-608-4555 info-usa@asus.com.tw Fax: Email: Technical Support Fax: BBS: Email: WWW: FTP: +1-510-608-4555 +1-510-739-3774 tsd-usa@asus.com.tw www.asus.com ftp.asus.com.tw/pub/ASUS ASUS COMPUTER GmbH (Europe) Marketing Address: Telephone: Fax: Email: Harkort Str. 25, 40880 Ratingen, BRD, Germany 49-2102-445011 49-2102-442066 sales@asuscom.de Technical Support Hotline: BBS: Email: WWW: FTP: 49-2102-499712 49-2102-448690 tsd@asuscom.de www.asuscom.de ftp.asuscom.de/pub/ASUSCOM ASUS P5S-VM User’s Manual 3

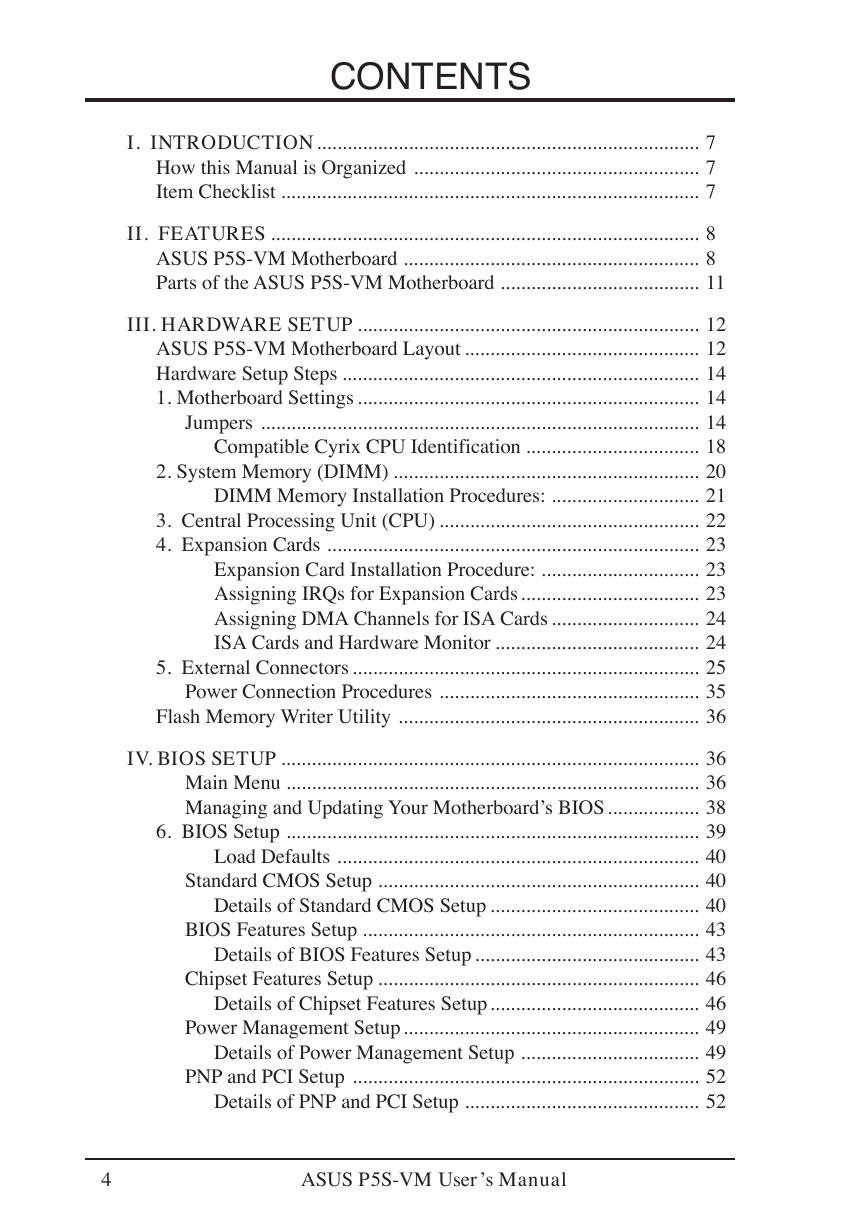

CONTENTS I. INTRODUCTION ........................................................................... 7 How this Manual is Organized ........................................................ 7 Item Checklist .................................................................................. 7 II. FEATURES .................................................................................... 8 ASUS P5S-VM Motherboard .......................................................... 8 Parts of the ASUS P5S-VM Motherboard ....................................... 11 III. HARDWARE SETUP ................................................................... 12 ASUS P5S-VM Motherboard Layout .............................................. 12 Hardware Setup Steps ...................................................................... 14 1. Motherboard Settings ................................................................... 14 Jumpers ...................................................................................... 14 Compatible Cyrix CPU Identification .................................. 18 2. System Memory (DIMM) ............................................................ 20 DIMM Memory Installation Procedures: ............................. 21 3. Central Processing Unit (CPU) ................................................... 22 4. Expansion Cards ......................................................................... 23 Expansion Card Installation Procedure: ............................... 23 Assigning IRQs for Expansion Cards................................... 23 Assigning DMA Channels for ISA Cards ............................. 24 ISA Cards and Hardware Monitor ........................................ 24 5. External Connectors .................................................................... 25 Power Connection Procedures ................................................... 35 Flash Memory Writer Utility ........................................................... 36 IV. BIOS SETUP .................................................................................. 36 Main Menu ................................................................................. 36 Managing and Updating Your Motherboard’s BIOS.................. 38 6. BIOS Setup ................................................................................. 39 Load Defaults ....................................................................... 40 Standard CMOS Setup ............................................................... 40 Details of Standard CMOS Setup ......................................... 40 BIOS Features Setup .................................................................. 43 Details of BIOS Features Setup ............................................ 43 Chipset Features Setup ............................................................... 46 Details of Chipset Features Setup......................................... 46 Power Management Setup .......................................................... 49 Details of Power Management Setup ................................... 49 PNP and PCI Setup .................................................................... 52 Details of PNP and PCI Setup .............................................. 52 4 ASUS P5S-VM User’s Manual

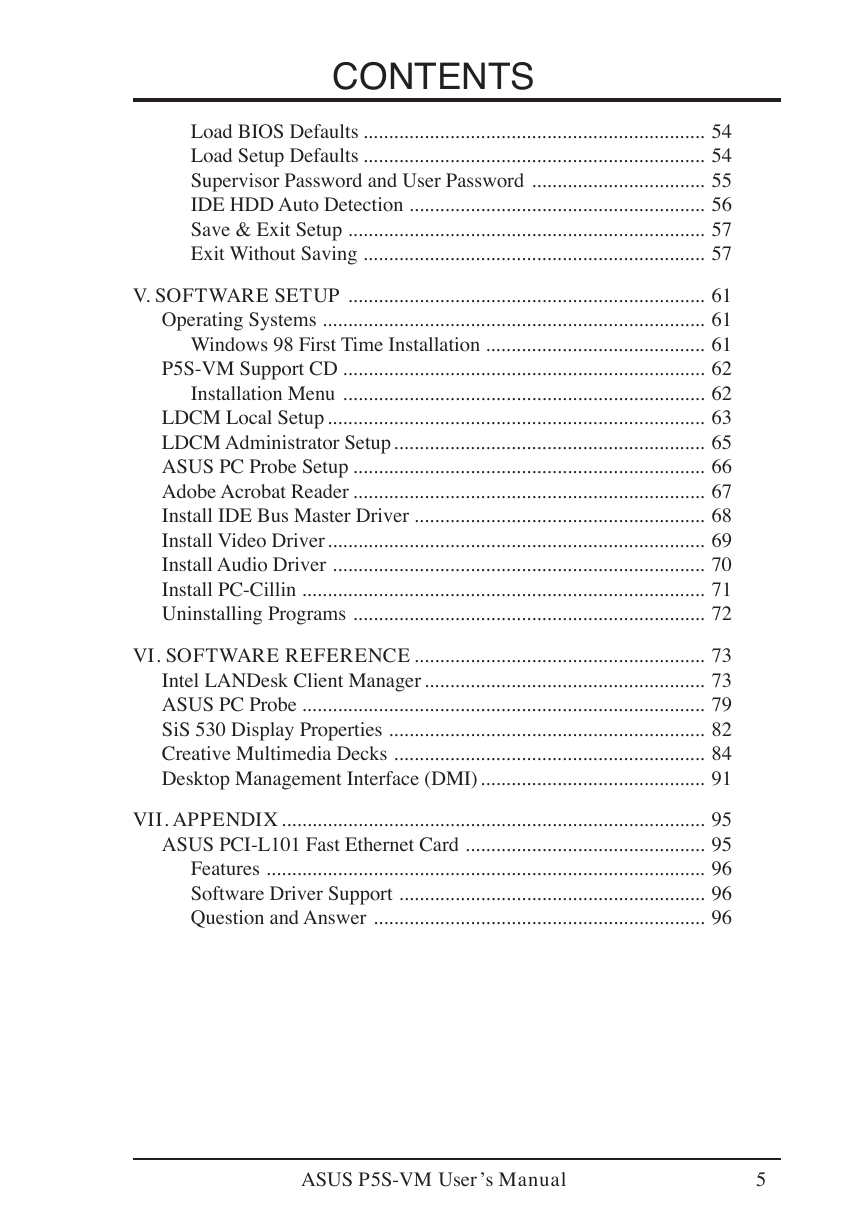

CONTENTS Load BIOS Defaults ................................................................... 54 Load Setup Defaults ................................................................... 54 Supervisor Password and User Password .................................. 55 IDE HDD Auto Detection .......................................................... 56 Save & Exit Setup ...................................................................... 57 Exit Without Saving ................................................................... 57 V. SOFTWARE SETUP ...................................................................... 61 Operating Systems ........................................................................... 61 Windows 98 First Time Installation ........................................... 61 P5S-VM Support CD ....................................................................... 62 Installation Menu ....................................................................... 62 LDCM Local Setup .......................................................................... 63 LDCM Administrator Setup............................................................. 65 ASUS PC Probe Setup ..................................................................... 66 Adobe Acrobat Reader ..................................................................... 67 Install IDE Bus Master Driver ......................................................... 68 Install Video Driver.......................................................................... 69 Install Audio Driver ......................................................................... 70 Install PC-Cillin ............................................................................... 71 Uninstalling Programs ..................................................................... 72 VI. SOFTWARE REFERENCE......................................................... 73 Intel LANDesk Client Manager ....................................................... 73 ASUS PC Probe ............................................................................... 79 SiS 530 Display Properties .............................................................. 82 Creative Multimedia Decks ............................................................. 84 Desktop Management Interface (DMI)............................................ 91 VII. APPENDIX ................................................................................... 95 ASUS PCI-L101 Fast Ethernet Card ............................................... 95 Features ...................................................................................... 96 Software Driver Support ............................................................ 96 Question and Answer ................................................................. 96 ASUS P5S-VM User’s Manual 5

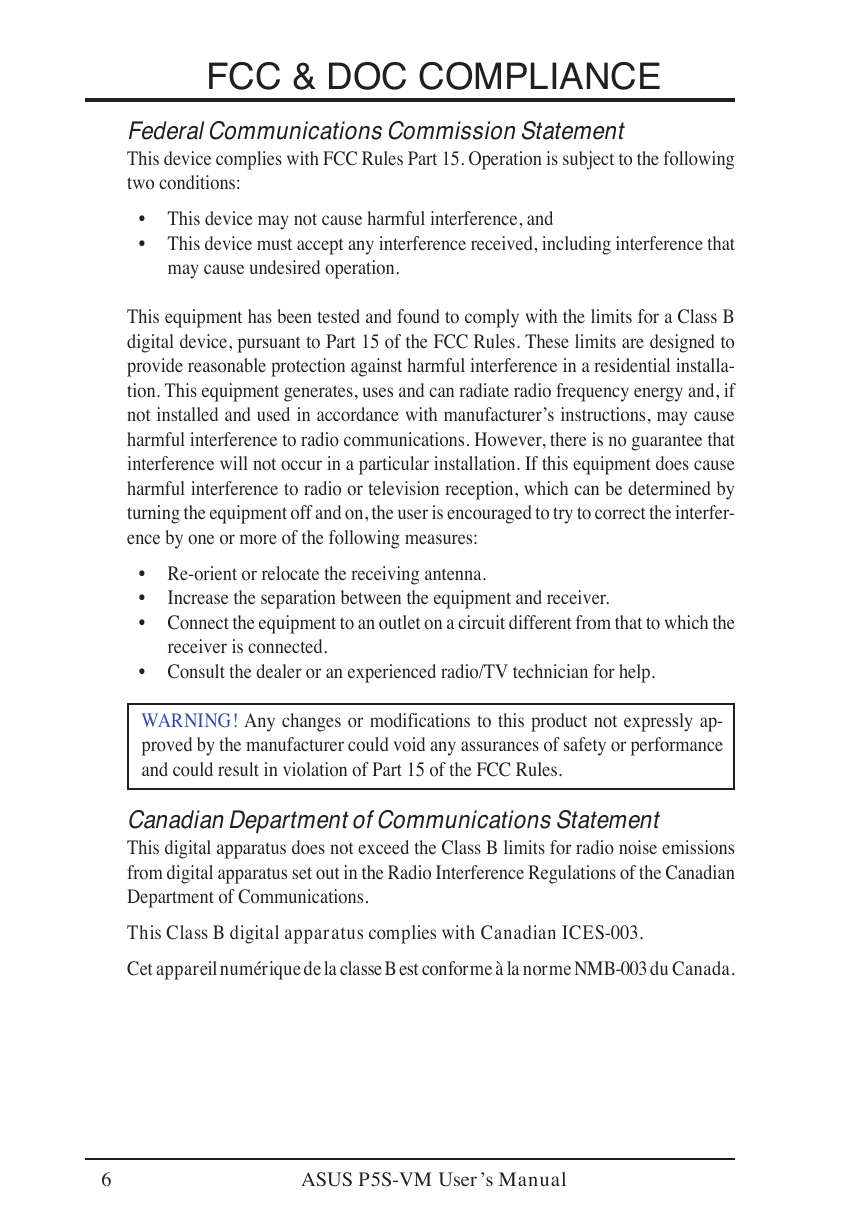

FCC & DOC COMPLIANCE Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: • Re-orient or relocate the receiving antenna. • • Connect the equipment to an outlet on a circuit different from that to which the Increase the separation between the equipment and receiver. receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING! Any changes or modifications to this product not expressly ap- proved by the manufacturer could void any assurances of safety or performance and could result in violation of Part 15 of the FCC Rules. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 6 ASUS P5S-VM User’s Manual

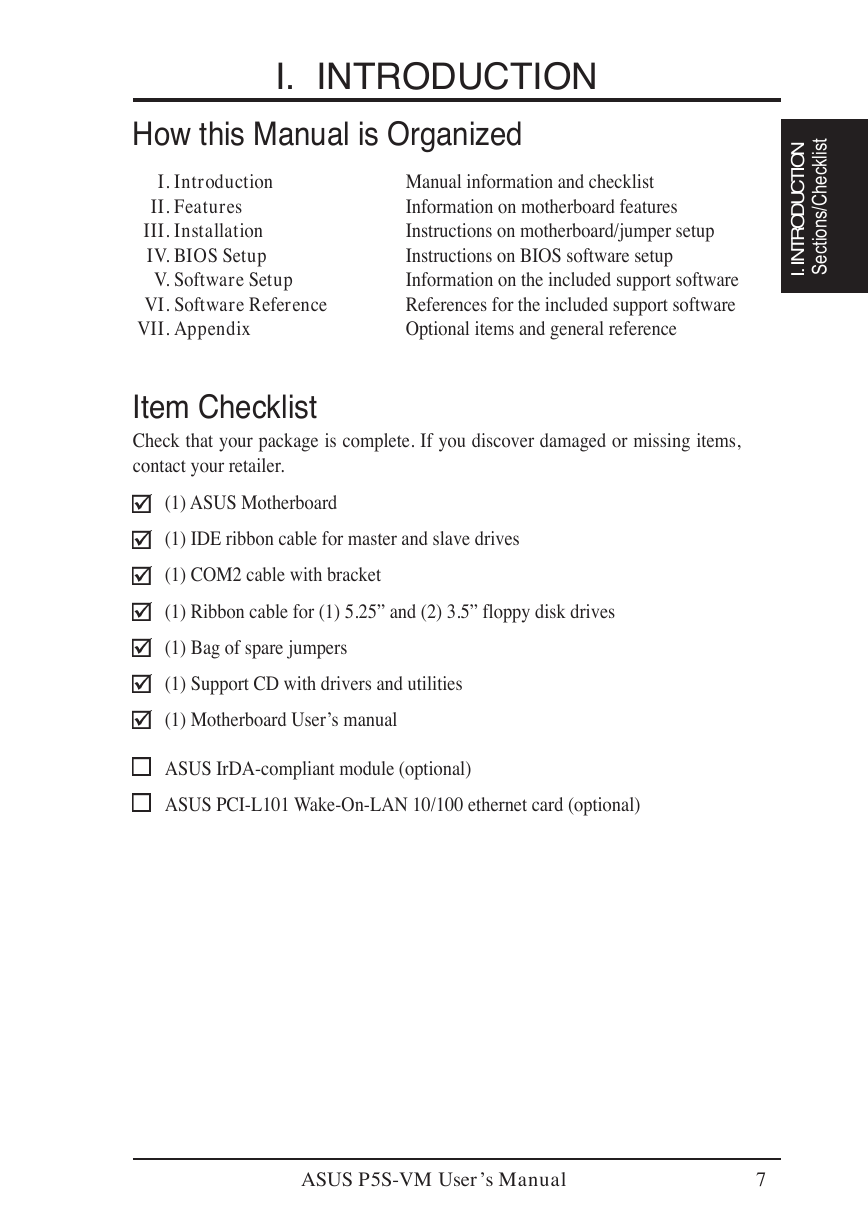

t s i l I N O T C U D O R T N I . I k c e h C / s n o i t c e S I. INTRODUCTION How this Manual is Organized I. II. III. IV. V. VI. VII. Introduction Features Installation BIOS Setup Software Setup Software Reference Appendix Manual information and checklist Information on motherboard features Instructions on motherboard/jumper setup Instructions on BIOS software setup Information on the included support software References for the included support software Optional items and general reference Item Checklist Check that your package is complete. If you discover damaged or missing items, contact your retailer. (1) ASUS Motherboard (1) IDE ribbon cable for master and slave drives (1) COM2 cable with bracket (1) Ribbon cable for (1) 5.25” and (2) 3.5” floppy disk drives (1) Bag of spare jumpers (1) Support CD with drivers and utilities (1) Motherboard User’s manual ASUS IrDA-compliant module (optional) ASUS PCI-L101 Wake-On-LAN 10/100 ethernet card (optional) ASUS P5S-VM User’s Manual 7

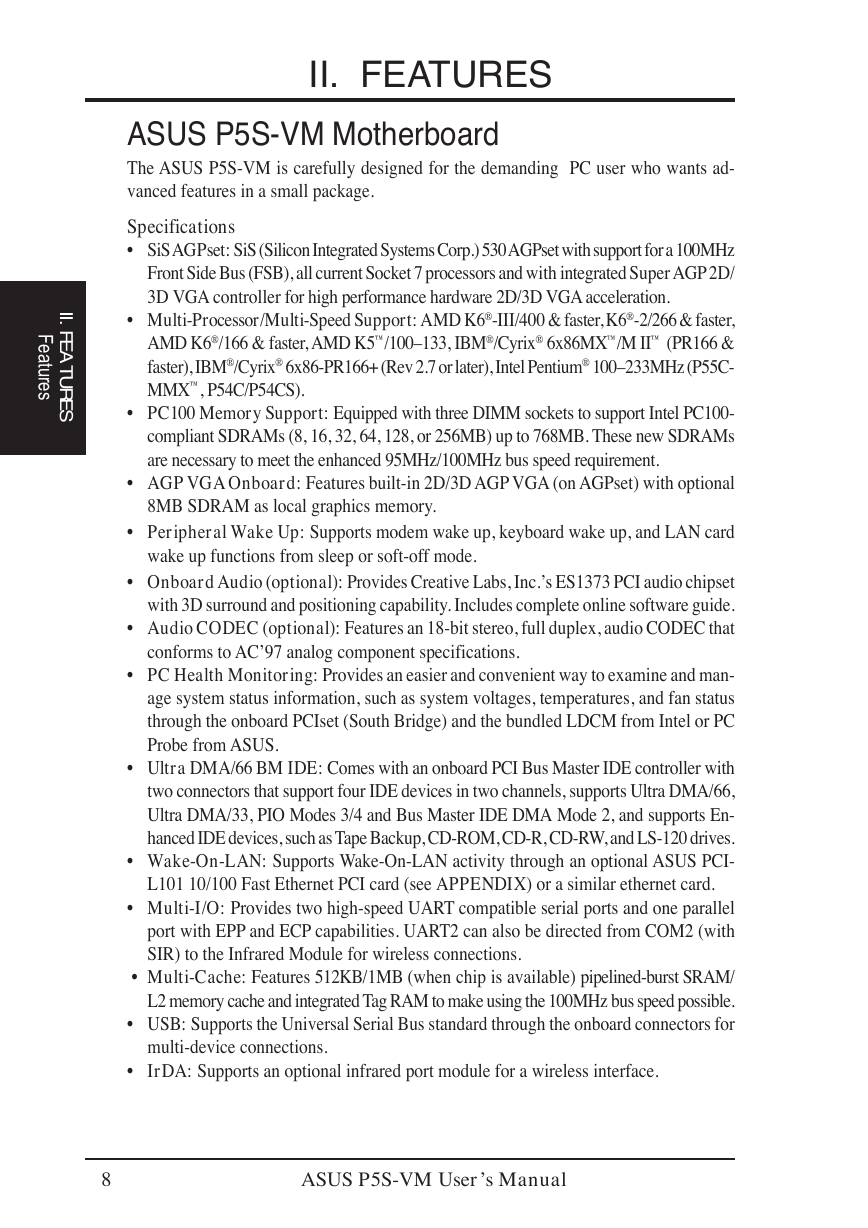

F e a I I . F E A T U R E S t u r e s II. FEATURES ASUS P5S-VM Motherboard The ASUS P5S-VM is carefully designed for the demanding PC user who wants ad- vanced features in a small package. Specifications • SiS AGPset: SiS (Silicon Integrated Systems Corp.) 530 AGPset with support for a 100MHz Front Side Bus (FSB), all current Socket 7 processors and with integrated Super AGP 2D/ 3D VGA controller for high performance hardware 2D/3D VGA acceleration. • Multi-Processor/Multi-Speed Support: AMD K6®-III/400 & faster, K6®-2/266 & faster, AMD K6®/166 & faster, AMD K5™/100–133, IBM®/Cyrix® 6x86MX™/M II™ (PR166 & faster), IBM®/Cyrix® 6x86-PR166+ (Rev 2.7 or later), Intel Pentium® 100–233MHz (P55C- MMX™, P54C/P54CS). • PC100 Memory Support: Equipped with three DIMM sockets to support Intel PC100- compliant SDRAMs (8, 16, 32, 64, 128, or 256MB) up to 768MB. These new SDRAMs are necessary to meet the enhanced 95MHz/100MHz bus speed requirement. • AGP VGA Onboard: Features built-in 2D/3D AGP VGA (on AGPset) with optional 8MB SDRAM as local graphics memory. • Peripheral Wake Up: Supports modem wake up, keyboard wake up, and LAN card wake up functions from sleep or soft-off mode. • Onboard Audio (optional): Provides Creative Labs, Inc.’s ES1373 PCI audio chipset with 3D surround and positioning capability. Includes complete online software guide. • Audio CODEC (optional): Features an 18-bit stereo, full duplex, audio CODEC that conforms to AC’97 analog component specifications. • PC Health Monitoring: Provides an easier and convenient way to examine and man- age system status information, such as system voltages, temperatures, and fan status through the onboard PCIset (South Bridge) and the bundled LDCM from Intel or PC Probe from ASUS. • Ultra DMA/66 BM IDE: Comes with an onboard PCI Bus Master IDE controller with two connectors that support four IDE devices in two channels, supports Ultra DMA/66, Ultra DMA/33, PIO Modes 3/4 and Bus Master IDE DMA Mode 2, and supports En- hanced IDE devices, such as Tape Backup, CD-ROM, CD-R, CD-RW, and LS-120 drives. • Wake-On-LAN: Supports Wake-On-LAN activity through an optional ASUS PCI- L101 10/100 Fast Ethernet PCI card (see APPENDIX) or a similar ethernet card. • Multi-I/O: Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 (with SIR) to the Infrared Module for wireless connections. • Multi-Cache: Features 512KB/1MB (when chip is available) pipelined-burst SRAM/ L2 memory cache and integrated Tag RAM to make using the 100MHz bus speed possible. • USB: Supports the Universal Serial Bus standard through the onboard connectors for multi-device connections. IrDA: Supports an optional infrared port module for a wireless interface. • 8 ASUS P5S-VM User’s Manual
