IEEE TRANSACTIONS ON COMPUTER-AIDED DESIGN. VOL.
IO, NO. I I . NOVEMBER 1991
1441

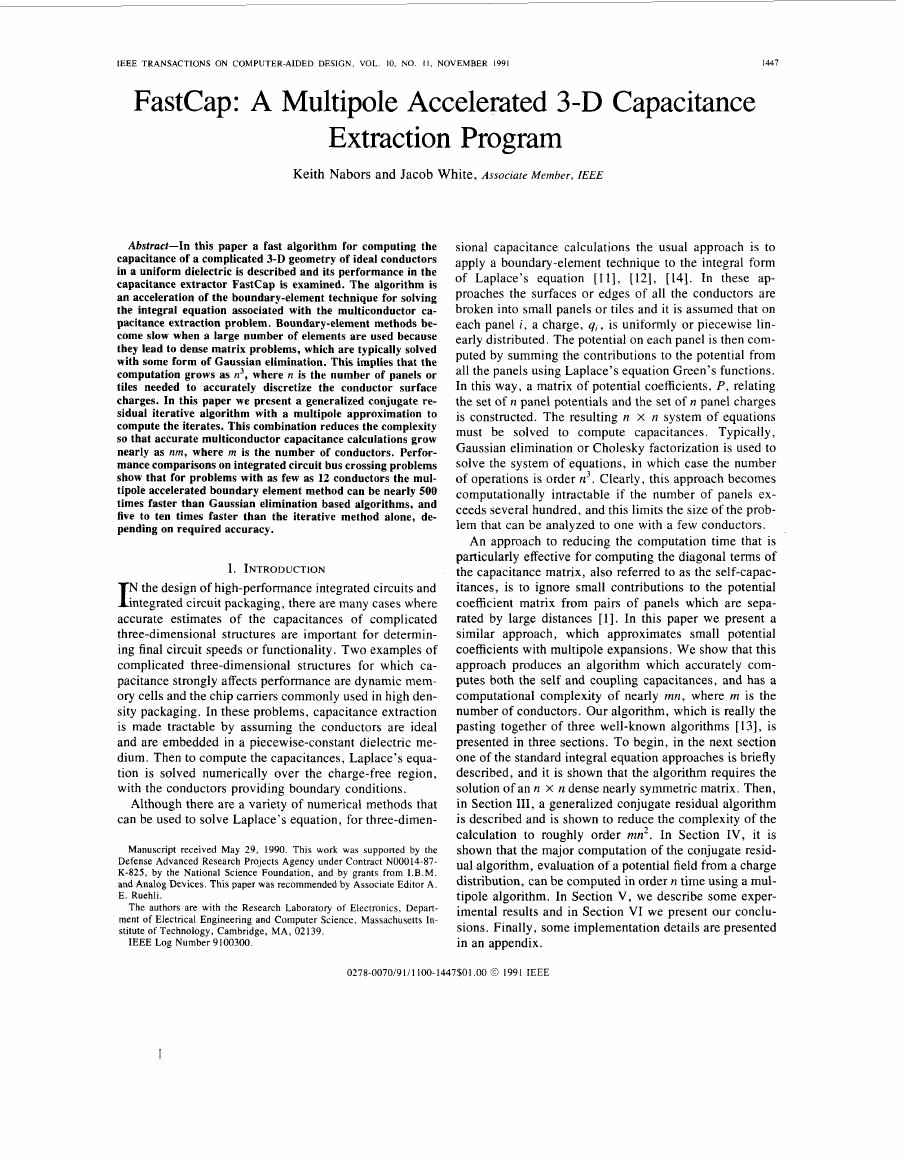

FastCap: A Multipole Accelerated 3-D Capacitance
Extraction Program
Keith Nabors and Jacob White, Associate Member, IEEE
Abstract-In
this paper a fast algorithm for computing the
capacitance of a complicated 3-D geometry of ideal conductors
in a uniform dielectric is described and its performance in the
capacitance extractor FastCap is examined. The algorithm is
an acceleration of the boundary-element technique for solving
the integral equation associated with the multiconductor ca-
pacitance extraction problem. Boundary-element methods be-
come slow when a large number of elements are used because
they lead to dense matrix problems, which are typically solved
with some form of Gaussian elimination. This implies that the
computation grows as n3, where n is the number of panels or
tiles needed to accurately discretize the conductor surface
charges. In this paper we present a generalized conjugate re-
sidual iterative algorithm with a multipole approximation to
compute the iterates. This combination reduces the complexity
so that accurate multiconductor capacitance calculations grow
nearly as nm, where m is the number of conductors. Perfor-
mance comparisons on integrated circuit bus crossing problems
show that for problems with as few as 12 conductors the mul-
tipole accelerated boundary element method can be nearly 500
times faster than Gaussian elimination based algorithms, and
five to ten times faster than the iterative method alone, de-
pending on required accuracy.
If”
I. INTRODUCTION
the design of high-performance integrated circuits and
ntegrated circuit packaging, there are many cases where
accurate estimates of the capacitances of complicated
three-dimensional structures are important for determin-
ing final circuit speeds or functionality. Two examples of
complicated three-dimensional structures for which ca-
pacitance strongly affects performance are dynamic mem-
ory cells and the chip carriers commonly used in high den-
sity packaging. In these problems, capacitance extraction
is made tractable by assuming the conductors are ideal
and are embedded in a piecewise-constant dielectric me-
dium. Then to compute the capacitances, Laplace’s equa-
tion is solved numerically over the charge-free region,
with the conductors providing boundary conditions.
Although there are a variety of numerical methods that
can be used to solve Laplace’s equation, for three-dimen-
Manuscript received May 29, 1990. This work was supported by the
Defense Advanced Research Projects Agency under Contract N00014-87-
K-825, by the National Science Foundation, and by grants from I.B.M.
and Analog Devices. This paper was recommended by Associate Editor A.
E. Ruehli.
The authors are with the Research Laboratory of Electronics, Depart-
ment of Electrical Engineering and Computer Science, Massachusetts In-
stitute of Technology, Cambridge, MA, 02139.
IEEE Log Number 9100300.
sional capacitance calculations the usual approach is to
apply a boundary-element technique to the integral form
of Laplace’s equation [ I l l , [12],
[14]. In these ap-
proaches the surfaces or edges of all the conductors are
broken into small panels or tiles and it is assumed that on
each panel i, a charge, q i , is uniformly or piecewise lin-
early distributed. The potential on each panel is then com-
puted by summing the contributions to the potential from
all the panels using Laplace’s equation Green’s functions.
In this way, a matrix of potential coefficients, P , relating
the set of n panel potentials and the set of n panel charges
is constructed. The resulting n X n system of equations
must be solved to compute capacitances. Typically,
Gaussian elimination or Cholesky factorization is used to
solve the system of equations, in which case the number
of operations is order n3. Clearly, this approach becomes
computationally intractable if the number of panels ex-
ceeds several hundred, and this limits the size of the prob-
lem that can be analyzed to one with a few conductors.
An approach to reducing the computation time that is
particularly effective for computing the diagonal terms of
the capacitance matrix, also referred to as the self-capac-
itances, is to ignore small contributions to the potential
coefficient matrix from pairs of panels which are sepa-
rated by large distances [l]. In this paper we present a
similar approach, which approximates small potential
coefficients with multipole expansions. We show that this
approach produces an algorithm which accurately com-
putes both the self and coupling capacitances, and has a
computational complexity of nearly mn, where m is the
number of conductors. Our algorithm, which is really the
pasting together of three well-known algorithms [ 131, is
presented in three sections. To begin, in the next section
one of the standard integral equation approaches is briefly
described, and it is shown that the algorithm requires the
solution of an n x n dense nearly symmetric matrix. Then,
in Section 111, a generalized conjugate residual algorithm
is described and is shown to reduce the complexity of the
calculation to roughly order mn’. In Section IV, it is
shown that the major computation of the conjugate resid-
ual algorithm, evaluation of a potential field from a charge
distribution, can be computed in order n time using a mul-
tipole algorithm. In Section V, we describe some exper-
imental results and in Section VI we present our conclu-
sions. Finally, some implementation details are presented
in an appendix.
0278-0070/91/1100-1447$01.00 0 1991 IEEE
1448
IEEE TRANSACTIONS ON COMPUTER-AIDED DESIGN. VOL. IO. NO. I I , NOVEMBER 1991

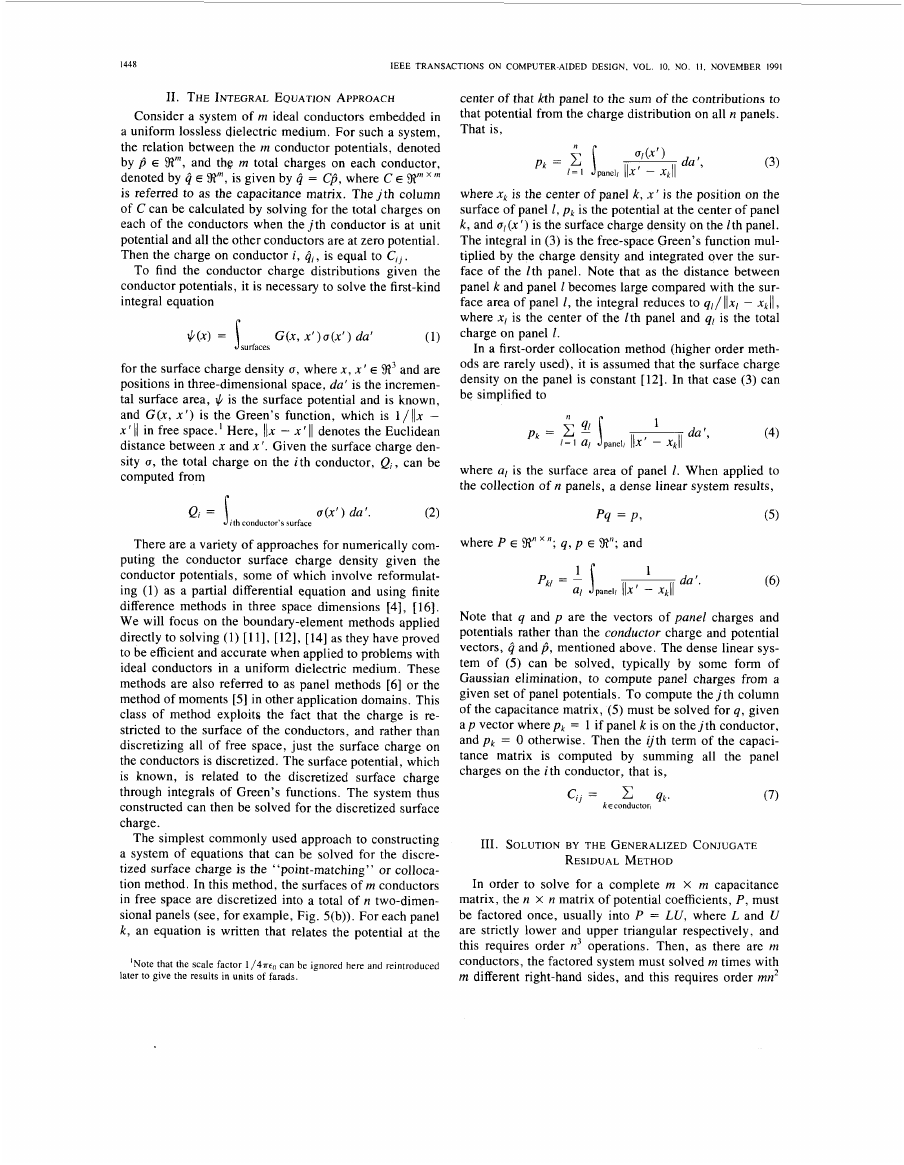

11. THE INTEGRAL EQUATION APPROACH
Consider a system of m ideal conductors embedded in
a uniform lossless dielectric medium. For such a system,
the relation between the m conductor potentials, denoted
by fi E 91m, and thg m total charges on each conductor,
denoted by 4 E 91m, is given by 9 = Cb, where C E !Rm x m
is referred to as the capacitance matrix. Thejth column
of C can be calculated by solving for the total charges on
each of the conductors when the j t h conductor is at unit
potential and all the other conductors are at zero potential.
Then the charge on conductor i, q, , is equal to C,, .
To find the conductor charge distributions given the
conductor potentials, it is necessary to solve the first-kind
integral equation
$ ( x ) =
G(x, x ’ ) u ( x ’ ) du’
(1)
for the surface charge density U , where x , x ’ E 913 and are
positions in three-dimensional space, du’ is the incremen-
tal surface area, rl. is the surface potential and is known,
and G(x, x ’ ) is the Green’s function, which is l/llx -
x ’ 11 in free space. I Here, (Ix - x ’ 11 denotes the Euclidean
distance between x and x ’. Given the surface charge den-
sity (T, the total charge on the ith conductor, Q, , can be
computed from
i
surfaces
Q, = 3
P
I th conductor’s Furface
u ( x ’ ) du‘.
(2)
There are a variety of approaches for numerically com-
puting the conductor surface charge density given the
conductor potentials, some of which involve reformulat-
ing (1) as a partial differential equation and using finite
difference methods in three space dimensions [4], [16].
We will focus on the boundary-element methods applied
directly to solving (1) [ 111, [ 121, [ 141 as they have proved
to be efficient and accurate when applied to problems with
ideal conductors in a uniform dielectric medium. These
methods are also referred to as panel methods [6] or the
method of moments [5] in other application domains. This
class of method exploits the fact that the charge is re-
stricted to the surface of the conductors, and rather than
discretizing all of free space, just the surface charge on
the conductors is discretized. The surface potential, which
is known, is related to the discretized surface charge
through integrals of Green’s functions. The system thus
constructed can then be solved for the discretized surface
charge.
The simplest commonly used approach to constructing
a system of equations that can be solved for the discre-
tized surface charge is the “point-matching” or colloca-
tion method. In this method, the surfaces of m conductors
in free space are discretized into a total of n two-dimen-
sional panels (see, for example, Fig. 5(b)). For each panel
k , an equation is written that relates the potential at the
‘Note that the scale factor 1 /47rc0 can be ignored here and reintroduced
later to give the results in units of farads.
center of that kth panel to the sum of the contributions to
that potential from the charge distribution on all n panels.
That is,
( 3 )
where xk is the center of panel k, x ’ is the position on the
surface of panel 1, pk is the potential at the center of panel
k, and U / (x ’) is the surface charge density on the 1 th panel.
The integral in ( 3 ) is the free-space Green’s function mul-
tiplied by the charge density and integrated over the sur-
face of the Eth panel. Note that as the distance between
panel k and panel 1 becomes large compared with the sur-
face area of panel I, the integral reduces to q l / llxl - xkll,
where xI is the center of the lth panel and q/ is the total
charge on panel 1.
In a first-order collocation method (higher order meth-
ods are rarely used), it is assumed that the surface charge
density on the panel is constant [ 121. In that case ( 3 ) can
be simplified to
1
da I ,
(4)
where a/ is the surface area of panel 1. When applied to
the collection of n panels, a dense linear system results,
p q = p ,
where P E 91n ‘; q, p E V; and
Pk, = -
1
da I .
(5)
(6)
Note that q and p are the vectors of panel charges and
potentials rather than the conductor charge and potential
vectors, q and fi, mentioned above. The dense linear sys-
tem of (5) can be solved, typically by some form of
Gaussian elimination, to compute panel charges from a
given set of panel potentials. To compute thejth column
of the capacitance matrix, (5) must be solved for q, given
a p vector where Pk = 1 if panel k is on t h e j th conductor,
and Pk = 0 otherwise. Then the ijth term of the capaci-
tance matrix is computed by summing all the panel
charges on the ith conductor, that is,
c,, =
q k .
keconductor,
(7)
111. SOLUTION BY THE GENERALIZED CONJUGATE
RESIDUAL METHOD
In order to solve for a complete m X m capacitance
matrix, the n x n matrix of potential coefficients, P , must
be factored once, usually into P = LU, where L and U
are strictly lower and upper triangular respectively, and
this requires order n3 operations. Then, as there are m
conductors, the factored system must solved m times with
m different right-hand sides, and this requites order mn2
NABORS AND WHITE: FASTCAP
1449
operations. Since n is the total number of panels into
which the conductor surfaces are discretized, m is neces-
sarily much smaller than n. Therefore, the n3 time for fac-
torization dominates for large problems, but factorization
can be avoided by using iterative methods to solve the m
charge distribution problems.
From the definition of P given by (6), it is clear that P
is a positive nonsymmetric matrix and that the largest ele-
ment in each row is the diagonal, although the matrix is
not diagonally dominant. Therefore, conjugate-descent
methods, such as the generalized conjugate residual
(GCR) algorithm [15] given below in Algorithm 1, are
likely to be more effective than the more familiar Gauss-
Seidel or Gauss-Jacobi style algorithms.
Algorithm 1: GCR Algorithm for Solving Pq = p
/* Setup. Note that uifer's are search directions and */
/* w is the residual. */
w = p ; q = o .
/* GCR Loop. */
For iter = 0, 1, 2,
* until converged {
U l f e r = w .
pu"er = Pw,
/* P-orthogonalize pufter with respect to pu". */
Form = 0 to iter {
p = p u " e r T p u m .
U i f e r = Ulfer - p u m .
puiter = pu iter - Dpu".
3
/* Normalize the direction. */
pu Iter = pu [ f e r / 11 pu lferll .
ifer =
/* Update the charge and the residual. */
q = q + CYutter.
Ly = W T P U r f e r .
w = w + (YpUrfer.
ifer/ 1) pu iter11 .
I
IV. ACCELERATING
THE MATRIX-VECTOR PRODUCT
As can be seen from examining Algorithm 1 , assuming
the number of iterations required is small, the major costs
of the GCR algorithm are initially forming the dense ma-
trix P and in each iteration computing the matrix-vector
product Pw, both of which require order n2 operations.
Computing the capacitance matrix with Algorithm 1 is
therefore at least order mn2 and may be higher if the num-
ber of GCR iterations increases with the problem size.
Note that if the number of panels per conductor is low,
Algorithm 1 may not be much more efficient than using
direct factorization.
An approach that avoids forming most of P , and re-
duces the cost of computing the matrix-vector product
Pw, can be derived by recalling that if w is thought of as
representing charges distributed on panels, then Pw is a
potential arising from that charge distribution. In addi-
tion, if the distance between the centers of panel i and
panelj is large compared with the panel sizes, then P,, =
n, chargepoints
\
*
*
Fig. 1 . The evaluation point potentials are approximated with a multipole
expansion.
l / l l x , - x, 11. That is, for widely separated panels, thejth
panel charge has the same effect on the potential at x , as
would a point charge of value w, located at panel j ' s cen-
ter.
To see how these observations can help simplify the
computation of Pw, consider the situation (depicted in 2-
D for simplicity) in Figs. 1 and 2. In either figure, the
obvious approach to determining the potential at the n I
evaluation points from the n2 point charges involves n1 *
n2 operations; at each of the n 1 evaluation points one sim-
ply sums the contribution to the potential from n2 charges.
An accurate approximation for the potentials for the case
of Fig. 1 can be computed in many fewer operations using
multipole expansions, which exploit the fact that r >> R
(defined in Fig. 1). That is, the details of the distribution
of the charges in the inner circle of radius R in Fig. 1 do
not strongly affect the potentials at the evaluation points
outside the outer circle of radius r. It is also possible to
compute an accurate approximation for the potentials at
the evaluation points in the inner circle of Fig. 2 in many
fewer than n l * n2 operations using local expansions,
which again exploit the fact that r >> R (as in Fig. 2).
In this second case, what can be ignored are the details of
the evaluation point distribution.
A. Multipole Expansions
A rough approximation to the effect of the n2 charges
in the inner circle in Fig. 1 can be derived by replacing
those charges with a single charge equal to their sum,
placed at the inner circle's center (see Fig. 3). The num-
ber of operations to compute the n l potentials given this
simplification is then n2 + n I , n2 operations to compute
the sum of charges, and n l operations to calculate the po-
tentials at the evaluation points. Note that the accuracy of
this approximation improves as the separation, r, between
the nearest evaluation point and the center of the inner
circle containing the charges increases relative to the in-
ner circle's radius.
1450
IEEE TRANSACTIONS ON COMPUTER-AIDED DESIGN, VOL. 10, NO. 11, NOVEMBER 1991
are called spherical harmonics [2], [8] and the M: are
complex weights known as the multipole coefficients. The
coefficients are related to the charges by
M ; = c S,P:' y i r n (CY, 3 Or),
n2
r = l
(10)
where p, , CY,, and p, are the spherical coordinates of the
ith charge relative to the sphere's center. It has been
shown that the truncated multipole expansion error is
bounded by
'
l$(r,, e,, 4,) - Zo ,,
1'
-+ y;ce,> @/)I
Mln

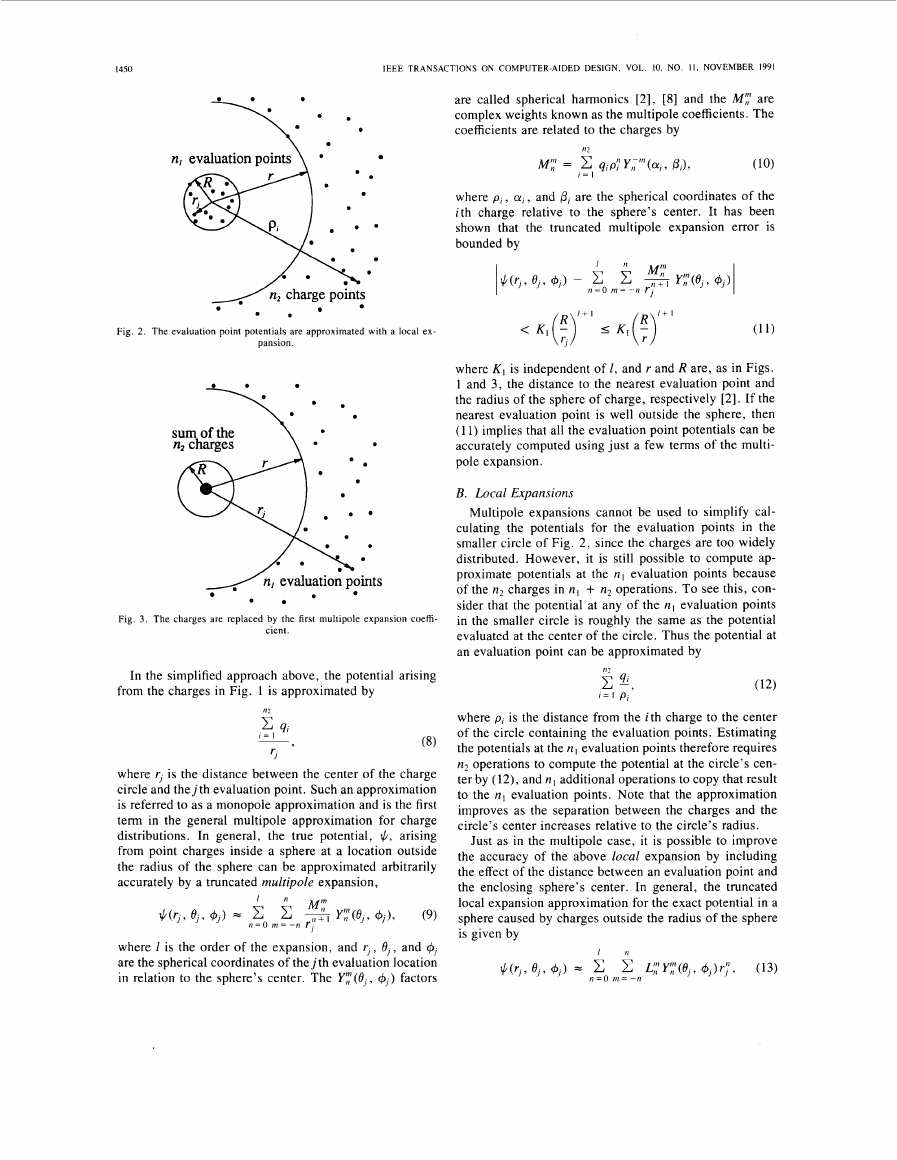

Fig 2 The evaluation point potentials are approximated with a local ex-
pansion
@
a
< Kl(:)'"
5 Kl(;)'+'
(1 1)
where Kl is independent of 1, and rand R are, as in Figs.
1 and 3 , the distance to the nearest evaluation point and
the radius of the sphere of charge, respectively [2]. If the
nearest evaluation point is well outside the sphere, then
(1 1) implies that all the evaluation point potentials can be
accurately computed using just a few terms of the multi-
pole expansion.
B. Local Expansions
Multipole expansions cannot be used to simplify cal-
culating the potentials for the evaluation points in the
smaller circle of Fig. 2 , since the charges are too widely
distributed. However, it is still possible to compute ap-
proximate potentials at the n l evaluation points because
of the n2 charges in n, + n2 operations. To see this, con-
sider that the potential at any of the n l evaluation points
in the smaller circle is roughly the Same as the potential
evaluated at the center of the circle. Thus the potential at
an evaluation point can be approximated by
where pi is the distance from the ith charge to the center
of the circle containing the evaluation points. Estimating
the potentials at the n l evaluation points therefore requires
n2 operations to compute the potential at the circle's cen-
ter by (12), and n l additional operations to copy that result
to the n l evaluation points. Note that the approximation
improves as the separation between the charges and the
circle's center increases relative to the circle's radius.
Just as in the multipole case, it is possible to improve
the accuracy of the above local expansion by including
the effect of the distance between an evaluation point and
the enclosing sphere's center. In general, the truncated
local expansion approximation for the exact potential in a
sphere caused by charges outside the radius of the sphere
is given by
@
a
@
Fig. 3 . The charges are replaced by the first multipole expansion coeffi-
cient.
In the simplified approach above, the potential arising
from the charges in Fig. 1 is approximated by
17 2
where r, is the distance between the center of the charge
circle and thejth evaluation point. Such an approximation
is referred to as a monopole approximation and is the first
term in the general multipole approximation for charge
distributions. In general, the true potential, $, arising
from point charges inside a sphere at a location outside
the radius of the sphere can be approximated arbitrarily
accurately by a truncated multipole expansion,
where 1 is the order of the expansion, and rj , e,, and $j
are the spherical coordinates of t h e j th evaluation location
in relation to the sphere's center. The Y:(Oj, 4j) factors
NABORS AND WHITE: FASTCAP

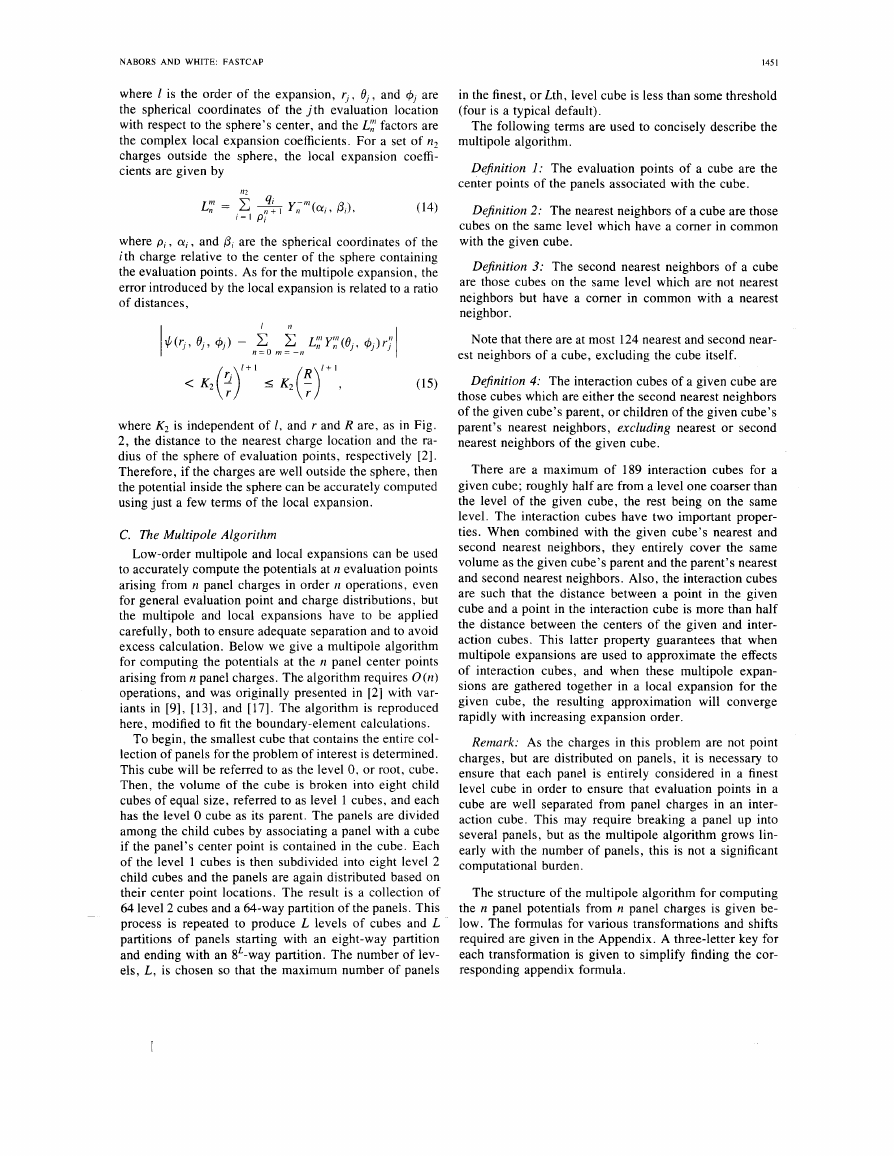

where 1 is the order of the expansion, rJ, e,, and $J are
the spherical coordinates of the j t h evaluation location
with respect to the sphere's center, and the Lr factors are
the complex local expansion coefficients. For a set of n2
charges outside the sphere, the local expansion coeffi-
cients are given by
n2
where p i , a i , and Pi are the spherical coordinates of the
ith charge relative to the center of the sphere containing
the evaluation points. As for the multipole expansion, the
error introduced by the local expansion is related to a ratio
of distances,
I
I
ti
I
where K2 is independent of 1, and r and R are, as in Fig.
2, the distance to the nearest charge location and the ra-
dius of the sphere of evaluation points, respectively [2].
Therefore, if the charges are well outside the sphere, then
the potential inside the sphere can be accurately computed
using just a few terms of the local expansion.
C. The Multipole Algorithm
Low-order multipole and local expansions can be used
to accurately compute the potentials at n evaluation points
arising from n panel charges in order n operations, even
for general evaluation point and charge distributions, but
the multipole and local expansions have to be applied
carefully, both to ensure adequate separation and to avoid
excess calculation. Below we give a multipole algorithm
for computing the potentials at the n panel center points
arising from n panel charges. The algorithm requires O ( n )
operations, and was originally presented in [ 2 ] with var-
iants in [9], [13], and [17]. The algorithm is reproduced
here, modified to fit the boundary-element calculations.
To begin, the smallest cube that contains the entire col-
lection of panels for the problem of interest is determined.
This cube will be referred to as the level 0, or root, cube.
Then, the volume of the cube is broken into eight child
cubes of equal size, referred to as level 1 cubes, and each
has the level 0 cube as its parent. The panels are divided
among the child cubes by associating a panel with a cube
if the panel's center point is contained in the cube. Each
of the level 1 cubes is then subdivided into eight level 2
child cubes and the panels are again distributed based on
their center point locations. The result is a collection of
64 level 2 cubes and a 64-way partition of the panels. This
process is repeated to produce L levels of cubes and L
partitions of panels starting with an eight-way partition
and ending with an gL-way partition. The number of lev-
els, L, is chosen so that the maximum number of panels
I45 I
in the finest, or Lth, level cube is less than some threshold
(four is a typical default).
The following terms are used to concisely describe the
multipole algorithm.
Dejinition I : The evaluation points of a cube are the
center points of the panels associated with the cube.
Dejinition 2: The nearest neighbors of a cube are those
cubes on the same level which have a comer in common
with the given cube.
Dejinition 3: The second nearest neighbors of a cube
are those cubes on the same level which are not nearest
neighbors but have a comer in common with a nearest
neighbor.
Note that there are at most 124 nearest and second near-
est neighbors of a cube, excluding the cube itself.
Dejinirion 4: The interaction cubes of a given cube are
those cubes which are either the second nearest neighbors
of the given cube's parent, or children of the given cube's
parent's nearest neighbors, excluding nearest or second
nearest neighbors of the given cube.
There are a maximum of 189 interaction cubes for a
given cube; roughly half are from a level one coarser than
the level of the given cube, the rest being on the same
level. The interaction cubes have two important proper-
ties. When combined with the given cube's nearest and
second nearest neighbors, they entirely cover the same
volume as the given cube's parent and the parent's nearest
and second nearest neighbors. Also, the interaction cubes
are such that the distance between a point in the given
cube and a point in the interaction cube is more than half
the distance between the centers of the given and inter-
action cubes. This latter property guarantees that when
multipole expansions are used to approximate the effects
of interaction cubes, and when these multipole expan-
sions are gathered together in a local expansion for the
given cube, the resulting approximation will converge
rapidly with increasing expansion order.
Remark: As the charges in this problem are not point
charges, but are distributed on panels, it is necessary to
ensure that each panel is entirely considered in a finest
level cube in order to ensure that evaluation points in a
cube are well separated from panel charges in an inter-
action cube. This may require breaking a panel up into
several panels, but as the multipole algorithm grows lin-
early with the number of panels, this is not a significant
computational burden.
The structure of the multipole algorithm for computing
the n panel potentials from n panel charges is given be-
low. The formulas for various transformations and shifts
required are given in the Appendix. A three-letter key for
each transformation is given to simplify finding the cor-
responding appendix formula.

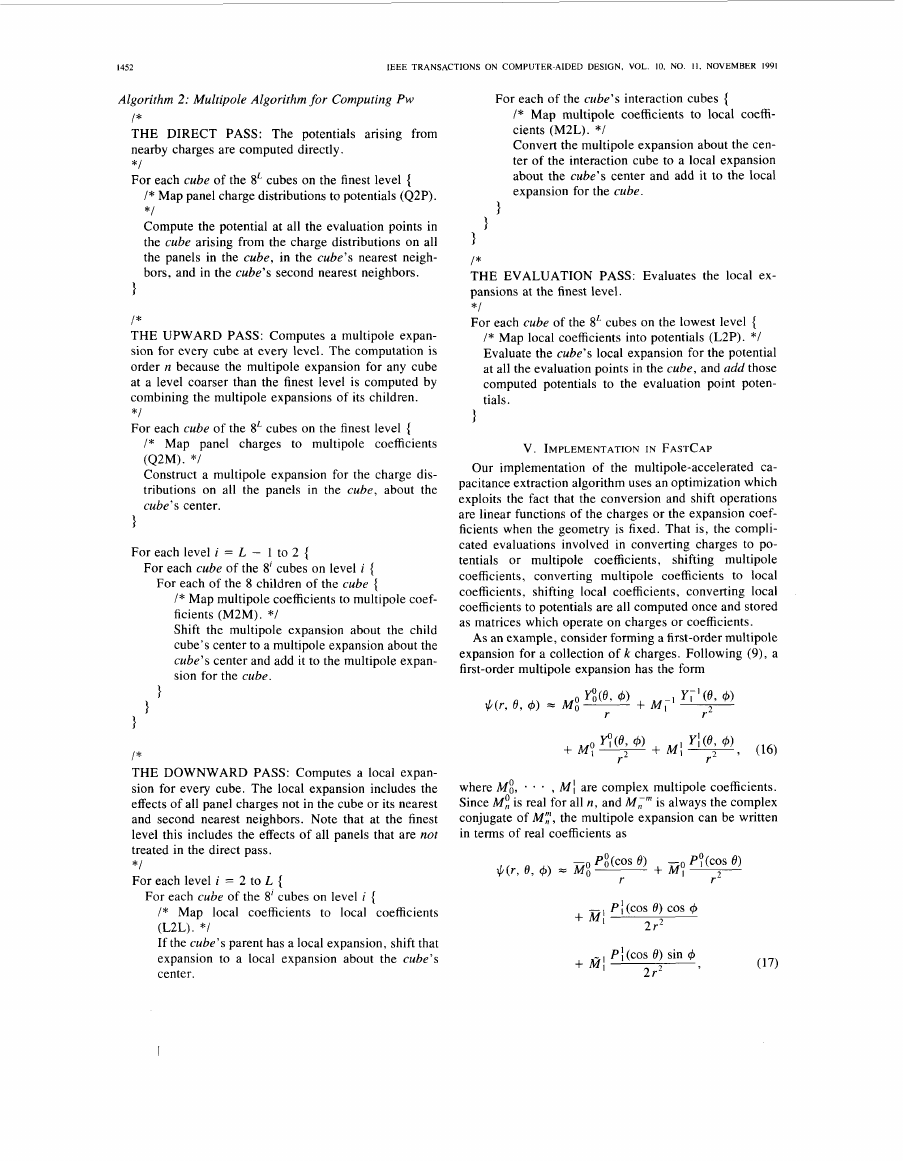

1452
IEEE TRANSACTIONS ON COMPUTER-AIDED DESIGN, VOL.
IO, NO. I I , NOVEMBER 1991
Algorithm 2: Multipole Algorithm for Computing Pw
I*
THE DIRECT PASS: The potentials arising from
nearby charges are computed directly.
*/
For each cube of the 8L cubes on the finest level
I* Map panel charge distributions to potentials (Q2P).
*I
Compute the potential at all the evaluation points in
the cube arising from the charge distributions on all
the panels in the cube, in the cube’s nearest neigh-
bors, and in the cube’s second nearest neighbors.
3
/*
THE UPWARD PASS: Computes a multipole expan-
sion for every cube at every level. The computation is
order n because the multipole expansion for any cube
at a level coarser than the finest level is computed by
combining the multipole expansions of its children.
*/
For each cube of the 8L cubes on the finest level {
I* Map panel charges to multipole coefficients
(Q2M). *I
Construct a multipole expansion for the charge dis-
tributions on all the panels in the cube, about the
cube’s center.
3
For each level i = L - 1 to 2 {
For each cube of the 8’ cubes on level i {
For each of the 8 children of the cube {
/* Map multipole coefficients to multipole coef-
ficients (M2M). * I
Shift the multipole expansion about the child
cube’s center to a multipole expansion about the
cube’s center and add it to the multipole expan-
sion for the cube.
3
1
3
/*
THE DOWNWARD PASS: Computes a local expan-
sion for every cube. The local expansion includes the
effects of all panel charges not in the cube or its nearest
and second nearest neighbors. Note that at the finest
level this includes the effects of all panels that are not
treated in the direct pass.
*/
For each level i = 2 to L {
For each cube of the 8’ cubes on level i {
/* Map local coefficients to local coefficients
(LZL). * I
If the cube’s parent has a local expansion, shift that
expansion to a local expansion about the cube’s
center.
For each of the cube’s interaction cubes {
/* Map multipole coefficients to local coeffi-
cients (M2L). *I
Convert the multipole expansion about the cen-
ter of the interaction cube to a local expansion
about the cube’s center and add it to the local
expansion for the cube.
3
3
3
/*
THE EVALUATION PASS: Evaluates the local ex-
pansions at the finest level.
*I
For each cube of the 8L cubes on the lowest level {
I* Map local coefficients into potentials (L2P). *I
Evaluate the cube’s local expansion for the potential
at all the evaluation points in the cube, and add those
computed potentials to the evaluation point poten-
tials.
3
V. IMPLEMENTATION
I N FASTCAP
Our implementation of the multipole-accelerated ca-
pacitance extraction algorithm uses an optimization which
exploits the fact that the conversion and shift operations
are linear functions of the charges or the expansion coef-
ficients when the geometry is fixed. That is, the compli-
cated evaluations involved in converting charges to po-
tentials or multipole coefficients, shifting multipole
coefficients, converting multipole coefficients to local
coefficients, shifting local coefficients, converting local
coefficients to potentials are all computed once and stored
as matrices which operate on charges or coefficients.
As an example, consider forming a first-order multipole
expansion for a collection of k charges. Following (9), a
first-order multipole expansion has the form
where M i , -
, MI are complex multipole coefficients.
Since M: is real for all n , and M i ” is always the complex
conjugate of M f , the multipole expansion can be written
in terms of real coefficients as
+ Mi
P 1 (cos e) sin 4
2 r2

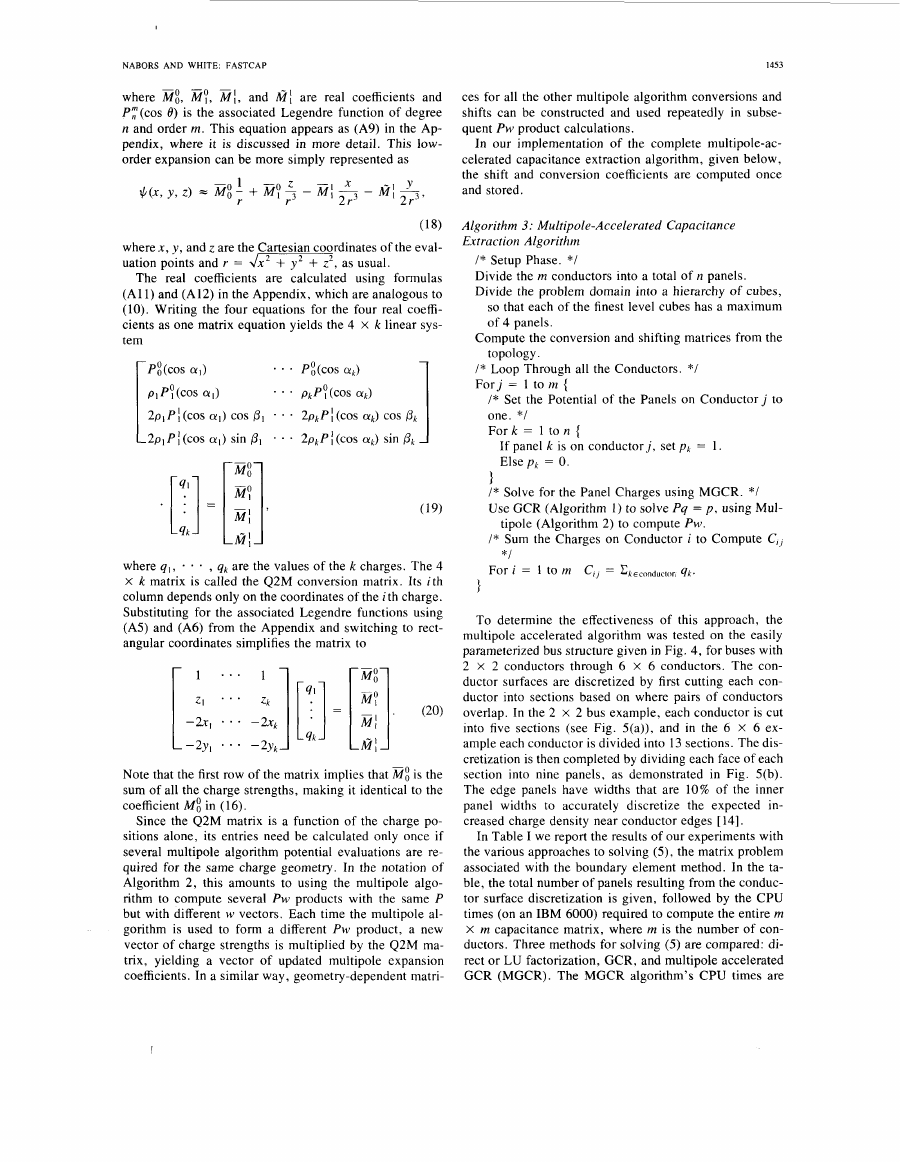

NABORS AND WHITE: FASTCAP
where a;, My, MI, and il?; are real coefficients and
Pr(cos 0) is the associated Legendre function of degree
n and order m. This equation appears as (A9) in the Ap-
pendix, where it is discussed in more detail. This low-
order expansion can be more simply represented as
rl/(x,y,z) ~ M ; - + M O 4 - a I ~ - f
1
r
I r 3
2 r 3
i p -
2 r 3 ’
1453
ces for all the other multipole algorithm conversions and
shifts can be constructed and used repeatedly in subse-
quent Pw product calculations.
In our implementation of the complete multipole-ac-
celerated capacitance extraction algorithm, given below,
the shift and conversion coefficients are computed once
and stored.
( 18)
where x , y , and z are the Cartesian coordinates of the eval-
uation points and r = dx’ + y 2 + z2, as usual.
The real coefficients are calculated using formulas
(A1 1) and (A12) in the Appendix, which are analogous to
(10). Writing the four equations for the four real coeffi-
cients as one matrix equation yields the 4 x k linear sys-
tem
1
rp;(cos
* . . Po,(cos ax)
. *
Plp:(cos
2p, PI (cos al) cos p1 . *
* pkPy(C0s ax)
Q I )
2p,PI (cos q) cos
[:I,
[;?I
-
.
=
MI
(19)
where q l , .
, qk are the values of the k charges. The 4
X k matrix is called the Q2M conversion matrix. Its ith
column depends only on the coordinates of the ith charge.
Substituting for the associated Legendre functions using
(A5) and (A6) from the Appendix and switching to rect-
angular coordinates simplifies the matrix to
Note that the first row of the matrix implies that
is the
sum of all the charge strengths, making it identical to the
coefficient M; in (16).
Since the Q2M matrix is a function of the charge po-
sitions alone, its entries need be calculated only once if
several multipole algorithm potential evaluations are re-
quired for the same charge geometry. In the notation of
Algorithm 2 , this amounts to using the multipole algo-
rithm to compute several Pw products with the same P
but with different w vectors. Each time the multipole al-
gorithm is used to form a different Pw product, a new
vector of charge strengths is multiplied by the Q2M ma-
trix, yielding a vector of updated multipole expansion
coefficients. In a similar way, geometry-dependent matri-
I
Algorithm 3: Multipole-Accelerated Capacitance
Extraction Algorithm
/* Setup Phase. * I
Divide the m conductors into a total of n panels.
Divide the problem domain into a hierarchy of cubes,
so that each of the finest level cubes has a maximum
of 4 panels.
Compute the conversion and shifting matrices from the
topology.
/* Loop Through all the Conductors. */
F o r j = 1 t o m {
/* Set the Potential of the Panels on Conductorj to
one. */
Fork = 1 to n {
If panel k is on conductor j , set Pk = 1
Elsepk = 0.
}
/* Solve for the Panel Charges using MGCR. */
Use GCR (Algorithm 1) to solve Pq = p , using Mul-
/* Sum the Charges on Conductor i to Compute C,,
tipole (Algorithm 2) to compute Pw.
*/
For i = 1 to m
c,, = Ckmnductor, q k .
j,
To determine the effectiveness of this approach, the
multipole accelerated algorithm was tested on the easily
parameterized bus structure given in Fig. 4, for buses with
2 X 2 conductors through 6 x 6 conductors. The con-
ductor surfaces are discretized by first cutting each con-
ductor into sections based on where pairs of conductors
overlap. In the 2 x 2 bus example, each conductor is cut
into five sections (see Fig. 5(a)), and in the 6 x 6 ex-
ample each conductor is divided into 13 sections. The dis-
cretization is then completed by dividing each face of each
section into nine panels, as demonstrated in Fig. 5(b).
The edge panels have widths that are 10% of the inner
panel widths to accurately discretize the expected in-
creased charge density near conductor edges [ 141.
In Table I we report the results of our experiments with
the various approaches to solving ( 5 ) , the matrix problem
associated with the boundary element method. In the ta-
ble, the total number of panels resulting from the conduc-
tor surface discretization is given, followed by the CPU
times (on an IBM 6000) required to compute the entire m
X m capacitance matrix, where m is the number of con-
ductors. Three methods for solving (5) are compared: di-
rect or LU factorization, GCR, and multipole accelerated
GCR (MGCR). The MGCR algorithm’s CPU times are
1454
IEEE TRANSACTIONS ON COMPUTER-AIDED DESIGN. VOL. IO, NO. I I , NOVEMBER 1991
Fig. 4. Bus structure test problem with 2 x 2 conductors
(a)
(b)
Fig. 5 . Conductor sections are divided into panels.
COMPARISON OF EXTRACTION METHODS (CPU TIMES IN IBM 6000
TABLE I
SECONDS)
Test Problem
2 x 2 3 x 3 4 x 4 5 x 5
6 x 6
Panels
Direct time
GCR time
MGCRtime(1 = 2)
MGCR time ( I = 1)
MGCR time ( I = 0)
GCR iters
MGCR iters ( I = 2)
MGCR iters (/ = 1)
MGCR iters (1 = 0)
792
275
121
55
29
9
48
48
54
58
1620
2700
570
218
108
48
78
82
88
90
2736
12969
2115
378
245
98
120
120
120
120
4140
44345
4881
790
436
216
150
150
150
150
5832
(141603)
(14877)
1412
775
356
(180)
180
180
180
strongly dependent on the number of expansion terms, so
the time required when zero-, first-, and second-order ex-
pansions (1 = 0, 1, 2) are used is given. Also in the table
are the total number of iterations required to reduce the
max norm of the residual in GCR and MGCR to 1 % of
its original value. The CPU times in parentheses are ex-
trapolated. They correspond to calculations that were not
possible because of the excessive memory required to
store the entire potential coefficient matrix, and our lack
of patience.
As is clear from the results, the multipole-accelerated
GCR algorithm is very effective for the larger problems,
particularly if the expansion order is low. To examine the
effect of expansion order on accuracy, in Table I1 we
compare the resulting capacitances computed by solving
( 5 ) for the 4 X 4 conductor problem with LU factoriza-
tion, GCR, and MGCR for expansion orders 0, 1, and 2.
One row of the 4 X 4 capacitance matrix2 is given for the
five different solution methods. The row chosen repre-
sents the capacitance associated with one of the conduc-
tors on the outer edge. Taking the direct method results
as exact, the data indicate that MGCR can attain better
than 10% accuracy in the diagonal entry of the capaci-
tance matrix with only a zero-order (1 = 0) expansion. To
'In the 4 X 4 conductor example the lengths have been normalized so
that the conductors are each 5 m long, 1 m high, and 1 m wide, and all
interconductor spaces are 1 m. The capacitances are given in picofarads by
scaling the program results by 4neo = 111.27 pF/m.
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
