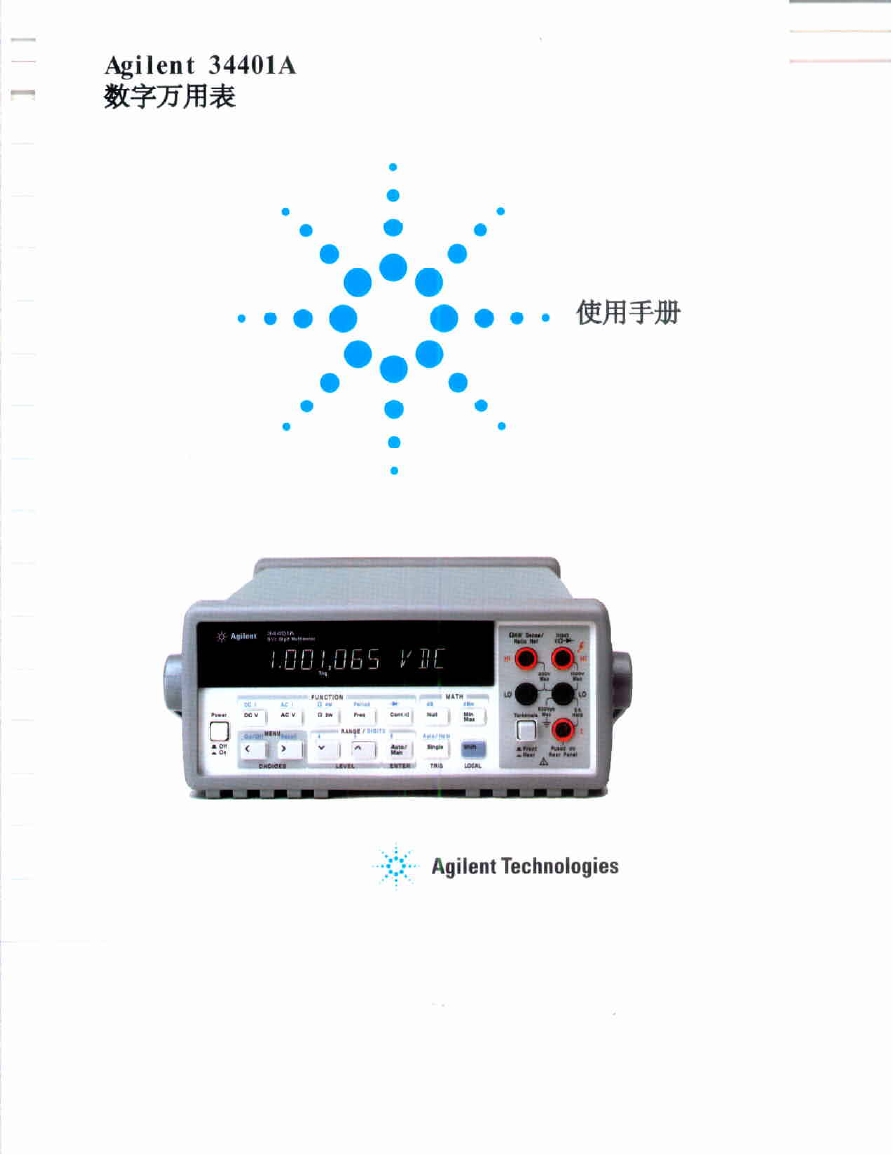

agilent 34401a 数字万用表说明书.pdf

发布时间：2022-06-09 发布人：admin 分类：说明书 资料大小：6.25M 资料格式：pdf 举报 版权申诉
第1页 / 共244页
第2页 / 共244页
第3页 / 共244页
第4页 / 共244页
第5页 / 共244页
第6页 / 共244页
第7页 / 共244页
第8页 / 共244页
资料共244页，剩余部分请下载后查看
    Errata Sheet.pdf
    UUpdates – 34401A User’s Guide
    Chapter 4: Page 148
    Chapter 5: Page 178
    Chapter 8: Page 223
    Errata Sheet.pdf
    UUpdates – 34401A User’s Guide
    Chapter 4: Page 148
    Chapter 5: Page 178
    Chapter 8: Page 223
    Updates – 34401A Service Guide (p/n 34401-90013 Edition 5)
    Chapter 1: Page 19
    Chapter 8: Page 139
    Errata Sheet.pdf
    UUpdates – 34401A User’s Guide
    Chapter 4: Page 148
    Chapter 5: Page 178
    Chapter 8: Page 223
    Updates – 34401A Service Guide (p/n 34401-90013 Edition 5)
    Chapter 1: Page 19
    Chapter 8: Page 139
    Errata Sheet.pdf
    UUpdates – 34401A User’s Guide
    Chapter 4: Page 148
    Chapter 5: Page 178
    Chapter 8: Page 223
    Updates – 34401A Service Guide (p/n 34401-90013 Edition 5)
    Chapter 1: Page 19
    Chapter 8: Page 139
    Errata Sheet.pdf
    UUpdates – 34401A User’s Guide
    Chapter 4: Page 148
    Chapter 5: Page 178
    Chapter 8: Page 223
    Updates – 34401A Service Guide (p/n 34401-90013 Edition 5)
    Chapter 1: Page 19
    Chapter 8: Page 139

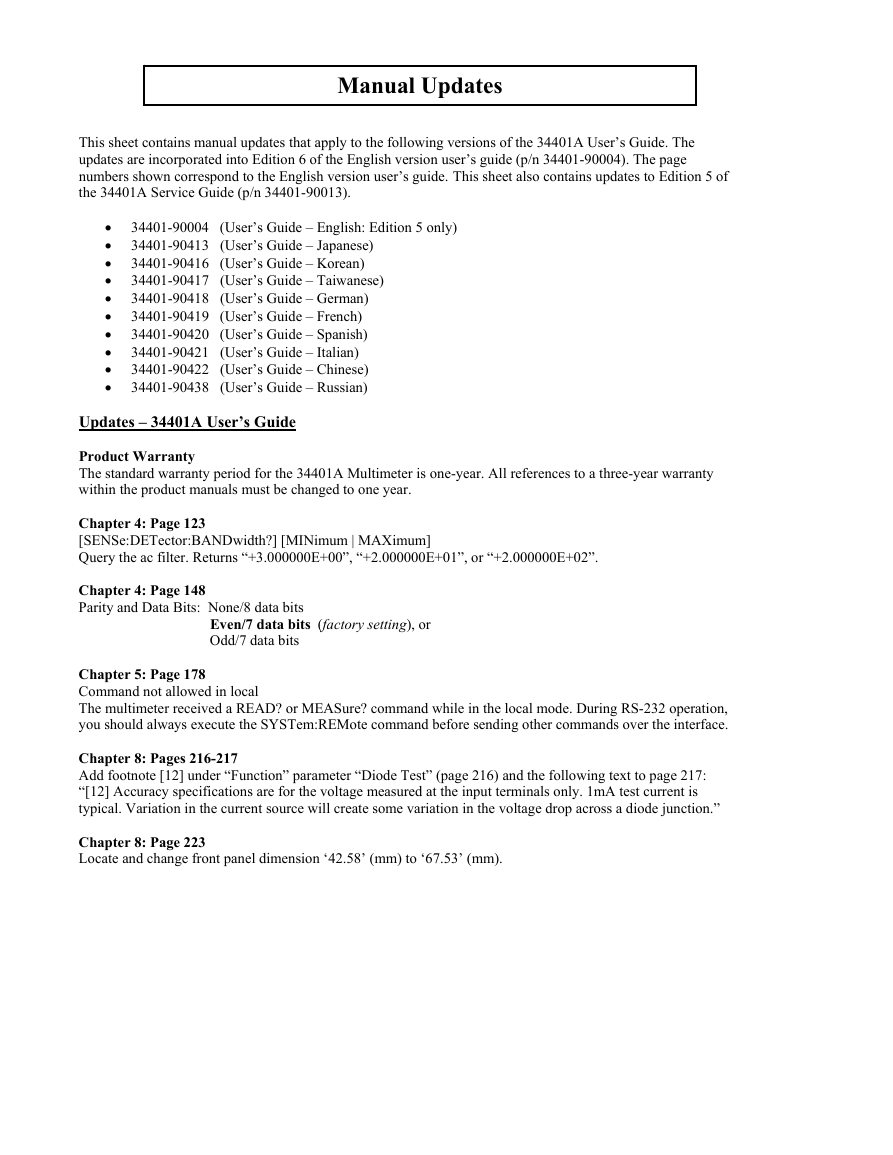

    Manual Updates This sheet contains manual updates that apply to the following versions of the 34401A User’s Guide. The updates are incorporated into Edition 6 of the English version user’s guide (p/n 34401-90004). The page numbers shown correspond to the English version user’s guide. This sheet also contains updates to Edition 5 of the 34401A Service Guide (p/n 34401-90013). • • • • • • • • • • 34401-90004 (User’s Guide – English: Edition 5 only) 34401-90413 (User’s Guide – Japanese) 34401-90416 (User’s Guide – Korean) 34401-90417 (User’s Guide – Taiwanese) 34401-90418 (User’s Guide – German) 34401-90419 (User’s Guide – French) 34401-90420 (User’s Guide – Spanish) 34401-90421 (User’s Guide – Italian) 34401-90422 (User’s Guide – Chinese) 34401-90438 (User’s Guide – Russian) Updates – 34401A User’s Guide Product Warranty The standard warranty period for the 34401A Multimeter is one-year. All references to a three-year warranty within the product manuals must be changed to one year. Chapter 4: Page 123 [SENSe:DETector:BANDwidth?] [MINimum | MAXimum] Query the ac filter. Returns “+3.000000E+00”, “+2.000000E+01”, or “+2.000000E+02”. Chapter 4: Page 148 Parity and Data Bits: None/8 data bits Even/7 data bits (factory setting), or Odd/7 data bits Chapter 5: Page 178 Command not allowed in local The multimeter received a READ? or MEASure? command while in the local mode. During RS-232 operation, you should always execute the SYSTem:REMote command before sending other commands over the interface. Chapter 8: Pages 216-217 Add footnote [12] under “Function” parameter “Diode Test” (page 216) and the following text to page 217: “[12] Accuracy specifications are for the voltage measured at the input terminals only. 1mA test current is typical. Variation in the current source will create some variation in the voltage drop across a diode junction.” Chapter 8: Page 223 Locate and change front panel dimension ‘42.58’ (mm) to ‘67.53’ (mm). _ |

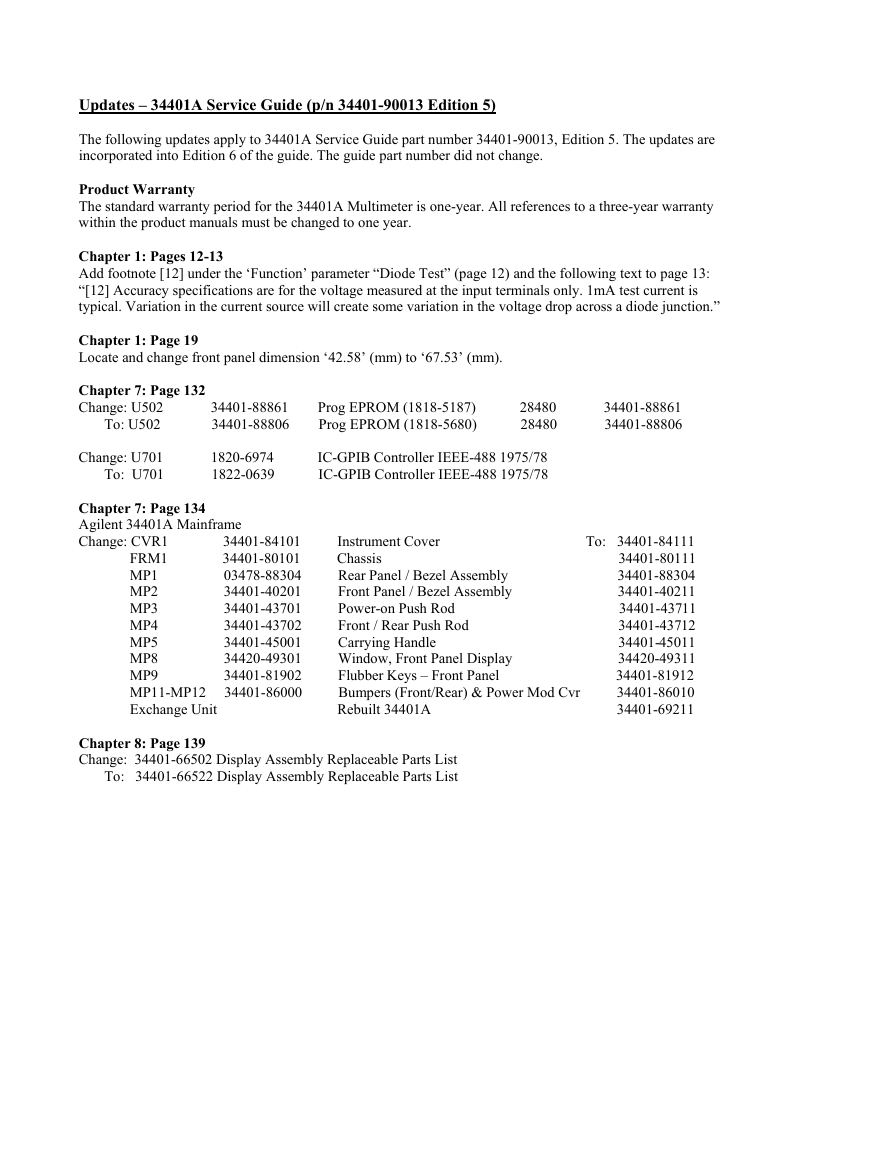

    Updates – 34401A Service Guide (p/n 34401-90013 Edition 5) The following updates apply to 34401A Service Guide part number 34401-90013, Edition 5. The updates are incorporated into Edition 6 of the guide. The guide part number did not change. Product Warranty The standard warranty period for the 34401A Multimeter is one-year. All references to a three-year warranty within the product manuals must be changed to one year. Chapter 1: Pages 12-13 Add footnote [12] under the ‘Function’ parameter “Diode Test” (page 12) and the following text to page 13: “[12] Accuracy specifications are for the voltage measured at the input terminals only. 1mA test current is typical. Variation in the current source will create some variation in the voltage drop across a diode junction.” Chapter 1: Page 19 Locate and change front panel dimension ‘42.58’ (mm) to ‘67.53’ (mm). Chapter 7: Page 132 Change: U502 34401-88861 Prog EPROM (1818-5187) 28480 34401-88861 To: U502 34401-88806 Prog EPROM (1818-5680) 28480 34401-88806 Change: U701 1820-6974 IC-GPIB Controller IEEE-488 1975/78 To: U701 1822-0639 IC-GPIB Controller IEEE-488 1975/78 Chapter 7: Page 134 Agilent 34401A Mainframe Change: CVR1 34401-84101 Instrument Cover To: 34401-84111 FRM1 34401-80101 Chassis 34401-80111 MP1 03478-88304 Rear Panel / Bezel Assembly 34401-88304 MP2 34401-40201 Front Panel / Bezel Assembly 34401-40211 MP3 34401-43701 Power-on Push Rod 34401-43711 MP4 34401-43702 Front / Rear Push Rod 34401-43712 MP5 34401-45001 Carrying Handle 34401-45011 MP8 34420-49301 Window, Front Panel Display 34420-49311 MP9 34401-81902 Flubber Keys – Front Panel 34401-81912 MP11-MP12 34401-86000 Bumpers (Front/Rear) & Power Mod Cvr 34401-86010 Exchange Unit Rebuilt 34401A 34401-69211 Chapter 8: Page 139 Change: 34401-66502 Display Assembly Replaceable Parts List To: 34401-66522 Display Assembly Replaceable Parts List _ |
    _ |

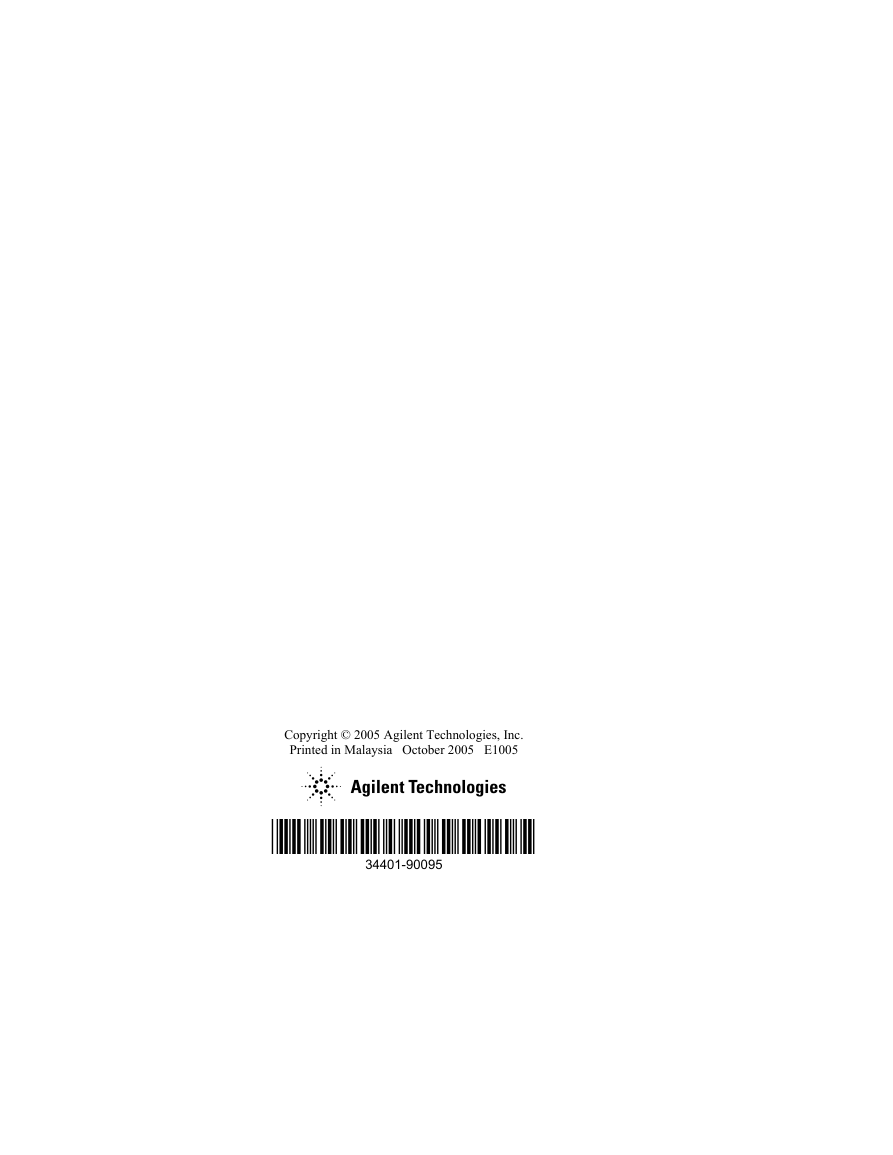

    Copyright © 2005 Agilent Technologies, Inc. Printed in Malaysia October 2005 E1005 s *34401-90095* 34401-90095 _ |
