    SMD-codes DDDDDAAAAATTTTTABOOK ABOOK ABOOK ABOOK ABOOK SMD-codes SMD-codes SMD-codes SMD-codes SMD-codes Active SMD semiconductor components marking codes 3 - p n s i • 235.000 SMD-codes for active semiconductor components: • Diodes, Transistors, Thyristors, Integrated Circuits • Case pin assignment • Pinout • Marking style • Schematic diagram • Additional SMD info • Case drawings • Manufacturers 2012 EDITION
    Eugeniu Turuta Martin Christian Turuta ActiActiActiActiActivvvvveeeee SMD components SMD components SMD components SMD components SMD components marmarmarmarmarking codes king codes king codes king codes king codes databook INTRODUCTION 1. 2-pin case SMD semicondutor components 2. SOD-80 case SMD semicondutor components 3. 3-pin case SMD semicondutor components 4. SOT-223 case SMD semicondutor components 5. SOT-89 case SMD semicondutor components 6. 4-pin case SMD semicondutor components 7. 5-pin case SMD semicondutor components 8. SOT-89-5 case SMD semicondutor components 9. 6 and more pin case SMD semicondutor components 10. BGA, DFN and QFN case SMD semicondutor components 11. D-PAK and I-PAK case SMD semicondutor components 12. Case pin assignment 13. Pinout (table) 14. SMD-code marking attribute 15. SMD-code marking style 16. Sample schematic diagram 17. Adittional SMD info 18. Case drawings 19. Manufacturers logos and URL Toronto, 2012 edition Chisinau, 2012 edition

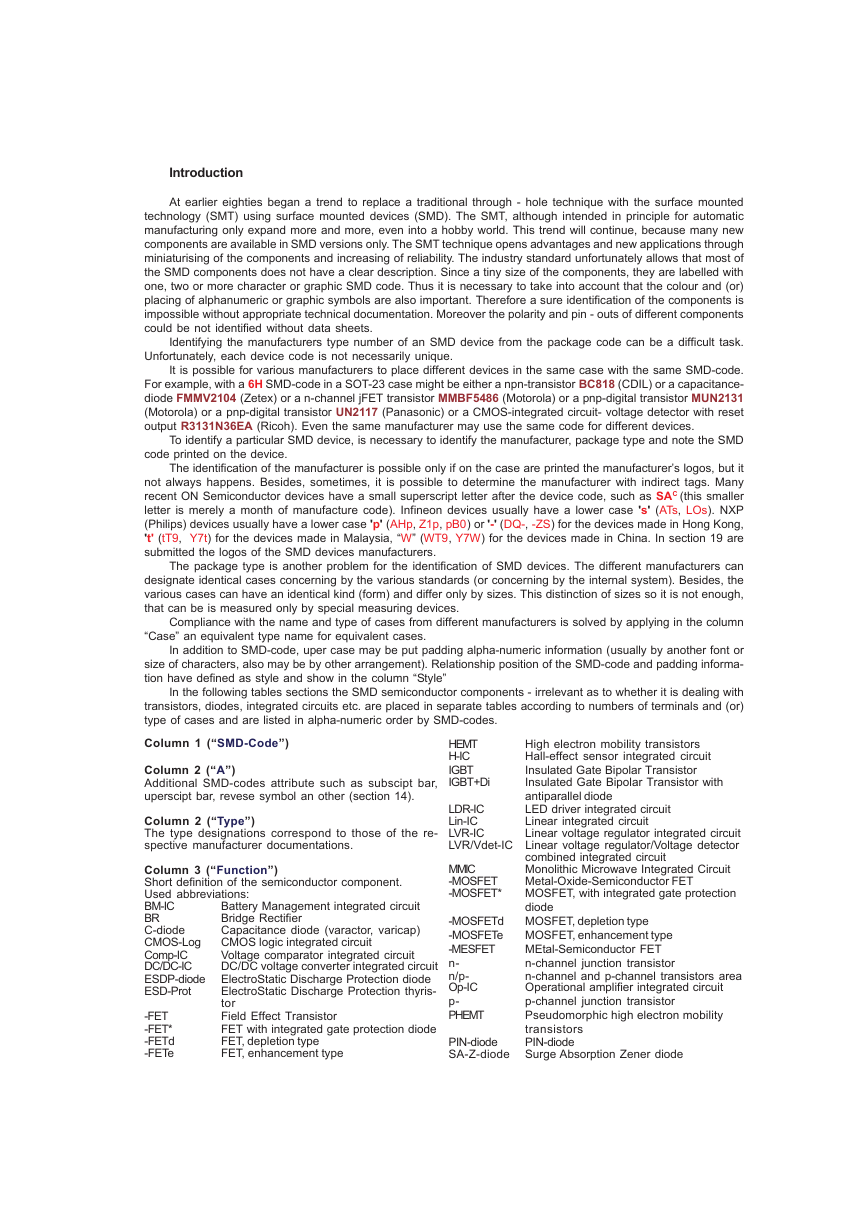

    Introduction At earlier eighties began a trend to replace a traditional through - hole technique with the surface mounted technology (SMT) using surface mounted devices (SMD). The SMT, although intended in principle for automatic manufacturing only expand more and more, even into a hobby world. This trend will continue, because many new components are available in SMD versions only. The SMT technique opens advantages and new applications through miniaturising of the components and increasing of reliability. The industry standard unfortunately allows that most of the SMD components does not have a clear description. Since a tiny size of the components, they are labelled with one, two or more character or graphic SMD code. Thus it is necessary to take into account that the colour and (or) placing of alphanumeric or graphic symbols are also important. Therefore a sure identification of the components is impossible without appropriate technical documentation. Moreover the polarity and pin - outs of different components could be not identified without data sheets.AA0007 Identifying the manufacturers type number of an SMD device from the package code can be a difficult task. Unfortunately, each device code is not necessarily unique. It is possible for various manufacturers to place different devices in the same case with the same SMD-code. For example, with a 6H SMD-code in a SOT-23 case might be either a npn-transistor BC818 (CDIL) or a capacitance- diode FMMV2104 (Zetex) or a n-channel jFET transistor MMBF5486 (Motorola) or a pnp-digital transistor MUN2131 (Motorola) or a pnp-digital transistor UN2117 (Panasonic) or a CMOS-integrated circuit- voltage detector with reset output R3131N36EA (Ricoh). Even the same manufacturer may use the same code for different devices. To identify a particular SMD device, is necessary to identify the manufacturer, package type and note the SMD code printed on the device. The identification of the manufacturer is possible only if on the case are printed the manufacturer’s logos, but it not always happens. Besides, sometimes, it is possible to determine the manufacturer with indirect tags. Many recent ON Semiconductor devices have a small superscript letter after the device code, such as SAC (this smaller letter is merely a month of manufacture code). Infineon devices usually have a lower case 's' (ATs, LOs). NXP (Philips) devices usually have a lower case 'p' (AHp, Z1p, pB0) or '-' (DQ-, -ZS) for the devices made in Hong Kong, 't' (tT9, Y7t) for the devices made in Malaysia, “W” (WT9, Y7W) for the devices made in China. In section 19 are submitted the logos of the SMD devices manufacturers. The package type is another problem for the identification of SMD devices. The different manufacturers can designate identical cases concerning by the various standards (or concerning by the internal system). Besides, the various cases can have an identical kind (form) and differ only by sizes. This distinction of sizes so it is not enough, that can be is measured only by special measuring devices. Compliance with the name and type of cases from different manufacturers is solved by applying in the column “Case” an equivalent type name for equivalent cases. In addition to SMD-code, uper case may be put padding alpha-numeric information (usually by another font or size of characters, also may be by other arrangement). Relationship position of the SMD-code and padding informa- tion have defined as style and show in the column “Style” In the following tables sections the SMD semiconductor components - irrelevant as to whether it is dealing with transistors, diodes, integrated circuits etc. are placed in separate tables according to numbers of terminals and (or) type of cases and are listed in alpha-numeric order by SMD-codes. Column 1 (“SMD-Code”) Column 2 (“A”) Additional SMD-codes attribute such as subscipt bar, uperscipt bar, revese symbol an other (section 14). Column 2 (“Type”) The type designations correspond to those of the re- spective manufacturer documentations. Column 3 (“Function”) Short definition of the semiconductor component. Used abbreviations: Battery Management integrated circuit BM-IC Bridge Rectifier BR Capacitance diode (varactor, varicap) C-diode CMOS logic integrated circuit CMOS-Log Voltage comparator integrated circuit Comp-IC DC/DC-IC DC/DC voltage converter integrated circuit ESDP-diode ElectroStatic Discharge Protection diode ESD-Prot ElectroStatic Discharge Protection thyris- tor Field Effect Transistor FET with integrated gate protection diode FET, depletion type FET, enhancement type -FET -FET* -FETd -FETe HEMT H-IC IGBT IGBT+Di High electron mobility transistors Hall-effect sensor integrated circuit Insulated Gate Bipolar Transistor Insulated Gate Bipolar Transistor with antiparallel diode LED driver integrated circuit LDR-IC Linear integrated circuit Lin-IC LVR-IC Linear voltage regulator integrated circuit LVR/Vdet-IC Linear voltage regulator/Voltage detector MMIC -MOSFET -MOSFET* -MOSFETd -MOSFETe -MESFET n- n/p- Op-IC p- PHEMT combined integrated circuit Monolithic Microwave Integrated Circuit Metal-Oxide-Semiconductor FET MOSFET, with integrated gate protection diode MOSFET, depletion type MOSFET, enhancement type MEtal-Semiconductor FET n-channel junction transistor n-channel and p-channel transistors area Operational amplifier integrated circuit p-channel junction transistor Pseudomorphic high electron mobility transistors PIN-diode PIN-diode SA-Z-diode Surge Absorption Zener diode
    Si-diode Si-Varistor Si-npn Si-n/p Si-npn-Darl Si-npn-Digi Si-npn-Digi+Di Silicon npn “digital” transistor with inter- Silicon diode Silicon voltage depending resistor Silicon npn transistor Silicon npn and pnp transistors area Silicon npn Darlington transistor Silicon npn “digital” transistor Si-pnp Si-pnp-Darl Si-pnp-Digi Si-npn-Digi+Di Silicon pnp “digital” transistor with nal diode Silicon pnp transistor Silicon pnp Darlington transistor Silicon pnp “digital” transistor SiC-diode SiGe-npn Si-Stab SVR-IC Tdet-IC Thy-SCR Thy-SPD Triac TVS Vdet-IC Vref-IC Z-diode internal diode Silicon Carbide diode Silicon/Geramanium npn transistor Silicon stabistor Switching Voltage Regulator integrated circuit Thermal detector integrated circuit Thyristor-controlled rectifier Thyristor-surge protector device Triode for alternating current Transient voltage supressor Voltage Detector integrated circuit Voltage Reference integrated circuit Zener diode Column 4 (“Short description”) Short data or description of function of each type. Used abbreviations: Adj. AF AGC ALC AM Amp Ant Att Aval Disc. BTL Buff CATV +CE -CE Cell CL Contr Conv Cordl Det DG Diff Dr, Drv EN Ext. FM GaAs GP HF Hi-sp HSST HV I2C I2S ICP Instrum. Latch-Pr. LDO LED LLS LN LogL Lo-sat Adjust, adjustable Audio Frequency Automatic Gain Control Automatic Level Control Amplitude Modulation (AM range) Amplifier Antenna Attenuator Avalanshe Internal CL discharge Bridge Tied Loads Buffer Broad band cable amplifier Active HIGH Chip Enable Active LOW Chip Enable Cellular Internal CL discharge resistor Controlled Converter Cordless Detector Dual Gate Differential Driver Enable External Frequency Modulation (FM range) Gallium arsenide General Purpose Applications High Frequency High-speed High-Speed Soft-Start High Voltage I2C interface control I2S interface Inrush Current Protection Instrumental Latch-Protection Low drop voltage Light-emitting diode Logic Level Shifter Low Noise Logic Level (Uth > 0,8...2V) Low collector-emitter saturation voltage LSST Mix MR OCL ODO OCO OVIn OVP Osc Out OV PA PAD PCA PDR PFM Pow PPO PSM PUR PWM Rect. Reg. Res. Reset-Pr. RF Rt SBD SBR SPI St-dwn St-up Supress. Sw. TMBSR T-MOS Trd Tun U-Speed UHF ULN UV UVLO Var VCO VDet Vdi Vdo VHF VFM Vid V-MOS VR WB WD Low-Speed Soft-Start Mixer Manual Reset Output Current Limiter Open Drain Output Open Collector Output Over Voltage Rest Input (negative) Over Voltage Protection Oscillator Output Latched OverVoltage function Power Amplifier Pico-Amper Diode Pulse Current Amplitude modulation Internal pull-down resistor Pulse-frequency modulation Power Push-Pull Output Pulse-skip modulation Internal pull-up resistor Pulse-width modulation Rectifier Regulated Resistor Reset-Protection Radio Frequency applications Reset delay time Schottky Barrier Diode Schottky Barrier Rectifier Diode SPI interface Step-down Step-up Supressor Switching Trench MOS Barrier Schottky Rectifier Trench-FET MOSFET Time Reset Delay Tuner Ultra-speed RF applications (>250 MHz) Ultra Low-Noise Latched UperVoltage function Under voltage lock output Variable Voltage controlled oscillator Volatge Detector Input volatge detection Output volatge detection RF applications (100...250MHz) Voltage-Frequency Modulation Video output stages Vertical Metal Oxide Semiconductor Voltage Regulator Wide Band Watch-Dog Timer Column 5 (“Case”) Manufacturers case designation. Column 6 (“Pin”) Related case pin asignments and pinout (section 12, 13). Column 7 (“Sch”) Sample schematic connection for some ICs. All drawings are placed in the section 16. Column 8 (“St”) “Style” (upercase placement of the SMD-code and additional infomation drawing). All styles are placed in the section 15. Column 9 (“Mnf”) The names of the manufacturer are abbreviated to save space. The complete name, logos, and URL of each manufacurer is listed alphabetically on section 19.

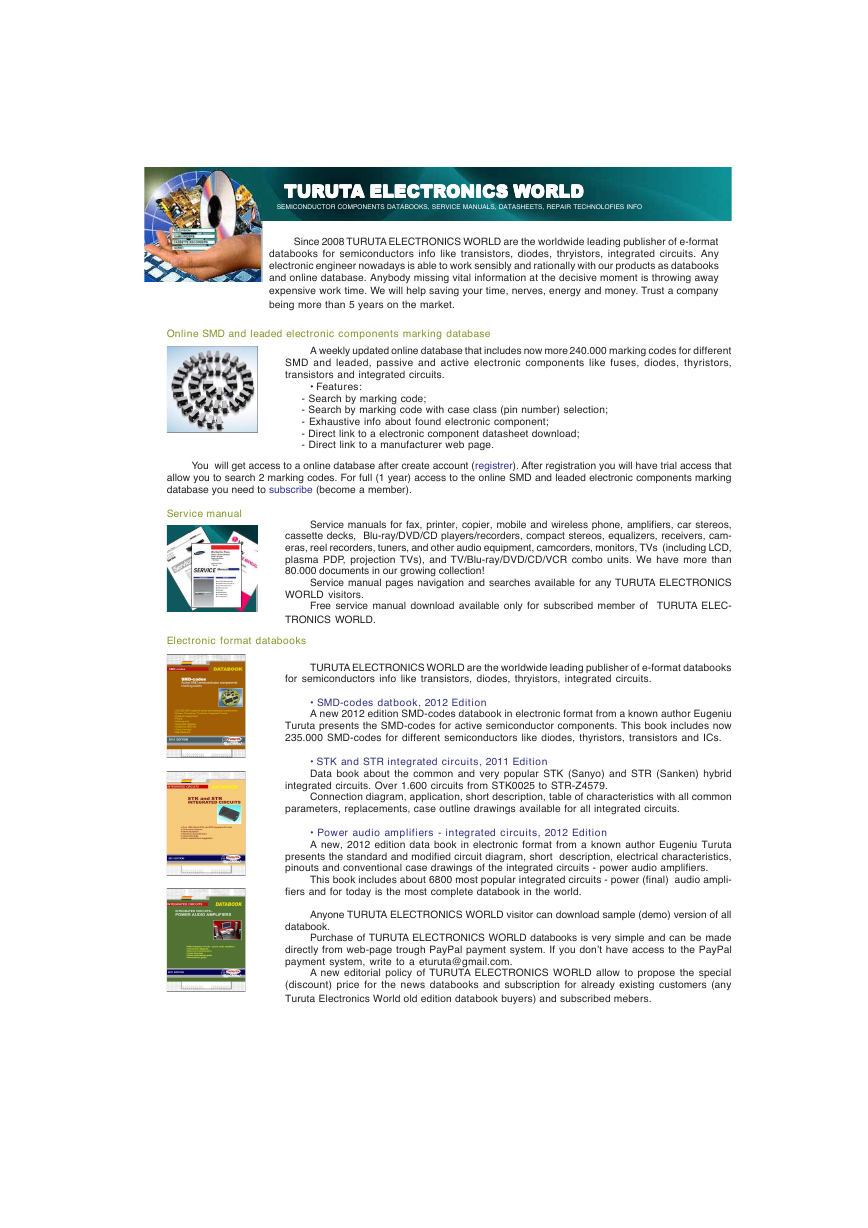

    TURTURTURTURTURUTUTUTUTUTA ELECTR A ELECTR A ELECTR ONICS ONICS ONICS WWWWWORLDORLDORLDORLDORLD A ELECTRONICS ONICS A ELECTR SEMICONDUCTOR COMPONENTS DATABOOKS, SERVICE MANUALS, DATASHEETS, REPAIR TECHNOLOFIES INFO Since 2008 TURUTA ELECTRONICS WORLD are the worldwide leading publisher of e-format databooks for semiconductors info like transistors, diodes, thryistors, integrated circuits. Any electronic engineer nowadays is able to work sensibly and rationally with our products as databooks and online database. Anybody missing vital information at the decisive moment is throwing away expensive work time. We will help saving your time, nerves, energy and money. Trust a company being more than 5 years on the market. Online SMD and leaded electronic components marking database A weekly updated online database that includes now more 240.000 marking codes for different SMD and leaded, passive and active electronic components like fuses, diodes, thyristors, transistors and integrated circuits. • Features: - Search by marking code; - Search by marking code with case class (pin number) selection; - Exhaustive info about found electronic component; - Direct link to a electronic component datasheet download; - Direct link to a manufacturer web page. You will get access to a online database after create account (registrer). After registration you will have trial access that allow you to search 2 marking codes. For full (1 year) access to the online SMD and leaded electronic components marking database you need to subscribe (become a member). Service manual Service manuals for fax, printer, copier, mobile and wireless phone, amplifiers, car stereos, cassette decks, Blu-ray/DVD/CD players/recorders, compact stereos, equalizers, receivers, cam- eras, reel recorders, tuners, and other audio equipment, camcorders, monitors, TVs (including LCD, plasma PDP, projection TVs), and TV/Blu-ray/DVD/CD/VCR combo units. We have more than 80.000 documents in our growing collection! Service manual pages navigation and searches available for any TURUTA ELECTRONICS WORLD visitors. Free service manual download available only for subscribed member of TURUTA ELEC- TRONICS WORLD. Electronic format databooks TURUTA ELECTRONICS WORLD are the worldwide leading publisher of e-format databooks for semiconductors info like transistors, diodes, thryistors, integrated circuits. • SMD-codes datbook, 2012 Edition A new 2012 edition SMD-codes databook in electronic format from a known author Eugeniu Turuta presents the SMD-codes for active semiconductor components. This book includes now 235.000 SMD-codes for different semiconductors like diodes, thyristors, transistors and ICs. • STK and STR integrated circuits, 2011 Edition Data book about the common and very popular STK (Sanyo) and STR (Sanken) hybrid integrated circuits. Over 1.600 circuits from STK0025 to STR-Z4579. Connection diagram, application, short description, table of characteristics with all common parameters, replacements, case outline drawings available for all integrated circuits. • Power audio amplifiers - integrated circuits, 2012 Edition A new, 2012 edition data book in electronic format from a known author Eugeniu Turuta presents the standard and modified circuit diagram, short description, electrical characteristics, pinouts and conventional case drawings of the integrated circuits - power audio amplifiers. This book includes about 6800 most popular integrated circuits - power (final) audio ampli- fiers and for today is the most complete databook in the world. Anyone TURUTA ELECTRONICS WORLD visitor can download sample (demo) version of all databook. Purchase of TURUTA ELECTRONICS WORLD databooks is very simple and can be made directly from web-page trough PayPal payment system. If you don’t have access to the PayPal payment system, write to a eturuta@gmail.com. A new editorial policy of TURUTA ELECTRONICS WORLD allow to propose the special (discount) price for the news databooks and subscription for already existing customers (any Turuta Electronics World old edition databook buyers) and subscribed mebers.

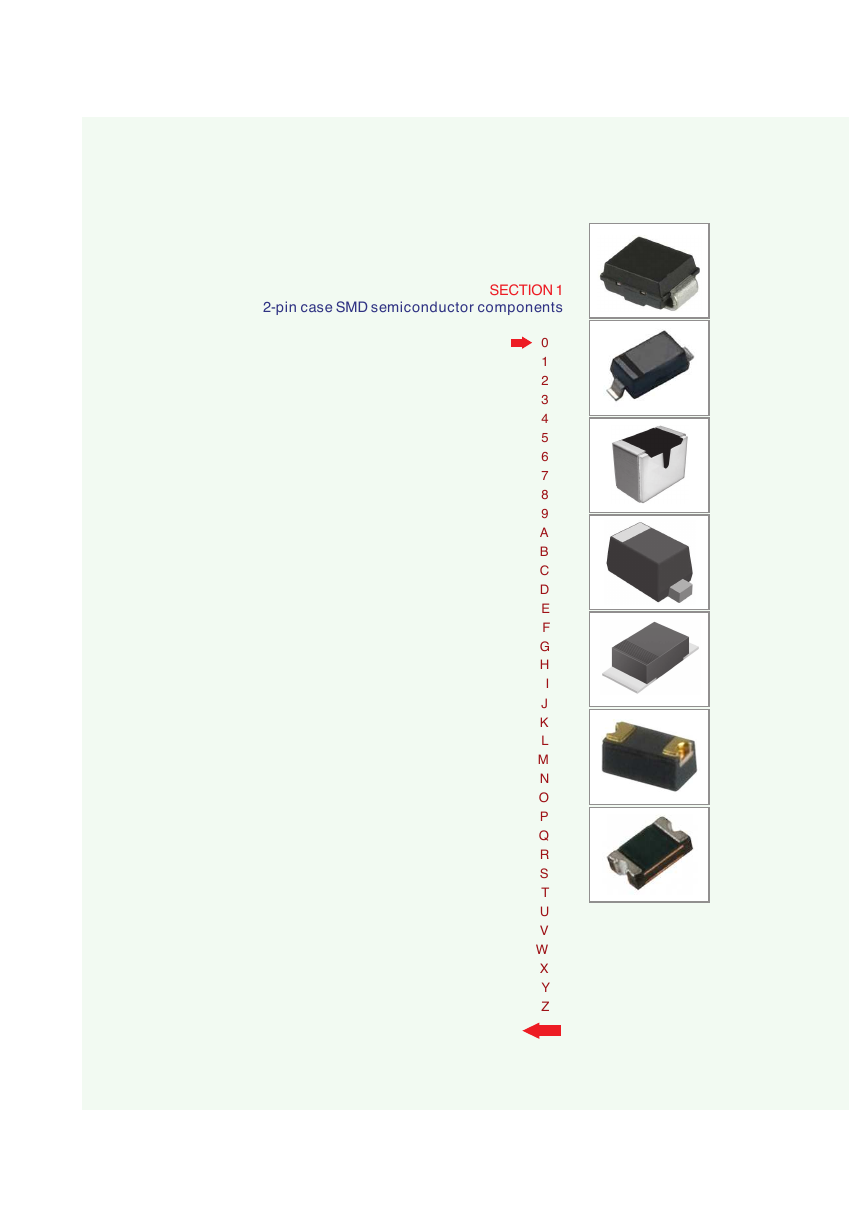

    SECTION 1 2-pin case SMD semiconductor components 2 - p n s i 0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

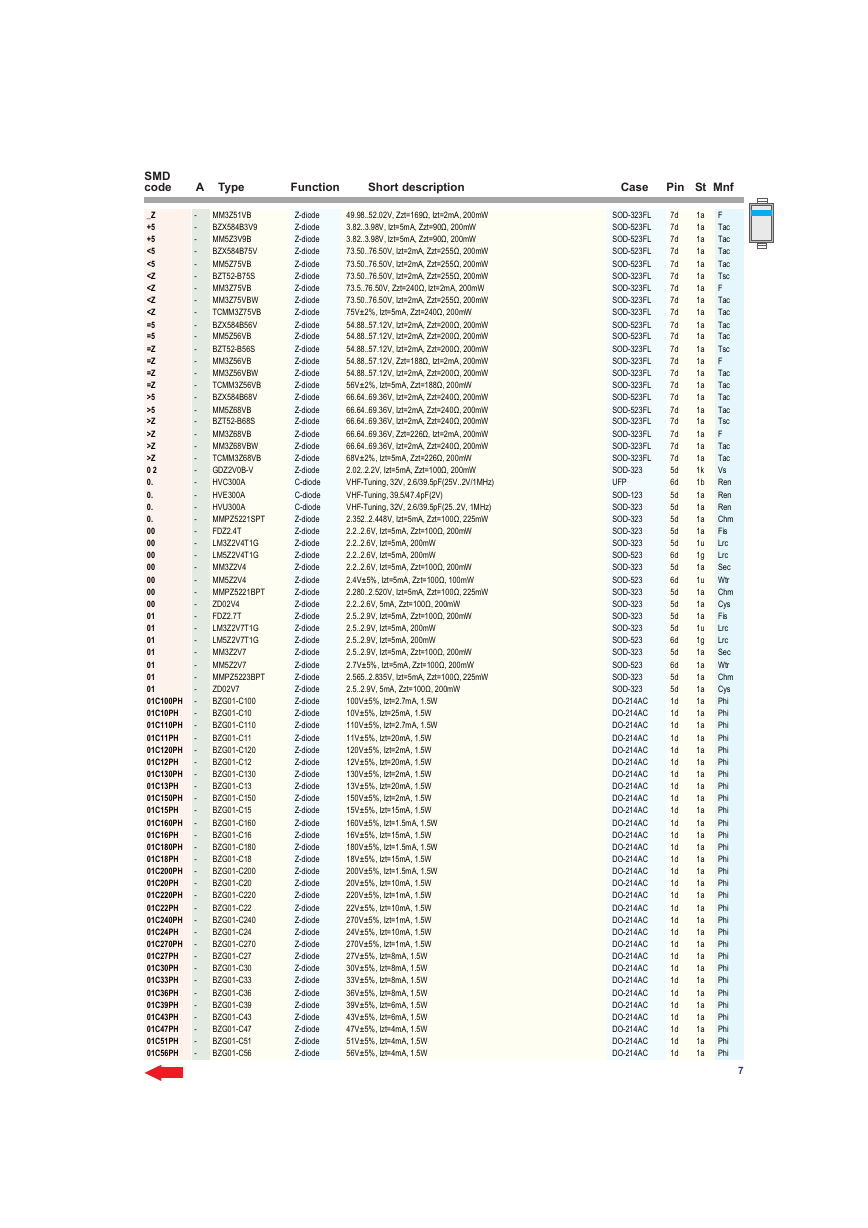

    SMD code A Type Function Short description Case Pin St Mnf _Z +5 +5 <5 <5 5 >5 >Z >Z >Z >Z 0 2 0. 0. 0. 0. 00 00 00 00 00 00 00 01 01 01 01 01 01 01 01C100PH 01C10PH 01C110PH 01C11PH 01C120PH 01C12PH 01C130PH 01C13PH 01C150PH 01C15PH 01C160PH 01C16PH 01C180PH 01C18PH 01C200PH 01C20PH 01C220PH 01C22PH 01C240PH 01C24PH 01C270PH 01C27PH 01C30PH 01C33PH 01C36PH 01C39PH 01C43PH 01C47PH 01C51PH 01C56PH - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - MM3Z51VB BZX584B3V9 MM5Z3V9B BZX584B75V MM5Z75VB BZT52-B75S MM3Z75VB MM3Z75VBW TCMM3Z75VB BZX584B56V MM5Z56VB BZT52-B56S MM3Z56VB MM3Z56VBW TCMM3Z56VB BZX584B68V MM5Z68VB BZT52-B68S MM3Z68VB MM3Z68VBW TCMM3Z68VB GDZ2V0B-V HVC300A HVE300A HVU300A MMPZ5221SPT FDZ2.4T LM3Z2V4T1G LM5Z2V4T1G MM3Z2V4 MM5Z2V4 MMPZ5221BPT ZD02V4 FDZ2.7T LM3Z2V7T1G LM5Z2V7T1G MM3Z2V7 MM5Z2V7 MMPZ5223BPT ZD02V7 BZG01-C100 BZG01-C10 BZG01-C110 BZG01-C11 BZG01-C120 BZG01-C12 BZG01-C130 BZG01-C13 BZG01-C150 BZG01-C15 BZG01-C160 BZG01-C16 BZG01-C180 BZG01-C18 BZG01-C200 BZG01-C20 BZG01-C220 BZG01-C22 BZG01-C240 BZG01-C24 BZG01-C270 BZG01-C27 BZG01-C30 BZG01-C33 BZG01-C36 BZG01-C39 BZG01-C43 BZG01-C47 BZG01-C51 BZG01-C56 Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode C-diode C-diode C-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode 49.98..52.02V, Zzt=169Ω, Izt=2mA, 200mW 3.82..3.98V, Izt=5mA, Zzt=90Ω, 200mW 3.82..3.98V, Izt=5mA, Zzt=90Ω, 200mW 73.50..76.50V, Izt=2mA, Zzt=255Ω, 200mW 73.50..76.50V, Izt=2mA, Zzt=255Ω, 200mW 73.50..76.50V, Izt=2mA, Zzt=255Ω, 200mW 73.5..76.50V, Zzt=240Ω, Izt=2mA, 200mW 73.50..76.50V, Izt=2mA, Zzt=255Ω, 200mW 75V±2%, Izt=5mA, Zzt=240Ω, 200mW 54.88..57.12V, Izt=2mA, Zzt=200Ω, 200mW 54.88..57.12V, Izt=2mA, Zzt=200Ω, 200mW 54.88..57.12V, Izt=2mA, Zzt=200Ω, 200mW 54.88..57.12V, Zzt=188Ω, Izt=2mA, 200mW 54.88..57.12V, Izt=2mA, Zzt=200Ω, 200mW 56V±2%, Izt=5mA, Zzt=188Ω, 200mW 66.64..69.36V, Izt=2mA, Zzt=240Ω, 200mW 66.64..69.36V, Izt=2mA, Zzt=240Ω, 200mW 66.64..69.36V, Izt=2mA, Zzt=240Ω, 200mW 66.64..69.36V, Zzt=226Ω, Izt=2mA, 200mW 66.64..69.36V, Izt=2mA, Zzt=240Ω, 200mW 68V±2%, Izt=5mA, Zzt=226Ω, 200mW 2.02..2.2V, Izt=5mA, Zzt=100Ω, 200mW VHF-Tuning, 32V, 2.6/39.5pF(25V..2V/1MHz) VHF-Tuning, 39.5/47.4pF(2V) VHF-Tuning, 32V, 2.6/39.5pF(25..2V, 1MHz) 2.352..2.448V, Izt=5mA, Zzt=100Ω, 225mW 2.2..2.6V, Izt=5mA, Zzt=100Ω, 200mW 2.2..2.6V, Izt=5mA, 200mW 2.2..2.6V, Izt=5mA, 200mW 2.2..2.6V, Izt=5mA, Zzt=100Ω, 200mW 2.4V±5%, Izt=5mA, Zzt=100Ω, 100mW 2.280..2.520V, Izt=5mA, Zzt=100Ω, 225mW 2.2..2.6V, 5mA, Zzt=100Ω, 200mW 2.5..2.9V, Izt=5mA, Zzt=100Ω, 200mW 2.5..2.9V, Izt=5mA, 200mW 2.5..2.9V, Izt=5mA, 200mW 2.5..2.9V, Izt=5mA, Zzt=100Ω, 200mW 2.7V±5%, Izt=5mA, Zzt=100Ω, 200mW 2.565..2.835V, Izt=5mA, Zzt=100Ω, 225mW 2.5..2.9V, 5mA, Zzt=100Ω, 200mW 100V±5%, Izt=2.7mA, 1.5W 10V±5%, Izt=25mA, 1.5W 110V±5%, Izt=2.7mA, 1.5W 11V±5%, Izt=20mA, 1.5W 120V±5%, Izt=2mA, 1.5W 12V±5%, Izt=20mA, 1.5W 130V±5%, Izt=2mA, 1.5W 13V±5%, Izt=20mA, 1.5W 150V±5%, Izt=2mA, 1.5W 15V±5%, Izt=15mA, 1.5W 160V±5%, Izt=1.5mA, 1.5W 16V±5%, Izt=15mA, 1.5W 180V±5%, Izt=1.5mA, 1.5W 18V±5%, Izt=15mA, 1.5W 200V±5%, Izt=1.5mA, 1.5W 20V±5%, Izt=10mA, 1.5W 220V±5%, Izt=1mA, 1.5W 22V±5%, Izt=10mA, 1.5W 270V±5%, Izt=1mA, 1.5W 24V±5%, Izt=10mA, 1.5W 270V±5%, Izt=1mA, 1.5W 27V±5%, Izt=8mA, 1.5W 30V±5%, Izt=8mA, 1.5W 33V±5%, Izt=8mA, 1.5W 36V±5%, Izt=8mA, 1.5W 39V±5%, Izt=6mA, 1.5W 43V±5%, Izt=6mA, 1.5W 47V±5%, Izt=4mA, 1.5W 51V±5%, Izt=4mA, 1.5W 56V±5%, Izt=4mA, 1.5W SOD-323FL SOD-523FL SOD-523FL SOD-523FL SOD-523FL SOD-323FL SOD-323FL SOD-323FL SOD-323FL SOD-523FL SOD-523FL SOD-323FL SOD-323FL SOD-323FL SOD-323FL SOD-523FL SOD-523FL SOD-323FL SOD-323FL SOD-323FL SOD-323FL SOD-323 UFP SOD-123 SOD-323 SOD-323 SOD-323 SOD-323 SOD-523 SOD-323 SOD-523 SOD-323 SOD-323 SOD-323 SOD-323 SOD-523 SOD-323 SOD-523 SOD-323 SOD-323 DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC 7d 7d 7d 7d 7d 7d 7d 7d 7d 7d 7d 7d 7d 7d 7d 7d 7d 7d 7d 7d 7d 5d 6d 5d 5d 5d 5d 5d 6d 5d 6d 5d 5d 5d 5d 6d 5d 6d 5d 5d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d F 1a Tac 1a Tac 1a Tac 1a Tac 1a Tsc 1a F 1a Tac 1a Tac 1a Tac 1a Tac 1a Tsc 1a F 1a Tac 1a Tac 1a Tac 1a Tac 1a Tsc 1a F 1a Tac 1a Tac 1a Vs 1k Ren 1b Ren 1a Ren 1a Chm 1a Fis 1a Lrc 1u Lrc 1g 1a Sec 1u Wtr Chm 1a Cys 1a Fis 1a Lrc 1u Lrc 1g 1a Sec 1a Wtr 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a 1a Chm Cys Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi Phi 7
    SMD code A Type Function Short description Case Pin St Mnf 01C62PH 01C68PH 01C75PH 01C82PH 01C91PH 02 02 02 02 02 02 02 02 02 02 02 0391PH 03C100PH 03C10PH 03C110PH 03C11PH 03C120PH 03C12PH 03C130PH 03C13PH 03C150PH 03C15PH 03C160PH 03C16PH 03C180PH 03C18PH 03C200PH 03C20PH 03C220PH 03C22PH 03C240PH 03C24PH 03C270PH 03C27PH 03C30PH 03C33PH 03C36PH 03C39PH 03C43PH 03C47PH 03C51PH 03C56PH 03C62PH 03C68PH 03C75PH 03C82PH 0410 04100 04100PH 0410PH 0411 04110 04110PH 0411PH 0412 04120 04120PH 0412PH 0413 04130 04130PH 0413PH 0415 04150 04150PH - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - BZG01-C62 BZG01-C68 BZG01-C75 BZG01-C82 BZG01-C91 FDZ2.0VT FDZ3.0T LBZT52B2V0T1G LM3Z3V0T1G LM5Z3V0T1G LUDZS2.0BT1G MM3Z3V0 MM5Z3V0 MMPZ5225BPT UDZS2.0B ZD03V0 BZG03-C91 BZG03-C100 BZG03-C10 BZG03-C110 BZG03-C11 BZG03-C120 BZG03-C12 BZG03-C130 BZG03-C13 BZG03-C150 BZG03-C15 BZG03-C160 BZG03-C16 BZG03-C180 BZG03-C18 BZG03-C200 BZG03-C20 BZG03-C220 BZG03-C22 BZG03-C240 BZG03-C24 BZG03-C270 BZG03-C27 BZG03-C30 BZG03-C33 BZG03-C36 BZG03-C39 BZG03-C43 BZG03-C47 BZG03-C51 BZG03-C56 BZG03-C62 BZG03-C68 BZG03-C75 BZG03-C82 BZG04-10 BZG04-100 BZG04-100 BZG04-10 BZG04-11 BZG04-110 BZG04-110 BZG04-11 BZG04-12 BZG04-120 BZG04-120 BZG04-12 BZG04-13 BZG04-130 BZG04-130 BZG04-13 BZG04-15 BZG04-150 BZG04-150 Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode Z-diode TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS 62V±5%, Izt=4mA, 1.5W 68V±5%, Izt=4mA, 1.5W 75V±5%, Izt=4mA, 1.5W 82V±5%, Izt=2.7mA, 1.5W 91V±5%, Izt=2.7mA, 1.5W 2.020..2.200V, Izt=5mA, Zzt=100Ω, 200mW 2.8..3.2V, Izt=5mA, Zzt=100Ω, 200mW 2.02..2.2V, Izt=5mA, 500mW 2.8..3.2V, Izt=5mA, 200mW 2.8..3.2V, Izt=5mA, 200mW 2.02..2.2V, Izt=5mA, 200mW 2.8..3.2V, Izt=5mA, Zzt=95Ω, 200mW 3.0V±5%, Izt=5mA, Zzt=100Ω, 200mW 2.850..3.150V, Izt=5mA, Zzt=95Ω, 225mW 2.02..2.20V, Izt=5mA, Zzt=100Ω, 200mW 2.8..3.2V, 5mA, Zzt=100Ω, 200mW 91V±5%, Izt=5mA, Zzt=60Ω, 1.25W 100V±5%, Izt=5mA, Zzt=60Ω, 1.25W 10V±5%, Izt=50mA, Zzt=2Ω, 1.25W 110V±5%, Izt=5mA, Zzt=80Ω, 1.25W 11V±5%, Izt=50mA, Zzt=4Ω, 1.25W 120V±5%, Izt=5mA, Zzt=80Ω, 1.25W 12V±5%, Izt=50mA, Zzt=4Ω, 1.25W 130V±5%, Izt=5mA, Zzt=110Ω, 1.25W 13V±5%, Izt=50mA, Zzt=5Ω, 1.25W 150V±5%, Izt=5mA, Zzt=130Ω, 1.25W 15V±5%, Izt=50mA, Zzt=5Ω, 1.25W 160V±5%, Izt=5mA, Zzt=150Ω, 1.25W 16V±5%, Izt=25mA, Zzt=6Ω, 1.25W 180V±5%, Izt=5mA, Zzt=180Ω, 1.25W 18V±5%, Izt=25mA, Zzt=6Ω, 1.25W 200V±5%, Izt=5mA, Zzt=200Ω, 1.25W 20V±5%, Izt=25mA, Zzt=6Ω, 1.25W 220V±5%, Izt=2mA, Zzt=350Ω, 1.25W 22V±5%, Izt=25mA, Zzt=6Ω, 1.25W 270V±5%, Izt=2mA, Zzt=400Ω, 1.25W 24V±5%, Izt=25mA, Zzt=7Ω, 1.25W 270V±5%, Izt=2mA, Zzt=450Ω, 1.25W 27V±5%, Izt=25mA, Zzt=7Ω, 1.25W 30V±5%, Izt=25mA, Zzt=8Ω, 1.25W 33V±5%, Izt=25mA, Zzt=8Ω, 1.25W 36V±5%, Izt=10mA, Zzt=21Ω, 1.25W 39V±5%, Izt=10mA, Zzt=21Ω, 1.25W 43V±5%, Izt=10mA, Zzt=24Ω, 1.25W 47V±5%, Izt=10mA, Zzt=24Ω, 1.25W 51V±5%, Izt=10mA, Zzt=25Ω, 1.25W 56V±5%, Izt=10mA, Zzt=25Ω, 1.25W 62V±5%, Izt=10mA, Zzt=25Ω, 1.25W 68V±5%, Izt=10mA, Zzt=25Ω, 1.25W 75V±5%, Izt=10mA, Zzt=30Ω, 1.25W 82V±5%, Izt=10mA, Zzt=30Ω, 1.25W Vrwm=10V, 17.7A, 300W(10/1000µs) Vrwm=100V, 1.8A, 300W(10/1000µs) Vrwm=100V, 1.8A, 300W(10/1000µs) Vrwm=10V, 17.7A, 300W(10/1000µs) Vrwm=11V, 15.9A, 300W(10/1000µs) Vrwm=110V, 1.6A, 300W(10/1000µs) Vrwm=110V, 1.6A, 300W(10/1000µs) Vrwm=11V, 15.9A, 300W(10/1000µs) Vrwm=12V, 14.4A, 300W(10/1000µs) Vrwm=120V, 1.5A, 300W(10/1000µs) Vrwm=120V, 1.5A, 300W(10/1000µs) Vrwm=12V, 14.4A, 300W(10/1000µs) Vrwm=13V, 13.1A, 300W(10/1000µs) Vrwm=130V, 1.3A, 300W(10/1000µs) Vrwm=130V, 1.3A, 300W(10/1000µs) Vrwm=13V, 13.1A, 300W(10/1000µs) Vrwm=15V, 11.7A, 300W(10/1000µs) Vrwm=150V, 1.2A, 300W(10/1000µs) Vrwm=150V, 1.2A, 300W(10/1000µs) DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC SOD-323 SOD-323 SOD-123 SOD-323 SOD-523 SOD-323 SOD-323 SOD-523 SOD-323 SOD-323 SOD-323 DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC 1d 1d 1d 1d 1d 5d 5d 5d 5d 6d 5d 5d 6d 5d 5d 5d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d 1d Chm Phi 1a Phi 1a Phi 1a Phi 1a Phi 1a Fis 1a Fis 1a Lrc 1u Lrc 1u Lrc 1g Lrc 1u 1a Sec 1u Wtr 1a 1a Wtr Cys 1a 1a Phi Phi 1a Phi 1a Phi 1a Phi 1a Phi 1a 1a Phi Phi 1a Phi 1a Phi 1a Phi 1a Phi 1a 1a Phi Phi 1a Phi 1a Phi 1a Phi 1a Phi 1a 1a Phi Phi 1a Phi 1a Phi 1a Phi 1a Phi 1a 1a Phi Phi 1a Phi 1a Phi 1a Phi 1a Phi 1a 1a Phi Phi 1a Phi 1a Phi 1a Phi 1a Sil 1a 1a Sil Phi 1a Phi 1a Sil 1a Sil 1a Phi 1a 1a Phi Sil 1a Sil 1a Phi 1a Phi 1a Sil 1a 1a Sil Phi 1a Phi 1a Sil 1a Sil 1a 1a Phi 8
