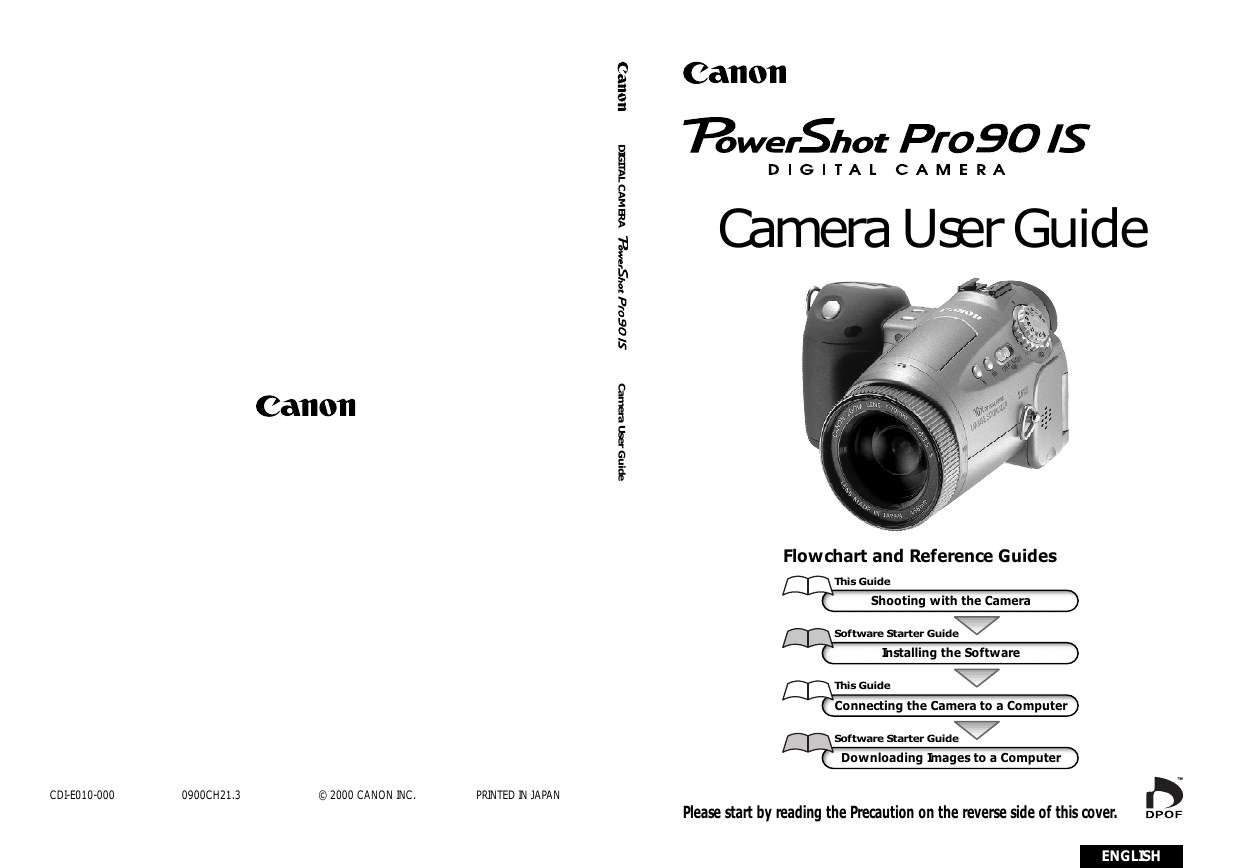

I I D G T A L C A M E R A C a m e r a U s e r G u d e i Camera User Guide Flowchart and Reference Guides This Guide Shooting with the Camera Software Starter Guide Installing the Software This Guide Connecting the Camera to a Computer Software Starter Guide Downloading Images to a Computer CDI-E010-000 0900CH21.3 © 2000 CANON INC. PRINTED IN JAPAN Please start by reading the Precaution on the reverse side of this cover. ENGLISH

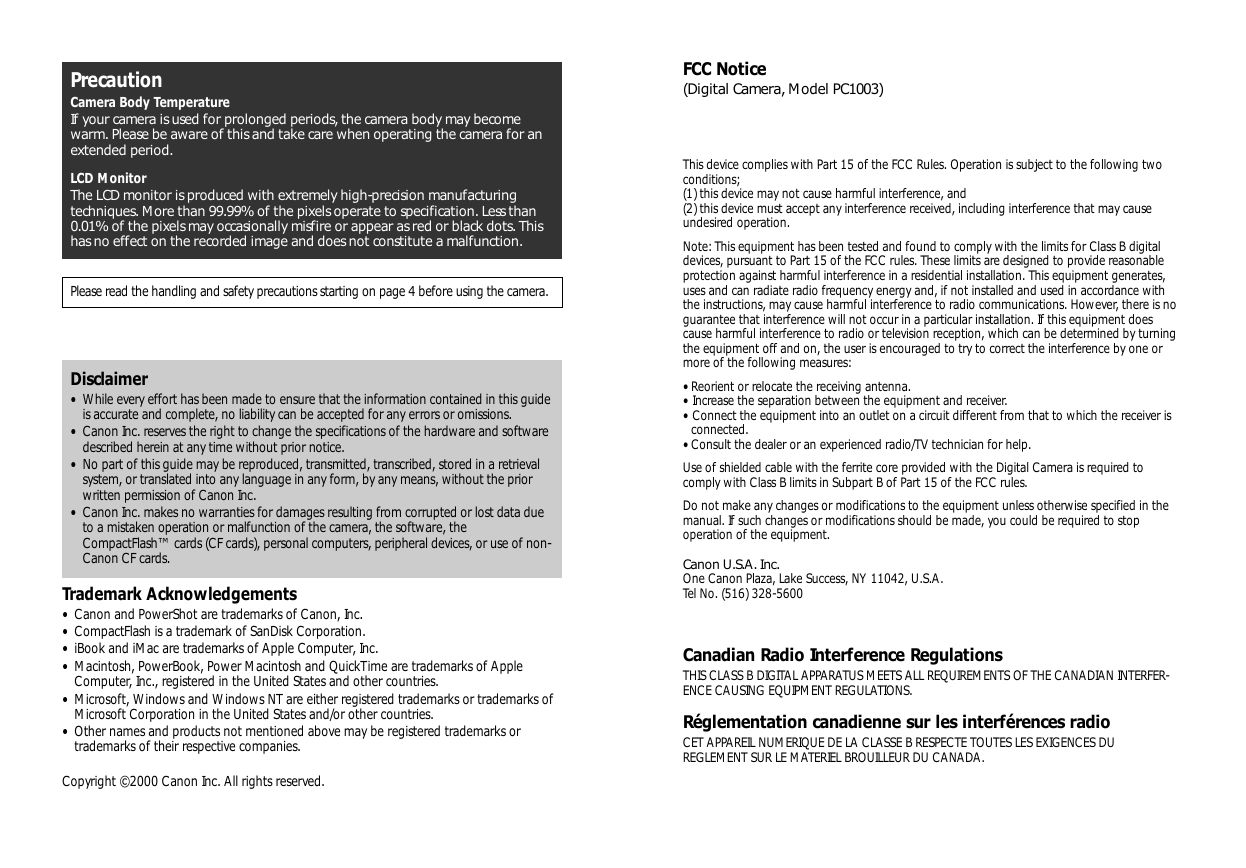

Precaution Camera Body Temperature If your camera is used for prolonged periods, the camera body may become warm. Please be aware of this and take care when operating the camera for an extended period. LCD Monitor The LCD monitor is produced with extremely high-precision manufacturing techniques. More than 99.99% of the pixels operate to specification. Less than 0.01% of the pixels may occasionally misfire or appear as red or black dots. This has no effect on the recorded image and does not constitute a malfunction. Please read the handling and safety precautions starting on page 4 before using the camera. Disclaimer • While every effort has been made to ensure that the information contained in this guide is accurate and complete, no liability can be accepted for any errors or omissions. • Canon Inc. reserves the right to change the specifications of the hardware and software described herein at any time without prior notice. • No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form, by any means, without the prior written permission of Canon Inc. • Canon Inc. makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the camera, the software, the CompactFlash™ cards (CF cards), personal computers, peripheral devices, or use of non- Canon CF cards. Trademark Acknowledgements • Canon and PowerShot are trademarks of Canon, Inc. • CompactFlash is a trademark of SanDisk Corporation. • iBook and iMac are trademarks of Apple Computer, Inc. • Macintosh, PowerBook, Power Macintosh and QuickTime are trademarks of Apple Computer, Inc., registered in the United States and other countries. • Microsoft, Windows and Windows NT are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. • Other names and products not mentioned above may be registered trademarks or trademarks of their respective companies. Copyright ©2000 Canon Inc. All rights reserved. FCC Notice (Digital Camera, Model PC1003) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Use of shielded cable with the ferrite core provided with the Digital Camera is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules. Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. Canon U.S.A. Inc. One Canon Plaza, Lake Success, NY 11042, U.S.A. Tel No. (516) 328-5600 Canadian Radio Interference Regulations THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFER- ENCE CAUSING EQUIPMENT REGULATIONS. Réglementation canadienne sur les interférences radio CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.

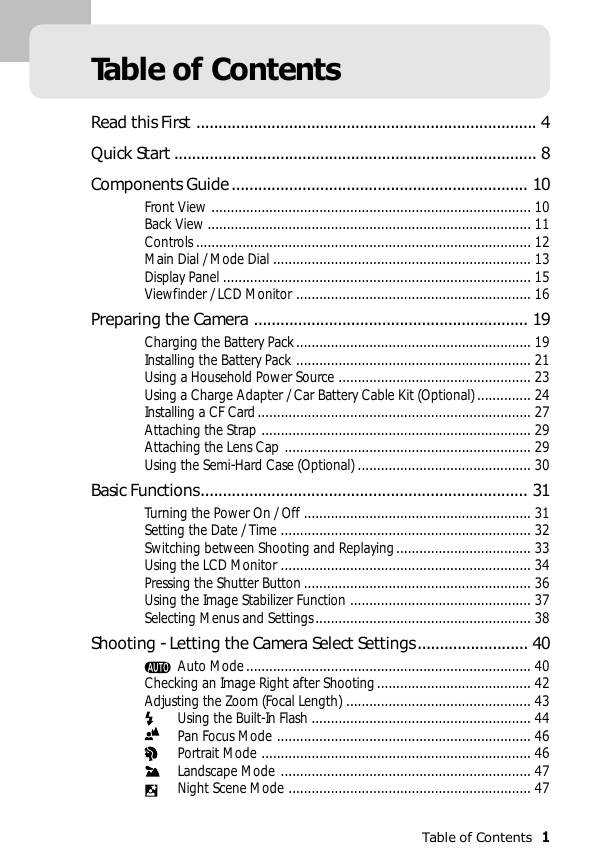

Table of Contents Read this First ............................................................................. 4 Quick Start .................................................................................. 8 Components Guide................................................................... 10 Front View ................................................................................... 10 Back View .................................................................................... 11 Controls ....................................................................................... 12 Main Dial / Mode Dial ................................................................... 13 Display Panel ................................................................................ 15 Viewfinder / LCD Monitor ............................................................. 16 Preparing the Camera .............................................................. 19 Charging the Battery Pack ............................................................. 19 Installing the Battery Pack ............................................................. 21 Using a Household Power Source .................................................. 23 Using a Charge Adapter / Car Battery Cable Kit (Optional) .............. 24 Installing a CF Card ....................................................................... 27 Attaching the Strap ...................................................................... 29 Attaching the Lens Cap ................................................................ 29 Using the Semi-Hard Case (Optional) ............................................. 30 Basic Functions.......................................................................... 31 Turning the Power On / Off ........................................................... 31 Setting the Date / Time ................................................................. 32 Switching between Shooting and Replaying ................................... 33 Using the LCD Monitor ................................................................. 34 Pressing the Shutter Button ........................................................... 36 Using the Image Stabilizer Function ............................................... 37 Selecting Menus and Settings........................................................ 38 Shooting - Letting the Camera Select Settings ......................... 40 Auto Mode .......................................................................... 40 Checking an Image Right after Shooting ........................................ 42 Adjusting the Zoom (Focal Length) ................................................ 43 Using the Built-In Flash ......................................................... 44 Pan Focus Mode .................................................................. 46 Portrait Mode ...................................................................... 46 Landscape Mode ................................................................. 47 Night Scene Mode ............................................................... 47 Table of Contents 1

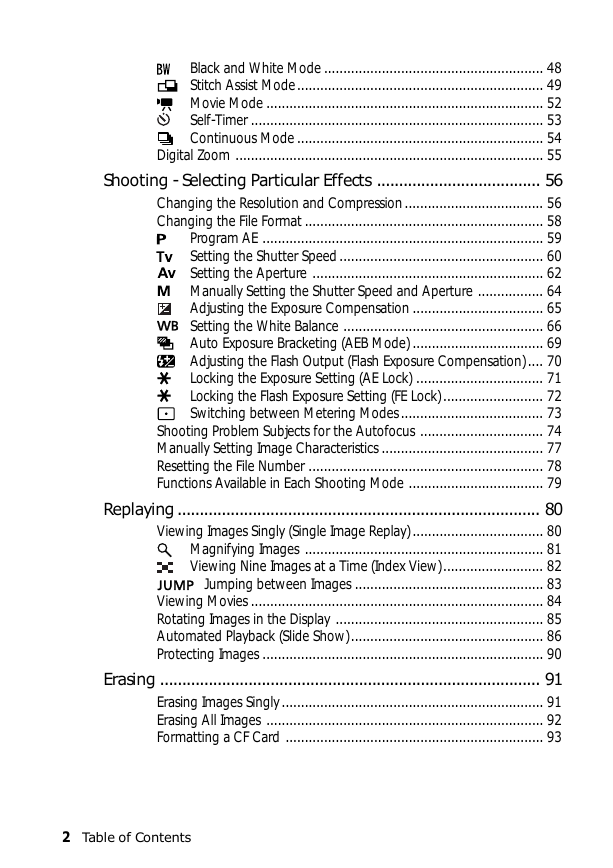

Black and White Mode ......................................................... 48 Stitch Assist Mode................................................................ 49 Movie Mode ........................................................................ 52 Self-Timer ............................................................................ 53 Continuous Mode ................................................................ 54 Digital Zoom ................................................................................ 55 Shooting - Selecting Particular Effects ..................................... 56 Changing the Resolution and Compression .................................... 56 Changing the File Format .............................................................. 58 Program AE ......................................................................... 59 Setting the Shutter Speed ..................................................... 60 Setting the Aperture ............................................................ 62 Manually Setting the Shutter Speed and Aperture ................. 64 Adjusting the Exposure Compensation .................................. 65 Setting the White Balance .................................................... 66 Auto Exposure Bracketing (AEB Mode) .................................. 69 Adjusting the Flash Output (Flash Exposure Compensation) .... 70 Locking the Exposure Setting (AE Lock) ................................. 71 Locking the Flash Exposure Setting (FE Lock) .......................... 72 Switching between Metering Modes ..................................... 73 Shooting Problem Subjects for the Autofocus ................................ 74 Manually Setting Image Characteristics .......................................... 77 Resetting the File Number ............................................................. 78 Functions Available in Each Shooting Mode ................................... 79 Replaying .................................................................................. 80 Viewing Images Singly (Single Image Replay) .................................. 80 Magnifying Images .............................................................. 81 Viewing Nine Images at a Time (Index View) .......................... 82 Jumping between Images ................................................. 83 Viewing Movies ............................................................................ 84 Rotating Images in the Display ...................................................... 85 Automated Playback (Slide Show) .................................................. 86 Protecting Images ......................................................................... 90 Erasing ...................................................................................... 91 Erasing Images Singly .................................................................... 91 Erasing All Images ........................................................................ 92 Formatting a CF Card ................................................................... 93 2 Table of Contents

Print Settings (DPOF Settings) .................................................. 94 Selecting Images for Printing ......................................................... 94 Setting the Print Style.................................................................... 97 Resetting the Print Settings ........................................................... 99 List of Menu Options .............................................................. 100 Rec. Menu ................................................................................. 100 Play Menu .................................................................................. 102 Set up Menu .............................................................................. 103 Shooting / Replaying with a TV Monitor ................................ 105 Using the Wireless Controller ................................................. 106 Installing the Battery ................................................................... 106 Shooting / Replaying ................................................................... 107 Using an Externally Mounted Flash (Optional) ...................... 108 Using a Lens (Optional) / Lens Hood (Optional) ..................... 110 Attaching a Lens / Lens Hood ...................................................... 111 Downloading Images to a Computer ..................................... 112 Downloading Directly from a CF Card .......................................... 112 Using the Supplied Interface Cables ............................................. 115 Appendices ............................................................................. 121 Replacing the Button Battery ....................................................... 121 Camera Care and Maintenance ................................................... 123 Troubleshooting.......................................................................... 124 List of Error / Message Codes ...................................................... 126 List of Messages ......................................................................... 127 Specifications ............................................................................. 129 Index ....................................................................................... 134 Canon Customer Support ....................................................... 137 Icon Conventions in the Text This mark denotes topics about issues that may affect shooting. This mark denotes additional topics that complement the basic operating procedures. This mark denotes tips about the camera and photography. Table of Contents 3

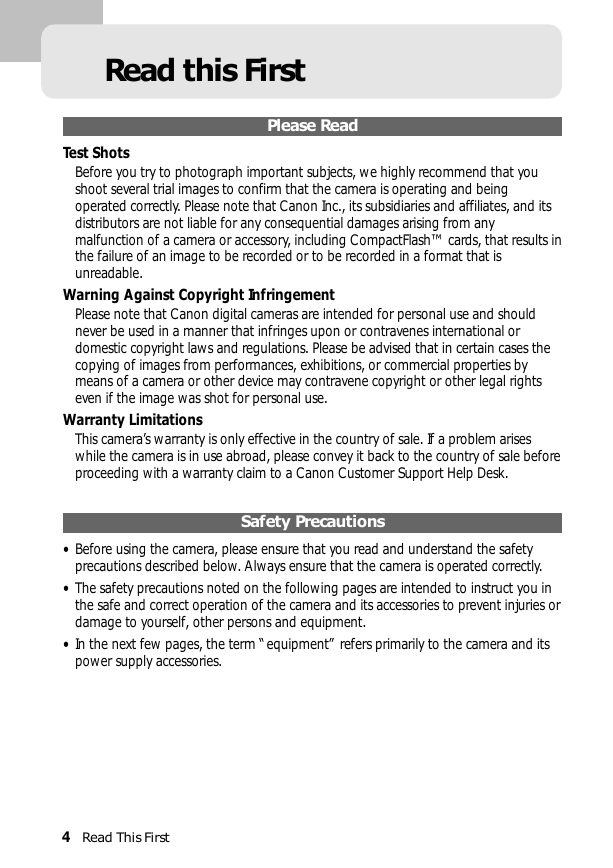

Read this First Please Read Test Shots Before you try to photograph important subjects, we highly recommend that you shoot several trial images to confirm that the camera is operating and being operated correctly. Please note that Canon Inc., its subsidiaries and affiliates, and its distributors are not liable for any consequential damages arising from any malfunction of a camera or accessory, including CompactFlash™ cards, that results in the failure of an image to be recorded or to be recorded in a format that is unreadable. Warning Against Copyright Infringement Please note that Canon digital cameras are intended for personal use and should never be used in a manner that infringes upon or contravenes international or domestic copyright laws and regulations. Please be advised that in certain cases the copying of images from performances, exhibitions, or commercial properties by means of a camera or other device may contravene copyright or other legal rights even if the image was shot for personal use. Warranty Limitations This camera’s warranty is only effective in the country of sale. If a problem arises while the camera is in use abroad, please convey it back to the country of sale before proceeding with a warranty claim to a Canon Customer Support Help Desk. Safety Precautions • Before using the camera, please ensure that you read and understand the safety precautions described below. Always ensure that the camera is operated correctly. • The safety precautions noted on the following pages are intended to instruct you in the safe and correct operation of the camera and its accessories to prevent injuries or damage to yourself, other persons and equipment. • In the next few pages, the term “equipment” refers primarily to the camera and its power supply accessories. 4 Read This First

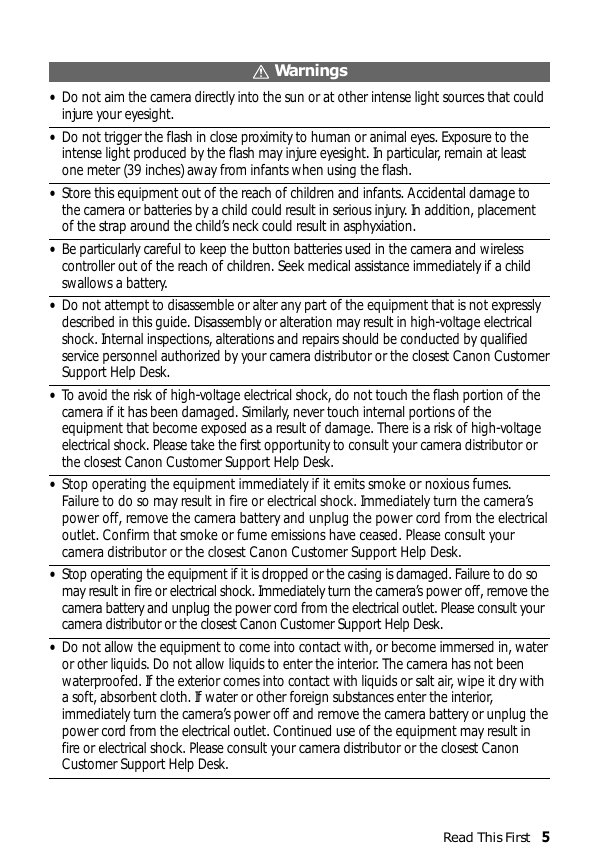

Warnings • Do not aim the camera directly into the sun or at other intense light sources that could injure your eyesight. • Do not trigger the flash in close proximity to human or animal eyes. Exposure to the intense light produced by the flash may injure eyesight. In particular, remain at least one meter (39 inches) away from infants when using the flash. • Store this equipment out of the reach of children and infants. Accidental damage to the camera or batteries by a child could result in serious injury. In addition, placement of the strap around the child’s neck could result in asphyxiation. • Be particularly careful to keep the button batteries used in the camera and wireless controller out of the reach of children. Seek medical assistance immediately if a child swallows a battery. • Do not attempt to disassemble or alter any part of the equipment that is not expressly described in this guide. Disassembly or alteration may result in high-voltage electrical shock. Internal inspections, alterations and repairs should be conducted by qualified service personnel authorized by your camera distributor or the closest Canon Customer Support Help Desk. • To avoid the risk of high-voltage electrical shock, do not touch the flash portion of the camera if it has been damaged. Similarly, never touch internal portions of the equipment that become exposed as a result of damage. There is a risk of high-voltage electrical shock. Please take the first opportunity to consult your camera distributor or the closest Canon Customer Support Help Desk. • Stop operating the equipment immediately if it emits smoke or noxious fumes. Failure to do so may result in fire or electrical shock. Immediately turn the camera’s power off, remove the camera battery and unplug the power cord from the electrical outlet. Confirm that smoke or fume emissions have ceased. Please consult your camera distributor or the closest Canon Customer Support Help Desk. • Stop operating the equipment if it is dropped or the casing is damaged. Failure to do so may result in fire or electrical shock. Immediately turn the camera’s power off, remove the camera battery and unplug the power cord from the electrical outlet. Please consult your camera distributor or the closest Canon Customer Support Help Desk. • Do not allow the equipment to come into contact with, or become immersed in, water or other liquids. Do not allow liquids to enter the interior. The camera has not been waterproofed. If the exterior comes into contact with liquids or salt air, wipe it dry with a soft, absorbent cloth. If water or other foreign substances enter the interior, immediately turn the camera’s power off and remove the camera battery or unplug the power cord from the electrical outlet. Continued use of the equipment may result in fire or electrical shock. Please consult your camera distributor or the closest Canon Customer Support Help Desk. Read This First 5

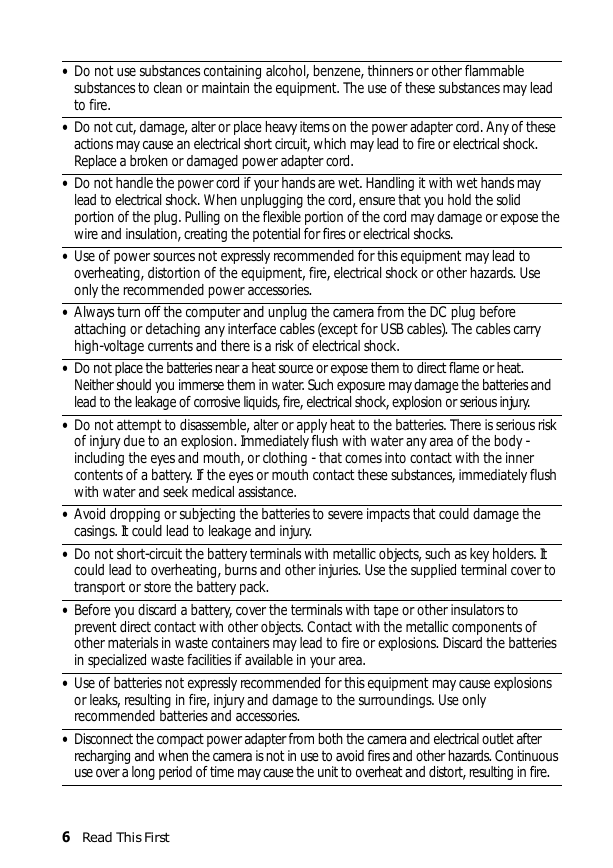

• Do not use substances containing alcohol, benzene, thinners or other flammable substances to clean or maintain the equipment. The use of these substances may lead to fire. • Do not cut, damage, alter or place heavy items on the power adapter cord. Any of these actions may cause an electrical short circuit, which may lead to fire or electrical shock. Replace a broken or damaged power adapter cord. • Do not handle the power cord if your hands are wet. Handling it with wet hands may lead to electrical shock. When unplugging the cord, ensure that you hold the solid portion of the plug. Pulling on the flexible portion of the cord may damage or expose the wire and insulation, creating the potential for fires or electrical shocks. • Use of power sources not expressly recommended for this equipment may lead to overheating, distortion of the equipment, fire, electrical shock or other hazards. Use only the recommended power accessories. • Always turn off the computer and unplug the camera from the DC plug before attaching or detaching any interface cables (except for USB cables). The cables carry high-voltage currents and there is a risk of electrical shock. • Do not place the batteries near a heat source or expose them to direct flame or heat. Neither should you immerse them in water. Such exposure may damage the batteries and lead to the leakage of corrosive liquids, fire, electrical shock, explosion or serious injury. • Do not attempt to disassemble, alter or apply heat to the batteries. There is serious risk of injury due to an explosion. Immediately flush with water any area of the body - including the eyes and mouth, or clothing - that comes into contact with the inner contents of a battery. If the eyes or mouth contact these substances, immediately flush with water and seek medical assistance. • Avoid dropping or subjecting the batteries to severe impacts that could damage the casings. It could lead to leakage and injury. • Do not short-circuit the battery terminals with metallic objects, such as key holders. It could lead to overheating, burns and other injuries. Use the supplied terminal cover to transport or store the battery pack. • Before you discard a battery, cover the terminals with tape or other insulators to prevent direct contact with other objects. Contact with the metallic components of other materials in waste containers may lead to fire or explosions. Discard the batteries in specialized waste facilities if available in your area. • Use of batteries not expressly recommended for this equipment may cause explosions or leaks, resulting in fire, injury and damage to the surroundings. Use only recommended batteries and accessories. • Disconnect the compact power adapter from both the camera and electrical outlet after recharging and when the camera is not in use to avoid fires and other hazards. Continuous use over a long period of time may cause the unit to overheat and distort, resulting in fire. 6 Read This First
