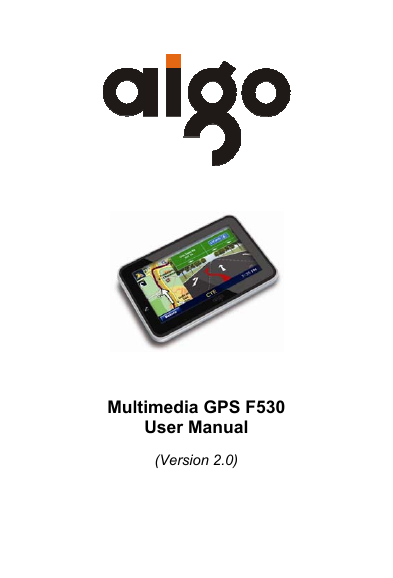

Multimedia GPS F530 User Manual (Version 2.0)

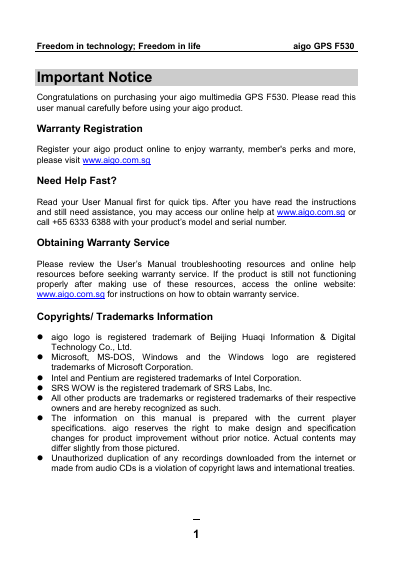

Freedom in technology; Freedom in life aigo GPS F530 Important Notice Congratulations on purchasing your aigo multimedia GPS F530. Please read this user manual carefully before using your aigo product. Warranty Registration Register your aigo product online to enjoy warranty, member's perks and more, please visit www.aigo.com.sg Need Help Fast? Read your User Manual first for quick tips. After you have read the instructions and still need assistance, you may access our online help at www.aigo.com.sg or call +65 6333 6388 with your product’s model and serial number. Obtaining Warranty Service Please review the User’s Manual troubleshooting resources and online help resources before seeking warranty service. If the product is still not functioning properly after making use of these resources, access the online website: www.aigo.com.sg for instructions on how to obtain warranty service. Copyrights/ Trademarks Information aigo logo is registered trademark of Beijing Huaqi Information & Digital Technology Co., Ltd. Microsoft, MS-DOS, Windows and the Windows logo are registered trademarks of Microsoft Corporation. Intel and Pentium are registered trademarks of Intel Corporation. SRS WOW is the registered trademark of SRS Labs, Inc. All other products are trademarks or registered trademarks of their respective owners and are hereby recognized as such. The information on this manual the current player specifications. aigo reserves the right to make design and specification changes for product improvement without prior notice. Actual contents may differ slightly from those pictured. is prepared with Unauthorized duplication of any recordings downloaded from the internet or made from audio CDs is a violation of copyright laws and international treaties. 1

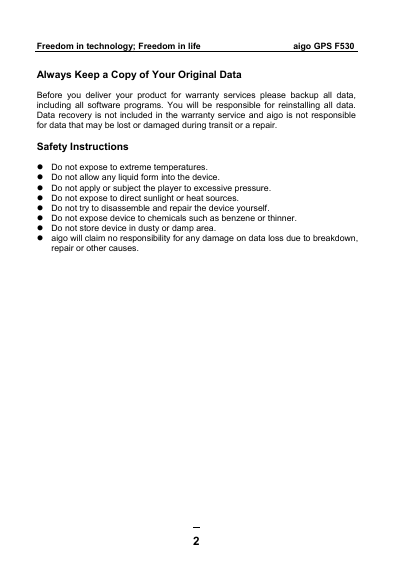

Freedom in technology; Freedom in life aigo GPS F530 Always Keep a Copy of Your Original Data Before you deliver your product for warranty services please backup all data, including all software programs. You will be responsible for reinstalling all data. Data recovery is not included in the warranty service and aigo is not responsible for data that may be lost or damaged during transit or a repair. Safety Instructions Do not expose to extreme temperatures. Do not allow any liquid form into the device. Do not apply or subject the player to excessive pressure. Do not expose to direct sunlight or heat sources. Do not try to disassemble and repair the device yourself. Do not expose device to chemicals such as benzene or thinner. Do not store device in dusty or damp area. aigo will claim no responsibility for any damage on data loss due to breakdown, repair or other causes. 2

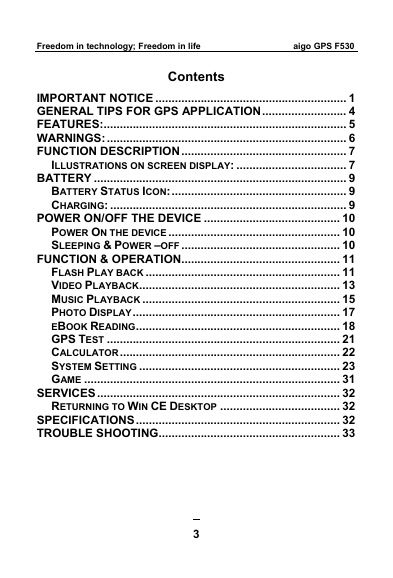

Freedom in technology; Freedom in life aigo GPS F530 Contents IMPORTANT NOTICE ........................................................... 1 GENERAL TIPS FOR GPS APPLICATION.......................... 4 FEATURES:........................................................................... 5 WARNINGS:.......................................................................... 6 FUNCTION DESCRIPTION................................................... 7 ILLUSTRATIONS ON SCREEN DISPLAY: .................................. 7 BATTERY .............................................................................. 9 BATTERY STATUS ICON:...................................................... 9 CHARGING: ......................................................................... 9 POWER ON/OFF THE DEVICE .......................................... 10 POWER ON THE DEVICE ..................................................... 10 SLEEPING & POWER –OFF ................................................. 10 FUNCTION & OPERATION................................................. 11 FLASH PLAY BACK ............................................................ 11 VIDEO PLAYBACK.............................................................. 13 MUSIC PLAYBACK ............................................................. 15 PHOTO DISPLAY................................................................ 17 EBOOK READING............................................................... 18 GPS TEST ........................................................................ 21 CALCULATOR.................................................................... 22 SYSTEM SETTING .............................................................. 23 GAME ............................................................................... 31 SERVICES........................................................................... 32 RETURNING TO WIN CE DESKTOP ..................................... 32 SPECIFICATIONS............................................................... 32 TROUBLE SHOOTING........................................................ 33 3

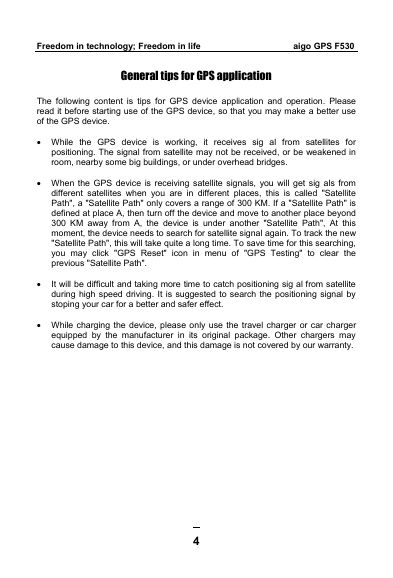

Freedom in technology; Freedom in life aigo GPS F530 General tips for GPS application The following content is tips for GPS device application and operation. Please read it before starting use of the GPS device, so that you may make a better use of the GPS device. • While the GPS device is working, it receives sig al from satellites for positioning. The signal from satellite may not be received, or be weakened in room, nearby some big buildings, or under overhead bridges. • When the GPS device is receiving satellite signals, you will get sig als from different satellites when you are in different places, this is called "Satellite Path", a "Satellite Path" only covers a range of 300 KM. If a "Satellite Path" is defined at place A, then turn off the device and move to another place beyond 300 KM away from A, the device is under another "Satellite Path", At this moment, the device needs to search for satellite signal again. To track the new "Satellite Path", this will take quite a long time. To save time for this searching, you may click "GPS Reset" icon in menu of "GPS Testing" to clear the previous "Satellite Path". It will be difficult and taking more time to catch positioning sig al from satellite during high speed driving. It is suggested to search the positioning signal by stoping your car for a better and safer effect. • While charging the device, please only use the travel charger or car charger equipped by the manufacturer in its original package. Other chargers may cause damage to this device, and this damage is not covered by our warranty. • 4

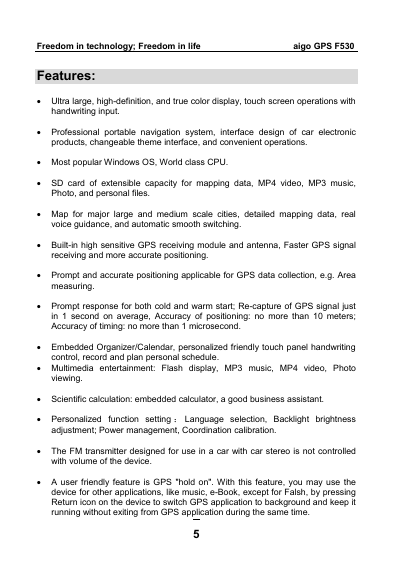

Freedom in technology; Freedom in life aigo GPS F530 Features: • Ultra large, high-definition, and true color display, touch screen operations with handwriting input. • Professional portable navigation system, interface design of car electronic products, changeable theme interface, and convenient operations. • Most popular Windows OS, World class CPU. • SD card of extensible capacity for mapping data, MP4 video, MP3 music, Photo, and personal files. • Map for major large and medium scale cities, detailed mapping data, real voice guidance, and automatic smooth switching. • Built-in high sensitive GPS receiving module and antenna, Faster GPS signal receiving and more accurate positioning. • Prompt and accurate positioning applicable for GPS data collection, e.g. Area measuring. viewing. • Prompt response for both cold and warm start; Re-capture of GPS signal just in 1 second on average, Accuracy of positioning: no more than 10 meters; Accuracy of timing: no more than 1 microsecond. • Embedded Organizer/Calendar, personalized friendly touch panel handwriting control, record and plan personal schedule. • Multimedia entertainment: Flash display, MP3 music, MP4 video, Photo • Scientific calculation: embedded calculator, a good business assistant. • Personalized function setting ： Language selection, Backlight brightness adjustment; Power management, Coordination calibration. • The FM transmitter designed for use in a car with car stereo is not controlled with volume of the device. • A user friendly feature is GPS "hold on". With this feature, you may use the device for other applications, like music, e-Book, except for Falsh, by pressing Return icon on the device to switch GPS application to background and keep it running without exiting from GPS application during the same time. 5

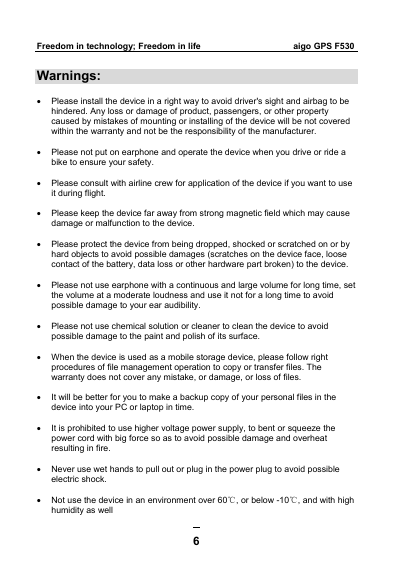

Freedom in technology; Freedom in life aigo GPS F530 Warnings: • Please install the device in a right way to avoid driver's sight and airbag to be hindered. Any loss or damage of product, passengers, or other property caused by mistakes of mounting or installing of the device will be not covered within the warranty and not be the responsibility of the manufacturer. • Please not put on earphone and operate the device when you drive or ride a bike to ensure your safety. • Please consult with airline crew for application of the device if you want to use it during flight. • Please keep the device far away from strong magnetic field which may cause damage or malfunction to the device. • Please protect the device from being dropped, shocked or scratched on or by hard objects to avoid possible damages (scratches on the device face, loose contact of the battery, data loss or other hardware part broken) to the device. • Please not use earphone with a continuous and large volume for long time, set the volume at a moderate loudness and use it not for a long time to avoid possible damage to your ear audibility. • Please not use chemical solution or cleaner to clean the device to avoid possible damage to the paint and polish of its surface. • When the device is used as a mobile storage device, please follow right procedures of file management operation to copy or transfer files. The warranty does not cover any mistake, or damage, or loss of files. It will be better for you to make a backup copy of your personal files in the device into your PC or laptop in time. It is prohibited to use higher voltage power supply, to bent or squeeze the power cord with big force so as to avoid possible damage and overheat resulting in fire. • Never use wet hands to pull out or plug in the power plug to avoid possible • • • Not use the device in an environment over 60 , or below ℃ -10 , and with high ℃ electric shock. humidity as well 6

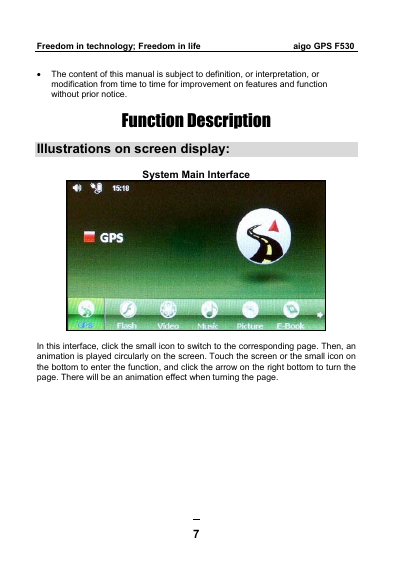

Freedom in technology; Freedom in life aigo GPS F530 • The content of this manual is subject to definition, or interpretation, or modification from time to time for improvement on features and function without prior notice. Function Description Illustrations on screen display: System Main Interface In this interface, click the small icon to switch to the corresponding page. Then, an animation is played circularly on the screen. Touch the screen or the small icon on the bottom to enter the function, and click the arrow on the right bottom to turn the page. There will be an animation effect when turning the page. 7
