Digital Video Camera

Contents Safety Precautions Specifications Name of Parts and Buttons LCD Monitor and LED Displays Before Using the Digital Video (DV) Powering the Digital Video How to recharge the battery Using the AC adapter Setting the date and time Setting the storage media 1.Basic Recording Motion Picture Recording Still Picture Recording H S I L G N E 4 5 8 12 15 16 16 17 17 18 20 20 21 2.Advance Recording 22 Menu Function (Resolution / Self-Timer / White Balance / Effect / Strobe) 22 26 Selector Dial Function (Digital Zoom / Scene Mode) 3.Voice Recording Record 28 28 E1

4.Playback Mode Playing Files on a TV Motion File / Voice File Playback Still Single File Playback Slide Show Thumbnail Playback Delete (One File / All Files) Protect (One File / All Files / Cancel All) Print (One File / All Files / Cancel All) 5.MP3 Play Music 6. Changing the DV Setting Setting the Beep Sound Setting the Power Off Setting the LCD Confirmation Time Formatting the Internal Memory / Memory Card Adjusting the LCD Brightness Setting the Frequency Setting the Date Imprint Setting the Language Changing the Video Out Signal Method Setting the Date and Time 7. Others Recording Capacities Warning Message E2 29 29 30 31 31 32 32 34 36 39 39 40 40 41 42 43 44 44 45 46 47 47 48 48 50

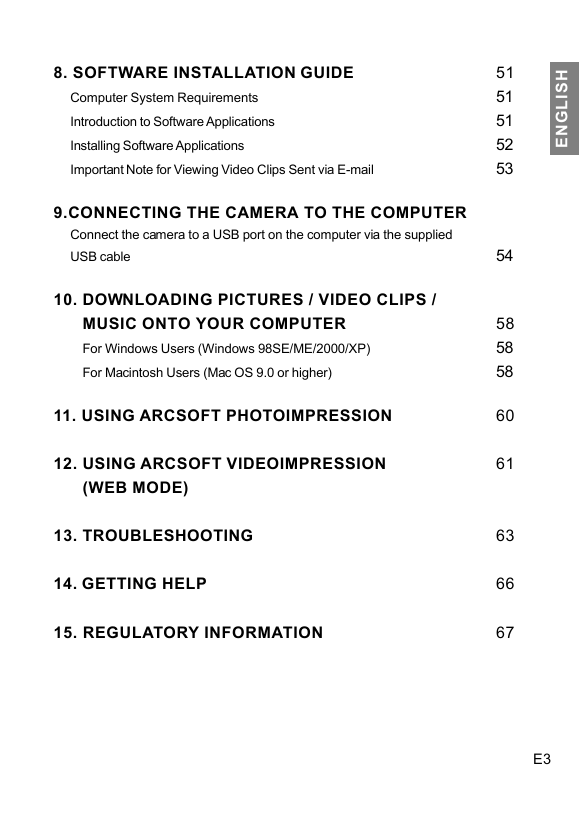

8. SOFTWARE INSTALLATION GUIDE Computer System Requirements Introduction to Software Applications Installing Software Applications Important Note for Viewing Video Clips Sent via E-mail 9.CONNECTING THE CAMERA TO THE COMPUTER Connect the camera to a USB port on the computer via the supplied USB cable 10. DOWNLOADING PICTURES / VIDEO CLIPS / MUSIC ONTO YOUR COMPUTER For Windows Users (Windows 98SE/ME/2000/XP) For Macintosh Users (Mac OS 9.0 or higher) 11. USING ARCSOFT PHOTOIMPRESSION 12. USING ARCSOFT VIDEOIMPRESSION (WEB MODE) 13. TROUBLESHOOTING 14. GETTING HELP 15. REGULATORY INFORMATION 51 51 51 52 53 54 58 58 58 60 61 63 66 67 H S I L G N E E3

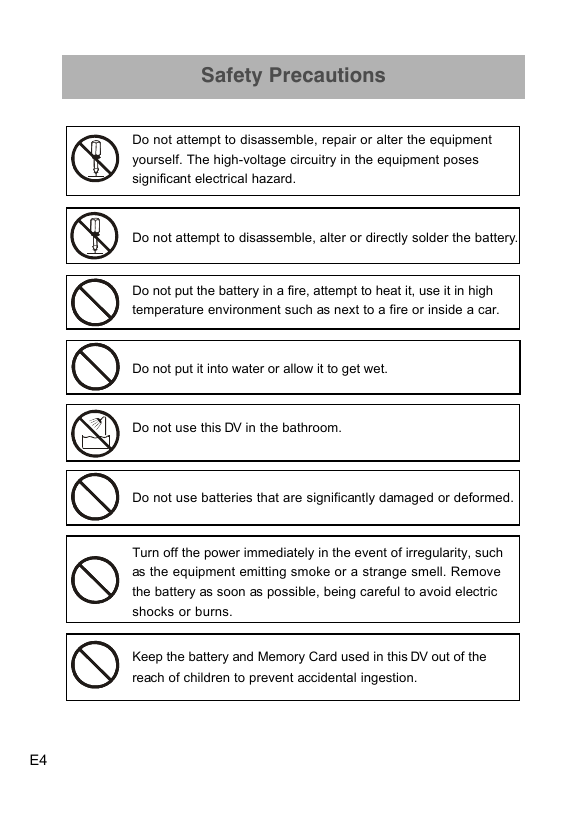

Safety Precautions Do not attempt to disassemble, repair or alter the equipment yourself. The high-voltage circuitry in the equipment poses significant electrical hazard. Do not attempt to disassemble, alter or directly solder the battery. Do not put the battery in a fire, attempt to heat it, use it in high temperature environment such as next to a fire or inside a car. Do not put it into water or allow it to get wet. Do not use this DV in the bathroom. Do not use batteries that are significantly damaged or deformed. Turn off the power immediately in the event of irregularity, such as the equipment emitting smoke or a strange smell. Remove the battery as soon as possible, being careful to avoid electric shocks or burns. Keep the battery and Memory Card used in this DV out of the reach of children to prevent accidental ingestion. E4

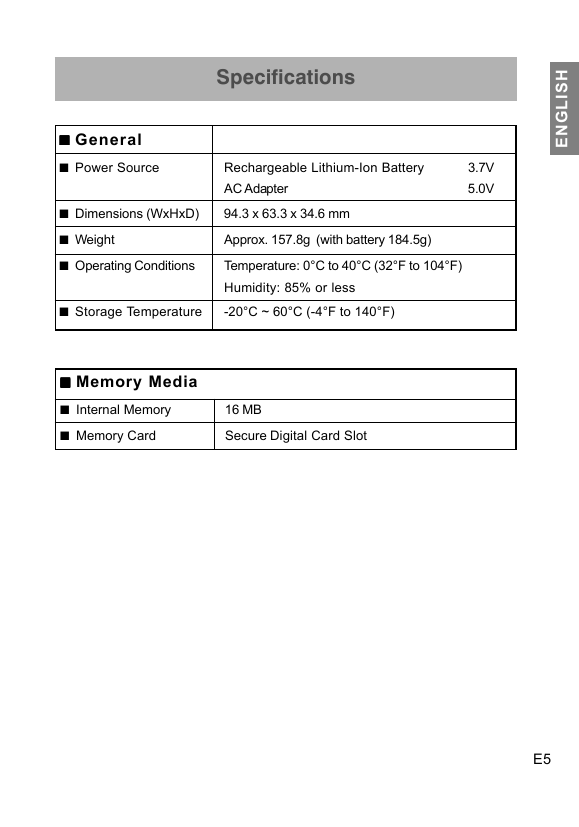

H S I L G N E Specifications General Power Source Dimensions (WxHxD) Rechargeable Lithium-Ion Battery AC Adapter 94.3 x 63.3 x 34.6 mm 3.7V 5.0V Weight Approx. 157.8g (with battery 184.5g) Operating Conditions Storage Temperature Temperature: 0°C to 40°C (32°F to 104°F) Humidity: 85% or less -20°C ~ 60°C (-4°F to 140°F) Memory Media Internal Memory 16 MB Memory Card Secure Digital Card Slot E5

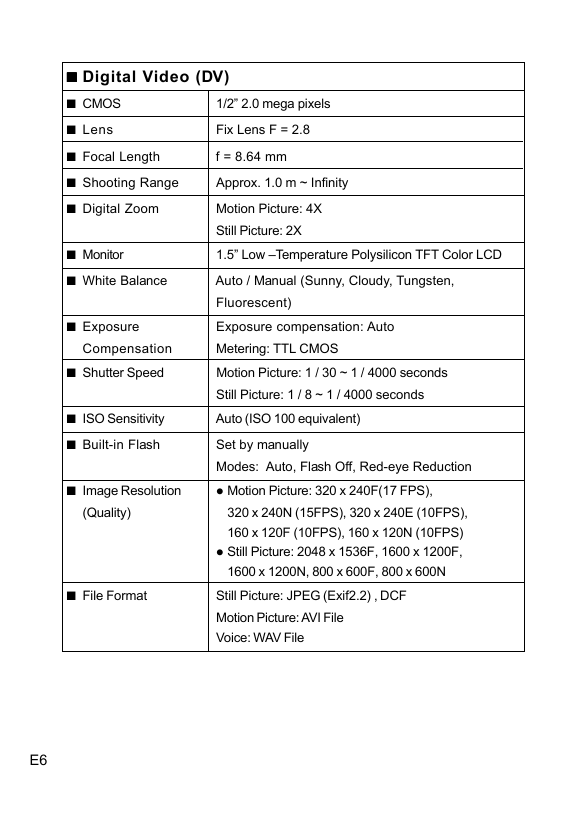

Digital Video (DV) CMOS 1/2” 2.0 mega pixels Lens Fix Lens F = 2.8 Focal Length f = 8.64 mm Shooting Range Approx. 1.0 m ~ Infinity Digital Zoom Monitor White Balance Exposure Compensation Shutter Speed ISO Sensitivity Built-in Flash Image Resolution (Quality) File Format Motion Picture: 4X Still Picture: 2X 1.5” Low –Temperature Polysilicon TFT Color LCD Auto / Manual (Sunny, Cloudy, Tungsten, Fluorescent) Exposure compensation: Auto Metering: TTL CMOS Motion Picture: 1 / 30 ~ 1 / 4000 seconds Still Picture: 1 / 8 ~ 1 / 4000 seconds Auto (ISO 100 equivalent) Set by manually Modes: Auto, Flash Off, Red-eye Reduction Motion Picture: 320 x 240F(17 FPS), 320 x 240N (15FPS), 320 x 240E (10FPS), 160 x 120F (10FPS), 160 x 120N (10FPS) Still Picture: 2048 x 1536F, 1600 x 1200F, 1600 x 1200N, 800 x 600F, 800 x 600N Still Picture: JPEG (Exif2.2) , DCF Motion Picture: AVI File Voice: WAV File E6

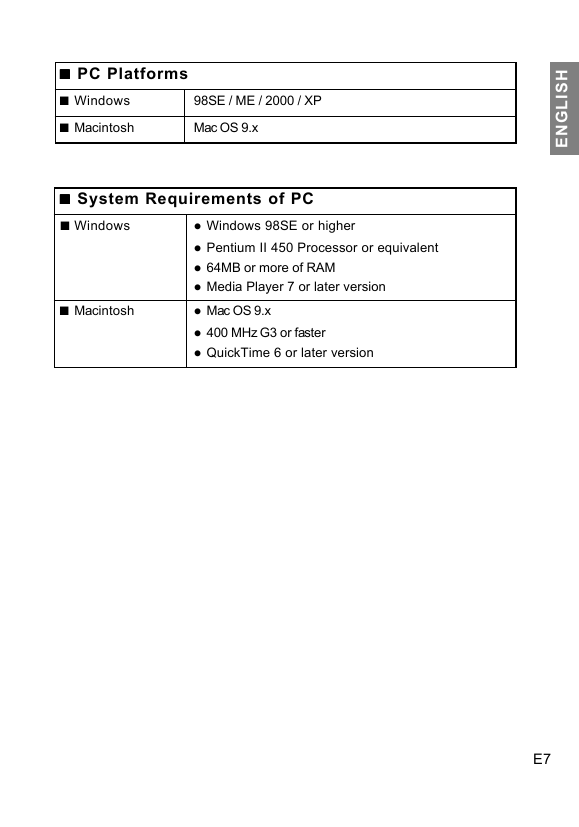

PC Platforms Windows 98SE / ME / 2000 / XP Macintosh Mac OS 9.x H S I L G N E System Requirements of PC Windows Macintosh Windows 98SE or higher Pentium II 450 Processor or equivalent 64MB or more of RAM Media Player 7 or later version Mac OS 9.x 400 MHz G3 or faster QuickTime 6 or later version E7
