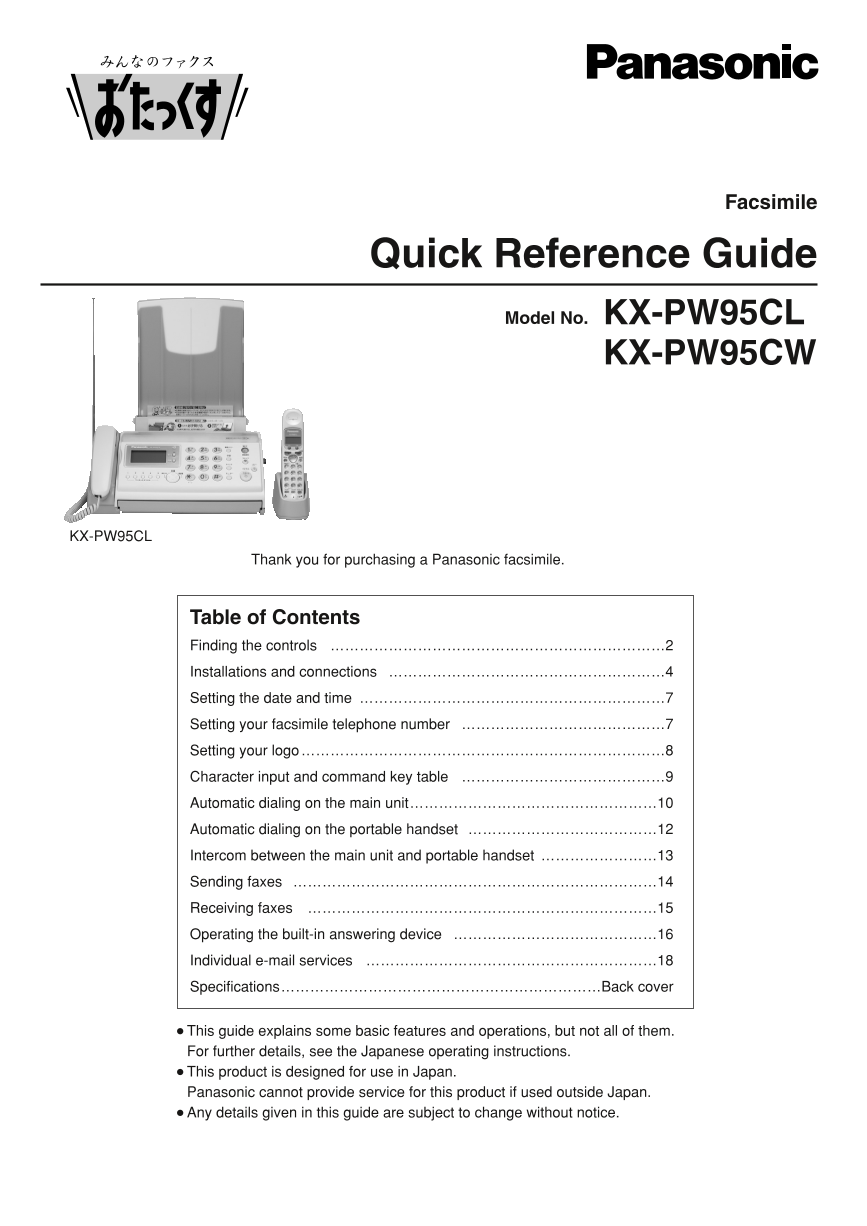

Facsimile Quick Reference Guide Model No. KX-PW95CL KX-PW95CW KX-PW95CL Thank you for purchasing a Panasonic facsimile. Table of Contents Finding the controls ……………………………………………………………2 Installations and connections …………………………………………………4 Setting the date and time ………………………………………………………7 Setting your facsimile telephone number ……………………………………7 Setting your logo…………………………………………………………………8 Character input and command key table ……………………………………9 Automatic dialing on the main unit……………………………………………10 Automatic dialing on the portable handset …………………………………12 Intercom between the main unit and portable handset ……………………13 Sending faxes …………………………………………………………………14 Receiving faxes ………………………………………………………………15 Operating the built-in answering device ……………………………………16 Individual e-mail services ……………………………………………………18 Specifications…………………………………………………………Back cover This guide explains some basic features and operations, but not all of them. For further details, see the Japanese operating instructions. This product is designed for use in Japan. Panasonic cannot provide service for this product if used outside Japan. Any details given in this guide are subject to change without notice.

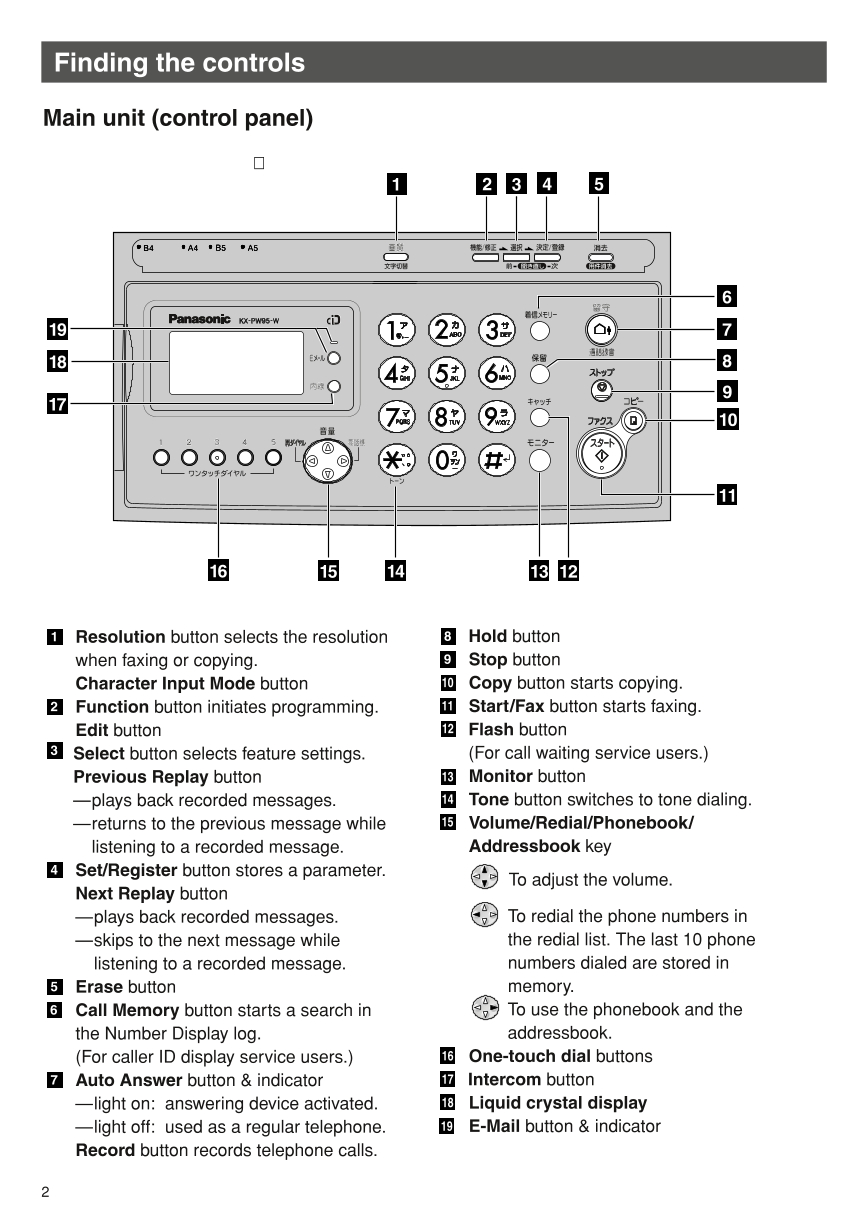

Finding the controls Main unit (control panel) � 1 2 3 4 5 6 19 7 18 8 9 17 10 11 16 15 14 13 12 1 Resolution button selects the resolution 8 Hold button when faxing or copying. 9 Stop button Character Input Mode button 10 Copy button starts copying. 2 Function button initiates programming. 11 Start/Fax button starts faxing. Edit button 12 Flash button 3 Select button selects feature settings. (For call waiting service users.) Previous Replay button 13 Monitor button —plays back recorded messages. 14 Tone button switches to tone dialing. —returns to the previous message while 15 Volume/Redial/Phonebook/ listening to a recorded message. Addressbook key 4 Set/Register button stores a parameter. To adjust the volume. Next Replay button —plays back recorded messages. To redial the phone numbers in —skips to the next message while the redial list. The last 10 phone listening to a recorded message. numbers dialed are stored in 5 Erase button memory. 6 Call Memory button starts a search in To use the phonebook and the the Number Display log. addressbook. (For caller ID display service users.) 16 One-touch dial buttons 7 Auto Answer button & indicator 17 Intercom button —light on: answering device activated. 18 Liquid crystal display —light off: used as a regular telephone. 19 E-Mail button & indicator Record button records telephone calls. 2

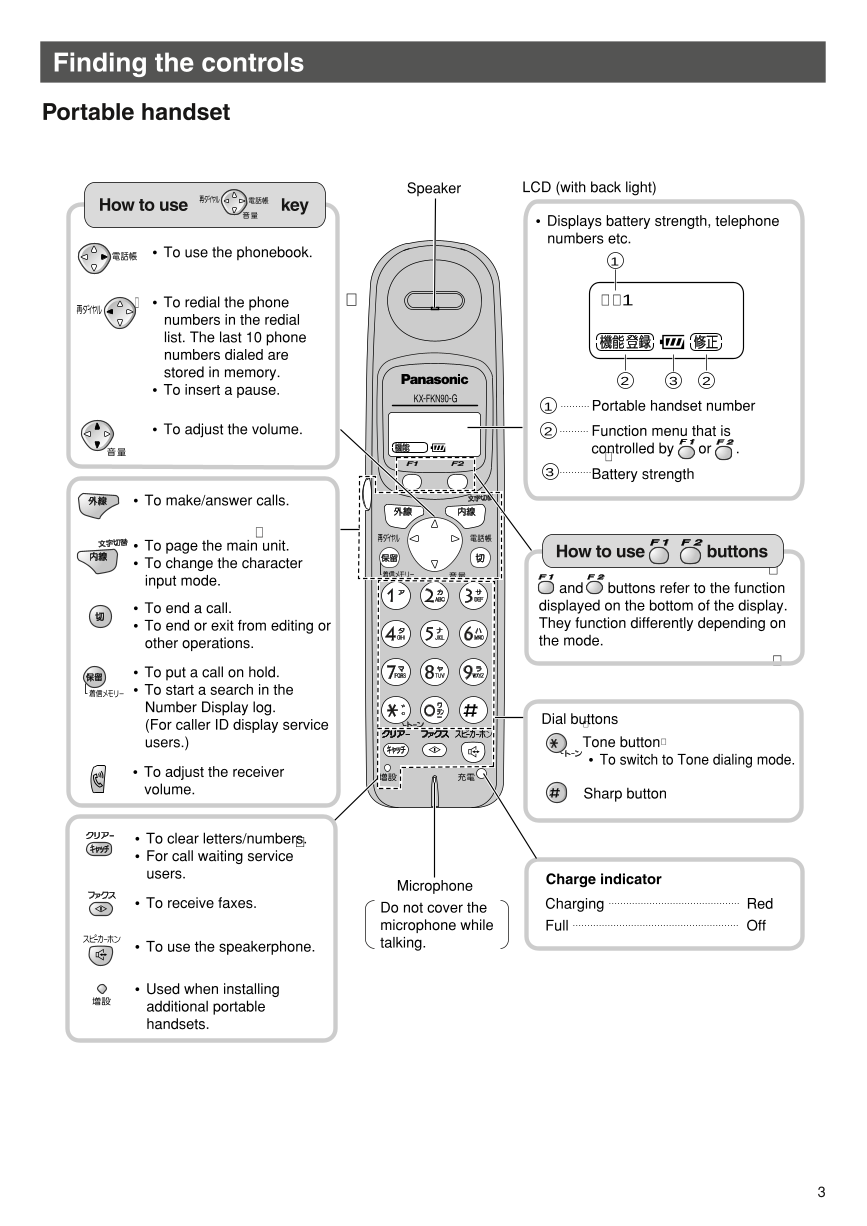

Finding the controls Portable handset Speaker LCD (with back light) How to use key ● Displays battery strength, telephone numbers etc. ● To use the phonebook. 1 � ● To redial the phone � ｺｷ1 numbers in the redial list. The last 10 phone numbers dialed are stored in memory. 2 3 2 ● To insert a pause. 1 Portable handset number ● To adjust the volume. 2 Function menu that is co�ntrolled by or . 3 Battery strength ● To make/answer calls. � ● To page the main unit. How to use buttons ● To change the character � input mode. and buttons refer to the function ● To end a call. displayed on the bottom of the display. ● To end or exit from editing or They function differently depending on other operations. the mode. � ● To put a call on hold. ● To start a search in the Number Display log. (For caller ID display service Dial bu�ttons users.) Tone button� ● To switch to Tone dialing mode. ● To adjust the receiver volume. Sharp button ● To clear letters/number�s. ● For call waiting service users. Microphone Charge indicator ● To receive faxes. Do not cover the Charging Red microphone while Full Off ● To use the speakerphone. talking. ● Used when installing additional portable handsets. 3

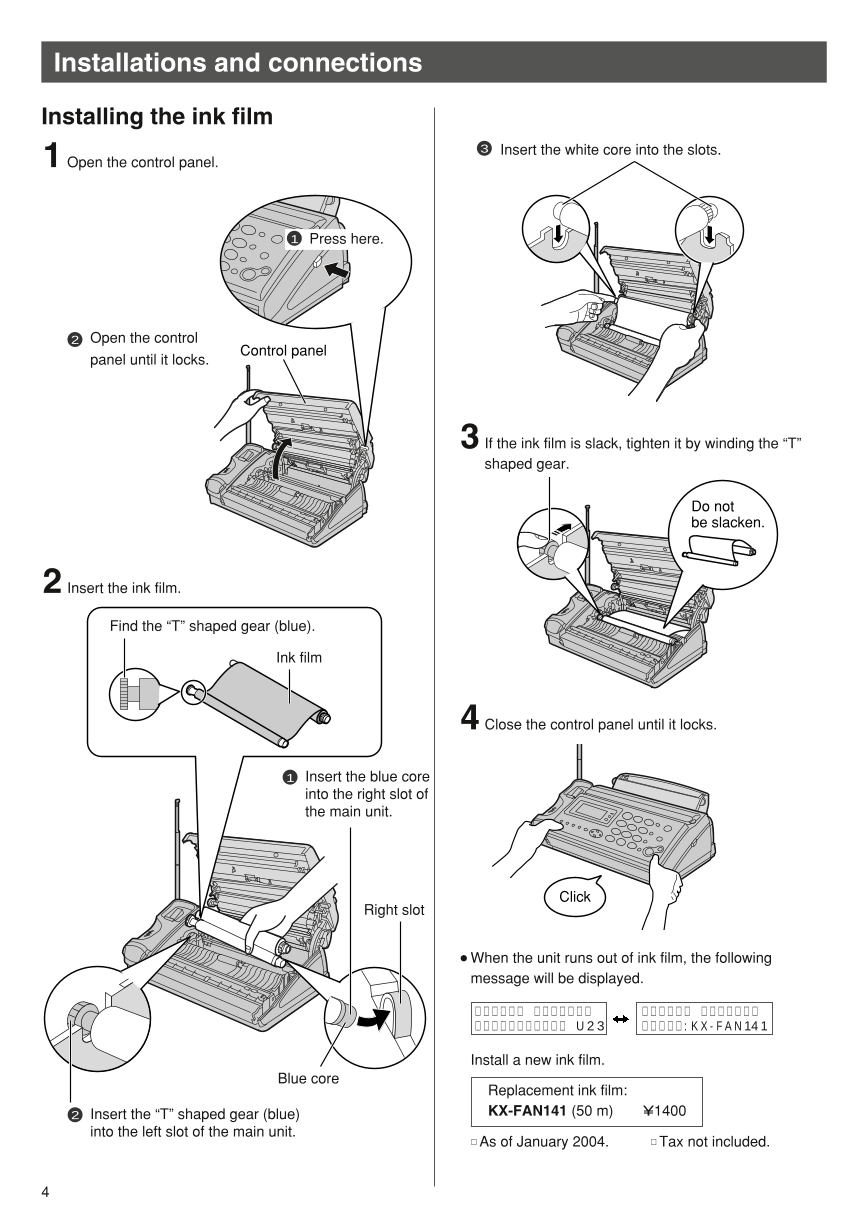

Installations and connections Installing the ink film 1 3 Insert the white core into the slots. Open the control panel. 1 Press here. 2 Open the control Control panel panel until it locks. 3 If the ink film is slack, tighten it by winding the “T” shaped gear. Do not be slacken. 2 Insert the ink film. Find the “T” shaped gear (blue). Ink film 4 Close the control panel until it locks. 1 Insert the blue core into the right slot of the main unit. Click Right slot When the unit runs out of ink film, the following message will be displayed. ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀｺｳｶﾝｼﾃｸﾀﾞｻｲｼU 2 3 ﾋﾝﾊﾞﾝ : K X - F A N 14 1 Install a new ink film. Blue core Replacement ink film: 2 Insert the “T” shaped gear (blue) KX-FAN141 (50 m) ¥1400 into the left slot of the main unit. ・As of January 2004. ・Tax not included. 4

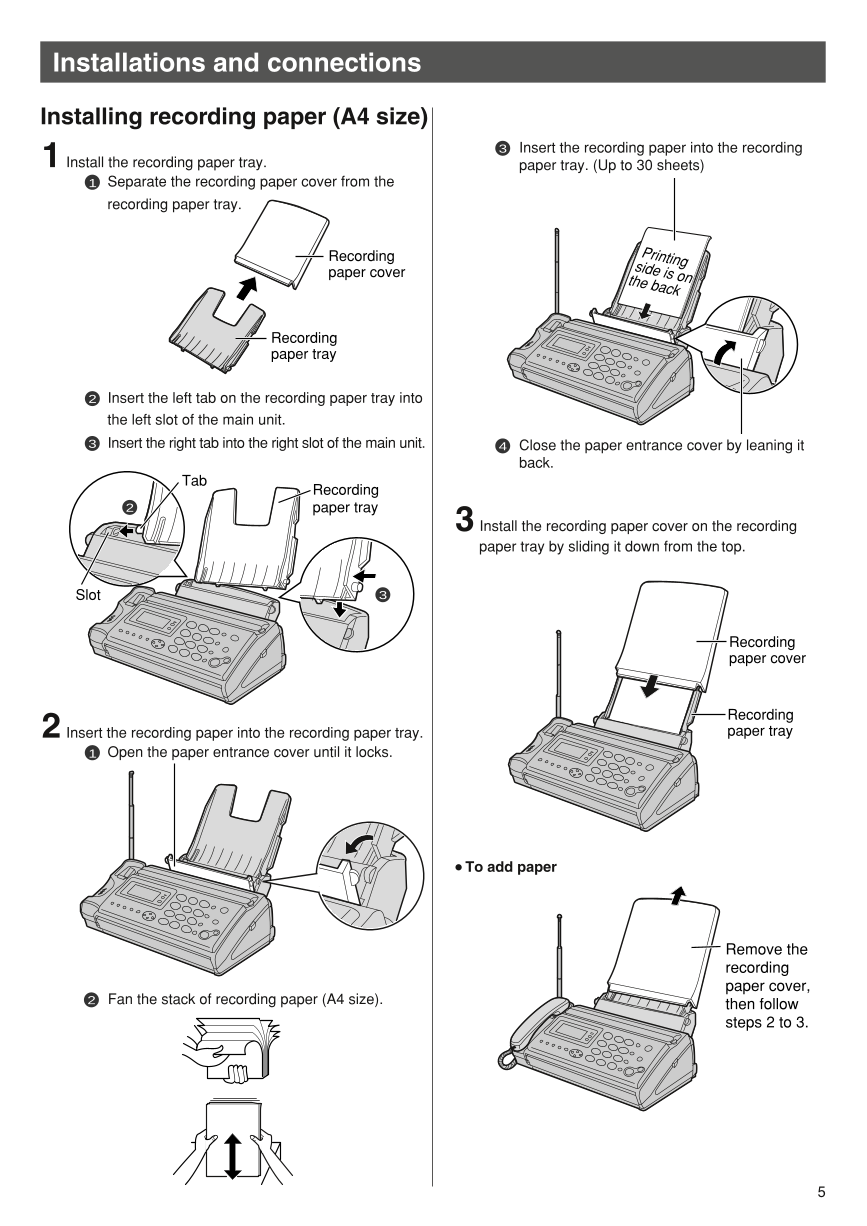

Installations and connections Installing recording paper (A4 size) 1 3 Insert the recording paper into the recording Install the recording paper tray. paper tray. (Up to 30 sheets) 1 Separate the recording paper cover from the recording paper tray. Recording Printing paper cover side t h is e o b n a ck Recording paper tray 2 Insert the left tab on the recording paper tray into the left slot of the main unit. 3 Insert the right tab into the right slot of the main unit. 4 Close the paper entrance cover by leaning it back. Tab Recording 2 paper tray 3 Install the recording paper cover on the recording paper tray by sliding it down from the top. Slot 3 Recording paper cover 2 Recording Insert the recording paper into the recording paper tray. paper tray 1 Open the paper entrance cover until it locks. To add paper Remove the recording paper cover, 2 Fan the stack of recording paper (A4 size). then follow steps 2 to 3. 5

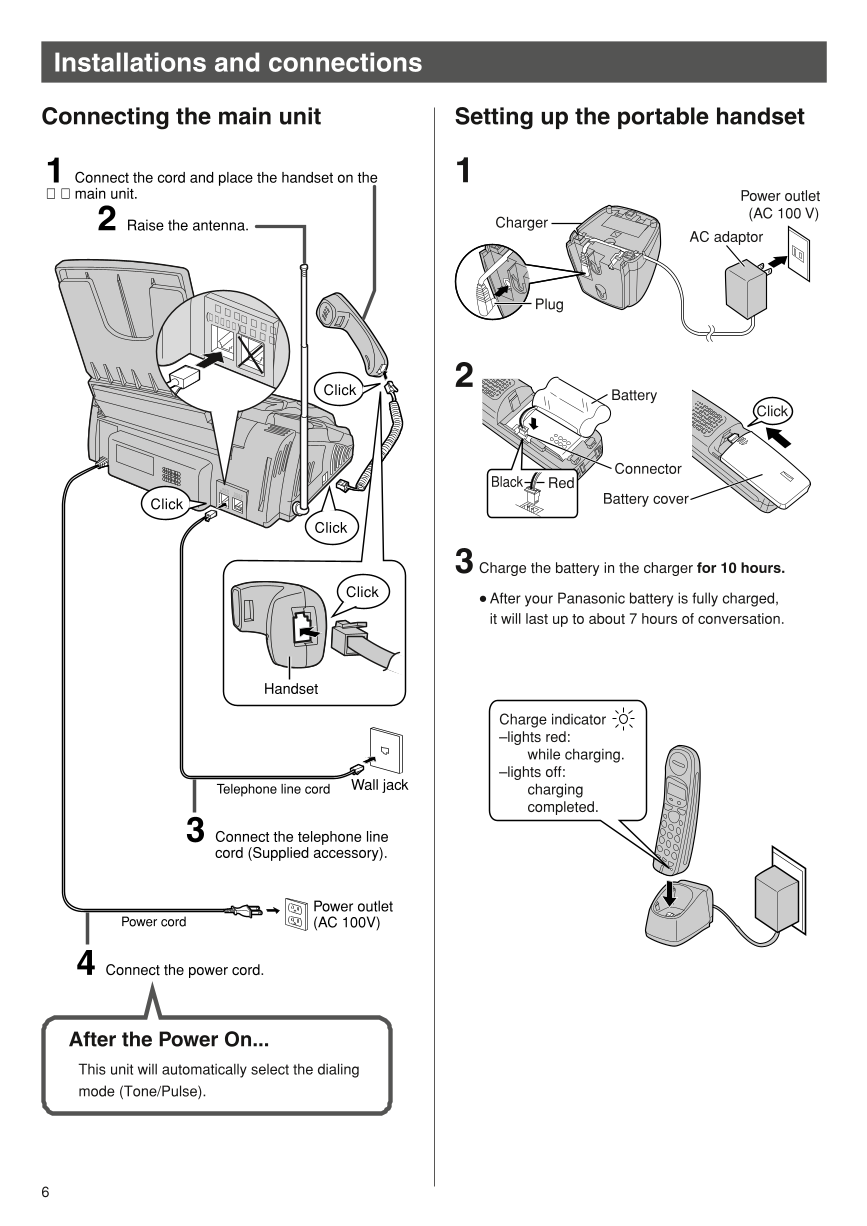

Installations and connections Connecting the main unit Setting up the portable handset 1 Connect the cord and place the handset on the 1 　　main unit. Power outlet 2 (AC 100 V) Raise the antenna. Charger AC adaptor 回線 Plug (電話回 �線停へ)電電話用機�� Click 2 Battery Click Connector Black Red 回 (電線話回 �線へ) 停電電話用機�� Click Battery cover Click 3 Charge the battery in the charger for 10 hours. Click After your Panasonic battery is fully charged, it will last up to about 7 hours of conversation. Handset Charge indicator –lights red: while charging. –lights off: Telephone line cord Wall jack charging completed. 3 Connect the telephone line cord (Supplied accessory). Power outlet Power cord (AC 100V) 4 Connect the power cord. After the Power On... This unit will automatically select the dialing mode (Tone/Pulse). 6

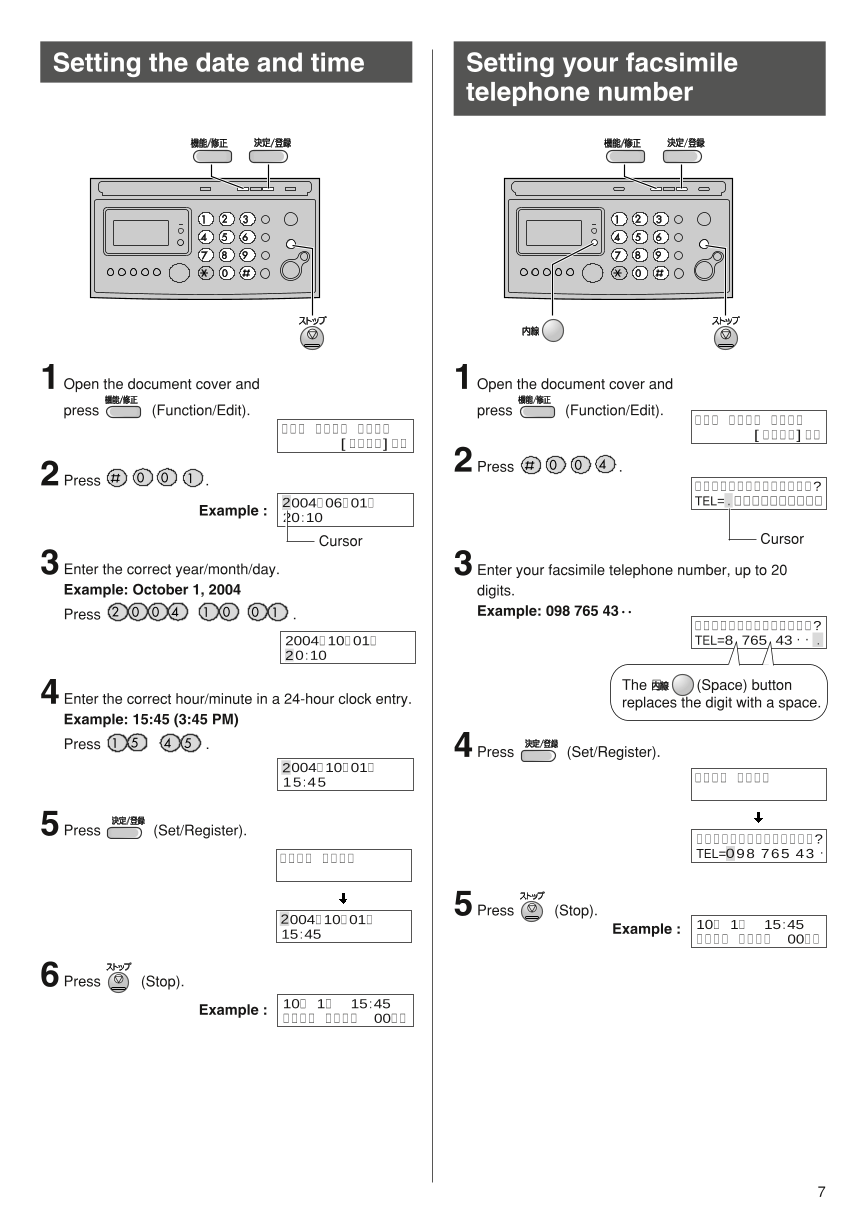

Setting the date and time Setting your facsimile telephone number 1 Open the document cover and 1 Open the document cover and press (Function/Edit). press (Function/Edit). ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞｶｲｾｼｼｼｼ [ ｾﾝﾀｸ ] ｵｽｶｲｾｼｼｼｼ [ ｾﾝﾀｸ ] ｵｽ 2 2 Press . Press . ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? Example : 2004年06月01日 TEL=．. ．．．．．．．．．． 20:10 Cursor Cursor 3 Enter the correct year/month/day. 3 Enter your facsimile telephone number, up to 20 Example: October 1, 2004 digits. Press . Example: 098 765 43 · · ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? 2004年10月01日 TEL=80765043 . . . 200:10 4 The 　　(Space) button Enter the correct hour/minute in a 24-hour clock entry. replaces the digit with a space. Example: 15:45 (3:45 PM) Press . 4 Press (Set/Register). 2004年10月01日 15:45 ﾄｳﾛｸｱｼﾏｼﾀ 5 Press (Set/Register). ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? ﾄｳﾛｸｱｼﾏｼﾀ TEL=098.765.43 . 5 Press (Stop). 2004年10月01日 15:45 Example : 10月01日0015:45 ﾖｳｹﾝ0ﾛｸｵﾝ0000ｹﾝ 6 Press (Stop). Example : 10月01日0015:45 ﾖｳｹﾝ0ﾛｸｵﾝ0000ｹﾝ 7

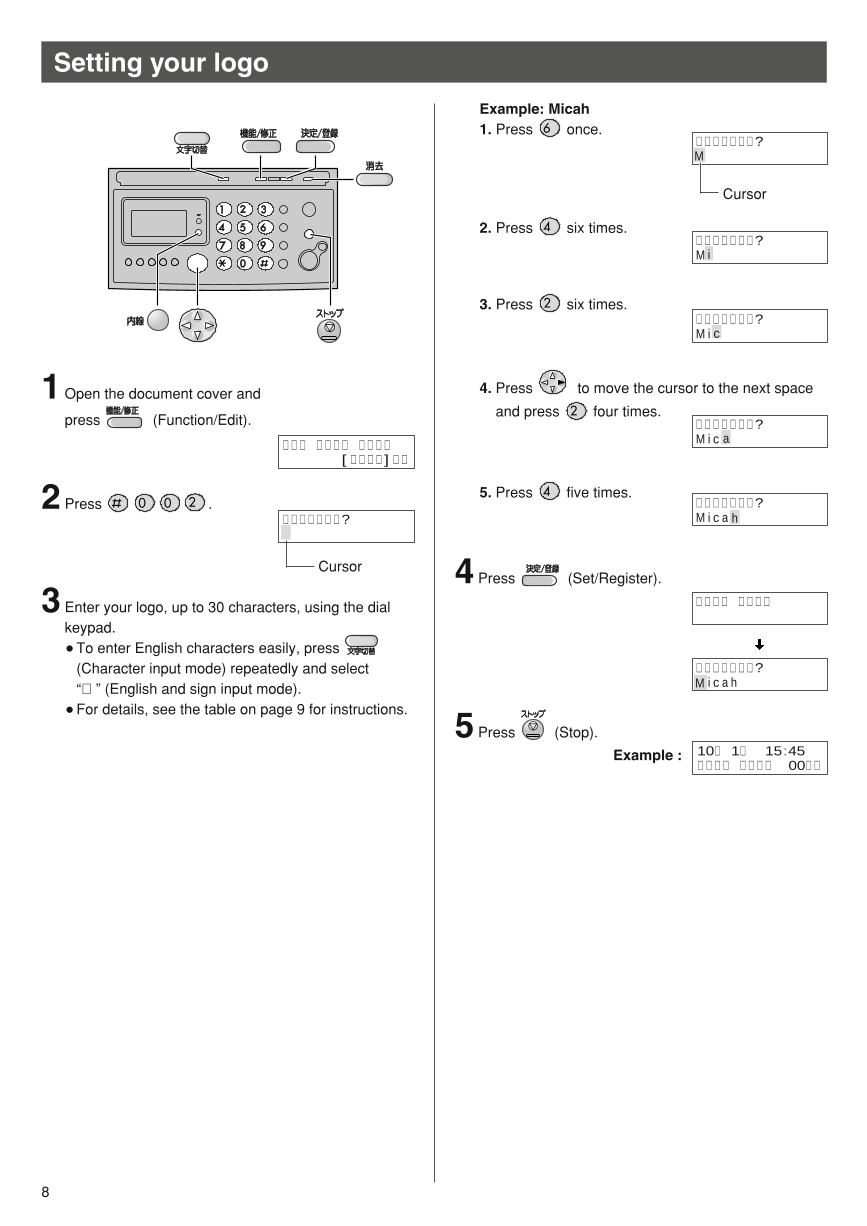

Setting your logo Example: Micah 1. Press once. ｱﾅﾀﾉﾅﾏｴ? M Cursor 2. Press six times. ｱﾅﾀﾉﾅﾏｴ? M i 3. Press six times. ｱﾅﾀﾉﾅﾏｴ? M i c 1 Open the document cover and 4. Press to move the cursor to the next space and press four times. press (Function/Edit). ｱﾅﾀﾉﾅﾏｴ? ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞ M i c a ｶｲｾｼｼｼｼ [ ｾﾝﾀｸ ] ｵｽ 2 5. Press five times. Press . ｱﾅﾀﾉﾅﾏｴ? ｱﾅﾀﾉﾅﾏｴ? M i c a h Cursor 4 Press (Set/Register). 3 Enter your logo, up to 30 characters, using the dial ﾄｳﾛｸｱｼﾏｼﾀ keypad. To enter English characters easily, press (Character input mode) repeatedly and select ｱﾅﾀﾉﾅﾏｴ? “英” (English and sign input mode). M i c a h For details, see the table on page 9 for instructions. 5 Press (Stop). Example : 10月01日0015:45 ﾖｳｹﾝ0ﾛｸｵﾝ0000ｹﾝ 8
