QCT UMTS Product Roadmaps
UMTS MSM Roadmap – NDA
UMTS MDM Roadmap
QCT UMTS Roadmap Milestones – NDA
Slide Number 5
Slide Number 6
Slide Number 7
Slide Number 8
Slide Number 9
Slide Number 10
Slide Number 11
Slide Number 12
Feature Comparison – Smartbooks
Feature Comparison – Smartbooks (cont.)
UMTS MSM/QSC/QSD Variants
Slide Number 16
Slide Number 17
QCT UMTS Life Cycle
UMTS Life Cycle – Feature Phones
UMTS Life Cycle – Feature Phones
UMTS Life Cycle – Smartphones
Slide Number 22
QSC6240/6270 Development Schedule
MSM6246 Development Schedule
MSM6290 Development Schedule
QSC6295 Development Schedule – BMP
MSM7225 Development Schedule – ANDROID
MSM7225 Development Schedule
MSM7225 Development Schedule – ANDROID
MSM7227 Development Schedule – BMP
MSM7227 Development Schedule – Windows
MSM7227 Development Schedule – ANDROID
MSM7230 / MSM8255 Development Schedule – BMP
MSM7230 / MSM8255 Development Schedule – ANDROID
MSM7230 / MSM8255 Development Schedule – Windows
QSD8250 Development Schedule – ANDROID
QSD8250 Development Schedule – Windows
MDM6200 Development Schedule
MDM8200/8200A Development Schedule
Slide Number 40
Slide Number 41
Slide Number 42
UMTS RF Product Roadmap (Engineering Sample)
QCT Bluetooth / FM Hardware Roadmap
WLAN Mobile Roadmap
2009-12 PMIC Roadmap
QCT FSM UMTS Product Roadmaps
QCT FSM Roadmap – NDA
Multimode Femto RF Roadmap – NDA
Slide Number 50
qctconnect.com
QUALCOMM CONFIDENTIAL AND PROPRIETARY
QCT UMTS Product Roadmaps
March 2010
(Disclosed Under NDA)
Nothing in these materials is an offer to sell any of the components referenced herein. Certain components for use in the U.S. are available only through licensed suppliers. Some components are not available for use in the U.S.
PAGE 1
QUALCOMM CONFIDENTIAL AND PROPRIETARY
ES: Eng. samples and α SW
CS: Commercial release
Pin, SW API &
RF compatible
1.5 GHz Dual-core
1080p Video
WSXGA
PCI-Express,SATA,PCDDR2/3
45nm
1Q ’11
2011
28nm
8960
LTE
DC-HSPA+
8270
DC-HSPA+
ES 2Q ‘11
UMTS MSM Roadmap – NDA
In Production
2009
SMARTBOOKS
1.2GHz Scorpion/L2
720P, PCDDR2
45nm
8250A
HSPA
ES 1Q‘10
2010
8672
HSPA+
2Q‘10
2Q ’10
8250
HSPA
1GHz Scorpion/L2,
720p, XGA, 3D Gfx
8255
HSPA+
1GHz Scorpion/L2,
720p, 2D/3D Gfx
14.4Mbps
45nm
8260
HSPA+
1.2GHz Dual-Core
Scorpion, 1080p,
WXGA, 45nm
ES 2Q ‘10
4Q ’10
SMARTPHONES
7200A
HSPA
FEATURE
PHONES
6246
HSDPA
600MHz A11/L2
WVGA, 3DGfx
800MHz Scorpion/L2,
720p, 2D/3D Gfx
14.4Mbps
45nm
7230
HSPA+
ES 3Q ‘09
480MHz ARM11/L2,
VGA, Rel7 14.4Mbps
45nm
QSC
6270
HSDPA
QSC
6295
HSPA+
ES 2Q ‘09
7227
HSPA
7225
HSPA
6290
HSPA
QSC
6240
WEDGE
Apr’10
HW CS
1Q ’10
2Q’10
MSM6245, MSM6260, MSM6280
PAGE 2
QUALCOMM CONFIDENTIAL AND PROPRIETARY
Nothing in these materials is an offer to sell any of the components referenced herein. Certain components for use in the
U.S. are available only through licensed suppliers. Some components are not available for use in the U.S.

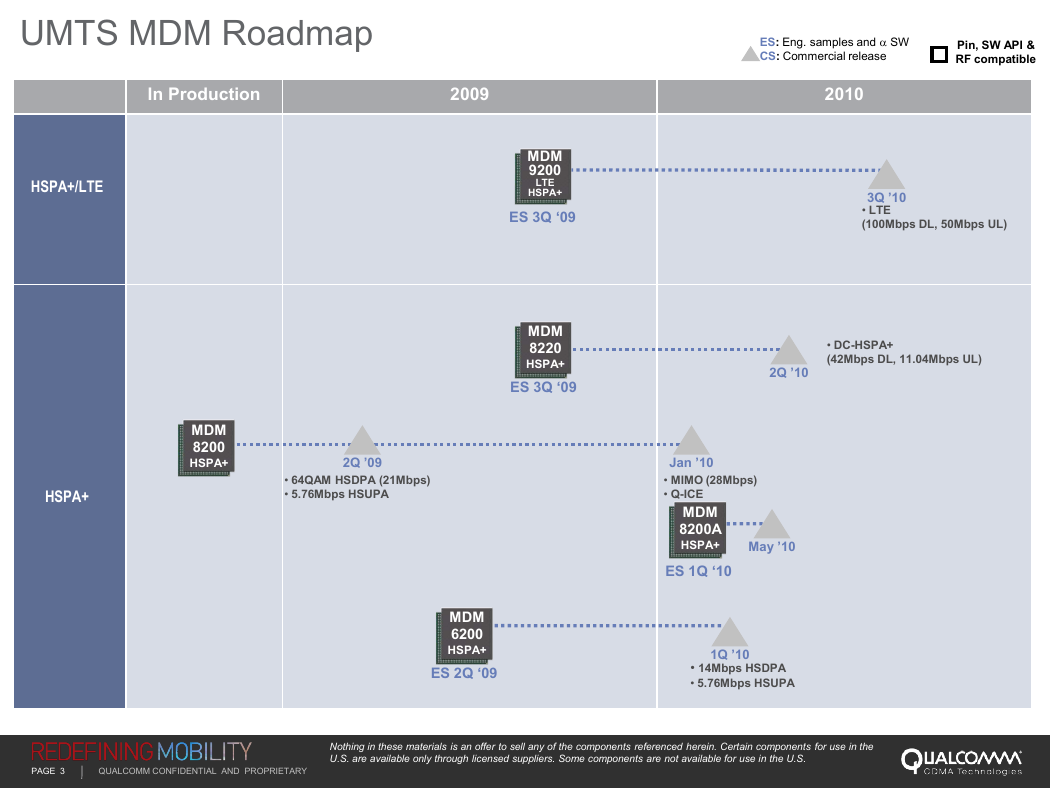

UMTS MDM Roadmap
