StreetPilot® 2720 owner’s manual

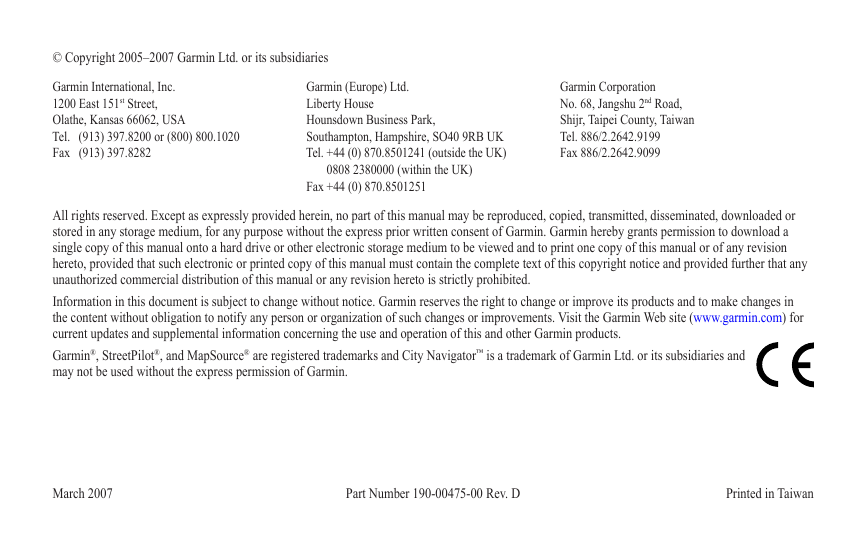

© Copyright 2005–2007 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, USA Tel. (913) 397.8200 or (800) 800.1020 Fax (913) 397.8282 Garmin (Europe) Ltd. Liberty House Hounsdown Business Park, Southampton, Hampshire, SO40 9RB UK Tel. +44 (0) 870.8501241 (outside the UK) Fax +44 (0) 870.8501251 0808 2380000 (within the UK) Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin®, StreetPilot®, and MapSource® are registered trademarks and City Navigator™ is a trademark of Garmin Ltd. or its subsidiaries and may not be used without the express permission of Garmin. March 2007 Part Number 190-00475-00 Rev. D Printed in Taiwan

Preface Preface Serial Number Record the serial number (8-digit number located on the back of the unit) in case your StreetPilot 2720 needs service or you would like to buy additional maps. Serial Number: ___ ___ ___ ___ ___ ___ ___ ___ Contact Garmin If you encounter any difficulty while using your Garmin® StreetPilot® 2720, or if you have any questions, in the U.S.A. contact Garmin Product Support by phone at 913/397.8200 or 800/800.1020, Monday–Friday, 8 AM–5 PM Central Time. You can also go to the Garmin Web site at http://www.garmin.com/contactUs/. Click Technical Product Support and fill out the form. In Europe, contact Garmin (Europe) Ltd. at 44/0870.8501241. Quick Links • Finding an address: page 9 • Viewing the Map page: page 16 • Creating a new saved route: page 20 • Saving a location you have found: page 12 • Using the mileage logs: page 25 StreetPilot 2720 Owner’s Manual • Turning off the GPS to use indoors: page 19 • Adjusting the volume: page 29 • Adjusting the brightness: page 35 • Loading the USB drivers: page 36 • Cleaning and storing your unit: page 39 i

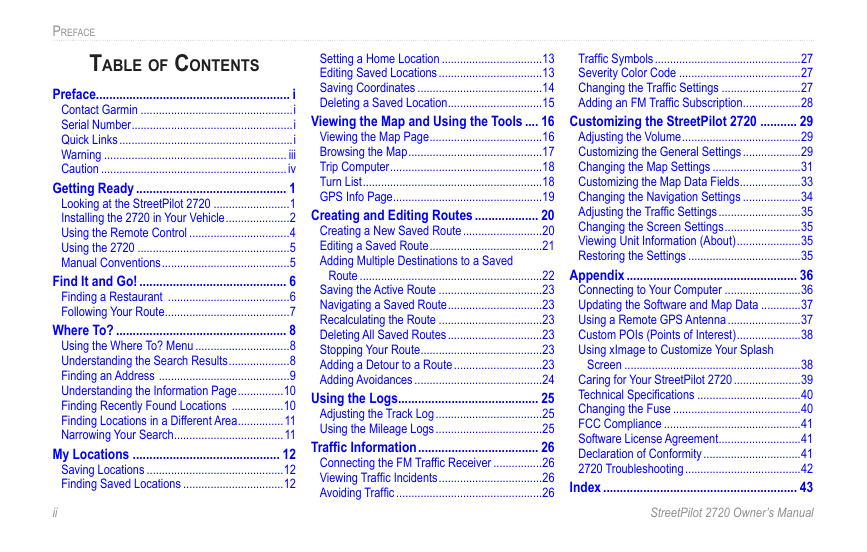

Preface Table of conTenTs Preface.......................................................... i Contact Garmin ..................................................i Serial Number .....................................................i Quick Links .........................................................i Warning ............................................................ iii Caution .............................................................iv Getting Ready ............................................. 1 Looking at the StreetPilot 2720 .........................1 Installing the 2720 in Your Vehicle .....................2 Using the Remote Control .................................4 Using the 2720 ..................................................5 Manual Conventions ..........................................5 Find It and Go! ............................................ 6 Finding a Restaurant ........................................6 Following Your Route .........................................7 Where To? ................................................... 8 Using the Where To? Menu ...............................8 Understanding the Search Results ....................8 Finding an Address ...........................................9 Understanding the Information Page ...............10 Finding Recently Found Locations .................10 Finding Locations in a Different Area ...............11 Narrowing Your Search ....................................11 My Locations ............................................ 12 Saving Locations .............................................12 Finding Saved Locations .................................12 ii Setting a Home Location .................................13 Editing Saved Locations ..................................13 Saving Coordinates .........................................14 Deleting a Saved Location ...............................15 Viewing the Map and Using the Tools .... 16 Viewing the Map Page .....................................16 Browsing the Map ............................................17 Trip Computer ..................................................18 Turn List ...........................................................18 GPS Info Page .................................................19 Creating and Editing Routes ................... 20 Creating a New Saved Route ..........................20 Editing a Saved Route .....................................21 Adding Multiple Destinations to a Saved Route ............................................................22 Saving the Active Route ..................................23 Navigating a Saved Route ...............................23 Recalculating the Route ..................................23 Deleting All Saved Routes ...............................23 Stopping Your Route ........................................23 Adding a Detour to a Route .............................23 Adding Avoidances ..........................................24 Using the Logs .......................................... 25 Adjusting the Track Log ...................................25 Using the Mileage Logs ...................................25 Traffic Information .................................... 26 Connecting the FM Traffic Receiver ................26 Viewing Traffic Incidents ..................................26 Avoiding Traffic ................................................26 Traffic Symbols ................................................27 Severity Color Code ........................................27 Changing the Traffic Settings ..........................27 Adding an FM Traffic Subscription ...................28 Customizing the StreetPilot 2720 ........... 29 Adjusting the Volume .......................................29 Customizing the General Settings ...................29 Changing the Map Settings .............................31 Customizing the Map Data Fields ....................33 Changing the Navigation Settings ...................34 Adjusting the Traffic Settings ...........................35 Changing the Screen Settings .........................35 Viewing Unit Information (About) .....................35 Restoring the Settings .....................................35 Appendix ................................................... 36 Connecting to Your Computer .........................36 Updating the Software and Map Data .............37 Using a Remote GPS Antenna ........................37 Custom POIs (Points of Interest) .....................38 Using xImage to Customize Your Splash Screen ..........................................................38 Caring for Your StreetPilot 2720 ......................39 Technical Specifications ..................................40 Changing the Fuse ..........................................40 FCC Compliance .............................................41 Software License Agreement ...........................41 Declaration of Conformity ................................41 2720 Troubleshooting ......................................42 Index .......................................................... 43 StreetPilot 2720 Owner’s Manual

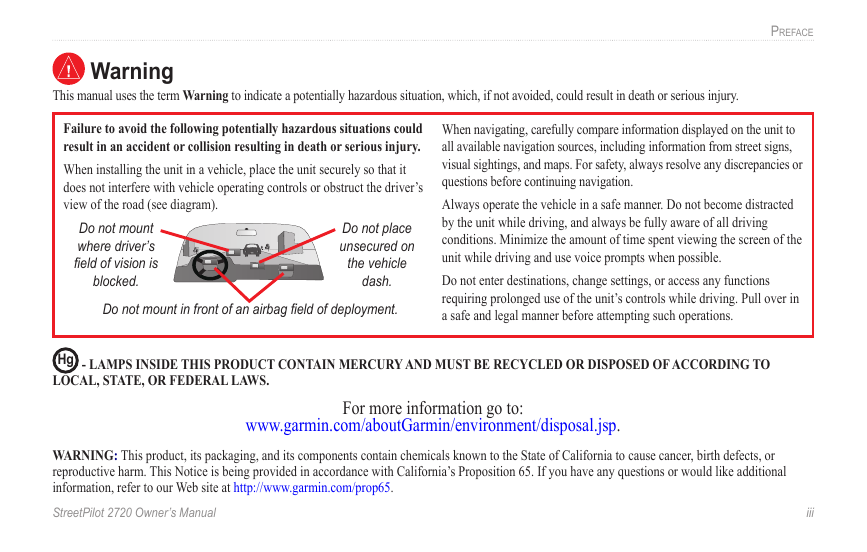

Warning This manual uses the term Warning to indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury. Preface Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury. When installing the unit in a vehicle, place the unit securely so that it does not interfere with vehicle operating controls or obstruct the driver’s view of the road (see diagram). Do not mount where driver’s field of vision is Do not place unsecured on the vehicle blocked. dash. Do not mount in front of an airbag field of deployment. When navigating, carefully compare information displayed on the unit to all available navigation sources, including information from street signs, visual sightings, and maps. For safety, always resolve any discrepancies or questions before continuing navigation. Always operate the vehicle in a safe manner. Do not become distracted by the unit while driving, and always be fully aware of all driving conditions. Minimize the amount of time spent viewing the screen of the unit while driving and use voice prompts when possible. Do not enter destinations, change settings, or access any functions requiring prolonged use of the unit’s controls while driving. Pull over in a safe and legal manner before attempting such operations. Hg - lamPS inSide ThiS ProducT conTain mercury and muST be recycled or diSPoSed oF according To local, STaTe, or Federal laWS. For more information go to: www.garmin.com/aboutGarmin/environment/disposal.jsp. Warning: This product, its packaging, and its components contain chemicals known to the State of California to cause cancer, birth defects, or reproductive harm. This Notice is being provided in accordance with California’s Proposition 65. If you have any questions or would like additional information, refer to our Web site at http://www.garmin.com/prop65. StreetPilot 2720 Owner’s Manual iii

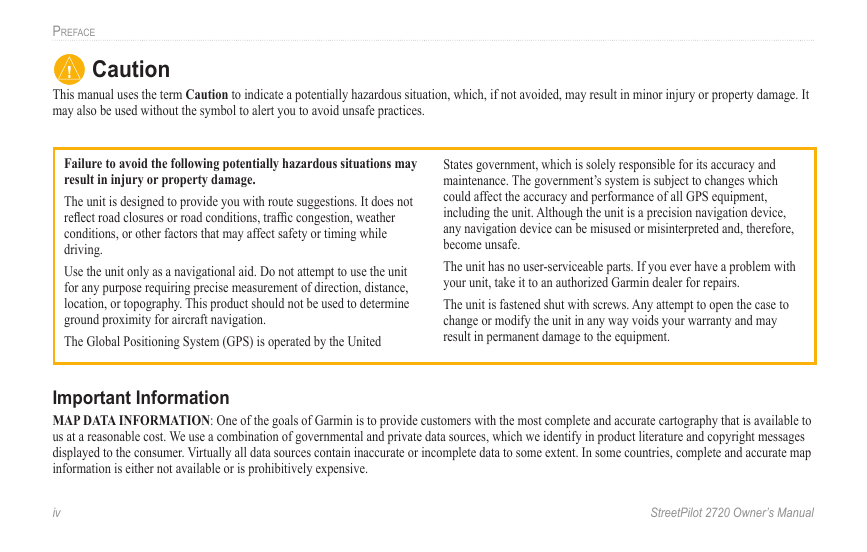

Preface Caution This manual uses the term caution to indicate a potentially hazardous situation, which, if not avoided, may result in minor injury or property damage. It may also be used without the symbol to alert you to avoid unsafe practices. Failure to avoid the following potentially hazardous situations may result in injury or property damage. The unit is designed to provide you with route suggestions. It does not reflect road closures or road conditions, traffic congestion, weather conditions, or other factors that may affect safety or timing while driving. Use the unit only as a navigational aid. Do not attempt to use the unit for any purpose requiring precise measurement of direction, distance, location, or topography. This product should not be used to determine ground proximity for aircraft navigation. The Global Positioning System (GPS) is operated by the United States government, which is solely responsible for its accuracy and maintenance. The government’s system is subject to changes which could affect the accuracy and performance of all GPS equipment, including the unit. Although the unit is a precision navigation device, any navigation device can be misused or misinterpreted and, therefore, become unsafe. The unit has no user-serviceable parts. If you ever have a problem with your unit, take it to an authorized Garmin dealer for repairs. The unit is fastened shut with screws. Any attempt to open the case to change or modify the unit in any way voids your warranty and may result in permanent damage to the equipment. Important Information maP daTa inFormaTion: One of the goals of Garmin is to provide customers with the most complete and accurate cartography that is available to us at a reasonable cost. We use a combination of governmental and private data sources, which we identify in product literature and copyright messages displayed to the consumer. Virtually all data sources contain inaccurate or incomplete data to some extent. In some countries, complete and accurate map information is either not available or is prohibitively expensive. iv StreetPilot 2720 Owner’s Manual

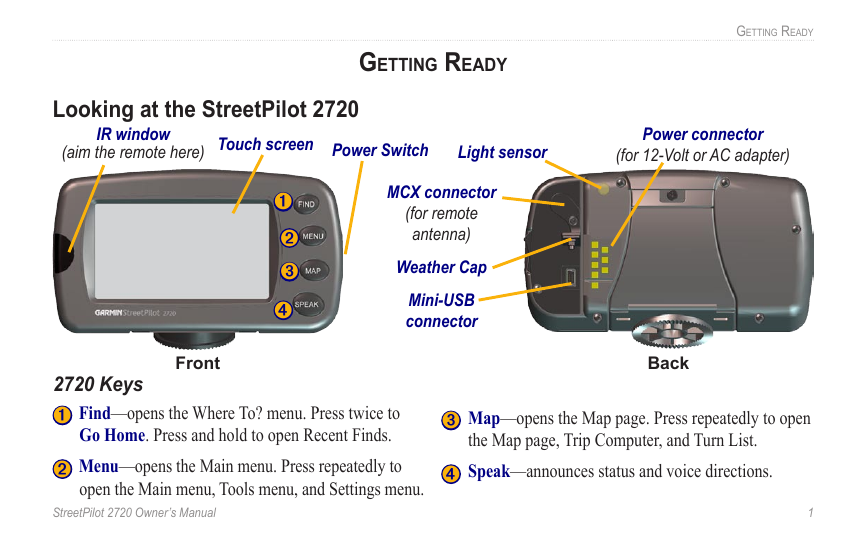

GeTTinG ready GettinG ready Looking at the StreetPilot 2720 (aim the remote here) Touch screen IR window Power Switch Light sensor Power connector (for 12-Volt or AC adapter) ➊ ➋ ➌ ➍ MCX connector (for remote antenna) Weather Cap Mini-USB connector Front 2720 Keys ➊ Find—opens the Where To? menu. Press twice to go home. Press and hold to open Recent Finds. ➋ menu—opens the Main menu. Press repeatedly to open the Main menu, Tools menu, and Settings menu. StreetPilot 2720 Owner’s Manual Back ➌ map—opens the Map page. Press repeatedly to open the Map page, Trip Computer, and Turn List. ➍ Speak—announces status and voice directions.

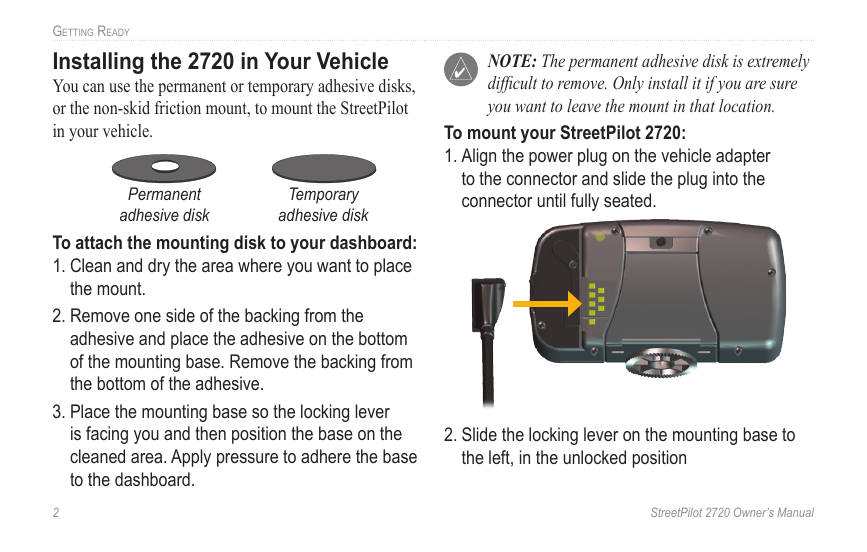

GettinG ready Installing the 2720 in Your Vehicle You can use the permanent or temporary adhesive disks, or the non-skid friction mount, to mount the StreetPilot in your vehicle. Permanent adhesive disk Temporary adhesive disk To attach the mounting disk to your dashboard: 1. Clean and dry the area where you want to place the mount. 2. Remove one side of the backing from the adhesive and place the adhesive on the bottom of the mounting base. Remove the backing from the bottom of the adhesive. 3. Place the mounting base so the locking lever is facing you and then position the base on the cleaned area. Apply pressure to adhere the base to the dashboard. Note: The permanent adhesive disk is extremely difficult to remove. Only install it if you are sure you want to leave the mount in that location. To mount your StreetPilot 2720: 1. Align the power plug on the vehicle adapter to the connector and slide the plug into the connector until fully seated. 2. Slide the locking lever on the mounting base to the left, in the unlocked position 2 StreetPilot 2720 Owner’s Manual
