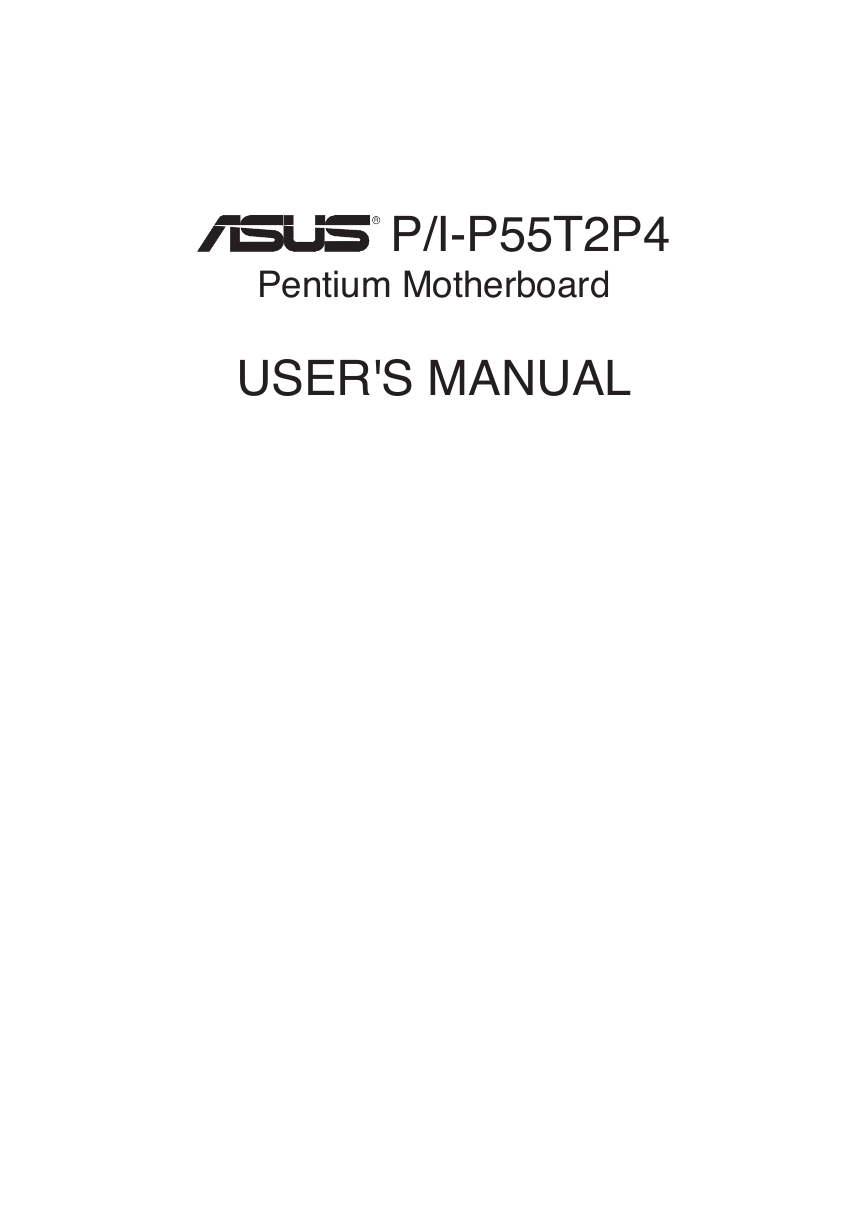

R P/I-P55T2P4 Pentium Motherboard USER'S MANUAL

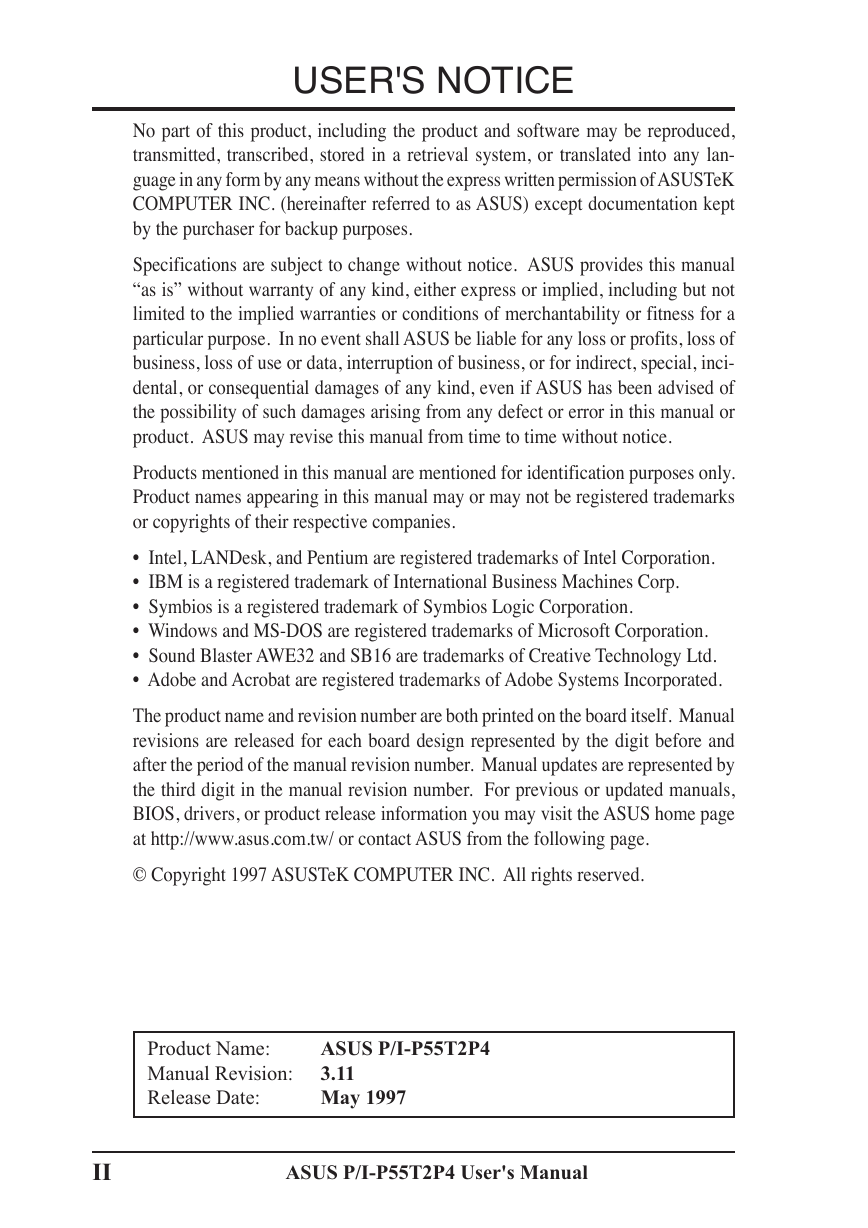

USER'S NOTICE No part of this product, including the product and software may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any lan- guage in any form by any means without the express written permission of ASUSTeK COMPUTER INC. (hereinafter referred to as ASUS) except documentation kept by the purchaser for backup purposes. Specifications are subject to change without notice. ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASUS be liable for any loss or profits, loss of business, loss of use or data, interruption of business, or for indirect, special, inci- dental, or consequential damages of any kind, even if ASUS has been advised of the possibility of such damages arising from any defect or error in this manual or product. ASUS may revise this manual from time to time without notice. Products mentioned in this manual are mentioned for identification purposes only. Product names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies. • Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation. • IBM is a registered trademark of International Business Machines Corp. • Symbios is a registered trademark of Symbios Logic Corporation. • Windows and MS-DOS are registered trademarks of Microsoft Corporation. • Sound Blaster AWE32 and SB16 are trademarks of Creative Technology Ltd. • Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. The product name and revision number are both printed on the board itself. Manual revisions are released for each board design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number. For previous or updated manuals, BIOS, drivers, or product release information you may visit the ASUS home page at http://www.asus.com.tw/ or contact ASUS from the following page. © Copyright 1997 ASUSTeK COMPUTER INC. All rights reserved. Product Name: Manual Revision: Release Date: ASUS P/I-P55T2P4 3.11 May 1997 II ASUS P/I-P55T2P4 User’s Manual

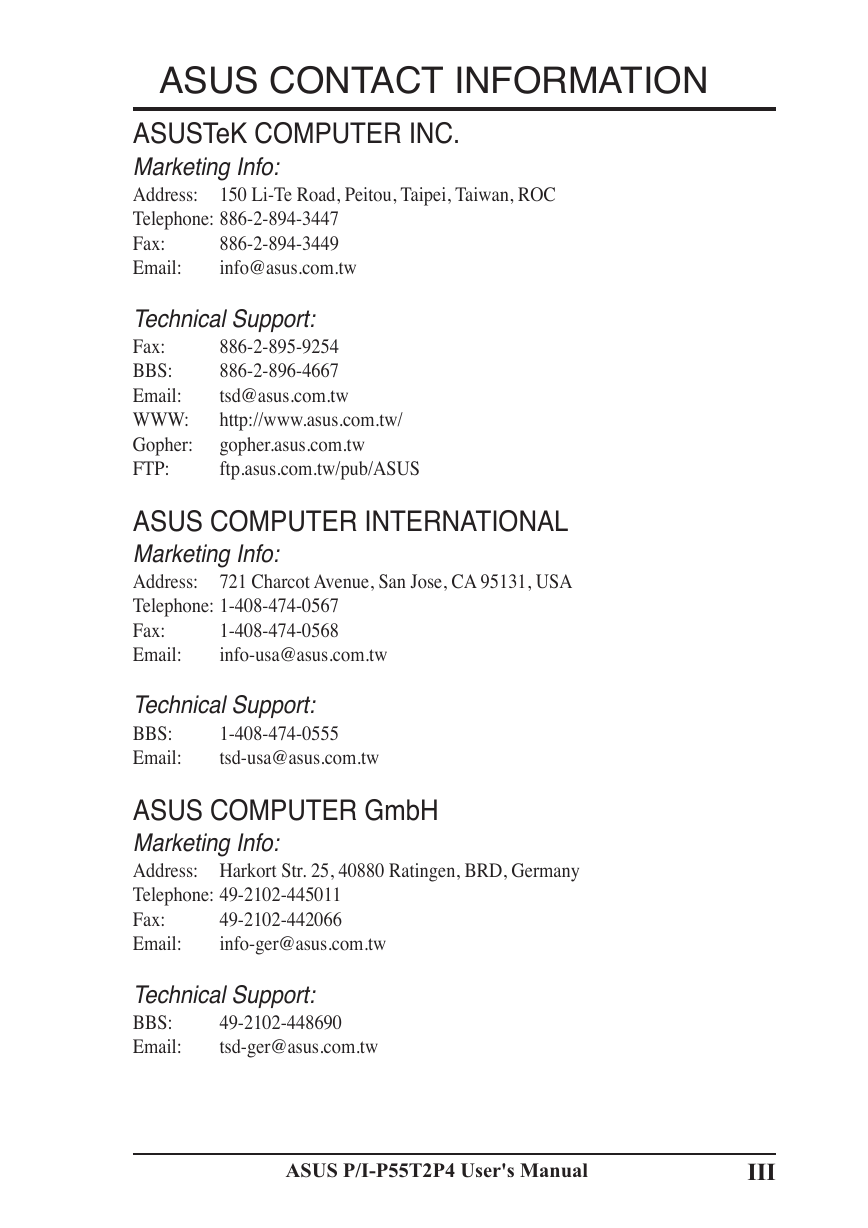

ASUS CONTACT INFORMATION ASUSTeK COMPUTER INC. Marketing Info: Address: Telephone: 886-2-894-3447 886-2-894-3449 Fax: Email: info@asus.com.tw 150 Li-Te Road, Peitou, Taipei, Taiwan, ROC Technical Support: Fax: BBS: Email: WWW: Gopher: FTP: 886-2-895-9254 886-2-896-4667 tsd@asus.com.tw http://www.asus.com.tw/ gopher.asus.com.tw ftp.asus.com.tw/pub/ASUS ASUS COMPUTER INTERNATIONAL Marketing Info: Address: Telephone: 1-408-474-0567 Fax: 1-408-474-0568 info-usa@asus.com.tw Email: 721 Charcot Avenue, San Jose, CA 95131, USA Technical Support: BBS: Email: 1-408-474-0555 tsd-usa@asus.com.tw ASUS COMPUTER GmbH Marketing Info: Address: Harkort Str. 25, 40880 Ratingen, BRD, Germany Telephone: 49-2102-445011 Fax: 49-2102-442066 info-ger@asus.com.tw Email: Technical Support: BBS: Email: 49-2102-448690 tsd-ger@asus.com.tw ASUS P/I-P55T2P4 User’s Manual III

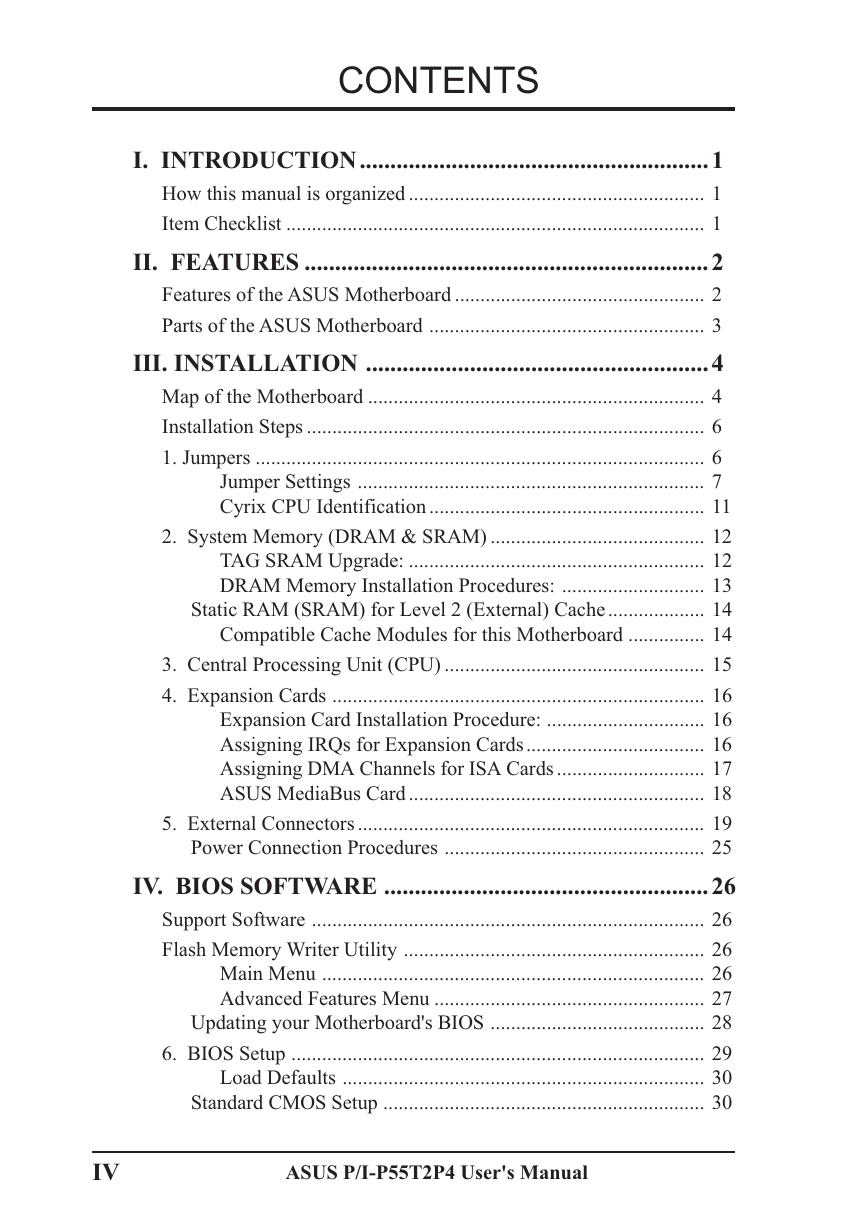

CONTENTS I. INTRODUCTION......................................................... 1 How this manual is organized .......................................................... 1 Item Checklist .................................................................................. 1 II. FEATURES .................................................................. 2 Features of the ASUS Motherboard ................................................. 2 Parts of the ASUS Motherboard ...................................................... 3 III. INSTALLATION ........................................................ 4 Map of the Motherboard .................................................................. 4 Installation Steps .............................................................................. 6 1. Jumpers ........................................................................................ 6 Jumper Settings .................................................................... 7 Cyrix CPU Identification ...................................................... 11 2. System Memory (DRAM & SRAM) .......................................... 12 TAG SRAM Upgrade: .......................................................... 12 DRAM Memory Installation Procedures: ............................ 13 Static RAM (SRAM) for Level 2 (External) Cache ................... 14 Compatible Cache Modules for this Motherboard ............... 14 3. Central Processing Unit (CPU) ................................................... 15 4. Expansion Cards ......................................................................... 16 Expansion Card Installation Procedure: ............................... 16 Assigning IRQs for Expansion Cards................................... 16 Assigning DMA Channels for ISA Cards ............................. 17 ASUS MediaBus Card .......................................................... 18 5. External Connectors .................................................................... 19 Power Connection Procedures ................................................... 25 IV. BIOS SOFTWARE ..................................................... 26 Support Software ............................................................................. 26 Flash Memory Writer Utility ........................................................... 26 Main Menu ........................................................................... 26 Advanced Features Menu ..................................................... 27 Updating your Motherboard’s BIOS .......................................... 28 6. BIOS Setup ................................................................................. 29 Load Defaults ....................................................................... 30 Standard CMOS Setup ............................................................... 30 IV ASUS P/I-P55T2P4 User’s Manual

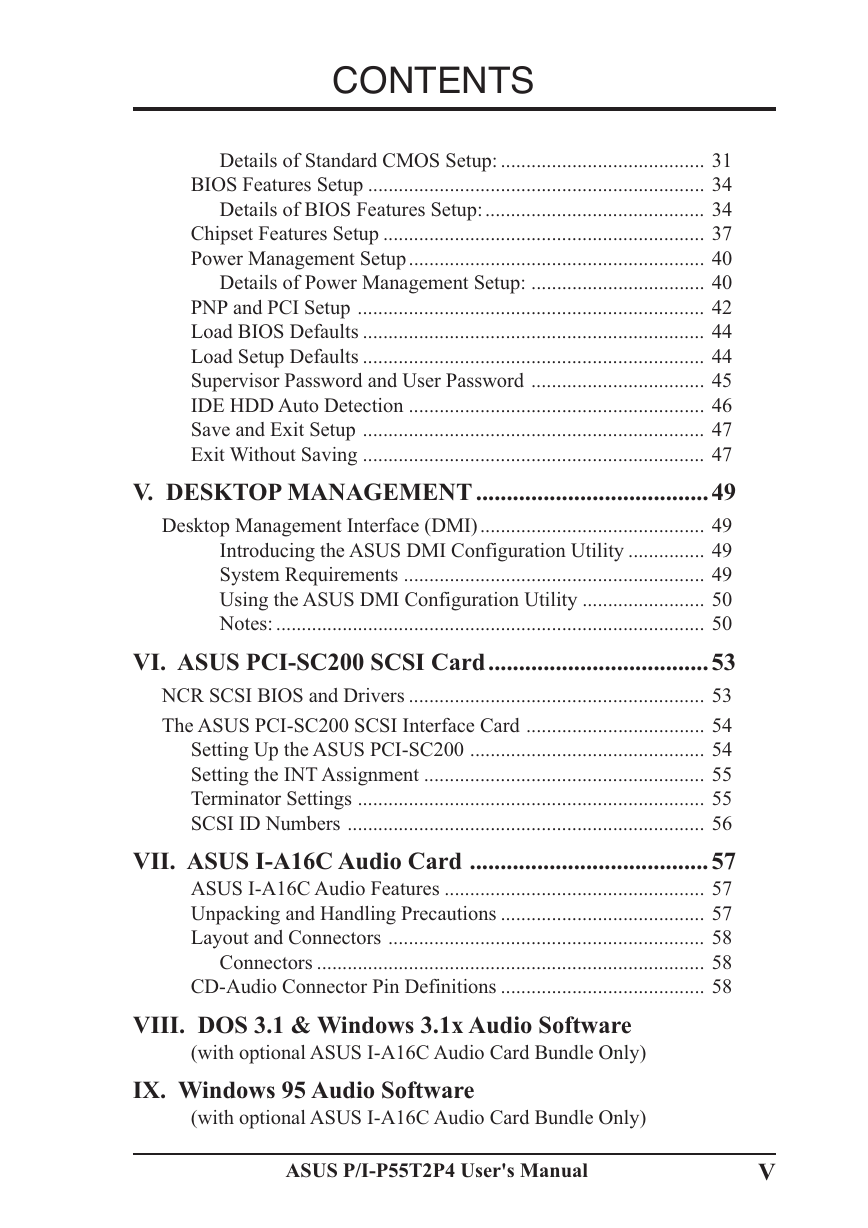

CONTENTS Details of Standard CMOS Setup: ........................................ 31 BIOS Features Setup .................................................................. 34 Details of BIOS Features Setup: ........................................... 34 Chipset Features Setup ............................................................... 37 Power Management Setup.......................................................... 40 Details of Power Management Setup: .................................. 40 PNP and PCI Setup .................................................................... 42 Load BIOS Defaults ................................................................... 44 Load Setup Defaults ................................................................... 44 Supervisor Password and User Password .................................. 45 IDE HDD Auto Detection .......................................................... 46 Save and Exit Setup ................................................................... 47 Exit Without Saving ................................................................... 47 V. DESKTOP MANAGEMENT ...................................... 49 Desktop Management Interface (DMI) ............................................ 49 Introducing the ASUS DMI Configuration Utility ............... 49 System Requirements ........................................................... 49 Using the ASUS DMI Configuration Utility ........................ 50 Notes: .................................................................................... 50 VI. ASUS PCI-SC200 SCSI Card.................................... 53 NCR SCSI BIOS and Drivers .......................................................... 53 The ASUS PCI-SC200 SCSI Interface Card ................................... 54 Setting Up the ASUS PCI-SC200 .............................................. 54 Setting the INT Assignment ....................................................... 55 Terminator Settings .................................................................... 55 SCSI ID Numbers ...................................................................... 56 VII. ASUS I-A16C Audio Card ....................................... 57 ASUS I-A16C Audio Features ................................................... 57 Unpacking and Handling Precautions ........................................ 57 Layout and Connectors .............................................................. 58 Connectors ............................................................................ 58 CD-Audio Connector Pin Definitions ........................................ 58 VIII. DOS 3.1 & Windows 3.1x Audio Software (with optional ASUS I-A16C Audio Card Bundle Only) IX. Windows 95 Audio Software (with optional ASUS I-A16C Audio Card Bundle Only) ASUS P/I-P55T2P4 User’s Manual V

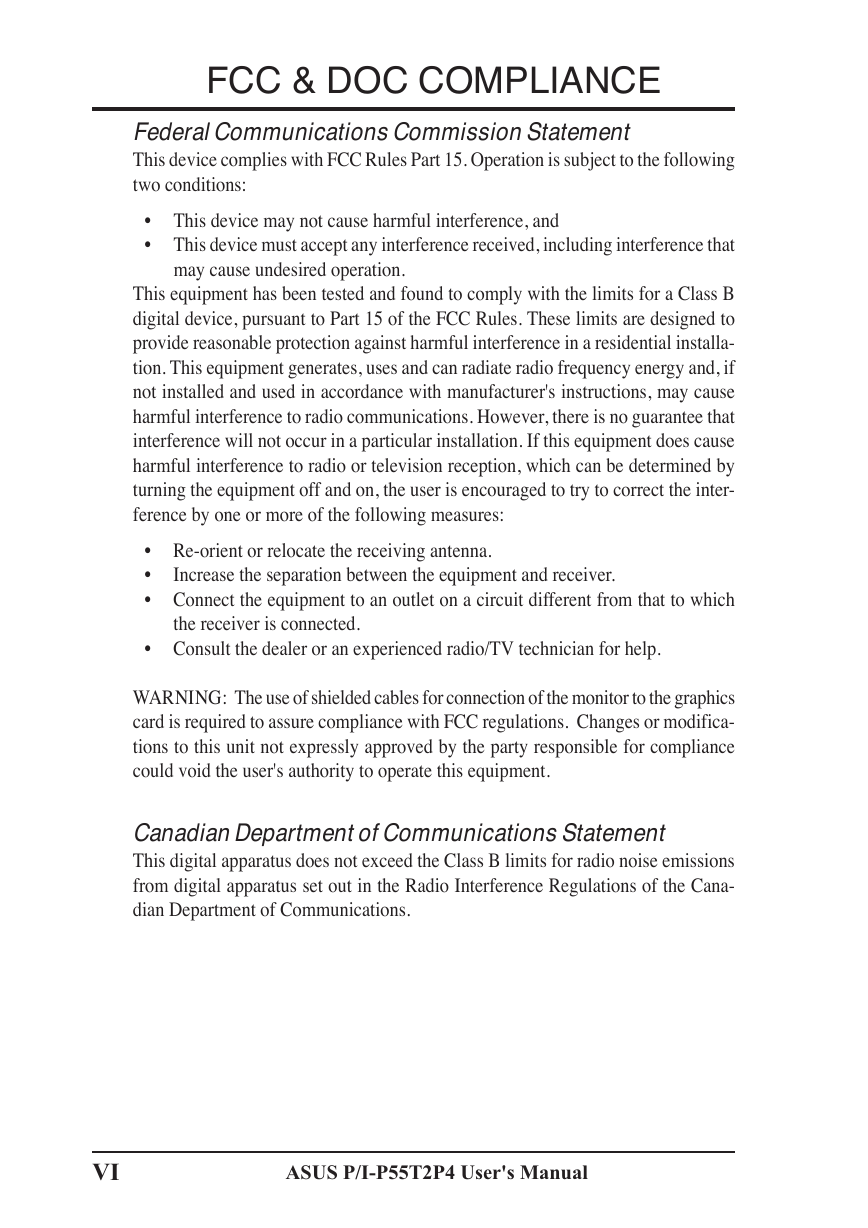

FCC & DOC COMPLIANCE Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter- ference by one or more of the following measures: • Re-orient or relocate the receiving antenna. • • Connect the equipment to an outlet on a circuit different from that to which Increase the separation between the equipment and receiver. the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING: The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifica- tions to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Cana- dian Department of Communications. VI ASUS P/I-P55T2P4 User’s Manual

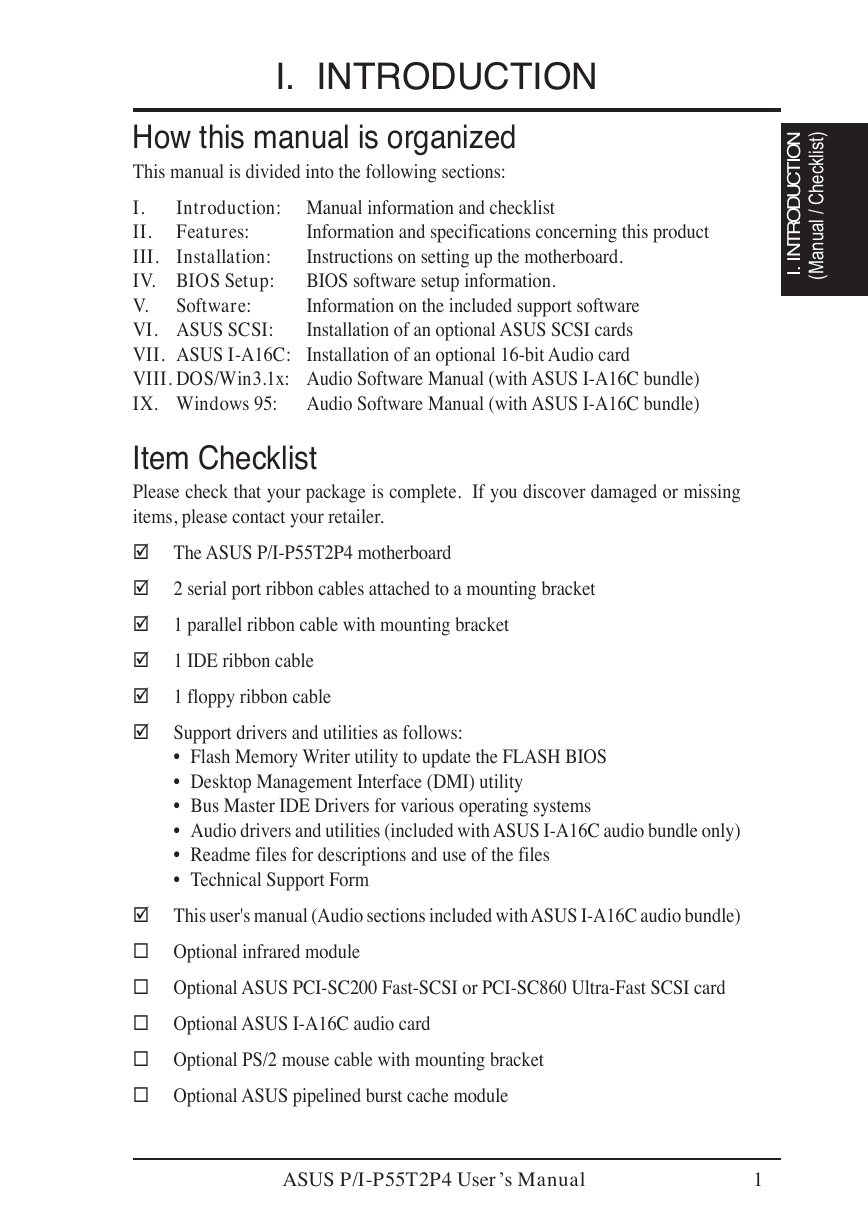

) t s i l I N O T C U D O R T N I . I k c e h C / l a u n a M ( I. INTRODUCTION How this manual is organized This manual is divided into the following sections: Introduction: Manual information and checklist I. Features: II. Installation: III. IV. BIOS Setup: V. VI. ASUS SCSI: VII. ASUS I-A16C: VIII. DOS/Win3.1x: Audio Software Manual (with ASUS I-A16C bundle) IX. Windows 95: Audio Software Manual (with ASUS I-A16C bundle) Information and specifications concerning this product Instructions on setting up the motherboard. BIOS software setup information. Information on the included support software Installation of an optional ASUS SCSI cards Installation of an optional 16-bit Audio card Software: Item Checklist Please check that your package is complete. If you discover damaged or missing items, please contact your retailer. The ASUS P/I-P55T2P4 motherboard 2 serial port ribbon cables attached to a mounting bracket 1 parallel ribbon cable with mounting bracket 1 IDE ribbon cable 1 floppy ribbon cable Support drivers and utilities as follows: • Flash Memory Writer utility to update the FLASH BIOS • Desktop Management Interface (DMI) utility • Bus Master IDE Drivers for various operating systems • Audio drivers and utilities (included with ASUS I-A16C audio bundle only) • Readme files for descriptions and use of the files • Technical Support Form This user's manual (Audio sections included with ASUS I-A16C audio bundle) ¤ Optional infrared module ¤ Optional ASUS PCI-SC200 Fast-SCSI or PCI-SC860 Ultra-Fast SCSI card ¤ Optional ASUS I-A16C audio card ¤ Optional PS/2 mouse cable with mounting bracket ¤ Optional ASUS pipelined burst cache module ASUS P/I-P55T2P4 User’s Manual 1

( F e a t I I . F E A T U R E S u r e s ) II. FEATURES Features of the ASUS Motherboard The ASUS P/I-P55T2P4 is carefully designed for the demanding PC user who wants a great many features in a small package. This motherboard: • Easy Installation: Is equipped with BIOS that supports auto detection of hard drives and Plug and Play to make setup of hard drives and expansion cards virtually automatic. • Versatile Processor Support: Intel Pentium® 75-233MHz (P55C-MMX™, P54C/ P54CS), IBM®/Cyrix® 6x86-PR166+ (Rev 2.7 or later), IBM®/Cyrix® 6x86MX™ (PR166 & above), AMD-K5™ (PR75-PR133), AMD-K6™ (PR166-PR233). Intel Chipset: Features Intel's 430HX PCIset with I/O subsystems. • • Error Checking and Correcting (ECC): Using Intel's 430HX PCIset together with parity DRAM modules can detect multi-bit memory errors and correct 1- bit memory errors. • Desktop Management Interface (DMI): Supports DMI through BIOS which allows hardware to communicate within a standard protocol creating a higher level of compatibility (see section V). • L2 Cache: Provides the option of 0KB upgradeable to 256KB or 512KB, on- board 256KB upgradeable to 512KB, or 512KB onboard Pipelined Burst SRAM. Upgrades are made through a Synchronous SRAM cache module. (See page 14 for compatible cache modules.) • Versatile DRAM Memory Support: Supports 72-pin SIMMs of 4MB, 8MB, 16MB, 32MB, or 64MB to form a memory size between 8MB to 256MB. Sup- ports both Fast Page Mode (FPM) and Extended Data Output (EDO) SIMMs. ISA and PCI Expansion Slots: Provides three 16-bit ISA slots, three 32-bit PCI slots, and one PCI/MediaBus 2.0 which allows the use of either a standard PCI card or the ASUS MediaBus Card. • • • ASUS MediaBus Rev 2.0: Features an expansion slot extension shared with PCI Slot 4 for an optional high-performance expansion card which includes two functions in one easy-to-install card. (For revision compatibility informa- tion, please refer to page 18.) Super Multi-I/O: Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for wireless connections. Two floppy drives of either 5.25" or 3.5" (1.44MB or 2.88MB) are also supported without an exter- nal card. The Japanese "Floppy 3 mode" (3.5" 1.2MB) floppy standard is also supported. 2 ASUS P/I-P55T2P4 User’s Manual
